3rd Gen Tacoma Power Folding Mirrors

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by KTJO 4x4, Mar 2, 2019.

Thread Status:
Not open for further replies.
  1. Dec 26, 2019 at 3:35 PM
    #841
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter
    Oh yeah don’t worry. I hate depinning connectors. I’m not going to touch that part. I’m routing through the door now. I’m sure I’ll be here for a while.

  2. Dec 26, 2019 at 3:36 PM
    #842
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.

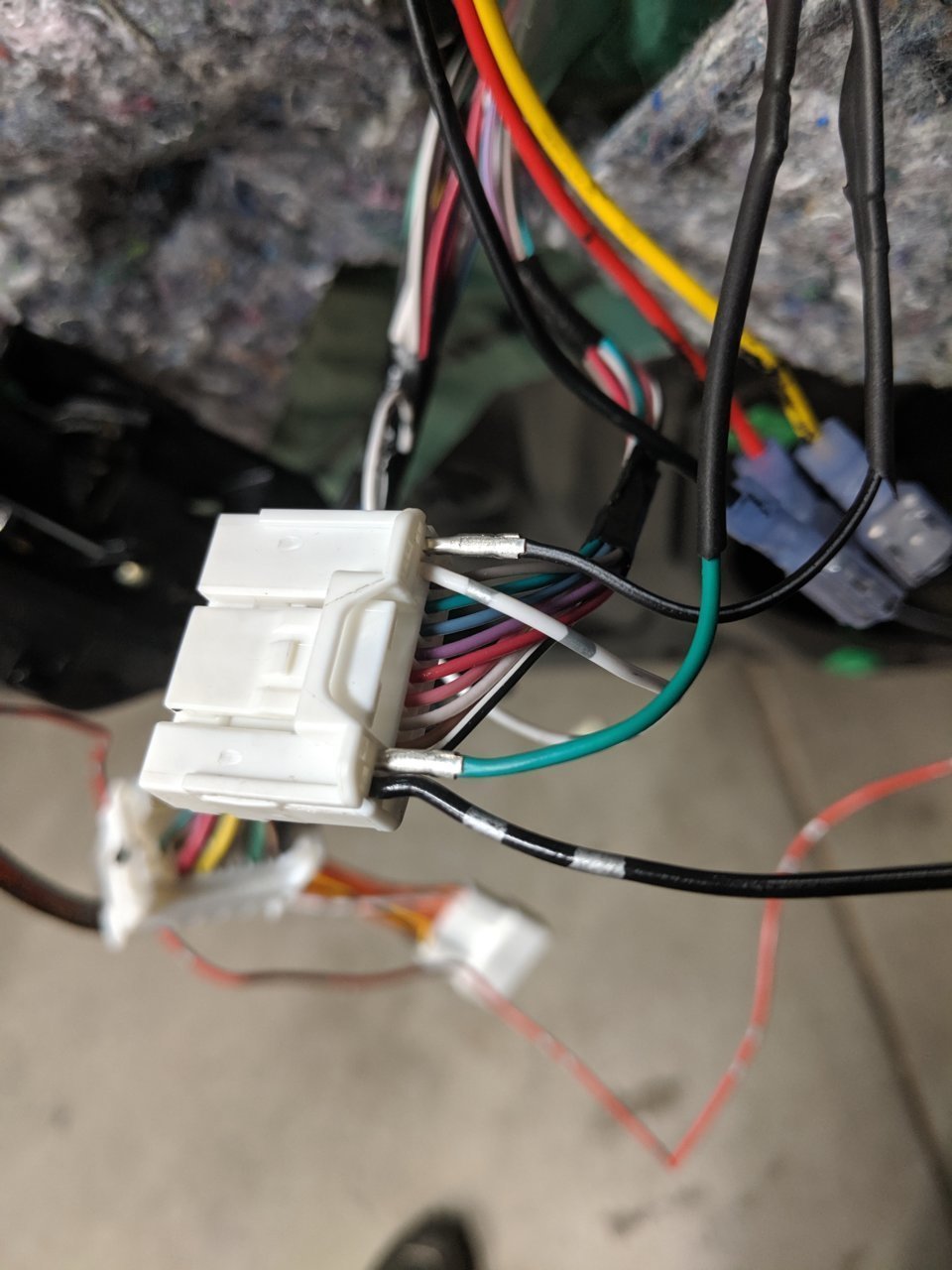

    So, the black, black with stripe, green, and white with grey are all wires you have to install into that connector.

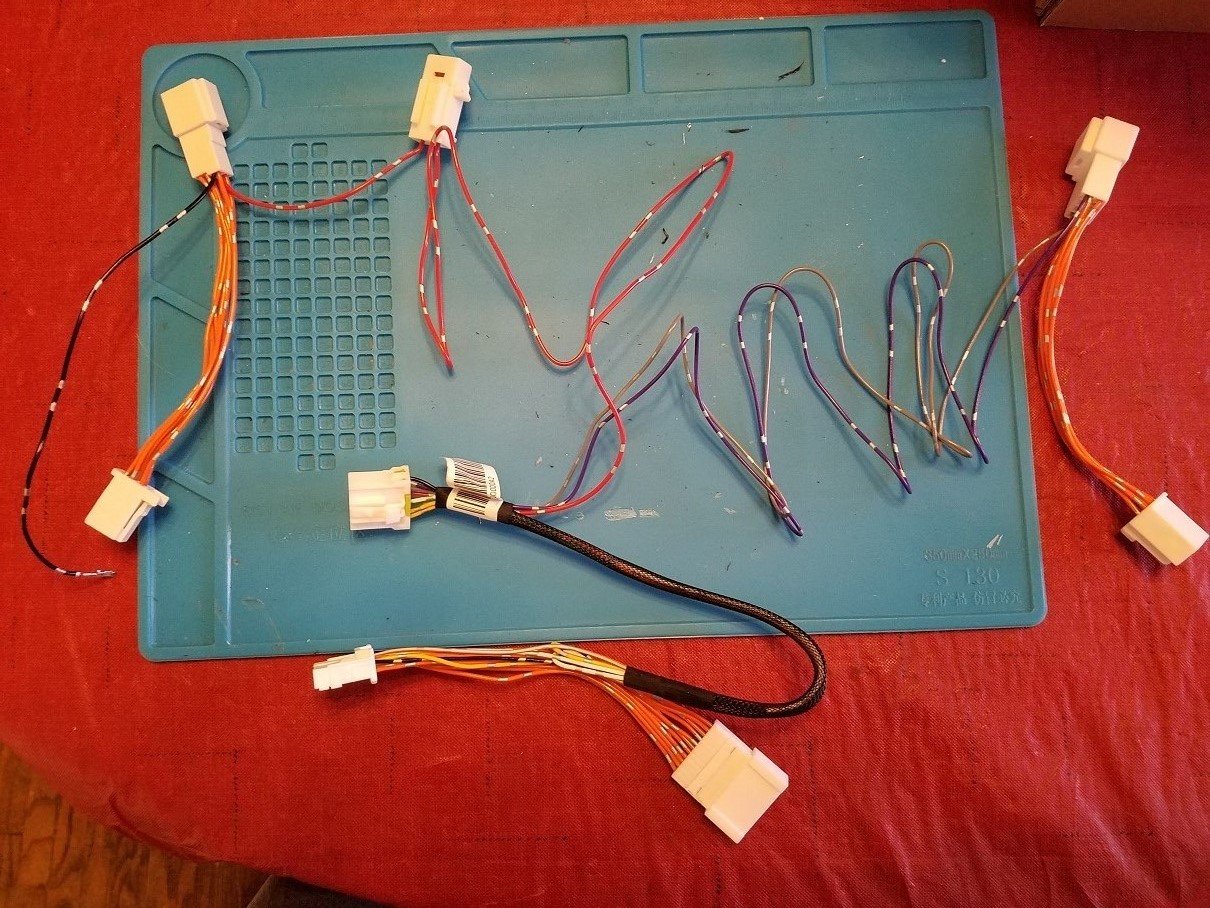

    This is what it started out looking like

  3. Dec 26, 2019 at 3:46 PM
    #843
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    That does not look familiar.

  4. Dec 26, 2019 at 3:52 PM
    #844
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter
    Hmm. Weird. Mine doesn’t look like that. The connector does. But not the wires.

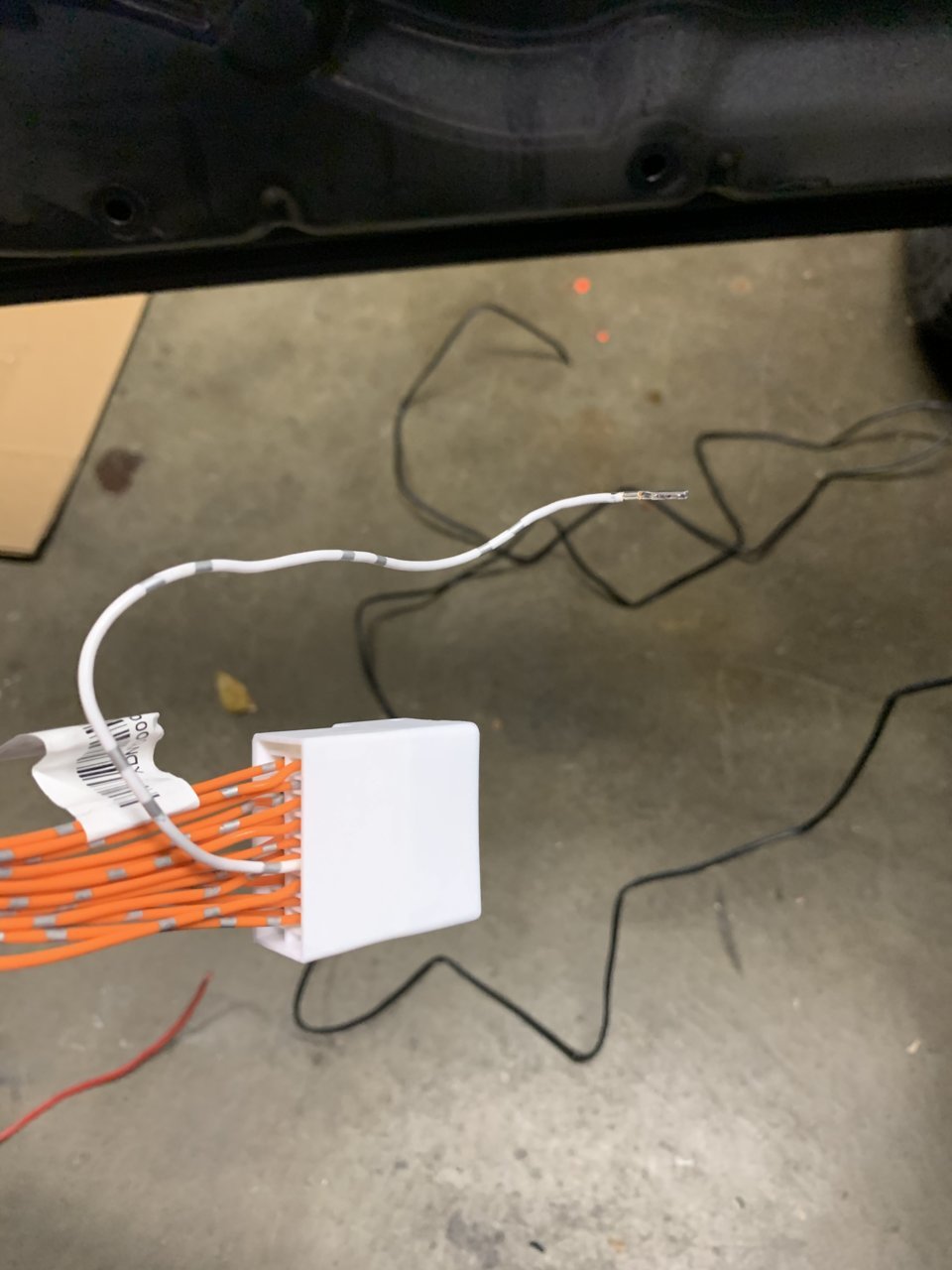

    Also that big connector has the loose wire I need to make four.

    Pics of both.


  5. Dec 26, 2019 at 3:54 PM
    #845
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter

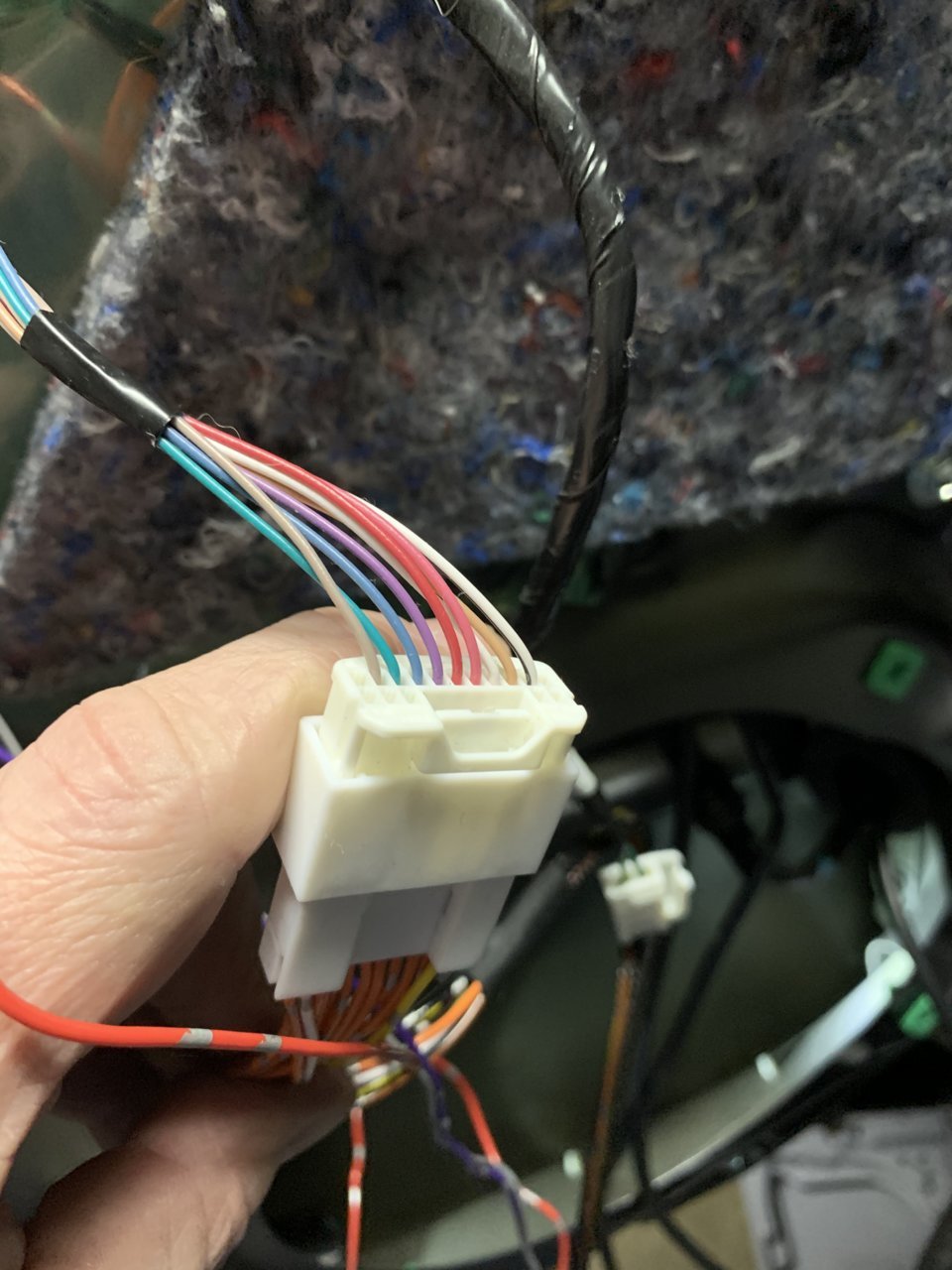

    Oh wait. This connector looks like yours. So I guess I pin here.


    KTJO 4x4[OP] and fatboyfirebass like this.
  6. Dec 26, 2019 at 3:55 PM
    #846
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    I think the connector in my picture, is the one in the background of your picture.

  7. Dec 26, 2019 at 3:57 PM
    #847
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.

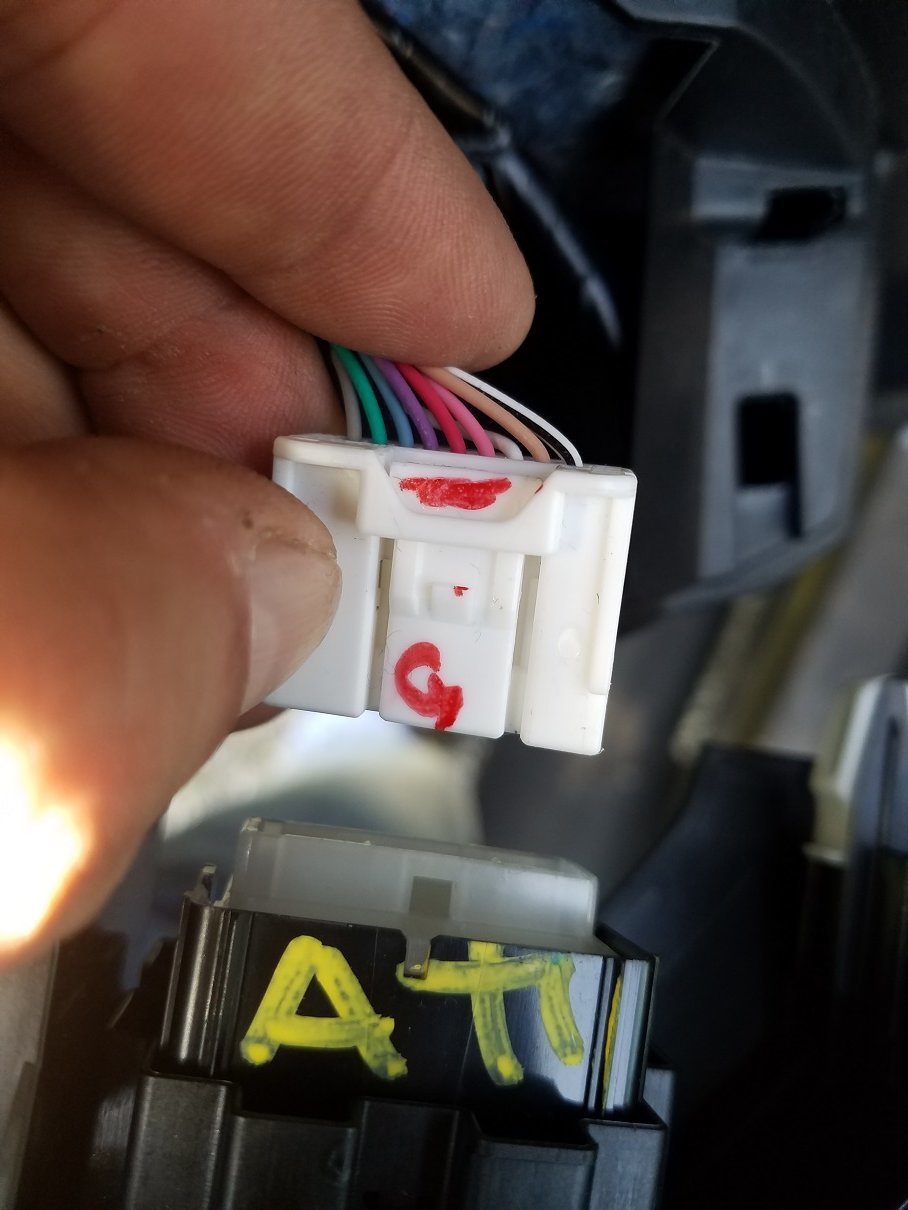

    I'm still going through my pics. Basically I stated at the lock connector and labeled each one "A","B", so on and then have pictures of where each one ended up on the door.

  8. Dec 26, 2019 at 4:01 PM
    #848
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    Here is one of the earlier pictures OP posted. it has a pretty good layout to follow. I know the newer kits have that breakout harness. But this may get you what you need.

    KTJO 4x4[OP] likes this.
  9. Dec 26, 2019 at 4:10 PM
    #849
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter

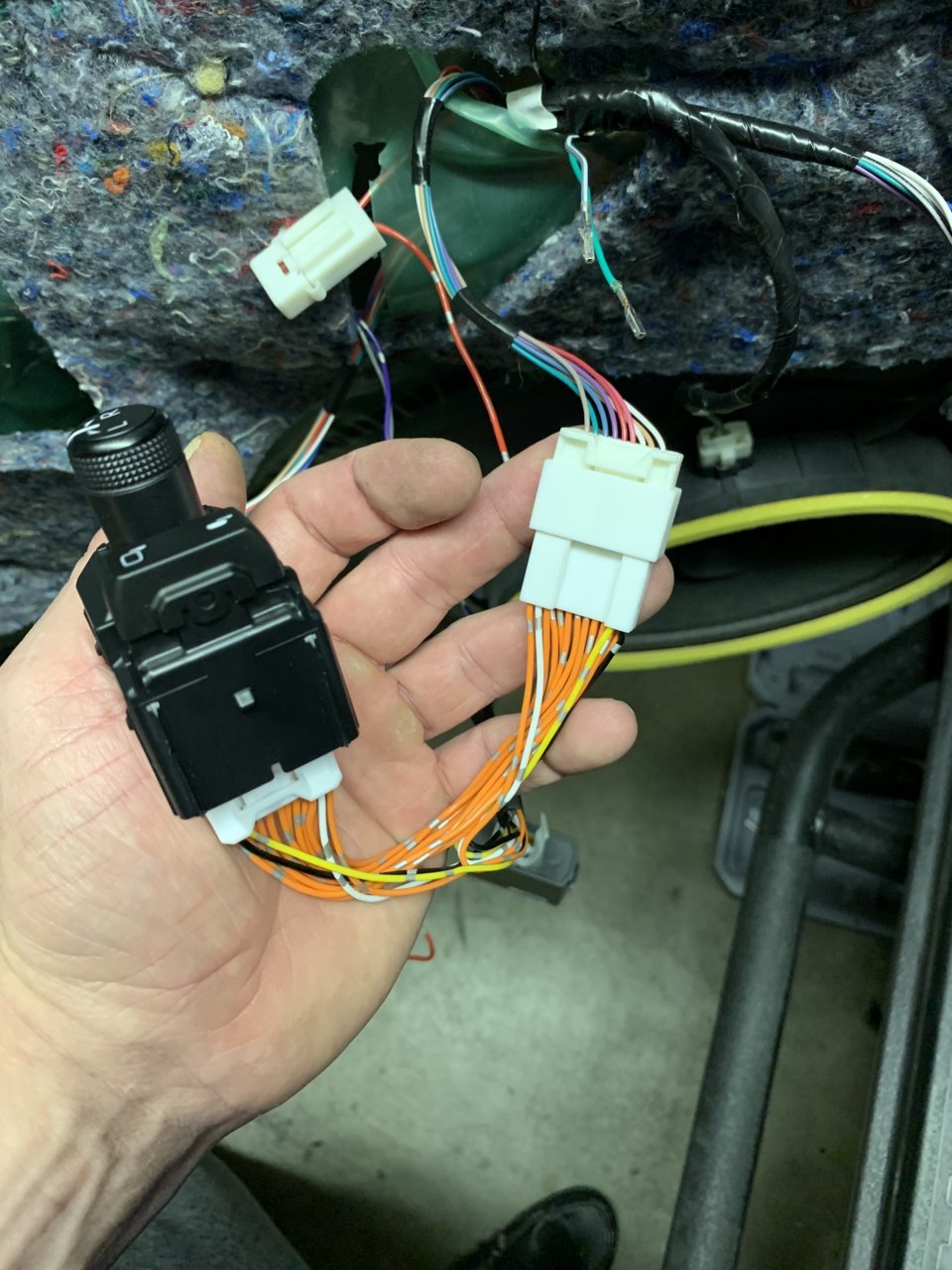

    The one you added the wires to...is it the one that also plugs into the mirror switch. See here.

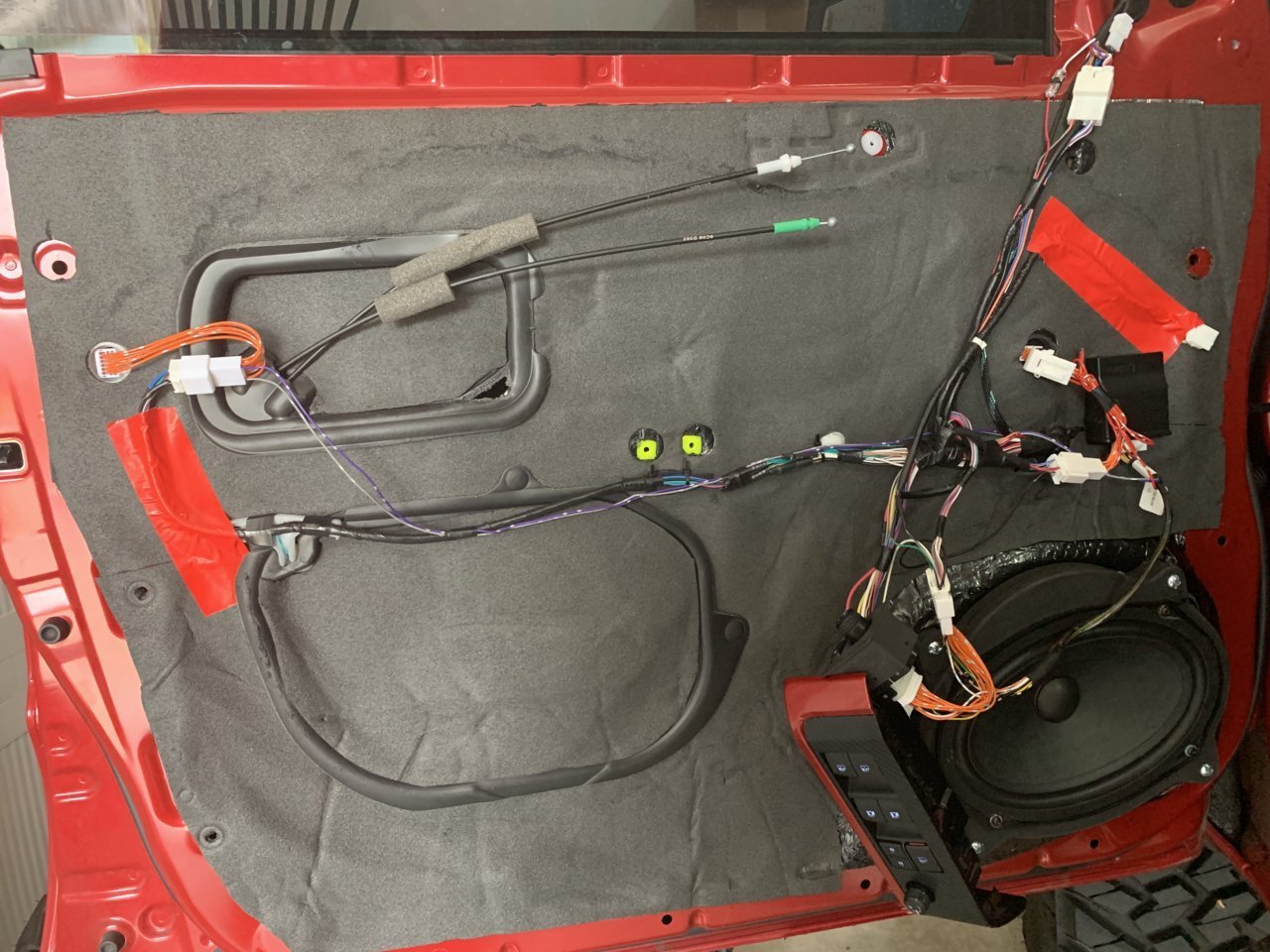

    So now I’m just left with this big connector. If it didn’t the loose wire I’d just try it all without it and see what happens. Maybe I will anyway. Just need to make sure I pin my three wires (no longer four) into the right connector.


  10. Dec 26, 2019 at 4:29 PM
    #850
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter
    Okay. I watched the video again. I think I think I have wrong harness adapter. The video he plugs the big connector into what looks like the window switch. My window switch is much smaller and I don't have an adapter that goes into it.

    I'll wait for @KTJO 4x4 to reply too.

    KTJO 4x4[OP] likes this.
  11. Dec 26, 2019 at 4:30 PM
    #851
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    correct the one that goes to the mirror switch. sorry, I was going back through some PM's from the time I did my install.
    I had a thought too. Does that break out harness go between the connector and the receptacle at the back of the OEM bezel? That's the connector I had to tap to get my ACC. Your kit has the wire already in it.

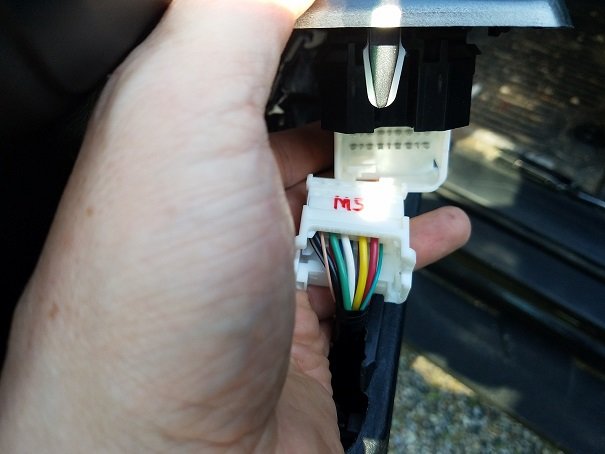

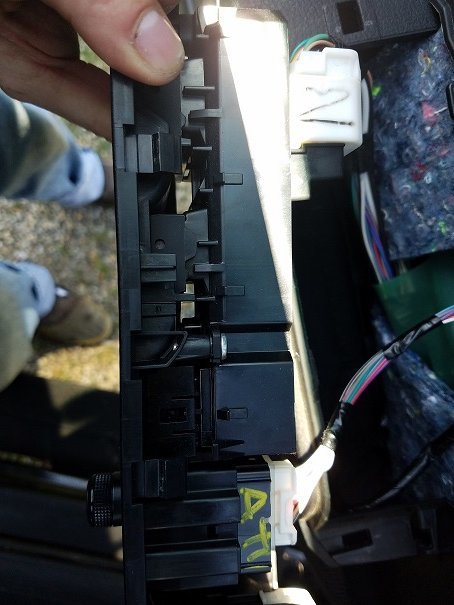

    20190713_095656.jpg 20190713_100053.jpg

    Last edited: Dec 26, 2019
  12. Dec 26, 2019 at 4:57 PM
    #852
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter
    So I either did something wrong somewhere or I do need that gray wire and other harness.

    I plugged everything in. Nothing with the mirror works. No folding and no adjustments. I doubt that’s the gray wire only.

  13. Dec 26, 2019 at 4:59 PM
    #853
    Tacoaric

    Tacoaric Well-Known Member

    Joined:
    Nov 21, 2017
    Member:
    #236579
    Messages:
    3,298
    Gender:
    Male
    Dallas, Texas
    Vehicle:
    King Ranch F250 Powerstroke
    Man, I got fuckin roasted for wanting these a year or so ago lol

    KTJO 4x4[OP] likes this.
  14. Dec 26, 2019 at 5:06 PM
    #854
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    you need the white w/grey for the ACC power. the solid black and solid green come in from your mirrors. and the black with white strip comes in from the PNP harness.

    KTJO 4x4[OP] likes this.
  15. Dec 26, 2019 at 5:14 PM
    #855
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter
    That’s good to know. I hooked everything up on the driver side and my bsm works, the mirror adjust works on the passenger side but not the driver side.

    Problem is with the gray wire I don’t have a harness that works. Maybe I’ll just so live into a wire and connect the gray on my own since I know what the gray does.

  16. Dec 26, 2019 at 5:15 PM
    #856
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    You also need to make sure you have the crimps and pins facing the right way when you insert them into the connector. There is a keyway in the housing and a small tab on the pin itself. If you have it facing the wrong way, it will start but not seat fully. So, evern though all the wires are there, you wont get an electrical connection and nothing will work. I chased this very electrical gremilin for hours when I did my install.

  17. Dec 26, 2019 at 5:16 PM
    #857
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    the old kits did a live splice.

  18. Dec 26, 2019 at 5:19 PM
    #858
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    first, isolate the Master switch connector. It was at the back of the window switch housing. from there Isolate the large white wire in the middle. Yu will have to remove a couple strips of tape to get a good handle.
    [​IMG]
    [​IMG]

  19. Dec 26, 2019 at 5:21 PM
    #859
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.

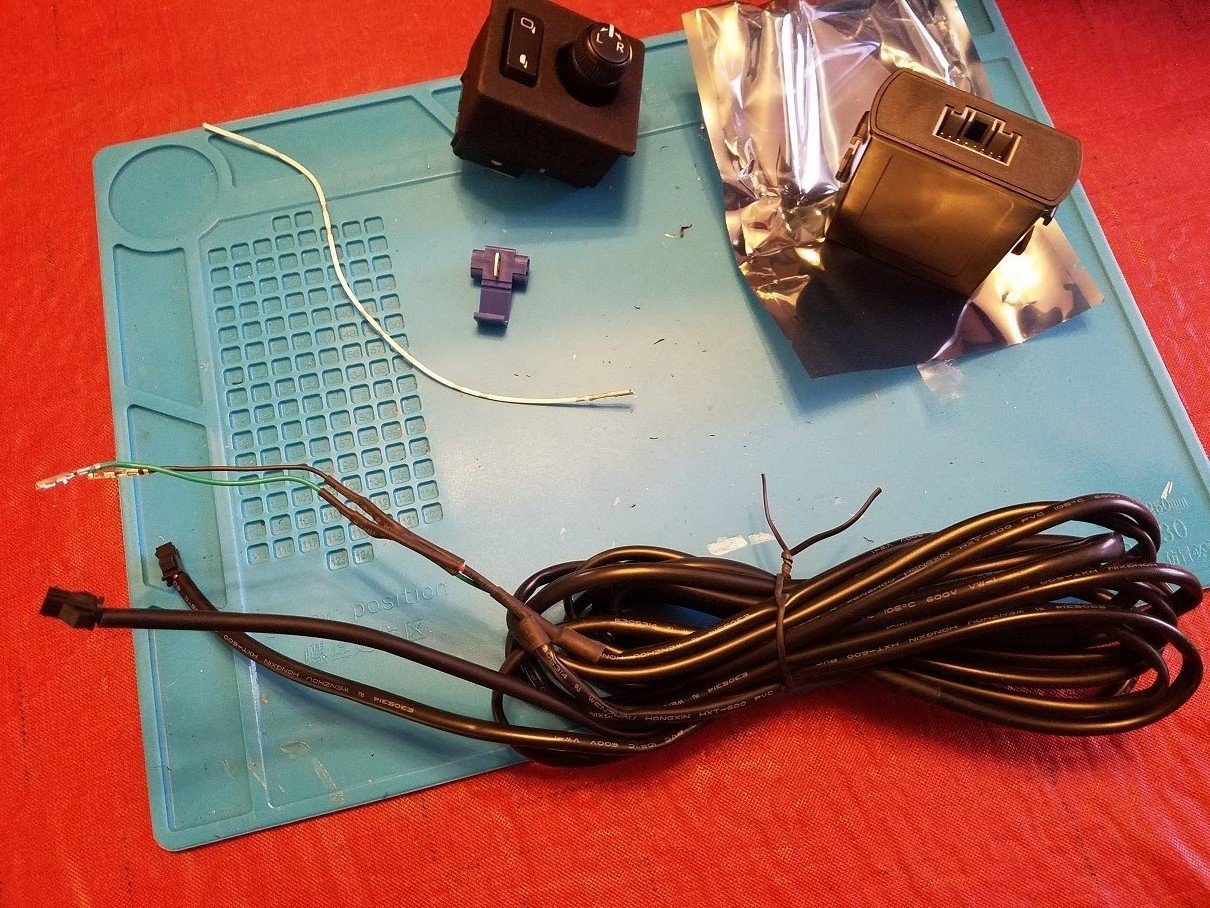

    Now get the spare white wire and the splice tap. Tap the lone white wire with silver strip into the large white wire from the master switch.
    [​IMG]
    [​IMG]
    [​IMG]
    NOTE: in the background 2 of the wires are in the wrong location in the O1 switch, and the crimps are facing the WRONG way

  20. Dec 26, 2019 at 5:34 PM
    #860
    erok81

    erok81 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    5,708
    Gender:
    Male
    Vehicle:
    Imposter
    Im pretty sure I did these correctly. I tried a few ways and couldn’t ever get them to seat. I got them to fully seat and click into place. So fingers crossed.

    I think this is my only choice now. Hopefully that fixes the issue I have on the driver. I’m pulling apart the passenger side now then I’ll go back to the wiring.
