3Rz connector help

Discussion in '1st Gen. Tacomas (1995-2004)' started by jonathan2986, Apr 30, 2017.

  1. Apr 30, 2017 at 3:42 PM
    #1
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    Hello, i had a 2.7 3rz supercharged that blew up last summer and spend the winter preparing my new engine, now that it's done I dropped it in the car and connecting everything. By the time i was done I lifted the car to do some adjusting and stuff and realized there was stiff a connector left, i spend hours trying to figure out where it went and my engine cranks but wont start, I have spark and gaz

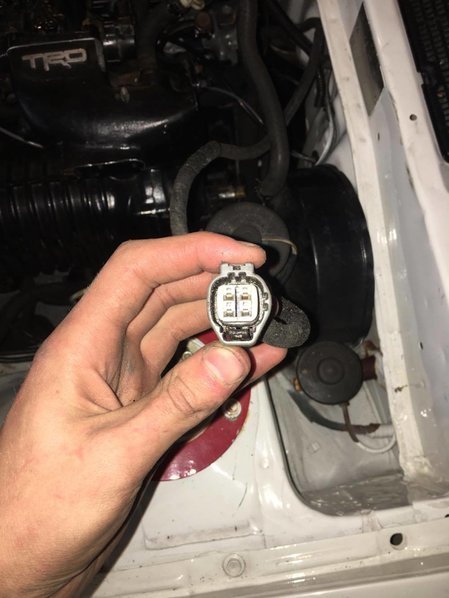

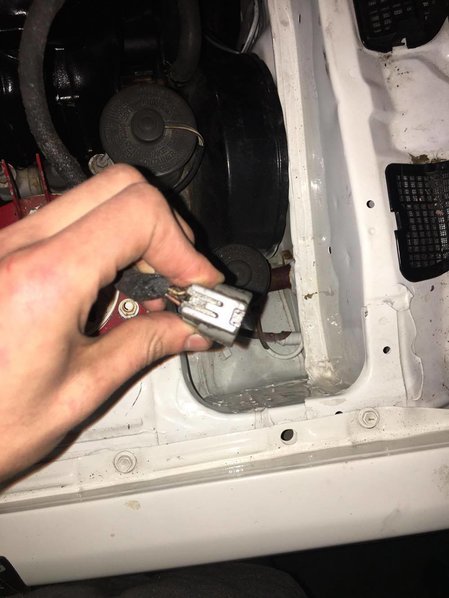

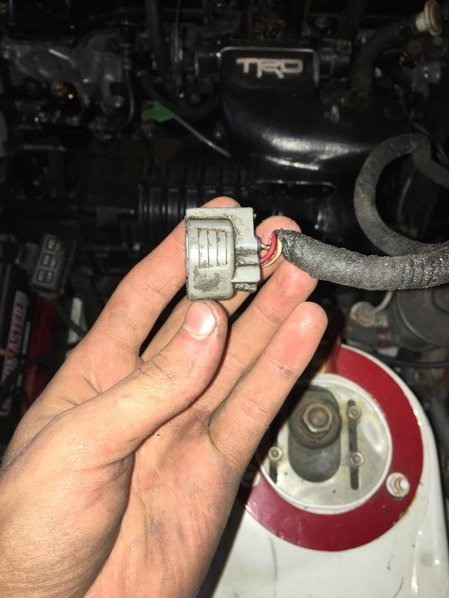

    This is the connector, any idea where it goes? and if this may be the reason why it doesn't start?


  2. Apr 30, 2017 at 5:15 PM
    #2
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,931
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    What year is the truck?

  3. Apr 30, 2017 at 5:16 PM
    #3
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
  4. Apr 30, 2017 at 5:23 PM
    #4
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,931
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    Get a pic with other things included. What corner of the engine compartment?

  5. Apr 30, 2017 at 5:33 PM
    #5
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    that's the thing, it was dangling under the car, it's in the same part of the harness as the cam, crank and throttle sensors

  6. Apr 30, 2017 at 5:38 PM
    #6
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,931
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    What side of the engine compartment?

  7. Apr 30, 2017 at 5:40 PM
    #7
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,888
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish
    Looks a lot like an o2 sensor plug?

  8. Apr 30, 2017 at 5:48 PM
    #8
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    I thought so at first but since it's cat delete and the other o2 sensor is already plugged in to another connector

  9. Apr 30, 2017 at 5:49 PM
    #9
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    could it be the cat wiring just left for dead ?
    ( the guy i bought it from did all the mods so i have no clue)

  10. Apr 30, 2017 at 5:58 PM
    #10
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,888
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish
    Where does the harness connect to the main harness at?

  11. Apr 30, 2017 at 6:04 PM
    #11
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    i dont know, probably on the other side of the firewall or it's all under the protection casing of the harness as this is a swap and the harness is custom

  12. May 1, 2017 at 5:36 AM
    #12
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,931
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    The connector resembles the cruise control plug on my truck, although I don't have CC.

    Not sure but, with the oil residue on the connector, it could attach to a low oil sensor near the oil filter.

  13. May 1, 2017 at 6:26 AM
    #13
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    I don't have CC either so it may be a left over plug but i'll check near the oil filter and let you guys know

  14. May 1, 2017 at 9:53 AM
    #14
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,888
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish
    You have both o2s accounted for? Im still leaning towards o2 plug

  15. May 1, 2017 at 9:54 AM
    #15
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    Just to be sure where are they?

  16. May 1, 2017 at 9:55 AM
    #16
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,888
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish
    One on either side of the cat

  17. May 1, 2017 at 9:56 AM
    #17
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    I have no cat so that solves the problem

  18. May 1, 2017 at 9:58 AM
    #18
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB

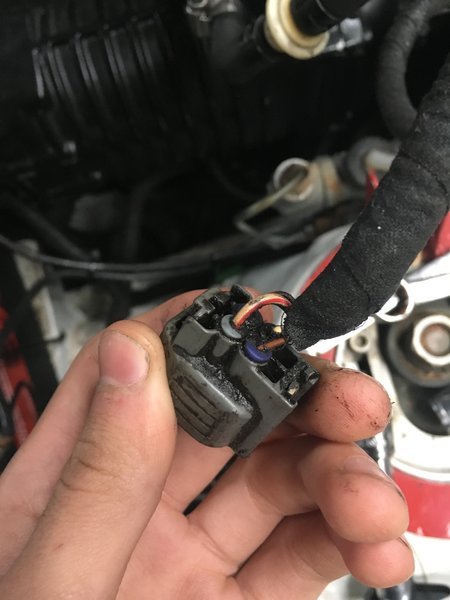

    What are the 4 colors of wires? Looks like two are red/black, white/black?

  19. May 1, 2017 at 11:09 AM
    #19
    jonathan2986

    jonathan2986 [OP] Active Member

    Joined:
    Apr 30, 2017
    Member:
    #217751
    Messages:
    43
    Gender:
    Male
    Vehicle:
    3rz
    Red/black
    White/black
    Orange
    White


  20. May 1, 2017 at 11:45 AM
    #20
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    What you have there is the Air Fuel Ratio Sensor Plug (Bank 1 Sensor 1). Like others have posted, that actual plug is meant for an O2 sensor. Should be for your pre-cat sensor.


    Attached Files:

    • A23.pdf
      File size:
      893 KB
      Views:
      14
    COMAtized99 likes this.
