4.0 1gre no power

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Dvrich, Aug 10, 2023.

  1. Aug 10, 2023 at 1:01 PM
    #1
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    Hey ya'll. back again for more punishment.

    So i had some electrical issues that were giving me a no start situation. thanks to a ton of help from the Gurus here i finally got that solved. ended up replacing interior fuse box due to intermittent faulty connections on ignition circuit.

    was having issues with drivability and assumed it was due to clogged injectors. well got them back from FI shop after having them professionally cleaned and they said they were in great shape. So I think my problem lies else where. At idle it runs great, but when i actually drive it, it feels like its running out of gas. and started throwing code for bank too lean. Im getting my piggyback ecu sent back from URD after getting a new board put in it. so ill put it all back together and double check its doing the same thing. will be getting a Fuel pressure gauge to check at the fuel rails to make sure im getting the correct pressure from URD fuel pump when its running. but just kinda confused on why it runs fine but once you put a load on it the power drops to nothing.

  2. Aug 10, 2023 at 1:03 PM
    #2
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma

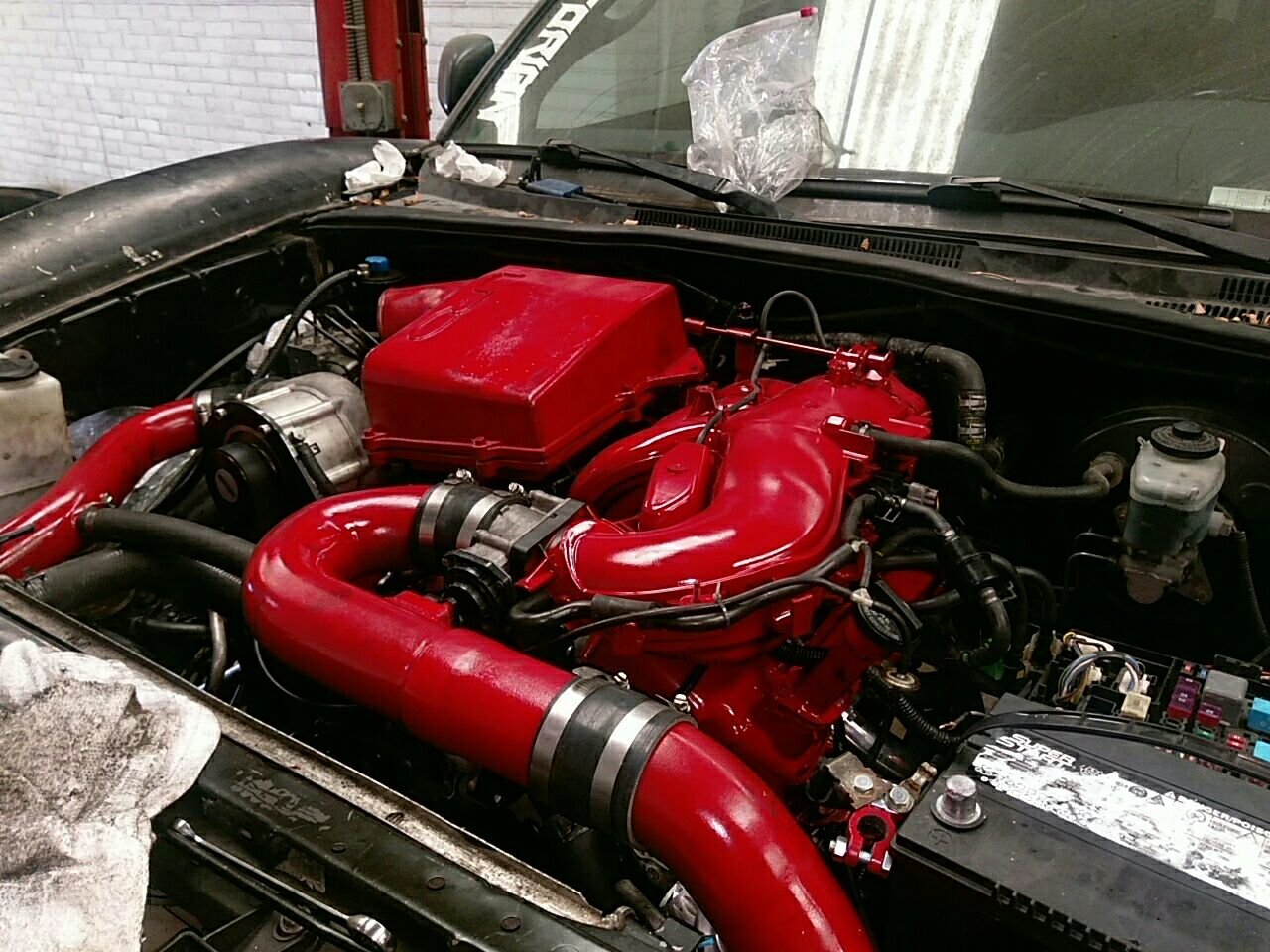

    here is a engine pic for reference

    tacoma engine.jpg

  3. Aug 10, 2023 at 1:04 PM
    #3
    ARB1977

    ARB1977 It’s a beaut Clark

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    1,574
    Gender:
    Male
    North Texas
    Vehicle:
    15 DCSB Prerunner 4.0L Blue Ribbon Metallic
    Black TRD Fj Cruiser wheels, TRD catback exhaust.
    Have had a compression check done?

  4. Aug 10, 2023 at 1:05 PM
    #4
    ARB1977

    ARB1977 It’s a beaut Clark

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    1,574
    Gender:
    Male
    North Texas
    Vehicle:
    15 DCSB Prerunner 4.0L Blue Ribbon Metallic
    Black TRD Fj Cruiser wheels, TRD catback exhaust.
    Like my avatar says.

    IvanhoeTaco likes this.
  5. Aug 10, 2023 at 1:13 PM
    #5
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,628
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    Need to start by looking at fuel trim readings at idle and under load

    TnShooter likes this.
  6. Aug 10, 2023 at 1:23 PM
    #6
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    its a brand new build. built in a race shop, arp heads studs and cometic head gaskets due to a pinched vacuum line to the wast gate it lifted the heads, since then i had complete motor built and gone through at machine shop.

  7. Aug 10, 2023 at 1:25 PM
    #7
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    fuel trim like off my scan tool? since i have a urd fuel pump and injectors i talked to gadget and i should be getting 43psi constantly. but have to verify that with pressure gauge. trim should be something i can see on a scan tool though correct?

  8. Aug 10, 2023 at 1:31 PM
    #8
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,628
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    Yes on the scan tool. But definitely do your fuel pressure checks first

    TnShooter likes this.
  9. Aug 10, 2023 at 1:34 PM
    #9
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    ok cool. i have no idea what any of the information on the scan tool means but i can at least get it i think
    im definitely more of a mechanical type of guy, the tuning stuff and electrical is rough on me but i get through it

    b_r_o[QUOTED] likes this.
  10. Aug 10, 2023 at 1:46 PM
    #10
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,628
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    Fuel trims are the computers way of calculating whether it needs to add fuel or take it away. By watching the trims you can tell if the computer is struggling to balance the fuel mixture.

    That lean code is basically the computer trying to tell you it can't balance the mixture and it needs help. We know it lacks power under load so we're already pointing in the right direction. It's either running lean because of a calculation issue like mass air flow sensor or oxygen sensor.. or a mechanical issue like fuel pressure or fuel delivery (injectors, clogged filter, etc)

  11. Aug 10, 2023 at 2:18 PM
    #11
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    ya that's what is puzzling. i just had injectors professionally cleaned. and i just put the engine back together and fired it up. its is ramping up and down almost bouncing. but i dont have my piggyback ecm with a tune back from gadget yet. and ordered a pressure tester for the fuel rail. so this weekend i should have at least a scope of what my fuel pressures are and that is more info then i had before so its a starting point

    i know fuel injectors are clear. and fuel filter has been removed and bypassed other then the built in tank screen one. when i read fuel trims what should i look for or would it be better to just take a picture and show yall

  12. Aug 11, 2023 at 4:10 AM
    #12
    1 Limited Toyota

    1 Limited Toyota ISO XRunner body kit complete or pieces

    Joined:
    Apr 30, 2023
    Member:
    #423667
    Messages:
    1,055
    Gender:
    Male
    California
    Vehicle:
    08 XRunner
    slowly erasing past owner hacks
    You may want to vheck for a vacuum leak or air being introduced somehow

  13. Aug 11, 2023 at 4:15 AM
    #13
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    I've thought of this, but don't have any idea where to start on tracking a vacuum leak down.

  14. Aug 11, 2023 at 4:43 AM
    #14
    Peter603Taco

    Peter603Taco Well-Known Member

    Joined:
    Sep 13, 2022
    Member:
    #405709
    Messages:
    377
    Gender:
    Male
    First Name:
    Peter
    New Hampshire
    Vehicle:
    2013 TRD Sport DCLB
    For a vacuum leak start with checking each vacuum line/connection visually and if you can't find anything then move onto DIY testing if you're comfortable with it. Can use anything like starting fluid, carb/brake cleaner, propane, etc. just a little bit around all the vacuum line connections and gaskets. DIY at your own risk as always, use common sense and don't spray stuff right on a hot exhaust manifold and start a fire.

    If there is a vacuum leak it will pull it in and burn it like extra fuel and rev up momentarily. Is your idle steady enough to hear a difference if it jumped up? It may help to watch a youtube video and/or look up a vacuum line routing diagram for the specific engine if you're not familiar with where you should be looking.

  15. Aug 11, 2023 at 4:48 AM
    #15
    Arries289

    Arries289 Yo!

    Joined:
    Apr 17, 2018
    Member:
    #250874
    Messages:
    1,320
    Gender:
    Male
    Franklin TN
    Vehicle:
    2018 TRDOR DCSB BBP 6MT Tech & Prem
    Be careful running it with those lean codes or you will be back in the machine shop for a rather large bill. Check your fuel pressure and fuel trims as mentioned above.

    Peter603Taco likes this.
  16. Aug 11, 2023 at 4:48 AM
    #16
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    Not without my piggy back ECM. It's currently reving itself over and over agian

  17. Aug 11, 2023 at 1:31 PM
    #17
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    so got my fuel pressure gauge in and im sitting perfectly steady at 43.5 psi just like gadget said but its ramping from 500 rpm to 2100 rpm. waiting on ucon piggy back ecm to get in then i can hook up my scanner to get fuel trims. is there anything in particular i should be looking for?

    i feel that with it ramping up and down and the fuel pressure staying steady, plus known good injectors. there couldn't be anything other then a fuel pressure regulator issue? or would that not cause that. TBH that's definitely not something i know how to test though

    Last edited: Aug 11, 2023
  18. Aug 14, 2023 at 10:15 AM
    #18
    Peter603Taco

    Peter603Taco Well-Known Member

    Joined:
    Sep 13, 2022
    Member:
    #405709
    Messages:
    377
    Gender:
    Male
    First Name:
    Peter
    New Hampshire
    Vehicle:
    2013 TRD Sport DCLB
    Surging idle of that much sounds like its more likely to be a vacuum leak or sensor issue from my past experiences on various cars.

    1 Limited Toyota likes this.
  19. Aug 14, 2023 at 1:26 PM
    #19
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    ya i believe it is a vacuum issue. i got my piggyback ecm back installed in the truck and started just dabbing starting fluid around the intake and it started surging when i sprayed around the intake on the drivers side. i need to replace the vacuum line running to whatever sensor that is but when i moved it out of the way and sprayed the intake itself around the same area it revved up still. but i dont know what is under there to cause a vacuum leak on that side, cant seem to see anything around there other then the first line coming off the front of the intake manifold

  20. Aug 14, 2023 at 2:49 PM
    #20
    Dvrich

    Dvrich [OP] Well-Known Member

    Joined:
    Jun 8, 2023
    Member:
    #426358
    Messages:
    263
    Gender:
    Male
    First Name:
    Rich
    Vehicle:
    2005 black tacoma
    So found a nub coming off intake manifold. No hose to connect too. So I capped it and truck stopped reving. I fixed vacuum leaks I think so progress.

    1 Limited Toyota and Leomania like this.
