4.0L Scope Captures

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Dm93, Mar 18, 2022.

  1. Mar 18, 2022 at 8:14 PM
    #1
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I know not many of us have a scope but for those that do and/or are interested I grabbed Cam, Crank, Coil Control, Ignition Confirmation, and Injector control waveforms off my truck (2014 4.0L 65k mi).

    I have the original scope files if anyone's interested I can DM or post them, SnapOn files can be viewed in the SnapOn data viewer and Pico files can be viewed in PicoScope 6 or 7.

    11/29/22: Added vehicle speed signals.
    4/26/23: Added A/C Lock Sensor Signal
    4/8/24: Added ABS Sensor Signals

    Both were taken at a hot idle.

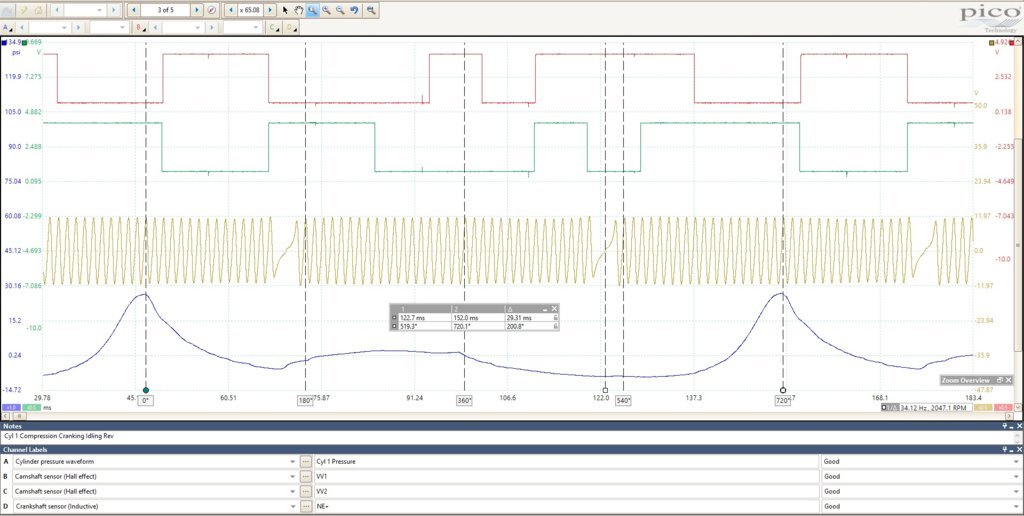

    Cam & Crank Signals

    2014 Toyota 4.0L Cam Crank Waveform.jpg

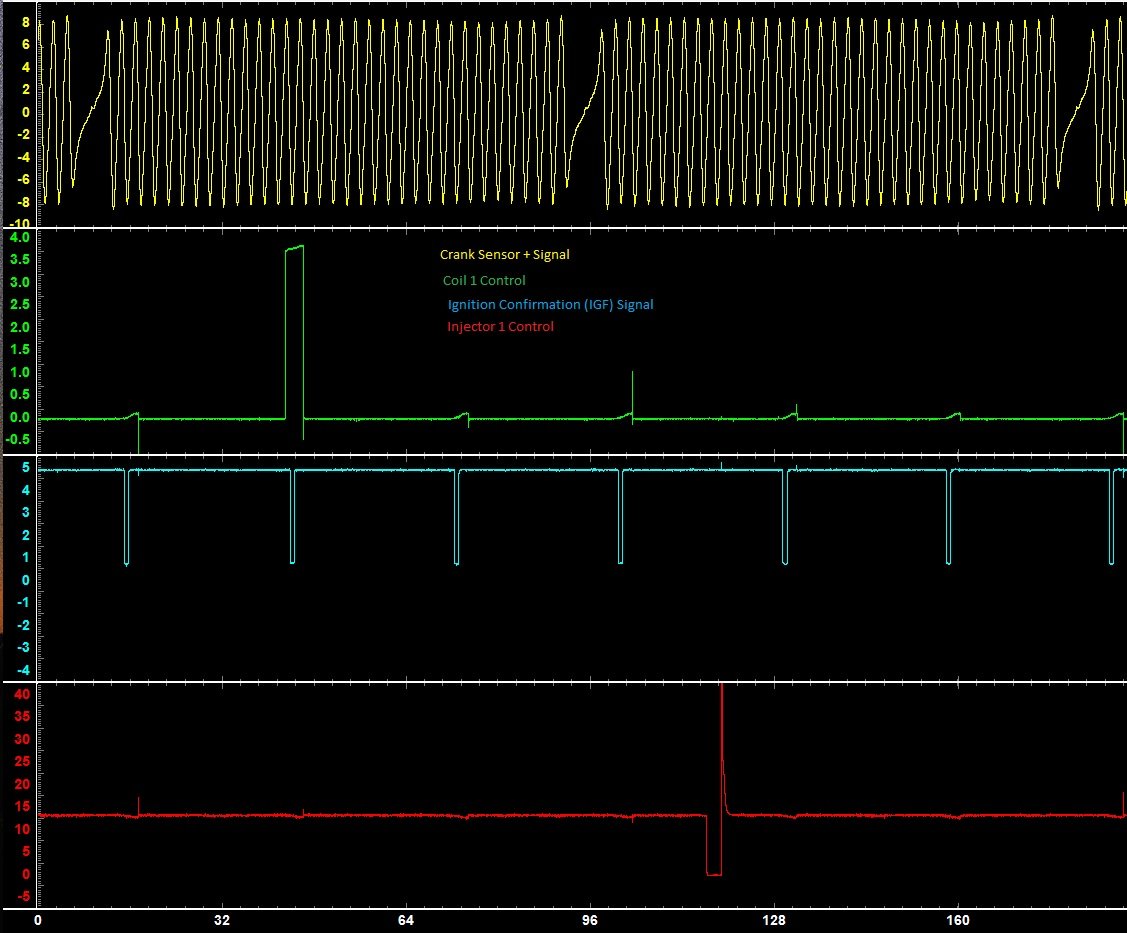

    Crank, Coil, & Injector Signals
    2014 Toyota 4.0L Crank Coil & Injector Waveform.jpg

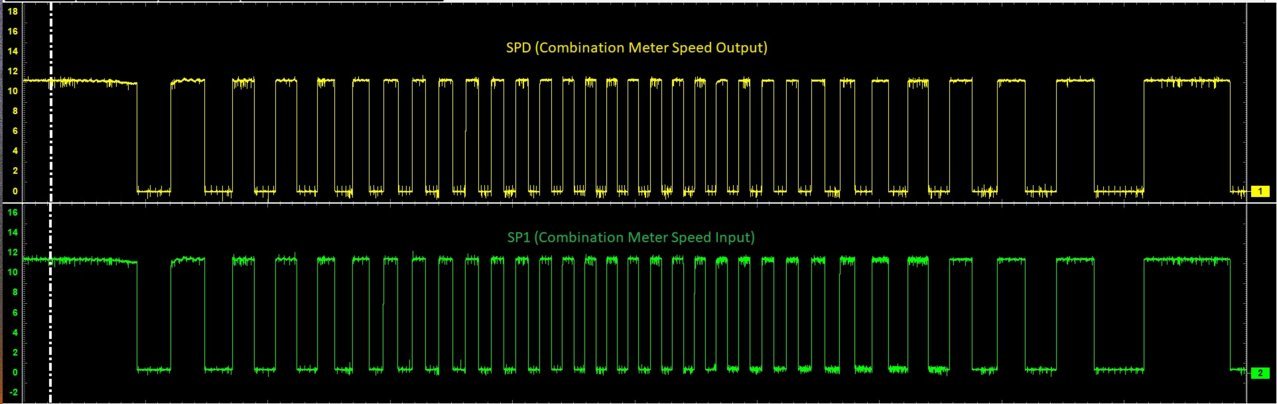

    Vehicle Speed Signal Input & Output (aprox 0-5-0 mph)
    Speed Signal.jpg

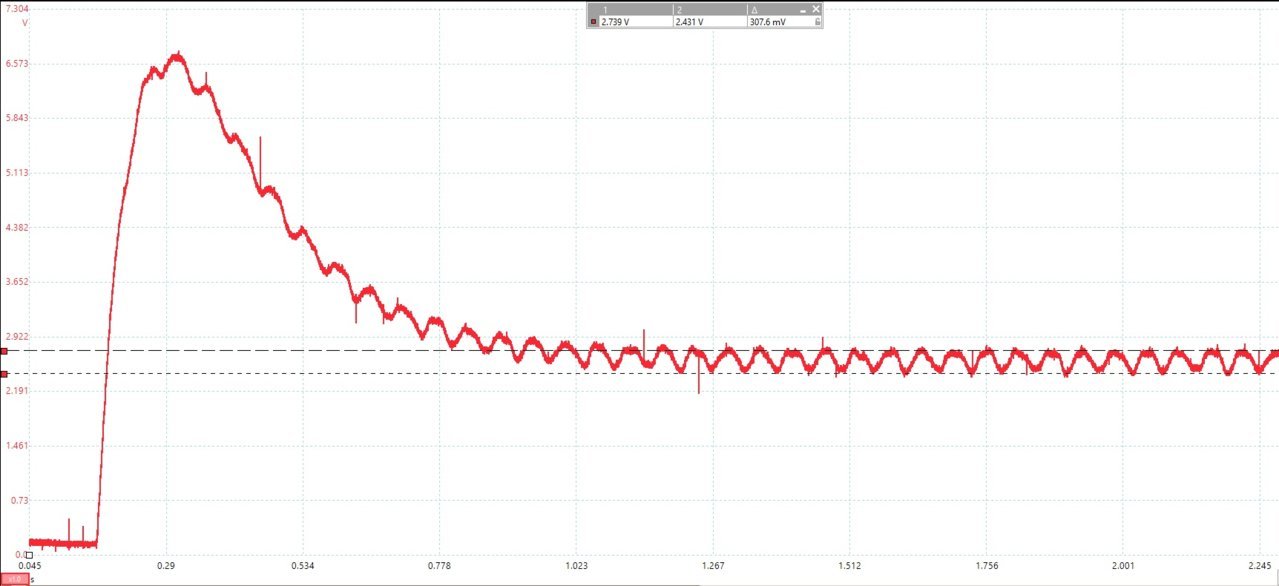

    A/C Lock Sensor Signal
    2014 AC Lock Sensor Signal.jpg

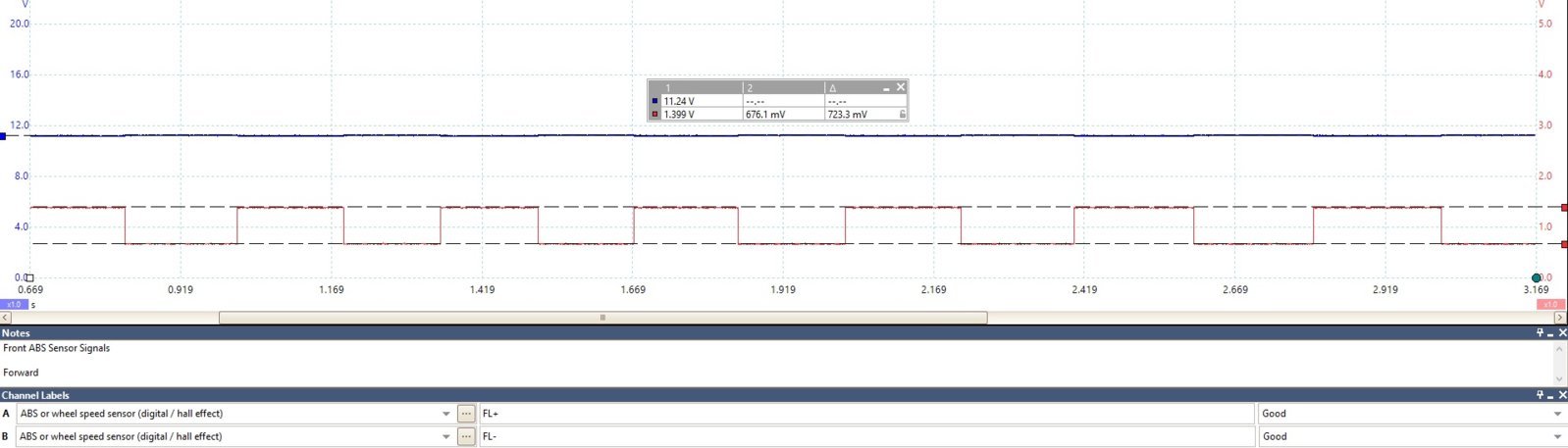

    ABS Sensor Signal (Forward)
    ABS Sensor Forward.jpg

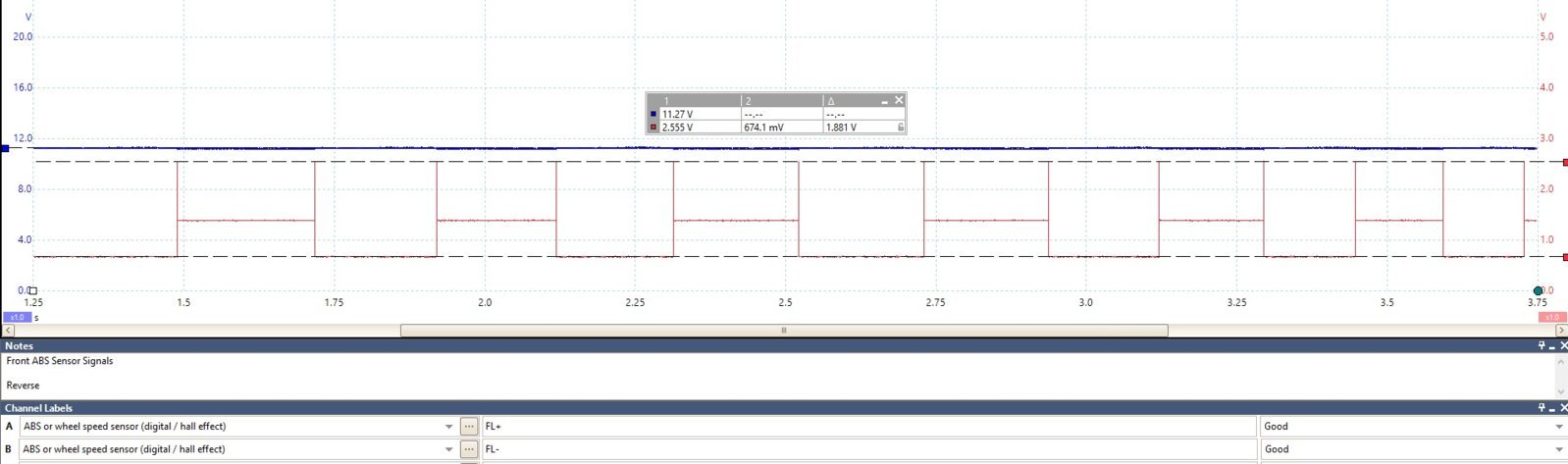

    ABS Sensor Signal (Reverse)
    ABS Sensor Reverse.jpg

    Last edited: Apr 8, 2024
    Mudman, SR-71A, BassAckwards and 11 others like this.
  2. Sep 19, 2022 at 8:47 PM
    #2
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Had a perfect example today of why you shouldn't replace parts based on a code, had an 08 FJ Cruiser 4.0L (Same engine as the Tacoma) come in today with P0340 (Cam Position Sensor A (bank 1) Circuit) and P0335 (Crankshaft Position Sensor Circuit) codes. Knowing Toyota cam and crank sensors rarely fail I first looked for any obvious wiring damage and found none, next I hooked my scope up to the Cam and Crank sensor signal wires at the PCM and got the capture below.

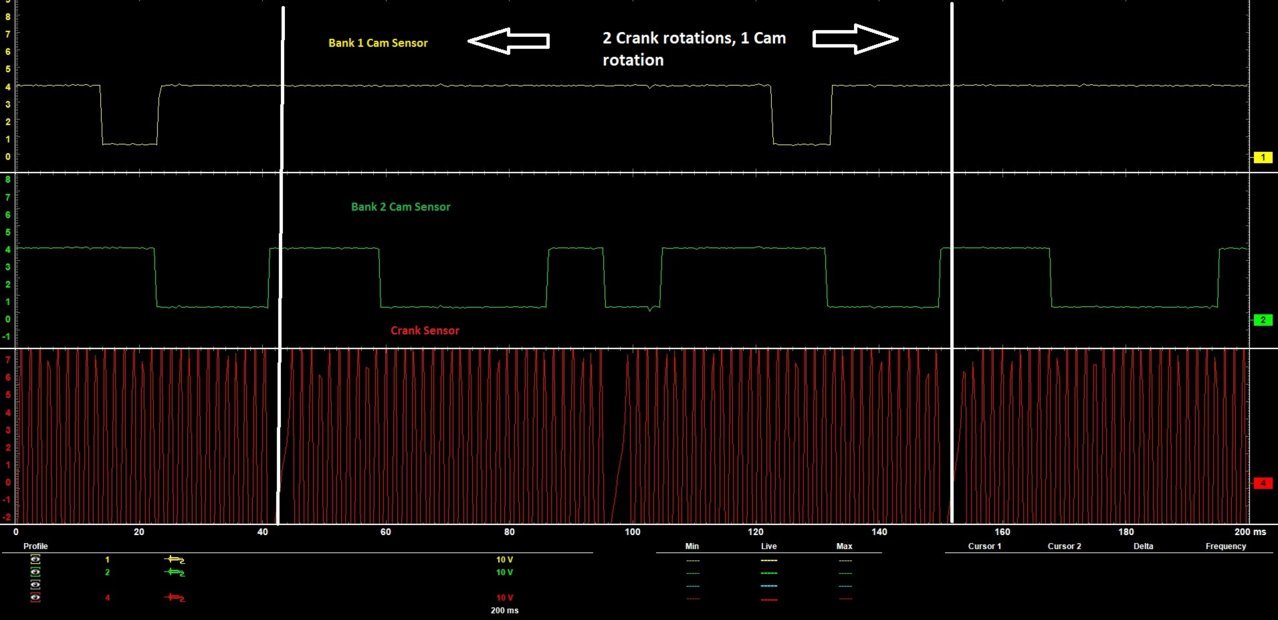

    Notice the missing signals (The cam signals should each have 3 notches per rotation), no matter how many cam/crank sensors or PCMs you put in this thing you would not have fixed it.

    08 FJ Cruiser 4.0l Cam Crank Bad.jpg

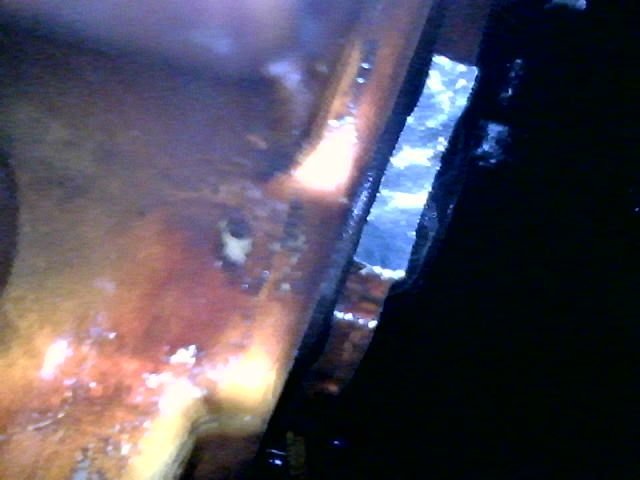

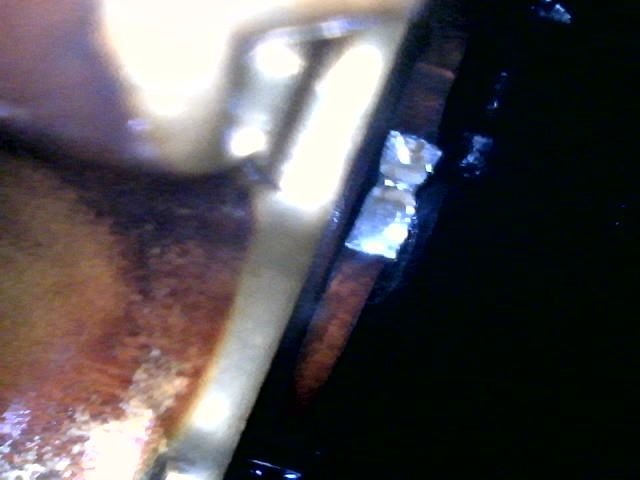

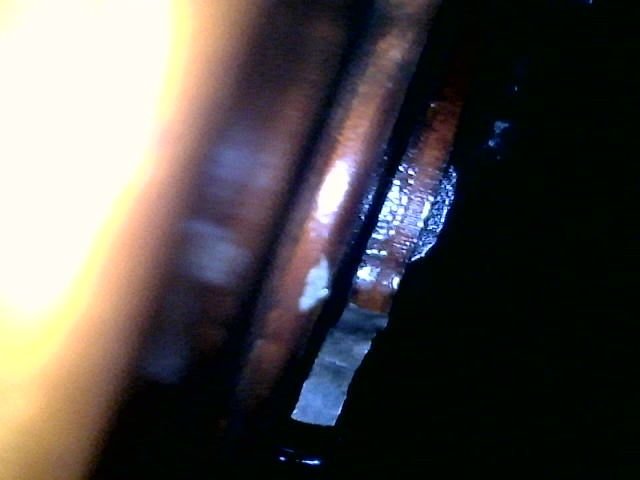

    Next I pulled the bank 1 cam sensor, used my bore-scope to look at the reluctor wheel and found it to be broken.




    kwanjangnihm, 2WD, Jimmyh and 12 others like this.
  3. Sep 19, 2022 at 8:52 PM
    #3
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    10,775
    Gender:
    Male
    Good catch.

    I rarely use the scope anymore, its a huge pain to set up (picoscope) I learned on a snapon 4 channel scope.

    I miss the old days of dedicated units that turn on and go right away.

    The best part of modern ones is that it can show you known good. But you had bank 2 sitting there haha.

    Dm93[OP] likes this.
  4. Sep 19, 2022 at 8:58 PM
    #4
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I don't have a Pico, I'd kinda like to have one but boy they are proud of them.
    That's why I like my Verus scope, it's right there all I gotta do is hook up the leads.
    I also have a U-Scope from AESWave, It's perfect for those quick things that don't require a multichannel scope like ABS sensors or a simple control circuit.

    Jimmyh and Bivouac like this.
  5. Sep 19, 2022 at 9:40 PM
    #5
    Key-Rei

    Key-Rei Well-Known Member

    Joined:
    Jun 20, 2017
    Member:
    #221942
    Messages:
    7,863
    First Name:
    Key
    Florida
    Vehicle:
    2010 TRD Off-Road 6Spd 4x4 209BSM
    Locker anytime Fog Lights anytime Full LED light conversion TRD cat back Rear cat delete Exaust Y reroute away from actuator Alloy Clutch master 2000 4Runner "Dog Leg" shift leaver Marlin shift seats and bushing Rear seat delete Rear diff breather extension Chrome grille swap Debadge Rear seat delete Honda blower motor beefy plug and wire mod Anytime 12v and USB with volt gauge in bed Blue Sea fuse box Hella AND 70's Caddy horns Low profile recessed hex drain plug swaps Alluminum battery strap 7pin relocated Backup cam on anytime Various other creature comfort and personal taste mods.
    :popcorn:




    007fodo, 2WD, slossboss and 5 others like this.
  6. Sep 19, 2022 at 10:08 PM
    #6
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Yea I know it's not for everyone but it really is a powerful tool if you know how to use it, I did that diagnosis above in under 30min.
    Unfortunately even the majority of automotive shops don't have one much less know how to use one and instead rely on winging parts at problems until they fix it, the customer runs out of money, or they run out of parts to change.
    I have diagnosed so many things with a scope already and I'm no expert at using one by any means.

  7. Sep 19, 2022 at 10:14 PM
    #7
    svdude

    svdude Well-Known Member

    Joined:
    Sep 30, 2012
    Member:
    #88055
    Messages:
    812
    Gender:
    Male
    First Name:
    jonathan
    davidstacoma and Dm93[OP] like this.
  8. Sep 19, 2022 at 10:16 PM
    #8
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,582
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Well stated !!

    Thanks for posting !!

    Dm93[QUOTED][OP] likes this.
  9. Sep 19, 2022 at 10:33 PM
    #9
    Ricardo13x

    Ricardo13x YT: @UrbanOpsOffRoad IG: @urban.ops.offroad

    Joined:
    Feb 9, 2020
    Member:
    #318785
    Messages:
    2,511
    Gender:
    Male
    Upland, CA.
    Vehicle:
    05 OR DCSB ProRunner(4x4 conv.), Chevy 63”s
    random stuff. Oh! and converted to non ADD 4x4.
    Bread and butter! Keep up the good work.:fistbump:

    TnShooter likes this.
  10. Sep 20, 2022 at 4:35 AM
    #10
    JAGCanada

    JAGCanada Well-Known Member

    Joined:
    Oct 25, 2011
    Member:
    #65834
    Messages:
    436
    Gender:
    Male
    Canada
    Vehicle:
    2010 TRD Sport V6 Auto Double Cab MGM
    I have a simple 2 channel oscilloscope ("scope") I use for electronics. Never thought about hooking it up to the truck... Is it as simple as hooking it up to the sensor?

    Dm93[OP] likes this.
  11. Sep 20, 2022 at 4:38 AM
    #11
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,856
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Any speculation on how the reluctor broke? I have seen it happen, but it has been far and few between.

    GilbertOz and Dm93[OP] like this.
  12. Sep 20, 2022 at 5:34 AM
    #12
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Providing it can handle the voltages yes it's the same concept, sensor signals are typically no more than battery voltage but if you get into injector and coil primary signals those can spike well over 100v.

    If you watch the youtube channels in my signature there's alot of scope usage.

    davidstacoma likes this.
  13. Sep 20, 2022 at 5:40 AM
    #13
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I'm guessing metal fatigue makes them crack and eventually fail but I couldn't say what the root cause is, it did have 200k miles on it but thats not really high mileage for a 4.0.
    I have seen a few people on here that have had them fail in a similar fashion.

    Maybe we should be checking them for cracks when we do valve cover gaskets.

    GilbertOz likes this.
  14. Sep 20, 2022 at 5:49 AM
    #14
    JAGCanada

    JAGCanada Well-Known Member

    Joined:
    Oct 25, 2011
    Member:
    #65834
    Messages:
    436
    Gender:
    Male
    Canada
    Vehicle:
    2010 TRD Sport V6 Auto Double Cab MGM
    I watched the 1st video, "Pulling codes and changing parts is not a diagnosis!" That is an awesome video!...I'll check out the rest.

    Dm93[QUOTED][OP] likes this.
  15. Sep 20, 2022 at 5:51 AM
    #15
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,856
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    It also makes me curious about the maintenance of the OCI. Need to compare to documented breakages that have been posted on here, or the 4Runner forums, to see what if any similarities there are.

    GilbertOz and Dm93[OP] like this.
  16. Sep 20, 2022 at 5:58 AM
    #16
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    It didn't look like it was maintained all that well but I mean the reluctor is a peice of stamped steel.
    Maybe if the ports or valves for the phasers get plugged up and cause them to "hunt" it causes some kind of harmonic vibration that would fatigue and crack the plate.
    I don't think we are getting the job so there probably won't be any further investigation into this one.

    GilbertOz and Torspd[QUOTED] like this.
  17. Sep 20, 2022 at 8:11 AM
    #17
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,856
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Well if they ran it low on oil, and the phasers were slamming, due to not being able to maintain, over a long enough period, that is a possibility I suppose. They rattle very loudly.

    GilbertOz and Dm93[OP] like this.
  18. Sep 20, 2022 at 8:21 AM
    #18
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    For sure low oil would cause phaser knock as well as timing chain slap.
    Anyway we know they are prone to breaking and would definitely be something to check for anyone that gets cam/crank sensor codes.

    Torspd[QUOTED] likes this.
  19. Sep 20, 2022 at 11:12 AM
    #19
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,135
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Didnt they change the design of those reluctors at some point in the life of the 1gr single vvti?

  20. Sep 20, 2022 at 11:17 AM
    #20
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    10,202
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    The only one I know was different was the 03-04 4Runner 4.0, as far as I know all other single VVT 4.0L engines have the same Cam/Crank reluctor profile.
