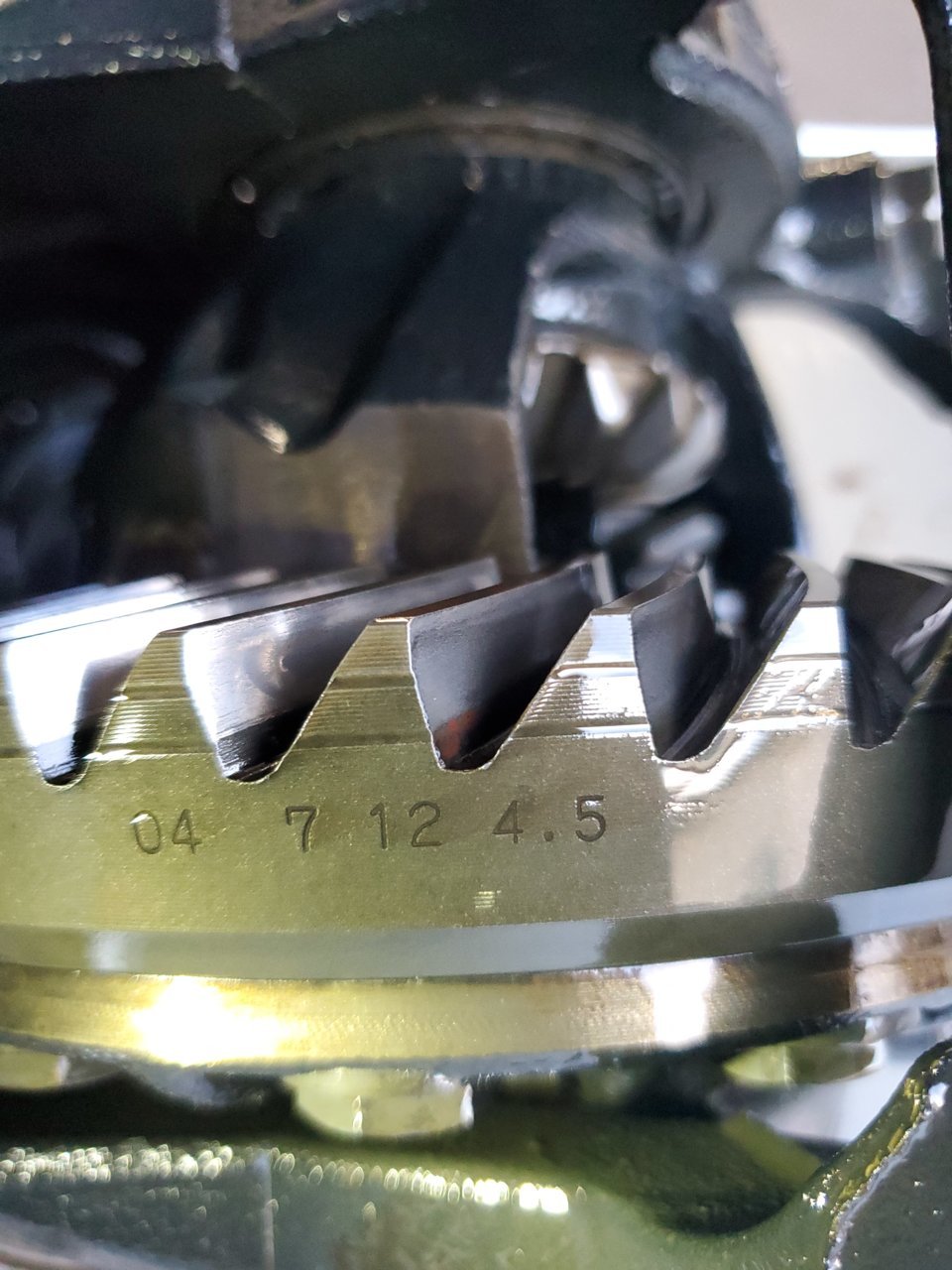

4.56 rear differential

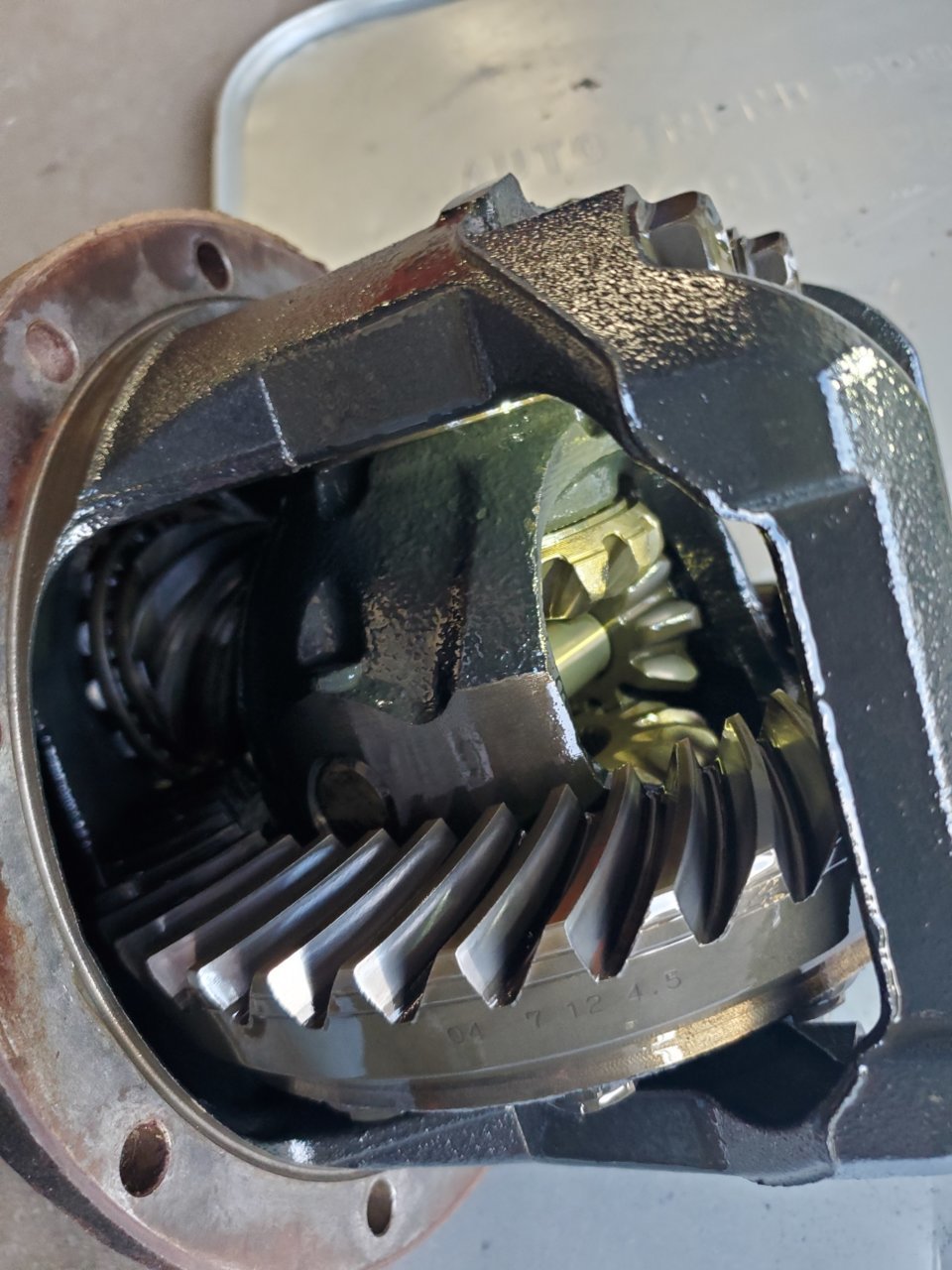

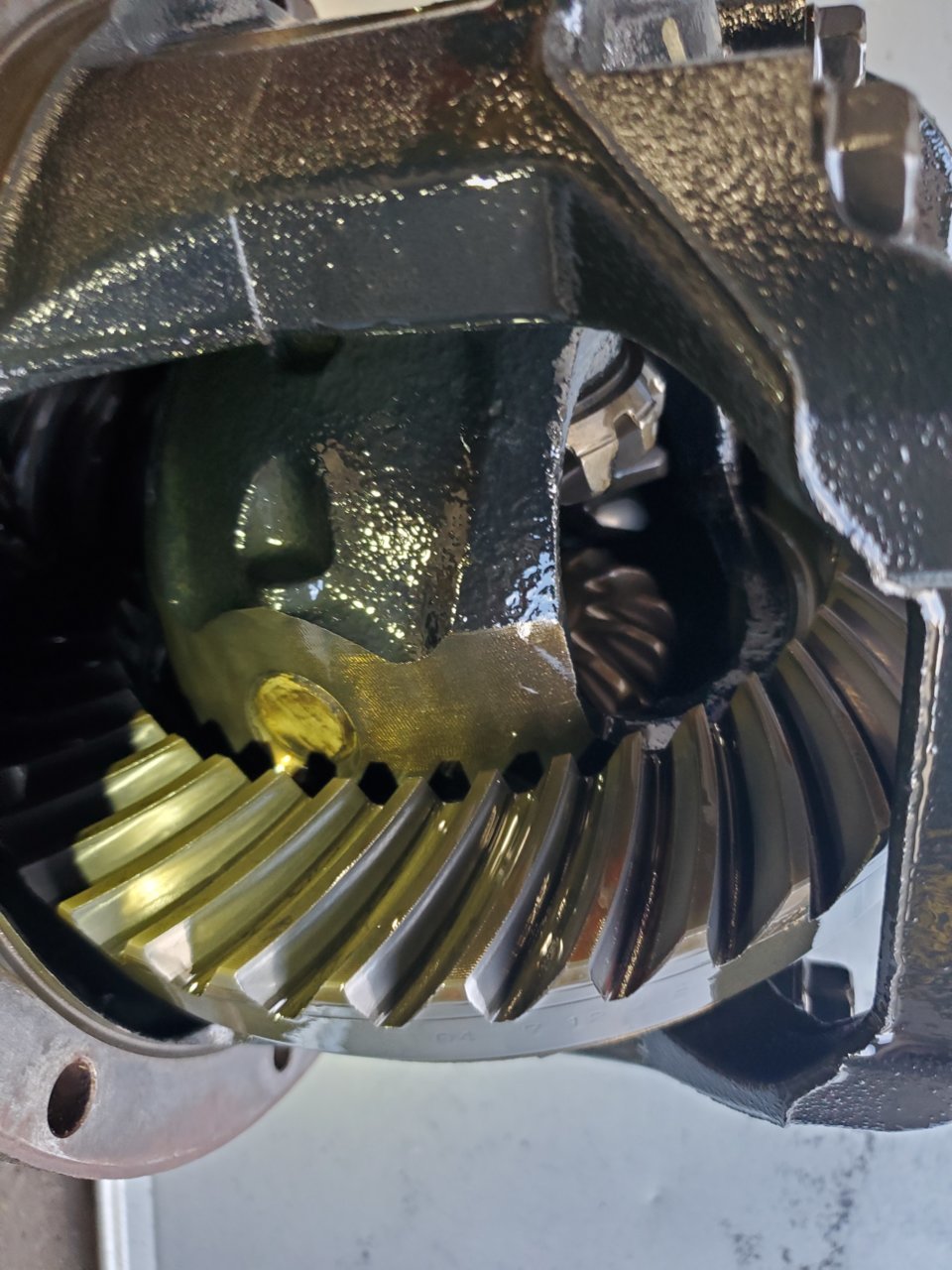

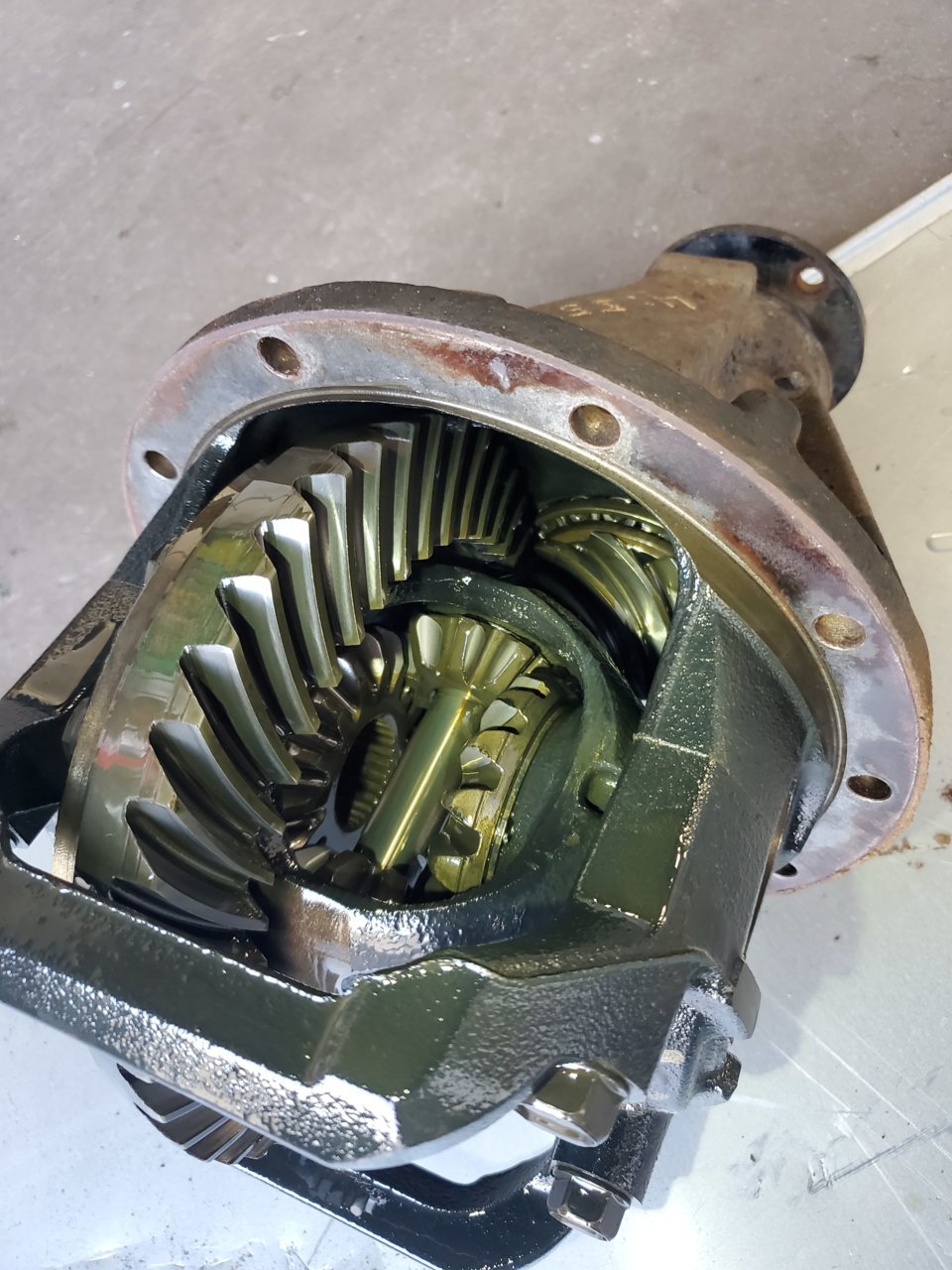

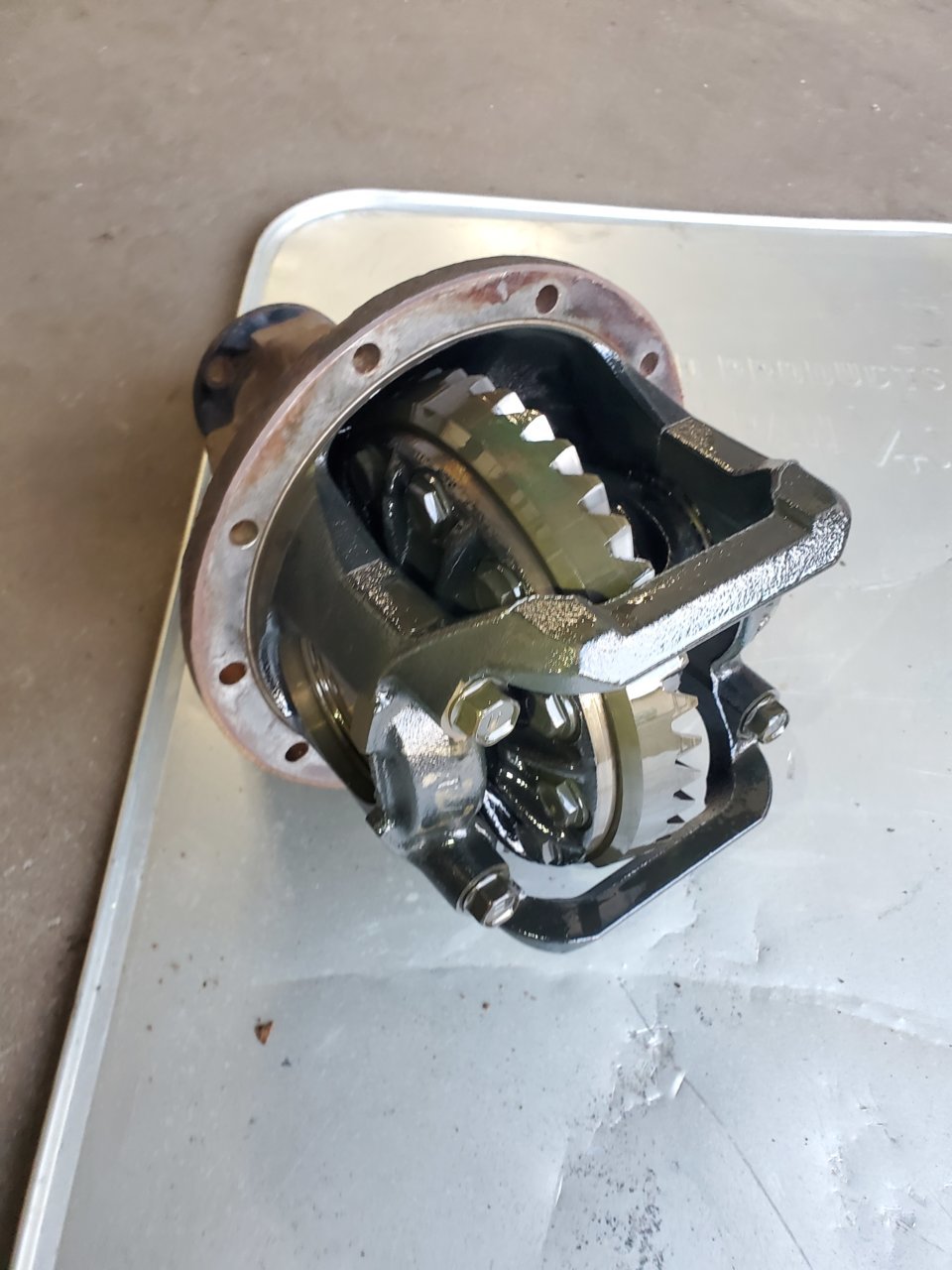

96-04 Tacoma or 96-02 4runner 8.4" rear open differential. Has the girdle on the bearing caps.

Good working order, no issues. Worked great on my 4x4 with 35" tires.

Only selling because I picked up a locker.

Located in Phoenix Az.

SOLD



SOLD



This will also fit 05-15 Tacoma without elocker, as well as T100



But not any 4Runner as 09 and down either had 8" elocker or 8" TV6 non elocker.



Also fits 1st gen Tundra w/o mods. The pinion flange will have to be redrilled to work with a 2nd gen. And yes will not work with 4runners.

http://home.4x4wire.com/erik/diffs/



Price and mileage?



Price is 500 plus shipping.

Milage unknown, worked fine for me. Looks great inside

@jmferg



Cant beleive Erik still has his site up. Hope it is mirrored somewhere.



If you have larger tires, or plans for them, its time to regear!



I’d love a regear, but I don’t think I’ve seen the matching front to go with it.



They seem to be elusive. I got the front and rear (this one) from a yard on ebay. He said he had more fronts available. I can ask tomorrow. @BartMaster1234



I’d probably do 4.88 if I had to regear as I already have 4.30 - this would be a great upgrade for anyone with 4.10 though.



For 33's?



I have 32's, but I have the four cyl supercharger too so the regear would help a lot.



The 4.56 gears with the 2.4 made a huge difference. I highly recommend getting them.



anyone have the 4.56 gear with 33’s? I don’t want my rpms to be too high on the highway



I had this 4.56 on the truck for 1 day with 33s before going to 35s. I have the V6 with automatic transmission, and felt the rpms were a little high on the freeway. I dont remember the exact rpm, maybe 2750, for sure less than 3000. The truck did move very quickly and easily from a stop/low speeds. If you do alot of rock crawling type driving, this would be a good ratio.

You might want to look up auto vs manual overdrive gear ratios, maybe it will be ok with a 5 speed V6 and 33s. Otherwise consider larger tires. 4 cylinder is another story.

Also, I was told 4.56 was not a good choice for 35s and to only consider 4.88 or 5.29. After using the 4.56, I have to disagree. It's nearly perfect, very close to 4.10 and 31s over all, maybe a 31.25~. I'm sure some will disagree.
@_anthony_

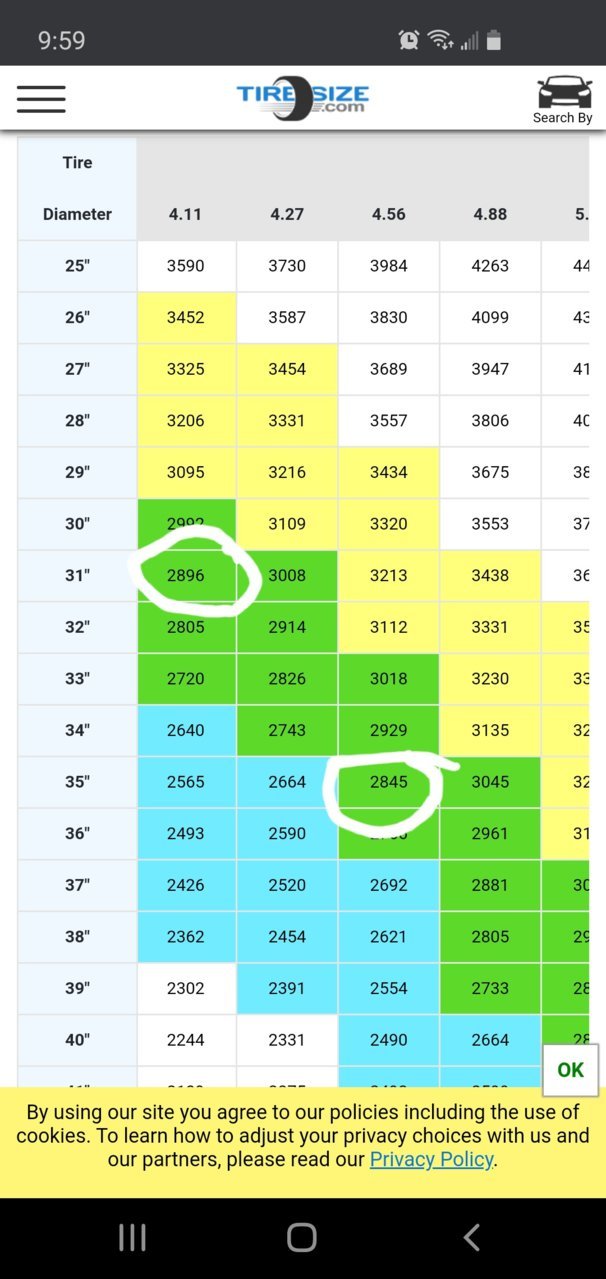

This is a good approximate representation.
31s with 4.11 ratio = 2896
35s with 4.56 ratio = 2845
Difference = -51 rpm
31s with 4.11 ratio = 2896
35s with 4.88 ratio = 3045
Difference = +149 rpm

Basically, you can see the 4.56 with 35s is closer to a stock ratio than 4.88 with 35s. Both will obviously work.



Another example.

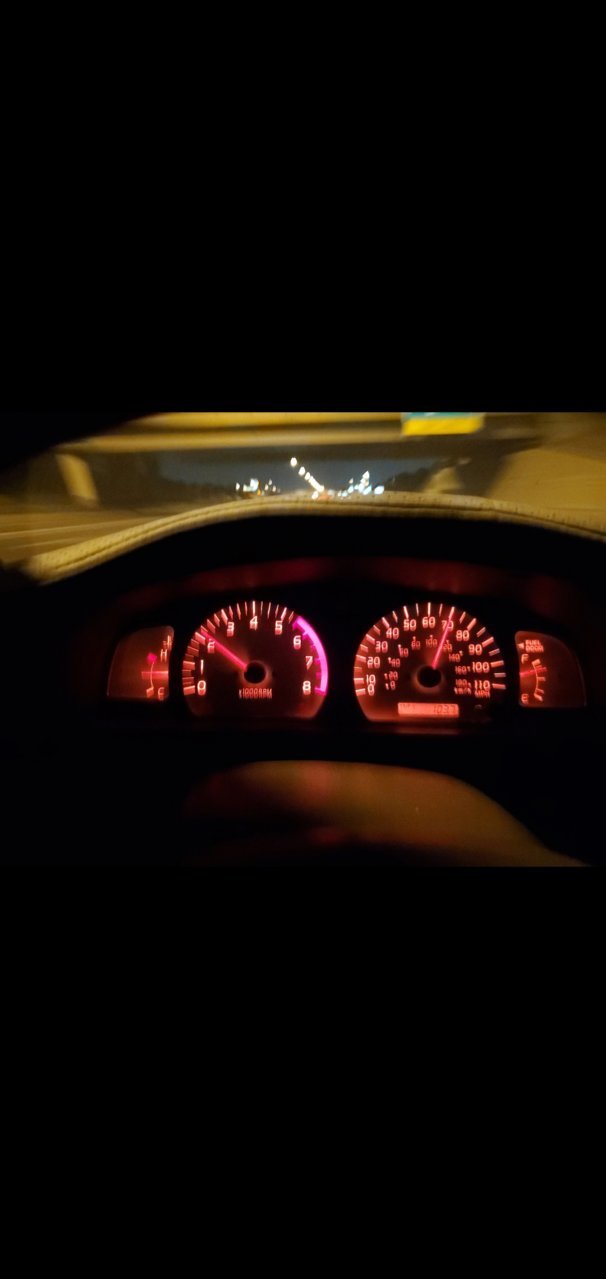

2004 Tacoma V6 Auto 4.10 31s

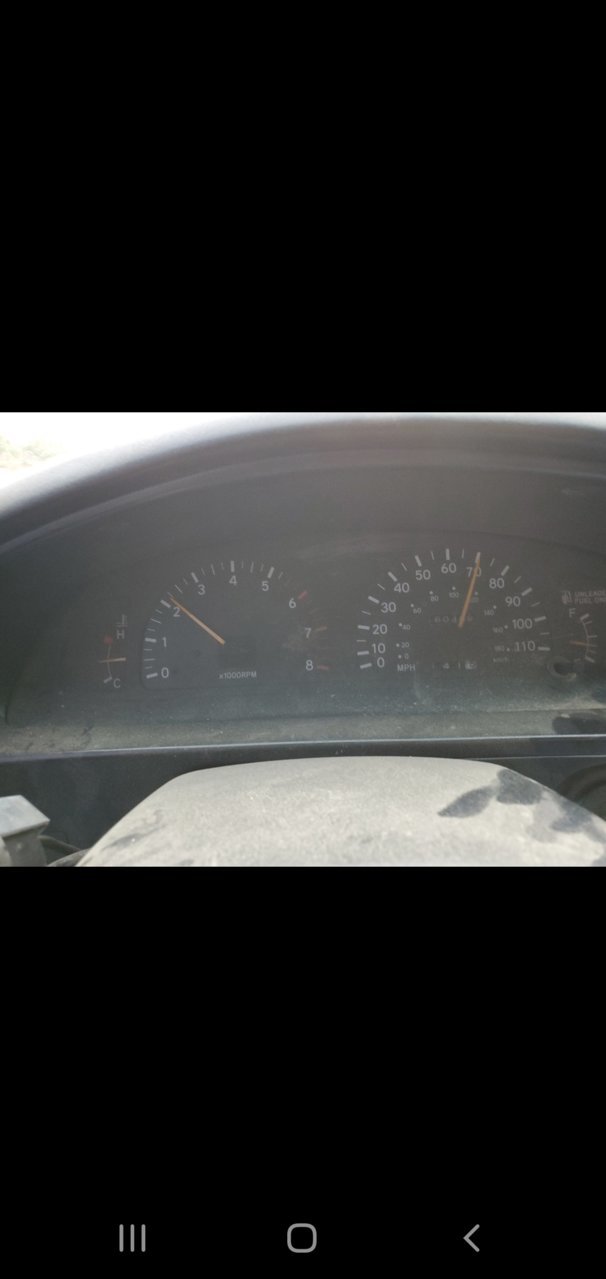

1996 Tacoma V6 Auto 4.56 35s



yea I’m on the highway a lot going at least 70 but most the time 75 or 80. I think my rpms are at around 2300 with 265/75/16 my stock gears are 3.73 but want to move up to 285s soon



Shooting from the hip, you probably want 4.10 or 4.30 gear ratio, assuming 3.4 V6 auto. @_anthony_
