4Runner LED Cluster Swap

Discussion in '4Runners' started by jbmccul, Jan 30, 2012.

  1. Jan 30, 2012 at 11:16 AM
    #1
    jbmccul

    jbmccul [OP] Well-Known Member

    Joined:
    Jan 17, 2011
    Member:
    #49437
    Messages:
    21,379
    Gender:
    Male
    Vehicle:
    07 4Runner Sport
    Finally got the balls to rip apart the dash on my 4Runner and get rid of that horrid amber!

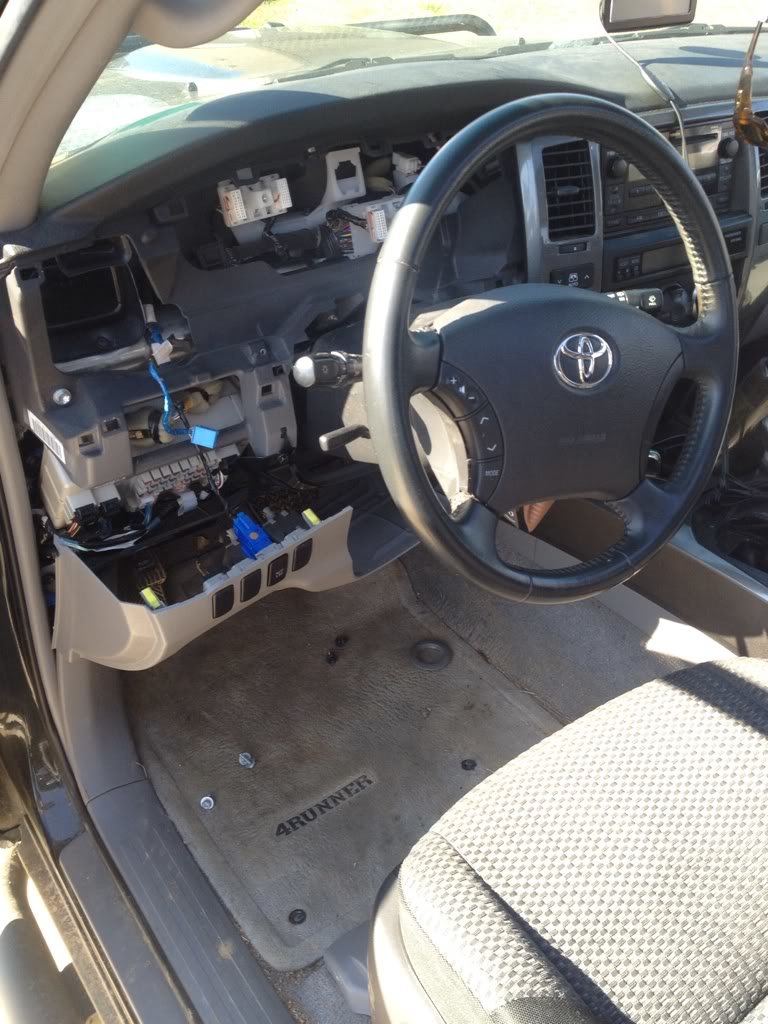

    Tearing the dash apart!
    [​IMG]

    For anyone that can do the LED cluster swap on the Tacoma its the same for the 4Runner on the most part. The only tricky part is changing out the odometer LED, the needles are weak and can bend if your not careful and the odo wont light up. However it's a quick and easy fix, just straighten it out and stick it back in.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

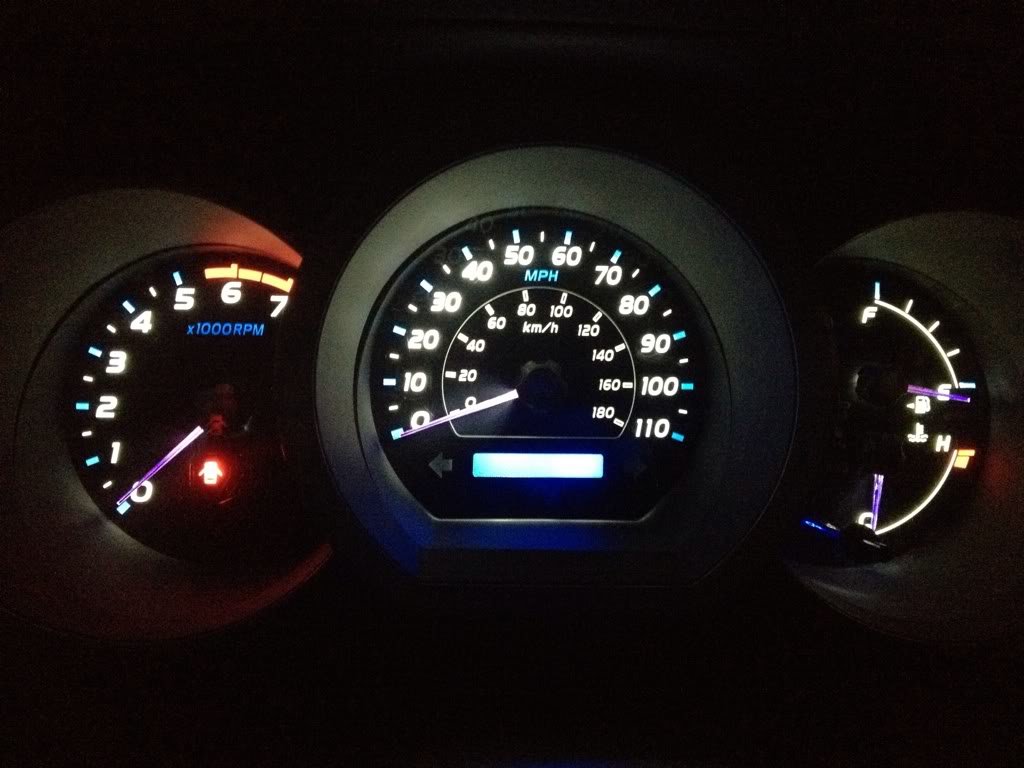

    All finished!
    [​IMG]

    What do y'all think?

  2. Jan 30, 2012 at 11:18 AM
    #2
    YFZ_TRD

    YFZ_TRD 4Runner Pilot

    Joined:
    Mar 10, 2009
    Member:
    #14534
    Messages:
    3,571
    Gender:
    Male
    First Name:
    Lee
    Beaverton, OR
    Vehicle:
    2014 4Runner SR5
    The speedo numbers look like they're almost so bright they are washed out. Maybe just a bad picture?

  3. Jan 30, 2012 at 11:18 AM
    #3
    mountainprimat2

    mountainprimat2 Well-Known Member

    Joined:
    Jan 11, 2010
    Member:
    #29130
    Messages:
    325
    Gender:
    Male
    First Name:
    Stefan
    LI, New York
    Vehicle:
    09 DC TRD Off-Road 6spd man
    Fox Shox 2.5 Coilovers, 3'' All-Pro Suspension Lift w/ Fox Shox 2.0 Piggyback Rears, Total Chaos UCAs and LCAs, 33inch Nitto Terras on 17'' American Racing Teflon Coated Wheels, Full Size Spare on N-Fab Tire Carrier, TRD Cat-Back Exhaust, TRD CAI, Grillcraft Grilles(U/L), MOT's Badge Grille Mod (Red), Black Lower Valence, Black Bed Lined Rear Bumper, Bushwacker Pocket Style Fender Flares, OEM Roof Rack, Wet Okole TRD Seat Covers, Husky Floor Liners,TRD 6spd Shifter Knob, Cobra CB w/ Firestick II, Interior LED Map/Dome Lights, LED Licence Plate Lights, Amber Fogs, BHLM w/ 5000k Retrofit, Plasti Dip Badges, Trailer Harness Relocate, Dakine Tail Gate Pad
    hahahaha Horrid amber, looks good brah

  4. Jan 30, 2012 at 11:41 AM
    #4
    jbmccul

    jbmccul [OP] Well-Known Member

    Joined:
    Jan 17, 2011
    Member:
    #49437
    Messages:
    21,379
    Gender:
    Male
    Vehicle:
    07 4Runner Sport
    Bad photo, i'll put another one up.

    I think it was the flash from my iPhone

  5. Apr 2, 2012 at 8:11 AM
    #5
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,740
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    Did you change the LEDs in the steering wheel control buttons too? Super easy to do

  6. Apr 11, 2012 at 11:40 AM
    #6
    TheSilverBull

    TheSilverBull 4Runner Guy

    Joined:
    Jan 6, 2012
    Member:
    #70073
    Messages:
    254
    Gender:
    Male
    First Name:
    Andrew
    Baton Rouge, Louisiana
    Vehicle:
    2008 4Runner Sport
    Shrockworks Bumper, Bajarack Roofrack, K&N CAI, Custom Flomaster Exhaust, ~approx 4" Lift, Black Headlights w/HID's 6000k
    No he didn't but as his friend I will respond, since I am interested in this. Do you have instructions or a link to some so that I can do this for mine and his?

  7. Jun 12, 2012 at 5:01 PM
    #7
    GotLift37

    GotLift37 Bangers Runner

    Joined:
    Apr 25, 2008
    Member:
    #6185
    Messages:
    1,742
    Gender:
    Male
    First Name:
    Matt
    down south
    Vehicle:
    07 4Runner 4WD
    2.5" front lift (leeper coilover) 1" body 16" Dick Cepek DC1 Black/polished 295/75/16 General Grabber AT2 Tinted Taillights 5% tint OEM Acura TSX HID Retrofit White LED dash light conversion
    yes i would i like to do this also.. info please

  8. Jan 11, 2013 at 2:11 PM
    #8
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    thread revival! do you by chance have a picture of the green board? reason i ask, i have had several requests for me to do 4runner clusters, but i do not know how many LEDs are required. any help/info/pics would be appreciated! thansk!

  9. Jan 11, 2013 at 2:35 PM
    #9
    jbmccul

    jbmccul [OP] Well-Known Member

    Joined:
    Jan 17, 2011
    Member:
    #49437
    Messages:
    21,379
    Gender:
    Male
    Vehicle:
    07 4Runner Sport
    I'll have to go back and look, it looks like some of my pictures aren't showing up

  10. Jan 11, 2013 at 2:37 PM
    #10
    jbmccul

    jbmccul [OP] Well-Known Member

    Joined:
    Jan 17, 2011
    Member:
    #49437
    Messages:
    21,379
    Gender:
    Male
    Vehicle:
    07 4Runner Sport
    This is the best picture I have of the board

    [​IMG]

  11. Jan 11, 2013 at 2:42 PM
    #11
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    thats perfect, thanks! that confirms my suspicion...the LEDs light the background AND the needle, so there is no way to get two different colors like the tacomas (who have separate LEDs for the background and needles.

  12. Jan 11, 2013 at 2:48 PM
    #12
    jbmccul

    jbmccul [OP] Well-Known Member

    Joined:
    Jan 17, 2011
    Member:
    #49437
    Messages:
    21,379
    Gender:
    Male
    Vehicle:
    07 4Runner Sport
    Huh, my needles are different from the background?

  13. Jan 11, 2013 at 2:50 PM
    #13
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    did you paint them or something? for example, im only seeing 3 LEDs around the base of the speedo needle. im assuming this then lights up the needles AND the speedo? correct me if i am wrong. how many LEDs did you use for the swap?

  14. Jan 11, 2013 at 2:58 PM
    #14
    jbmccul

    jbmccul [OP] Well-Known Member

    Joined:
    Jan 17, 2011
    Member:
    #49437
    Messages:
    21,379
    Gender:
    Male
    Vehicle:
    07 4Runner Sport
    Yeah, the 4Runner needle is painted orange from the factory, you just scrape the paint off with an xacto knife and use nail polish for whatever color you want them. The lines between the numbers were done with blue film. It is only 3 led's at the needle

  15. Jan 11, 2013 at 5:01 PM
    #15
    GotLift37

    GotLift37 Bangers Runner

    Joined:
    Apr 25, 2008
    Member:
    #6185
    Messages:
    1,742
    Gender:
    Male
    First Name:
    Matt
    down south
    Vehicle:
    07 4Runner 4WD
    2.5" front lift (leeper coilover) 1" body 16" Dick Cepek DC1 Black/polished 295/75/16 General Grabber AT2 Tinted Taillights 5% tint OEM Acura TSX HID Retrofit White LED dash light conversion
    I did mine the other day. check out my gallery. I'm in the process of doing the climate control and the rest of the interior will be done eventually

  16. Jan 11, 2013 at 5:05 PM
    #16
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    nice, thanks for the heads up!
