4WD ECU Spoofer for FJ Transfer Case Install

Discussion in '3rd Gen. Tacomas (2016-2023)' started by BigWhiteTRD, Nov 7, 2020.

  1. Jan 5, 2023 at 9:21 PM
    #61
    Sep1911

    Sep1911 Well-Known Member

    Joined:
    Oct 2, 2015
    Member:
    #165670
    Messages:
    1,237
    Gender:
    Male
    Vehicle:
    2016 Taco
    This is excellent! I wonder if this can be done through the bootleg Toyota dealer software floating around

  2. Mar 26, 2023 at 6:01 PM
    #62
    CZ5ANM Taco

    CZ5ANM Taco Well-Known Member

    Joined:
    Apr 1, 2016
    Member:
    #183036
    Messages:
    540
    Gender:
    Male
    BC, Canada
    Vehicle:
    2016 DCSB Manual 35x11.5s
    Front Suspension King Ext Fronts 700# Icon UCA delta joints JD fab spindle gussets All Pro cam tabs DuroBumps Warfab steering sleeves Rear Suspension Old Man Emu leafs -Radflo Ext travel rears Timbrens ubolt flip kit SCS stealth 6 Wheels 35x11.5 Maxxis Razr [ 34.5 x 9.75 on 8.5 rim not on truck] Heavy Stuff Relentless front bumper Smitty 3rd Gen winch Big County Customs skid plates Arc One industries rear HC bumper RCI sliders Misc Arb dual compressor Arb rear locker Pelfreybilt fuse panel tray Cali raised ditch light mounts Cali raised bed stiffeners 5th Gen 4runner LED fog lights Racks Retraxone XR tonneau Yakima load bars Sherpa Roof Rack Camping Smittybilt Tent Dometic CFX50 fridge
    So I picked up a FJ cruiser transfer case the other day. Looking for updates all around and stumbled onto this. 3 months later from post date is this still a solution?

    I also have a 2016 sport manual with an arb rear. It’d be good to get some more details, photos and make it a true procedure. Other wise I’m just going to leave actuator plugged zapped strapped up and out of the way :rofl:

    BigWhiteTRD[OP] likes this.
  3. Mar 26, 2023 at 6:20 PM
    #63
    Sep1911

    Sep1911 Well-Known Member

    Joined:
    Oct 2, 2015
    Member:
    #165670
    Messages:
    1,237
    Gender:
    Male
    Vehicle:
    2016 Taco
    I havnt bothered with it. I really want to not cut the factory harness but I can’t find the correct connector. I can design a circuit to spoof the factory t-case. Ultimately you can buy a used actuator and plug that to it and tie it somewhere.

    BigWhiteTRD[OP] likes this.
  4. Mar 26, 2023 at 6:22 PM
    #64
    Dkarr13

    Dkarr13 IG: Tonya_Tacoma

    Joined:
    Nov 28, 2018
    Member:
    #274087
    Messages:
    429
    Gender:
    Male
    Ohio
    Vehicle:
    2016 Sport MT ACLB MGM
    Too much to name for this little space
    You can absolutely remove the actuator from the stock case and even run it inside the cab or wherever else you may like. The only downside is you still rely on a computer to actuate your front differential. You can drop it in low but if your electric lines are dirty for any reason, your front diff won't work.
    I wanted to completely eliminate the ECU so I bought the switch from 12th State Offroad that actuates the front diff from a rocker switch and went the way I did. So far after 4 months from doing the signal shut off, my truck is still in great shape. This thread was made more for BigWhite to try to teach the spoof method so users with the stock locker can still use it.

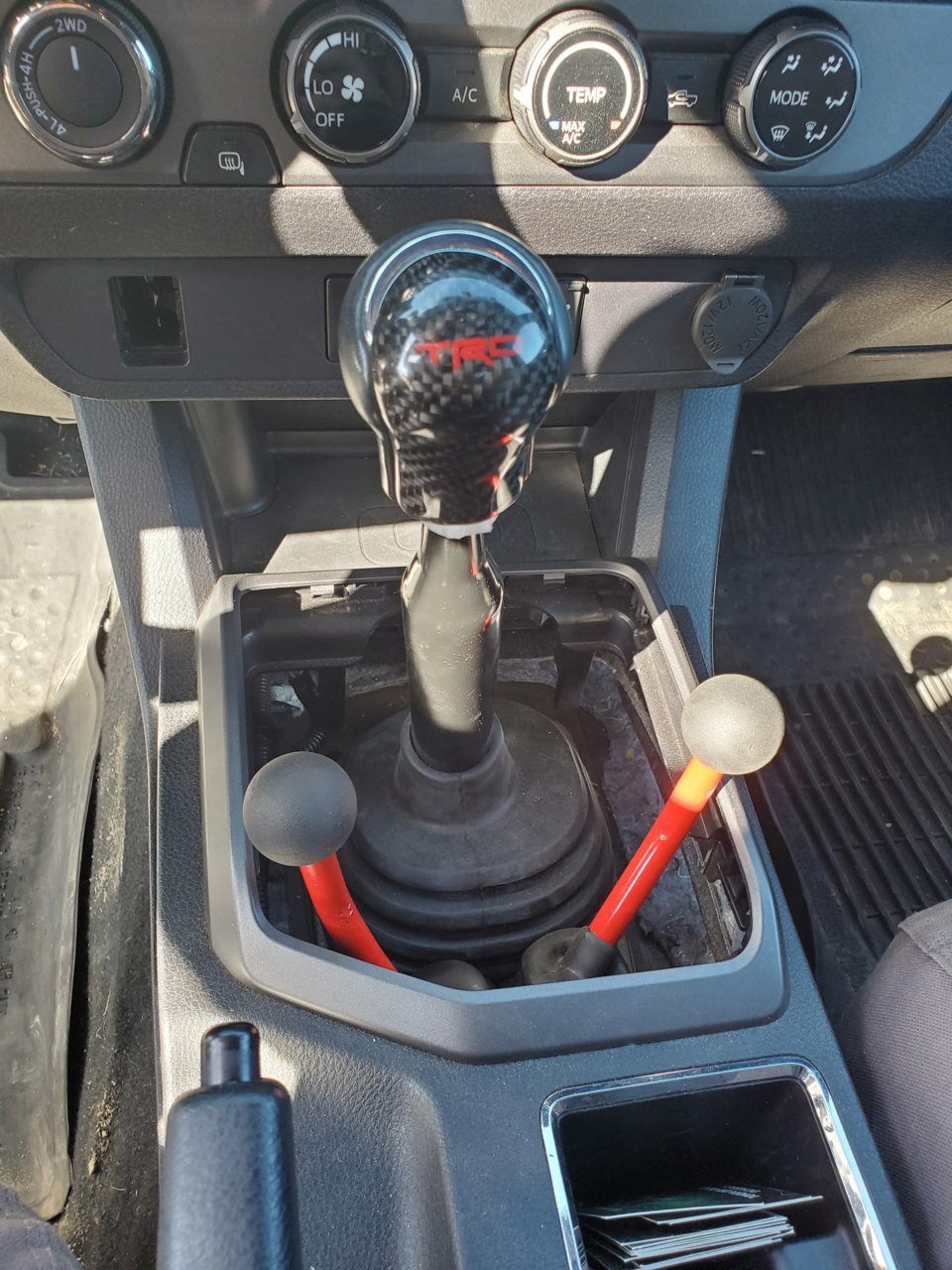

    if you want my advice, i wouldve rather got a crawl box WITH the FJ case. Everything is already out under there and it kinda sucks to do a one to one swap just to eliminate a computer. Might as well add to it, especially since we KNOW it works. Anyways, Here's what the twin sticks looks like

    I've put the boot back on since this pic but you get the jist

    BigWhiteTRD[OP] likes this.
  5. Mar 27, 2023 at 3:14 AM
    #65
    Sep1911

    Sep1911 Well-Known Member

    Joined:
    Oct 2, 2015
    Member:
    #165670
    Messages:
    1,237
    Gender:
    Male
    Vehicle:
    2016 Taco
    do you have a pic of where the shifters come into the body?

  6. Mar 27, 2023 at 3:48 AM
    #66
    Dkarr13

    Dkarr13 IG: Tonya_Tacoma

    Joined:
    Nov 28, 2018
    Member:
    #274087
    Messages:
    429
    Gender:
    Male
    Ohio
    Vehicle:
    2016 Sport MT ACLB MGM
    Too much to name for this little space
    I do not but I can say we hardly bent the sticks forward/backward. We just made a couple bends outward to fit on the sides of the shifter but for the most part, they came straight up into that shifter gap almost perfectly.
    For instance: to take off the transfer case now, I have to first unbolt the sticks, lift the sticks up out of the shifter gap, then I can unbolt the case. That's why I recommended to go ahead and get a crawl box to not have to redo all the transfer case annoyances

    3pdltrd likes this.
  7. Mar 27, 2023 at 5:00 AM
    #67
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,673
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    As said by @Dkarr13, the spoof work in the OP here was the 'best' way I had found to still allow the 4lo traction control (MTS, ATRAC) to work after the various mods. If you dont have an OR/Pro, or are not trying to keep the original traction control/rear locker actuation, then the wiring method given in the OP isnt really required (and I dont think it would be recommended as the first solution), and there are several alternative options.

    BTW, I super appreciate others giving great advice in this thread... frankly I have a hard time remembering the details of this work now...

    3pdltrd and Dkarr13[QUOTED] like this.
  8. Dec 30, 2024 at 8:03 PM
    #68
    rmack

    rmack Well-Known Member

    Joined:
    Dec 30, 2024
    Member:
    #463246
    Messages:
    45
    Vehicle:
    2022 Tacoma TRD Off-road
    RCLT, 38", T-case swap, crawl box, etc...
  9. Dec 30, 2024 at 8:06 PM
    #69
    BLtheP

    BLtheP Constantly Tinkering Member

    Joined:
    Apr 5, 2022
    Member:
    #394355
    Messages:
    4,587
    Gender:
    Male
    Plano, TX
    Vehicle:
    2021 MGM TRD On-Road DCSB MT
    RC60F Transmission ADD delete with FJ full-time tube FJ Metal Clutch Pedal OEM Mexico-Spec Condenser Fan 265/70R16 Michelin Defender LTX M/S 2 OEM 1-Piece Lug Nuts Custom Built Switch Panel for all Electrical Accessories Rigid Amber Pro D-SS Ditch Lights Rigid 30" SAE High Beam Driving Light Bar Rigid SR-Q Pro Back-Up Light Kit (Recessed) VLEDS Tail Conversion VLEDS Foot Well Light Kit KC HiLites Cyclone V2 Under Hood Lights Operable (Switched) Clutch Safety Bypass
    Just to be fully clear - I don’t have a product I sell. I wanted to make something, but I’ve found the logistics just aren’t there for me to pull it off. I end up forced to buy 2Low kits which are expensive and then need all the relays and such. But using a repurposed 2L kit - a pnp solution is definitely possible, which is what I aimed to achieve. It turns into a $3-400 deal by the time I’m done. And is a huge time suck.

    If someone really wanted to make me something, I could do so, but it won’t be cheap and it will take me a few weeks at minimum. Appreciate the shoutout though.

  10. Mar 29, 2025 at 8:57 AM
    #70
    Cjc3

    Cjc3 Member

    Joined:
    Feb 25, 2025
    Member:
    #466652
    Messages:
    10
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0
    Is there a thread like this for FJ swapping into 2nd gen? Having a hard time finding electrical info

  11. Mar 29, 2025 at 9:18 AM
    #71
    BLtheP

    BLtheP Constantly Tinkering Member

    Joined:
    Apr 5, 2022
    Member:
    #394355
    Messages:
    4,587
    Gender:
    Male
    Plano, TX
    Vehicle:
    2021 MGM TRD On-Road DCSB MT
    RC60F Transmission ADD delete with FJ full-time tube FJ Metal Clutch Pedal OEM Mexico-Spec Condenser Fan 265/70R16 Michelin Defender LTX M/S 2 OEM 1-Piece Lug Nuts Custom Built Switch Panel for all Electrical Accessories Rigid Amber Pro D-SS Ditch Lights Rigid 30" SAE High Beam Driving Light Bar Rigid SR-Q Pro Back-Up Light Kit (Recessed) VLEDS Tail Conversion VLEDS Foot Well Light Kit KC HiLites Cyclone V2 Under Hood Lights Operable (Switched) Clutch Safety Bypass
    The 2nd gen doesn’t really need any of this. Essentially you splice a few wires together at the ECU that connects the transfer case circuits to the instrument cluster, and then you wire your transfer case wires to the the manual transfer case. No need for a spoofer.

    Cjc3[QUOTED] likes this.
  12. Mar 29, 2025 at 9:21 AM
    #72
    Cjc3

    Cjc3 Member

    Joined:
    Feb 25, 2025
    Member:
    #466652
    Messages:
    10
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0
    Awesome thank you. I’m trying to find the thread showing which wires to splice and what exactly to do at T case wires. Thanks!

  13. Mar 29, 2025 at 4:37 PM
    #73
    Dkarr13

    Dkarr13 IG: Tonya_Tacoma

    Joined:
    Nov 28, 2018
    Member:
    #274087
    Messages:
    429
    Gender:
    Male
    Ohio
    Vehicle:
    2016 Sport MT ACLB MGM
    Too much to name for this little space
    I have 4 years with this FJ chain-driven case, the case itself is around 170k miles, and everything is still solid. I haven't had to touch anything on my setup. I hope everyone else is having the same luck!

  14. Mar 30, 2025 at 7:48 PM
    #74
    rmack

    rmack Well-Known Member

    Joined:
    Dec 30, 2024
    Member:
    #463246
    Messages:
    45
    Vehicle:
    2022 Tacoma TRD Off-road
    RCLT, 38", T-case swap, crawl box, etc...
    Everything works great in mine no issues other than not having the time to finish the wiring work @BLtheP started.

    Dkarr13 likes this.
