4wd System Operation & Help Thread

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Dm93, Oct 27, 2021.

  1. Sep 28, 2022 at 10:10 AM
    #201
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    No, nothing happens when the selector switch is moved from 2H-4H-4L. I have to work in couple hours. Unfortunately, having a low mileage truck in the rust belt means nothing comes apart without a fight. I really want to test it now though. My 79’ Land Cruiser is easier to take apart than this pig.

    6 gearT444E likes this.
  2. Sep 28, 2022 at 10:17 AM
    #202
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,742
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    These readings taken with a brand new transfer case actuator?

  3. Sep 28, 2022 at 10:19 AM
    #203
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    No, still trying to figure out what part needs replaced.

  4. Sep 28, 2022 at 10:23 AM
    #204
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,742
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    What did you replace here, just the vent line itself?

  5. Sep 28, 2022 at 10:25 AM
    #205
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    The whole vent line from the transfer case actuator to the TC. This was before I found this thread and figured out how the system worked.

  6. Sep 28, 2022 at 11:07 AM
    #206
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    If I just do the paper clip test will that be the same as testing ohms on the switches?

  7. Sep 28, 2022 at 3:09 PM
    #207
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,722
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I’m not sure what you are asking?

    When you ohm a switch, you are looking for a change in ohms when the switch is pressed and released.

    Unless you are talking about using a paper clip to jump pins and by pass the switch?

  8. Sep 28, 2022 at 5:09 PM
    #208
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,530
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Apologies for the late response, I've been busy at work.
    Since it seems TL1 is stuck at 0v unplug the transfer case actuator and see if it goes to 12v, if it does you likely have a problem with the contact plate in the actuator, if it doesn't then the TL1 circuit is shorted to ground somewhere.

    N919HJ[QUOTED] likes this.
  9. Sep 28, 2022 at 5:11 PM
    #209
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,530
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Not sure why they say 10 miles, the main thing is you want to move all the actuators fairly regularly to keep things from getting stuck.

    jepagan1991 likes this.
  10. Sep 28, 2022 at 5:45 PM
    #210
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    I tried jumping the plugs to make the lights go out. But didn’t think to try doing both at the same time.

  11. Sep 28, 2022 at 5:46 PM
    #211
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    I’ll try this tomorrow, thanks.

    Dm93[QUOTED][OP] likes this.
  12. Sep 29, 2022 at 9:50 AM
    #212
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    The 4L switch appears to be working. When I depress the ball it goes to 3.5 ohms constantly.

    The TL1 is at 12v when it is supposed to be at 0v when to 4WD switch is in 2H. I pulled the plug off the transfer case actuator and TL1 still read 12v. I am going to pull the cover off to see what I find. I hope nothing breaks, the 4L switch came out too easy.

    6 gearT444E[QUOTED] likes this.
  13. Sep 29, 2022 at 10:12 AM
    #213
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    Well the cap is not coming off. One of the bolts is permanently mated to the sleeve in the cap. The other two came out without much trouble. It kinda feel like I should get a actuator on order. They are saying it will take a couple of weeks to get here.

  14. Sep 29, 2022 at 10:28 AM
    #214
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,664
    Deep South
    Herculiner Hootus
    If you have an impact screwdriver that will help.

  15. Sep 29, 2022 at 10:37 AM
    #215
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    I have a impact screwdriver and a 3/8” impact driver. Are they better to use on rusty bolts? I’ve been using hand tools and twisting the bolt heads off. I figured the impact would do the same thing, only faster. It’s driving me bananas on f-ing truck.

  16. Sep 29, 2022 at 10:38 AM
    #216
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,530
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Sure looks like an actuator contact plate problem based on the signals you posted, it's interesting you got 0v on the 4wd switch wires in 4H and also that the ADD appears to have locked but not closed DL2.

  17. Sep 29, 2022 at 11:31 AM
    #217
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    If I understand the system correctly, ADD would be locked out because the TC isn’t where it is supposed be. If the switch is in 4WD, the TC should be in 4WD, only then will ADD go to 4WD. I would be surprised if the ADD is toast too. That’s kind of how this truck rolls. When it breaks, it breaks hard.

    Last edited: Sep 29, 2022
  18. Sep 29, 2022 at 1:13 PM
    #218
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,530
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I'm thinking the ADD engaged because the 4wd switch closed on the transfer case indicating the transfer case is in 4wd but since the limit switches aren't where they need to be the 4wd light continues to blink.

    Without having a broken one to study the best I can do is know where everything should be on a working truck.

  19. Sep 29, 2022 at 1:42 PM
    #219
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR
    I guess I can test that by seeing if the front axles will spin.

    Dm93[OP] likes this.
  20. Oct 11, 2022 at 12:36 PM
    #220
    N919HJ

    N919HJ Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4502
    Messages:
    174
    Ohio
    Vehicle:
    2007 Double Cab TRD OR

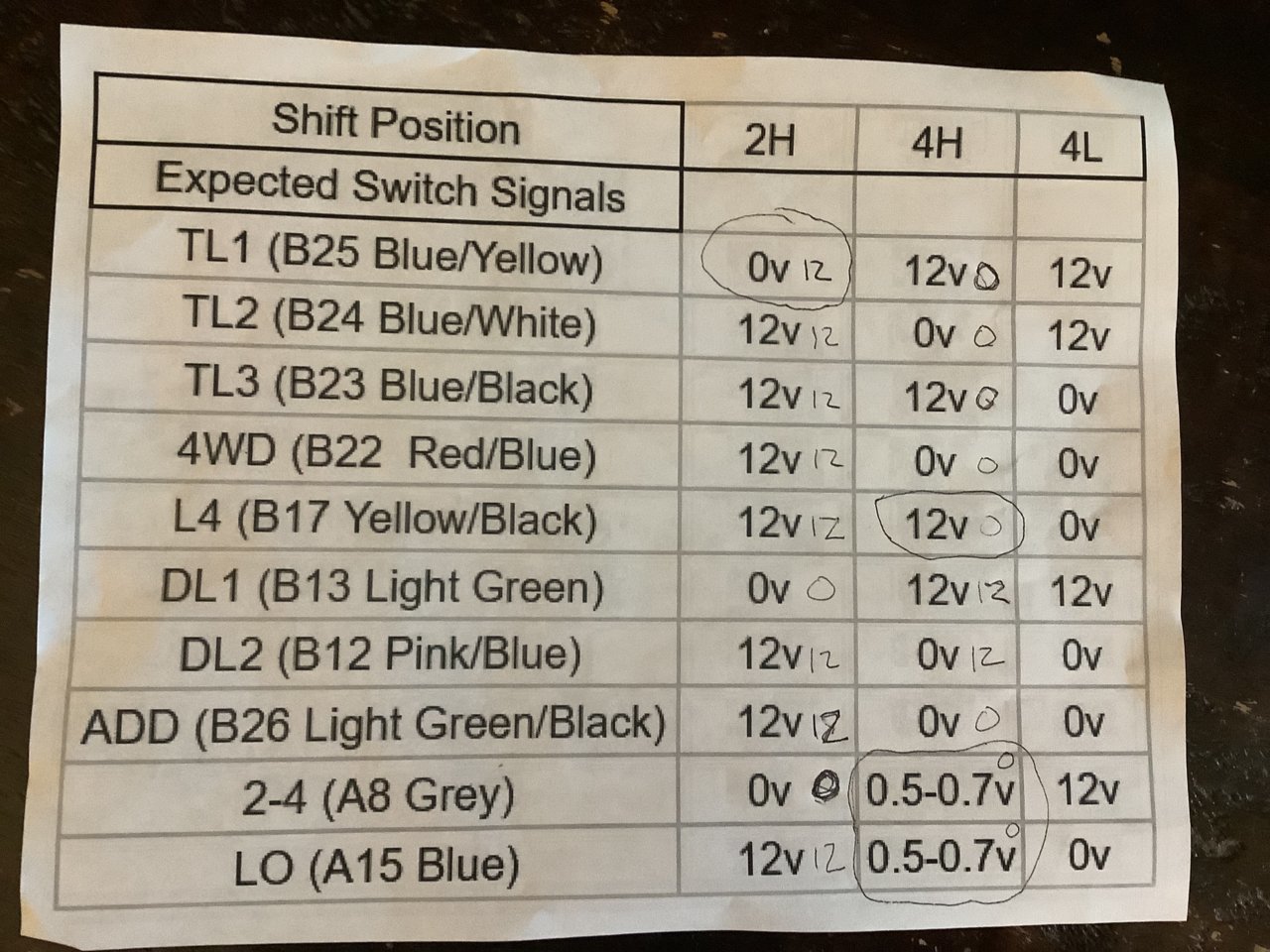

    Well, I finally got my transfer case actuator. It went in rather easy compared to everything else I have to fix on this truck. The 4WD is still doing the same thing. But now I’m getting different readings from the ecu.

    The new readings are the ones circled in black permanent marker. The ones not circled or circled in pen are the readings from before the new TC actuator was installed. I have a new ADD sitting on the bench but wanted to see if you guys had any ideas before I replace that tomorrow. I not too excited about pulling it. It sure looks like a pain in the a**. Any help would be greatly appreciated.
