4wd System Operation & Help Thread

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Dm93, Oct 27, 2021.

  1. Apr 25, 2024 at 9:40 PM
    #781
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,763
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I'm not sure who actually makes the actuator for Toyota but the aftermarket ones are hit or miss like most aftermarket stuff is these days.

  2. May 7, 2024 at 9:26 AM
    #782
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto
    I need your help, i cant get my actuator to work. These were my backprobe readings

    If i cycle key while in 4hi or 4lo the readings change


    Last edited: May 7, 2024
  3. May 7, 2024 at 10:08 AM
    #783
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Where are you taking your ground readings at? A bolt under the dash?
    Or back probing off a connector?

    Looks like you have voltage bleed over somewhere.

    What happens if you unplug the the connector at the actuator? Do the voltages go to 12v?

  4. May 7, 2024 at 10:09 AM
    #784
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,763
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I'll have to sit down and study this more later but at a glance those voltages are really low, what is your battery voltage?

    TnShooter likes this.
  5. May 7, 2024 at 10:14 AM
    #785
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto
    Yes bolt under the dash. V read the same with connector off or on

  6. May 7, 2024 at 10:15 AM
    #786
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto
    Battery is 12.4

  7. May 7, 2024 at 10:17 AM
    #787
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,763
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.

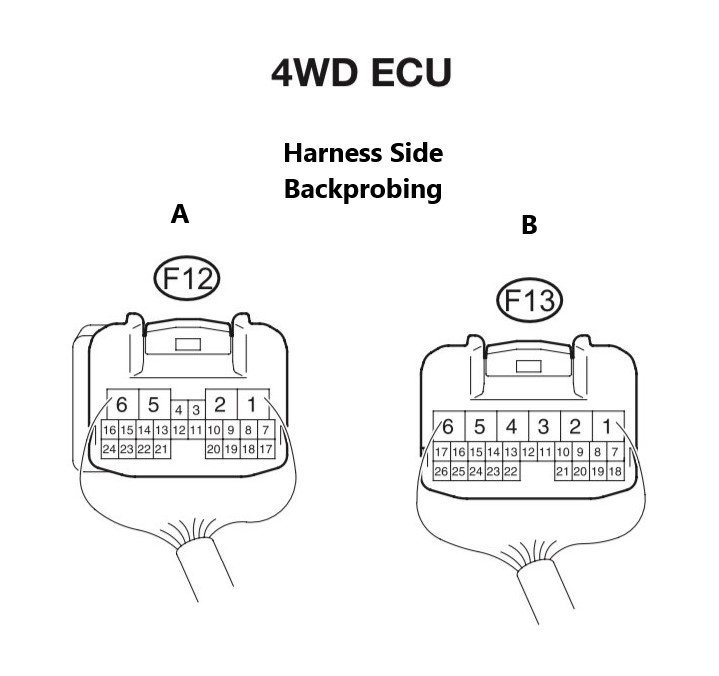

    Check across F12 (A) Pin 5 (Violet) and Pin 6 (White/Black) and see what your input voltage is to the 4wd ECU.

    TnShooter likes this.
  8. May 7, 2024 at 10:19 AM
    #788
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I was just trying to find the PIN numbers.
    lol. The schematic is blurry if you blow it up. Maybe we need to add a .pdf of the wiring diagram to the first post.

    I’m on my phone and don’t have access to “other” diagrams.

  9. May 7, 2024 at 10:20 AM
    #789
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,763
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Yea I need to update that.

    It would be IG and GND on the connector images.

    TnShooter[QUOTED] likes this.
  10. May 7, 2024 at 10:22 AM
    #790
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto

    Currently going back through the thread to locate these, my knowledge on this stuff isn't the best lol

    nvm i got it, so jump those 2?

  11. May 7, 2024 at 10:22 AM
    #791
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Yeah. I was looking for the PIN number. Just to make it easier for OP. Went to zoom in and blurry.

    We can add a .pdf later. No big deal.

  12. May 7, 2024 at 10:23 AM
    #792
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    At the 4WD ECU in the dash.

  13. May 7, 2024 at 10:25 AM
    #793
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto

    Pin 6 0v pin 5 12.0

  14. May 7, 2024 at 10:30 AM
    #794
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto
    Just to add, sometimes if i switch the knob, cycle key off/on. i can get the actuator to move. It’ll stay in 2hi. If i walk away come back to it, turn key on light will flash. Knob wont do anything. Turn knob to 4hi cycle key off/on i can hear actuator

  15. May 7, 2024 at 10:30 AM
    #795
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Well that tells us we have the correct voltage going in, now we have to figure out why it’s not right coming out.

    Dm93 can offer a better way to test the out. But we need to eliminate the wiring to the actuators first.

    Something strange is causing the 4wd ECU to read 8v out. And the ECU rarely goes bad. But it’s possible. We need to eliminate all possibilities.

  16. May 7, 2024 at 10:37 AM
    #796
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto

    Ok so i went ahead and backprobed a few with the truck running, and some are reading 10v and some 9v pin 5 on f12 was at 13ish

  17. May 7, 2024 at 11:02 AM
    #797
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,763
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.

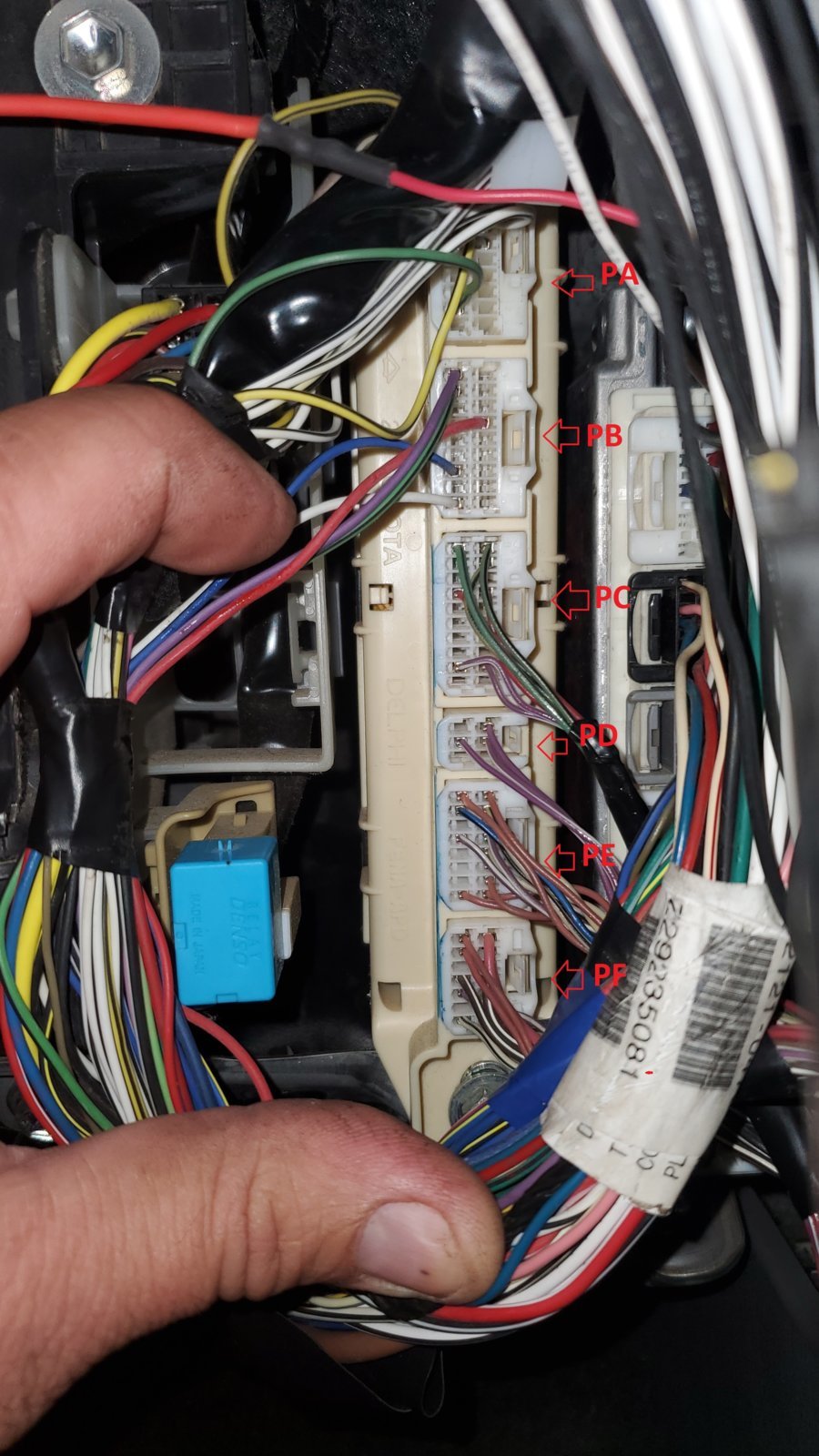

    Check the voltages on the grounds (White/Black) wires at Connector PA on the passenger side Junction Box behind the glovebox and make sure those are good.

    Jb No 2 edit.jpg

    TnShooter likes this.
  18. May 7, 2024 at 11:11 AM
    #798
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto

    Unless i am doing it wrong but those all read 0

    is there any place i can get power in cab?

    Last edited: May 7, 2024
  19. May 7, 2024 at 11:24 AM
    #799
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Ok. Somehow you have a 6v difference in all the readings. Battery is 12v minus 6v is 8v. AKA your readings.

    Then you get 6v at the 0v readings.

    The only one you have that reads 0v is the ADD Actuator. Have you unplugged it and see what the readings are then. That’s the one on the front axle.

    A voltage meter reads voltage difference between the 2 probes. Not actual voltage on a single wire. For instance, if you have 6v on one wire and 2v on the other. The meter will read 4v.



    For curiosity sake. Find a new place to use as your ground point. Then place the red lead on what ever you were using as your old ground point. We need to figure out this voltage issue.

    For sure unplug that ADD and try again.

  20. May 7, 2024 at 11:31 AM
    #800
    beto_sn

    beto_sn Active Member

    Joined:
    Nov 3, 2021
    Member:
    #381234
    Messages:
    35
    Gender:
    Male
    First Name:
    Alverto

    Ok so did the new ground to existing ground and nothing

    disconnected the add and now im getting 4v on that one in 2hi 4hi and 4lo
