4wd System Operation & Help Thread

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Dm93, Oct 27, 2021.

Page 49 of 49
  1. Feb 11, 2025 at 5:10 PM
    #961
    Tacotikoo

    #961
    Tacotikoo Member

    Joined:
    Sep 1, 2024
    Member:
    #456249
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2010 tacoma trd sport
    definitely correct pin and here is a nice picture of yellow L4 going to transfer case


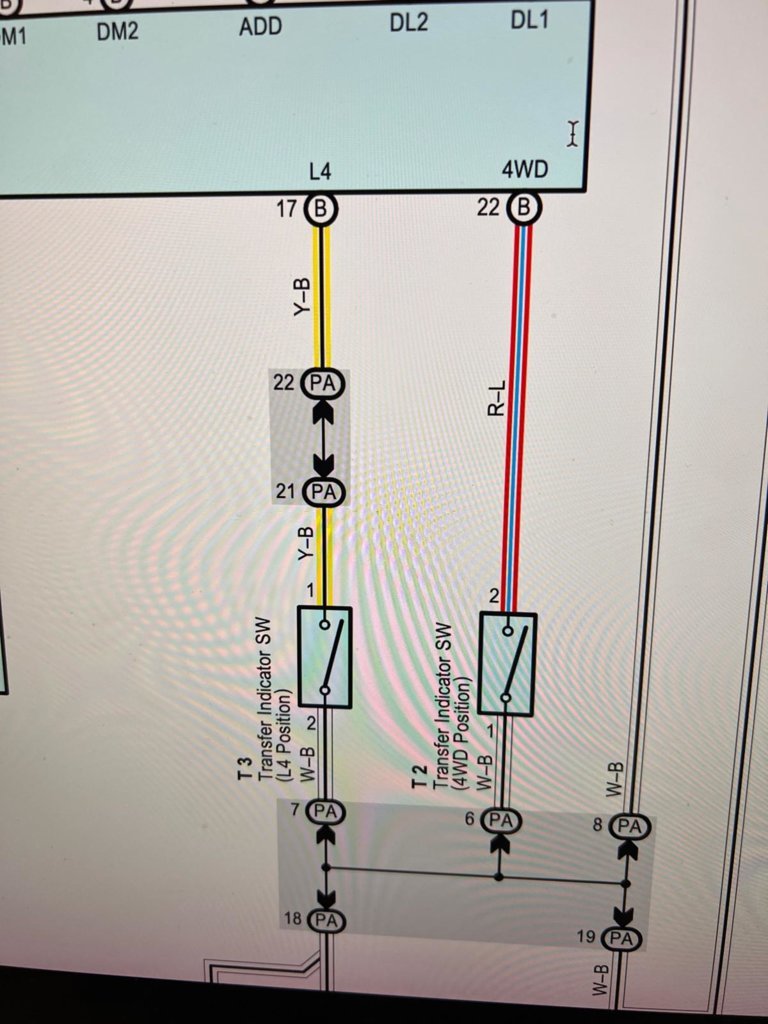

    Tacotikoo, Feb 11, 2025
    #961
  2. Feb 11, 2025 at 5:25 PM
    #962
    Dm93

    #962
    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,483
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    And the transfer case isn't physically in Low?

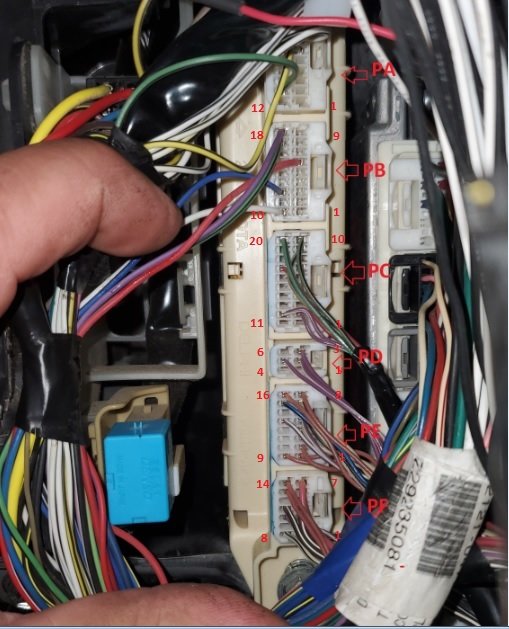

    Also I fixed my screwup, I didn't realize I labeled that incorrectly, guess I wan't paying attention:anonymous:
    Jb No 2 Labeled.jpg

    Dm93, Feb 11, 2025
    #962
  3. Feb 11, 2025 at 5:30 PM
    #963
    Tacotikoo

    #963
    Tacotikoo Member

    Joined:
    Sep 1, 2024
    Member:
    #456249
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2010 tacoma trd sport
    its in 2H

    Tacotikoo, Feb 11, 2025
    #963
  4. Feb 11, 2025 at 5:42 PM
    #964
    Dm93

    #964
    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,483
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    So just to make sure I'm understanding, when you ground PA Pin 18 (White/Black) the 4wd system works but you have a VSC light or the system is still inoperative?

    Dm93, Feb 11, 2025
    #964
  5. Feb 12, 2025 at 1:47 PM
    #965
    Tacotikoo

    #965
    Tacotikoo Member

    Joined:
    Sep 1, 2024
    Member:
    #456249
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2010 tacoma trd sport
    system is not operational in any condition
    when I ground pin 18 on PA and unplug L4 from transfer case there is no lights on dashboard
    with above when switched to 4H light just blinks and its not engaging
    transfer case actuator is tested to be in 2H, there is continuity between pin 4 and 5
    driveshaft going to the front axle is spinning freely also front wheels are spinning freely when jacked up

    Last edited: Feb 12, 2025
    Tacotikoo, Feb 12, 2025
    #965
  6. Feb 12, 2025 at 1:57 PM
    #966
    Dm93

    #966
    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,483
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I think fix the ground since we know that's bad for sure then redo the voltage checks for 2H and 4H and see what's still out of range.

    Dm93, Feb 12, 2025
    #966
