4x4 not engaging

Discussion in 'Technical Chat' started by keebie25, Jan 20, 2012.

  1. Jan 20, 2012 at 1:02 PM
    #1
    keebie25

    keebie25 [OP] New Member

    Joined:
    Feb 6, 2011
    Member:
    #50675
    Messages:
    4
    Gender:
    Male
    First Name:
    Kevin
    Anacortes, WA
    Vehicle:
    95 Tacoma xtracab 4x4
    I'm new at this so please give a little grace if I'm the wrong place. I'm not sure that the 4x4 is actually engaging even though the 4x4 light is on. The reason I say this is that I am still slipping around a bunch and it seems like only the back right tire is turning when I start out. I have a 1995 Tacoma. How can I know for sure if the 4x4 is actually fully engaged? The truck has auto locking hubs. If it's not where do I go from here? Thanks for the help.

  2. Jan 20, 2012 at 1:56 PM
    #2
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,996
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Other than putting your truck on a lift or jack stands and put your truck in 4WD and D, and see the front and rear tire spin (just one front and one rear, because of open differentials)... the only other way is to get into some low traction or steep hill, and see if you have traction in the front.

    Oh, you could just jack up the rear tires and see if you can drive forward using the front (4WD).

  3. Jan 20, 2012 at 2:05 PM
    #3
    tacoteacher

    tacoteacher Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33144
    Messages:
    1,209
    Gender:
    Male
    socal
    Vehicle:
    05 SR5 access cab 4wd
    Stock for now
    Alternately, you could punch it on soft ground in 4WD to see if you kick up dirt from one tire in the front and one in the rear. This assumes you don't have a locker engaged either axle.

  4. Jan 20, 2012 at 2:08 PM
    #4
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,996
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yah, just try and get it stuck! That's how I four wheel a Tacoma... I keep trying, but the darn thing keeps moving... oh, what a feeling!

  5. Jan 20, 2012 at 2:14 PM
    #5
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,633
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs
    my 1996 did this last winter and it was the vacuum switching valve that sends vac to front diff actuating a sleeve that slides over and essentially engages the front cv axles. instead of fixing or replacing the switch (engine bay drivers side iirc) I just started pulling vac lines to find what supplies constant vac and ran it to the diff. this is essentially the same as driving a manual hub truck with the hubs locked. so then when transfer case shifter engaged = 4x4. mine is no longer a daily driver now, just a firewood wagon.

  6. Jan 20, 2012 at 2:16 PM
    #6
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,996
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
  7. Jan 20, 2012 at 3:51 PM
    #7
    keebie25

    keebie25 [OP] New Member

    Joined:
    Feb 6, 2011
    Member:
    #50675
    Messages:
    4
    Gender:
    Male
    First Name:
    Kevin
    Anacortes, WA
    Vehicle:
    95 Tacoma xtracab 4x4
    Thanks for the quick replies and the input. I read the A-TRAC/TRAC/AUTO LSD explained article and it was helpful; however, my truck doesn't have any buttons to push, only gear shift knobs. Does that mean that it is always an open differential or is there a way to manually lock the rear differential?

  8. Jan 20, 2012 at 3:54 PM
    #8
    Anteupp

    Anteupp Mega Member

    Joined:
    Sep 5, 2011
    Member:
    #62962
    Messages:
    2,105
    Gender:
    Male
    First Name:
    Andrew
    South East Wisconsin
    Total Chaos Long Travel 4x4, Fox Coilovers, DMZ spring under, 16" king tripple bypasses, Garage built bedcage/bumper, full cage coming soon...
  9. Jan 20, 2012 at 3:57 PM
    #9
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    unless your truck came with a locker, you cant lock it.

  10. Jan 20, 2012 at 3:59 PM
    #10
    Anteupp

    Anteupp Mega Member

    Joined:
    Sep 5, 2011
    Member:
    #62962
    Messages:
    2,105
    Gender:
    Male
    First Name:
    Andrew
    South East Wisconsin
    Total Chaos Long Travel 4x4, Fox Coilovers, DMZ spring under, 16" king tripple bypasses, Garage built bedcage/bumper, full cage coming soon...
    [​IMG]

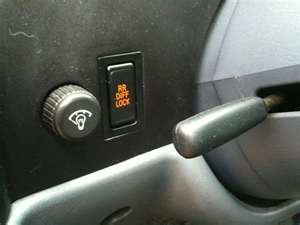

    if ya got a TRD Off road package and have that there button next to your steering column you have a locking rear diff. You can only use it in 4low unless you have the grey wire mod or are a TRD OffRoad prerunner.

    And yes your diff is always open unless you push that RR DIFF LOCK button or have a mechanical locker which locks when under power.

  11. Jan 20, 2012 at 4:24 PM
    #11
    keebie25

    keebie25 [OP] New Member

    Joined:
    Feb 6, 2011
    Member:
    #50675
    Messages:
    4
    Gender:
    Male
    First Name:
    Kevin
    Anacortes, WA
    Vehicle:
    95 Tacoma xtracab 4x4
    Thanks again guys. I appreciate the help.

  12. Jan 20, 2012 at 6:06 PM
    #12
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,996
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Perfect answer!!!:cool:

  13. Jan 20, 2012 at 6:16 PM
    #13
    boatswain

    boatswain Well-Known Member

    Joined:
    Jan 2, 2011
    Member:
    #48621
    Messages:
    2,472
    Gender:
    Male
    First Name:
    carl
    palmerton,PA.
    Vehicle:
    09 barcelona red , base
    maby I'm missing something here. my "95" had locking hubs, and a manual 4-wd lever. when I engaged the transfer case, the front axles were engaged. lock the hubs in and 4-wd was functional. thought auto hubs just made it that you didn't have to manually engage and disengage the hubs. could it be that the auto hubs no longer engage ??????? maby i"m off base on this !

  14. Jan 20, 2012 at 7:46 PM
    #14
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,633
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs
    correct, from what I understand

  15. Jan 21, 2012 at 12:35 AM
    #15
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,996
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

    Not sure when Toyota changed from 'manual hubs' to 'auto-locking hubs'.. or if they went straight to the ADD (Automatic disconnecting differential) system, in the 90's.

    The difference between 'Auto Locking Front Hubs' and the ADD (all Toyota 4WDs have had for at least a dozen years) is that Auto-locking Hubs require that you drive in reverse a bit to actually un-lock the hubs. The ADD allows shift-on-the-fly into and out of 4WD-High... no backing up.

    My dad had Warn Auto. Hubs on his Jeep Wagoneer in the '60's... and it still had the selectable manual hubs in front, but you left them in the 'lock' position... (they would disengage internally, and he even said that he had to drive in reverse for them to unlock).

  16. Jan 21, 2012 at 7:50 AM
    #16
    boatswain

    boatswain Well-Known Member

    Joined:
    Jan 2, 2011
    Member:
    #48621
    Messages:
    2,472
    Gender:
    Male
    First Name:
    carl
    palmerton,PA.
    Vehicle:
    09 barcelona red , base
    not too familiar with the auto hubs. had them on an "87" 4-rnr. and replaced them with manual lockouts. I believe you'r right about having to back up to disengage the auto. hubs, but still had the lever to disengage the transfer case. W/ the front hubs locked in, I went from 2-4 wd. and back, many times, while driving. the difference is that the front axles and front driveshaft are still turning when the hubs are locked. by unlocking they stay stationary. did this with my "85" & "87" 4-rnrs., and a "95" taco. also with a "78" ford F-150. :eek:
    a buddy of mine left his girlfriend use his 4-wd to go to work because of bad weather. she said it didn't go for crap and that her car was better. she put it into 4-wd, and never locked the hubs in. only had 2 wd. wonder why they did away with lockouts? :rolleyes:

  17. Jan 21, 2012 at 7:57 AM
    #17
    Yoytoda

    Yoytoda The Little Truck That Could

    Joined:
    Oct 2, 2009
    Member:
    #23690
    Messages:
    4,949
    Gender:
    Male
    First Name:
    Roland
    Big Bear,CA / Upstate NY(Saratoga)
    Vehicle:
    2010 Tacoma Regular Cab 4x4
    completely stock
    put it in 4lo. that way you can see if the t case is at least working right

    my bet is front actuator if only the rear wheels are spinning
