4x4 Wanna Be Part 2 - SAS Toyota Axle/3Link

Discussion in '1st Gen. Builds (1995-2004)' started by alove0750, Apr 19, 2012.

  1. Apr 19, 2012 at 5:21 AM
    #1
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    Finished Product

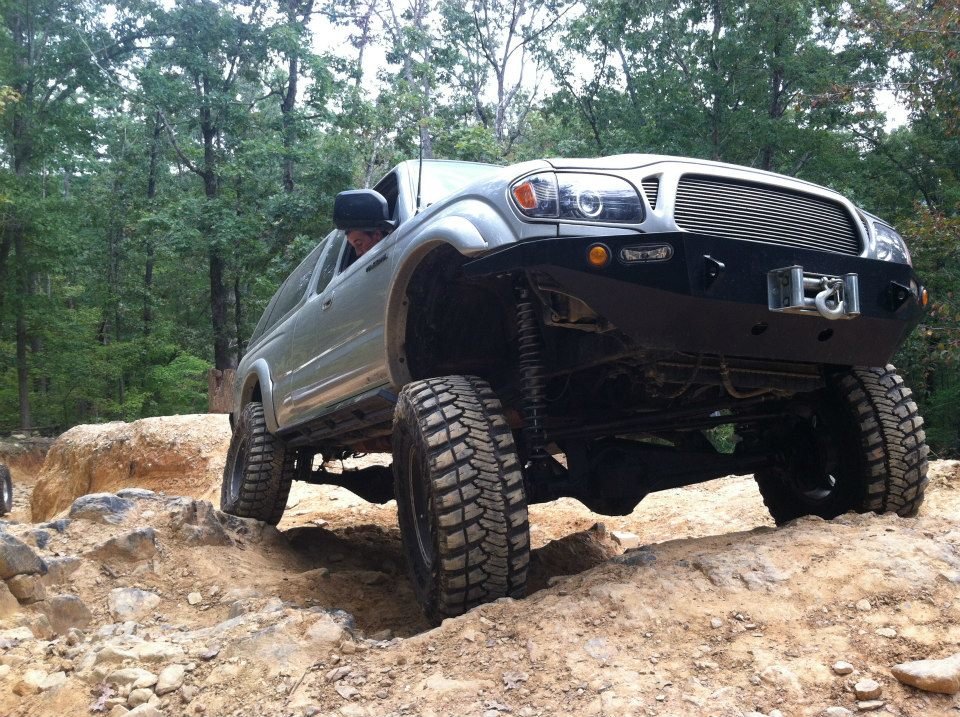

    [​IMG]

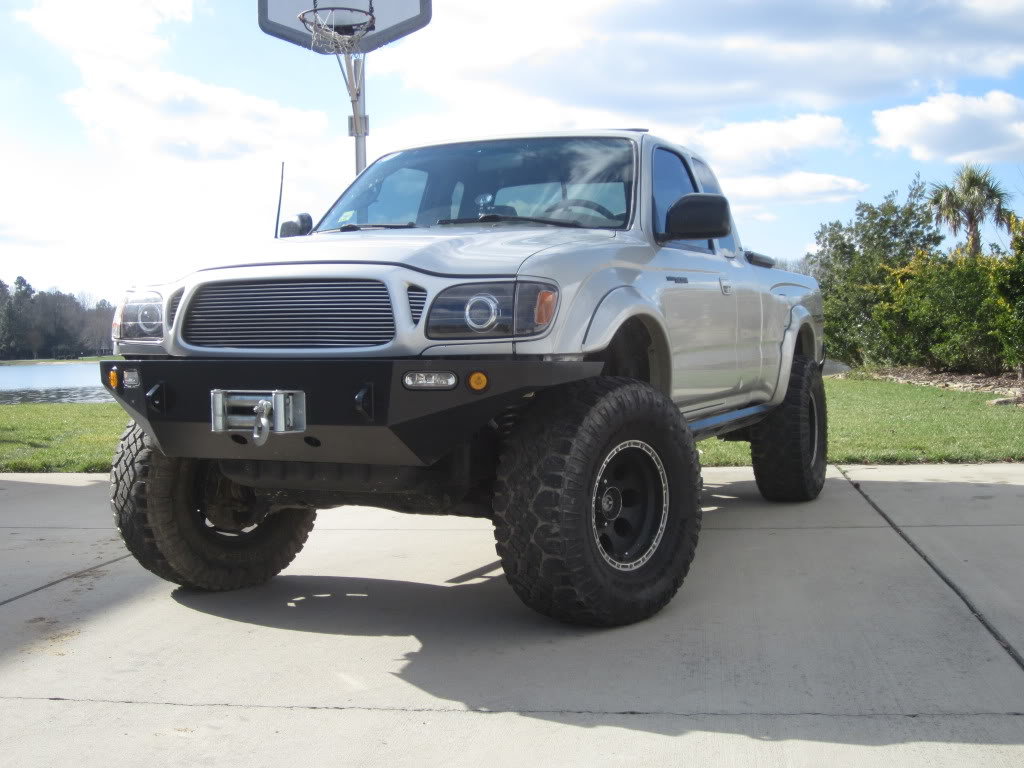

    Here is how she sits as of today, but that will change this afternoon.

    [​IMG]



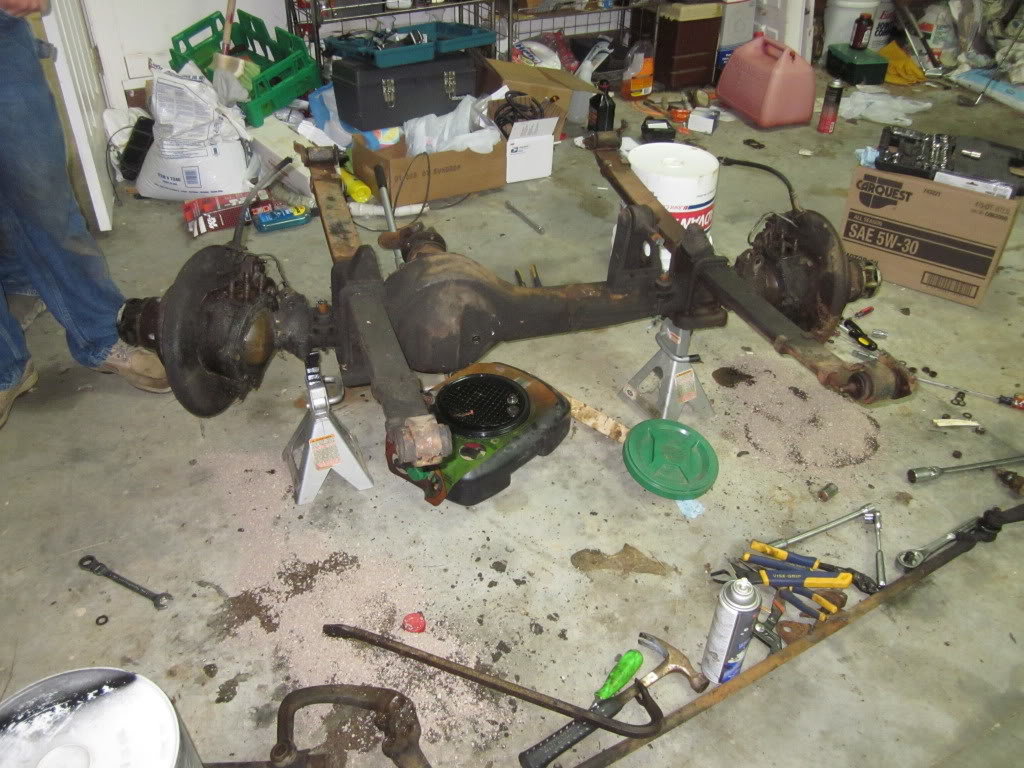

    I have been collecting parts over the past 2 months and the time has come to get the ball rolling. I built the axle and acquired 85% of the parts. The conversion will be done by Damien at M.O.B.S. Fabrication of Concord, NC. He is the one who built all the armor for the truck while it was IFS.


    Parts/Price List --> more to be added...

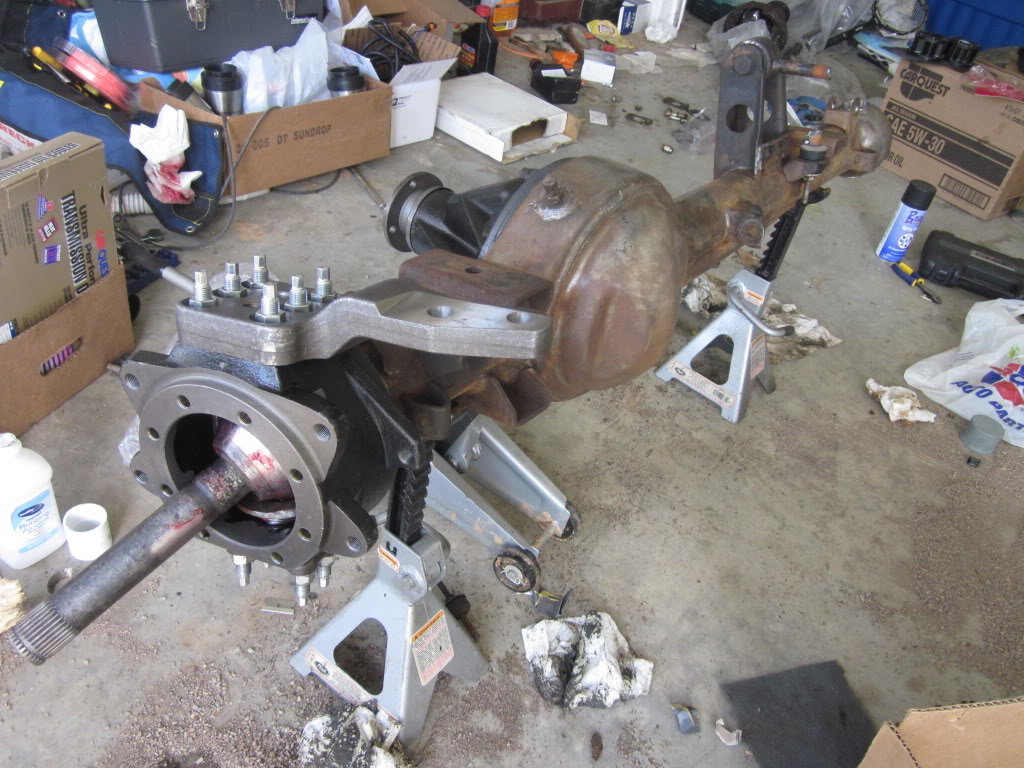

    Axle
    79 Toyota; 8” 4cyl  $250.00
    Sierra 8” 4cyl 4.56 gear set  $185.00 + 10% off  $166.50
    Sierra 8” 4cyl master bearing kit  $135.00 + 10% off  $121.50
    Spartan Locker 8” 4cyl  $284.26
    Marlin front axle service kit  $179.00

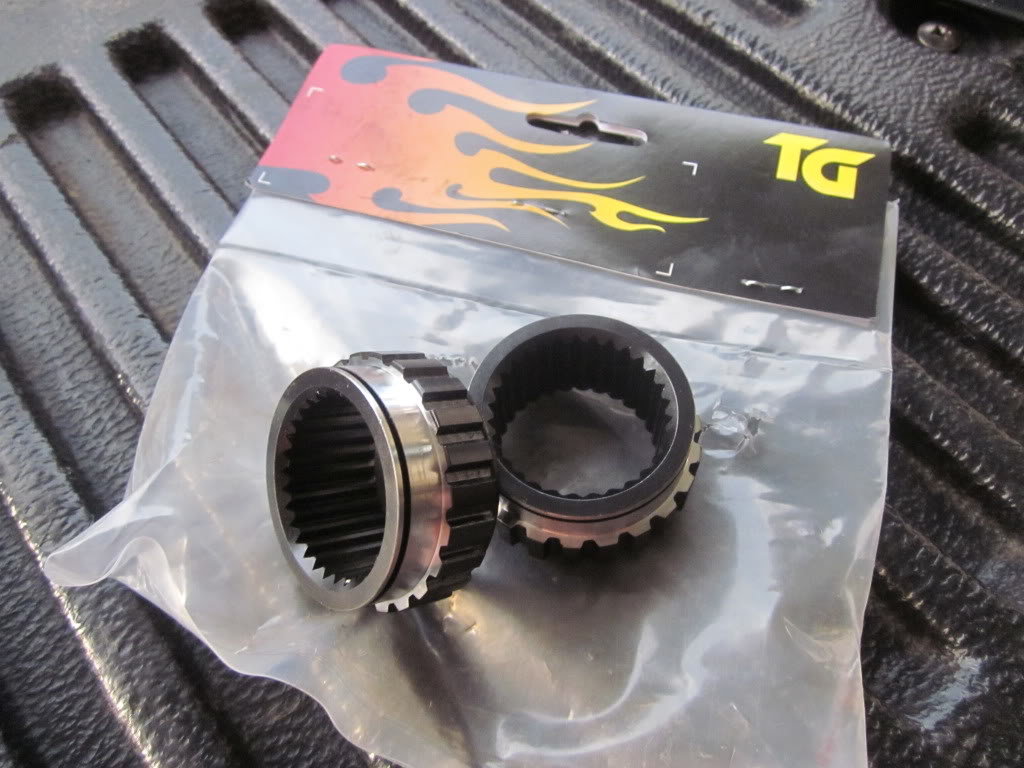

    Trail-Gear Chromolly Hub Gears  $100.00

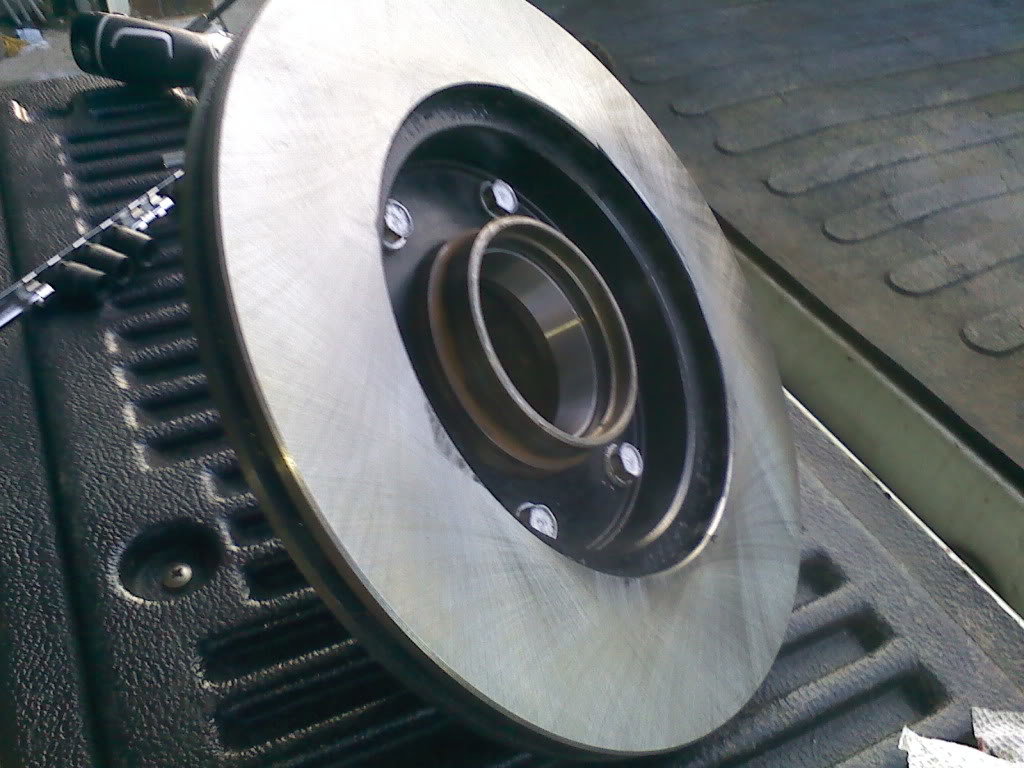

    Vented rotors (79 FJ40)  $?
    Reman Calipers  Carquest #’s 19-1601 and 19-1600 (94 4Runner)  $79.42
    Raybestos Brake Pads  Carquest # RCD 611 (94 4Runner)  $22.53
    Low profile drain plug  $4.99

    Suspension

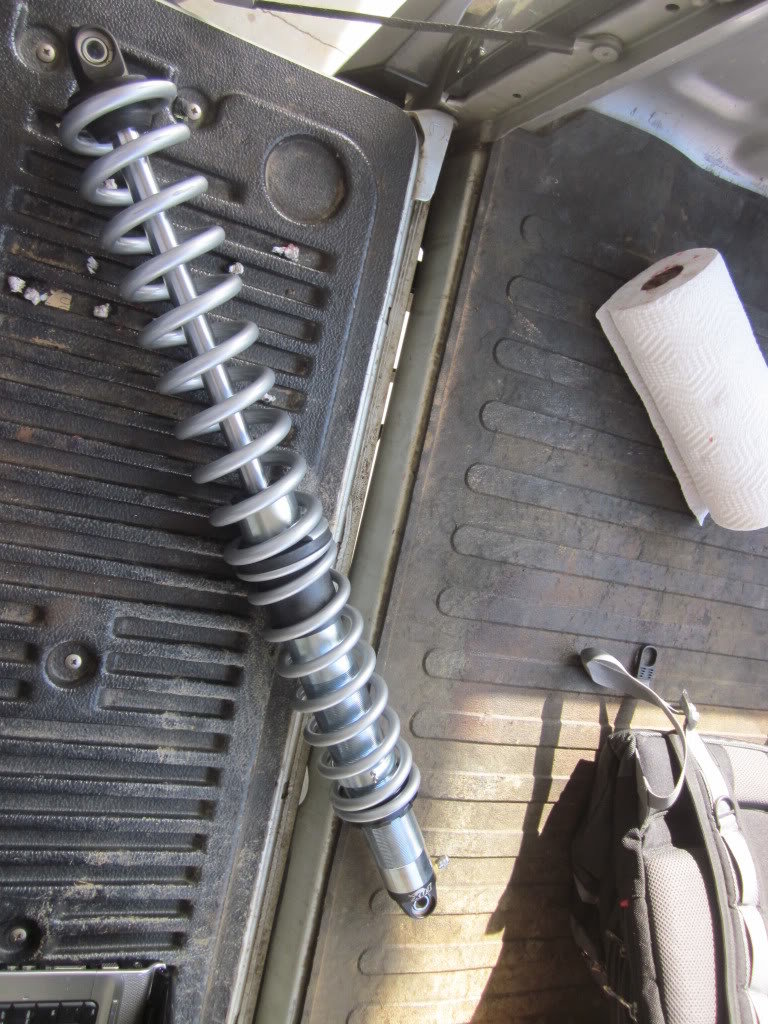

    Fox Coilovers  12in Travel  $620.00
    Upper Coils  10in with 250lbs  $130.00
    Lower Coils  14in with 350lbs  $130.00
    Brackets

    Transfer Case
    82 Toyota top shift case  $100.00
    Tacoma Passenger Side Adapter  $399.00 + 10% off  $359.10
    Speed Sensor Adapter  $100.00 + 10% off  $90.00
    Creeper Gears 4.7:1 – 23 Spline  $492 + 10% off  $442.80

    Drive Shaft
    HD Front Driveline Kit – Creeper Joint  $229.00 + 10% off  $206.10
    Rear Tube Yoke  $39.68
    Rear Flange Yoke  $58.53
    Rear U Joint  $21.36
    Steering Shaft Joint  $100 x 2  $200.00

    Misc Parts Needed
    Oil Pan  12101-65030  $155.62
    Strainer  15104-62060  $62.78
    Oil Strainer Gasket  15147-62060  $2.05
    Oil Pan Drain Plug and Gaskets  Dorman #’s 090-038 (plug) and 097-115 (gasket)  $2.50
    Transmission Cooler  Carquest # 77421  $41.86


    Fluids/Chemicals
    Amsoil 75W90 Synthetic Gear Oil  $11.55 x 8  $92.40
    Amsoil Synthetic ATF  $8.90 x 6  $53.40
    Amsoil Synthetic Grease  $5.41 x 4  $21.64

    Shipping
    Inchworm  $93.03
    Marlin Crawler  $20.72
    Trail-Gear 
    Amsoil  $26.05

    Labor
    Rear Drive Shaft  $75.00
    Gearing and Installing the Transfercase  $300.00
    Differential Gear Setup  $75.00

    Parts Sold
    Front Differential (geared and locked)  $800.00
    Icon UCA’s  $630.00
    Toytec/Bilstein Coilovers  $500.00
    Remington Sendero 7mm Mag  $950.00
    Nikon Monarch 8-32x50SF  $480.00
    Sold Total  $3,360.00


    Estimated Total  $8,155.20


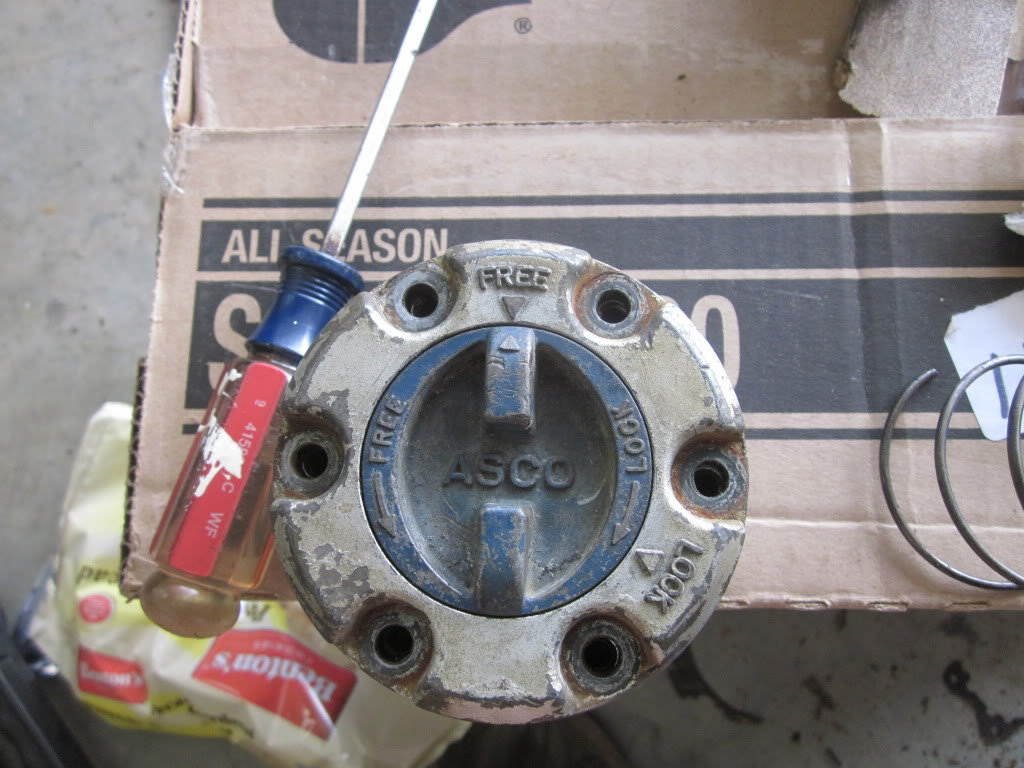

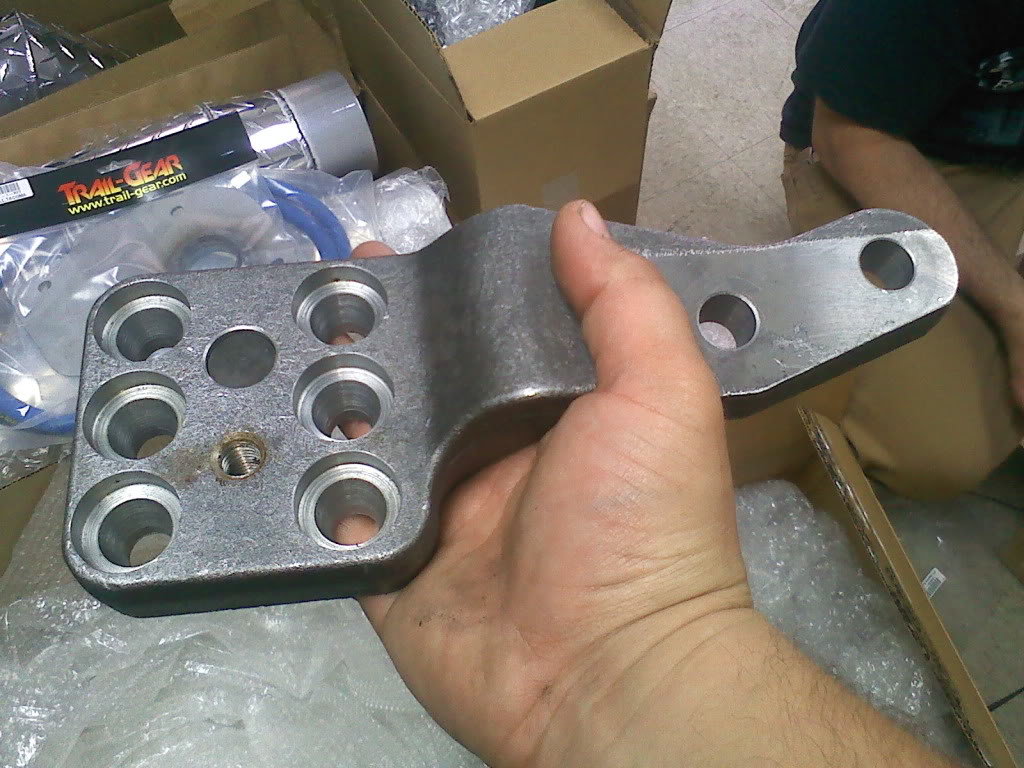

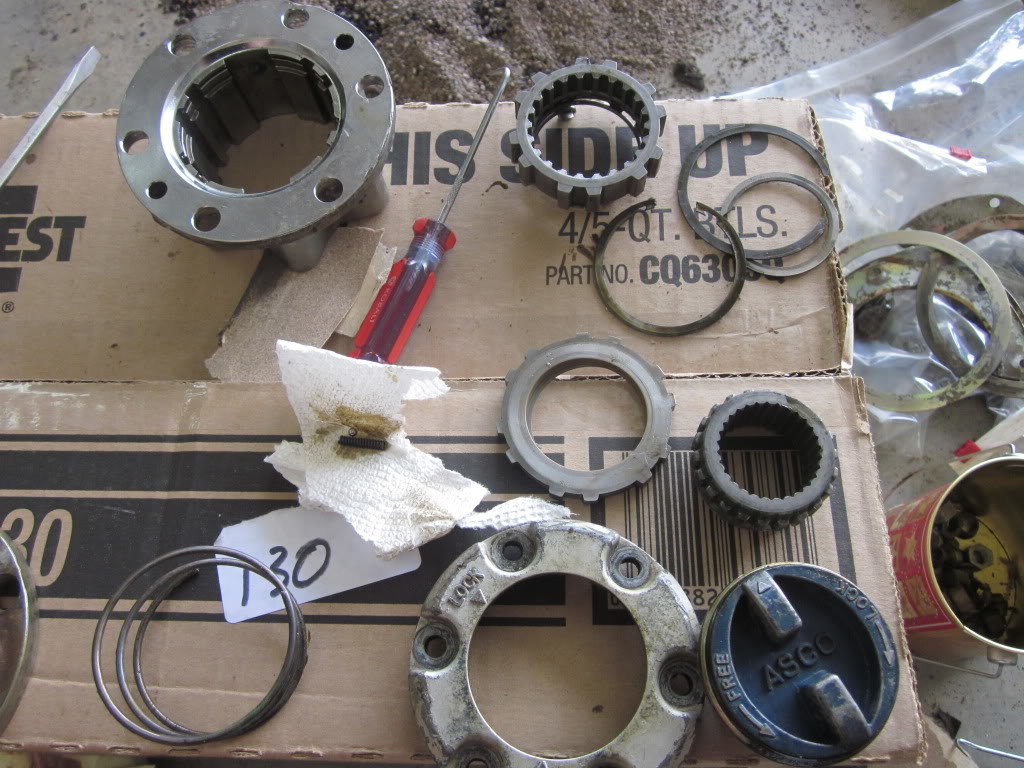

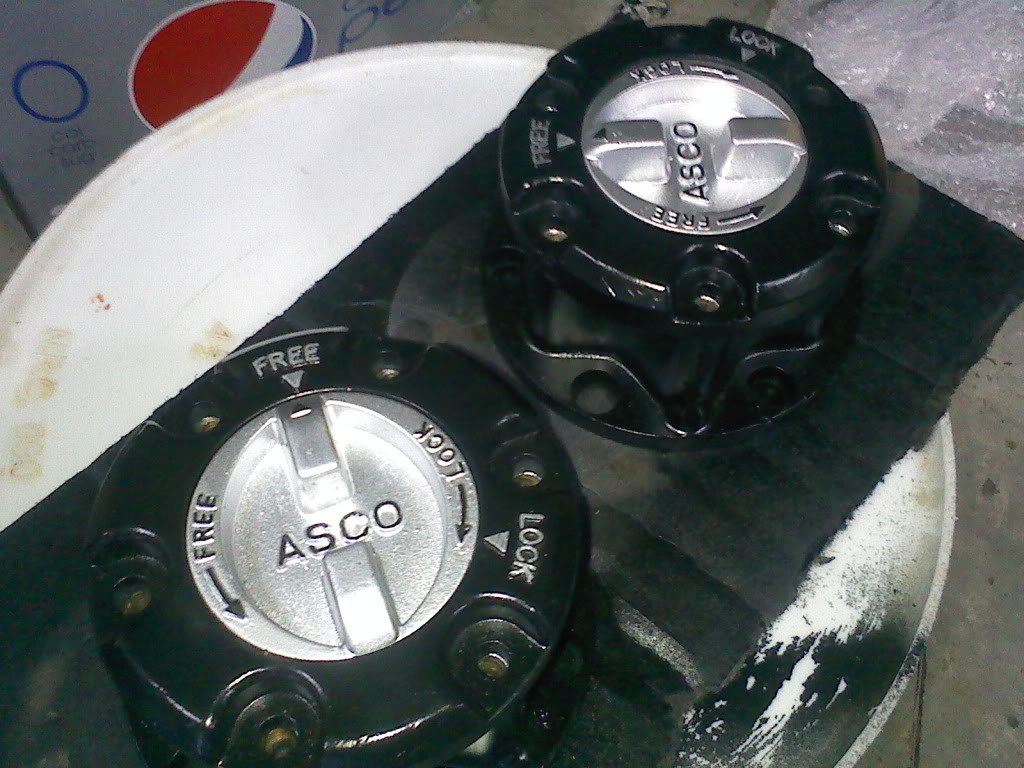

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. Apr 19, 2012 at 5:29 AM
    #2
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,978
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    This is gonna be good! :popcorn:

  3. Apr 19, 2012 at 5:31 AM
    #3
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
  4. Apr 19, 2012 at 7:09 AM
    #4
    ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,039
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    Where can I get one and how much!

  5. Apr 19, 2012 at 7:16 AM
    #5
    mjp2

    mjp2 Living vicariously though myself Staff Member

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    17,282
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    Go on. :pccoffee:

  6. Apr 19, 2012 at 7:17 AM
    #6
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,126
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    X2

  7. Apr 19, 2012 at 7:21 AM
    #7
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    I will hopefully have some carnage pictures up this evening. I drop her off in a hour to start the tear down. I'm taking the coilovers and brakes off the front before he torches it and I'm also taking out the rear leafs and shocks. I'm going to try rebuilding my stock leafs while he has it, worst case maybe going with some All Pro's or Deavers

  8. Apr 19, 2012 at 7:22 AM
    #8
    jhu616

    jhu616 Well-Known Member

    Joined:
    Oct 17, 2011
    Member:
    #65370
    Messages:
    242
    Gender:
    Male
    First Name:
    Tripp
    GA
    Vehicle:
    08 4x4 6-Speed TRD Off-Road
    Magnaflow Exhaust, Bilstein 5100s, Eibach Coils, Toytec AAL, Black Baja Wheels, Ipod Hookup, Diff breather
  9. Apr 19, 2012 at 7:22 AM
    #9
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    It could be yours for the right price ;)

    Nah I couldn't sell this thing... it's going to be around for a long time :rolleyes:

  10. Apr 19, 2012 at 7:23 AM
    #10
    Ripcord

    Ripcord 4Runner guy

    Joined:
    Mar 31, 2011
    Member:
    #54120
    Messages:
    890
    Gender:
    Male
    First Name:
    Jim
    Albuquerque (Corrales), New Mexico
    Vehicle:
    2002 4Runner 4x4 Sport Ed. Supercharged
    URD 7th/ URD 2.2" - OME 883/890, Bilstein 5125 - 285/70/17 Duratracs / 17x8 König Countersteer Type-X - 231mm Tundra Brakes - B&M 70268 Trans. cooler - Trans. Temp gauge - SG II - JDM Field Monitor Unit - Deckplate/ ISR/ K&N - Kenwood Excelon - Tacoma Antenna - Uniden Pro 520XL CB w/ PA - 'Hardwired' Radar unit - WeatherTech - Andymod 2.0 - White LED Dash & Gauges - Smoked LED tail lights - Disabled DRLs/ Silverstar Ultra - Yakima System - 20% Tint - Much more..
    Sub'd :cool:

    Good luck, dont see 3 link swaps as often.

  11. Apr 19, 2012 at 8:08 AM
    #11
    ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,039
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    a lot of the plate style bumpers are located on the west coast. I'm in virginia and would love to have one made. Do you have the contact information. Maybe I can call the shop and see how much he would charge to make one. Very clean lines! What winch are you running?

  12. Apr 19, 2012 at 8:38 AM
    #12
    ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,039
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    Just talked to the guy at the shop. Great price

  13. Apr 19, 2012 at 12:56 PM
    #13
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    Yeah I was up at the shop when you called actually :D

    He's really good, I can e-mail you some pics of the bumper build if you like. He's got some severe OCD, and his work reflects that... plus he will build whatever you want :cool:

    I'm running a 8,000lb Smittybilt. It's been good so far, but I may end up running something else in the future.

  14. Apr 19, 2012 at 1:00 PM
    #14
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty

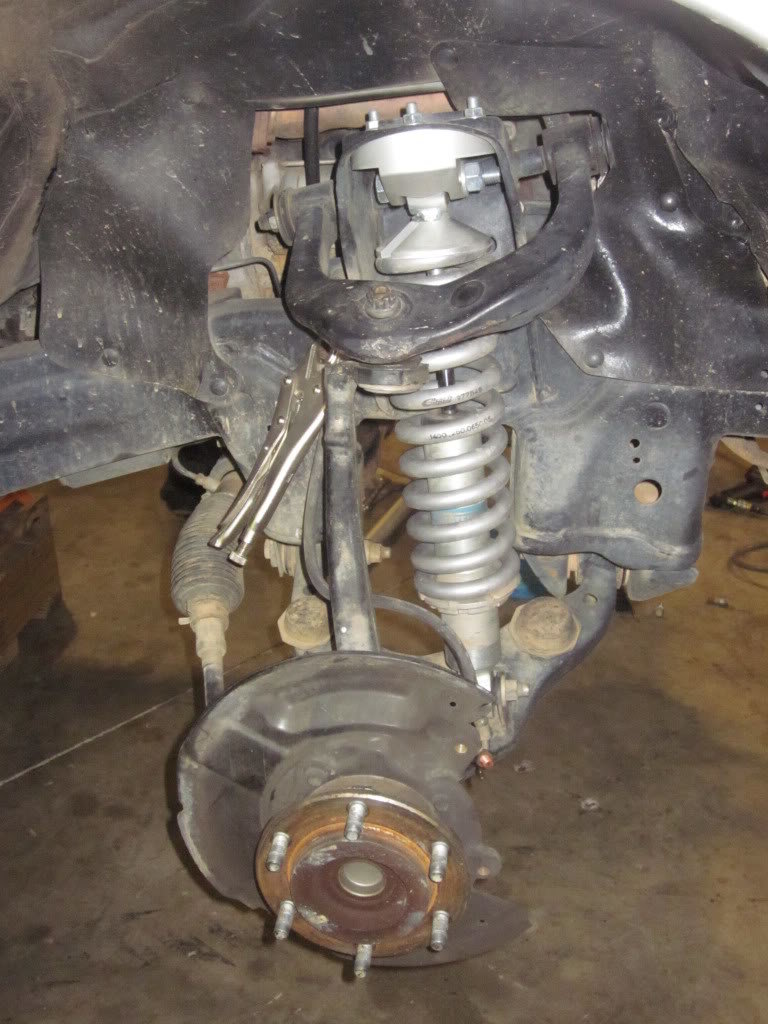

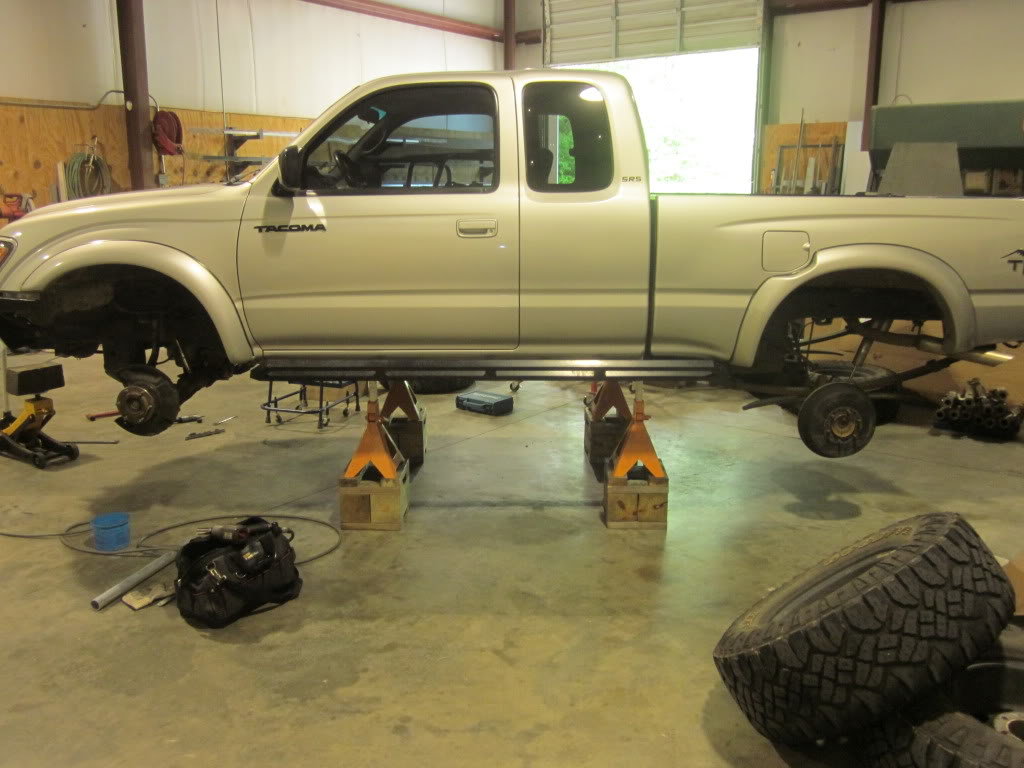

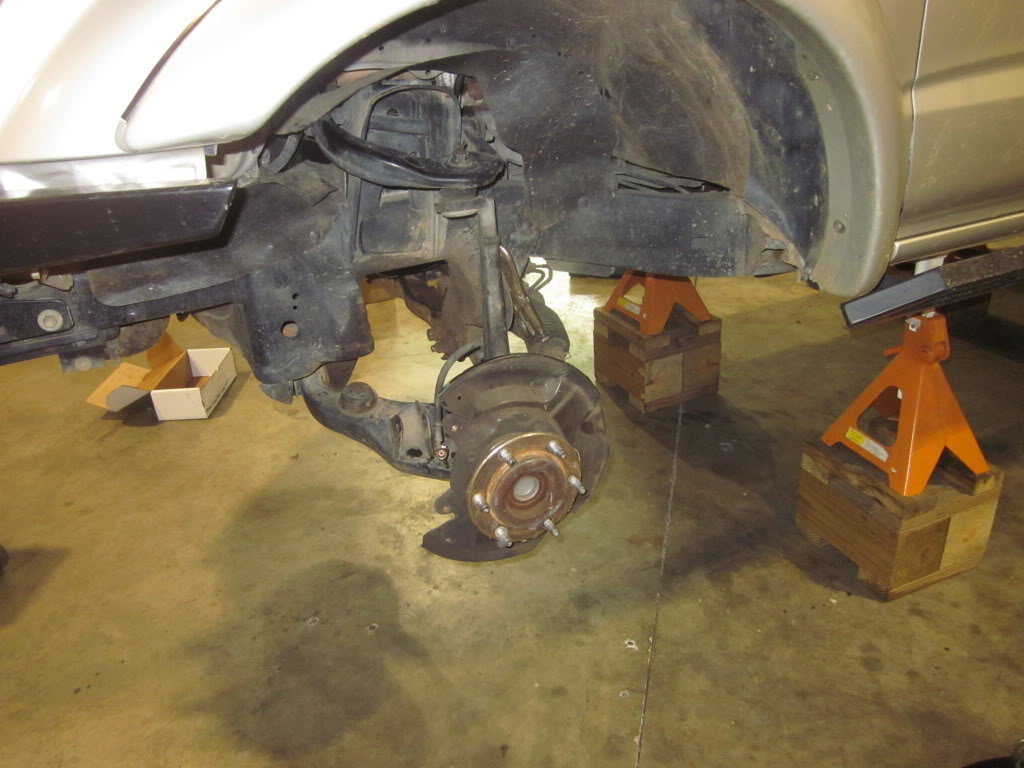

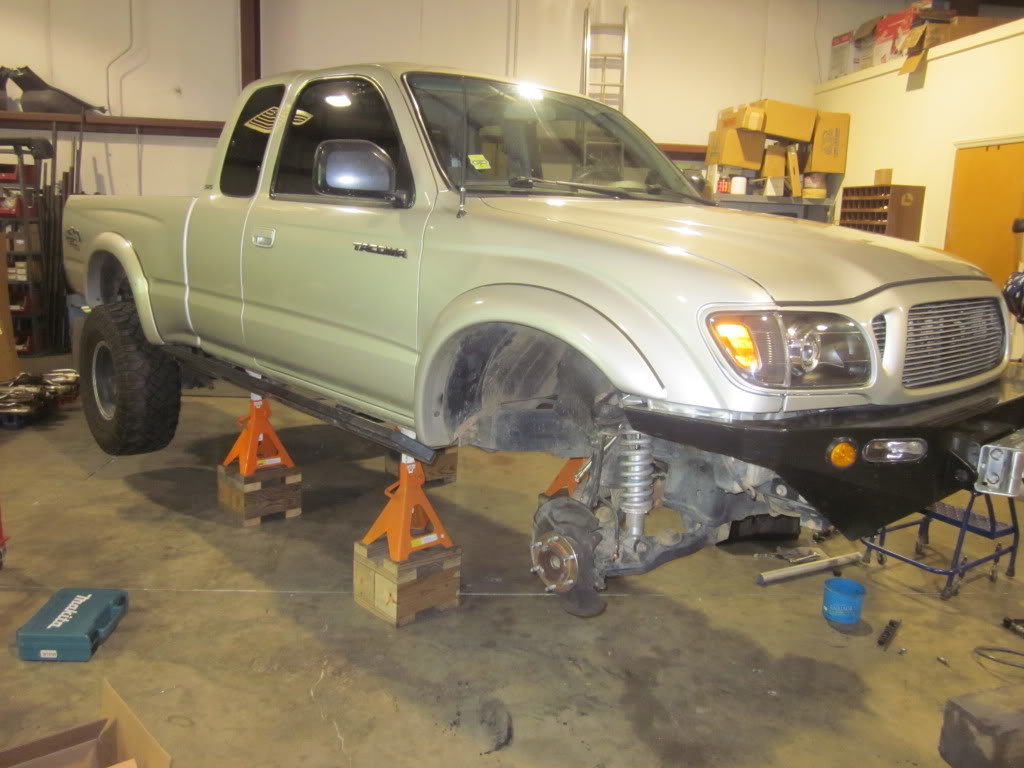

    I got all the things that I needed pulled off the truck this afternoon. He's going to start cutting tomorrow :D Everything went really smooth, didn't take but an hour or so to pull off.
