5VZ-FE - cam pulley Torque (217lbs!?) Bent my Cam holder tool! What to use?

Discussion in '1st Gen. Tacomas (1995-2004)' started by ArizonaBrian, Oct 30, 2021.

  1. Oct 30, 2021 at 3:38 PM
    #1
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    Hello,

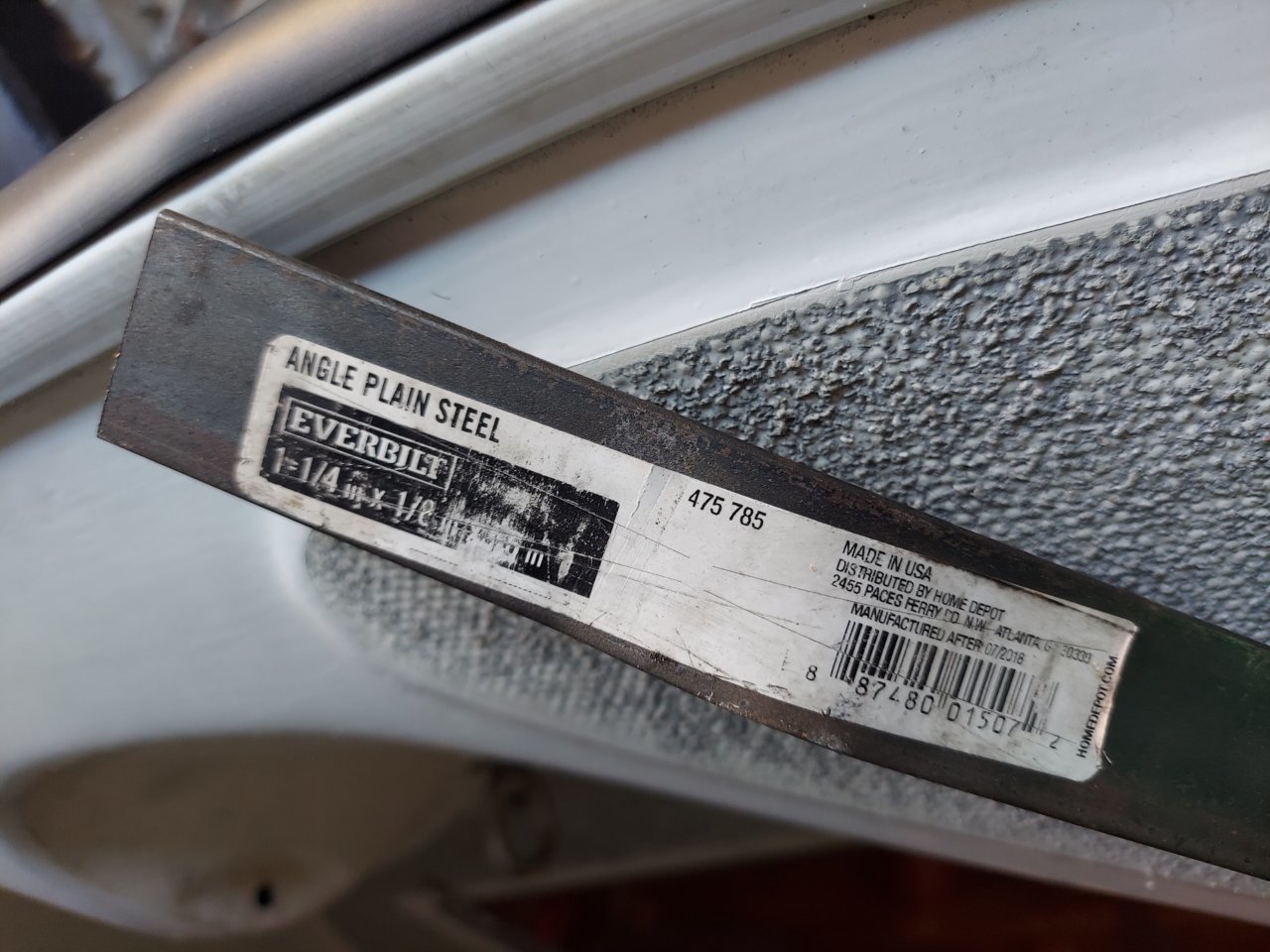

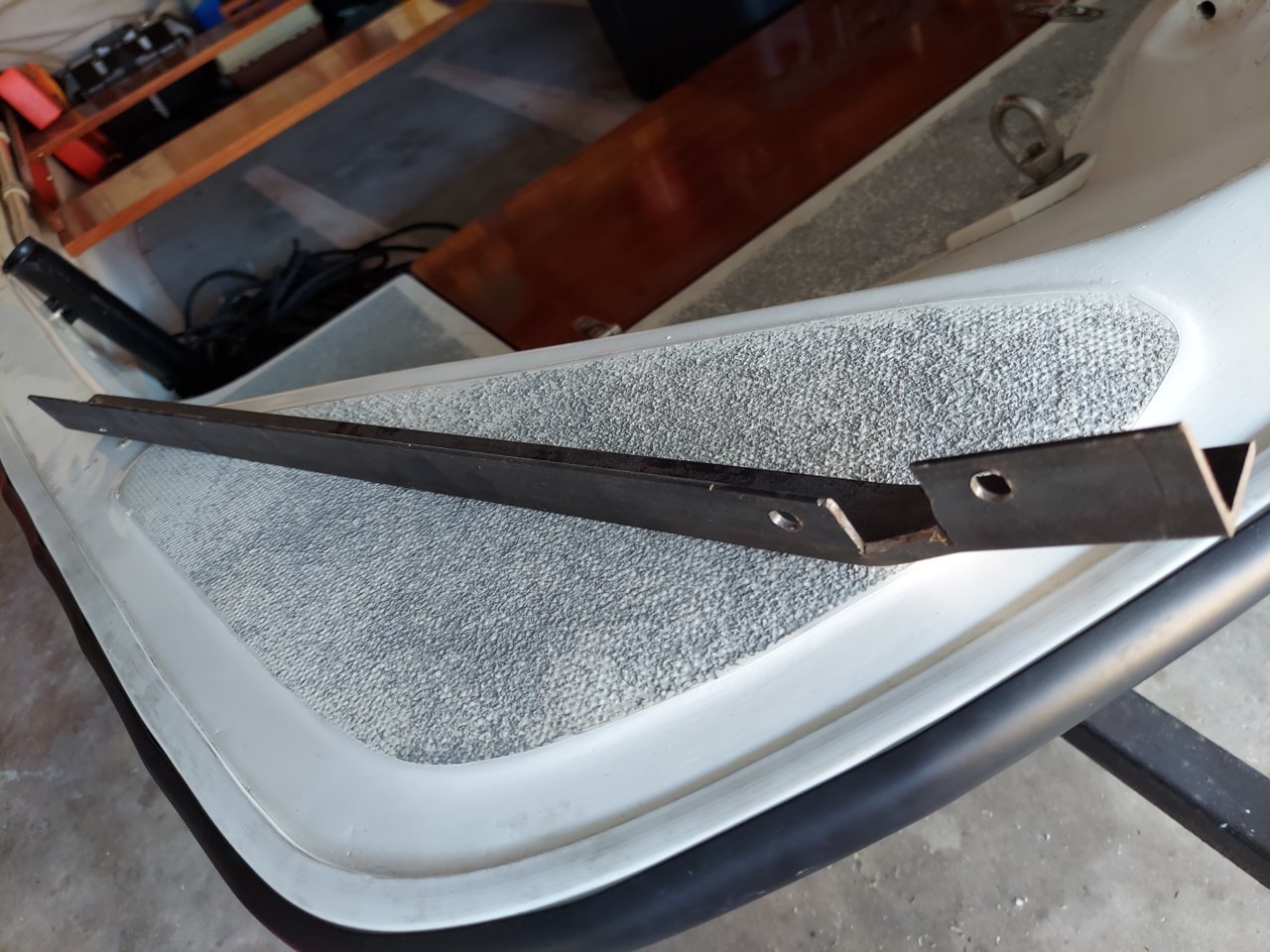

    In looking up the torque specs in the FSM I see 217lbs for the cam pulley bolt! WOW! I knew it was going to be a chore when the time came. I ended up bending my steel cam holding tool so am wondering what you guys use to do this or if there's any hack in a pinch. I tried to fashion a holder using a 2X4 leaning on the frame but it snapped because the holes are too close together.
    I see the subaru guys have some fancy pants method using the timing belt wrapped around various pulleys on youtube. Any help is appreciated.

    My next plan is to go buy some 4" flat steel and make another, more robust, holder.

    I'm also tempted to just zap it back on with the 1/2" pneumatic impact while holding the sprocket with the old belt and call it good. But would rather not unless I have to.

  2. Oct 30, 2021 at 3:47 PM
    #2
    specter208

    specter208 Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165992
    Messages:
    4,022
    Gender:
    Male
    California
    Vehicle:
    2017 TRD SPORT ACLB w/ 6MT TRUCK WHITE
    TOYOTA OEM: Cast Aluminum Running Boards Mud Guards Bed Mat All-Weather Floor Liner NIssan Frontier Sliding Bed Extender
    If engine is on a stand. I used a metal pulley tool and used bolts on the output side of the crank to hold it and brace it against the stand back plate. If you have a manual and it’s in the truck, put in a high gear.

  3. Oct 30, 2021 at 3:55 PM
    #3
    Superdave1.0

    Superdave1.0 Grandma Dave

    Joined:
    Dec 27, 2018
    Member:
    #277158
    Messages:
    4,525
    Gender:
    Male
    SoCal
    Vehicle:
    LX470
    I made one. Drilled 2 holes and cut out the center section to fit the socket. I've used it a few times, it bent the last time, got the job done.


  4. Oct 30, 2021 at 4:07 PM
    #4
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    Cam pulley bolts.

  5. Oct 30, 2021 at 4:57 PM
    #5
    Superdave1.0

    Superdave1.0 Grandma Dave

    Joined:
    Dec 27, 2018
    Member:
    #277158
    Messages:
    4,525
    Gender:
    Male
    SoCal
    Vehicle:
    LX470
    This.

    specter208 likes this.
  6. Oct 30, 2021 at 6:00 PM
    #6
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    5,581
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Where did you come up with 217 Foot Pounds I get 184 Foot pounds for the Crank pulley

    I agree with 81 Foot pounds for Cam Pulley bolts

    JudoJohn and specter208 like this.
  7. Oct 30, 2021 at 6:18 PM
    #7
    TRD8

    TRD8 Member

    Joined:
    Oct 25, 2020
    Member:
    #344815
    Messages:
    18
    Gender:
    Male
    North Georgia
  8. Oct 30, 2021 at 6:40 PM
    #8
    Superdave1.0

    Superdave1.0 Grandma Dave

    Joined:
    Dec 27, 2018
    Member:
    #277158
    Messages:
    4,525
    Gender:
    Male
    SoCal
    Vehicle:
    LX470
    Hopefully OP hasn't snapped his cam pulley bolt inside the cam by now.

  9. Oct 30, 2021 at 6:42 PM
    #9
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,459
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
  10. Oct 30, 2021 at 6:48 PM
    #10
    Superdave1.0

    Superdave1.0 Grandma Dave

    Joined:
    Dec 27, 2018
    Member:
    #277158
    Messages:
    4,525
    Gender:
    Male
    SoCal
    Vehicle:
    LX470
    OP on the camshaft bolt.


  11. Oct 30, 2021 at 6:49 PM
    #11
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    FSM lists 217# for both cam and crank bolts.

  12. Oct 30, 2021 at 7:05 PM
    #12
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    5,581
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Please Take a picture and show it .

    Then misprints have happened and only Toyota Dealers get a TSB and no one having a hard copy at home ever knows .

    Is this a new FSM printed by Helm inc not Toyota??

  13. Oct 30, 2021 at 7:09 PM
    #13
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    https://ibb.co/QbWj7LN

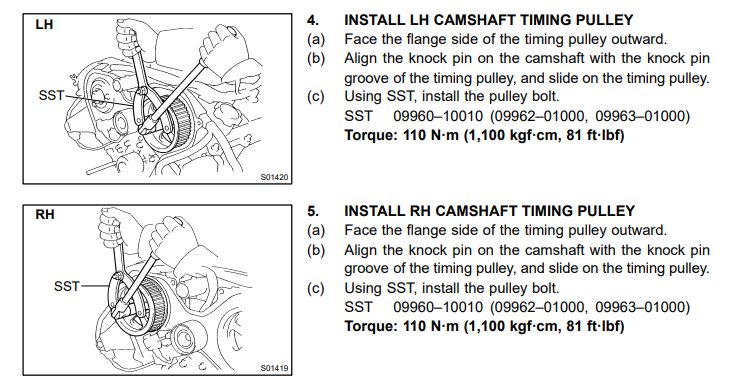

    Now can someone post where it says 81#? I found it VERY hard to accept 217# but couldn't find confirmation anywhere else in the FSM. I'm aware that there are misprints and wanted to see the pictorial version which has the torque's values as well to see if they jived but couldn't find that particular page. The timing belt section doesn't show the cam pulley torque.

    I'd love to see actual confirmation of the 81# - I feel relieved and pissed at the same time.

    Last edited: Oct 30, 2021
  14. Oct 30, 2021 at 7:10 PM
    #14
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    Thankfully no. But I was prepared to.

  15. Oct 30, 2021 at 7:12 PM
    #15
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    5,581
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Yes but it says the Crank Pulley is 184 foot pounds on your copy .

    Just what is that from??

  16. Oct 30, 2021 at 7:14 PM
    #16
    gotblika

    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    808
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
  17. Oct 30, 2021 at 7:15 PM
    #17
    Heyyo_Friday

    Heyyo_Friday Will post memes for truck parts

    Joined:
    Nov 7, 2020
    Member:
    #346074
    Messages:
    258
    Gender:
    Male
    First Name:
    Derek
    Dfw, texas
    Vehicle:
    2014 DCSB SR5 V6
    CSF T4R/FJ radiator

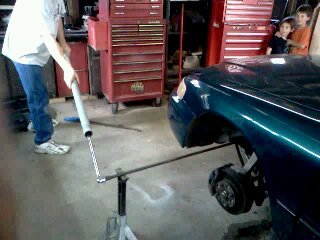

    I ❤ honda crankshaft bolts. So far I'm 3 bolts loosened. 3 breaker bars and 2 sockets

    Superdave1.0 likes this.
  18. Oct 30, 2021 at 7:15 PM
    #18
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    Is that for the 5VZ 6 cylinder (2002)? And what section in the manual is that from? Was looking for that for a long time this morning...

  19. Oct 30, 2021 at 7:18 PM
    #19
    ArizonaBrian

    ArizonaBrian [OP] Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    235
    Gender:
    Male
    That's the Toyota FSM. I think they upped the crank bolt to 217# because of an updated change in the washer size - from what I've read.

  20. Oct 30, 2021 at 7:19 PM
    #20
    gotblika

    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    808
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
    2003
