5VZ Supercharger w/Turbo!

Discussion in '1st Gen. Tacomas (1995-2004)' started by QMEDJoe, Jan 21, 2018.

  1. Jan 22, 2018 at 3:59 PM
    #21
    Luv my yota

    Luv my yota Well-Known Member

    Joined:
    Aug 27, 2017
    Member:
    #228278
    Messages:
    973
    Gender:
    Male
    Vehicle:
    00 turd lift 33's
    Kings,total chaos uppers, Deavers, JBA headers, Borla exhuast, engine mods, DC power 270 amp alt, 2k watts of sound, gps alarm.
    Lol, the you tube vid I posted said supercharged tacoma. I was listening for the charger it's definitely n/a. What a beast! screw supercars, this truck is like the hulk smashing everything like its pissed as hell.

    Torspd likes this.
  2. Jan 22, 2018 at 6:42 PM
    #22
    v5ensx

    v5ensx CARB legal is not CALI legal

    Joined:
    Sep 19, 2014
    Member:
    #138656
    Messages:
    808

    It's the little things that didn't matter to him.

    QMEDJoe [OP] likes this.
  3. Jan 22, 2018 at 11:54 PM
    #23
    Luv my yota

    Luv my yota Well-Known Member

    Joined:
    Aug 27, 2017
    Member:
    #228278
    Messages:
    973
    Gender:
    Male
    Vehicle:
    00 turd lift 33's
    Kings,total chaos uppers, Deavers, JBA headers, Borla exhuast, engine mods, DC power 270 amp alt, 2k watts of sound, gps alarm.
    :amen:
    Yeah all the little things.

  4. Jan 23, 2018 at 3:11 PM
    #24
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 640K

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    7,309
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 640,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Yup and that's when things blowup :canada::bananadead:

    Blackdawg and QMEDJoe [OP] like this.
  5. Jan 23, 2018 at 5:46 PM
    #25
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,274
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Luv my yota and QMEDJoe [OP] like this.
  6. Nov 20, 2020 at 7:56 PM
    #26
    96BlueTacos

    96BlueTacos I member, you member?

    Joined:
    Jul 5, 2017
    Member:
    #223188
    Messages:
    729
    Gender:
    Male
    First Name:
    Mikey
    Earth, 3rd planet from the Sun (Aurora, CO)
    Vehicle:
    1996 Single Cab Taco Manual 4x4 3.4L V6 366k /1985 4Runner 4x4 22RE 198k /2001 Double Cab Taco Auto 4x4 Supercharged 3.4L V6 180k
    1996-JBA upper control arms, replaceable Cardan joint drive shaft, leveling kit, camper shell, trailer hitch... 2001- TRD Supercharged, TRD headers...
    Reviving this thread just because I only just now found out about this twin charged 3.4l.
    And this video was posted a month ago. So it’s obviously still alive! I wonder what his boost and HP and torque number ms are He says it’s completely stock internals on the engine. And it’s tuned with Haltech elite 750. I’ve been looking through his YouTube videos and there is sporadic info about what he did.

    QMEDJoe [OP] likes this.
  7. Nov 20, 2020 at 8:56 PM
    #27
    BlackSportD

    BlackSportD Well-Known Member

    Joined:
    Aug 4, 2007
    Member:
    #2299
    Messages:
    1,187
    Gender:
    Male
    Los Angeles
    Icon/TC Mid travel, TRD S/C, PNP Greddy EMU, 625cc injectors, 2.2 pulley, Hayden tranny cooler, AEM wideband, TRD boost gauge.
    5vzfe is a perfect platform for this right now- compound boost being easier, twin charged a bit harder.
    - bolt on roots blower that replaces intake mani and can be had used or new.
    - cxracing bolt on turbo kit. Stool made, can be had new, very affordable for what it is.

    Small mod here and there to make the two fit together.

    Add fuel and EMS, presto. Probably one of the easiest to do platforms right now.

    I put my money where my mouth is, I have the SC installed and have a cx kit in a shed. Except I don't want to do a compound boost setup but a twin charged setup which will be more complex.

    QMEDJoe [OP] and Hamer95USA like this.
  8. Nov 20, 2020 at 9:48 PM
    #28
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,274
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    @Jon64l was running a supercharged & turbo for awhile. Local guy here in Phoenix.

    QMEDJoe [OP] and Jon64l like this.
  9. Nov 21, 2020 at 3:41 AM
    #29
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    11,099
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Not like it is something new I built exhaust manifolds for a twin turbo set up back in the seventies.

    Sadly the project crashed because of budget failure I think the wife or Mother put her foot down and reduced his allowance

  10. Nov 21, 2020 at 8:11 AM
    #30
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    753
    Gender:
    Male
    First Name:
    Jon
    Vehicle:

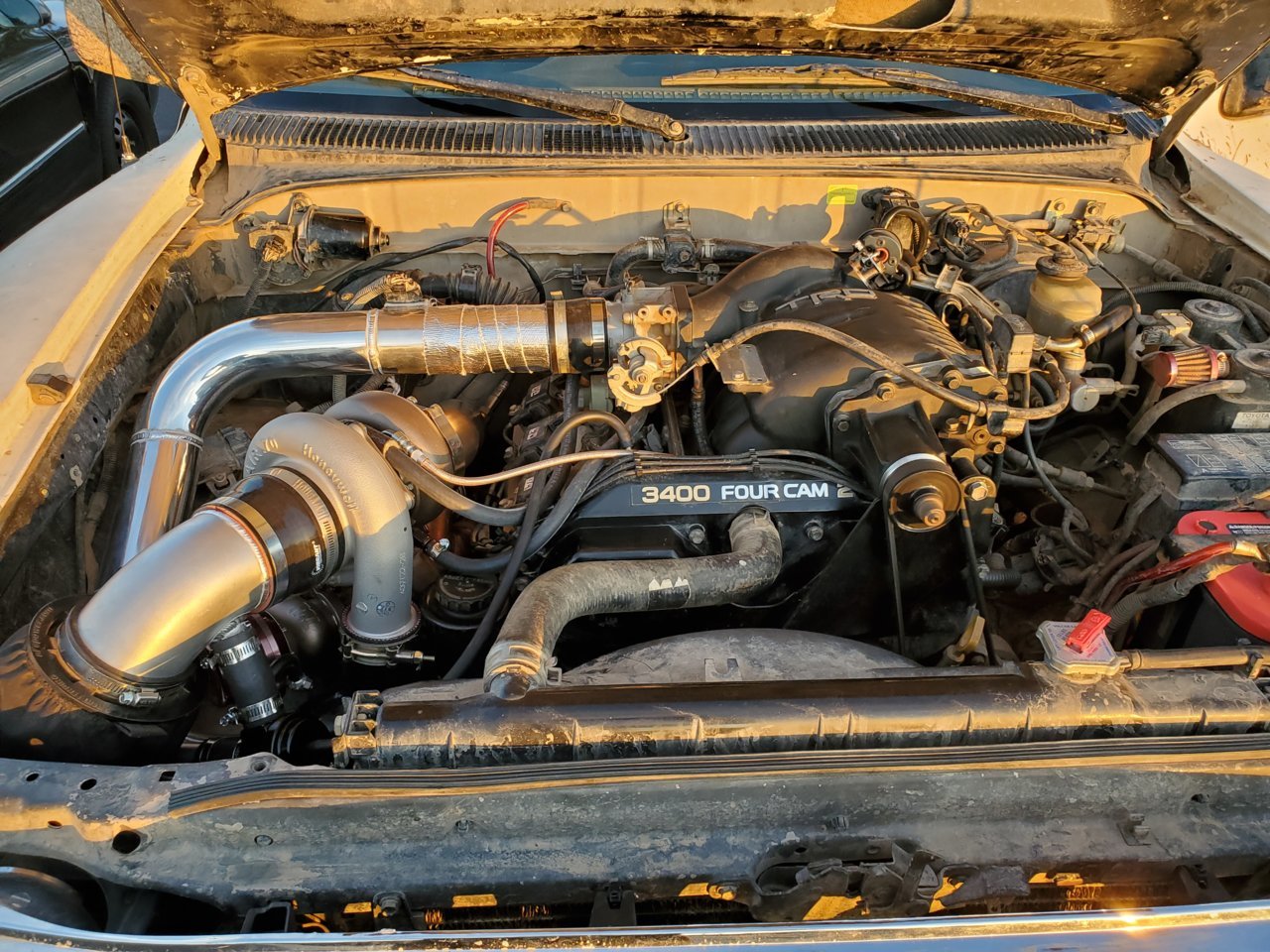

    2000 4runner, 1996 Tacoma
  11. Nov 21, 2020 at 9:51 AM
    #31
    96BlueTacos

    96BlueTacos I member, you member?

    Joined:
    Jul 5, 2017
    Member:
    #223188
    Messages:
    729
    Gender:
    Male
    First Name:
    Mikey
    Earth, 3rd planet from the Sun (Aurora, CO)
    Vehicle:
    1996 Single Cab Taco Manual 4x4 3.4L V6 366k /1985 4Runner 4x4 22RE 198k /2001 Double Cab Taco Auto 4x4 Supercharged 3.4L V6 180k
    1996-JBA upper control arms, replaceable Cardan joint drive shaft, leveling kit, camper shell, trailer hitch... 2001- TRD Supercharged, TRD headers...
    It’s obviously not new,
    how much Money and work does it take to get that setup? Realistically? (With already having a SC)
    Also, is it worth it?

  12. Nov 21, 2020 at 10:15 AM
    #32
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    11,099
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    With things like that being worth it is always a very personal question.

    Myself at 25 years old hell yes gotta have it.

    40 years later I might build something for someone for myself not so much.

    Kevins60 and 96BlueTacos like this.
  13. Nov 21, 2020 at 10:39 AM
    #33
    BlackSportD

    BlackSportD Well-Known Member

    Joined:
    Aug 4, 2007
    Member:
    #2299
    Messages:
    1,187
    Gender:
    Male
    Los Angeles
    Icon/TC Mid travel, TRD S/C, PNP Greddy EMU, 625cc injectors, 2.2 pulley, Hayden tranny cooler, AEM wideband, TRD boost gauge.
    @Jon64l was that a compound setup or a twin charge setup?

    *Edit a quick google I seem to have my terms mixed up. Twin charge can still be compound (TC feeds into SC). Wiki has:
    Twin-charge series
    Twin-charge parallel
    IMO the names speak for themselves.

    My goal is to do a Twin-charge parallel setup. TC feeds into SC when TC is not producing boost, so basically just SC (low RPM). As the TC starts to build up boost, kick the SC's bypass valve open because I don't want to compress the TC air again with the SC (its basically a heater at this point), allow the TC's more efficient and intercooled efforts take over= Less heat, less parasitic drag from the SC pulley. Also compound boost is not additive, meaning 10psi + 10 psi =20 psi. It would be some crazy number like 30 psi. Why have a turbo when you would need to limit the wastegate so much? As the wiki states, "It is a combination of an exhaust-driven turbocharger and a mechanically driven supercharger, each mitigating the weaknesses of the other."

    I already made a boost bypass switch for mountain grades.
    https://www.tacomaworld.com/threads/sc-bypass-switch.582614/

    Its not perfect, as some other members called out, the bypass can't handle the high amount of S/C boost generated at higher RPM but it at least diverts a lot (still manage to get boost creep going up grades though- I also need to fix leaks). It will be easy to integrate into the EMS to help facilitate a twin-charge parallel configuration over a series/compound configuration (the tuning part maybe the ultimate challenge). I'd be willing to install an underdrive pulley in fact (5psi) to reduce the compound effect- the 2.2 9psi at low end requires a crap ton of timing pulled anyhow and is of no help at higher load when switched over to TC. If the end result is only a few PSI from the SC gets compounded onto the TC boost, IMO thats a win. I don't want to imagine how hard it is to port and re-valve the bypass valve on the Gen2 SC. maybe its easier on the Gen1.

    Thats my biggest thing with this- being an enthusiast for many years now and seeing such an amazing gift bestowed on us- commercial off the shelf products that get us 90% there vs other platforms are an extreme exercise in custom fabrication and all things relative likely a much larger investment.

    If I leave commiefornia this is totally going down. If I have to pull the motor for any reason while still being here, its probably going down while putting a motor back in.

    Last edited: Nov 21, 2020
    Hamer95USA likes this.
  14. Nov 21, 2020 at 3:05 PM
    #34
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    753
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
    @96BlueTacos
    I forget how much it cost, thankfully I can fab and weld so that saved me alot of money.
    It might be worth it on a built engine, to get the turbo better in its efficiency range. That thing had a ton of off idle torque though, with near instant 13psi. Forget about flooring it from a stop, it'll just spin em.

    @BlackSportD
    I used the bypass valve, a solenoid and check valves and tied it into the aem. It has outputs you can configure based on multiple things, like rpm, psi, tps.

    I'm now just running the turbo at 11 psi. Its good enough. I do miss the instant snap of the SC, but this spools pretty quick with the small exhaust housing so I'm happy.

    BlackSportD likes this.
  15. Nov 21, 2020 at 3:15 PM
    #35
    BlackSportD

    BlackSportD Well-Known Member

    Joined:
    Aug 4, 2007
    Member:
    #2299
    Messages:
    1,187
    Gender:
    Male
    Los Angeles
    Icon/TC Mid travel, TRD S/C, PNP Greddy EMU, 625cc injectors, 2.2 pulley, Hayden tranny cooler, AEM wideband, TRD boost gauge.
    Yeah I think to really make twin-charge parallel something other than eye-candy is to have a built motor that can actually use the boost from a huge TC, so that the SC can assist on the low end, both in making power, which makes more exhaust, helping the TC spool up faster. I don't think OEM internals can justify this build.

    For now being in CA, its great the SC is CARB.

  16. Nov 21, 2020 at 3:21 PM
    #36
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    753
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
    Yeah I could have run a larger turbo than the Gt3582r with the SC. I had the largest housing and it still came on very quick.

    The stock SC is a good piece, I sometimes think of going back to it. The turbo has a mess of plumbing and a little cluttered. Just wish the SC had an intercooler.

    BlackSportD likes this.
  17. Nov 21, 2020 at 10:58 PM
    #37
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    77,288
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    I was about to correct you but glad you found it yourself haha

    I still think it would be a cool setup even compound. Providing the engine could take it. Keep in mind, if you really set it up right with a larger turbo, say 67-71mm inducer, and large exhaust housing. You'd want to run low boost pressure anyways. So compounded with a stock pulley you could be at like 15-20psi total. But moving a SHIT load of air still and really pushing the power.

    That said, i think this is only really do able long term with a stand alone.




    a guy retro fitted one of these blowers on an MKIII supra for a twin charge setup. Crazy flat torque curve.

    BlackSportD likes this.
  18. Nov 21, 2020 at 10:59 PM
    #38
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    77,288
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    what A/R were you running? the 1.06? What do you have now?

    what really made you switch?

  19. Nov 22, 2020 at 8:15 AM
    #39
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    753
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
    I'm using Tial stainless V-band housings. 1.03 when twin charged, 0.63 for turbo. I wanted the .82 but everything was on back order at the time. Im still happy with it for sure. Most of the trails I ride are pretty tight and rocky, not many times do I find the rpms at 4500.

    I'm just messing around, seeing what I can build with my lego set. I cant just leave it alone. Still thinking of switching back.

    Right now the only way to go faster is dialing in the suspension.

    Blackdawg and 96BlueTacos like this.
  20. Nov 22, 2020 at 10:34 AM
    #40
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    753
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
    A couple things that made me get away from twin charged has to do with heat. Arizona summers plus boost from 2 sources didn't make sense, especially with no intercooler on the SC. E85 would definitely help, but isn't practical. Also the needed a built engine to maximize the party factor. So I sold the SC in favor of a intercooler turbo. This also let me bump the turbo psi up so its a little better in its efficiency range.

    BlackSportD likes this.
