6 speed shenanigans. RA60F swap to RC62F

Discussion in 'Technical Chat' started by BillDaCat8, Jan 1, 2021.

  1. Apr 30, 2021 at 7:54 AM
    #261
    Key-Rei

    Key-Rei Well-Known Member

    Joined:
    Jun 20, 2017
    Member:
    #221942
    Messages:
    4,575
    First Name:
    Key
    Florida
    Vehicle:
    2010 TRD Off-Road 6Spd 4x4 209BSM
    Locker anytime Fog Lights anytime Full LED light conversion TRD cat back Rear cat delete Exaust Y reroute away from actuator Alloy Clutch master 2000 4Runner "Dog Leg" shift leaver Marlin shift seats and bushing Rear seat delete Rear diff breather extension Chrome grille swap Debadge Rear seat delete Honda blower motor beefy plug and wire mod Anytime 12v and USB with volt gauge in bed Blue Sea fuse box Hella AND 70's Caddy horns Low profile recessed hex drain plug swaps Alluminum battery strap 7pin relocated Backup cam on anytime Various other creature comfort and personal taste mods.
    You got a link to that tilton? The only ones I knew about were the urd which has since been discontinued, and the clutch Masters which I think has also been discontinued. I believe both of those used t56 throw outs on their own unique bracketry and a fairly convoluted bleeder system.

  2. Apr 30, 2021 at 12:53 PM
    #262
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,674
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
  3. May 6, 2021 at 4:15 PM
    #263
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged

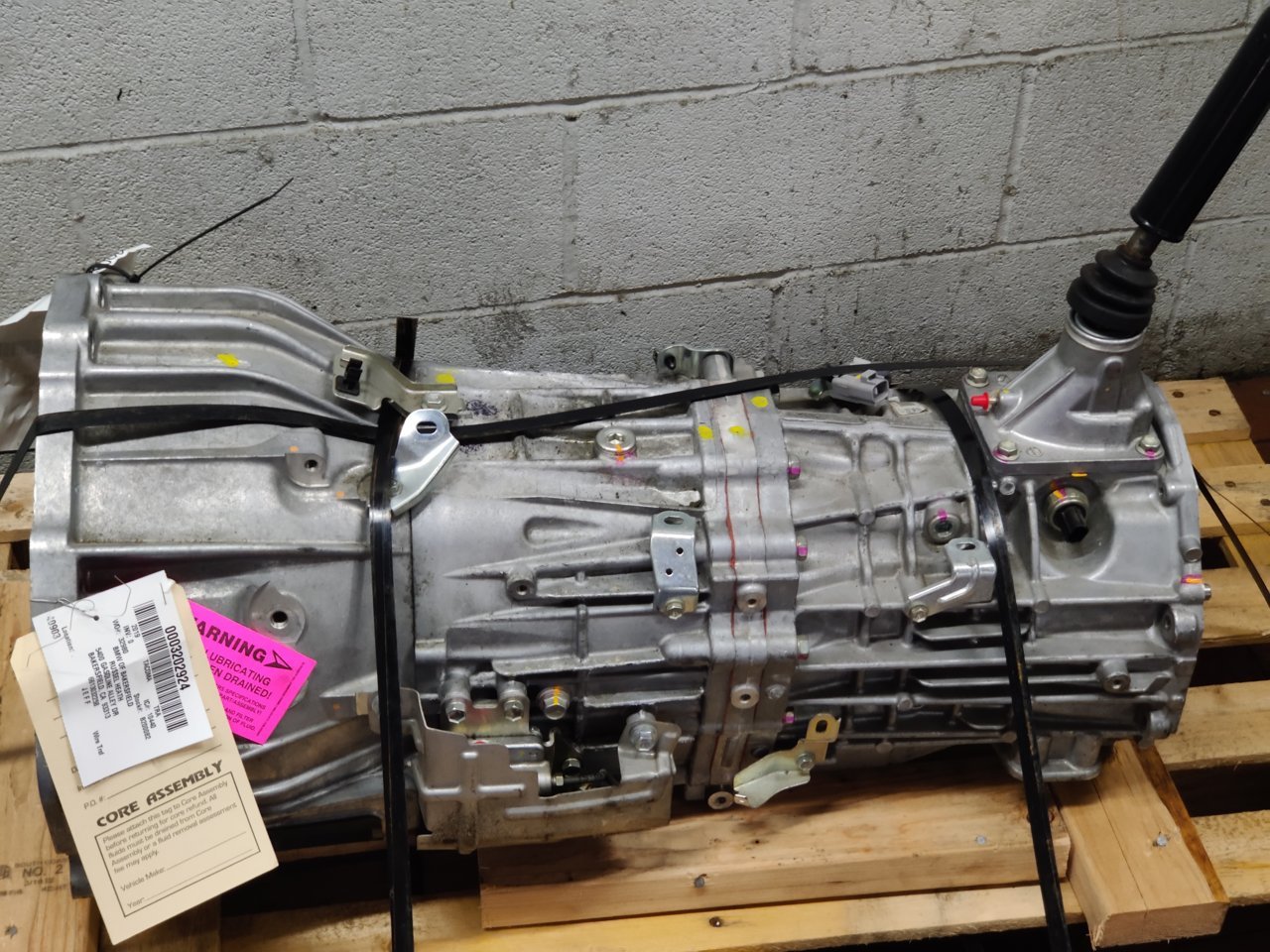

    My RC62F showed up. :D
    Now to make the AWD t-case fit.


  4. May 6, 2021 at 5:46 PM
    #264
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,674
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    Looks like you’re gonna need the trans mount too.

    Did you get the T/O bearing and all of the release stuffs along with?

    Last edited: May 6, 2021
    rheath08 likes this.
  5. May 6, 2021 at 5:49 PM
    #265
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,674
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    There was a guy on the fj transfer swap thread that did some fancy scan deal and then 3D printed a template to use when “adjusting” the back of the trans to accept the fj case. We need that guy.

    rheath08 likes this.
  6. May 6, 2021 at 5:51 PM
    #266
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,674
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
  7. May 6, 2021 at 8:14 PM
    #267
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged

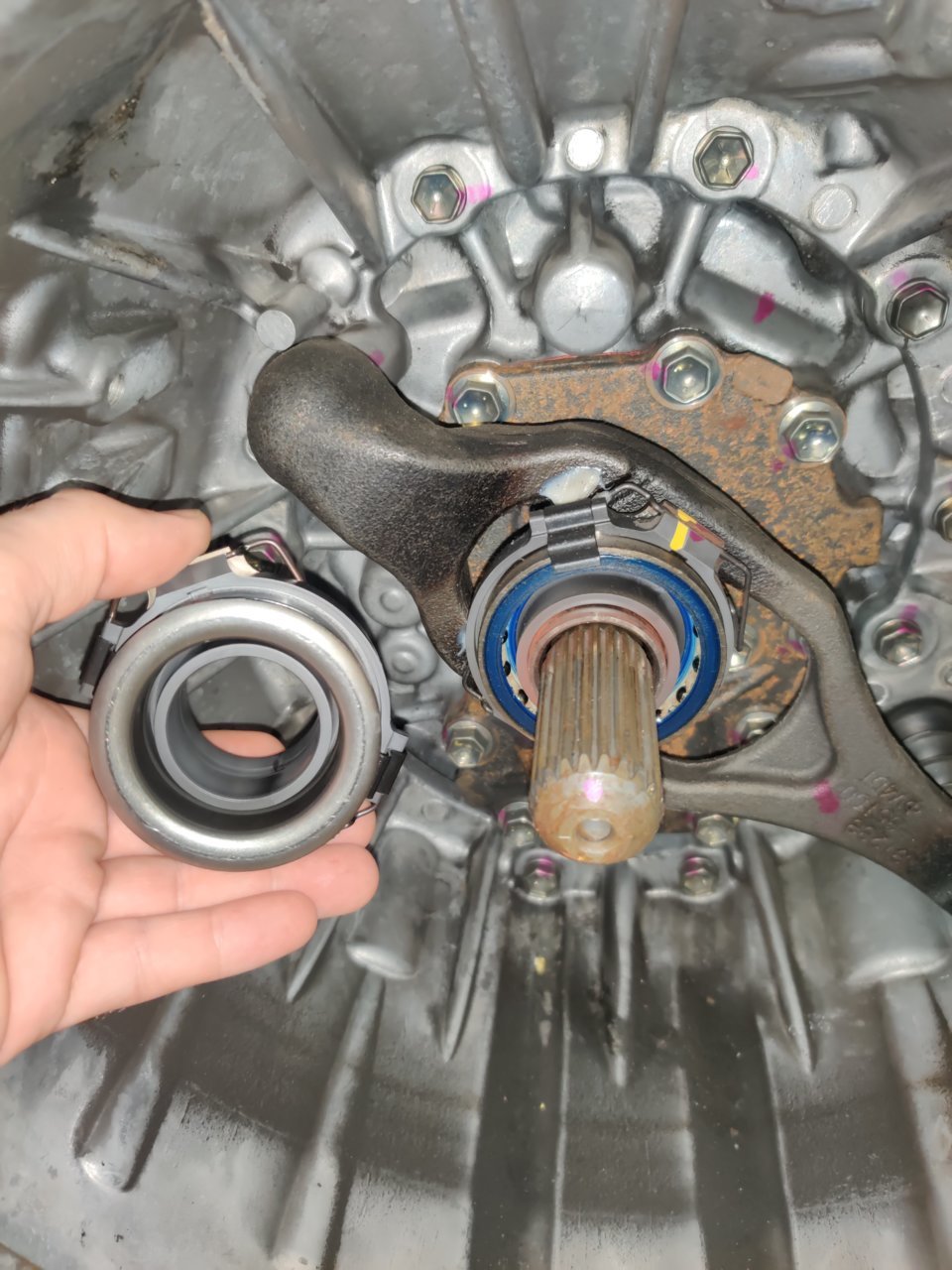

    Yes but it looks like the TO bearing has been separated. I have a new one on the way.

  8. May 6, 2021 at 9:41 PM
    #268
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged
    One of these does don't look like the other. Lol!


  9. May 7, 2021 at 7:37 AM
    #269
    bravinci

    bravinci Well-Known Member

    Joined:
    Oct 30, 2017
    Member:
    #234558
    Messages:
    85
    Gender:
    Male
    British Columbia
    Vehicle:
    2017 Tacoma TRD Sport
    Here's the link to the google drive with a fusion 360 file (Free for personal use)

    Fusion 360 Personal:
    https://www.autodesk.ca/en/products/fusion-360/personal

    Google Drive:
    https://drive.google.com/drive/folders/1JrNnwKkB7NZrTJ24vJA3Fn3Y9bH2Cpon?usp=sharing

    You "should" be able to take this file to a local 3d printing company and get them to print it for you if you don't have a 3d printer yourself. I only say "should" because some 3d printing programs might not be able to import a file from fusion 360. In which case you'd have to download the program, export it into a suitable file format, and then send it to the 3d printing company.

    Just note, I left the Shift Rod dowels a bit long, since different people will have different preferences with how far they want to grind the shift rods down (please don't grind that far into your transmission :anonymous:)

    BillDaCat8 [OP] likes this.
  10. May 7, 2021 at 8:09 PM
    #270
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged

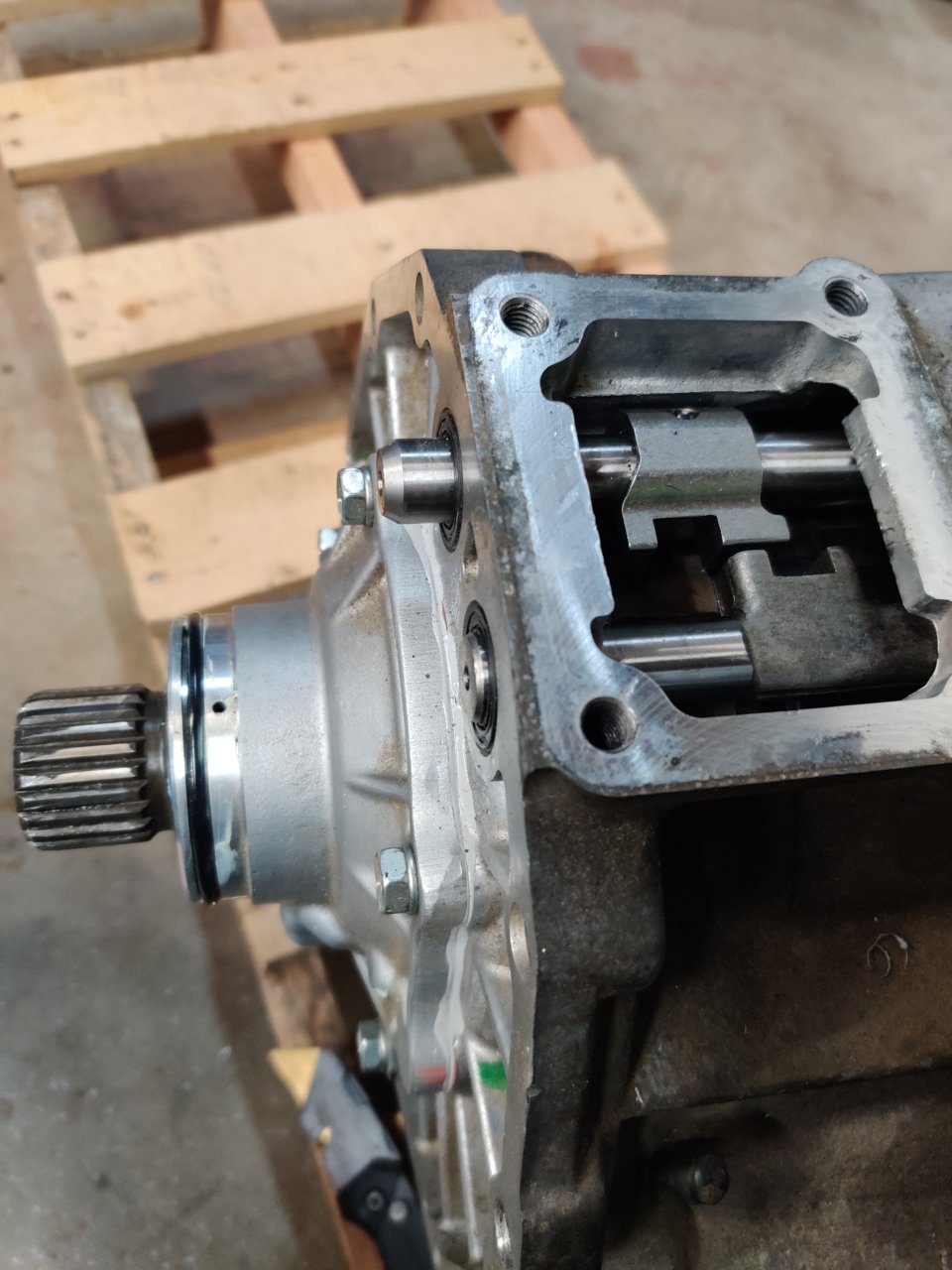

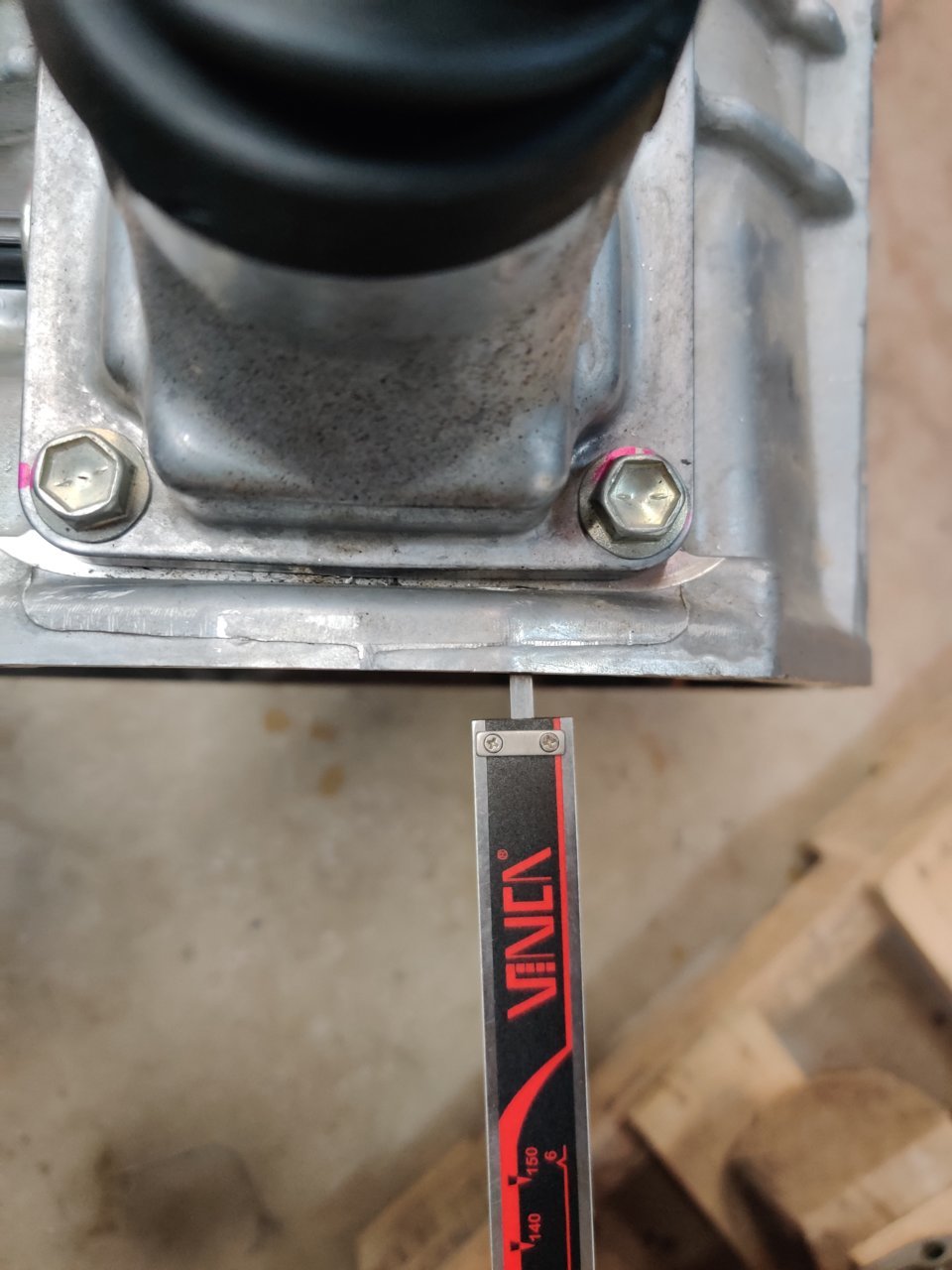

    So for the gents that are looking to do the AWD case with the RC62F it does not look promising at this point.
    The two shafts stick out 21mm ish. The one on the pass side of the case or has the taper in the pic has enough sticking out to trim down. It look like the max depth on the back of the RC is 14mm and that is starting to break through at the top edge. May be able to see in the pic.
    The shaft on the driver's side of the t-case does not look like there is room to cut it down. I may be able to tap the seal in farther but not sure on how much I could cut off. Not 7mm anyways.
    So I'm open for thoughts because I would love for this to work.
    P.S. pics are not in order.


  11. May 7, 2021 at 8:11 PM
    #271
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged

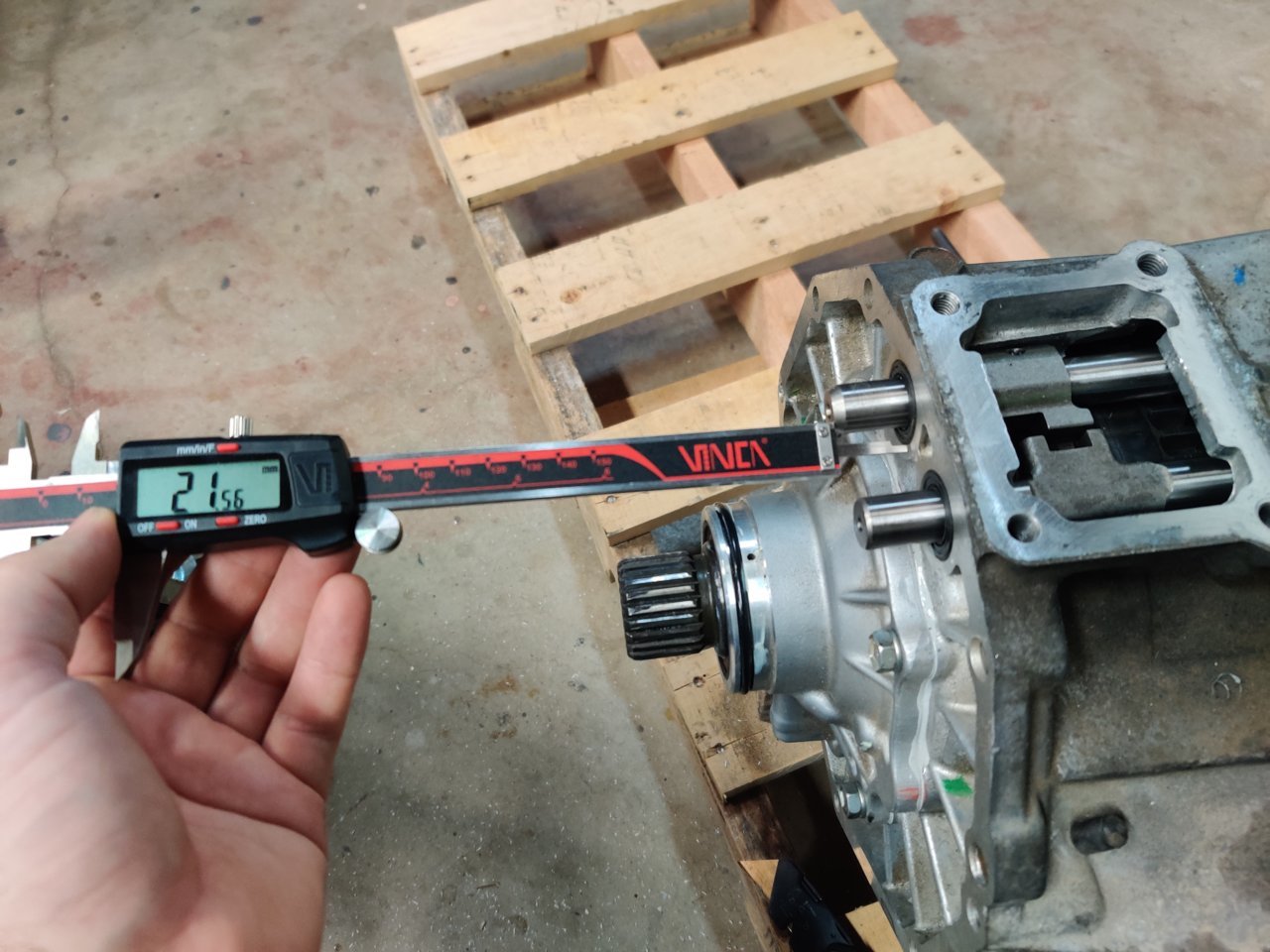

    Sorry last pic is of the 21mm shaft measurement up to the back of the trans after the clearancing.

  12. May 7, 2021 at 8:52 PM
    #272
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    3,392
    Deep South
    Herculiner Hootus
    That’s awfully close, I wonder between grinding the shift rails down a bit, honing out the trans area as much as possible and then if you make a small spacer between the trans and tcase. The biggest challenge there would be ensuring the transfer input shaft has enough spline engagement.

  13. May 7, 2021 at 9:14 PM
    #273
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged
    I like the idea of a 3-4mm spacer, but I don't think it can go any bigger than that. You would run into the issue of the dowels not lining up the two parts.

  14. May 7, 2021 at 9:23 PM
    #274
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    3,392
    Deep South
    Herculiner Hootus
    it would be easy enough to mock up using some washers to simulate the spacer and see if it would be enough.

  15. May 7, 2021 at 9:29 PM
    #275
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged
    yeah that is true. If my quick math was right there is a 7-8mm "giving 1mm of leeway" that need to be made. The shaft on the drivers side sits flush with the front of the t-case when 4lo is engaged. That does not leave much of the shaft to trim. I may be able to tap the seal in farther, but I'm done for the night. Especially after the t-case falling on my big toe. I really want the to work.

    6 gearT444E likes this.
  16. May 7, 2021 at 9:35 PM
    #276
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,674
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.

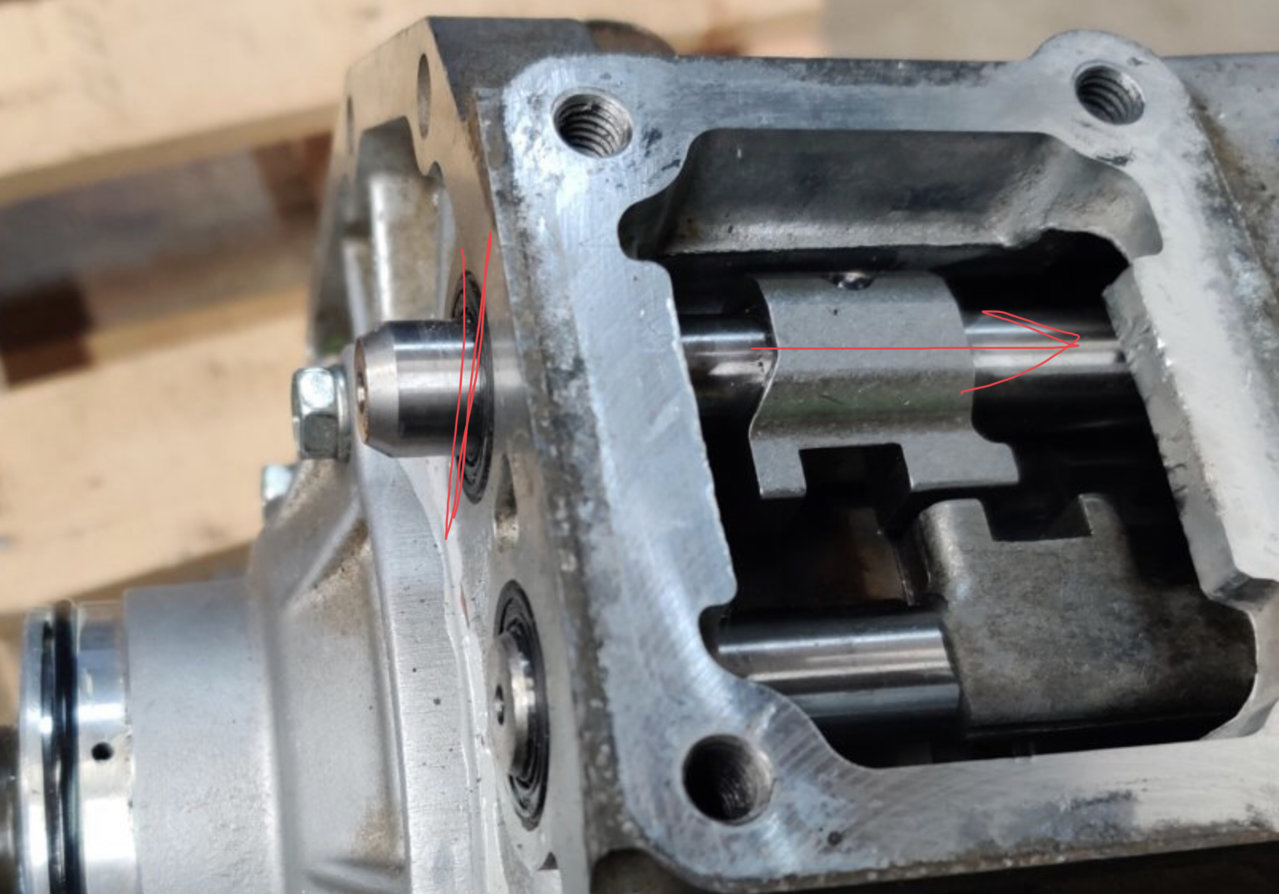

    How much of the RH shaft protrudes when the shifter has it all the way rearward?


  17. May 7, 2021 at 9:43 PM
    #277
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged
    @BillDaCat8 That is all the way rearward. So there is room to cut that one down. The other pic where they are equal is them all the way forward. The issue I see is the left shaft or drivers side. It sits flush with the front on the t-case when all the way rearward.
    I'm going to leave all the text here, but add, the pic you are quoting is both shafts all the way back.
    The alcoholic beverages my be impeding my communication skill now.:drunk:

    6 gearT444E likes this.
  18. May 7, 2021 at 9:57 PM
    #278
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,674
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    How did you know!? :cheers:

  19. May 9, 2021 at 9:38 PM
    #279
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    968
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted 4x4, AWD, RC62f swap, Supercharged
    @BillDaCat8 do you have the heavy flywheel or the OEM? You have the stock gearing and tire size, correct?

  20. May 9, 2021 at 9:54 PM
    #280
    Key-Rei

    Key-Rei Well-Known Member

    Joined:
    Jun 20, 2017
    Member:
    #221942
    Messages:
    4,575
    First Name:
    Key
    Florida
    Vehicle:
    2010 TRD Off-Road 6Spd 4x4 209BSM
    Locker anytime Fog Lights anytime Full LED light conversion TRD cat back Rear cat delete Exaust Y reroute away from actuator Alloy Clutch master 2000 4Runner "Dog Leg" shift leaver Marlin shift seats and bushing Rear seat delete Rear diff breather extension Chrome grille swap Debadge Rear seat delete Honda blower motor beefy plug and wire mod Anytime 12v and USB with volt gauge in bed Blue Sea fuse box Hella AND 70's Caddy horns Low profile recessed hex drain plug swaps Alluminum battery strap 7pin relocated Backup cam on anytime Various other creature comfort and personal taste mods.
    Not that it's particularly relevant, more so looking for the same answer you are than anything but I have stock gears, started ordering parts for 4.88's and the URD heavy flywheel.

    I think I will go back to a stock weight one with gears though.

    rheath08 likes this.
