6 speed shenanigans. RA60F swap to RC62F

Discussion in 'Technical Chat' started by BillDaCat8, Jan 1, 2021.

  1. Jan 30, 2021 at 5:39 PM
    #121
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
    Reverse switch is a gimme. Just swap them.


    Last edited: Jan 31, 2021
  2. Jan 31, 2021 at 11:11 AM
    #122
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
    I did a bunch of stuff yesterday. Just about all of it was clutch related and therefore posted up in the other thread.

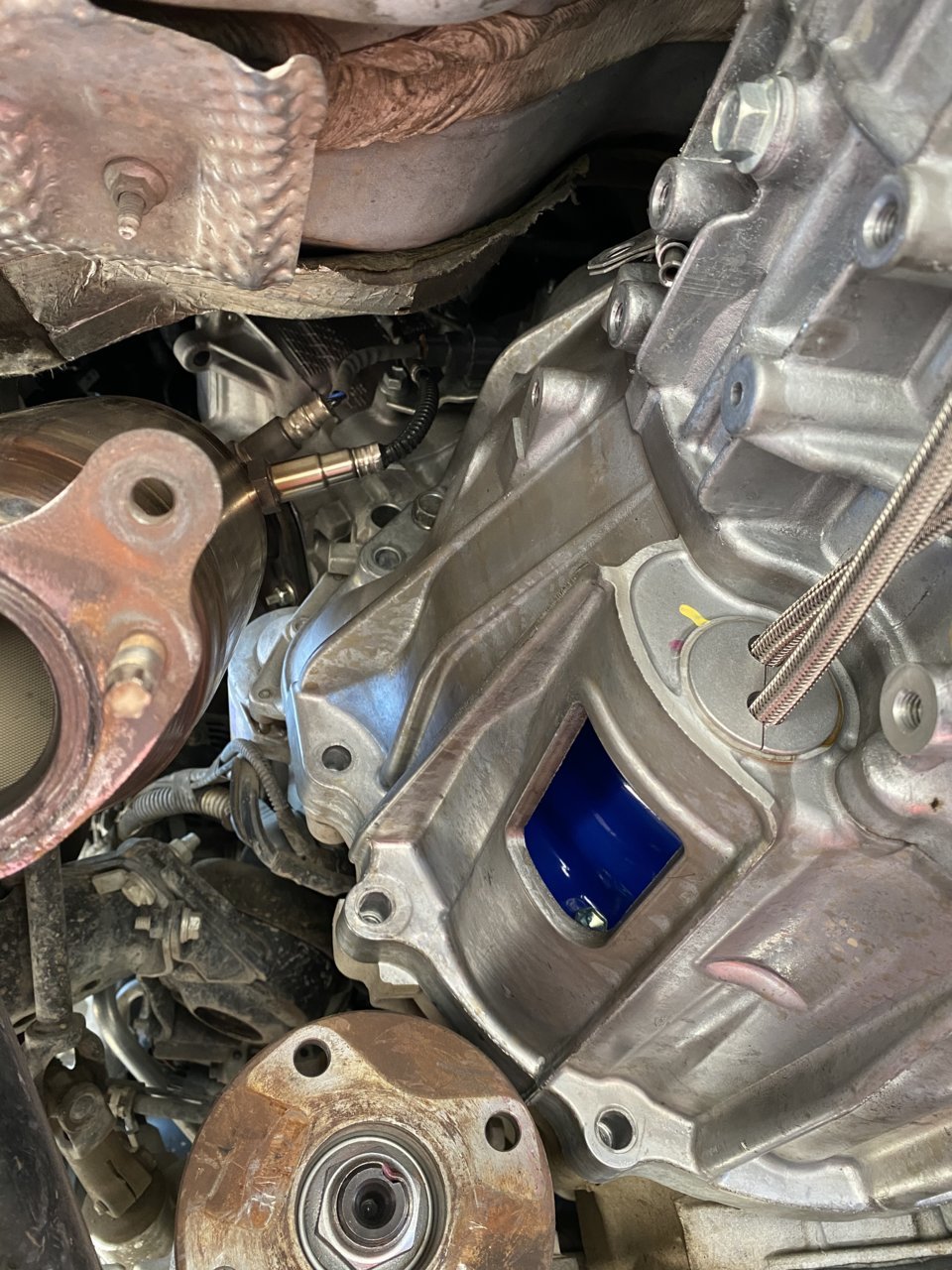

    I did however set both transmissions side by side and swapped over the necessary brackets to hold the harness and vent tubes in place. A couple of them required minor massaging. No big deal.

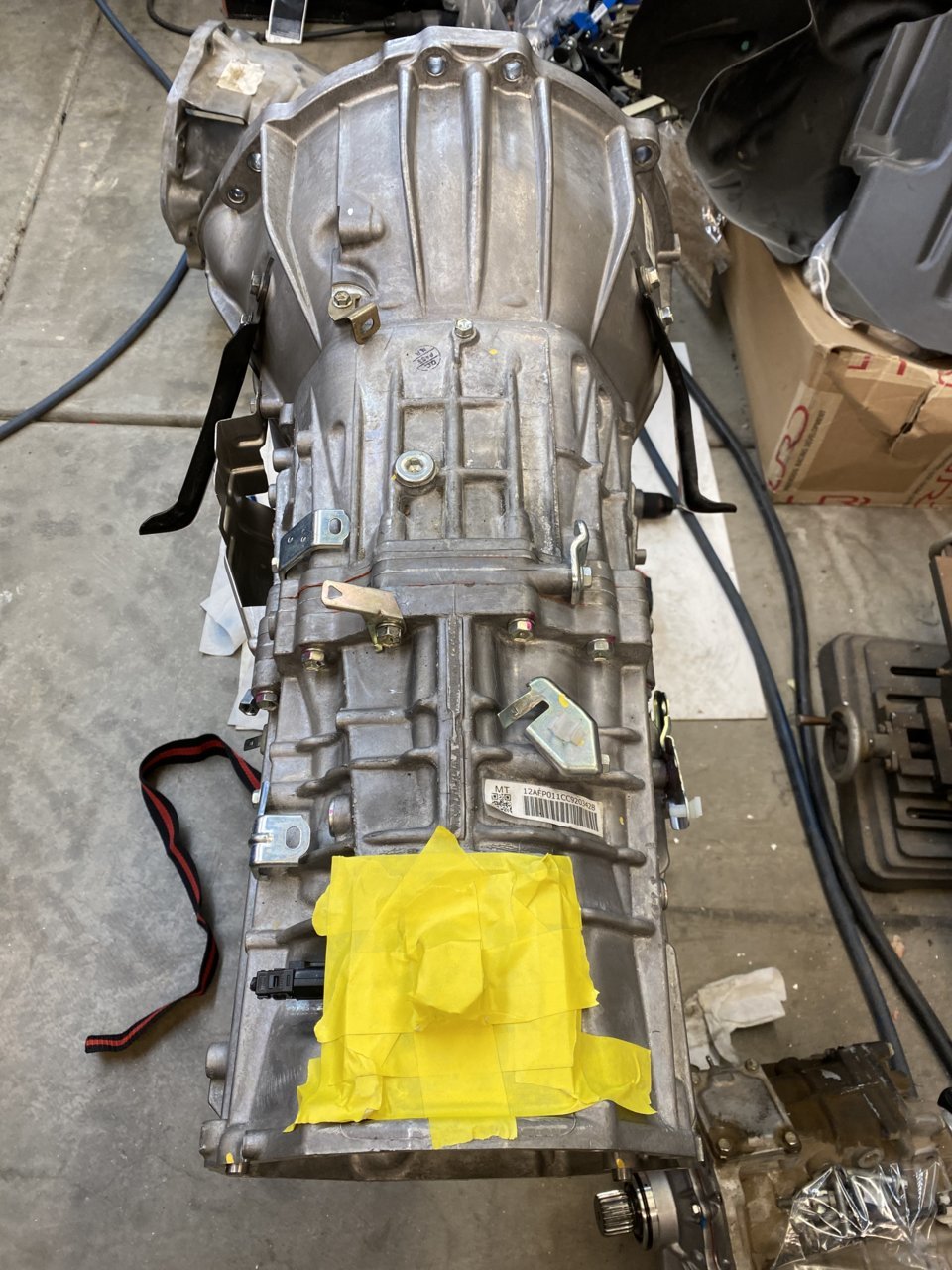

    EDIT: hopefully these pics help. Basically you’re going to transfer the brackets I’ve circled and eliminate the ones I’ve crossed out. The plastic holders on the harness will need to be moved around a bit to line up.

    The LH O2 bracket needed a bit of trimming to get it to play nice with the casting of the RC trans. Take your time and only trim what you have to here to make it sit flat under the bolt head. The O2 bracket that came on the RC might actually work just fine. Maybe try it first and then decide.


    Last edited: Feb 13, 2021
  3. Jan 31, 2021 at 11:25 AM
    #123
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    937
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    That basic reverse switch design has been in use since the late 70's.

    I suspect this will be a common swap in the years to come.

    BillDaCat8 [OP] likes this.
  4. Jan 31, 2021 at 6:04 PM
    #124
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
    I’m betting it will be.

    Currently I’m on the home stretch with this whole thing. I do have a couple of other things that need taking care of while the truck is up on stands. Primarily the cat on the LH manifold that needs replacing. I spent the bulk of my day futzing with that.

    Last edited: Feb 7, 2021
    VirusCage likes this.
  5. Feb 6, 2021 at 6:23 AM
    #125
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
    Cat is all replaced and welded up. Throwout bearing is completely installed and ready. Three bottles of gear lube on standby. Miscellaneous hardware and new exhaust gaskets acquired. I’m going to try to get this thing up and into the truck this weekend. Hopefully Sunday.

  6. Feb 6, 2021 at 7:11 AM
    #126
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    937
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA

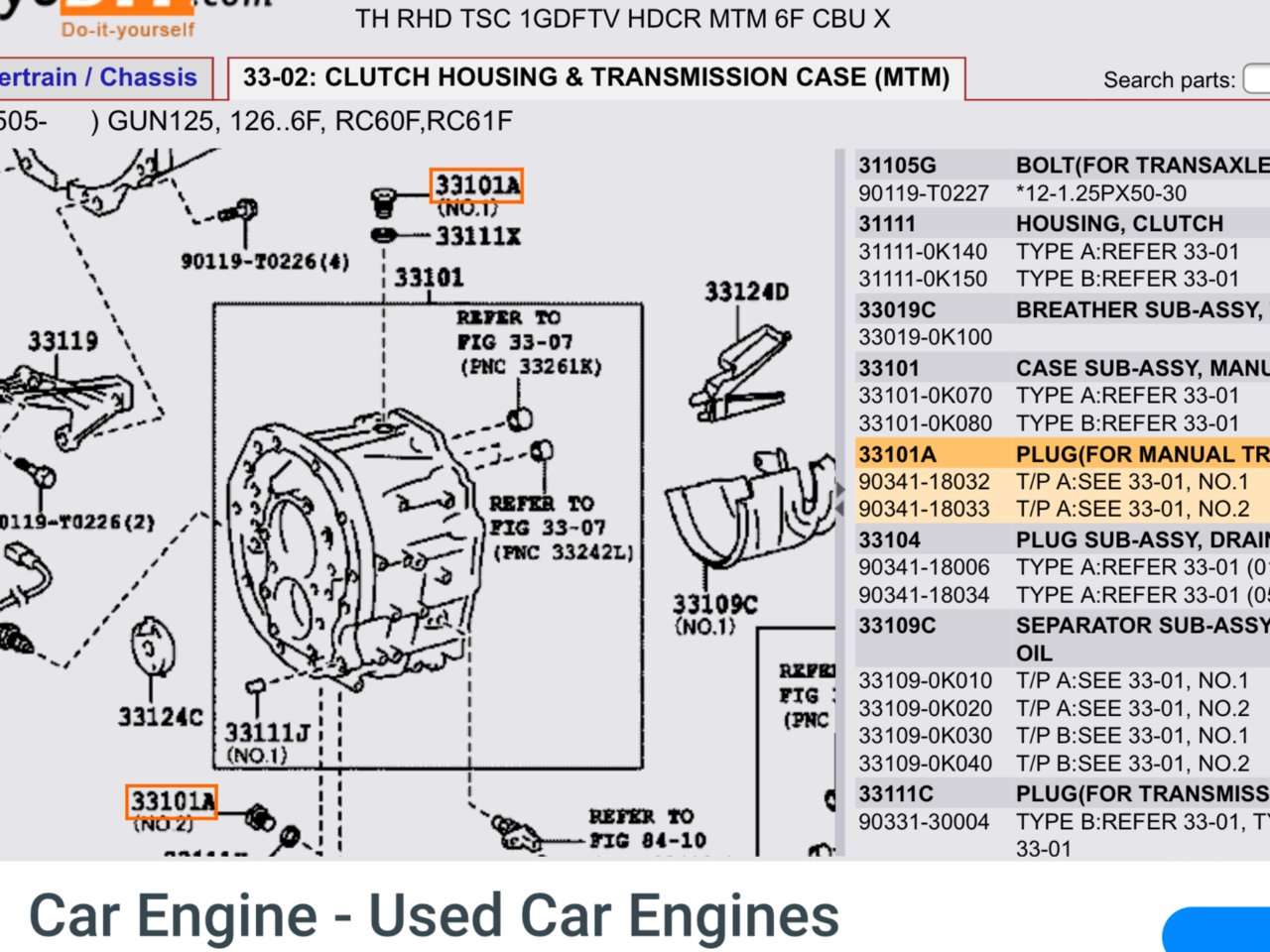

    There's a gear oil fill port on top of the transmission... allows easy fill and less mess as we can just wait for the oil to appear at the side fill/overflow. It's not easily accessible when the trans is installed.


    BillDaCat8 [OP] likes this.
  7. Feb 6, 2021 at 1:57 PM
    #127
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
    That's handy. Thanks for pointing that out. I was planning to either dump it into the shifter hole or pump it from the side.

  8. Feb 6, 2021 at 3:48 PM
    #128
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    8,643
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff

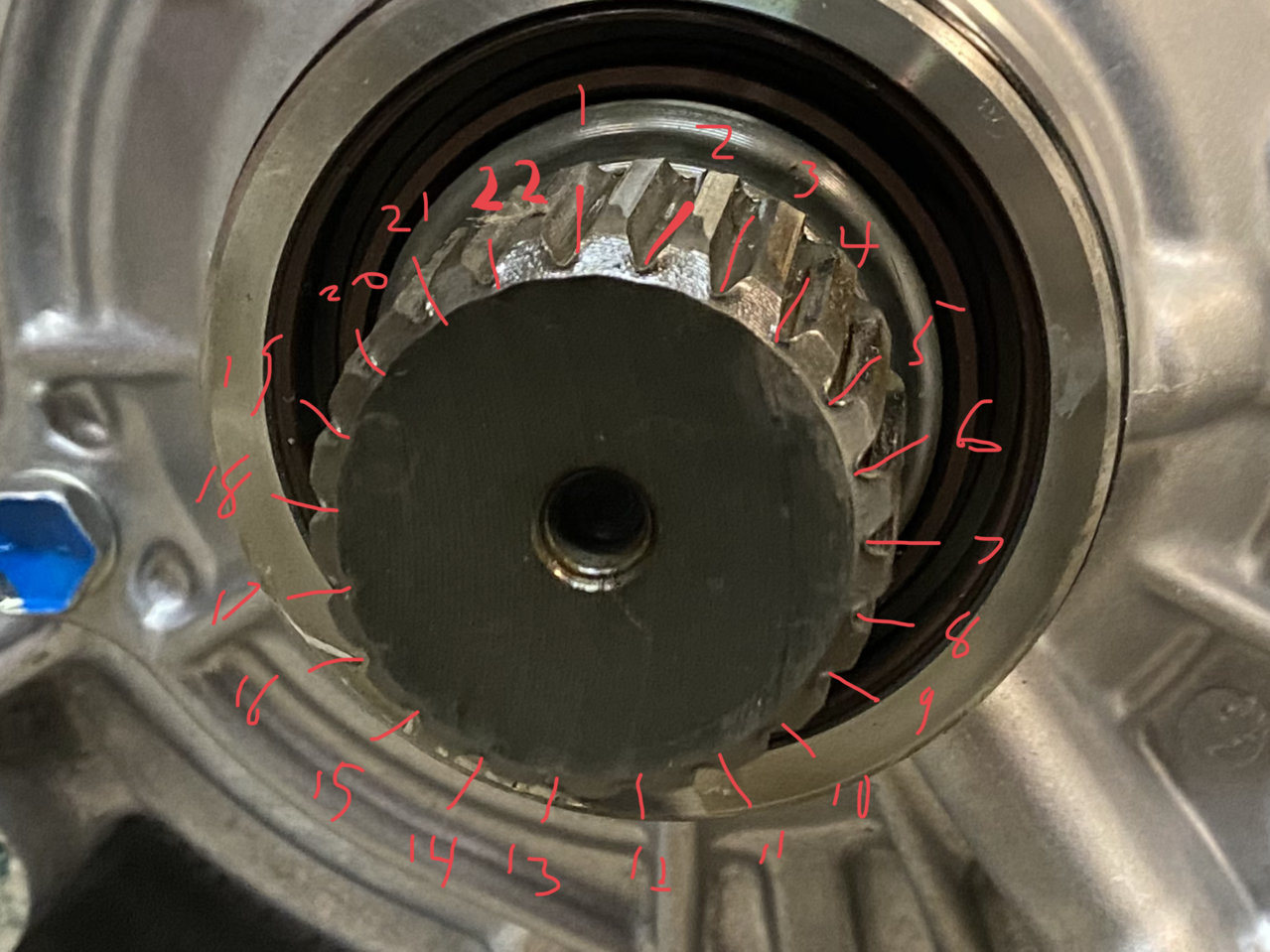

    One thing you should do and this is coming from the fj case thread. Make sure the tcase input spline count and the transmission output spline count match up. The 2nd gen taco m/t tcase is 22 spline. The a/t is 23 spline.

    marlincrawler says the 3rd gen stuff is different. Just a heads up with all the talk about tcases in the FJ TCase thread and make sure you have everything correct.

  9. Feb 6, 2021 at 4:08 PM
    #129
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    8,643
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    Here’s what I’m talking about.

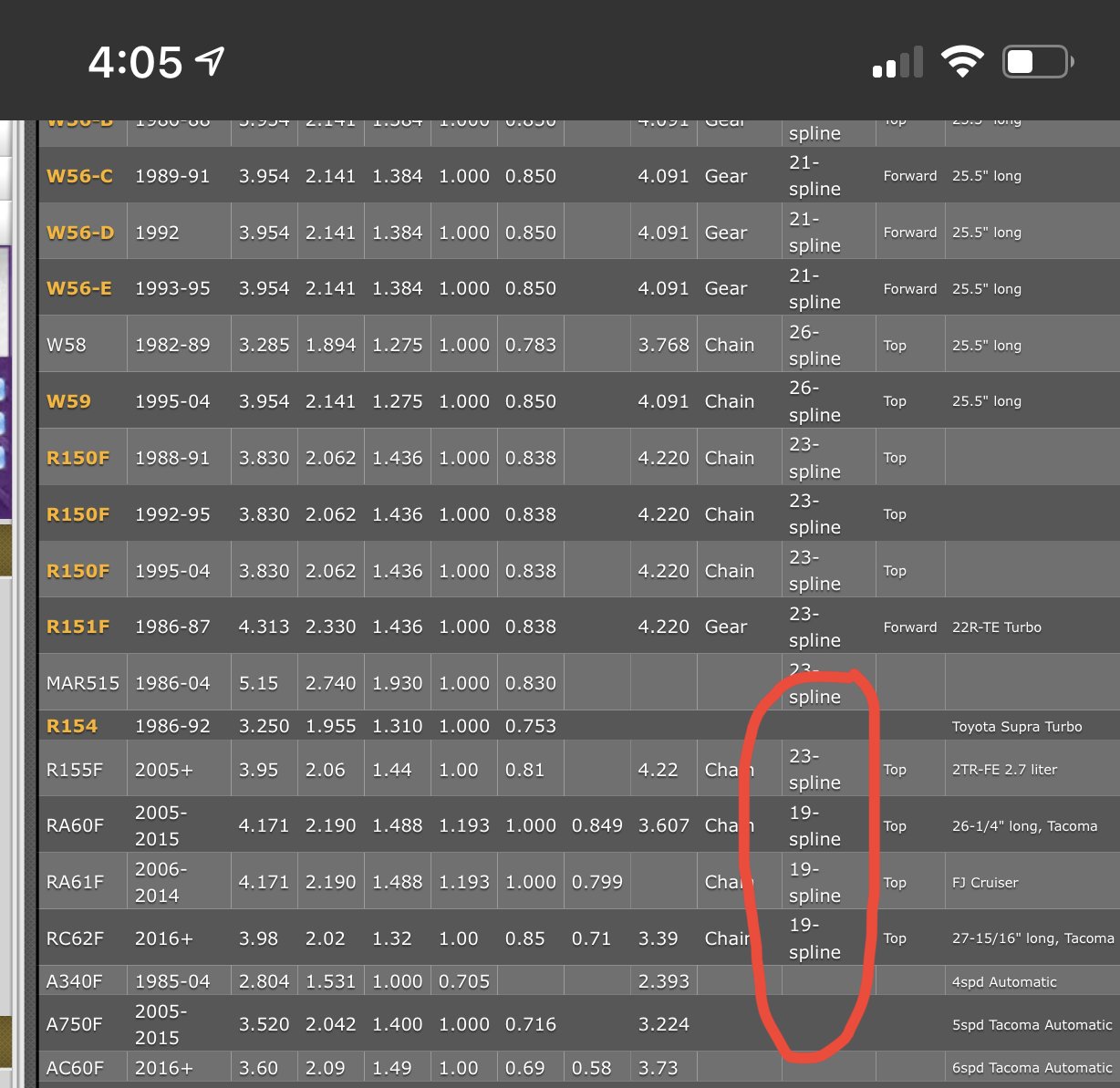

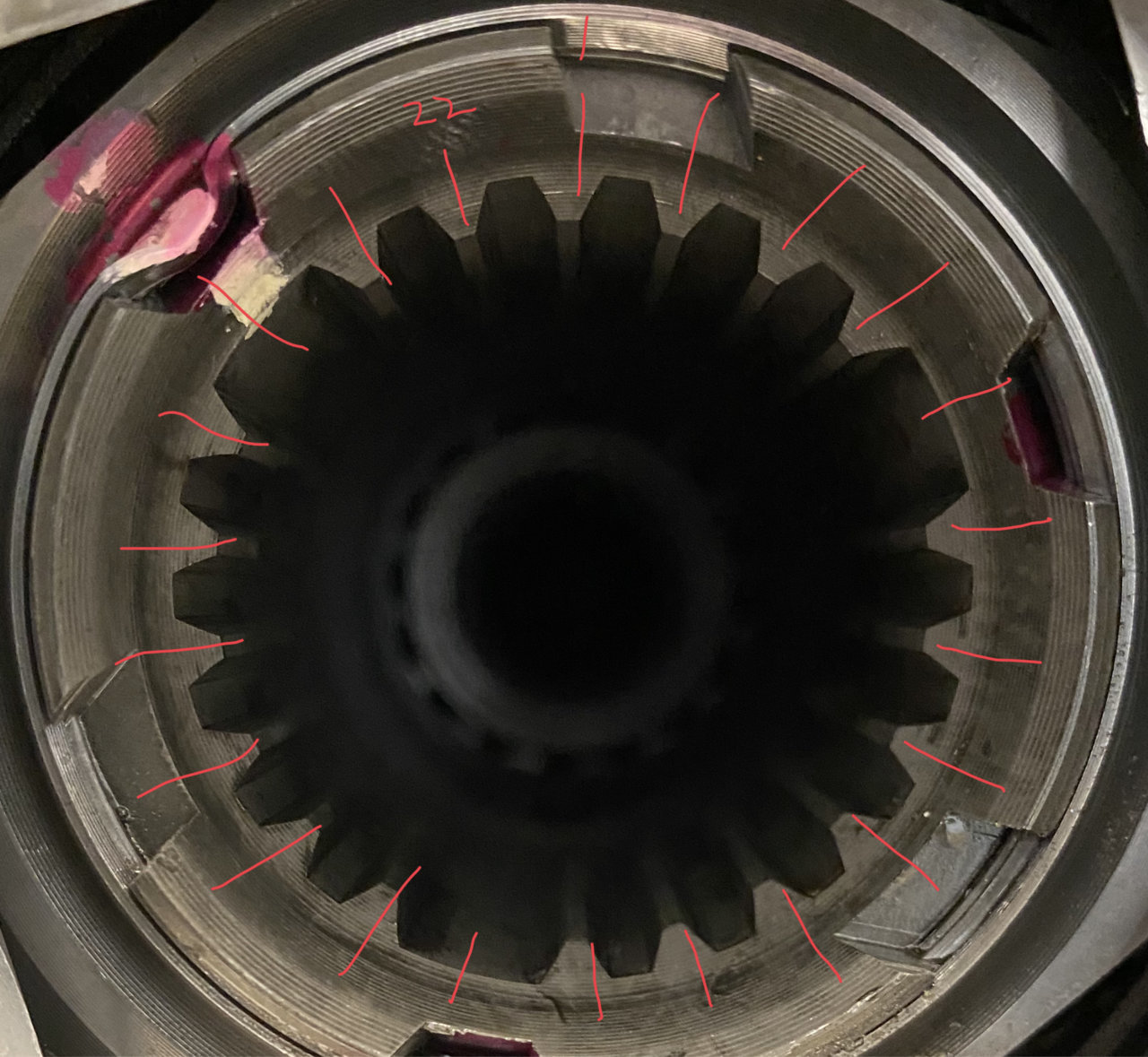

    We know that the ra60 is 22 spline. So I would make sure that the rc62f isn’t 19 spline like marlin keeps spouting. Especially if u go with A/T fj tcase or M/t awd fj tcase.

  10. Feb 6, 2021 at 4:26 PM
    #130
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    937
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    They list it as 19 because several (should be 3, but I never counted) of the females splines on the transmission output do not exist. Toyota purposely omits them, leaving a path for oil flow into the center of the shaft. The 22 spline transfer input shaft slides right in.... always good to be careful, though.

    Jeff Lange likes this.
  11. Feb 7, 2021 at 9:31 AM
    #131
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!

    Like Brian says, spline count is skewed because of the three missing splines on the transmission side.

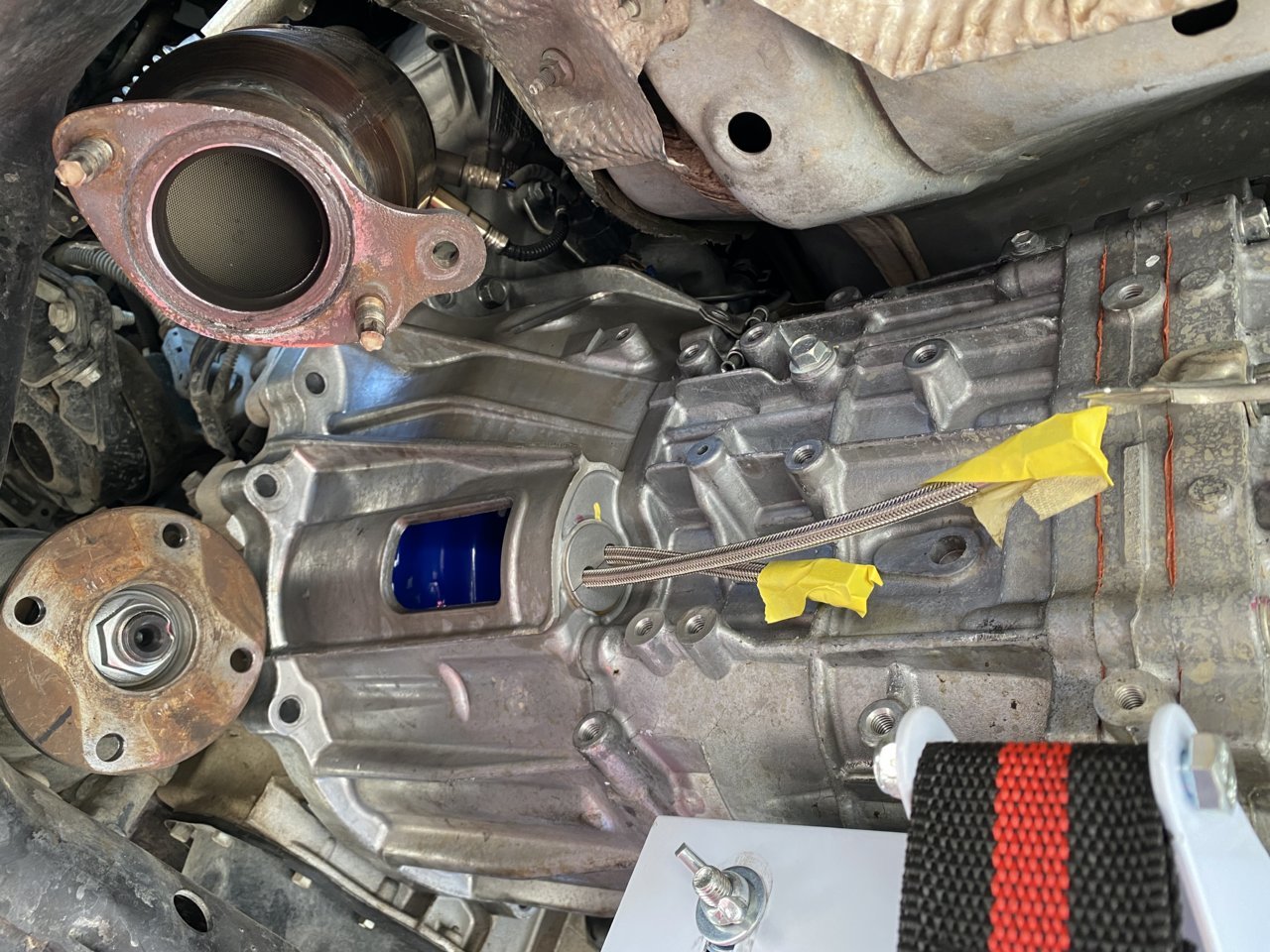

    RC62F output

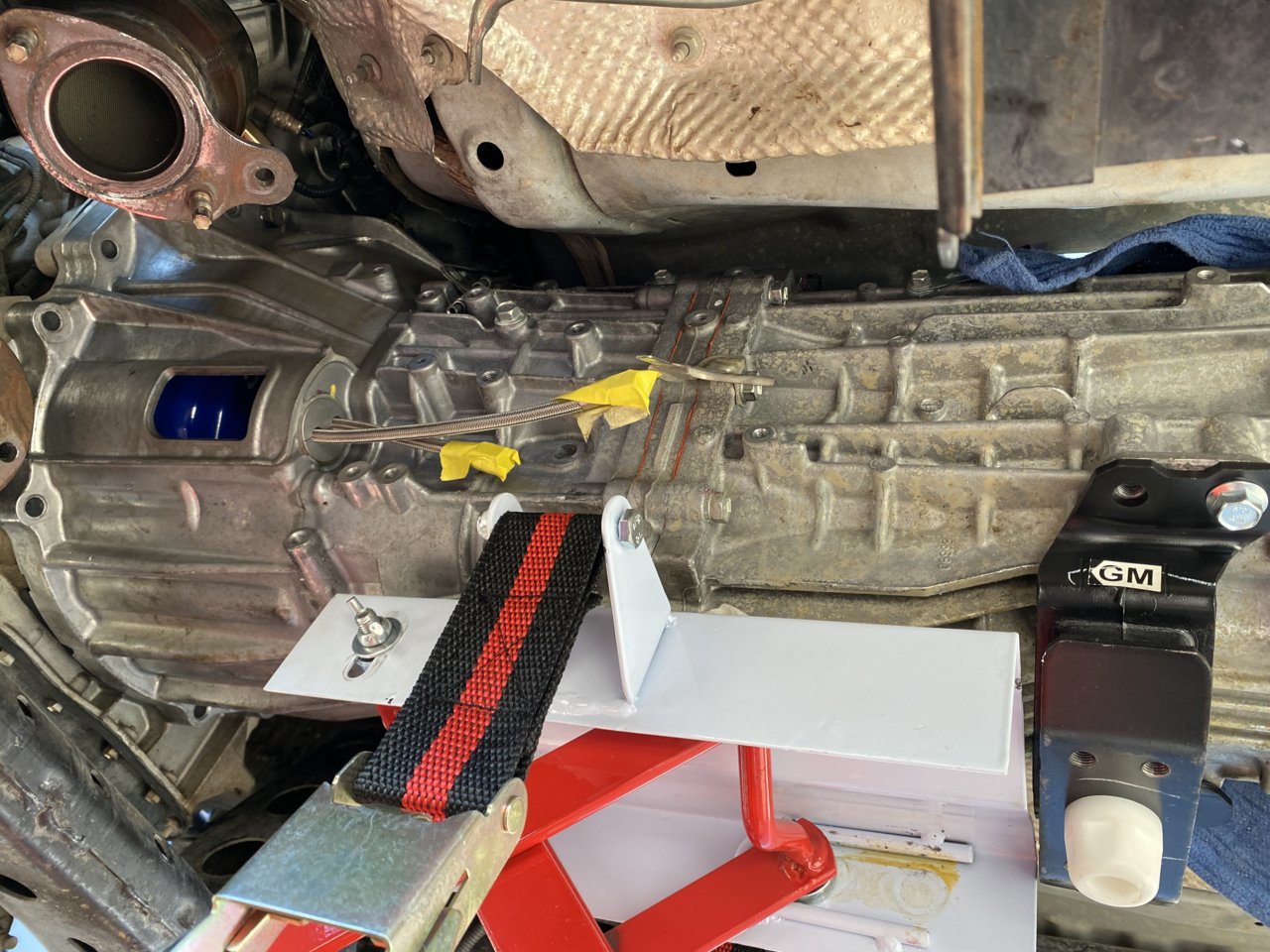

    Transfer input

    They fit together no problem.


    For this round, I’m just putting the original transfer case back in behind the new trans.

    I do have dreams of the FJ’s M/T AWD case. But, that’s in the future.

    Last edited: Feb 7, 2021
    rheath08, Jeff Lange, samiam and 4 others like this.
  12. Feb 7, 2021 at 9:33 AM
    #132
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    8,643
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    and just like that, im glad someone finally has pics up for the third gen 6spd. should put alot of guess work and why cant i get a dang crawl box issues to rest

    BillDaCat8 [OP] and Jowett like this.
  13. Feb 7, 2021 at 9:39 AM
    #133
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
    If you need more pics, let me know ASAP. This thing is going into the truck today.

  14. Feb 7, 2021 at 9:40 AM
    #134
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!
  15. Feb 7, 2021 at 10:12 AM
    #135
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    8,643
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    oh no, that should be fine. we know the bolt pattern is the same, its always have come down to output shaft spline people have questions about.

    BillDaCat8 [OP] likes this.
  16. Feb 7, 2021 at 11:21 AM
    #136
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    3,255
    Deep South
    Herculiner Hootus
    is there even oil flowing that highs up at the input shaft? With seals on each end I did not even think oil was routed there

  17. Feb 7, 2021 at 11:35 AM
    #137
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    937
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    There sure is... these trans have a really neat oil collection and distribution system.

    6 gearT444E likes this.
  18. Feb 7, 2021 at 11:36 AM
    #138
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    3,255
    Deep South
    Herculiner Hootus
    thats good to know, thanks. Is the similar design on the oiling for the ra60f?

  19. Feb 7, 2021 at 12:37 PM
    #139
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    937
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Yes, same design.

  20. Feb 7, 2021 at 2:44 PM
    #140
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,621
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    Some maternal fornicator stole my Mickey Mouse antenna ball!

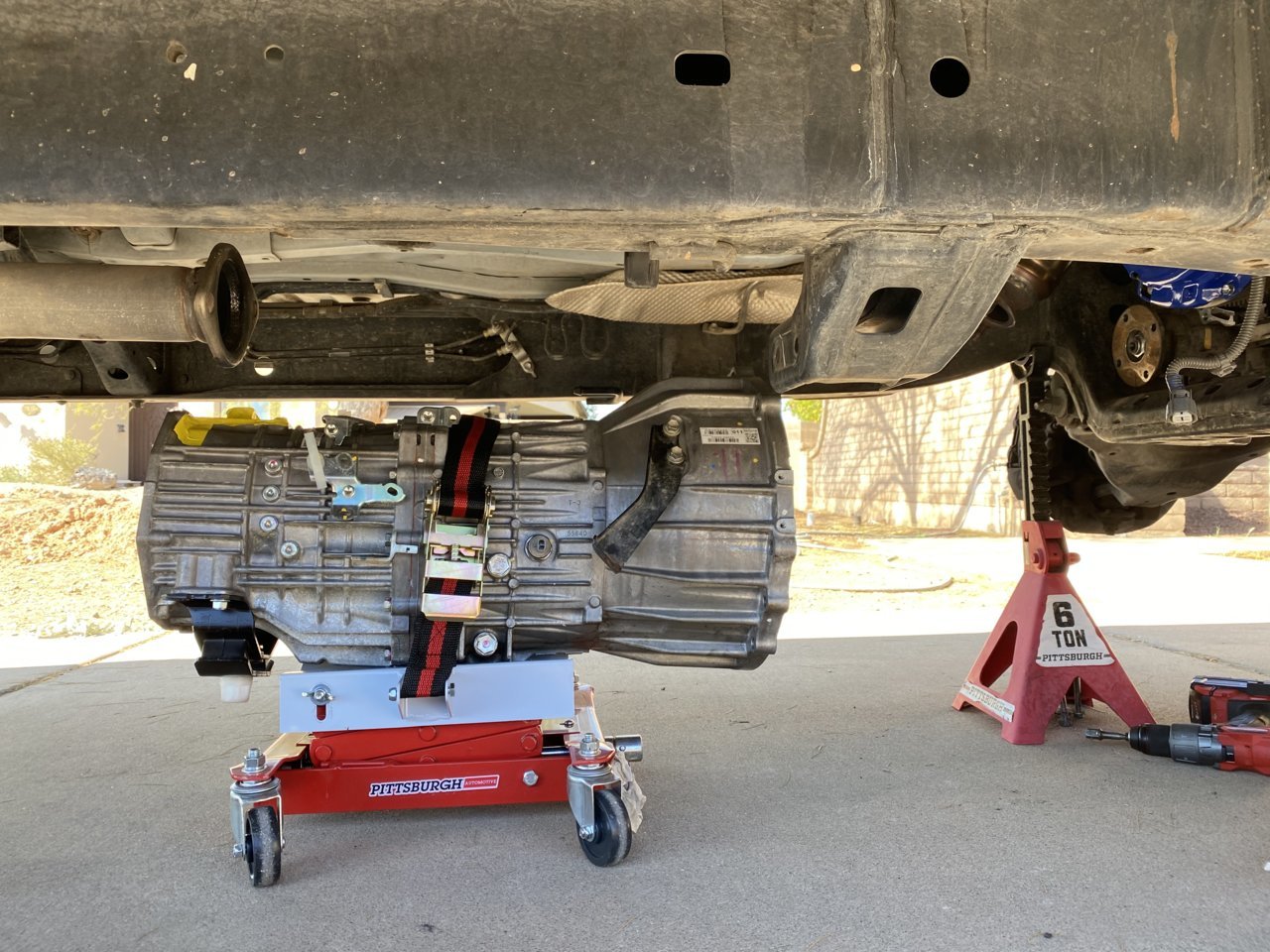

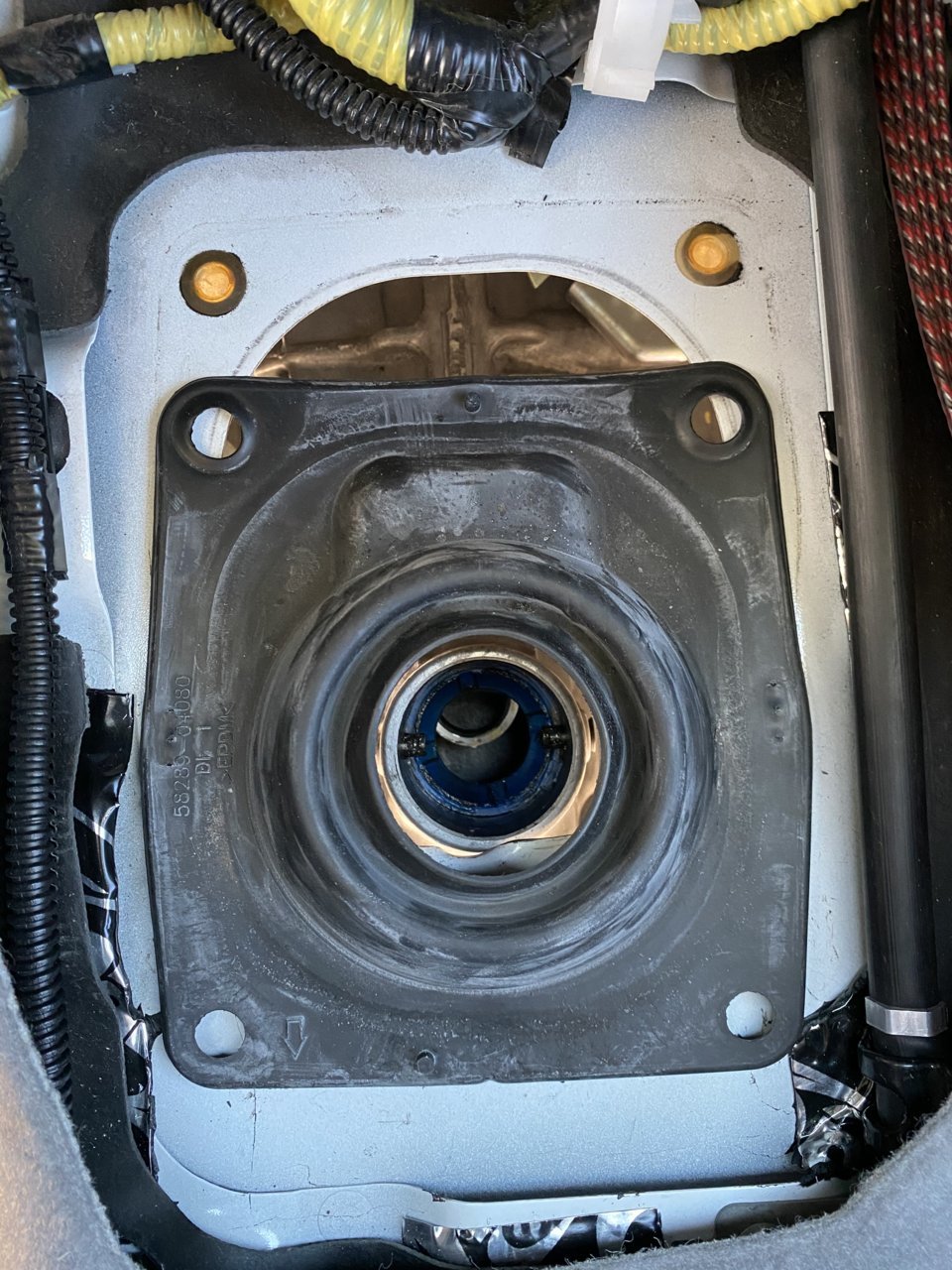

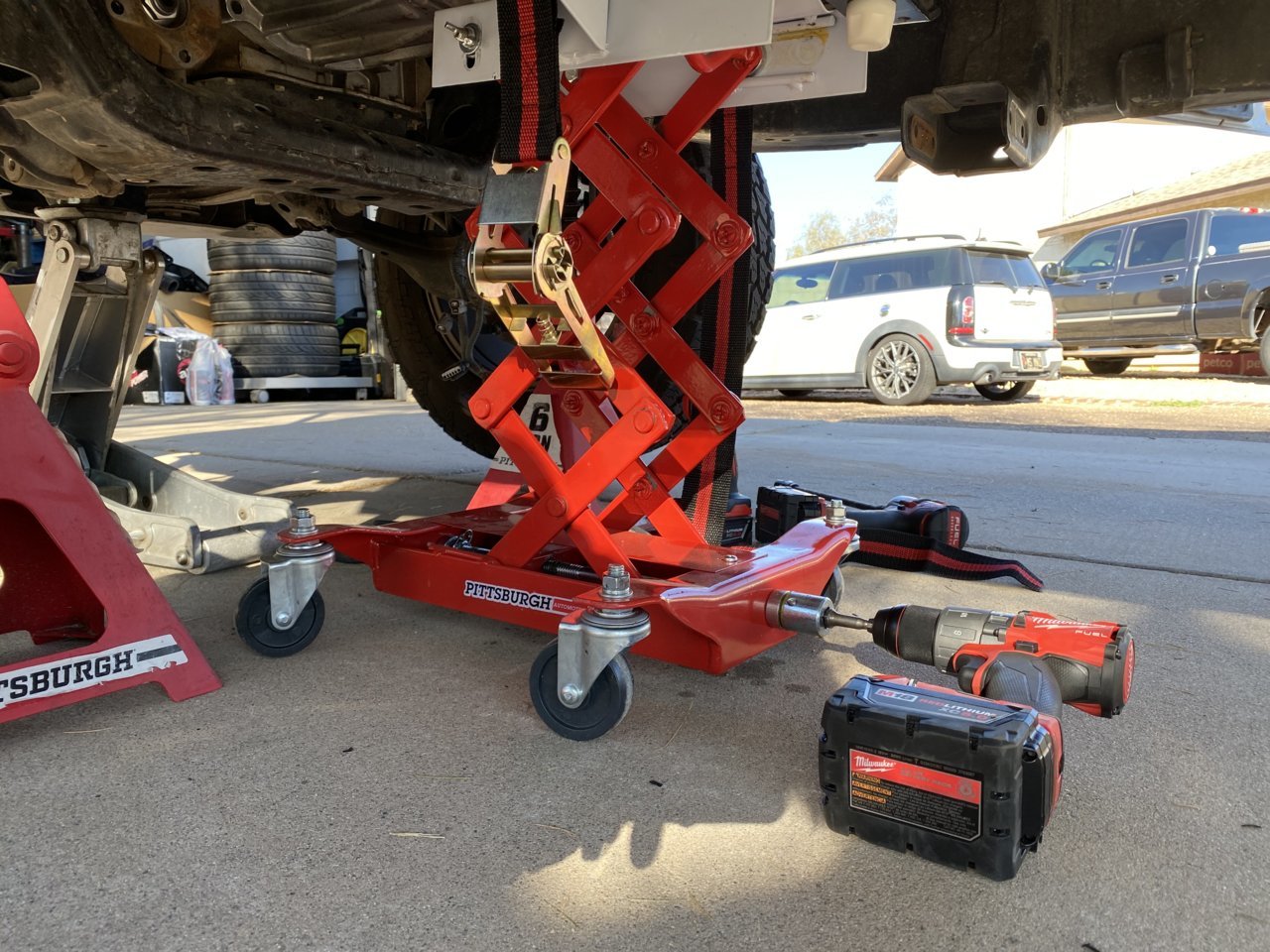

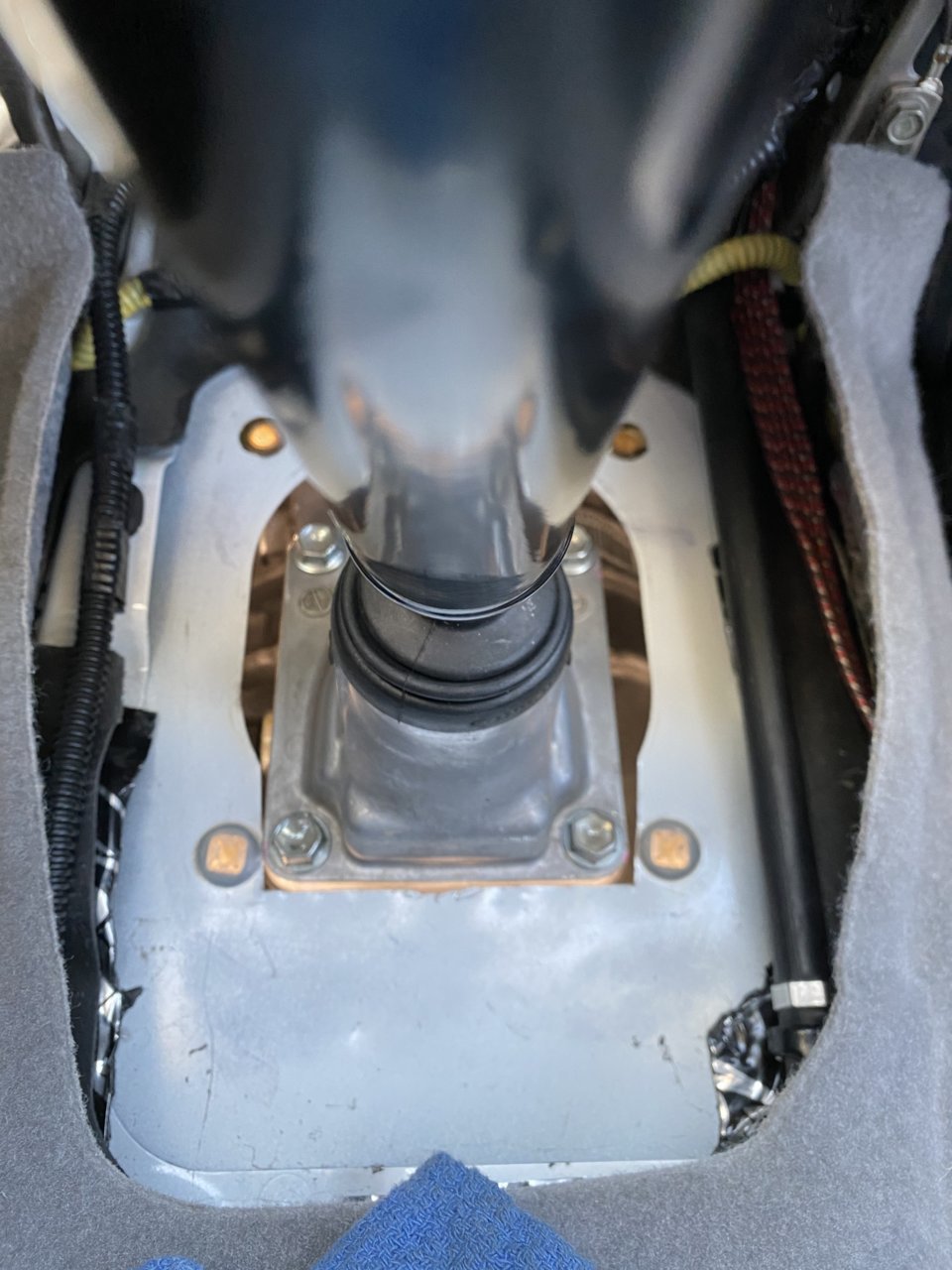

    Rolled it on under. Ended up pulling it back out and reversing the jack. I couldn’t get the angle I needed with it this way. I use an angle finder to set the angle of the trans to match the engine. Makes for a lot less futzing around when trying to stab a tranny.

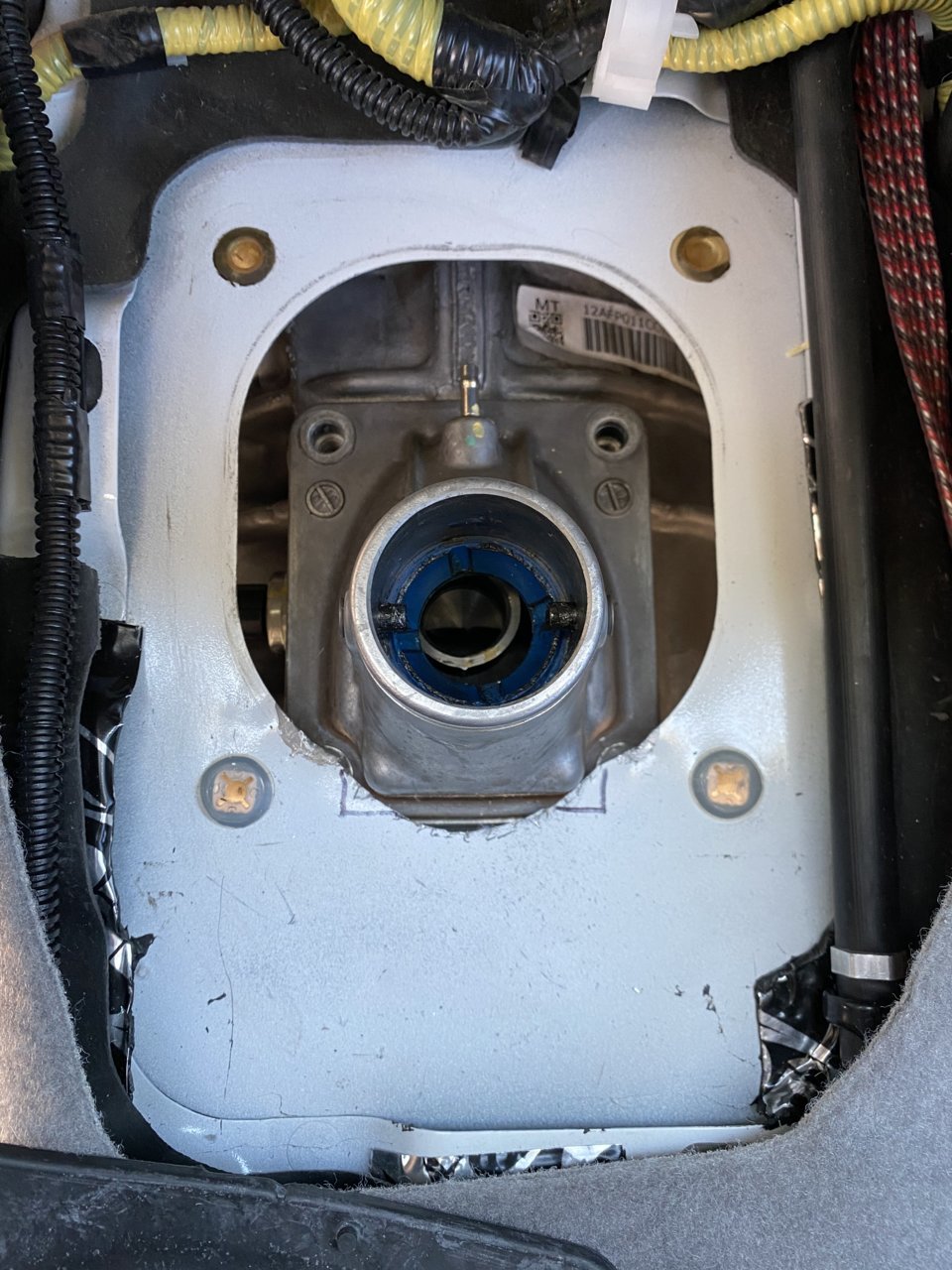

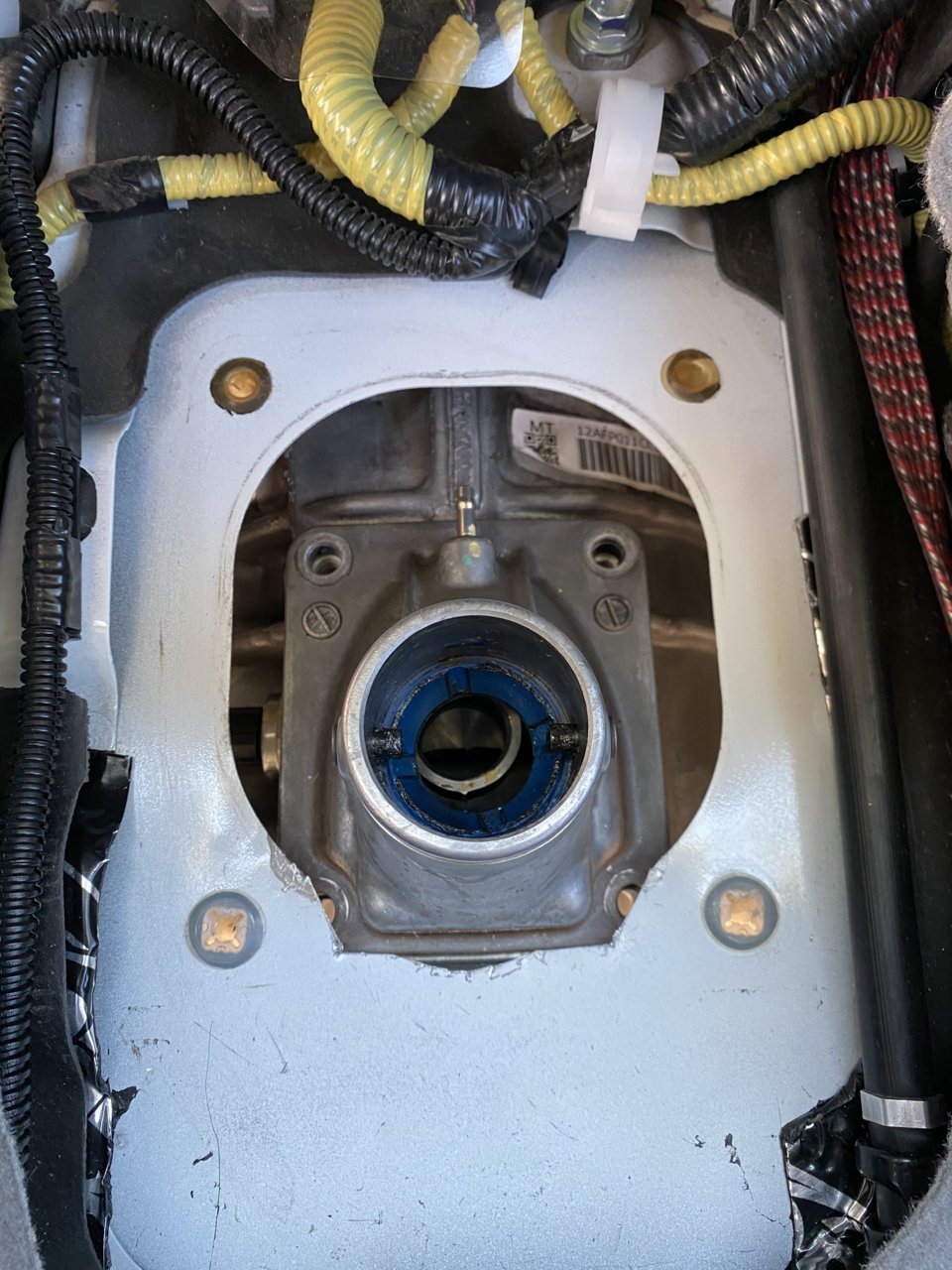

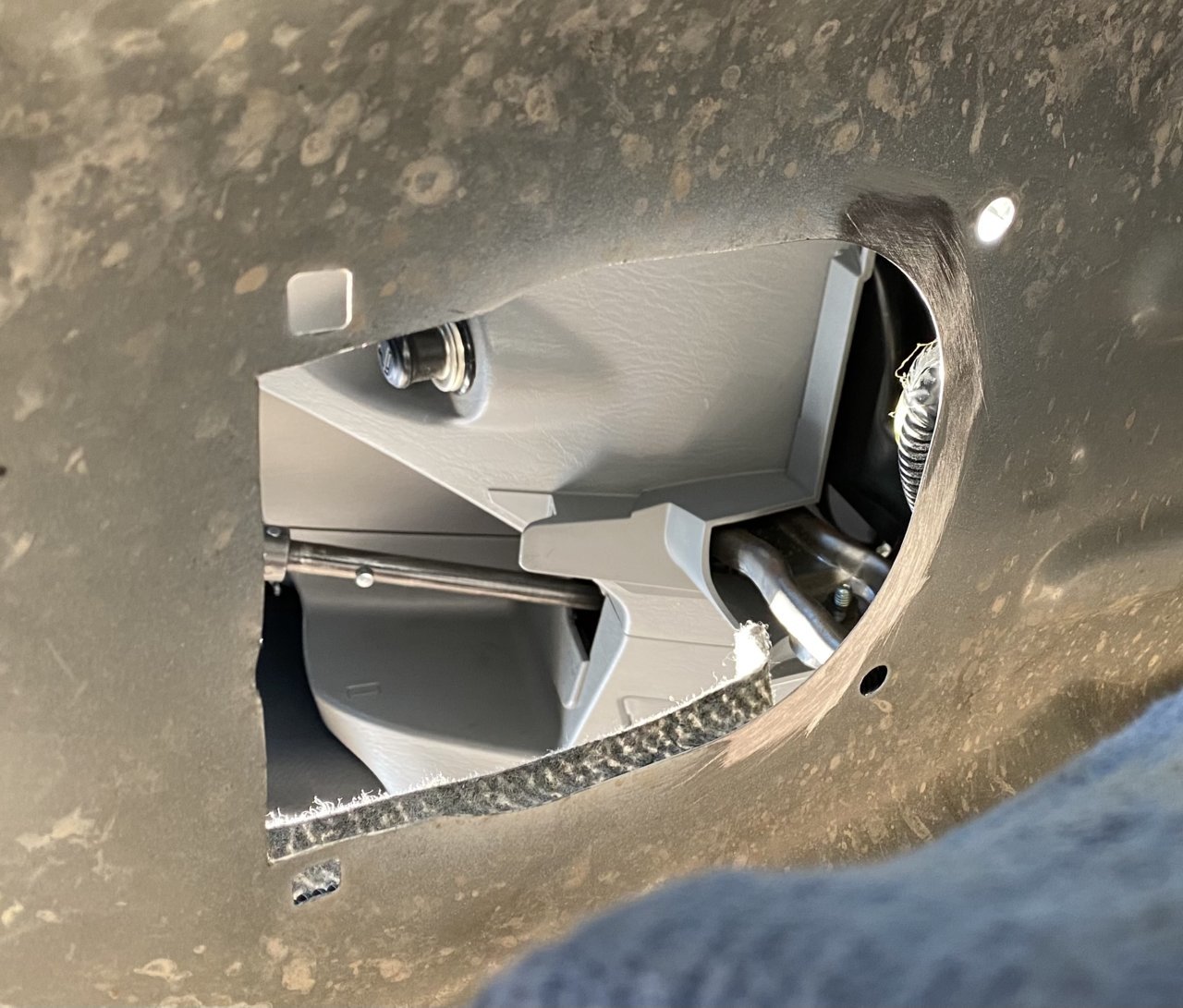

    My progression trimming the hole in the floor to suit. I went slowly. It’s easy to remove material. Less so to replace it.

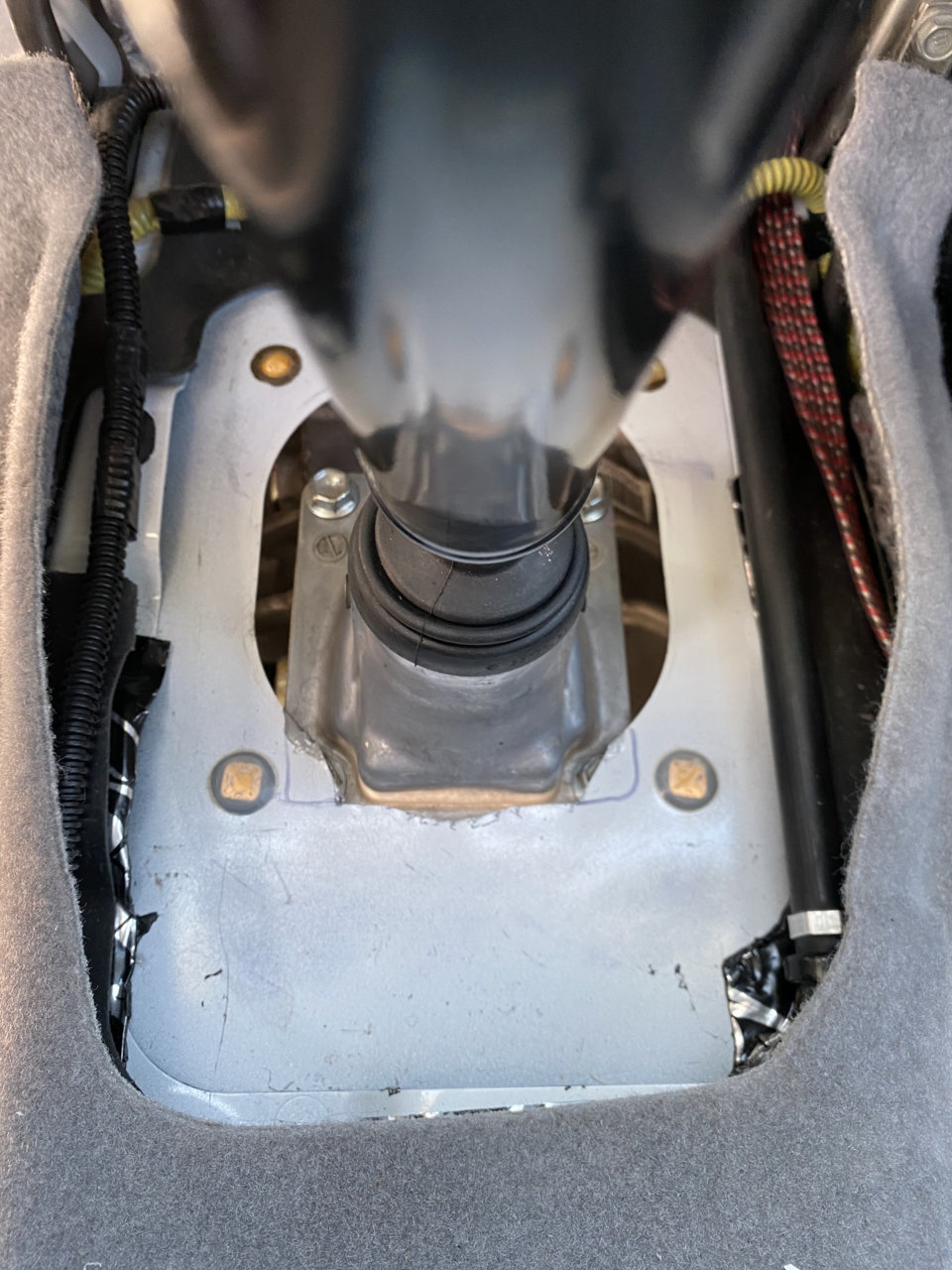

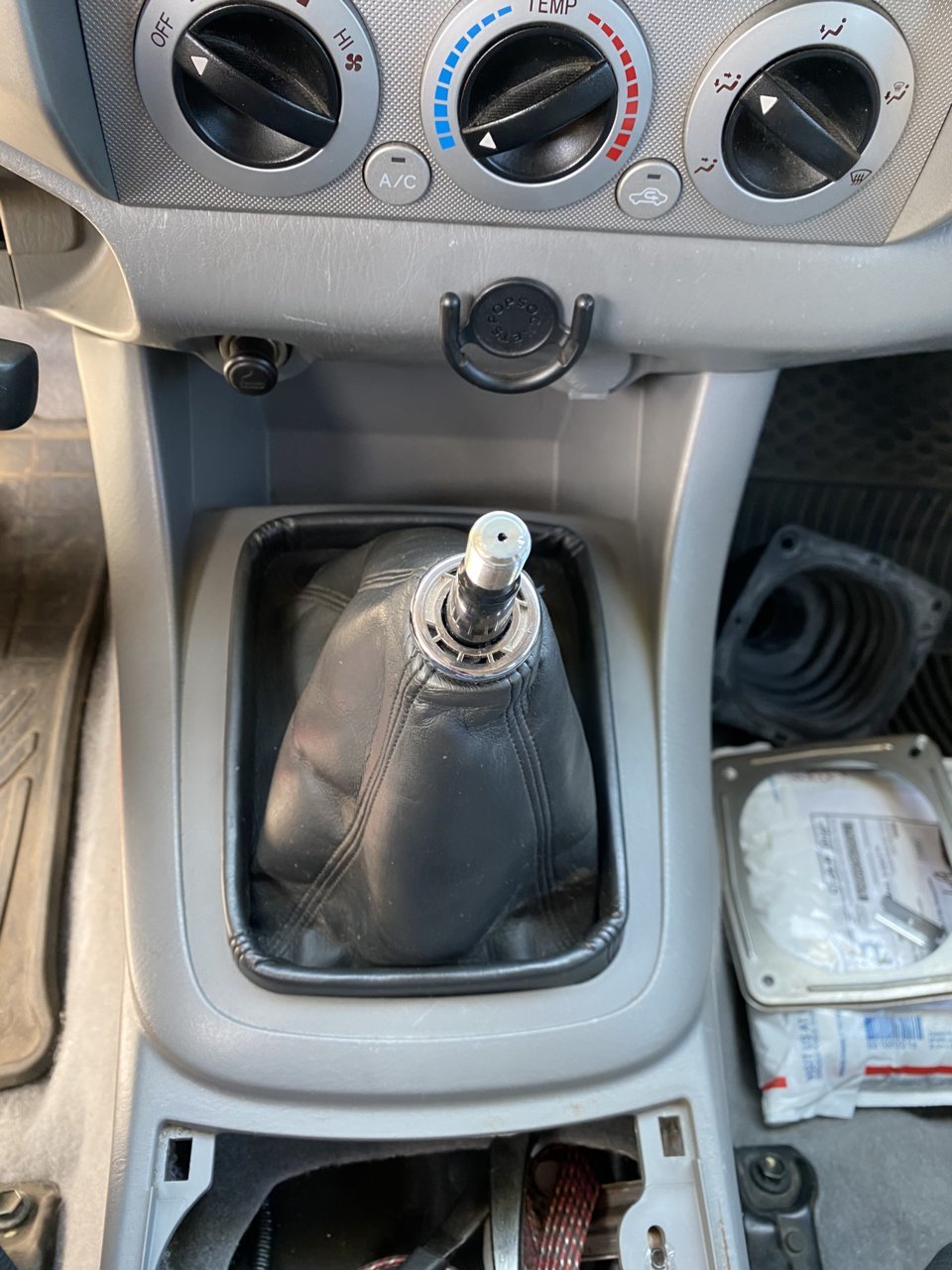

    I separated the rubber booties and reversed the lower/inner one. Here you can see roughly where it will now live.

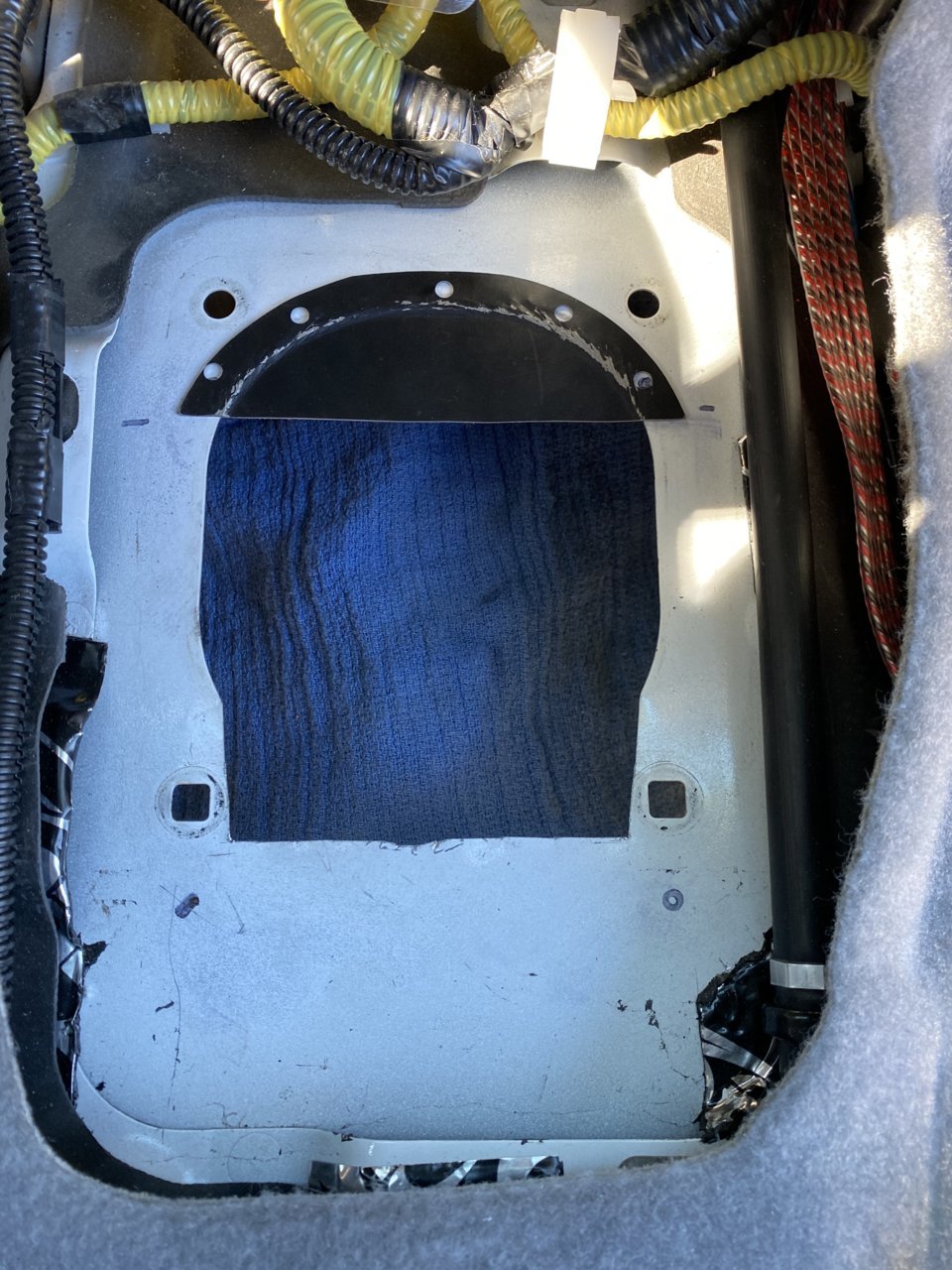

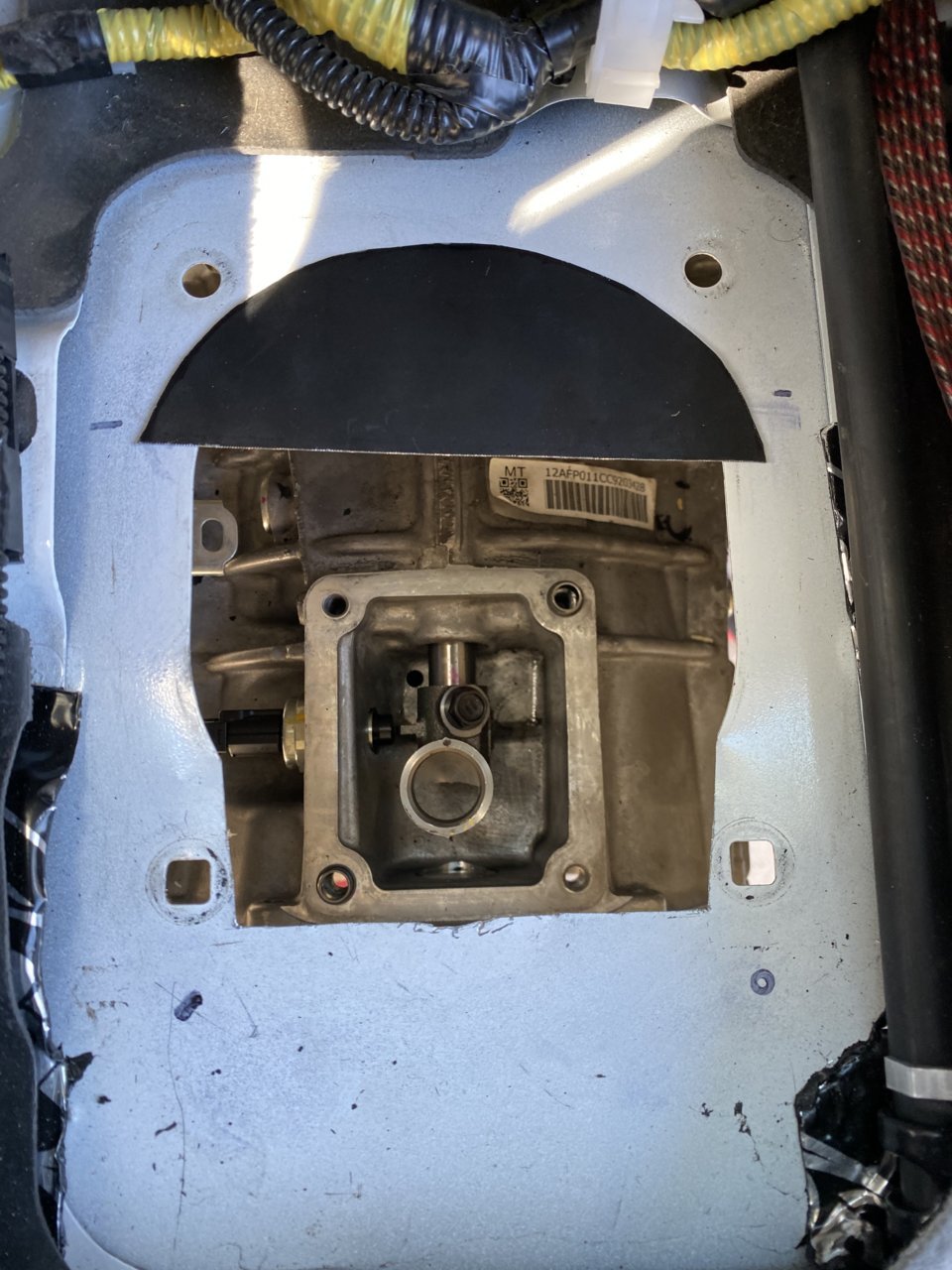

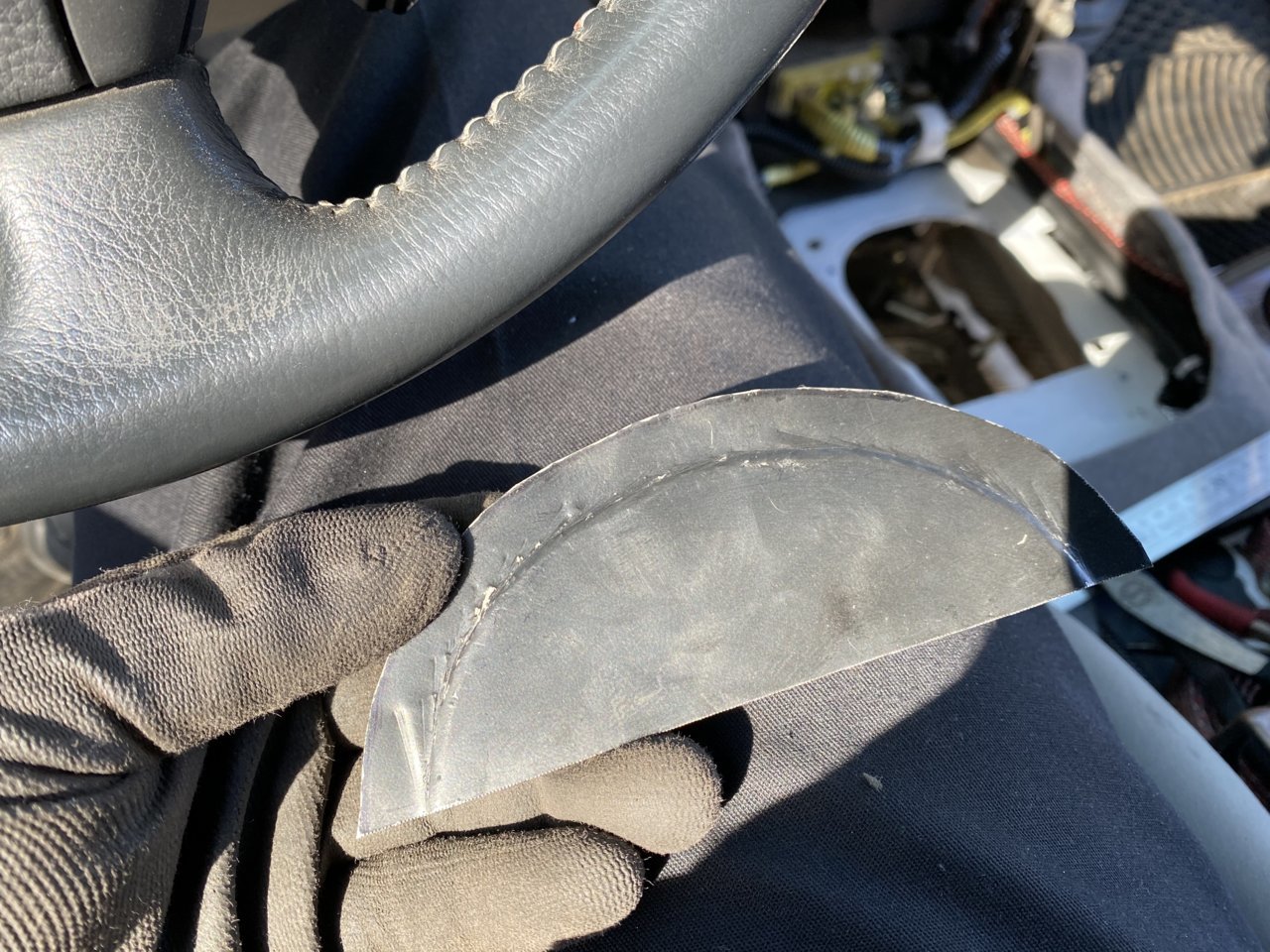

    The floor editing continues. I rough cut a piece of sheet metal (stolen from the scrap of my bimmer project) and traced the opening I needed to close up onto that. Trimmed thusly 10mm larger and flanged it.

    Last edited: Feb 7, 2021
