6112/5160 with icon 1.5 add a leaf

Getting 6112/5160 with icon 1.5 add a leaf on my 21 trd offoroad long bed. Whats the best notch settings? Dont want to get the bro lean look i mainly carryin camping gears thanks for helping. And also do i need UCA?

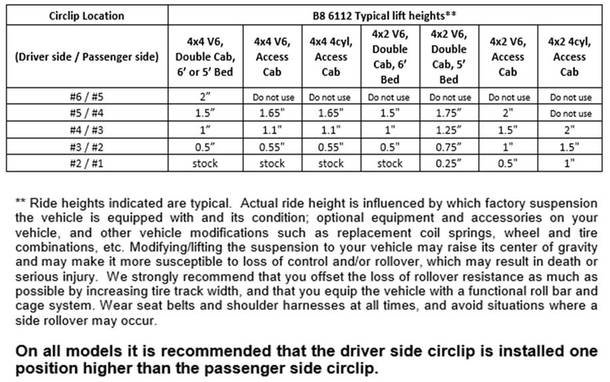

I went 4/5, that gave me around a little more of an inch lift in this front and pretty level all around with a slight rake. Kind of like the lift/looks of a TRD Pro. For my height I didnt need uca's but still purchase the SPC's in case i want to go higher in the future.



I’m at 6/5 600lb coils. IMO great set up. Dclb Lift measurements with my 5100’s were the same.



I just bought the same truck and was going for the same setup. Thanks for asking the question that I was going to do and thanks to all those that respond for providing the info.

I really love this forum!



So how do those compare to the 5100s performance wise so far?



On road softer than the 5100’s , off road will be testing them out in a couple of weeks. Only had them for 2 days before we left for vacation. I’m itching to drive her. Definitely will report back



OP IMO I would purchase UCA’s a plus for alignment etc. lots of pros on getting them.



I have that same setup. Fronts on 4/5 settings. No UCAs, no need for them with that level of lift. Truck is aligned perfectly, drives great.

I do wish I had gone for a full leaf pack in the back instead of the icon 3 leaf aal. I have a Leer topper and a platform, and routinely load up for rafting trips and camping, and the back says a bit. Eventually I’ll be upgrading to a full dobinsons leaf pack.

love the 6112/5160 Billy’s though!



Lots of cool people here helping each other



Im thinking going on that 6/5 set up so i can get the 2inch lift. Did u get any vibration?



I am going to install my 6112/5160 soon on the 4th and 5th notch with Camburg UCA. I was wondering if ill be able to run 285/75/17 at 4th and 5th notch or would i have to go 5/6.



That’s a hit and miss. Most likely you will need ECG’s done. IMO do it now when your whole front is apart. Definitely go 6/5 you will get 2” of lift



Sorry, what is ECG?



Don’t be sorry bro. ECG’s a bushing that fails with these trucks when lifted. I’ll attached a link.



Im gonna have the shop to install it for me next week do i need differential drop kit?



https://eastcoastgearsupply.com/c-1207180-toyota-clamshell-bushings-2016-newer-tacoma.html Here is the link.



I did do a diff drop but some say not needed. I haven’t noticed any cons to it. Hope that helps.



Can you post a pic of your rig i wanna see how it stands with the 6112/5160 thanks for your help brother.



Of course anytime bro
