7 Pin / Air Bag fill valve relocate behind flip up license plate

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Canazes9, May 5, 2012.

  1. May 5, 2012 at 5:58 PM
    #1
    Canazes9

    Canazes9 [OP] Well-Known Member

    Joined:
    Aug 14, 2011
    Member:
    #61673
    Messages:
    665
    Gender:
    Male
    First Name:
    David
    Texas
    Vehicle:
    '07 Dbl Cab TRD Sport / '12 Dbl Cab Offroad
    I won't pretend I have the patience and skill to write up a mod w/ the precision or detail that I've seen done by so many others. This mod certainly isn't new, I've read of other people doing similar mods, but I didn't find any pictures, so....

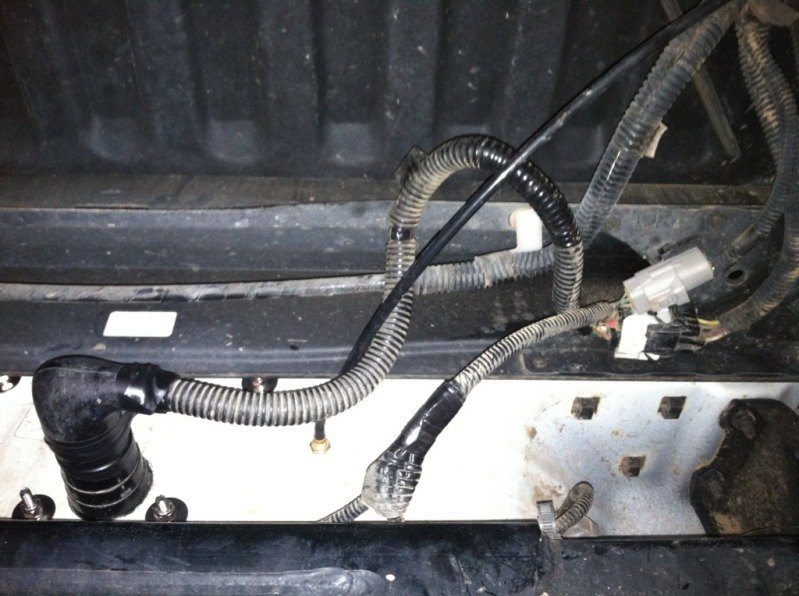

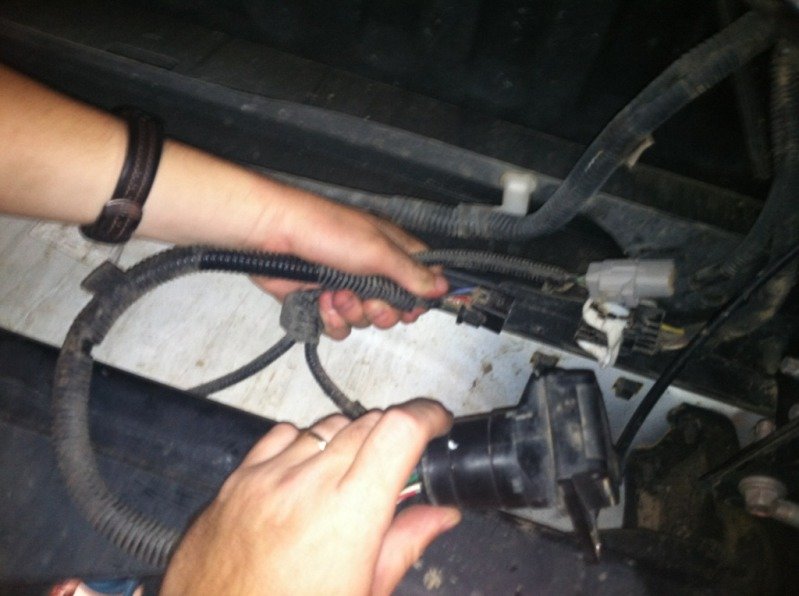

    1st thing, lower the spare tire, get it out of the way so you have some room to work. Remove the bolts from the factory bracket holding the 7 pin, remove bolts holding bracket to truck - discard bracket and bolts. I unhooked the 7 pin from the factory wiring harness, cut some tape that was holding it to some other wiring harness, a plastic tie down - sorry didn't think to get a picture up under there before I unhooked it. Here is a pic right after I disconnected it:

    [​IMG]

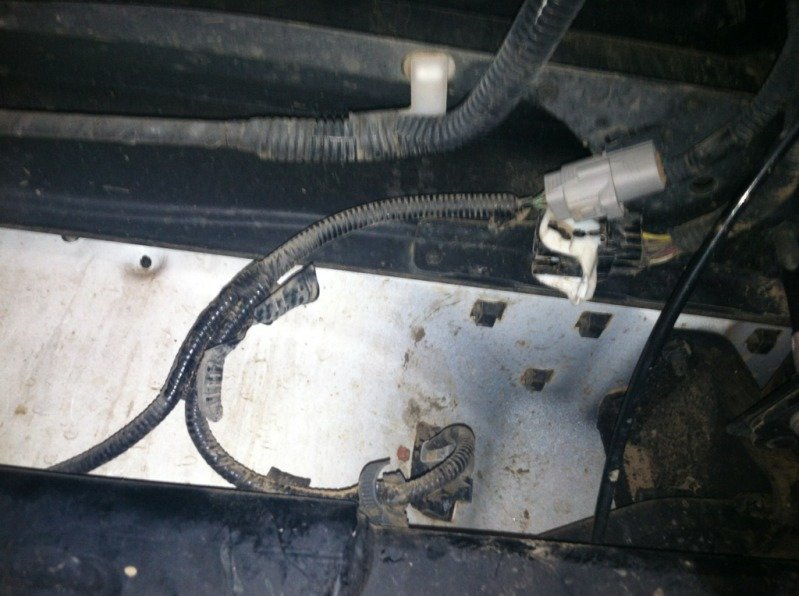

    Here's a pic after the 7 pin has been disconnected and removed:

    [​IMG]

    Next it was time for some surgery on the 7 pin housing. I didn't think to snap a picture, but it's pretty straightforward - take a hacksaw and some pliers and cut off the the stuff that's going to stop it from fitting flush. Or you could be less of a cheap ass than me and go buy a new 7 pin that's designed to fit flush and wire appropriately.

    Remove license plate, drill a 2" hole in bumper where you want the 7 pin w/ a hole saw. Drill holes for mounting 7 pin and for air bag fill fittings. Tape it off and paint it. Yes, I know that's a terrible paint job, license is going to cover all of it, just didn't want to leave bare metal to rust:

    [​IMG]

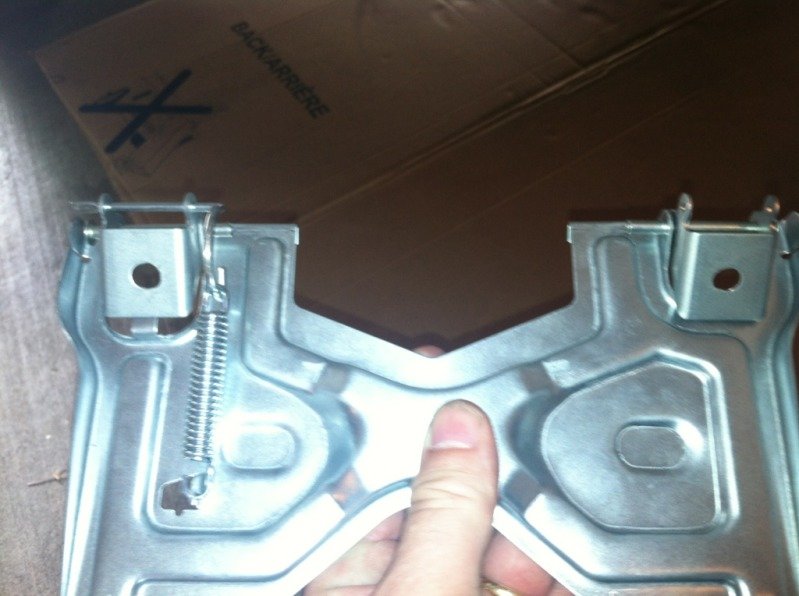

    The flip up license plate bracket I bought from Summit did not fit the factory license plate holes - to wide by about 3/8". A few minutes work w/ a chainsaw file and the insides of the hole were opened up to where they would fit:

    [​IMG]

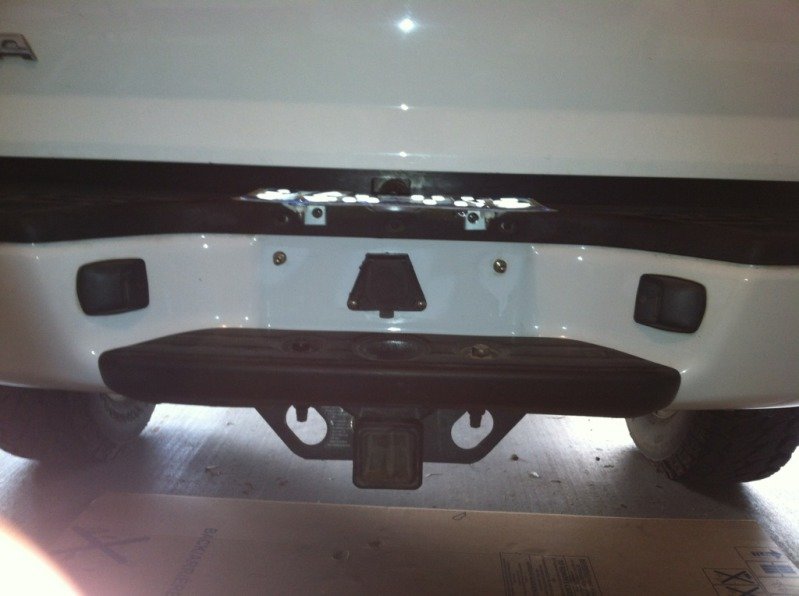

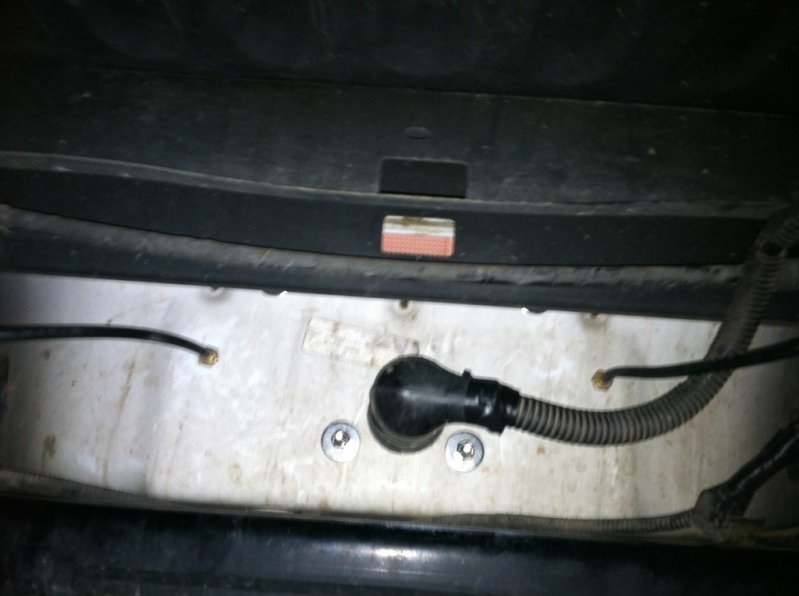

    I attached 7 pin w/ two stainless 1.25" length 1/4" diameter panhead bolts with sheetmetal washers, lock washers and lock nuts. Used the exact same hardware to attach Summit bracket to the bumper (inserted through the factory holes, factory holes in the bumper are just in the plastic and don't have washers and nuts - spring loaded bracket won't work with factory bolts through the plastic, they'll strip). Inserted air bag fill valves using supplied hardware. Also, the little caps on the bumper that cover the bolts won't clear the plate with this bracket - no big deal to me, I had already lost one, I shit canned the other...

    [​IMG]

    [​IMG]

    Attached license plate using the Summit supplied nylon inserts and screws, job complete:

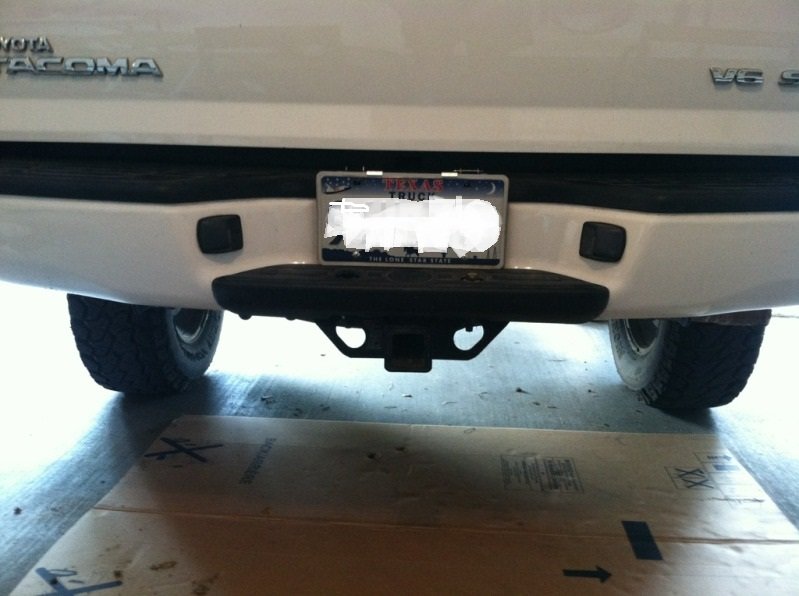

    [​IMG]

    [​IMG]

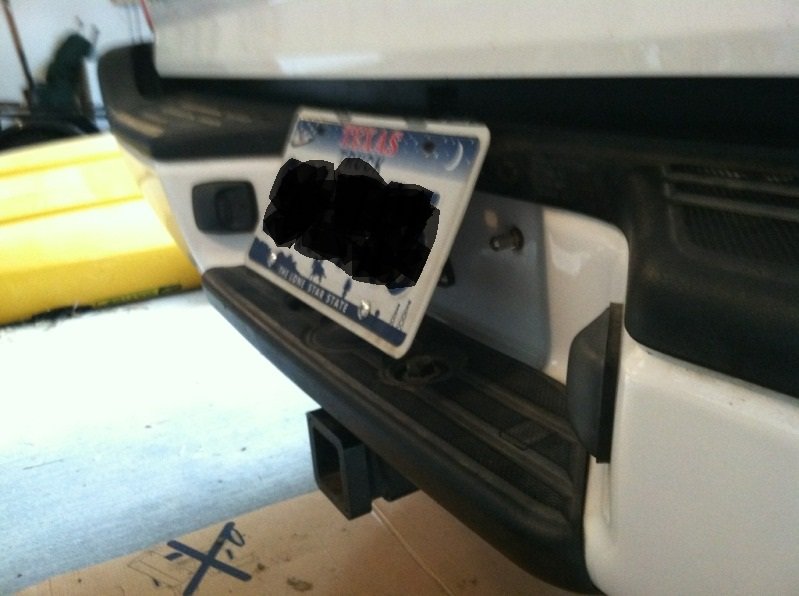

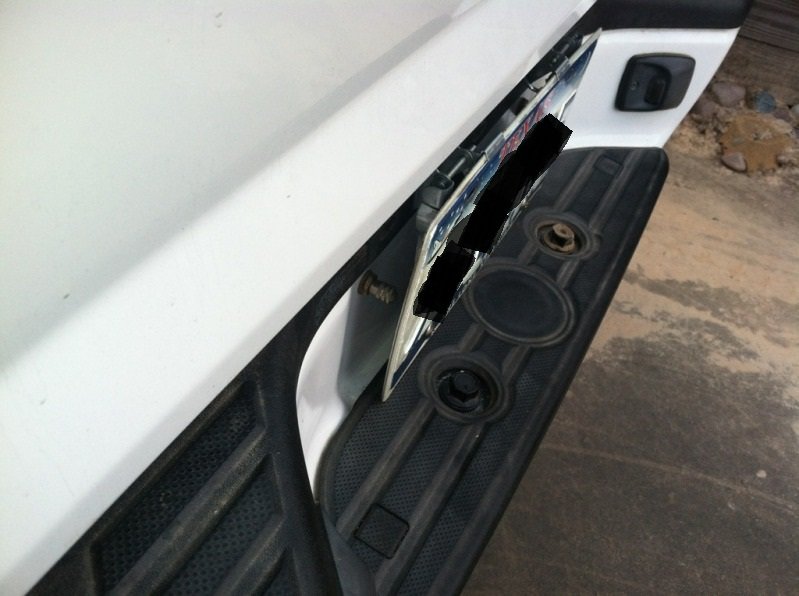

    Side view - plenty of clearance for fill valves:

    [​IMG]

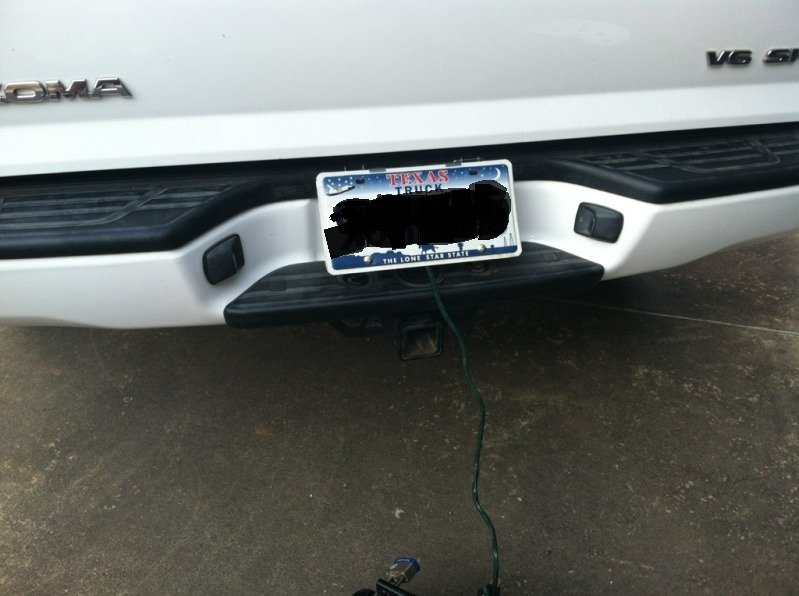

    Trailer wiring connected to verify everything still works (note license plate is still readily readable:

    [​IMG]

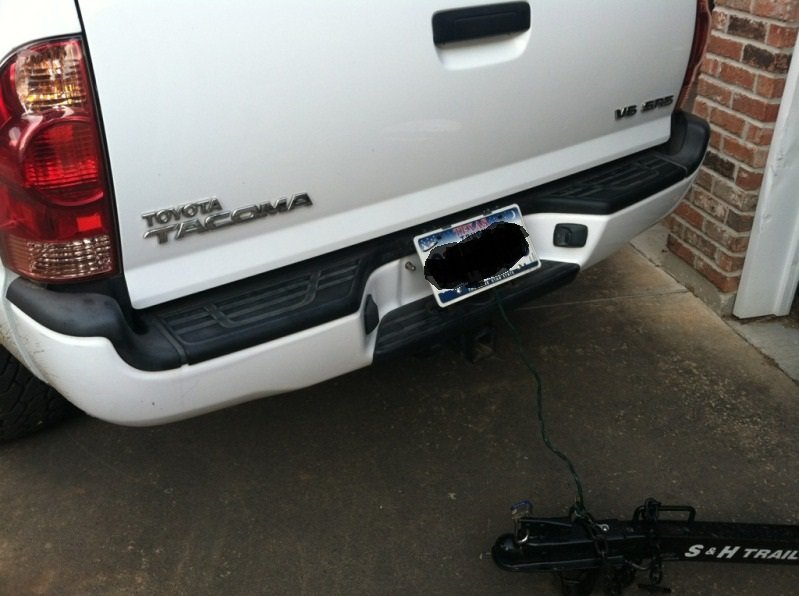

    Another view w/ trailer wiring connected:

    [​IMG]

    With wiring connected the plate is supported by the flip up from the 7 pin, it's not resting on the wiring:

    [​IMG]

    [​IMG]


    Hope this helps someone that may be considering doing same.

    David

  2. May 5, 2012 at 6:17 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,158
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Well done!

  3. May 6, 2012 at 8:58 AM
    #3
    DIVERMAN

    DIVERMAN Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29888
    Messages:
    460
    Gender:
    Male
    First Name:
    Cullen
    Louisiana
    Vehicle:
    2012 Pyrite Mica 4x4 TRD O/R SWB
    Tailgate theft prevention, Locking rear window, Blind spot mirrors, Fogs on anytime, Rear diff breather relocated, Bed storage locks, LEDs in/out, Relocated trailer plug(custom!), OEM bed mat, OEM running boards, OEM bed divider, Bed lights, Rev lights, Raptor lights, WeatherTech floor mats and window vents, Extra D-rings, ImMrYo Bracket, UWS low pro black toolbox, Carhartt seat covers,
    nice work! did the same to mine a while back, but it flips down.

  4. May 6, 2012 at 9:11 AM
    #4
    skidooman

    skidooman I'm your huckleberry

    Joined:
    Apr 6, 2011
    Member:
    #54438
    Messages:
    4,727
    Gender:
    Male
    First Name:
    TJ
    Northern Nevada
    Vehicle:
    sold everything
    Thats pretty slick. I just moved mine to the left lic. Plate light hole. That looks better though.
