78 CB750 Bobber build, lots of pics

Discussion in 'Motorcycles' started by Nick701, Feb 13, 2012.

  1. Feb 13, 2012 at 4:17 AM
    #1
    Nick701

    Nick701 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD

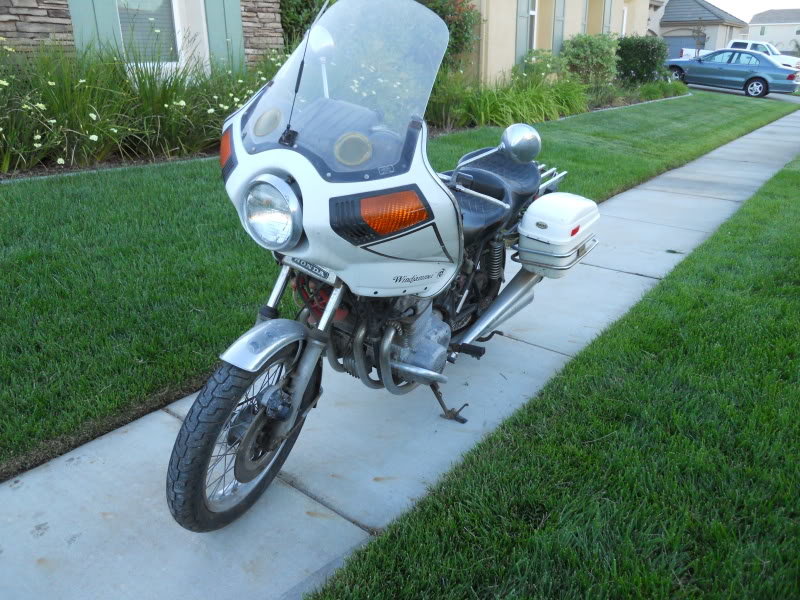

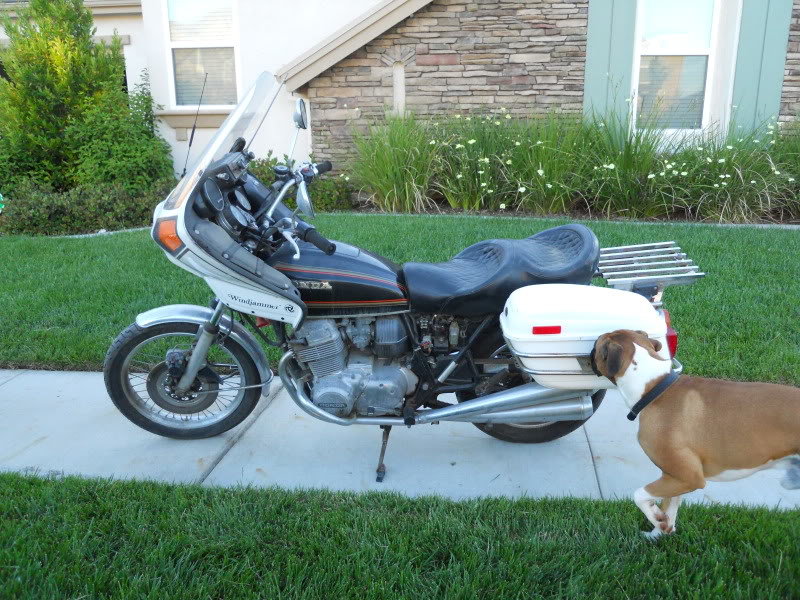

    Ok well here it goes; I started with a 78 Cb750 that I picked up for 100bucks. 20 bucks later (new plugs etc) and it ran so I started stripping it down. Here is what it looked like when I started and the progress I have made up until now.

    I just think it’s to dam ugly...

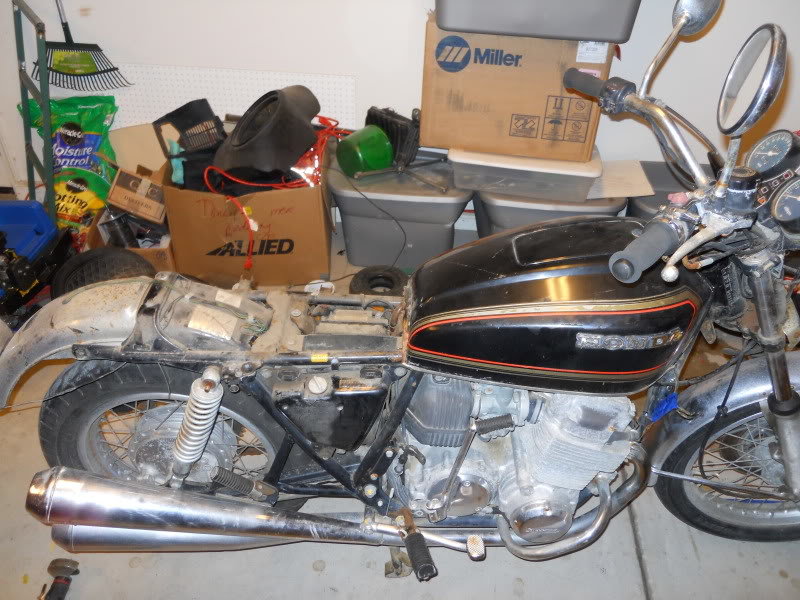

    Strip down progress

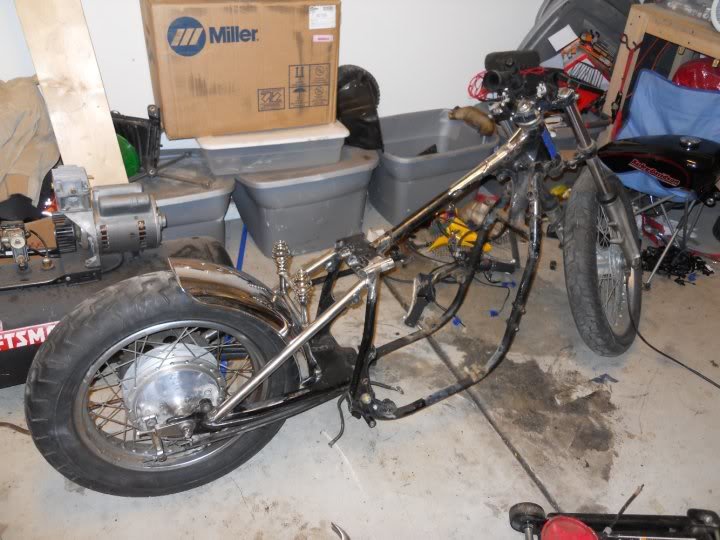

    Cut the rear seat support area to get a low stance

    At this point I was thinking I could keep the rear swing arm and do a simple hard tail, keep the factory tank, add a Springer seat and make things real simple.

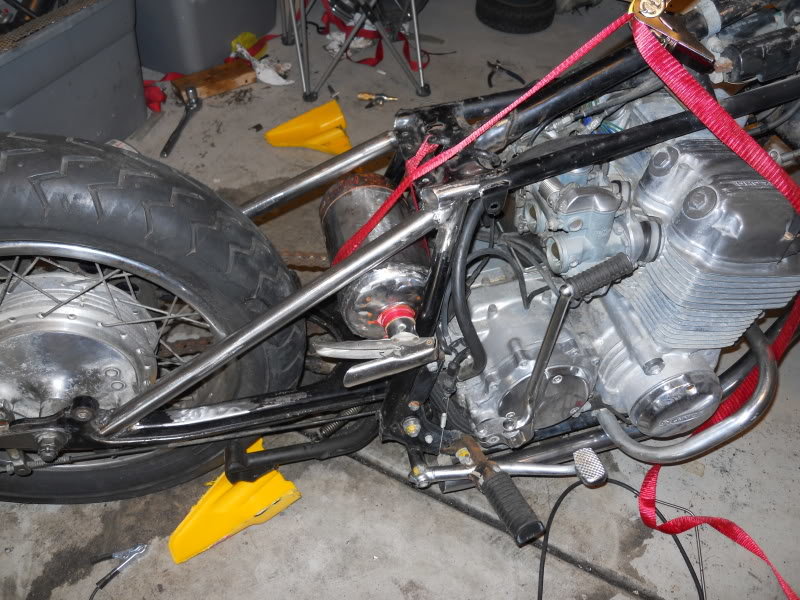

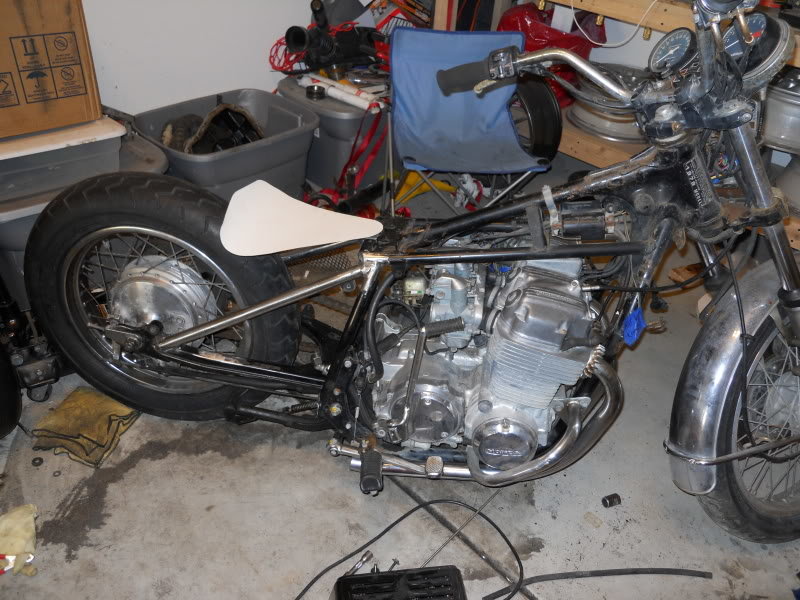

    Simple hard tail, crappy welds, fire ext oil tank that I could never seal...

    Simple seat pan...

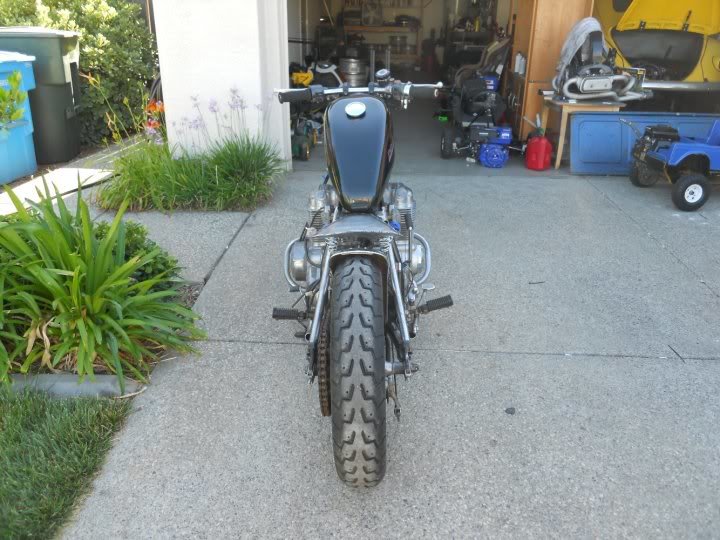

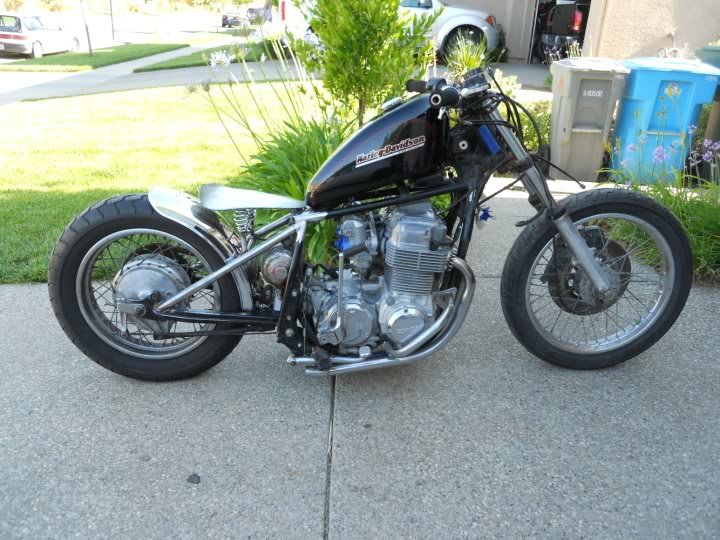

    And this is what you get

    I liked it but wasn’t thrilled.... so I didn’t stop there

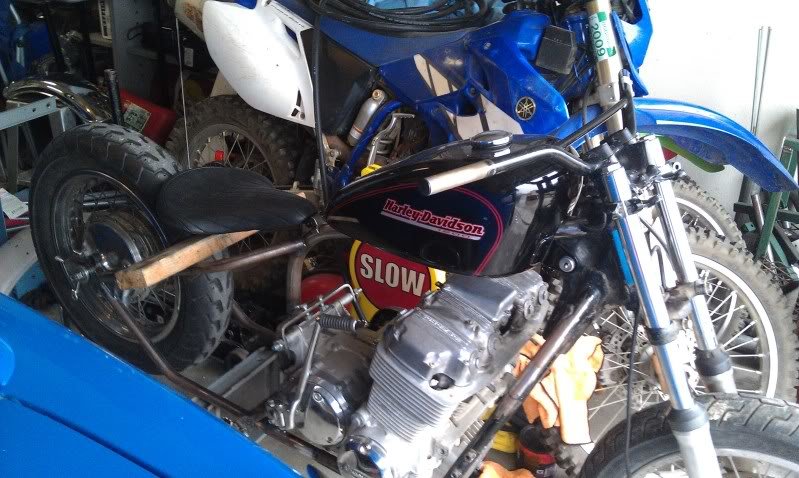

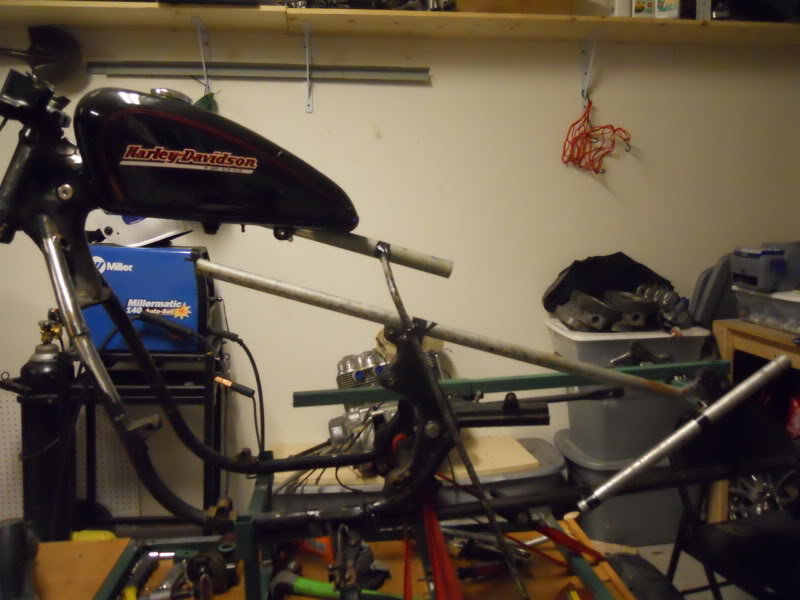

    Then I found a HD tank that I had liked on other bobber and wanted to go that route

    That’s when it hit me…. I don’t like the frame like it is.

    And I hated the big block junction where all the frame rails came together, right where the seat is, behind the gas tank.

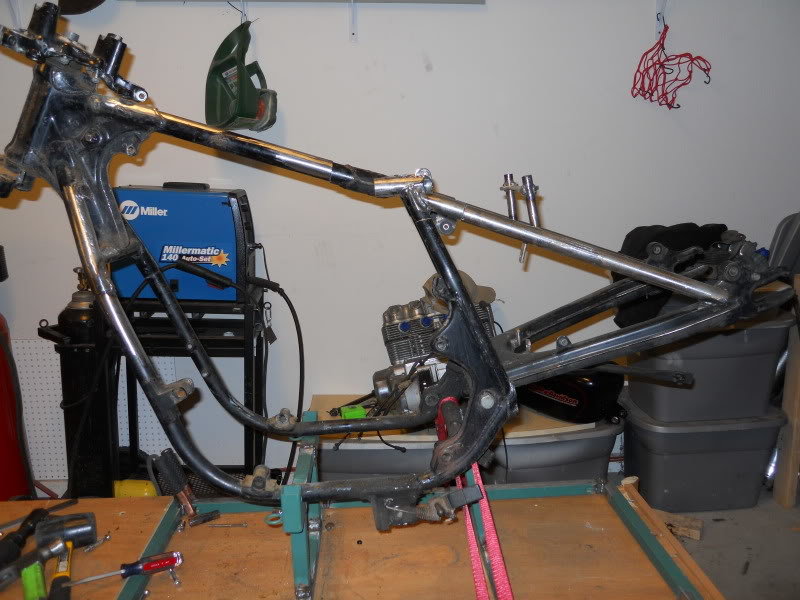

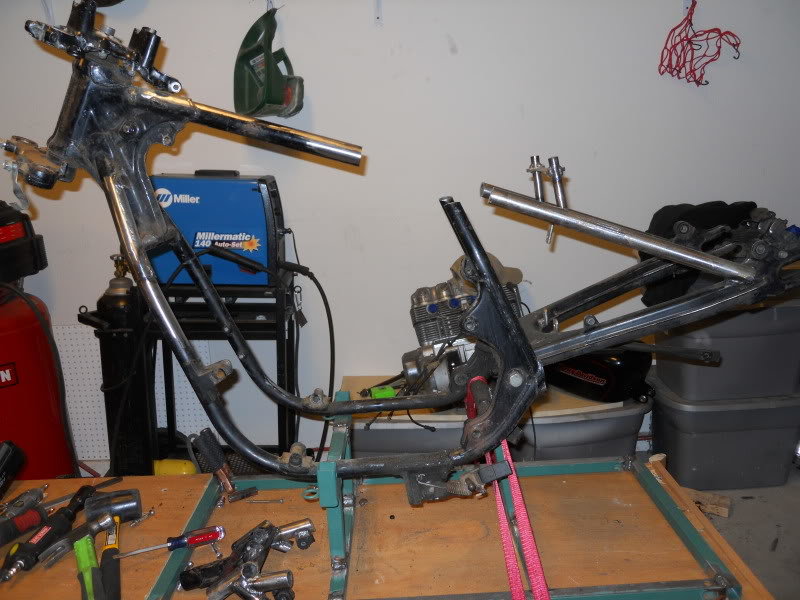

    So I chopped that crap off…

    Now calm down cause I know I am going to get some “you screwed up no jigging that frame before cutting” comments. But be patient because that’s what I’m getting to. I may have screwed up buy not cutting it on the jig but it worked out and took a lot of work to fix my saz-all crazy moment. I’m glad I did it too, because it wouldn’t look like it does now if I didn’t chop it up.

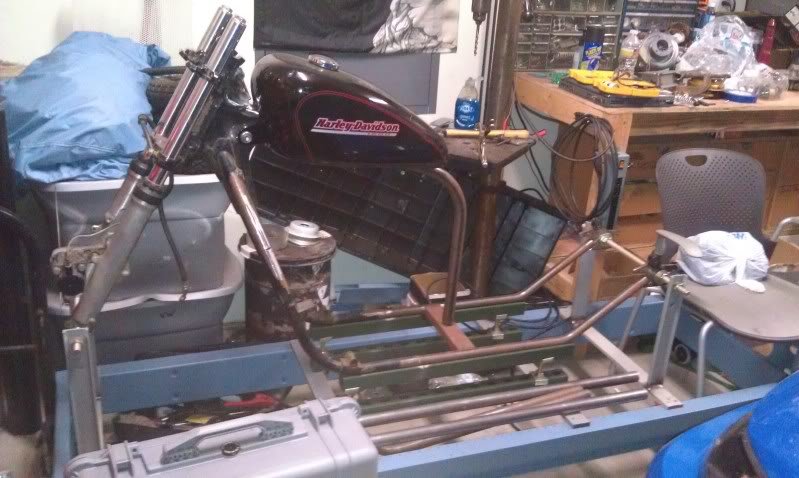

    This is about 6 months after I started… I found an old server computer rack that I could make a frame out of. It was heavy, square and perfect for what I was going to do with it. Here we go…

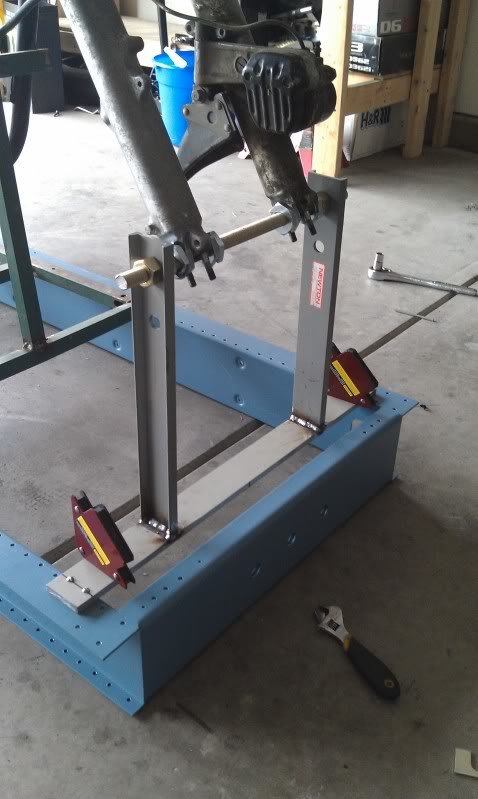

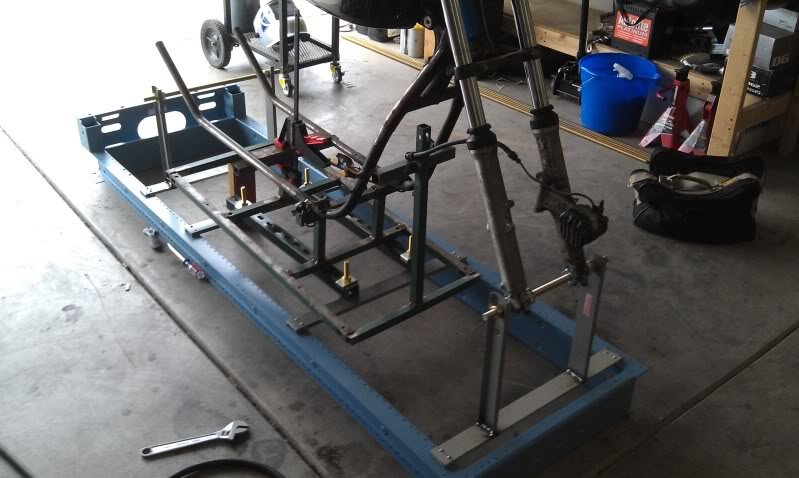

    Front fork support

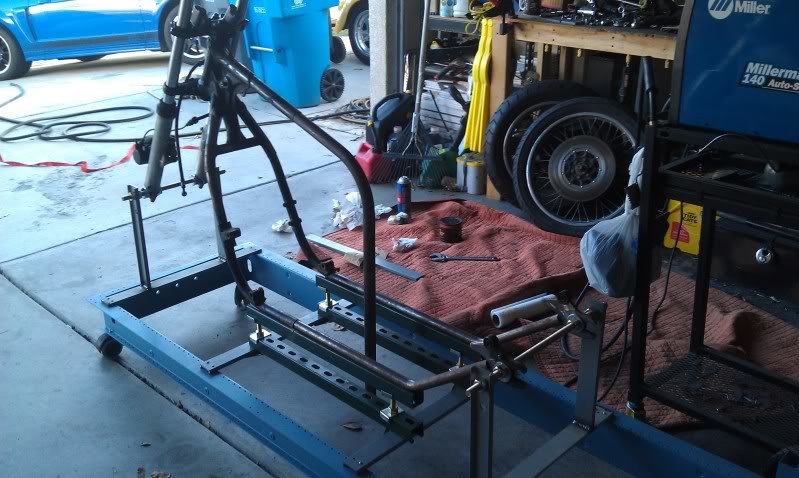

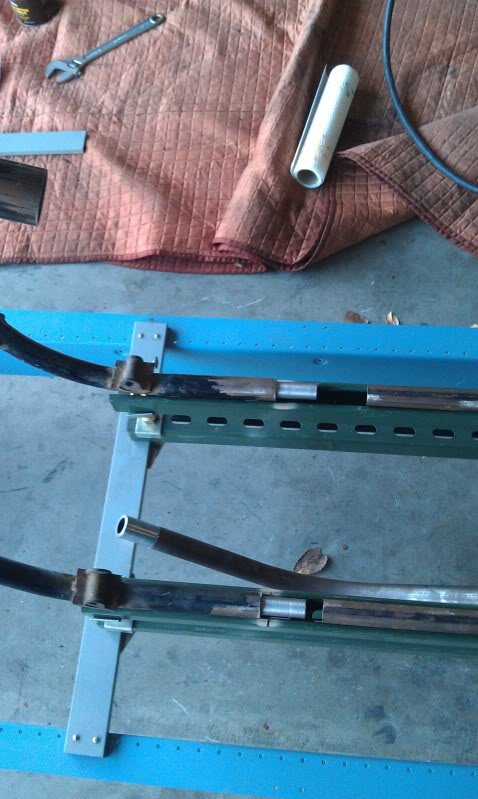

    Rear axle supports and started on frame rail supports

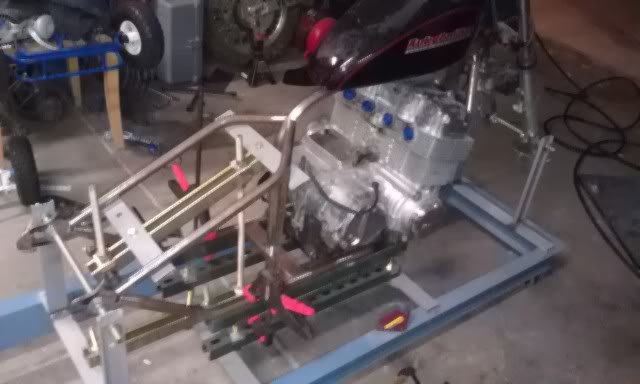

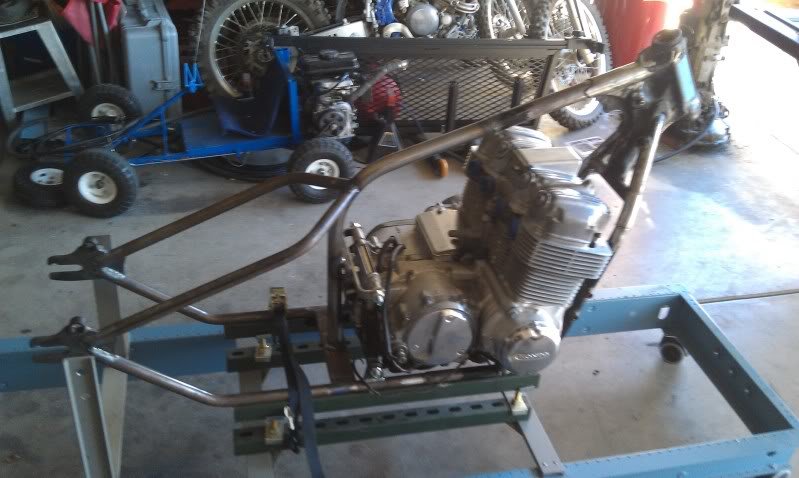

    Getting there

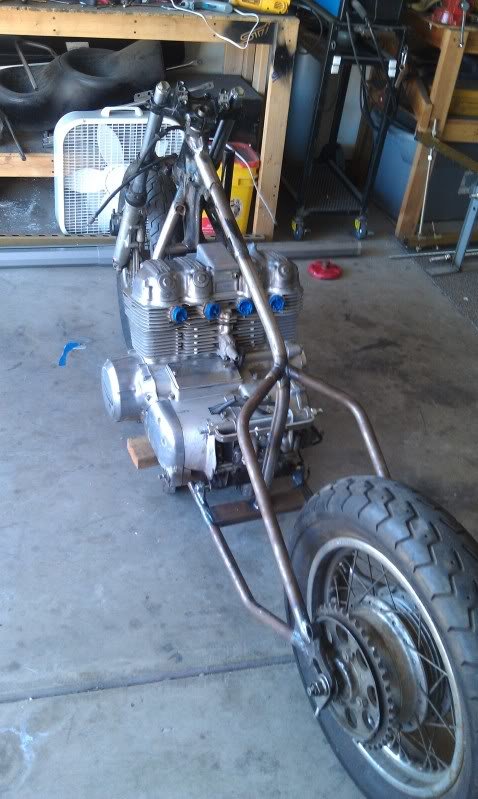

    Now all of this took months of work I’m probably at 9months now and it’s all downhill from here. I plan on adding 6in of stretch to the rear and lowering the ride height a little bit.

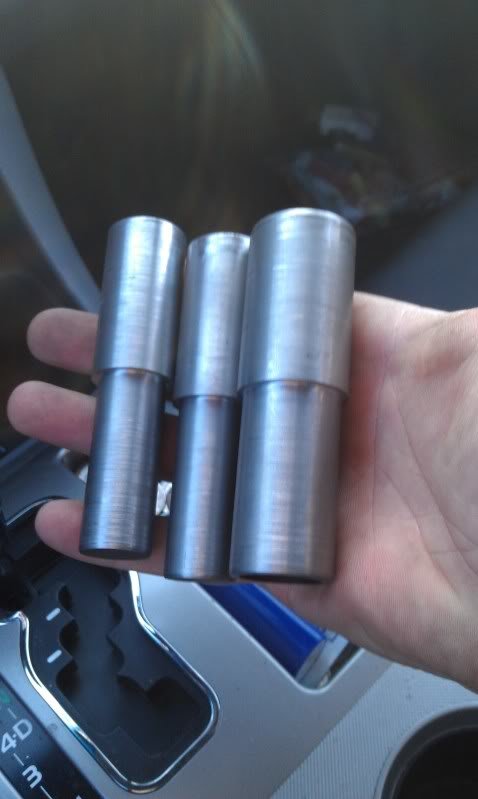

    O yeah I had custom plugs built for the frame tubing, better welding and straight frame rails

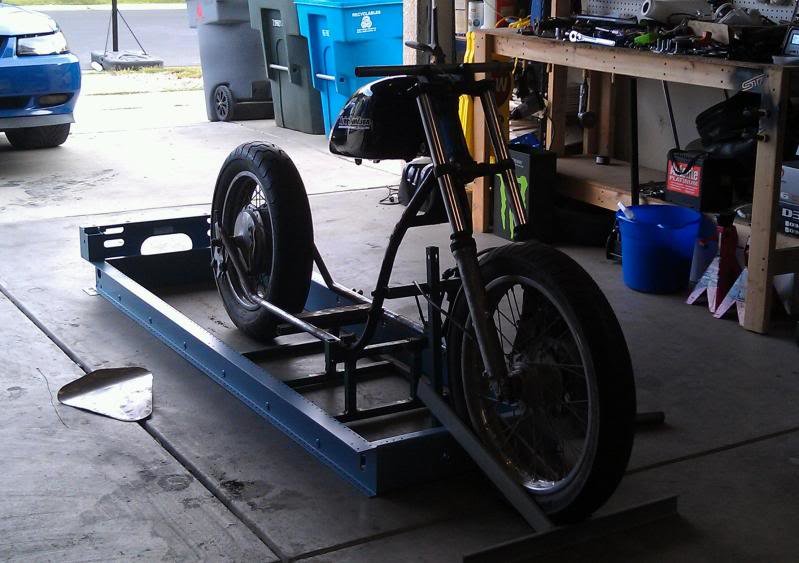

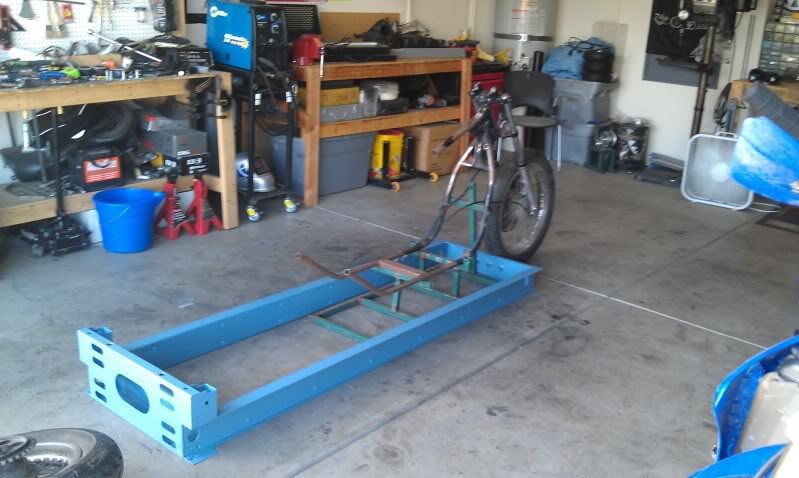

    Once I built the jig and assembled the frame, I took it to Mike at “Old STF” cycles, so that he could verify my frame was straight and true and to tig weld everything together.

    Here is how I got it back…

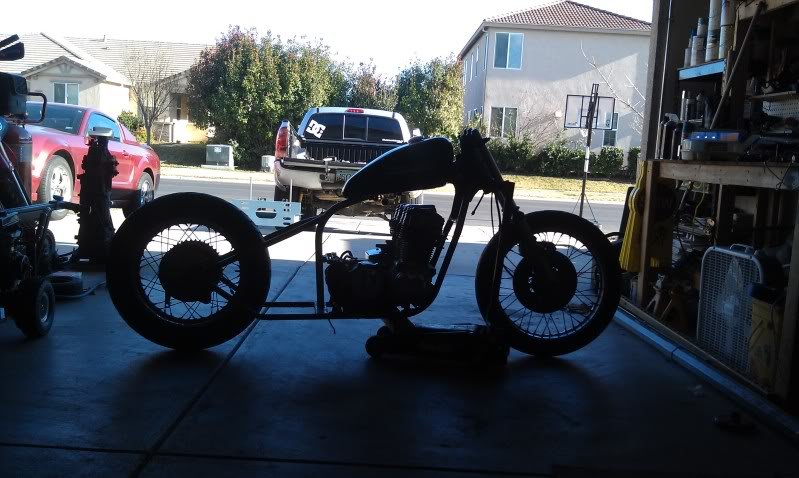

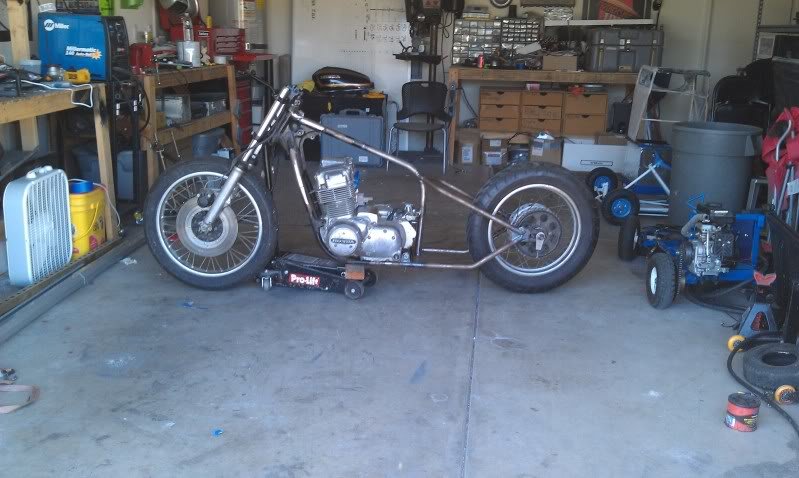

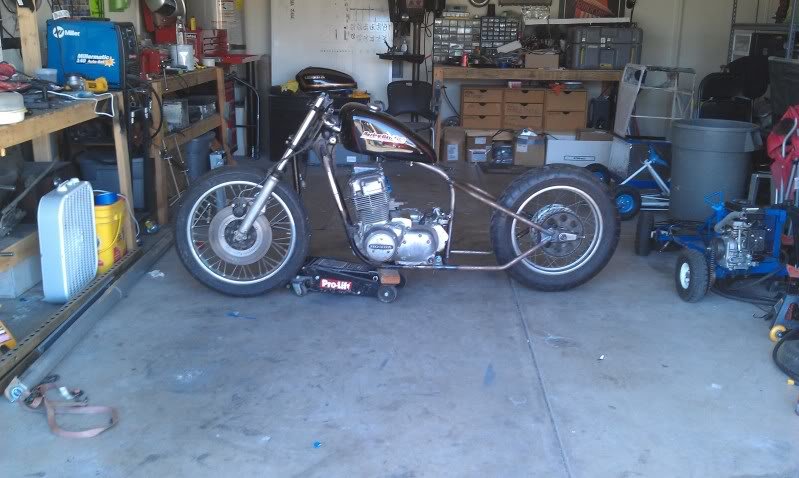

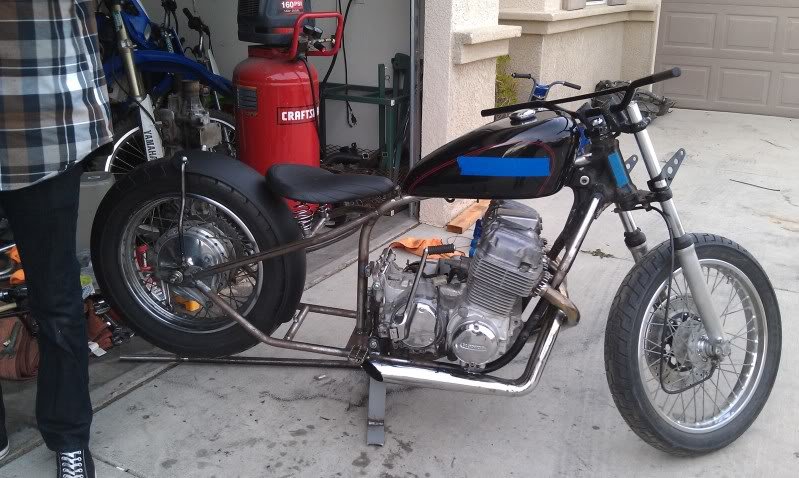

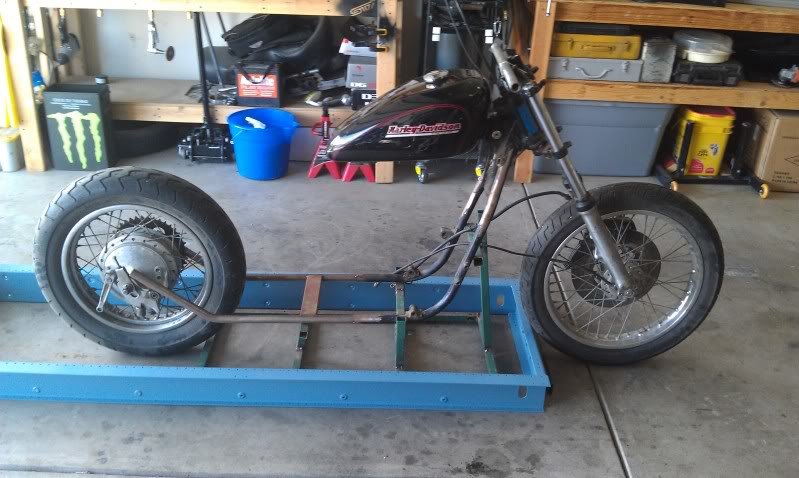

    Finally got to put the tires on and see how I did.

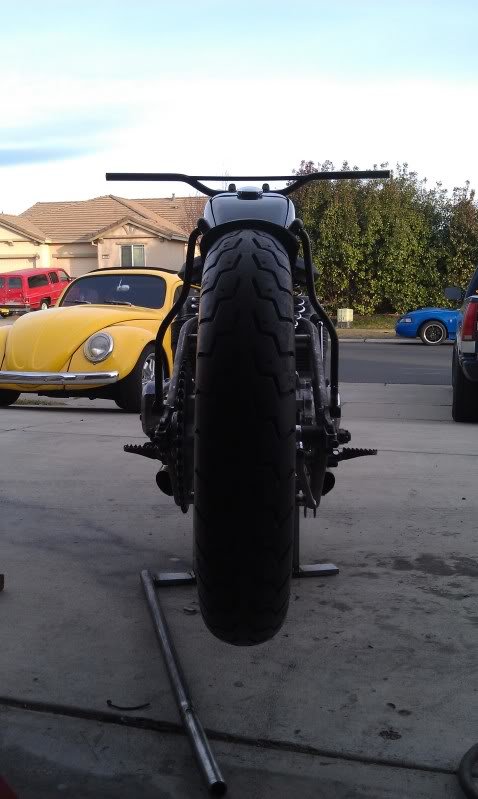

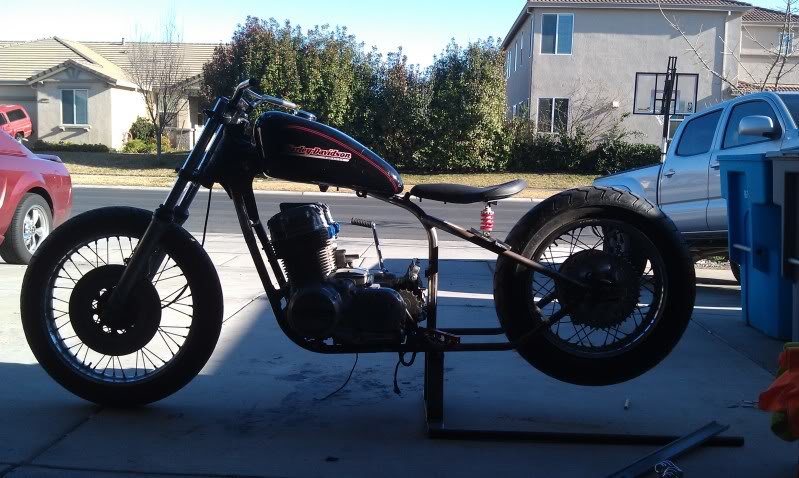

    I really like this one because I can see how it flows, I picture it together and how it’s going to work out

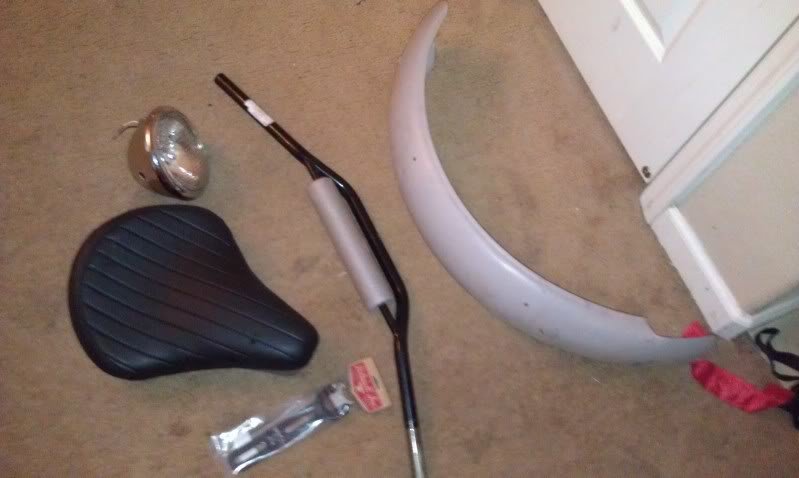

    Now that the frame was together I started buying the other things I needed

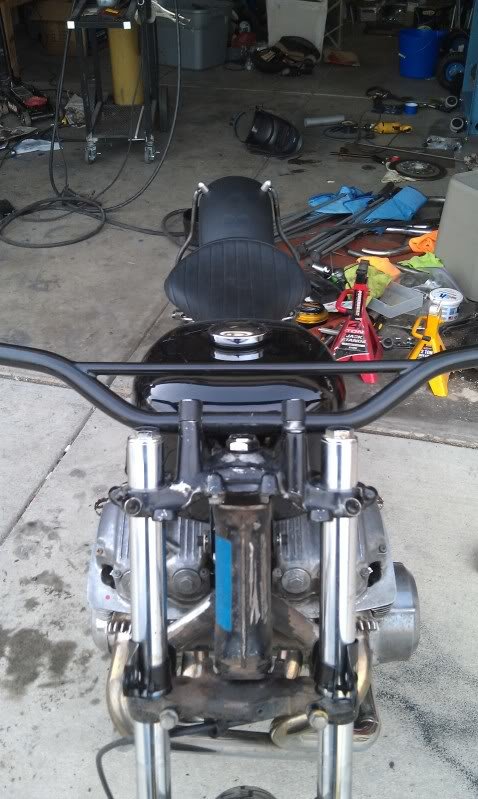

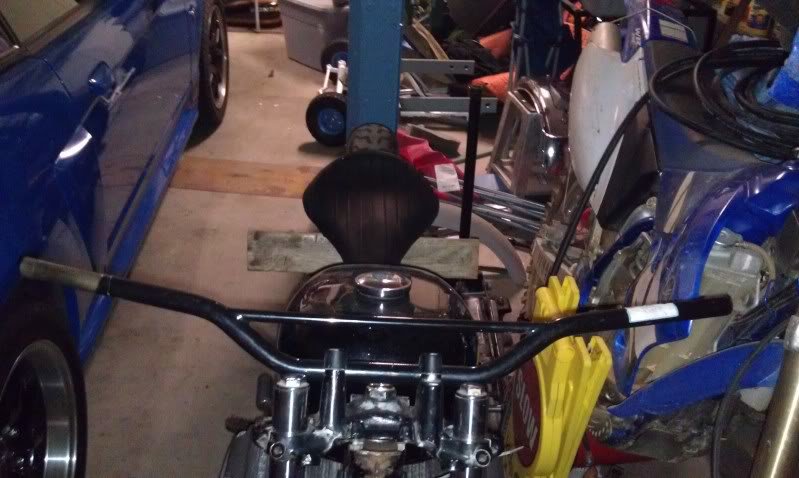

    Handle bars, dirt bike, I needed them to clear the tank at full turn, I will be cutting them down 2-3in on both sides after I get proper controls

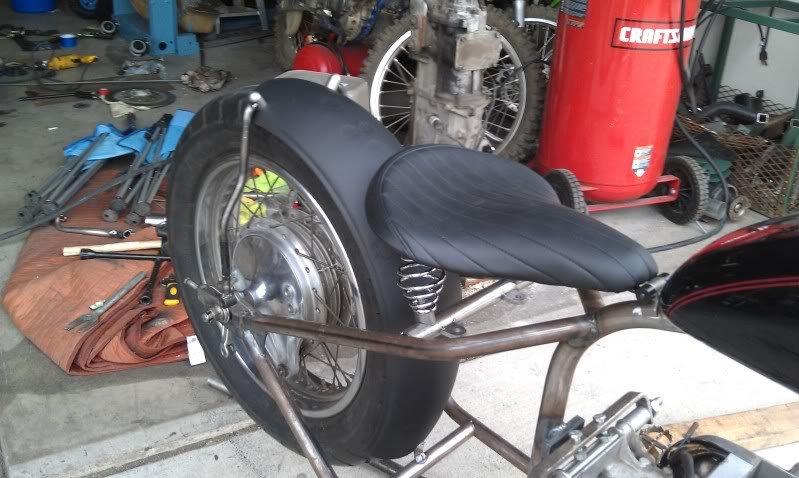

    Biltwell seat and bracket, only new thing on this bike so far

    Think its and old BSA fender, I liked the shape but the radius was to big

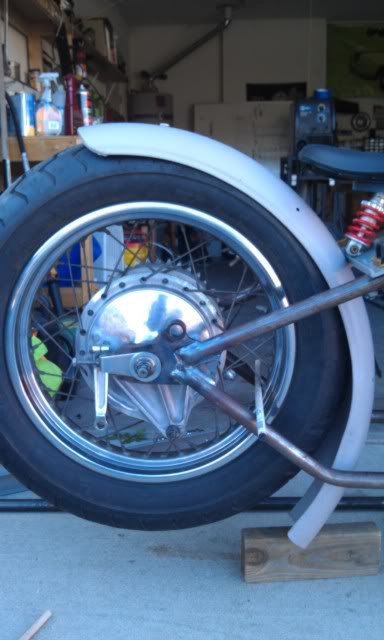

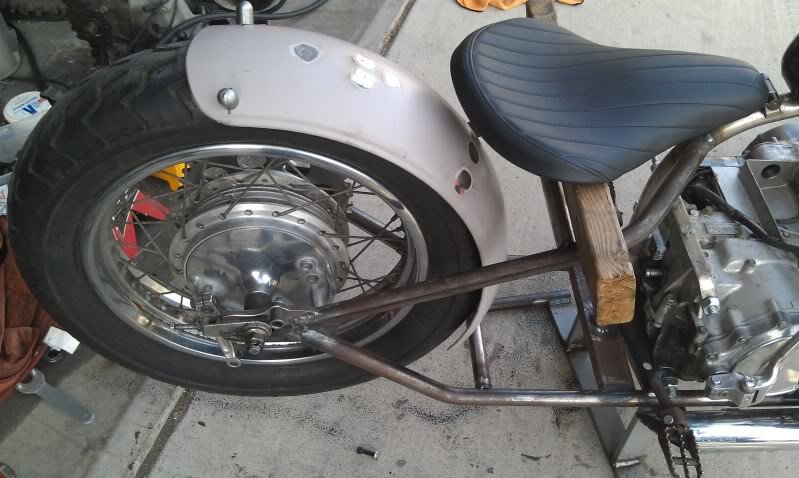

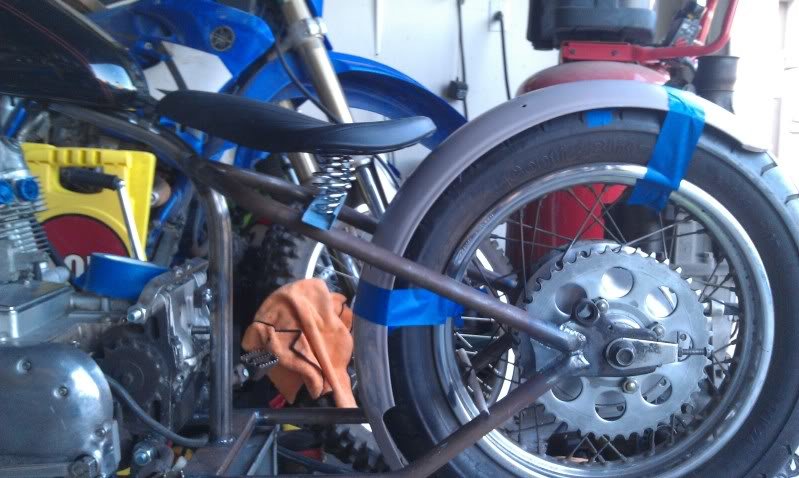

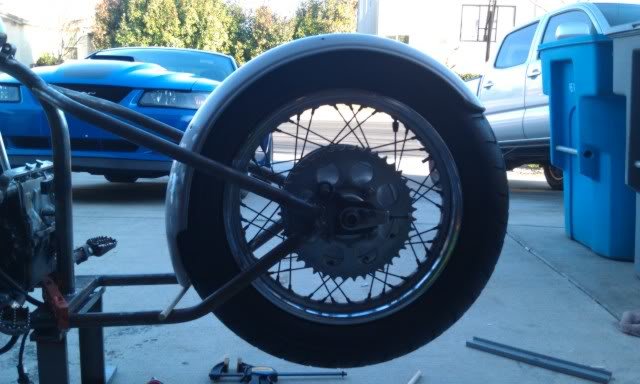

    Fixed fender and this is about where I am now.



    Stay tuned for more progress, waiting on oil tank kit and some other stuff. Wish me luck.

  2. Feb 13, 2012 at 4:31 AM
    #2
    samhain

    samhain Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40385
    Messages:
    122
    Gender:
    Male
    First Name:
    Brandon
    Hilton Head, SC
    Vehicle:
    05 Tacoma SR5
    I love it. Great job so far.

  3. Feb 13, 2012 at 6:24 AM
    #3
    113tac

    113tac Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,701
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    subbed. im diggin it so far!

  4. Feb 13, 2012 at 6:29 AM
    #4
    bizjettech

    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    725
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2013 MGM DCSB 4x4 TRD OR
    undercover flex bed cover
    WOW.....that is too cool! Nice work, keep us posted. I want to see more pics!

  5. Feb 13, 2012 at 10:00 AM
    #5
    The Driver

    The Driver Trail Runner/Barefoot Beach Runner/Snow Skier

    Joined:
    Dec 12, 2011
    Member:
    #68618
    Messages:
    1,911
    Gender:
    Male
    First Name:
    Raph
    Lakewood (Green Mountain), CO.
    Vehicle:
    '02 Extra cab 4X4 TRD SR5 3.4
    Aftermarket tranny cooler, 5100 Series Bilsteins, ToyTec Bilstein front coilovers, SPC UCA's, Alcan leafs, Class 3 Hitch, Alcan Leafs,
    More into Cafe Racers, but I LOVE your craftmanship. GOOD JOB!!!

  6. Feb 13, 2012 at 10:39 AM
    #6
    SampleFool

    SampleFool Three Percenter

    Joined:
    Jul 4, 2009
    Member:
    #19264
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Steve
    Ga
    Vehicle:
    Silver
    08 off-road
    Nice progress man I like it, subbing for more info when I build mine.

  7. Feb 14, 2012 at 9:39 PM
    #7
    oldtimertoyota

    oldtimertoyota Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20697
    Messages:
    274
    Gender:
    Male
    New Mexico
    Vehicle:
    2009 4X4 Double Cab
    When I first saw what you were doing to that classic Honda I was a little unsure but as I scrolled through the pictures I think I see where you're going with it and I must say that it's turning out pretty nice.

  8. Feb 15, 2012 at 3:32 AM
    #8
    Nick701

    Nick701 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD
    Thanks for all the great replies guys, im waiting on a few parts to make some more progress but i will keep ya posted

  9. Feb 16, 2012 at 1:59 AM
    #9
    Nick701

    Nick701 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD
    Got my oil tank kit, assorted bungs for mounting tank and fender, mirrors, rotor on its way, tires, light bracket and key soon

    for now im gonan get going on the oil tank and fender, stay tuned for progress and pics

  10. Feb 20, 2012 at 7:00 AM
    #10
    Nick701

    Nick701 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD
    Not the greatest pictures but i will take better ones tomorrow, this is what i came up with before work today...


    Stay Tuned

  11. Feb 20, 2012 at 7:09 AM
    #11
    4wd Boss

    4wd Boss Shake and Bake

    Joined:
    Jan 19, 2012
    Member:
    #70978
    Messages:
    339
    Gender:
    Male
    First Name:
    Jefferson
    Big D
    Vehicle:
    07 4dr 4x4 V6
    Fog Light Mod

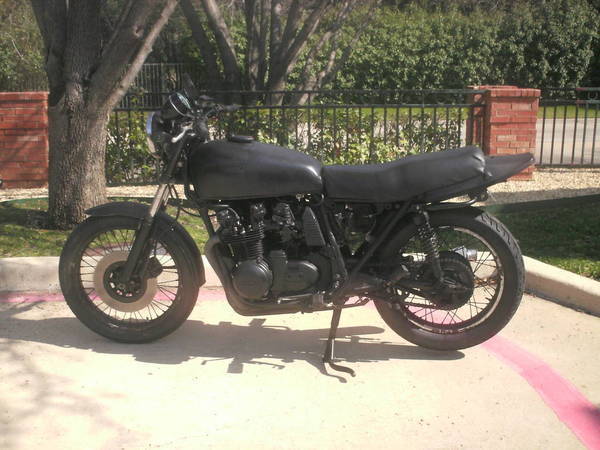

    hey man sweet build! love what you did with the frame. Looks 100% better imo. looking to bob mine out someday as well. good luck with build, cant wait for more pics! (mine = 79 kawasaki kz650)

    [​IMG]

  12. Feb 20, 2012 at 7:22 AM
    #12
    11TRD

    11TRD MERICA

    Joined:
    Aug 1, 2011
    Member:
    #60915
    Messages:
    2,959
    Gender:
    Male
    First Name:
    Jay
    Everett, WA
    Vehicle:
    2011 TRD SPORT 4X4 DC
    RHLM (Red Headlight MOD), Cobra 29 WXNWBT, Devil Horns, ARB Bumper, Avid Stepbars, Homer Taco Satoshi thin lip grille, ICON UCA's, ICON EXT Travel up front with King 700# springs, Toytech 2 inch AAL with ICON VS 2.0 shocks in the rear, K&N Drop In, AVS Ventshades and Bugflector, Whelen SPS 660 emergency strobes, Redline Hood struts and tailgate EZdown, Illuminated 4X4 Switch, TRD Floor mats, Flyzeye LED lighting, Kragen 7" HID behind grille, Kragen 4" HID back up lights, Rigid SR Series 10" LEDx2 Elusive elements Lightbar, Firestik antenna, Rear Diff breather mod, Fogs anytime, Hitch Safe, OEM door sill strips, mryo mirror relocate bracket, Prinsu designs roof rack, Tepui Autana RTT, ARB Awning,Engo 10k winch synthetic, Blue seas fuse block and breaker,
  13. Feb 20, 2012 at 7:29 AM
    #13
    hard2kill

    hard2kill Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55714
    Messages:
    3,859
    Gender:
    Male
    First Name:
    John
    Rhinebeck NY
    Vehicle:
    06 4door trd sport white 6spd
    ...315's,2in bora wheel spacers,safari snorkel,wheel spacers,bruteforcefab rear bumper and sliders,afe filter,hi-lift jack,5100 with OME 886 & 1/2in spacer,allpro expo's,icon 10in rear shox,flip kit,ss brake lines,cobra cb,fog light mod,yellow fogs,weathertech mats,fullsize spare tire and extra sport rim,tinted windows,aeroturbine 2525 muffler dumped over axle...rear diff breather mod...removed factory spare...removed 2nd air filter...THULE roof rack and fairing....bud builts front to back,allpoo front bumper,BAMF lca skids,overland Offroad roof and bed racks,
    Nice build man ... Looks very cool

  14. Feb 21, 2012 at 2:04 AM
    #14
    Nick701

    Nick701 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD
    Here is what I did today


    Thank you all for the comments, i will adding more til its done

  15. Feb 21, 2012 at 5:00 AM
    #15
    bizjettech

    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    725
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2013 MGM DCSB 4x4 TRD OR
    undercover flex bed cover
    very cool.......dig everything except that vertical post supporting the rear fender.....I'd ditch the fender to do away with the support......LOL...... The open wheel look would match the front.

  16. Feb 21, 2012 at 9:08 AM
    #16
    113tac

    113tac Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,701
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    pretty sweet. i like the fender. are you going to repaint the take too?

  17. Feb 21, 2012 at 8:04 PM
    #17
    Nick701

    Nick701 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD

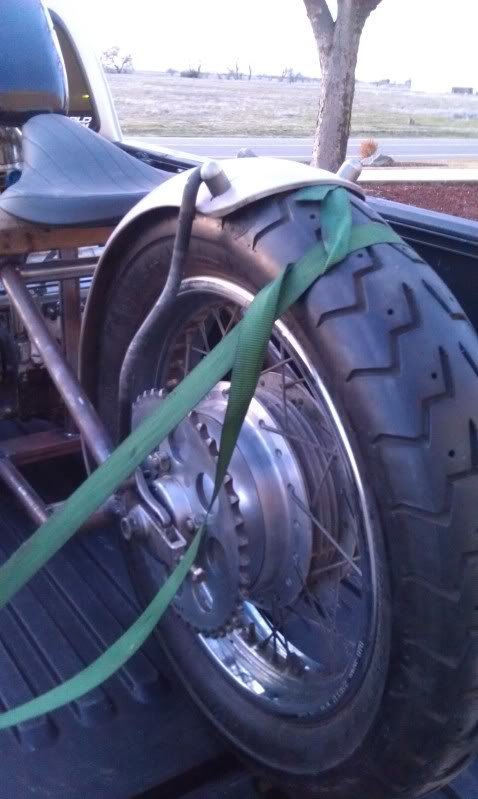

    I would be afraid of my ass being only inches away from a tire doing 70 on the freeway so I think ill keep the fender lol, I do like the open wheel look though

    The gas tank, oil tank, and fender will be painted when its all done

  18. Feb 22, 2012 at 9:03 AM
    #18
    4wd Boss

    4wd Boss Shake and Bake

    Joined:
    Jan 19, 2012
    Member:
    #70978
    Messages:
    339
    Gender:
    Male
    First Name:
    Jefferson
    Big D
    Vehicle:
    07 4dr 4x4 V6
    Fog Light Mod
    no rear fender = not a good look

  19. Feb 23, 2012 at 5:06 PM
    #19
    hard2kill

    hard2kill Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55714
    Messages:
    3,859
    Gender:
    Male
    First Name:
    John
    Rhinebeck NY
    Vehicle:
    06 4door trd sport white 6spd
    ...315's,2in bora wheel spacers,safari snorkel,wheel spacers,bruteforcefab rear bumper and sliders,afe filter,hi-lift jack,5100 with OME 886 & 1/2in spacer,allpro expo's,icon 10in rear shox,flip kit,ss brake lines,cobra cb,fog light mod,yellow fogs,weathertech mats,fullsize spare tire and extra sport rim,tinted windows,aeroturbine 2525 muffler dumped over axle...rear diff breather mod...removed factory spare...removed 2nd air filter...THULE roof rack and fairing....bud builts front to back,allpoo front bumper,BAMF lca skids,overland Offroad roof and bed racks,
    agreed :D

  20. Feb 23, 2012 at 5:10 PM
    #20
    bizjettech

    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    725
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2013 MGM DCSB 4x4 TRD OR
    undercover flex bed cover
    looks similar

    [​IMG]
