96-04 arb-winch?

Discussion in '1st Gen. Tacomas (1995-2004)' started by skidrow, Jul 20, 2016.

  1. Jul 20, 2016 at 12:31 PM
    #1
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +
    Hey guys well i saved and saved and finally got that ARB bumper now I saved and saved and bought the winch I purchased the Smittybilt 9.5 k model and am wondering if there is any troubles turning the clutch lever to angle it down to fit into the arb bumper?? As i am going to be trying to do this all on my own.....i have no help near by....1469042760809-459029519.jpg

  2. Jul 20, 2016 at 12:46 PM
    #2
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,830
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Total Chaos Sprindle Gussets Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Haltech IC-7 Display with Mako Dash Insert Haltech Elite 2500 Standalone ECU Magnuson MP62 Supercharger w/URD 2.2" Pulley Doug Thorley Headers Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit OEM ECU Delete Full A340F Trans Control with the Haltech 2500 ECU 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers with OEM Rotors & Pads Braided Steel Brake Lines Kenwood TM-71A Dual Band Ham Radio STI-CO Flex Whip VFH/UHF 1/4 Wave Antenna Midland MTX275 GMRS Radio w/Roof Mount Antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    I have no experience with clocking the engagement handle on this winch but I know it can be done.

    I think I read that @Delta00 did it just recently. Troy, is this the winch you have?

  3. Jul 20, 2016 at 12:47 PM
    #3
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +
    Thanks man yeah i was looking all over but couldnt find anything on the combo... looks like most use the warren

  4. Jul 20, 2016 at 1:06 PM
    #4
    Mikeybuck

    Mikeybuck Well-Known Member

    Joined:
    Aug 20, 2014
    Member:
    #136572
    Messages:
    779
    Gender:
    Male
    First Name:
    Mike
    SW WA
    Vehicle:
    2018, 2010, Tacoma
    If your near me, swing by and I'll give you a extra hand.

  5. Jul 20, 2016 at 1:38 PM
    #5
    Junetaco03

    Junetaco03 Well-Known Member

    Joined:
    Aug 16, 2014
    Member:
    #136283
    Messages:
    715
    Gender:
    Male
    Bay Area, California
    Vehicle:
    2019 TRD OFF ROAD 4x4 DCSB

    Let me know how the install comes out I'm about to add a winch, smittybilt xrc8 on the same exact bumper next week. Wondering because on the second gens you need longer cables. "From what I hered"

    Last edited: Jul 20, 2016
  6. Jul 20, 2016 at 2:07 PM
    #6
    Delta00

    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,137
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    I have the 2nd gen Smitty x20, super easy to clock it.

    Digiratus[QUOTED] likes this.
  7. Jul 20, 2016 at 3:20 PM
    #7
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +
    Ok ill take pics and post an update this weekend.i just hope it all goes smooth!!! And i hope i can lift it back on by my self....

  8. Jul 20, 2016 at 3:27 PM
    #8
    Delta00

    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,137
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build

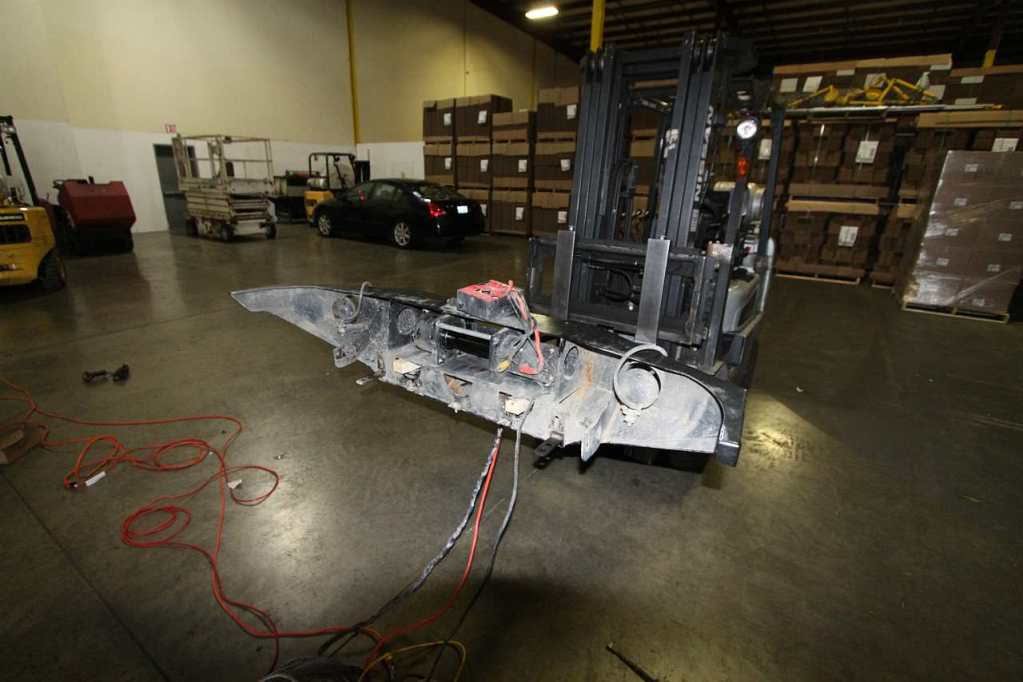

    Oh man, my bumper with a winch was really heavy. Had to use one of those engine hoists to get it up there.

    skidrow[QUOTED][OP] likes this.
  9. Jul 20, 2016 at 3:29 PM
    #9
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    58,367
    Gender:
    Male
    FCQM+VG Cheney, Washington
    Vehicle:
    96 Turbo Taco V6 405WHP & 482lbft
    It's less Tacoma and more mod

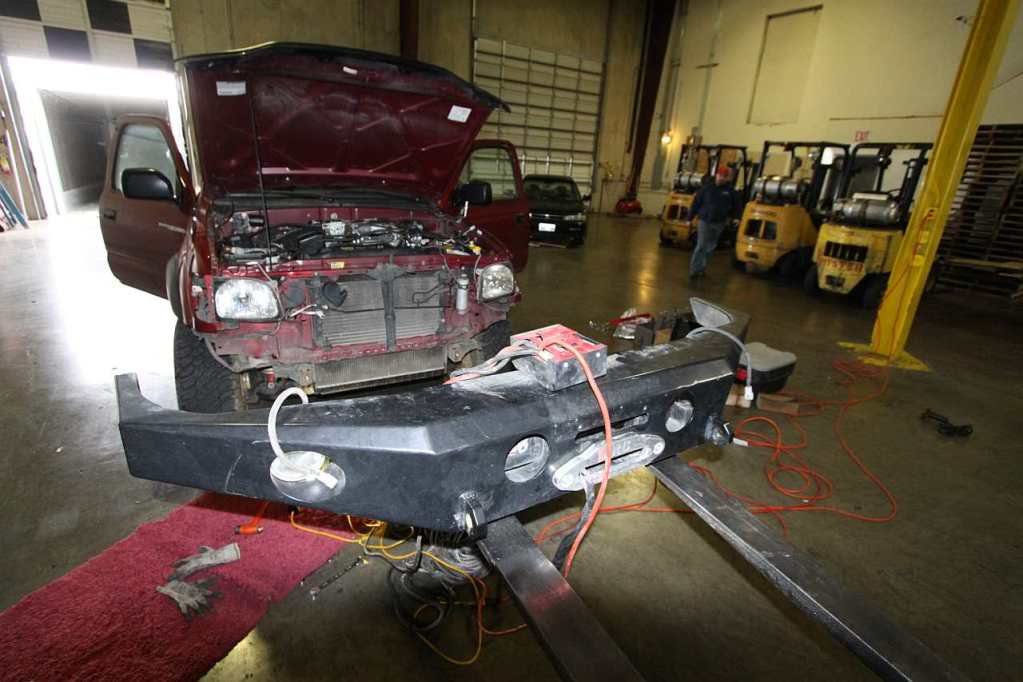

    X2, I had to use a motorcycle jack to get mine on, would have been really sketchy otherwise

    skidrow[OP] and Delta00[QUOTED] like this.
  10. Jul 20, 2016 at 3:33 PM
    #10
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,830
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Total Chaos Sprindle Gussets Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Haltech IC-7 Display with Mako Dash Insert Haltech Elite 2500 Standalone ECU Magnuson MP62 Supercharger w/URD 2.2" Pulley Doug Thorley Headers Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit OEM ECU Delete Full A340F Trans Control with the Haltech 2500 ECU 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers with OEM Rotors & Pads Braided Steel Brake Lines Kenwood TM-71A Dual Band Ham Radio STI-CO Flex Whip VFH/UHF 1/4 Wave Antenna Midland MTX275 GMRS Radio w/Roof Mount Antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Forklift... :oops:



    Last edited: Jul 20, 2016
  11. Jul 20, 2016 at 4:27 PM
    #11
    Delta00

    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,137
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    You mount your solenoid in the bumper?

    skidrow[OP] likes this.
  12. Jul 20, 2016 at 4:29 PM
    #12
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +
    Ok ive seen alot of guys put it on the top in between the fog lights is that a bad idea?

  13. Jul 20, 2016 at 6:10 PM
    #13
    Delta00

    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,137
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    Not sure, its exposed to the elements more. I made room for the solenoid inside my bumper.

    skidrow[QUOTED][OP] likes this.
  14. Jul 20, 2016 at 6:11 PM
    #14
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    58,367
    Gender:
    Male
    FCQM+VG Cheney, Washington
    Vehicle:
    96 Turbo Taco V6 405WHP & 482lbft
    It's less Tacoma and more mod
    Depends on how well weather proofed it is and whether or not it is using contactors or solenoids.

    skidrow[QUOTED][OP] and Delta00 like this.
  15. Jul 20, 2016 at 8:40 PM
    #15
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,830
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Total Chaos Sprindle Gussets Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Haltech IC-7 Display with Mako Dash Insert Haltech Elite 2500 Standalone ECU Magnuson MP62 Supercharger w/URD 2.2" Pulley Doug Thorley Headers Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit OEM ECU Delete Full A340F Trans Control with the Haltech 2500 ECU 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers with OEM Rotors & Pads Braided Steel Brake Lines Kenwood TM-71A Dual Band Ham Radio STI-CO Flex Whip VFH/UHF 1/4 Wave Antenna Midland MTX275 GMRS Radio w/Roof Mount Antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Yes sir

    This VVVV
    The contracor inside the black box is vulnerable to corrosion. The high amperage that goes thru it mixed with moisture (mud, snow, rain, etc.) can create issues. If you mount it exposed, make sure it is well sealed.

    Putting it out of direct impact from the elements seems like a better option to me. I still sealed it with silicone because even in the bumper or under the hood, it is going to get exposed.

    skidrow[QUOTED][OP] likes this.
  16. Jul 22, 2016 at 11:20 AM
    #16
    Junetaco03

    Junetaco03 Well-Known Member

    Joined:
    Aug 16, 2014
    Member:
    #136283
    Messages:
    715
    Gender:
    Male
    Bay Area, California
    Vehicle:
    2019 TRD OFF ROAD 4x4 DCSB
    Just installed the winch yesterday on the same bumper. I didn't have to take the bumper all the way out. Just removed the top bolts and pulled the bumper out just a enough to place the winch on it.
    *extra hands to help will be key. Good luck

    skidrow[OP] likes this.
  17. Jul 22, 2016 at 6:18 PM
    #17
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +

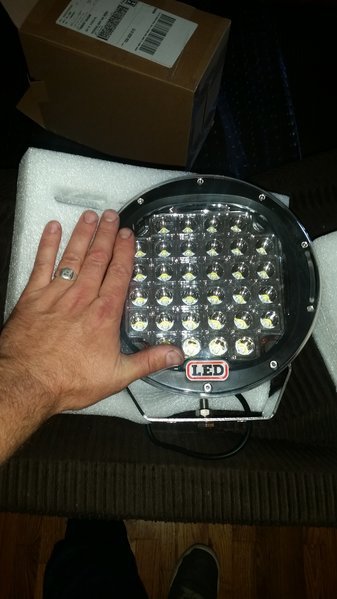

    Thanks for all the tips guys!!! I really appreciate it !! Ill be starting on it sat afternoon also just got the fog lights to put on i hope they fit they

  18. Jul 22, 2016 at 6:21 PM
    #18
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +
  19. Jul 23, 2016 at 2:08 PM
    #19
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +

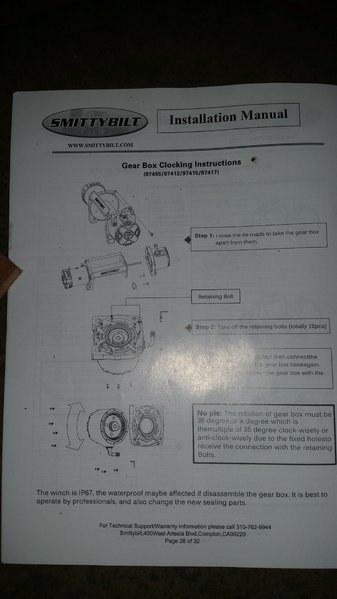

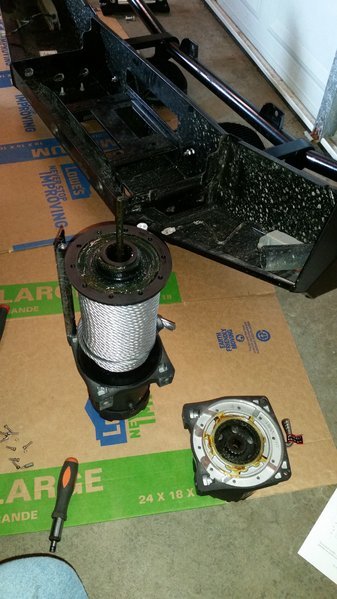

    Well starting on the winch install but trying to figure out the proper way of clocking the gearbox so I can grab the clutch release cable through the bumper does anyone know can i just turn it where i want it or do i really have to clock it 36 degree increments 14693080038681135497407.jpg 14693080326341331486512.jpg

  20. Jul 23, 2016 at 2:21 PM
    #20
    skidrow

    skidrow [OP] Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157286
    Messages:
    112
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2002 double cab 4x4
    Bilstine adjustable 3" front--add leaf rear--skid row plates +
    Oh wate brain fart I figured it out
