A/C Idler Pulley configuration and nut

Discussion in '1st Gen. Tacomas (1995-2004)' started by ztwatson, Jul 22, 2024.

Post Reply

Jul 22, 2024 at 7:38 PM

#1

#1
ztwatson [OP] Well-Known Member

Joined:

Dec 6, 2021

Member:

#383995

Messages:

1,002

Gender:

Male

Milwaukee, WI

Vehicle:

2004 Tacoma TRD Xtra Cab

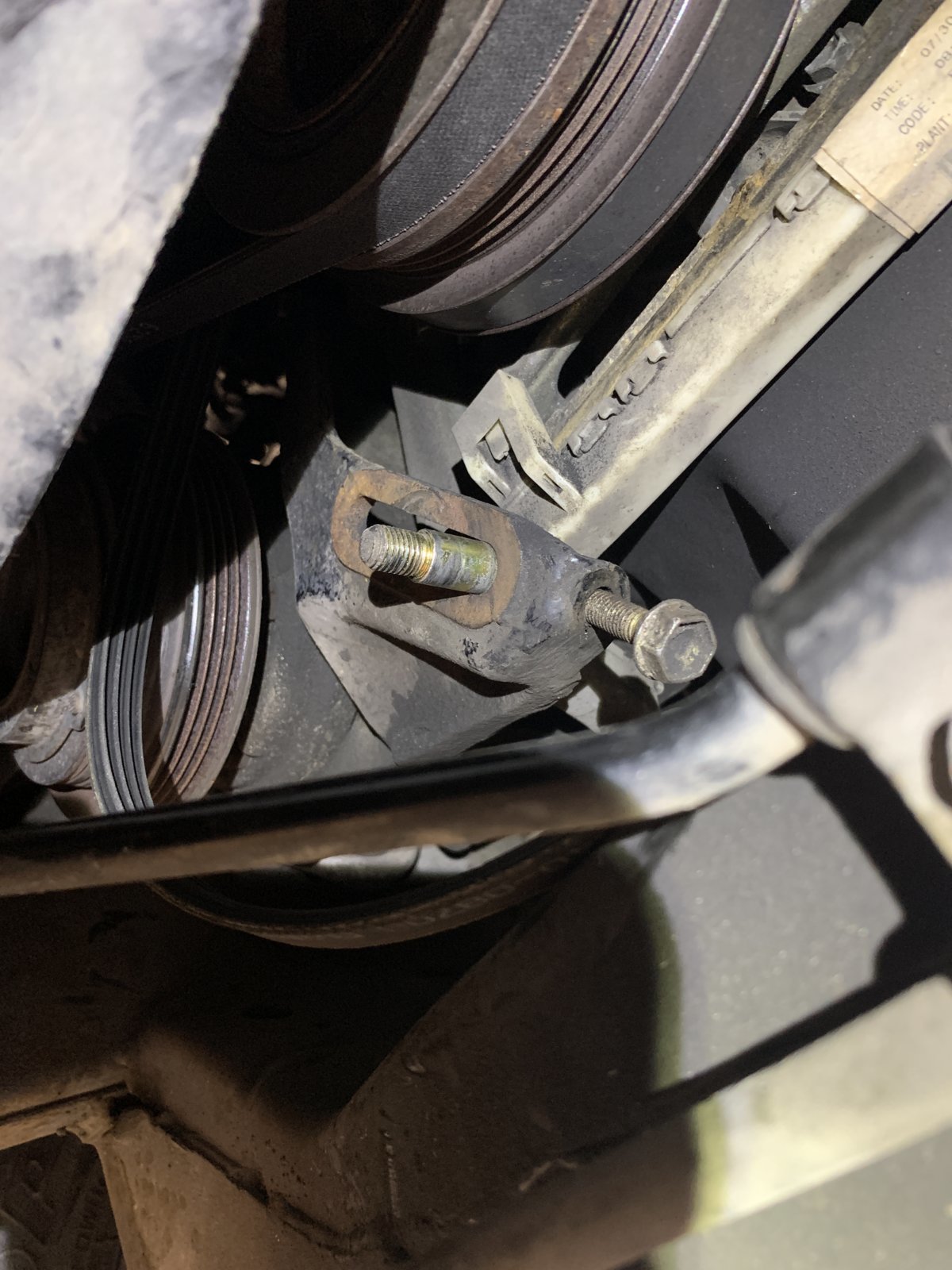

My A/C idler pulley came completely undone and it looks like I lost the nut to clamp it down. Can anyone tell me the appropriate configuration of these washers/pulley and the specs of the bolt/nut thread? Thanks

ztwatson, Jul 22, 2024

#1

Jul 22, 2024 at 7:55 PM

#2

#2
ControlCar My Moto: Help & Learn…period.

Joined:

Jul 22, 2023

Member:

#429578

Messages:

3,607

Gender:

Male

First Name:

Steven

Sugar Land TX

Vehicle:

1996 Taco 2.4L 2wd Automatic

Clock Volt meter/LSPV Delete/Hyundai 16’s/FP gauge/after 9months of wrenching ZERO oil leaks

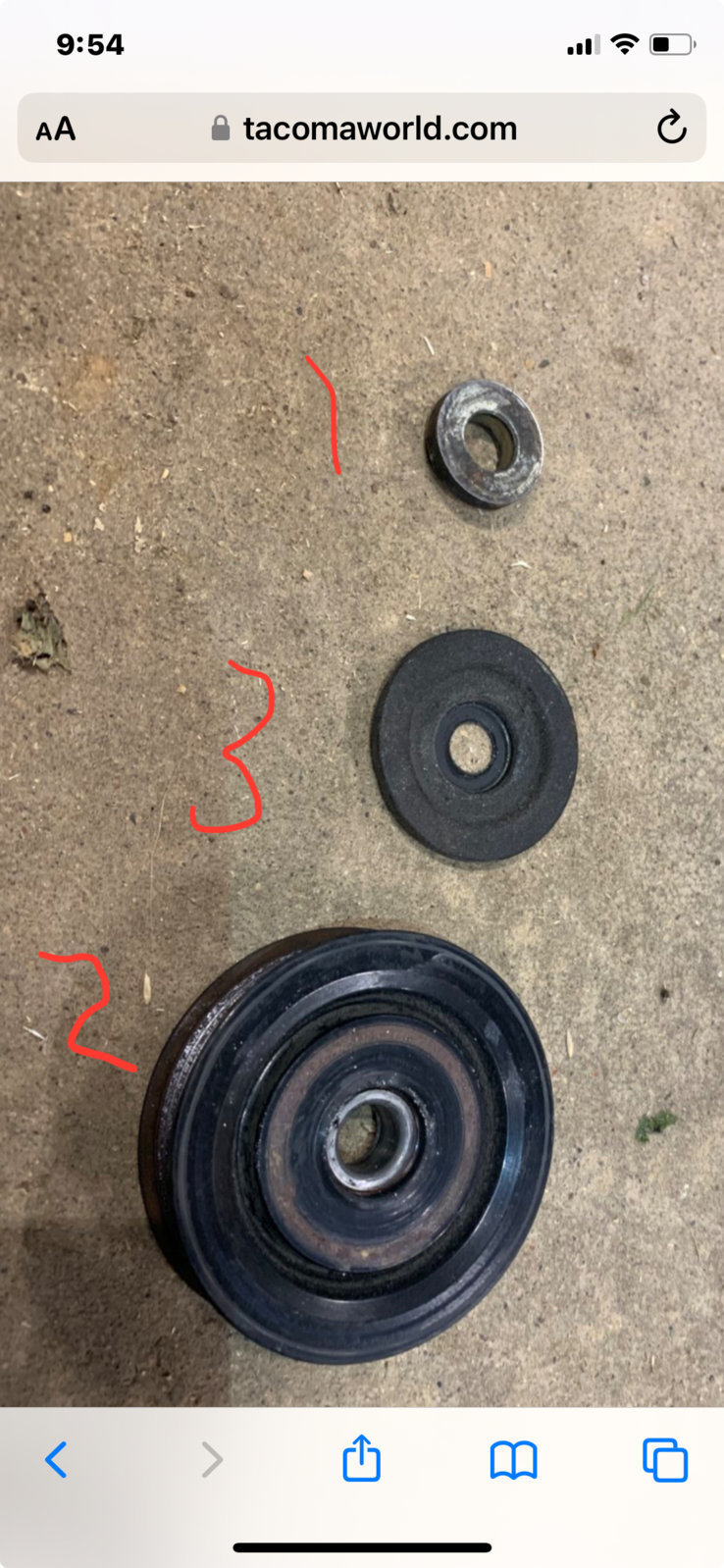

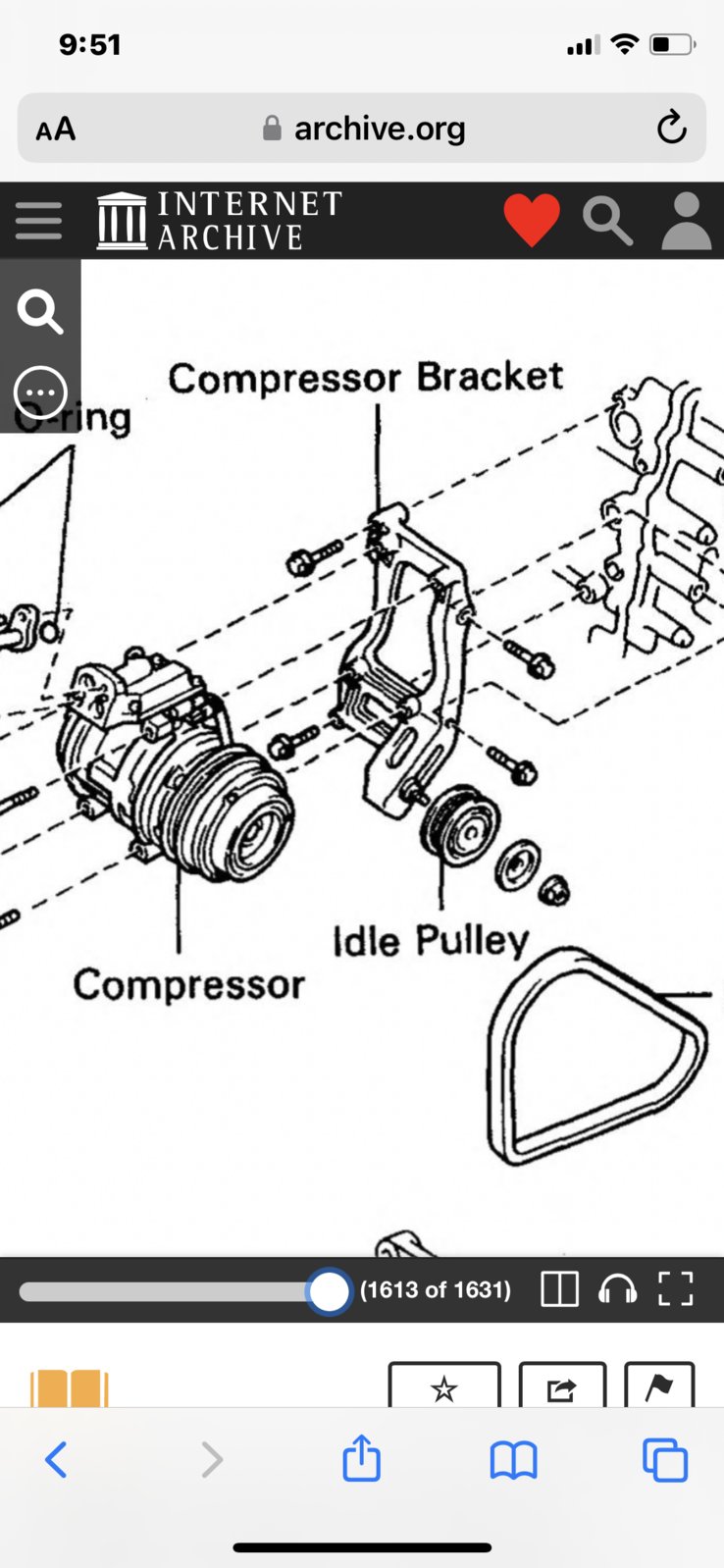

I found this

I think thin #3 goes on pulley then nut
#1 is spacer that goes 1st on bracket

ControlCar, Jul 22, 2024

#2

Jul 22, 2024 at 8:02 PM

#3

#3
ControlCar My Moto: Help & Learn…period.

Joined:

Jul 22, 2023

Member:

#429578

Messages:

3,607

Gender:

Male

First Name:

Steven

Sugar Land TX

Vehicle:

1996 Taco 2.4L 2wd Automatic

Clock Volt meter/LSPV Delete/Hyundai 16’s/FP gauge/after 9months of wrenching ZERO oil leaks

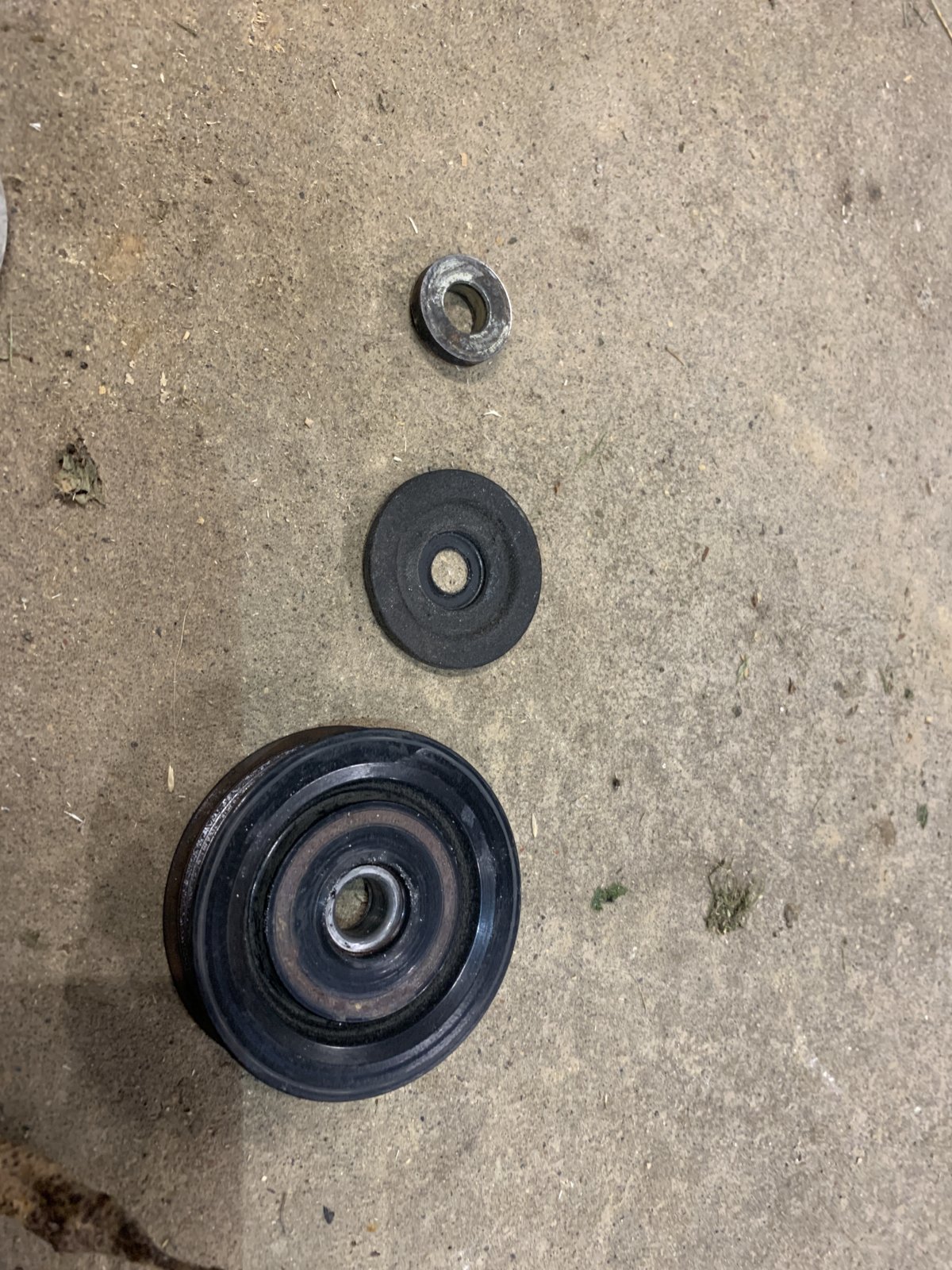

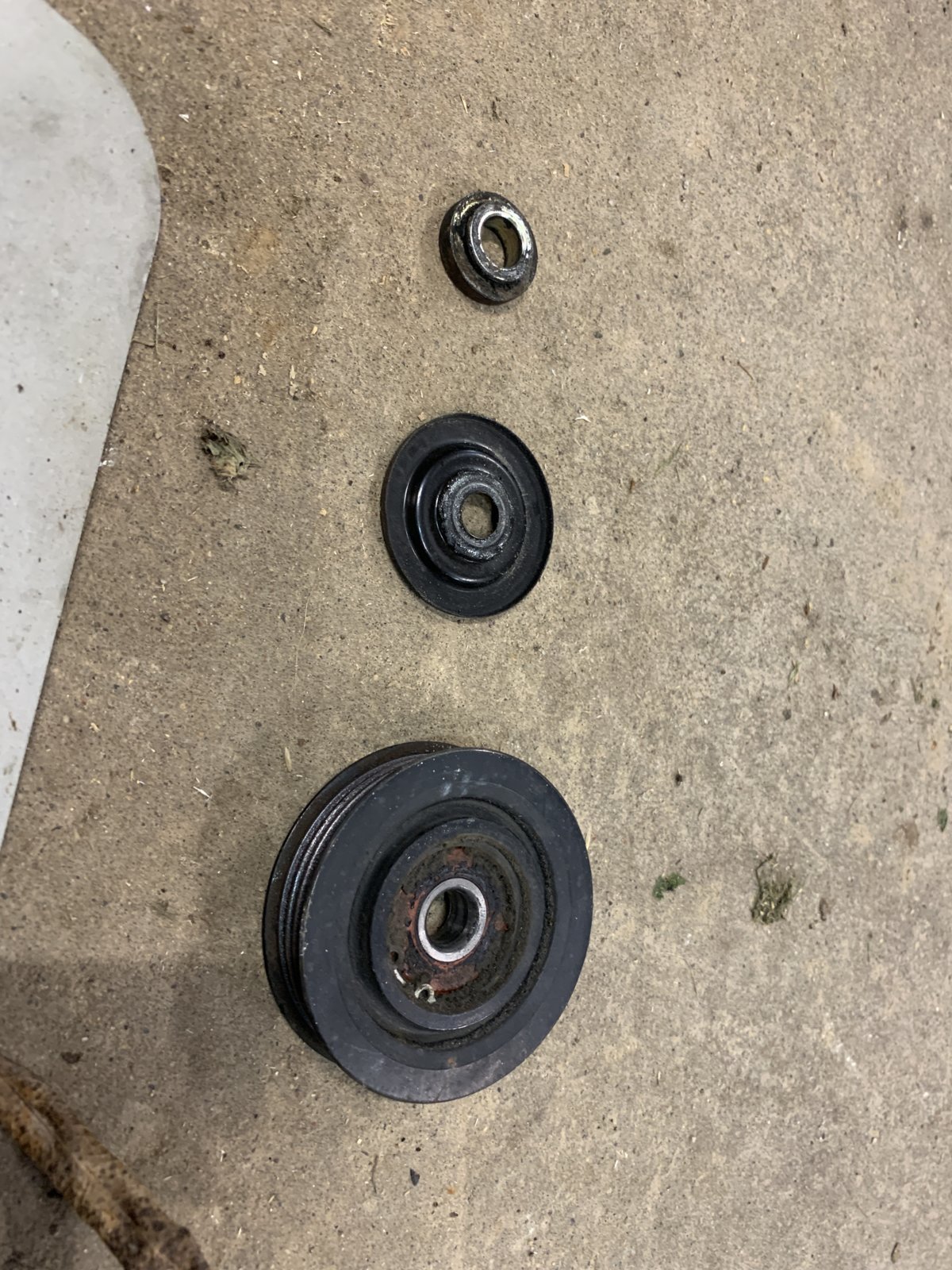

Check for “witness” marks on the pulley

I’m fairly certain that the thin #3 goes on the same way as your pix shows
(The rust ring on the pulley that would face radiator)

ControlCar, Jul 22, 2024

#3

ztwatson[OP] likes this.
