A fatkid build

Discussion in 'Colorado' started by thefatkid, Jul 25, 2014.

  1. Jul 25, 2014 at 8:57 PM
    #1
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy


    So I'm making a small change to the 1st post so it shows the current state of the vehicles I have. The pictures and vehicles might change as I have a history of being a vehicle whore.

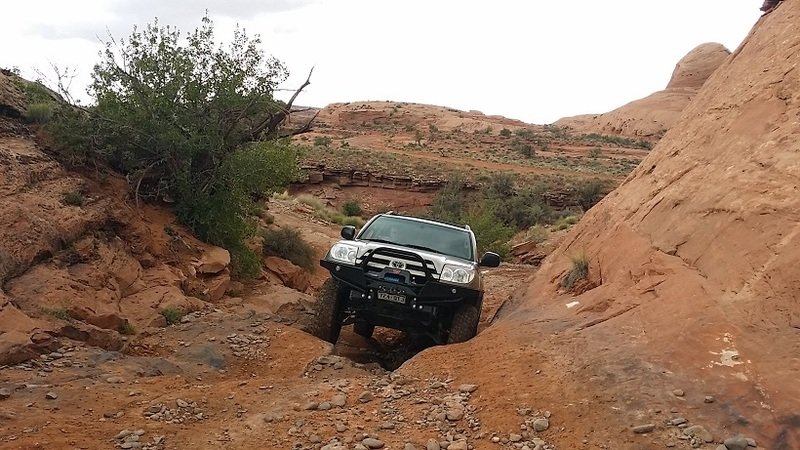

    My 2004 4runner, Old Man Tan


    Current Mods

    3" OME lift in the front with a toytec super flex coil set paired with OME shocks in the back.

    4.56 gears with a Toyota electric locking differential in the back.

    255/85r16 BFG KM2 on Toyota stock 3rd gen 4runner wheels.

    Addicted Off Road hybrid front bumper filled with a Warn 9.5ti winch

    Addicted Off Road sliders


    Lame pic so far of the Tacoma replacement.

    2006 Tundra 4door

    Toytec Boss lift

    255/85r16 Cooper STmaxx

    Not much else yet




    My 2000 Tacoma TRD (SOLD!)

    3"ish lift from Bilstien 5100s and a custom rear add-a-leaf

    Stock 4.10 gears for now with 4.56s in the plans

    255/85r16 BFG KM2 on T100 wheels

    DIY Relentless front bumper with a warn that is from 1986

    4x4Innovations rock sliders

    DIY rear bumper with tire carrier.

    Last edited: Dec 31, 2016
    ChadsPride likes this.
  2. Jul 25, 2014 at 9:24 PM
    #2
    CASTRATE

    CASTRATE Well-Known Member

    Joined:
    Aug 10, 2012
    Member:
    #84491
    Messages:
    822
    Gender:
    Male
    First Name:
    Gabe
    SW of Tulsa, OK
    Vehicle:
    2012 4x4 SR5 6spd
    Just picked up an '06 4runner for the wife a couple months ago. Hopefully it doesn't kill headgaskets.

  3. Jul 27, 2014 at 9:37 PM
    #3
    RockyMtnTRD

    RockyMtnTRD Wanderlust.

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    6,557
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    hack job
    Looking forward to the progress on this beast. :D

  4. Jul 28, 2014 at 1:09 PM
    #4
    avsfreak1234

    avsfreak1234 New Member

    Joined:
    Jun 24, 2014
    Member:
    #132583
    Messages:
    2
    Gender:
    Male
    Boulder, CO
    Vehicle:
    98 Taco
    Some junk
    cool to see you building a 4th gen!

  5. Jul 28, 2014 at 10:23 PM
    #5
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy
    So I'm starting to build a couple "new to me" vehicles. Moving my 96 4runner and 83 pickup to new owners. I recently purchased a 94 pickup and 2004 4runner, both with blown head gaskets. The 94 will be a very slow build to a wheeler while the 2004 needs to be up and running asap. I didn't want to get rid of my 1996 4runner but I needed slightly more family room and greater towing ability.


    The 2004 4runner is a v6. It has a blown head gasket, leaking into cylinder #6. This is a common failure point that I have seen, this will be my 10th head gasket replacement on the GR motor family. I want to say they have only been 4runners, I'm not sure though.



    I was able to start the tear down today. As you can see I just got the timing cover off before I had to leave. Tomorrow will be the head removal and assembly if I'm not slacking like I was today.

    1st mod! (some of my slacking). Running boards removed, I guess that is not a mod though.


    Test fitting the 255s and installing the tire pressure sensors.


    The plan is for about 3" of lift. OME because of a local used set of fronts will save money for a front bumper and sliders. I'm not sure on who's bumpers/sliders yet. Demello and Addicted look good.

    I'll get some heads off pictures tomorrow.

    I was able to finish up the head gaskets at about 6 on Saturday. It feels like most of the time is spent scraping the FIPG off of the mating surface. I measured for deck warping and couldn't get a .0015" gauge in anywhere.

    Cleaning


    The crosshatch looks great, this is at 200k miles. Don't mind the spots, I didn't clean it at all yet.


    I didn't get any more pictures as I was really pressed for time to be able to finish it in time. The guides for the chain showed no wear at all. The cylinder walls looked great. I got lucky and found out that this truck has a great national service history, every 3-4k for an oil change.

    I put a call into Addicted Off Road. They are starting to work on a production run of the 4th gen front bumpers. I'll order on up tomorrow and it looks like a 8-10week wait time. The wait sucks but the product looks great. I'm also thinking about his HD sliders, I meant to ask him if they can be built without a kick out. I'm not too fond of slider kick outs.

    http://www.addictedoffroad.com/index.php?main_page=product_info&cPath=1&products_id=699

    I will be ordering my rear lift from Toytec tomorrow. I hope to have it tomorrow really. I might be able to use a parts driver to pick them up so I can install the lift after work. I'm sure I'll find a seized bushing or 4, they were all stuck on my 3rd gen.

    Last edited: May 10, 2015
    alee891 and lobsterbait like this.
  6. Jul 29, 2014 at 9:50 AM
    #6
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,197
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Sweet man, congrats on the new rig, let me know if you have any 4th gen questions. Awesome doing the HG yourself.

  7. Jul 29, 2014 at 3:05 PM
    #7
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy
    Thanks, I don't really have many questions yet, just one I can think of. Do you have a locker and how does it work with the a-trac?

    Pre-order in for Addicted Front bumper and Sliders.

  8. Jul 29, 2014 at 3:52 PM
    #8
    odomandr

    odomandr Well-Known Member

    Joined:
    May 14, 2011
    Member:
    #56643
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Andy
    Fort Collins, CO
    Vehicle:
    2010 DCSBTRDOR silver streak mica
    Icon, AllPro, Total Chaos, ARB, BAMF, Relentless, SCS, Cooper, Leer,
    FYI the toytec customer appreciation day/picnic is not this weekend but next. Might be able to get a bit of a discount on parts from them if you can wait a bit. Others may be able to chime in on a percentage off that day but they definitely had some stuff discounted and a raffle for some sweet stuff

  9. Jul 29, 2014 at 4:09 PM
    #9
    Gramps

    Gramps My walker is faster than your Prius!

    Joined:
    Feb 7, 2011
    Member:
    #50695
    Messages:
    14,329
    Gender:
    Male
    First Name:
    Gramps
    Colorado! Where else?
    Vehicle:
    07 TRD DC 4x4
    A small handful of select mods.
  10. Jul 29, 2014 at 10:11 PM
    #10
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy
    A little update, I did get the lift on tonight. It was a fighter but I did win in the end. The front is OME shocks with 886 springs (will have a winch bumper in 8-10 weeks). An the rear is the ToyTec superflex HD springs and OME shocks. The ride is firm but not jarring.

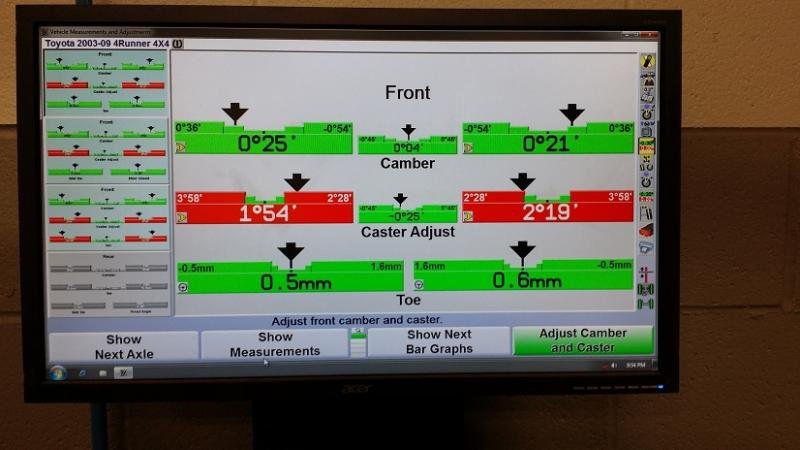

    I will be needing upper control arms. I could not get the camber or caster where I want them. I will wait until I get the bumper and sliders on before I make a decision.


    I looked up the color code and found out it was Old Man Tan :(

    alee891 likes this.
  11. Jul 30, 2014 at 3:50 AM
    #11
    Gramps

    Gramps My walker is faster than your Prius!

    Joined:
    Feb 7, 2011
    Member:
    #50695
    Messages:
    14,329
    Gender:
    Male
    First Name:
    Gramps
    Colorado! Where else?
    Vehicle:
    07 TRD DC 4x4
    A small handful of select mods.
    Now those 255's look right. Nice lift. I will be curious if you get the rear output slip with the lift on like my wives has.

    Oh and :rofl: at your color.

  12. Jul 30, 2014 at 1:10 PM
    #12
    PS78

    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,449
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    sub'd, looking really good so far. I like this colorway a lot!!

  13. Aug 1, 2014 at 7:07 PM
    #13
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy
    I run a portable fridge so I need 12v power with the key off. I also like the idea of powering my cell phones or other 12v socket items with the key off. So I was thinking how could I easily modify the way Toyota built this system to power all the time.

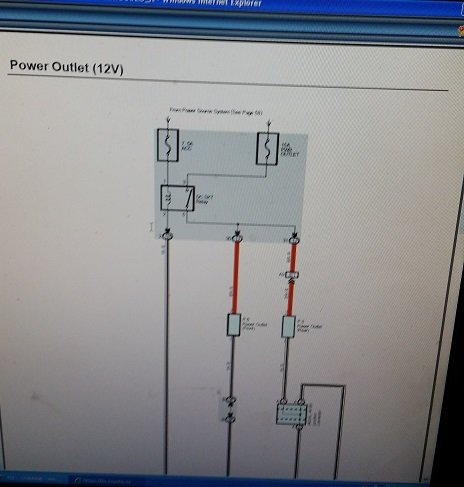

    Looking at the wiring diagram the circuit is very simple. It is a power switched relay. I could either provide power to the relay or jumper the relay to "close the circuit". I didn't want to build a jumper because I was worried about making the relay terminals loose, not allowing it to go back to stock. I didn't really want to cut into the factory wiring either, I'd like it to be easy to go back to stock if I need to.

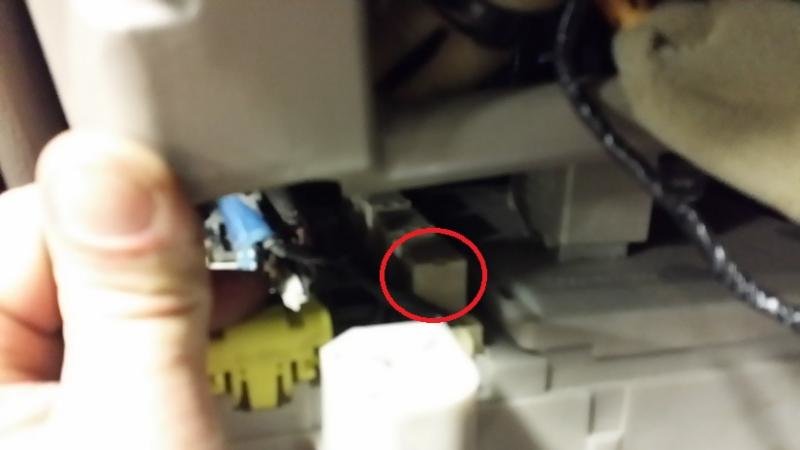

    I found the relay.


    I had to remove the drivers knee panel and remove the bolts/nuts that hold the fuse block on. I just pulled the fuse block down just a little to see and remove the relay.

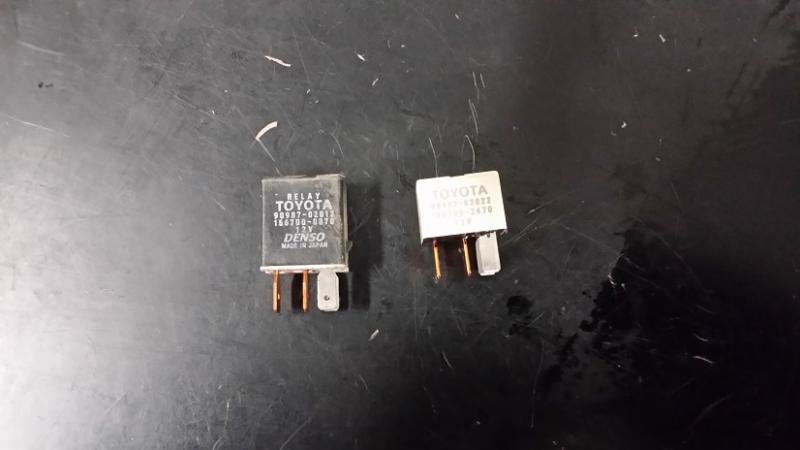

    The relay removed (yellowish) was a solid state relay. I can't really do much in the form of modification because it is sealed in epoxy. I did have an extra relay laying around it is a conventional one.

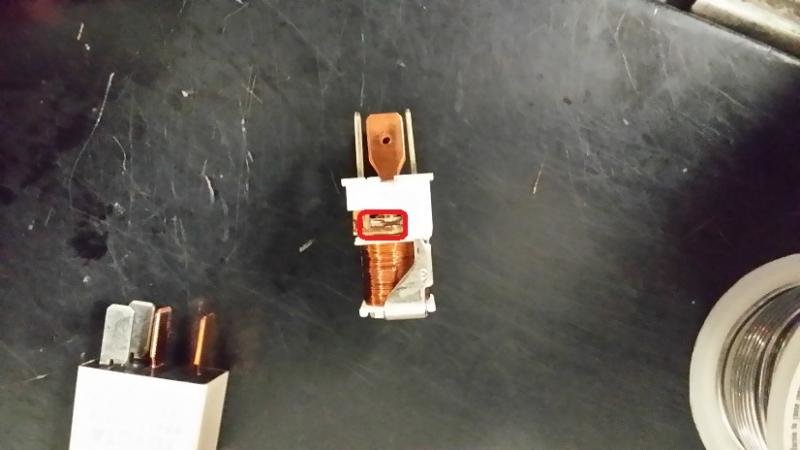

    Inside the red circle I soldered the contacts together. This makes a simple jumper that is easy to remove and return to stock. Inside the relay I removed the connections to the coil so I have no chance of affecting the ignition circuit.

  14. Apr 1, 2015 at 8:56 PM
    #14
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy

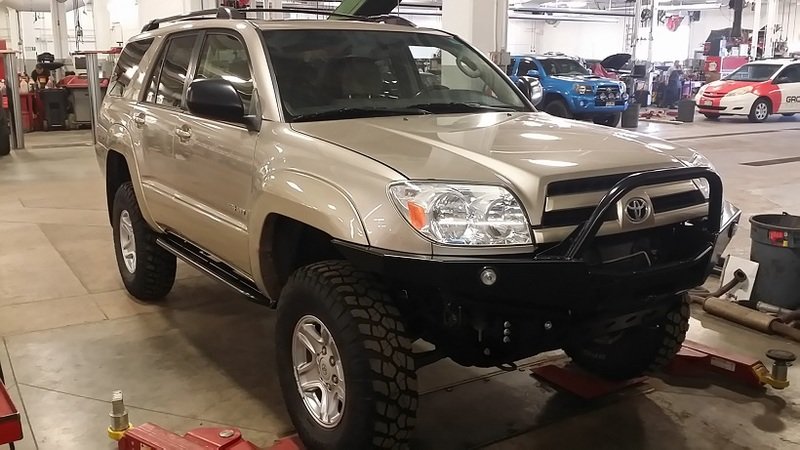

    Old Man Tan finally has an update. I recently got my bumpers and sliders from Addicted! Yes, I ordered them in July. I'm not too hot on the wait time, they seem to be improving for some though.

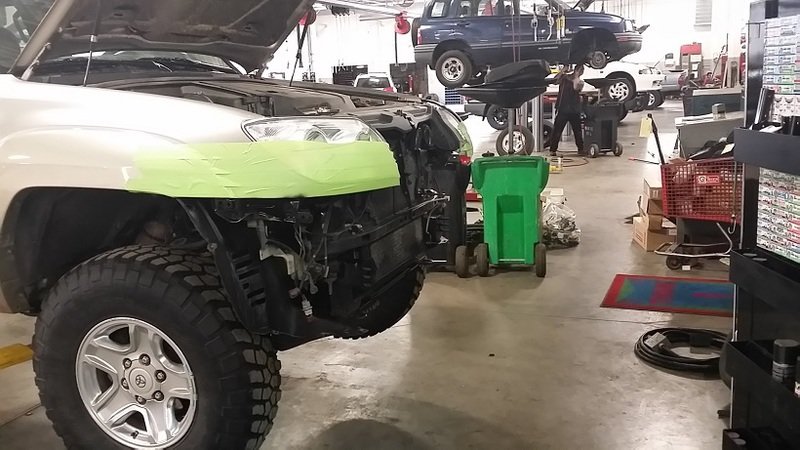

    I did a little prep work. Had to cut off some bumper brackets and paint behind the bumper.

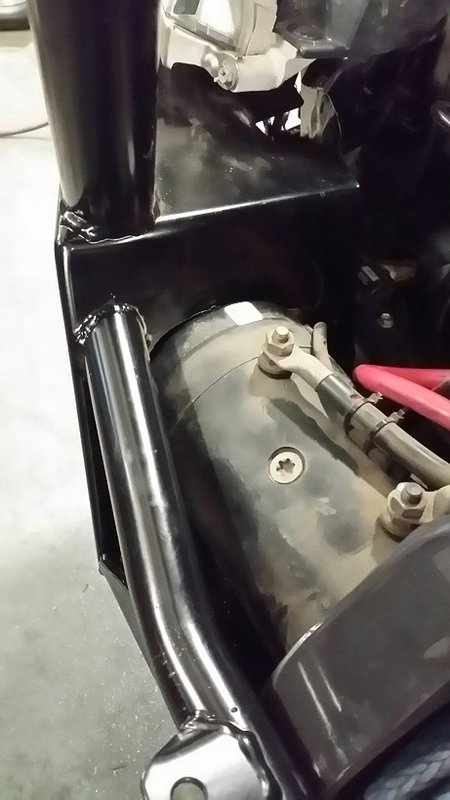

    It fitted up ok. There was more grinding then I would have thought. The bracket that the bumper bolts to seems to need a better jig or more careful assembly. I had to enlarge most of the holes on the drivers side. Not quite "bolt on".


    A point to note about Addicted Off Road bumpers, they seem to only be built for 8000lb winch sizes. I could not fit my 9500lb winch without being 1.5" off center. An 8000lb winch would have fit without issue but the fat 4th gen needed a little more headroom for safe pulling. I opted to cut a hole the size of the motor while trying to keep as much structure as possible. The final hole has about 1/8" gap all the way around. I need to snap a final fit pic.

    lobsterbait likes this.
  15. Apr 2, 2015 at 9:34 AM
    #15
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,197
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Sweet. That seems to be the theme on their bumpers, for the 4R anyway.

    http://www.toyota120.com/forum/showpost.php?p=201073&postcount=60

    You may be busting side panels off, that's a damn small gap. I needed 3/4 - 1" gap and actually just had to modify the one I built to get rid of rubbing from body/frame flex right under the flare.

  16. Apr 2, 2015 at 9:45 AM
    #16
    saundern

    saundern Swerve for nothing

    Joined:
    Dec 10, 2009
    Member:
    #27342
    Messages:
    6,861
    Gender:
    Male
    First Name:
    Nick
    Simpsonville, SC
    Vehicle:
    2005 TRD Sport
    When done right, these 4Rs can look sweet! You're doing it right :thumbsup:

  17. Apr 2, 2015 at 10:48 AM
    #17
    PS78

    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,449
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    coming along nicely buddy!! glad you finally got the addicted runner bumper

  18. Apr 2, 2015 at 11:16 AM
    #18
    thefatkid

    thefatkid [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,344
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy
    You need a 1" gap for frame flex? Sheesh, I though this was a Toyota. I guess I'll cross that road here soon.

  19. Apr 2, 2015 at 11:18 AM
    #19
    Gramps

    Gramps My walker is faster than your Prius!

    Joined:
    Feb 7, 2011
    Member:
    #50695
    Messages:
    14,329
    Gender:
    Male
    First Name:
    Gramps
    Colorado! Where else?
    Vehicle:
    07 TRD DC 4x4
    A small handful of select mods.
    This bumper is destroyed! :p
    Damn for a fully boxed frame that's a lot of flex! Wishbone are you sure you didn't do the rubber frame mod? :D

  20. Apr 2, 2015 at 12:20 PM
    #20
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,197
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Could be the body mounts I suppose, I can see them moving a bit when push/pulling on the frame and body.
