A total n00b changes his Serpentine Belt! With pictures!

Discussion in '4 Cylinder' started by FRYBOTH, Sep 9, 2012.

  1. Sep 9, 2012 at 7:54 PM
    #1
    FRYBOTH

    FRYBOTH [OP] Well-Known Member

    Joined:
    Aug 30, 2012
    Member:
    #85850
    Messages:
    83
    Gender:
    Male
    First Name:
    Christian
    Seattle
    Vehicle:
    08 Tacoma Base 4x4 2.7L Inline 4
    2008 2.7L four cylinder. With A/C!

    So first off, a little preface.

    My name is Christian and I don't know jack. I grew up riding dirt bikes with my dad and various family members all over Washington state. All of the men on my dad's side of the family are gear heads. One of my uncles worked as a mechanic in the air force working on f-14's on an aircraft carrier in the early 90's and my other uncle works at the Keyport Naval Base as a foreman putting together torpedo's, he also owns a 1992 4cylinder Toyota pickup that he's done everything under the sun to.

    But instead of hanging out in the garage learning how to work on bikes and trucks I stayed inside playing Nintendo and drawing pictures of monsters. Now I find myself the proud owner of a used 2008 Toyota Tacoma and I am learning all the hard lessons about buying a used car! I'm currently trying to learn as much as I can about working on my truck. Hopefully this will help any other beginners out there that don't want to spend an arm and a leg to fix their truck.

    Now that we've got that out of the way on to belt change! My truck makes a squealing sound when it's running. After poking around this forum for a while I've learned that it's my serpentine belt.

    What you need;
    -New serpentine belt.
    -14mm socket and ratchet (or wrench).
    -Drop light/flash light.
    -About 1 hour of free time.

    If you run down to autozone (or just about any auto parts store) and tell them the year, make, model and engine size (and if you have A/C or not) of your truck they will give you the right one.

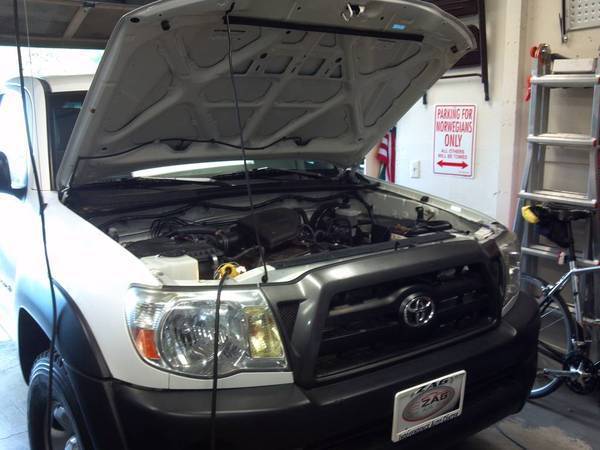

    Ready to go!

    [​IMG]

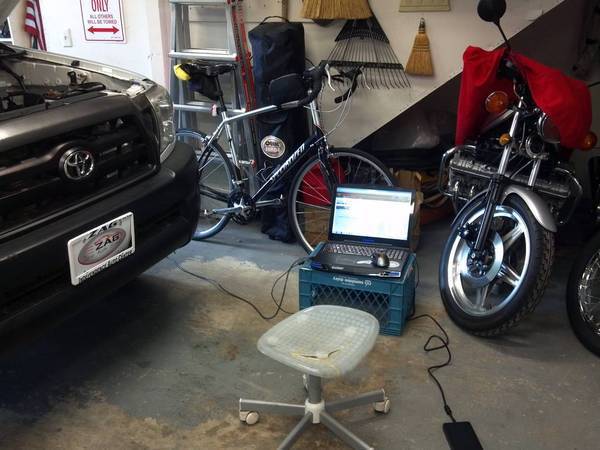

    Lap top standing by just in case things go awry and I need TacomaWorld to save me!

    [​IMG]

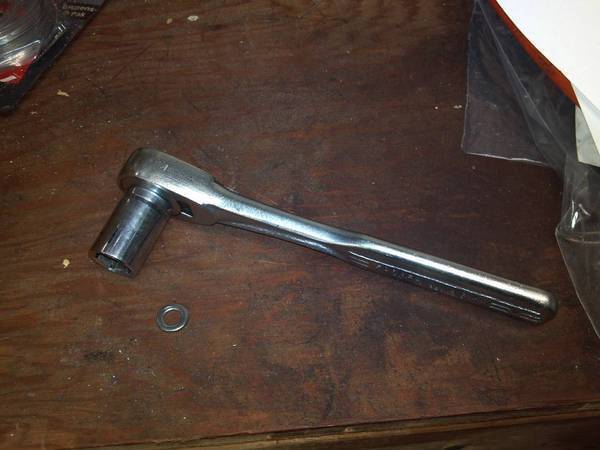

    14mm Ratchet!

    [​IMG]

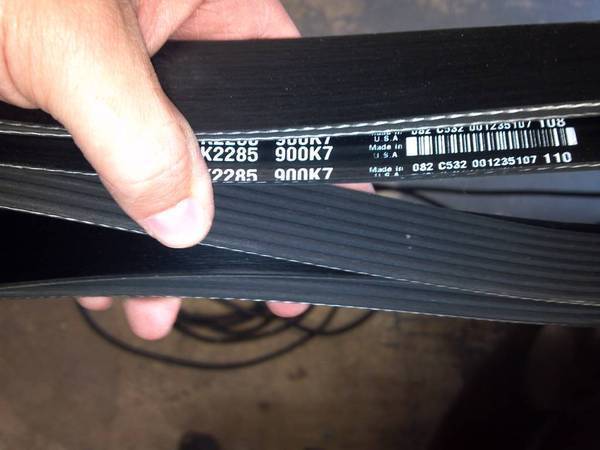

    New Belt!

    [​IMG]

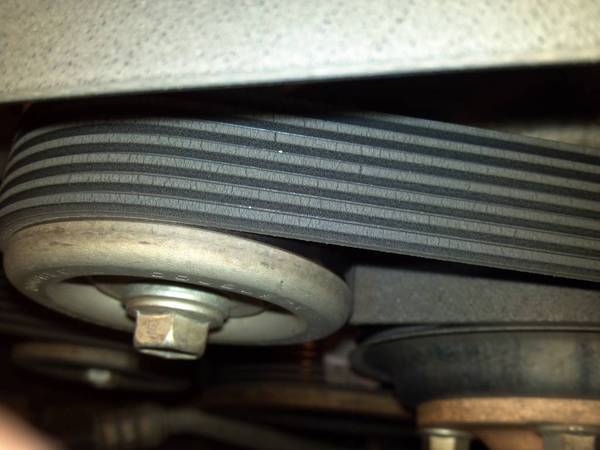

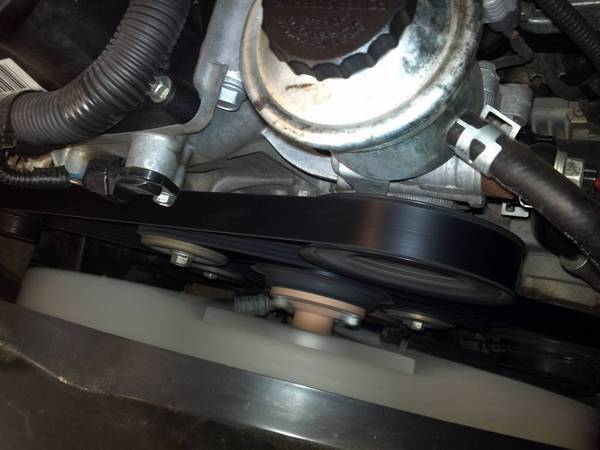

    If your truck is making a constant squeal and your belt looks like mine, you need to replace it! This belt's condition isn't actually that bad, but the squeal is very annoying.

    [​IMG]

    Your truck is supposed to have a diagram located somewhere around the radiator showing you how the belt is supposed to wrap around everything (your going to need it when you put your new belt back on). Mine didn't. So I put all my skills as a 2-year-art-school-drop-out to use and drew a picture! I suggest you do the same as I could not find a diagram (of the 2.7L) on the internet that I was willing to trust. You can even take some pictures of how it should look to help.

    [​IMG]

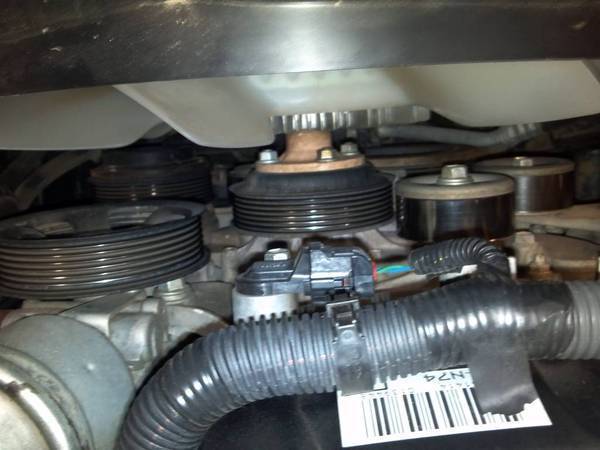

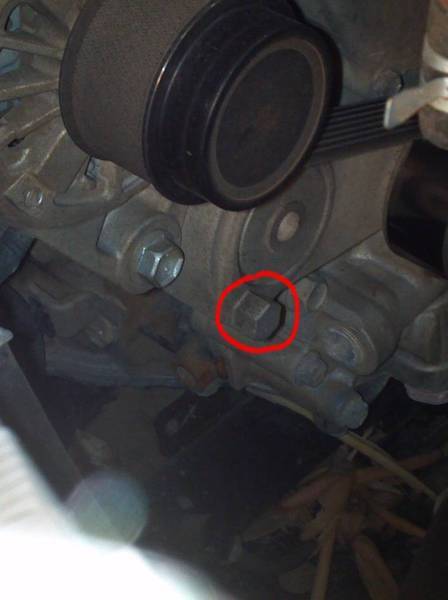

    Now what you want to find is the belt tensioner. This is a spring loaded wheel that presses against your belt to keep it in place, and to facilitate the belt's removal. Standing in front of your truck looking down at your belt, it is slightly off to the left. The part your going to get your wrench onto is underneath the belt itself. I marked it in red. ALSO, you will have noticed by now that one side of your belt has ribs and the other side is smooth, some of the pulleys have ribs and some are also smooth. When your put your new one on remember, ribs go with ribs, smooth go's with smooth.

    [​IMG]

    You kinda need to lean down and to the left in order to see the tensioner itself (have your light handy!). The nut you need to put your wrench on is marked in red. This is NOT a fastener of any kind. It is simply there for you to get a good grip on the tensioner with your wrench. All the other nuts are fasteners for other shit, don't mess with those!

    [​IMG]

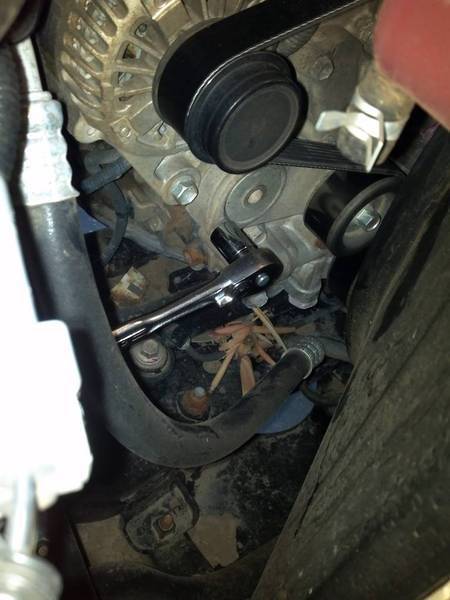

    Get your 14mm and stick it on that bitch! This is how I put mine on. This gives you a firm handle to pull UP on. Now, if the belt were to fall off while you were driving, it would be bad, so it's not just going to lift right up. It takes a bit of muscle. Never mind the dead plant at the bottom...

    [​IMG]

    If your face looks like mine just before you are about to remove your belt... THAT'S NORMAL! I was nervous at first. But don't be! There's really not a lot you can screw up. Trust me! I'm the master at screwing things up and I didn't!

    [​IMG]

    This is a two handed operation! I used my left hand to pull UP on the wrench and my right hand to wiggle the belt off once I had enough slack. Make sure you've got a good grip on your wrench! If it were to slip and you had a finger in between the belt and a pulley I'm sure you'd lose it! It's probably a good rule of thumb to not stick any fingers between the belt and pulleys while you are doing this. Here's a shot of it coming off. Your going to have to work it around your radiator fan. Take your time, it will take some wiggling to get it off.

    [​IMG]

    Gotcha bitch! If yours is in, "OK" condition, like mine, stash in somewhere in your truck in case of emergency (or you put your new belt on wrong and destroy it and need to go get another one!).

    [​IMG]

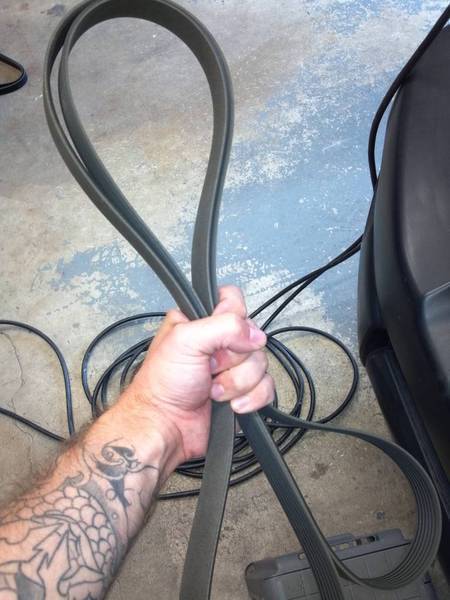

    Crack is whack. This belt is bad news bears. Now it's a good idea to take the time to make sure your new belt is the right size. Grab both your belts by the ends and stretch them out to check this.

    [​IMG]

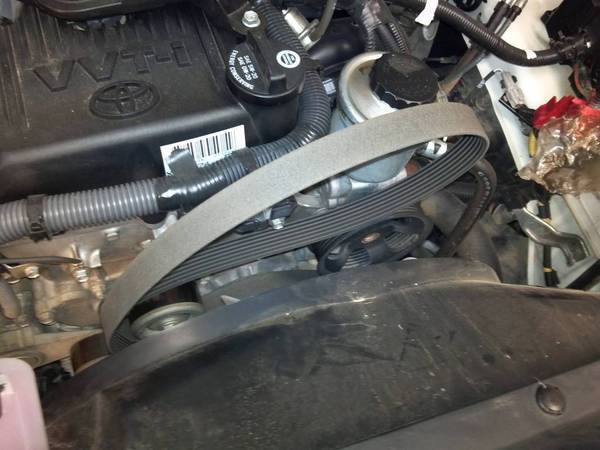

    No more belt! Trying to turn on your truck right now would be a really dumb idea.

    [​IMG]

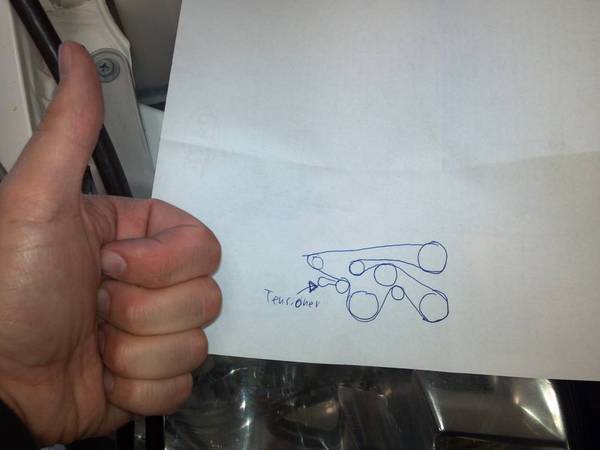

    Now this is where my drawing came in to save the day! If you have any pictures or drawings use them! Remember, put the ribbed side of the belt on the pulleys that have ribs, the smooth side goes on the pulleys that are smooth!

    Again your going to have to work it back around your radiator fan. The bottom pulleys are going to be the most difficult as you can't really seem them and they are close together. Get the belt around all of the pulleys (with ribs on ribs and smooth on smooth!) EXCEPT the tensioner. Leave that part last. Your new belt is going to be stiff and a bit of a bastard to get on.

    Remember how you worked the belt OFF? Basically were going to do the same thing to get it back on. Pull up the tensioner with your left hand as far as it will go and with your right slide the belt into place and slowly let off on the tensioner making sure everything is in place. Hopefully it will look like this!

    [​IMG]

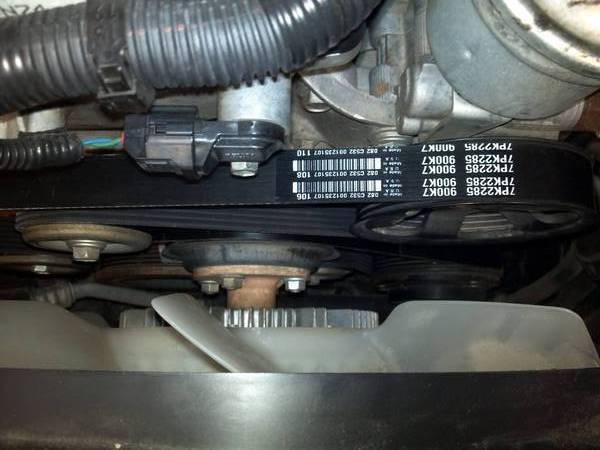

    This is when I ran my hands all along the belt and pulleys to make sure everything was sitting snugly and lined up properly. After that make sure you've got all your tools, lights, rags and old belts accounted for. Now it's time for the moment of truth!

    [​IMG]

    Success! No sparks, no smoke, no fire and best of all, no more squeal!

    [​IMG]

    Excitement! I don't suck at trucks!

    [​IMG]

    I hope I didn't leave anything out and I hope this helps!

    *I am not liable for anything that happens to your truck, good or bad!*

    Chipskip likes this.
  2. Sep 9, 2012 at 8:01 PM
    #2
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,542
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Great post.

    A great thing about TW is that there are writeups here for jobs of all levels of complexity ranging from the simple to the wildly difficult.

    Folks will find this useful.

  3. Sep 9, 2012 at 8:10 PM
    #3
    FRYBOTH

    FRYBOTH [OP] Well-Known Member

    Joined:
    Aug 30, 2012
    Member:
    #85850
    Messages:
    83
    Gender:
    Male
    First Name:
    Christian
    Seattle
    Vehicle:
    08 Tacoma Base 4x4 2.7L Inline 4
    I noticed there weren't a lot of write ups for the 4 bangers and not a lot on serp belts either!

  4. Sep 9, 2012 at 8:26 PM
    #4
    tinker_troy

    tinker_troy I feel so Devo

    Joined:
    Sep 17, 2007
    Member:
    #2718
    Messages:
    9,050
    Gender:
    Male
  5. Sep 9, 2012 at 8:28 PM
    #5
    Watari06V6

    Watari06V6 Faster than a speeding ticket

    Joined:
    Feb 28, 2011
    Member:
    #52042
    Messages:
    784
    Gender:
    Male
    Wounded Knee
    Vehicle:
    TRD-V6-SR5-06
    Congrats- good job!

  6. Sep 9, 2012 at 8:32 PM
    #6
    NewRider

    NewRider Well-Known Member

    Joined:
    Aug 15, 2012
    Member:
    #84801
    Messages:
    1,637
    Gender:
    Male
    First Name:
    Travis, Truck: Baja
    Harrisonburg, Va
    Vehicle:
    '06 AC TRD Sport, Indigo Ink
    1. bought it... 2. Mud flap delete 3. BHLM 4. AUX input on factory stereo 5....... Check the build
    Way to take the initiative and learn how to do... so tired of people at college coming to me to change a lightbulb/tire... it's really not that hard.. look in your damn manual :rolleyes:

  7. Sep 9, 2012 at 8:33 PM
    #7
    bjasper

    bjasper Well-Known Member

    Joined:
    Jan 16, 2012
    Member:
    #70798
    Messages:
    314
    Gender:
    Male
    First Name:
    Brian
    Carmel, CA
    Vehicle:
    06 TRD PreRunner
    Dad's truck, minor mods.. Saving for my own :)
    Good job. I replaced mine thursday. It seems a little bit easier on the 2.7 vs the 4.0.

  8. Sep 9, 2012 at 8:37 PM
    #8
    tinker_troy

    tinker_troy I feel so Devo

    Joined:
    Sep 17, 2007
    Member:
    #2718
    Messages:
    9,050
    Gender:
    Male
    is that your CBX?

  9. Sep 9, 2012 at 9:20 PM
    #9
    FRYBOTH

    FRYBOTH [OP] Well-Known Member

    Joined:
    Aug 30, 2012
    Member:
    #85850
    Messages:
    83
    Gender:
    Male
    First Name:
    Christian
    Seattle
    Vehicle:
    08 Tacoma Base 4x4 2.7L Inline 4
    Nah, that's my Dad's. He bought that thing brand new and last year had it totally refurbished. I grew up on the back of that bike practically. I believe it's a '78.

  10. Sep 10, 2012 at 1:14 PM
    #10
    jassco

    jassco Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20568
    Messages:
    558
    Gender:
    Male
    Boston
    Vehicle:
    2010 Access Cab 2.7L SR5 5spd, 4x4
    5100 set to .85 w/ rear TSB, 2012 Rear-view Mirror, Grillecraft, Team Trails FJ Wheels, TPMS canister, Rear headrest delete, Rear console delete, Valley Hitch, Frame undercoat, $2.99 Tailgate hose clamp lock, Avid light bar, 4x4 lighted switch ala Biceman.
  11. Sep 10, 2012 at 1:14 PM
    #11
    Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    11,682
    Gender:
    Male
    Awesome work OP! Nice write up.

  12. Sep 10, 2012 at 1:17 PM
    #12
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,166
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Hopefully they give you the right one..

  13. Sep 10, 2012 at 1:17 PM
    #13
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    Good job! You've earned a cold one:D

  14. Sep 10, 2012 at 1:17 PM
    #14
    Taco Dan

    Taco Dan Well-Known Member

    Joined:
    Nov 4, 2011
    Member:
    #66435
    Messages:
    1,061
    Gender:
    Male
    First Name:
    Dan
    Tuscaloosa, AL
    Vehicle:
    06 SR5 4x4
    Door sil protectors, rubber bed mat, trimmed mud flaps, WeatherTechs, diff breather relocate, locking gas cap, lighted 4x4 switch, stock radio AUX adapt, eibach with 5100@0 with toytech top plate combo (2.5") suspension lift, arm rests re-upholstered, relentless fab bed bars, hidden cb radio set up, debadged, Total Chaos UCAs
    great and funny post OP, i lol'd

  15. Sep 10, 2012 at 1:26 PM
    #15
    friction

    friction Well-Known Member

    Joined:
    Jan 26, 2010
    Member:
    #30064
    Messages:
    1,808
    Gender:
    Male
    Charleston, SC
    Vehicle:
    '08 4X4 RC SR5
    OEM Cruise, 5100s @.85, Century Ultra shell, TRD covers, TRD skid.
    You remind me very much of myself. Except it would take me 2 hours, not 1.

    I enjoyed this.

  16. Sep 10, 2012 at 1:39 PM
    #16
    FRYBOTH

    FRYBOTH [OP] Well-Known Member

    Joined:
    Aug 30, 2012
    Member:
    #85850
    Messages:
    83
    Gender:
    Male
    First Name:
    Christian
    Seattle
    Vehicle:
    08 Tacoma Base 4x4 2.7L Inline 4
    Yeah, it was the squeal that was going to drive me mad!

    Yep, that's why I stretched out my new and old one together to make sure they were the same length. Always good to double check! If it doesn't look right when you put the new one all the way on, probably not a good idea to turn your truck on. Best go back to autozone and choke someone!

    Auto repair doesn't have to be boring! lol

  17. Sep 10, 2012 at 1:53 PM
    #17
    FRYBOTH

    FRYBOTH [OP] Well-Known Member

    Joined:
    Aug 30, 2012
    Member:
    #85850
    Messages:
    83
    Gender:
    Male
    First Name:
    Christian
    Seattle
    Vehicle:
    08 Tacoma Base 4x4 2.7L Inline 4
    I would even tell someone, "If you think it's going to take an hour, give yourself 2."

    And thanks!

  18. Sep 12, 2012 at 1:45 PM
    #18
    DGXR

    DGXR Well-Known Member

    Joined:
    Sep 1, 2009
    Member:
    #22094
    Messages:
    921
    Gender:
    Male
    First Name:
    Friend
    Sacramento, CA
    Vehicle:
    2006 2.7L SR5 2-wheel drive
    aFe Pro Dry air filter, magnetic oil drain plug, synthetic seat covers, steering wheel cover
    Great write-up! A few things...
    1) Thank you. Your post was helpful, informative and entertaining.
    2) How many miles are on your 2008 truck? Modern EPDM serpentine (not neoprene) belts can go over 100k miles unless they are subjected to harsh conditions. My 2006 has 80k miles and the serpentine is still in fantastic shape (here in Sacramento we have some hot summers, and winters are relatively mild compared to some parts of the country).
    3) I never noticed that the wrench point on the tensioner is not actually a fastener, it's just a hex-shaped protrusion in the casting! awesome LOL
    4) Here's an interesting "Two Guys Garage" video on serpentines http://www.youtube.com/watch?v=ck8HollJYOc&lr=1
    5) For a free serpentine belt wear gauge, go to http://www.gatesprograms.com/beltwear/beltwear

    P.S. Love your Avatar... DOOOOOM! :)
