AAL Problem?

Discussion in 'ICON Vehicle Dynamics' started by 2TRunner, May 4, 2013.

  1. May 4, 2013 at 7:02 PM
    #1
    2TRunner

    2TRunner [OP] Don't give up here just yet

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,073
    Gender:
    Male
    First Name:
    Chris
    Around To Many People
    Vehicle:
    1, 2, 3, 4, 5 Lugs
    Brute Force Bumpers: rear & custom front tube, Saw-A-Way Racerunner 2.5 Coilovers with Total Chaos UCAs. Icon AAL.
    Went Mid-Travel with my 5 lug. Appear to be having some issues in the rear. ICON 3 Leaf AAL was installed.

    Pre-MT measurements were: (from ground to fender/wheel well)
    Front: 32"
    Rear: 34"
    Diff Clearance: 8 5/8"

    Post-MT measurerments are:
    Front: 35"
    Rear:
    -P/S: 34"
    -D/S: 34.5"
    Diff Clearance: 8 5/8"

    Read that the AALs are directional for installation. The longer end of the top leaf, from center pin to end, should point towards the rear of the vehicle.

    If so, the P/S AAL would be installed correct. Measures approx 18" from center pin to end of the top leaf, pointing towards the rear.

    The D/S AAL would be installed incorrect. Measures approx 15" from center pin to end of the top leaf, pointing towards the rear. However, the drivers side is the side that does show some amount of lift to it.

    Is something wrong the AALs?

    Did I install something else incorrectly? (not much back there, really)

    The front is a bit high, would bringing it down to about 2.5" make any kind of difference in the rear?

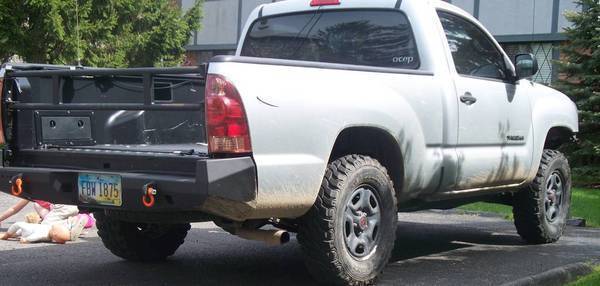

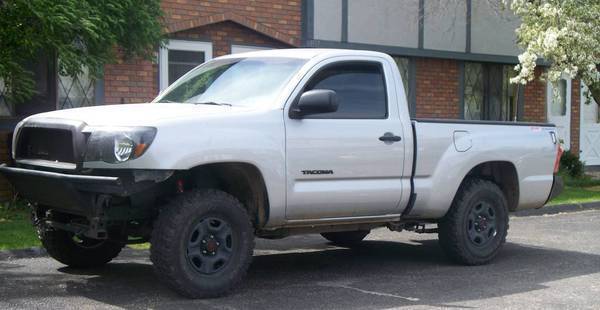

    [​IMG]

    [​IMG]


    Please help,
    Thanks,
    Chris/Quaker

    Last edited: May 4, 2013
  2. May 4, 2013 at 7:31 PM
    #2
    Redneck92

    Redneck92 Well-Known Member

    Joined:
    Aug 9, 2012
    Member:
    #84398
    Messages:
    1,384
    Gender:
    Male
    First Name:
    Chris
    Concord, NC
    Vehicle:
    02 Tacoma Limited TRD
    ARE Camper shell
    Take a pic of both leaf packs from the side with the tire off. Dropping the front back down won't really affect the rear too much. Usually the shortest side of the aal leaf goes toward the front and the longer side to the rear.

  3. May 4, 2013 at 7:40 PM
    #3
    2TRunner

    2TRunner [OP] Don't give up here just yet

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,073
    Gender:
    Male
    First Name:
    Chris
    Around To Many People
    Vehicle:
    1, 2, 3, 4, 5 Lugs
    Brute Force Bumpers: rear & custom front tube, Saw-A-Way Racerunner 2.5 Coilovers with Total Chaos UCAs. Icon AAL.
    Yeah, I checked the short/long side thing.

    P/S is ok.
    D/S is "backwards", short side points towards rear.

    D/S does show some lift however. Only like .5", nothing on the P/S.

    So I'm...:confused::confused::confused:

    Pics of the AALs will have to be tomorrow.

    Are my OE leafs crap?
    Is the AAL crapped out?

    Last edited: May 5, 2013
  4. May 5, 2013 at 7:40 AM
    #4
    tacokid09

    tacokid09 it's about the off-road miles

    Joined:
    Mar 5, 2011
    Member:
    #52405
    Messages:
    7,379
    Gender:
    Male
    First Name:
    Brian aka B-Lang
    San Luis Obispo, CA
    Vehicle:
    1997 White AC 5-Lug
    how much does the rear bumper weigh over stock?

  5. May 5, 2013 at 11:18 AM
    #5
    2TRunner

    2TRunner [OP] Don't give up here just yet

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,073
    Gender:
    Male
    First Name:
    Chris
    Around To Many People
    Vehicle:
    1, 2, 3, 4, 5 Lugs
    Brute Force Bumpers: rear & custom front tube, Saw-A-Way Racerunner 2.5 Coilovers with Total Chaos UCAs. Icon AAL.
    Pics of the AALs installed.

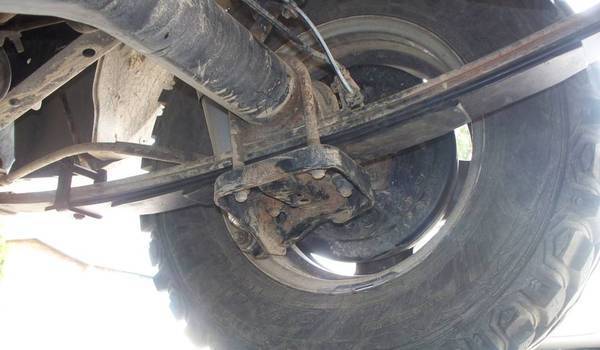

    The D/S AAL
    [​IMG]

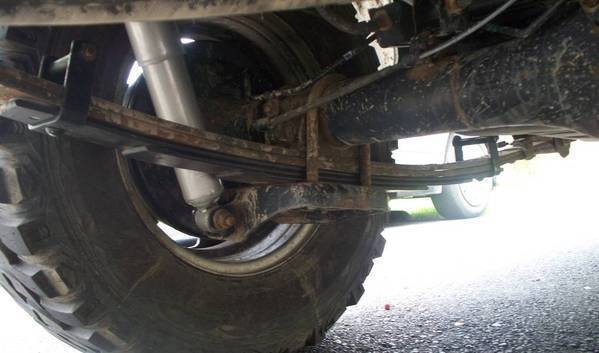

    The P/S AAL
    [​IMG]

  6. May 6, 2013 at 9:17 PM
    #6
    ICONRep

    ICONRep Direct Representative Vendor

    Joined:
    Oct 23, 2012
    Member:
    #89638
    Messages:
    225
    Gender:
    Male

    Quaker,

    I think the best thing here would be to give me a call tomorrow so I can work with you to see what is going on. We sell quite a few of these monthly and do not seem to have many issues, I will help you figure out the answer one way or another.

    951-789-4266

    Thanks,

    Brad

  7. May 7, 2013 at 11:14 PM
    #7
    2TRunner

    2TRunner [OP] Don't give up here just yet

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,073
    Gender:
    Male
    First Name:
    Chris
    Around To Many People
    Vehicle:
    1, 2, 3, 4, 5 Lugs
    Brute Force Bumpers: rear & custom front tube, Saw-A-Way Racerunner 2.5 Coilovers with Total Chaos UCAs. Icon AAL.
    Didn't see this until now. Life is crazy. will be calling Wednesday for sure.

    Thanks.

  8. May 15, 2013 at 7:13 PM
    #8
    2TRunner

    2TRunner [OP] Don't give up here just yet

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,073
    Gender:
    Male
    First Name:
    Chris
    Around To Many People
    Vehicle:
    1, 2, 3, 4, 5 Lugs
    Brute Force Bumpers: rear & custom front tube, Saw-A-Way Racerunner 2.5 Coilovers with Total Chaos UCAs. Icon AAL.
    Start with....Brad @ ICON says this AAL was never designed for a 5 lug truck....

    I switched the D/S AAL around today and it at least give the same results on both sides. Still only a .5" however. But both sides were looking more even.

    I decided to take the AALs off and send them to a spring shop to have them re-arched 2" for a spring under truck.

    I'm hoping that its not a completely moronic move on my part and that this will work.

    I talked to the guy twice, my service writer is a buddy of his, first time he sounded a little...ehhh....Once he got springs and I talked to him to make sure of the "spring under" part he sounded confident that he could get them taken of. Should have them back tomorrow.

    Last edited: May 15, 2013
  9. May 17, 2013 at 11:37 PM
    #9
    2TRunner

    2TRunner [OP] Don't give up here just yet

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,073
    Gender:
    Male
    First Name:
    Chris
    Around To Many People
    Vehicle:
    1, 2, 3, 4, 5 Lugs
    Brute Force Bumpers: rear & custom front tube, Saw-A-Way Racerunner 2.5 Coilovers with Total Chaos UCAs. Icon AAL.

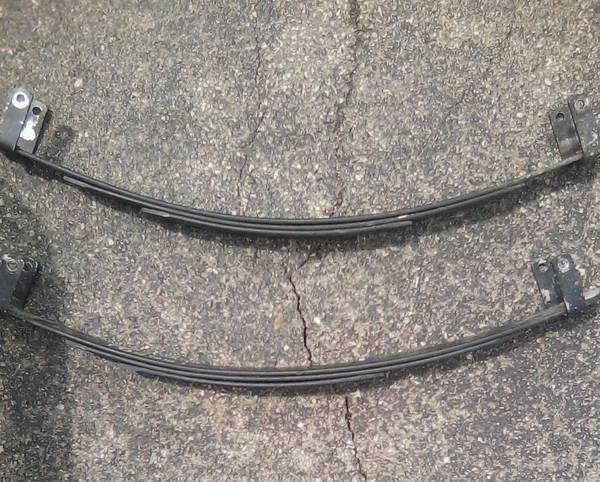

    Re-Arched
    [​IMG]

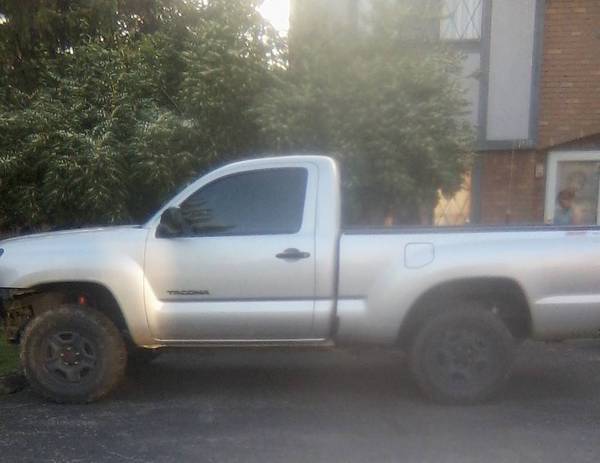

    How it sits now.
    [​IMG]
