About to do 5100's but have a question

Discussion in 'Suspension' started by L.V.T., Oct 28, 2010.

  1. Oct 28, 2010 at 9:04 PM
    #1
    L.V.T.

    L.V.T. [OP] jackalope killer

    Joined:
    Apr 16, 2010
    Member:
    #35443
    Messages:
    65
    Gender:
    Male
    Las Vegas
    Vehicle:
    '10 TRD D-Cab
    Tint, Shaved Mud Flaps ;), Train Horns, 2.5" Fat Bob's front lift, Rear TSB spring lift, DuraTrac's
    Ok, so I'm about to get some 5100's all around for the truck, but I have a couple questions. First; do I need to replace the front UCA's? I've noticed that almost everyone who has a lift replaces them but I'm not sure why.
    Secondly; I have read that doing the 5100's leaves you with only 1" of down-travel. Is this true? And what is down-travel? Does that mean there will only be 1" of "compression stroke" for the front suspension? I really want to lift the truck a couple inches but if it's gonna ride stiff or like crap I don't want to go this route because it's my daily driver.

    Thanks -Tony

  2. Oct 28, 2010 at 11:55 PM
    #2
    wolfdog2314

    wolfdog2314 Well-Known Member

    Joined:
    Jul 16, 2009
    Member:
    #19745
    Messages:
    564
    Gender:
    Male
    Brush Prairie
    Vehicle:
    2011 Tacoma 4x4 Sport
    Eibach coils. 5100's all around. AAL. WickedFlow
    What setting do u want to put the 5100's to?

  3. Oct 29, 2010 at 12:22 AM
    #3
    numbah57

    numbah57 GIVE THE MALL A BREAK...WHEEL THAT SHIT

    Joined:
    Oct 11, 2009
    Member:
    #24160
    Messages:
    3,460
    Gender:
    Male
    First Name:
    kahai
    Maui, Hawaii
    Vehicle:
    09 tacoma 2.7 Beaten not Babied
    URD ARB G2 PELFREY BAMF LCE AFE
    Pretty sure the down travel is the rebound stroke (i think) I have 5100's waiting for me at the post office, can't wait!

  4. Oct 29, 2010 at 4:29 AM
    #4
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Down travel is the distance the shock can extend when the load is lifted off the tire (like when you hit a bump or the tire comes off the ground. Limited down travel means the shock will bottom out and make noises and potentially break. I'm not sure how much DT you have with the 5100s
    UCAs allow for alignment specs to be corrected for taller lifts (like 2.5" and greater). You may or may not need them depending on how high you want to set your 5100s. But changing them out can pretty much never hurt and it's easier to do them all at once than to try piece by piece.

  5. Oct 29, 2010 at 4:36 AM
    #5
    badguybuster

    badguybuster Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod
    ^ well said. However, I have my Tundra 5100s set at 2.5 and I have plenty of flex in my shocks. No worries man. Guys have been using them for a long time now. Also, you may wanna ad a small bead of JB weld under the retaining ring if you really abuse them.

  6. Oct 29, 2010 at 8:52 AM
    #6
    L.V.T.

    L.V.T. [OP] jackalope killer

    Joined:
    Apr 16, 2010
    Member:
    #35443
    Messages:
    65
    Gender:
    Male
    Las Vegas
    Vehicle:
    '10 TRD D-Cab
    Tint, Shaved Mud Flaps ;), Train Horns, 2.5" Fat Bob's front lift, Rear TSB spring lift, DuraTrac's
    I would defenatly run them at the max setting. I don't really do any "hard core" off roading, I'm just after the lifted look really. Are front spacers like the toytec kit a good thing for someone who does light off road and mostly street driving? If so I think that what I'm gonna do.

  7. Oct 29, 2010 at 10:03 AM
    #7
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    831
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    Just get the 5100's and put them at 2.5 setting (the top groove) You should still have plenty of down travel...like at least 1.5". You might have to get new UCA's at that height if you can't get the alignment corrected after. Chris4x4 said thay you shouls have at least 1.8 caster or else the truck will wander on the HWY. I have 2.6" of lift in the front and was just able to eek out 2.0 caster. You might get lucky like me. I would stay away from the spacer lifts...

  8. Oct 29, 2010 at 11:18 AM
    #8
    L.V.T.

    L.V.T. [OP] jackalope killer

    Joined:
    Apr 16, 2010
    Member:
    #35443
    Messages:
    65
    Gender:
    Male
    Las Vegas
    Vehicle:
    '10 TRD D-Cab
    Tint, Shaved Mud Flaps ;), Train Horns, 2.5" Fat Bob's front lift, Rear TSB spring lift, DuraTrac's
    Why do you say to stay away from the spacer lifts?

  9. Oct 29, 2010 at 11:50 AM
    #9
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    831
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    Just search on here for peoples opinions on them...they are not well liked. The 5100's are not much more, and are a better way to go in mine, and a lot of others opinions.

  10. Oct 29, 2010 at 3:10 PM
    #10
    durf4694

    durf4694 giggity giggity

    Joined:
    Oct 4, 2010
    Member:
    #44226
    Messages:
    127
    Gender:
    Male
    ny
    Vehicle:
    06 tacoma sport
    K&N cold air kit, Kenwood double din with dvd player, navigation, rear cam. hook up with One JL 12" sub powered by a 800 watt pioneer amp, Sirius/XM satellite radio, TRD Neoprene Seat covers, Tinted windows all around, Trifecta Tonneau Cover, Billies at 1.75 and a 1.5 block in the back
    ^^^^ Yes ! Most likely your going to get a better ride out new brand new billies other than cramming a spacer in your strut. Read the forums. Downsouth motor sports has untouchable prices on those shocks. Anyone interesting in doing a group buy for billies?(if it offers a good benefit)

  11. Oct 29, 2010 at 3:13 PM
    #11
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    831
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
  12. Oct 29, 2010 at 7:52 PM
    #12
    L.V.T.

    L.V.T. [OP] jackalope killer

    Joined:
    Apr 16, 2010
    Member:
    #35443
    Messages:
    65
    Gender:
    Male
    Las Vegas
    Vehicle:
    '10 TRD D-Cab
    Tint, Shaved Mud Flaps ;), Train Horns, 2.5" Fat Bob's front lift, Rear TSB spring lift, DuraTrac's
    So if I only have 1.5" of down travel, and I run over speed bumps too fast, and the shock extends all the way (because most speed bumps are more than 1.5") I could potentially end up with a broken shock? Am I understanding this correctly?

  13. Oct 29, 2010 at 9:37 PM
    #13
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    831
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    It will be fine. There are tonnes of guys on here that have 2.5-3" of lift (which leaves you with 1" down travel) and they are fine...I wouldn't worry about it. The spacers do the same thing, but leave you with a rough ride...

  14. Oct 29, 2010 at 9:45 PM
    #14
    L.V.T.

    L.V.T. [OP] jackalope killer

    Joined:
    Apr 16, 2010
    Member:
    #35443
    Messages:
    65
    Gender:
    Male
    Las Vegas
    Vehicle:
    '10 TRD D-Cab
    Tint, Shaved Mud Flaps ;), Train Horns, 2.5" Fat Bob's front lift, Rear TSB spring lift, DuraTrac's
    Ok, so I'm about to order a set but if there's a chance I might need new UCA's I'm not gonna do it. So how likely is it that I will need them for my truck not to wander all over the place while driving? Because $300 for 2.5" is ok with me, but with UCA's it brings it to just under $900 which is too much for 2.5" I think.

  15. Oct 30, 2010 at 12:10 AM
    #15
    Sabre

    Sabre Well-Known Member

    Joined:
    Oct 7, 2010
    Member:
    #44356
    Messages:
    2,560
    Gender:
    Male
    First Name:
    Kyle
    Astoria, OR
    Vehicle:
    2009 DC 4x4
    Icon 2.5 coilovers, color match grill, DDM tuning 5k fogs, Retrofit Headlights, lower valence painted
    i ordered 5100's yesterday i got them today in the mail from down south defintly go with them!!!!!

  16. Oct 30, 2010 at 12:15 AM
    #16
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

    Bro' , get the 5100's front & rear, get them installed & get on with your 'Taco life. :D:D

    It's my opinion & my understanding that the 2.5" lift is the max you can get with the stock UCA's & still achieve decent alignment when you're done....

  17. Oct 30, 2010 at 4:34 AM
    #17
    southerntaco889

    southerntaco889 Well-Known Member

    Joined:
    Jun 13, 2010
    Member:
    #38856
    Messages:
    212
    Gender:
    Male
    First Name:
    Chris
    Bartow, GA
    Vehicle:
    07 PreRunner DC TRD Sport
    5100's @ 2.5/285 BFG A/T's/blacked-red badges/strobes/siren/PA/roof rack soon to come/brush guard soon to come
    Totally agreed. 5100's are the way to go. I've ridden in spacer lifted trucks and the ride sucks. I just put 5100s at 2.5 on my DC with some 285's and love it. I only bottomed the shock out once and that was cause I was Baja'in through a plowed field and hit a hole:D. No problems with alignment either other than just a tick off on the caster like previously said. It's not really enough to notice IMO. And def go with Sonny at DSM. They rock.

  18. Oct 30, 2010 at 6:50 AM
    #18
    kessler89

    kessler89 Well-Known Member

    Joined:
    Oct 7, 2010
    Member:
    #44367
    Messages:
    840
    Gender:
    Male
    OH
    Vehicle:
    12' Pro4x 6MT
    TBA
    I just ordered a set from DSM also, just got them in the mail yesterday but wont be able to get them on till next weekend, their price is untouchable, im setting mine at .85 to level the truck out

  19. Oct 30, 2010 at 12:48 PM
    #19
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    831
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    Every truck is different, so you might not be able to get a perfect alignment which is the 0 toe, 0 camber, and 2.4 caster. I have 2.6" of lift, and my caster is at 2.0, which is where it was the last time I had an alignment about 9 months ago. My truck drives no different than it did before the lift...just a little firmer, but nice. If your really worried about the alignment, then put them at the 1.75 setting. Lots of guys got 2" of lift on that setting from what I read. It's up to you, but the 5100's are a great product, and at $283 for all four it's a steal!

  20. Oct 30, 2010 at 12:54 PM
    #20
    jwhelan

    jwhelan Well-Known Member

    Joined:
    Sep 19, 2009
    Member:
    #23006
    Messages:
    431
    Gender:
    Male
    First Name:
    JW
    Dallas Texas
    Vehicle:
    05 TRD Silver
    TRD PreRunner, 5100's on all four fronts @ 1.75, AAL, SP performance rotors, hawk pads, 17" FJ Cruiser wheels P/C black, 265/65/17 BFGR Rugged Trails, BHLM , painted grill, blacked out emblems

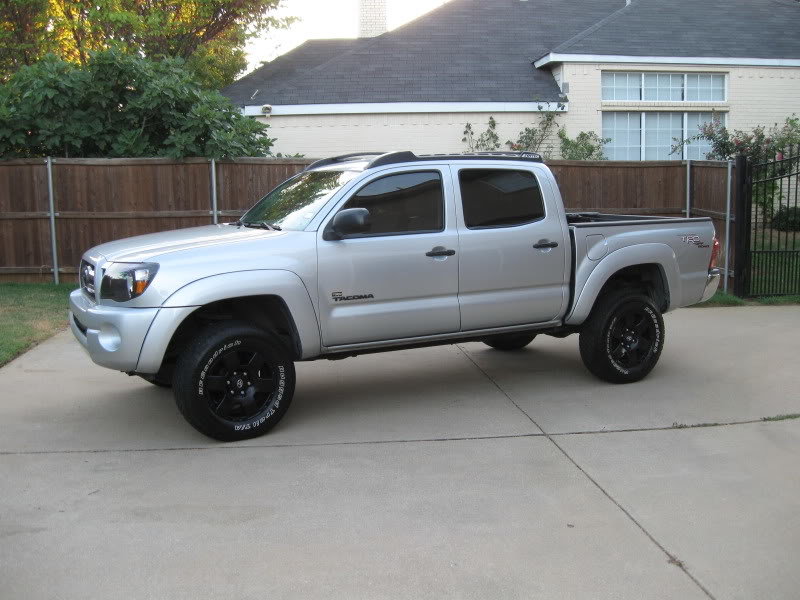

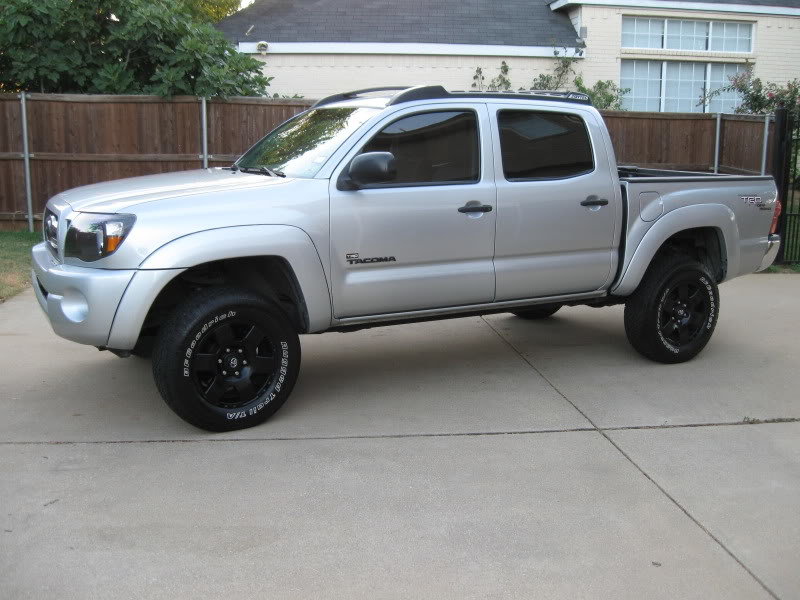

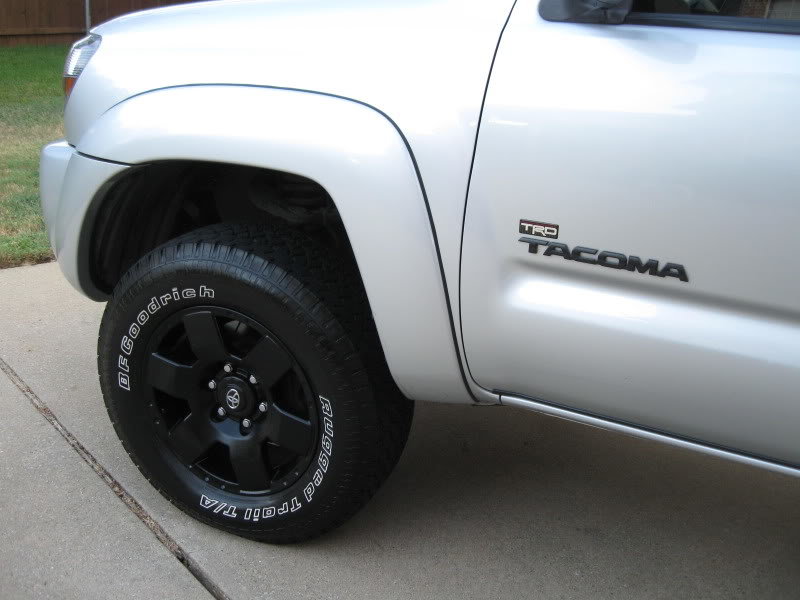

    Here is mine with 5100's at the middle setting and AAL in the rear..

    [​IMG]

    [​IMG]

    [​IMG]
