About to install touchscreen

Discussion in 'Audio & Video' started by Hunter500ky, May 31, 2011.

  1. May 31, 2011 at 9:59 AM
    #1
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Ok guys I hate being that guy but I did search!!

    Im looking for a wiring diagram on a 06 with JBL, I was going to do it the easy way and buy the connectors until I saw they were like 90$!!!

    So Im just going to hard wire it. However I cant find a good diagram...

    Thanks and reps!!

  2. May 31, 2011 at 10:06 AM
    #2
    mattg43

    mattg43 Well-Known Member

    Joined:
    Feb 22, 2011
    Member:
    #51640
    Messages:
    846
    Gender:
    Male
    First Name:
    Matt
    Texas
    Vehicle:
    08 Prerunner SR5 DC
    SwingCase, driver side. PVC Bike rack. Aftermarket stereo.
    96 or 06?

  3. May 31, 2011 at 10:06 AM
    #3
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    06 thank you, ipad + fat fingers = rough time

  4. May 31, 2011 at 10:07 AM
    #4
    Daudio

    Daudio Well-Known Member

    Joined:
    Mar 10, 2010
    Member:
    #32940
    Messages:
    400
    Gender:
    Male
    North Jersey
    Vehicle:
    '02 SR5
    avic-d1 sirius tuner Ipod adapter
    JBL or no?

  5. May 31, 2011 at 10:09 AM
    #5
    Daudio

    Daudio Well-Known Member

    Joined:
    Mar 10, 2010
    Member:
    #32940
    Messages:
    400
    Gender:
    Male
    North Jersey
    Vehicle:
    '02 SR5
    avic-d1 sirius tuner Ipod adapter
    shit, my bad....I didn't see that. It CAN be done without the harness, but if you aren't VERY knowledgeable in car audio you should spring for the harness. It's gonna save you a lot of time and headache.

  6. May 31, 2011 at 10:15 AM
    #6
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Thanks guys, harness it is lol

    Reps!

  7. May 31, 2011 at 10:26 AM
    #7
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    O no, Im on the website with ipad not installing it lol.

  8. May 31, 2011 at 10:36 AM
    #8
    HomerTaco

    HomerTaco Grill Sergeant Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    32,448
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Spend the $ and get that harness.... You & your truck will be much happier!
    :thumbsup:

  9. May 31, 2011 at 10:50 AM
    #9
    BradleyScottETC

    BradleyScottETC Class IV Category 8 Elite VIP Member (Only)

    Joined:
    Aug 2, 2009
    Member:
    #20521
    Messages:
    1,754
    Gender:
    Male
    First Name:
    Bradley
    Lake County, FL
    Vehicle:
    10 4.0 AC 4x4
    It's not that difficult to wire in a HU without the harness. HU's usually have the wires labeled anyway, so 50% of the work is already done. (if not, it's in the manual).

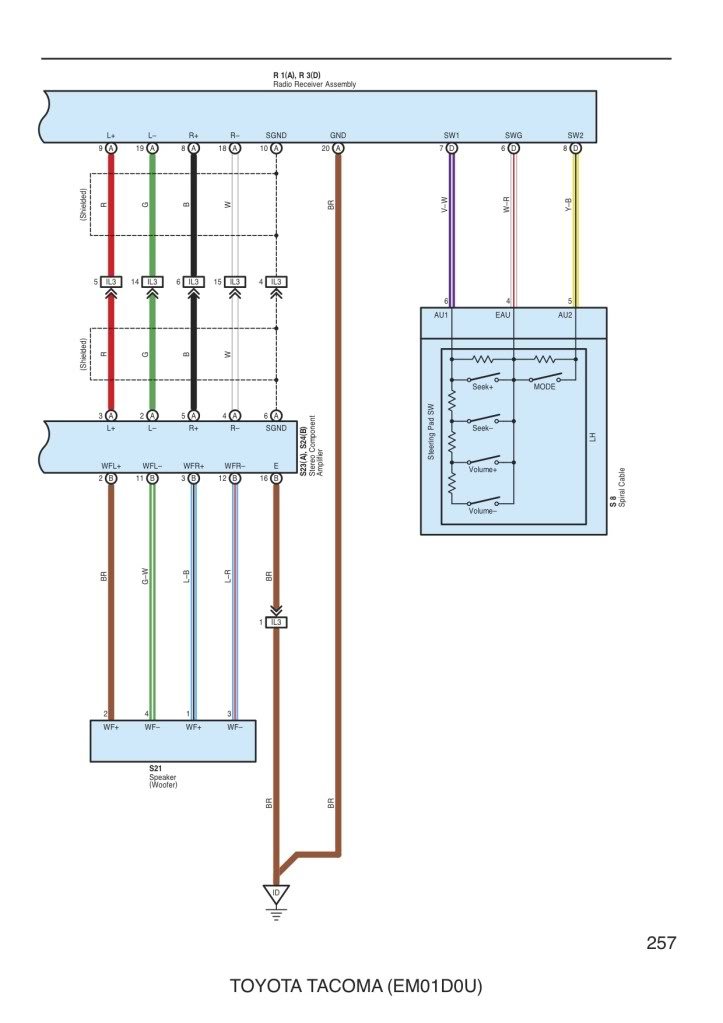

    Here's the stock stereo wiring- You would just remove the stock harness and butt-connect into the one that comes with the new HU. Make sure to leave enough whip to replace the factory harness, or use female/male connectors so it can be unplugged incase you decide to replace the factory HU.

    [​IMG]

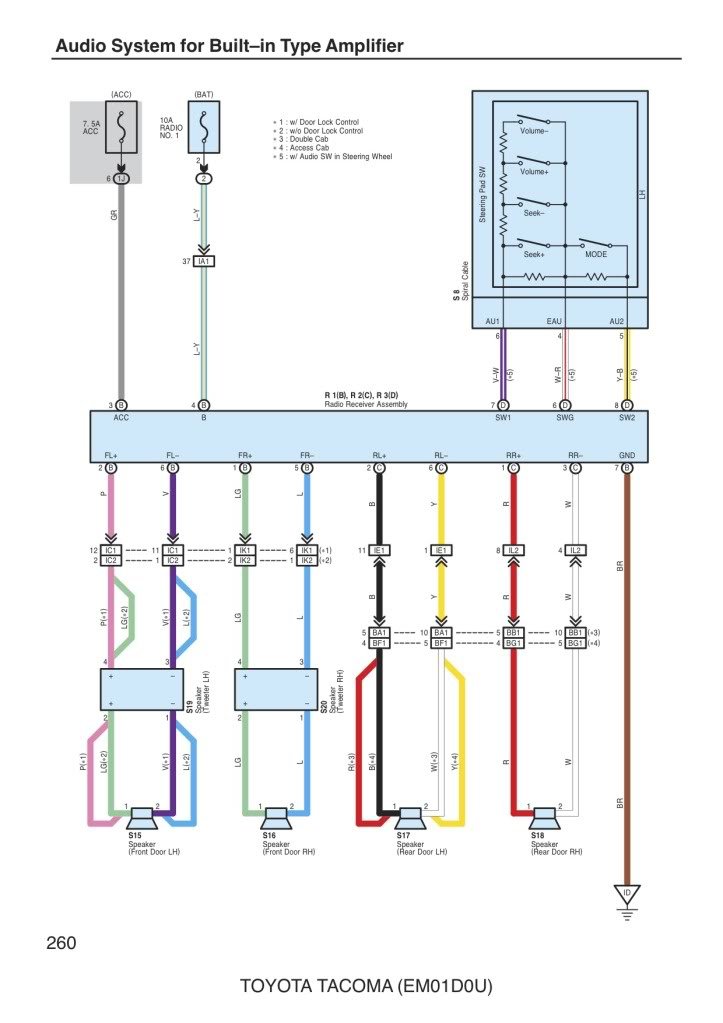

    Edit: Here's if you have the external amp / sub woofer from factory.

    [​IMG]

    [​IMG]

  10. May 31, 2011 at 4:58 PM
    #10
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Ok guys update i recieved the double dim, good news and bad news.

    It looks great! But the rca cables harness does not fit into the back of the double dim... I emailed the person I bought it off of and waiting a reply.


    My question is the audio guy sold me a metra kit, number 70-8113 made for toyota lexus with an amp. It has the rca cables will this work or do I NEED the 100$ one?

    Thanks!!!!


    Ps I plugged this one into the factory harness it plugs up but only takes up one of e 3 plugs.

  11. May 31, 2011 at 9:38 PM
    #11
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Bump anyone, also searched for the rca harness and cant find one anywhere

    Avic d2

  12. Jun 1, 2011 at 7:59 AM
    #12
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Thats correct the plug in, is to small to plug into the actual HU

    Im pretty sure I need this harness to since it has my audio cables for front and back (which is what I think I need to hook up).


    Going to go to a few shops today see if anyone has one laying around I could buy but I highly doubt it, the guy I bought it from has not pmed me back yet..

  13. Jun 1, 2011 at 10:14 AM
    #13
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Bump anyone? Found one online for 45$ local radio shop has to order anyway around using the av output?

    Or just dish out the 45$?


    Ugh spending to much on this thing lol

  14. Jun 1, 2011 at 10:40 AM
    #14
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Avic d2

    Pioneer

  15. Jun 1, 2011 at 2:25 PM
    #15
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Bump still have not heard anything from seller I have stared at this thng and tried everything no way this plug was meant to fit this device.

    Guess im going to buy one online hopefully seller gets back to me and makes it right...

  16. Jun 1, 2011 at 3:00 PM
    #16
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    its cool, Im selling it.

    LOL

    hoping to get my money back my fiancee saw me getting frustrated with it, and said lets go for a ride and get my ipod cable.

    Ok so we pull in and she surprises me with a brand new double dim!!!!!!


    Although in all seriousness I was getting pissed off at it, and the situation. Still going to talk to seller.

  17. Jun 1, 2011 at 3:30 PM
    #17
    jr124gamboa

    jr124gamboa Well-Known Member

    Joined:
    Feb 7, 2011
    Member:
    #50725
    Messages:
    96
    Gender:
    Male
    socal
    Vehicle:
    07 4x4 sr5
    airride airbags, bedliner,
    looks like your missing the harness with the rcas on it its the usually the white harness.....you can buy it on pioneer parts or im sure you can find it online for like $60.
    I think you should contact the seller thats a very important piece and at the very least should have told you he didnt have it!

  18. Jun 1, 2011 at 5:45 PM
    #18
    Hunter500ky

    Hunter500ky [OP] Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,521
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Thanks man yeah she is great!!!

    I'm still waiting on seller to contact me

  19. Jun 1, 2011 at 11:28 PM
    #19
    Daudio

    Daudio Well-Known Member

    Joined:
    Mar 10, 2010
    Member:
    #32940
    Messages:
    400
    Gender:
    Male
    North Jersey
    Vehicle:
    '02 SR5
    avic-d1 sirius tuner Ipod adapter
    You are missing the harness that has the RCA outputs on it. I think I may have one at my shop. I'll check tomorrow. If you can, post a pic of the harness you have and I'll tell you if you need anything else.

  20. Jun 1, 2011 at 11:30 PM
    #20
    Daudio

    Daudio Well-Known Member

    Joined:
    Mar 10, 2010
    Member:
    #32940
    Messages:
    400
    Gender:
    Male
    North Jersey
    Vehicle:
    '02 SR5
    avic-d1 sirius tuner Ipod adapter
    ^ at least that way you can sell it as a complete unit...should go much faster that way
