ABS, Brake! & Traction Control lights on

Discussion in '2nd Gen. Tacomas (2005-2015)' started by WebberLander, Jun 2, 2017.

  1. Jul 1, 2017 at 6:13 PM
    #61
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Not meaning to discredit your work but your meter is set to 200v AC(wavy bar), more than likely the sensor should be checked with it set to 20v DC(flat bar). The readings will more than likely still show the same but with correct voltages, somewhere between 7.5-12v when grounded to the frame.

  2. Jul 1, 2017 at 6:56 PM
    #62
    10MGM

    10MGM Well-Known Member

    Joined:
    Dec 13, 2009
    Member:
    #27475
    Messages:
    161
    Gender:
    Male
    Vehicle:
    2010 AC MGM 4x4
    Before purchasing any harness, I would check for +ve voltage and ground, two of each, at S22 connector.

    WebberLander [OP] likes this.
  3. Jul 1, 2017 at 7:13 PM
    #63
    Steves104x4

    Steves104x4 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35468
    Messages:
    12,747
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2010 RC 2.7 4x4
    BUCKLE UP! It makes it harder for Aliens to pull you out of your Truck.
    Those dash lights have been on for seven years, now.! Can't say as I give a shit, anymore

  4. Jul 1, 2017 at 8:49 PM
    #64
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig

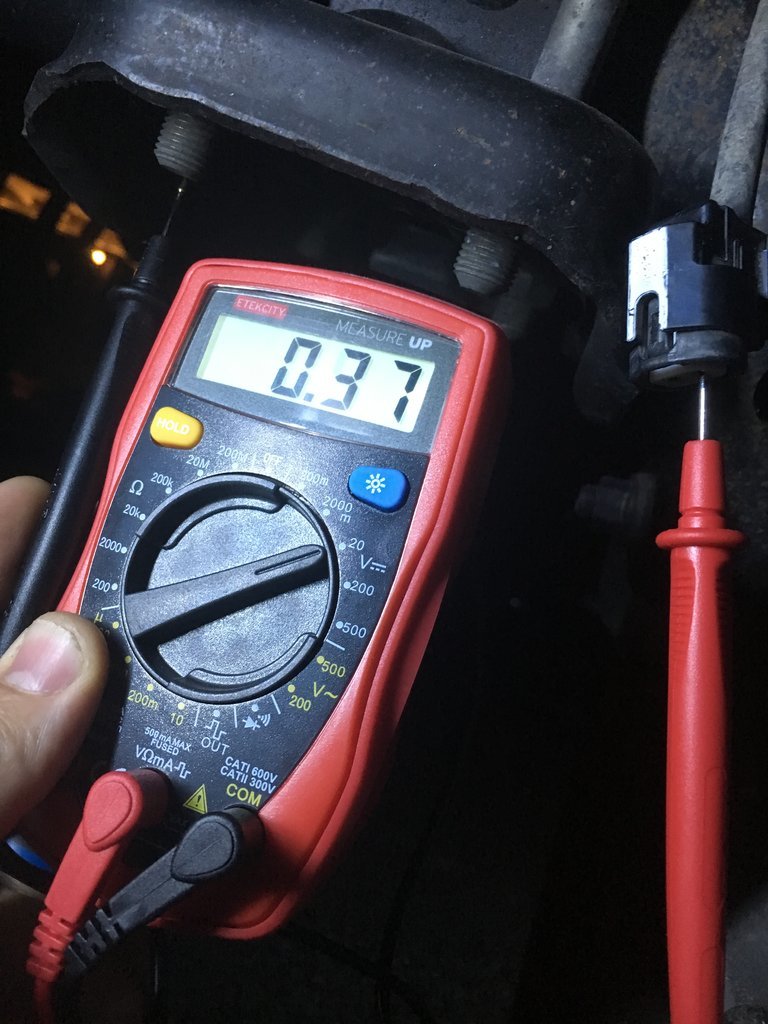

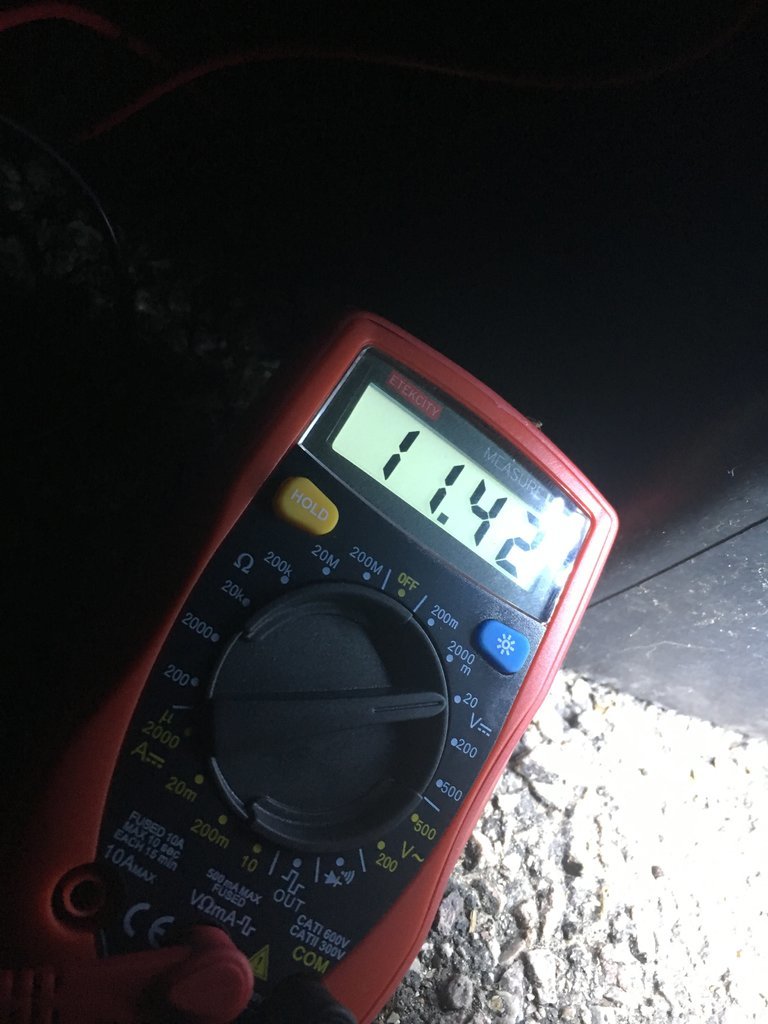

    :anonymous::facepalm:Wow total brain fart by me. I have no excuse for doing that wrong, just didn't set the dial correct. I just Re-tested and got similar results but showed a little bit of voltage on the driver's side. Well below 7.5V.

    Driver's side:

    Passenger side:

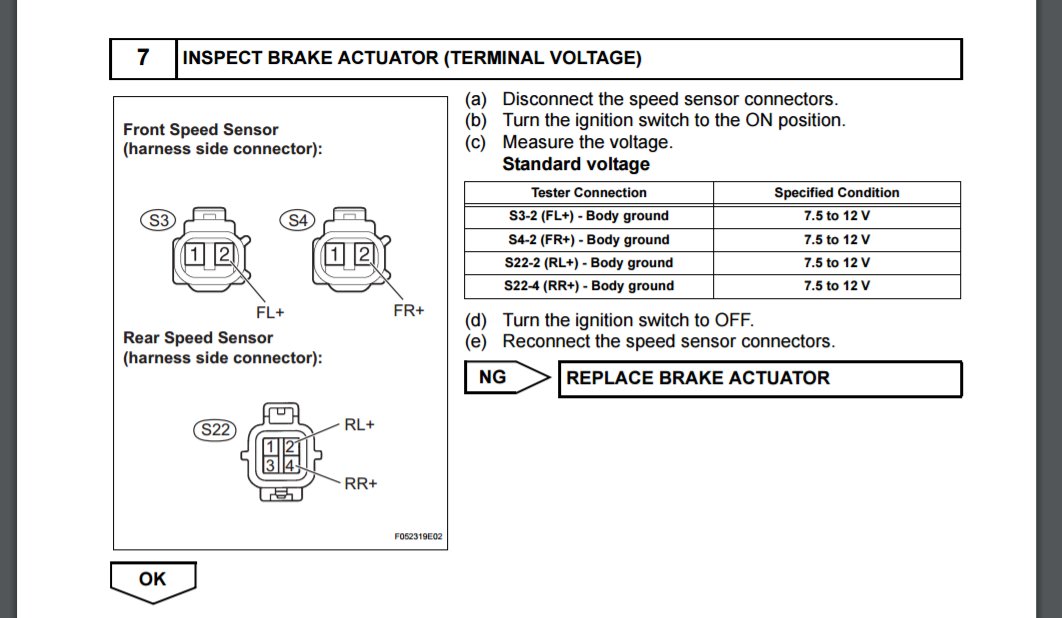

    Can you help me understand this better? I crawled up to the S22 connector which is above the rear diff (right?). I unplugged it and attempted to measure voltage from the connection side (not from the harness just to be clear). I could only get .8 when I grounded the multimeter to the frame.

    I really appreciate all the help. Believe me I'm learning along the way and of course from any mistakes I make so by all means teach me where I'm going wrong. :bowdown:

    Sandman614 likes this.
  5. Jul 1, 2017 at 8:57 PM
    #65
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    He's saying check, on the side of the harness towards the front of the truck, pin 2 (RL) to frame and then pin 4 (RR) to frame. This will eliminate the rest of the harness forward to the ECU as a problem if you have between 7.5-12v on both of those pins.

    WebberLander [OP] likes this.
  6. Jul 1, 2017 at 9:04 PM
    #66
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    Ok got it. I wasn't getting a good connection I believe tonight when I tried this so I'll try again tomorrow morning. S22 is the connector that the rear wheel speed harness plugs into correct?

  7. Jul 1, 2017 at 9:12 PM
    #67
    10MGM

    10MGM Well-Known Member

    Joined:
    Dec 13, 2009
    Member:
    #27475
    Messages:
    161
    Gender:
    Male
    Vehicle:
    2010 AC MGM 4x4
    Correct. You are testing the vehical harness to make sure there is voltage getting to the plug.

    WebberLander [OP] likes this.
  8. Jul 1, 2017 at 9:33 PM
    #68
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    Thank you. Ill try again tomorrow to get good readings and report back.

  9. Jul 5, 2017 at 5:30 PM
    #69
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig

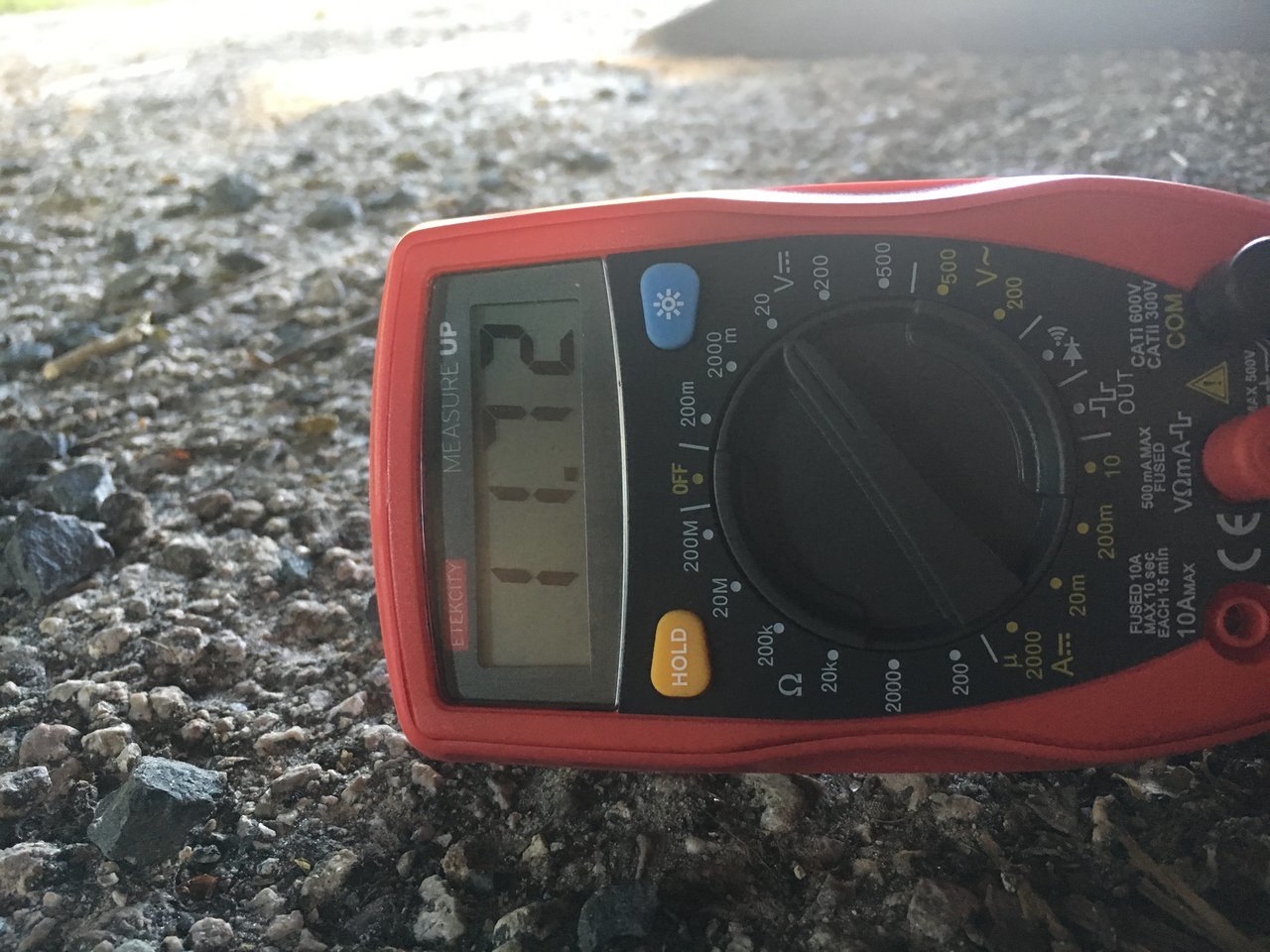

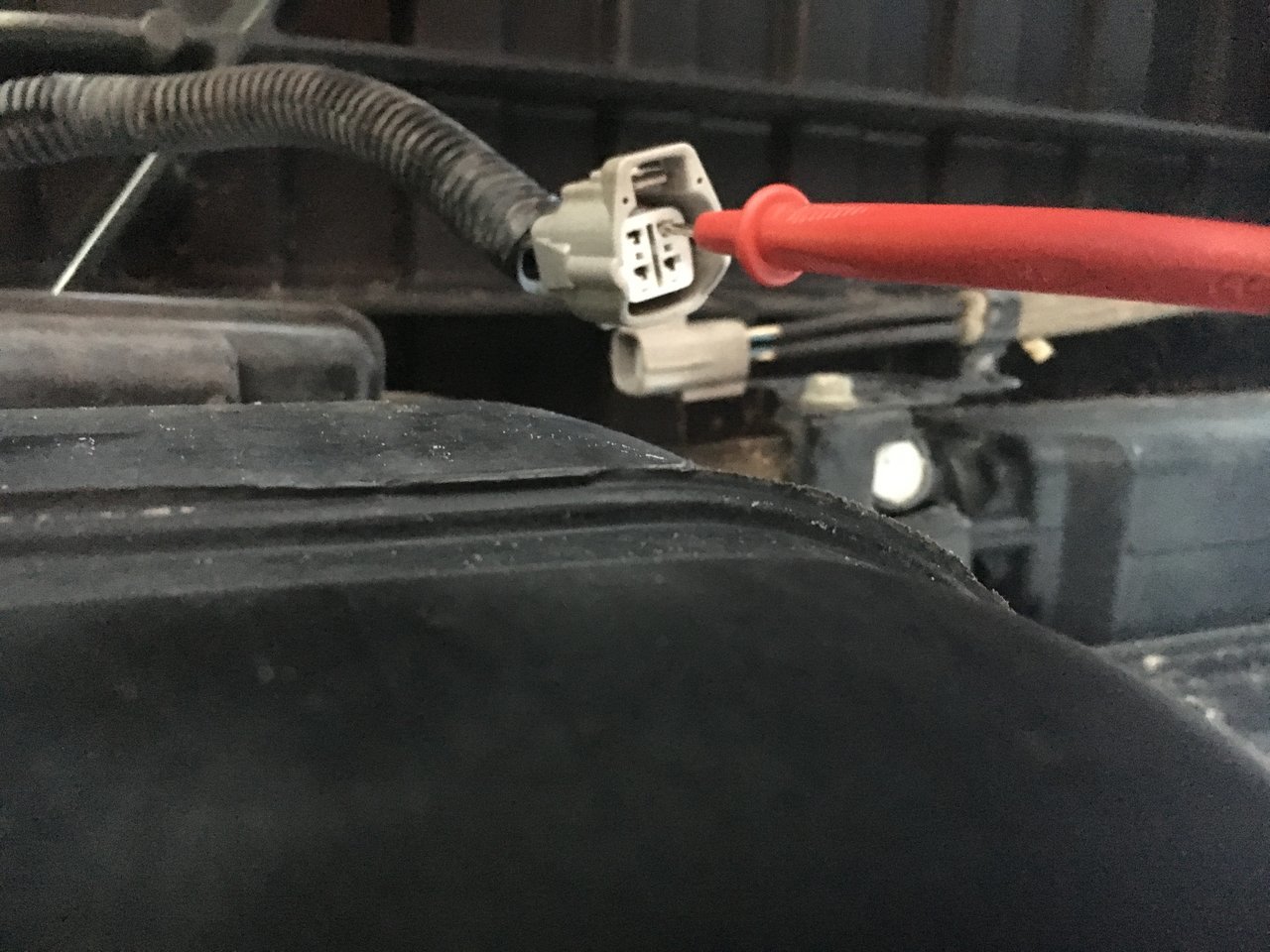

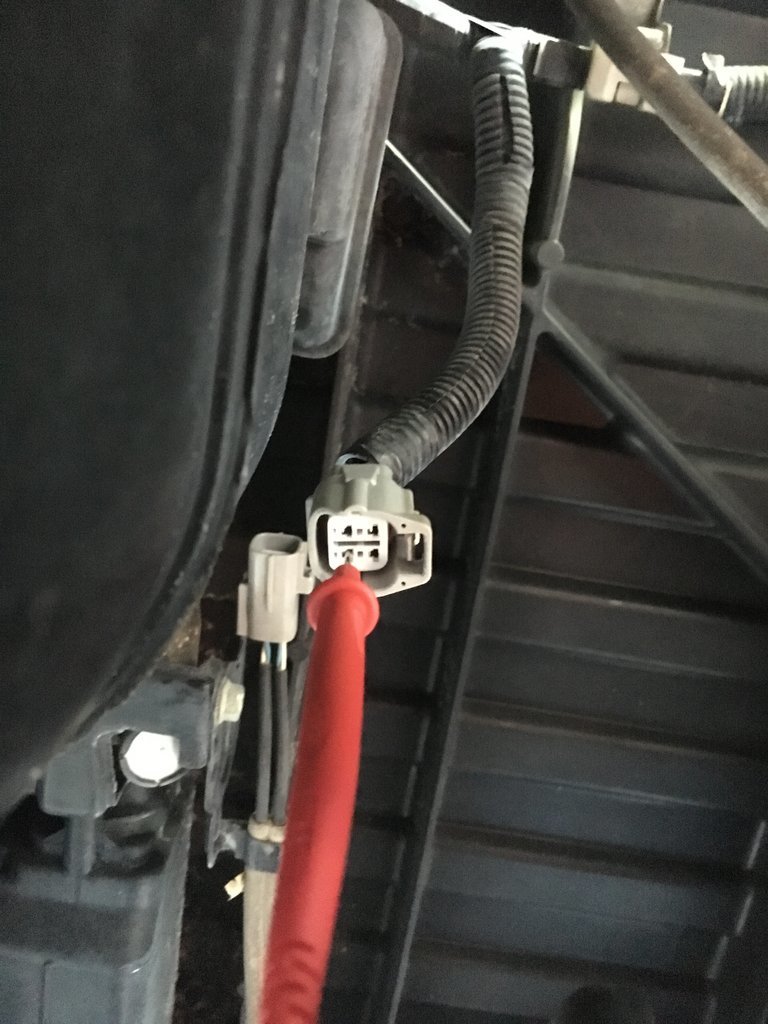

    Looks like voltage is getting to the plug. I tested both pins and got the same voltage. At this stage is it safe to assume the RL part of the harness is the culprit? I scanned the truck again after hooking the plug back into the rest of the harness that leads to the front of the truck and and cleared the RR wheel speed sensor fault. As expected the RL code did not clear.



    tomwil likes this.
  10. Jul 5, 2017 at 5:31 PM
    #70
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I'd say so.

    WebberLander [OP] likes this.
  11. Jul 5, 2017 at 6:42 PM
    #71
    10MGM

    10MGM Well-Known Member

    Joined:
    Dec 13, 2009
    Member:
    #27475
    Messages:
    161
    Gender:
    Male
    Vehicle:
    2010 AC MGM 4x4
    Good work

    WebberLander [OP] likes this.
  12. Jul 7, 2017 at 8:58 AM
    #72
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    Part is on its way. Ended up getting it from ToyotaPartsDeal.com for $93.66 shipped. Everybody locally wanted over $130 which is not that much of a difference but at this point I can wait a few more days. Excited to finally have this issue resolved once and for all. I'll also cut open the old harness once I have the codes cleared and determine where the wires are damaged.

    Thank you again TW for all your help.

    la0d0g likes this.
  13. Jul 7, 2017 at 9:05 AM
    #73
    bijick

    bijick such mods much want

    Joined:
    Jan 9, 2016
    Member:
    #174469
    Messages:
    1,576
    Gender:
    Male
    First Name:
    E
    Stl
    Vehicle:
    2013 MGM Singular Cabular Selectable
    OME 884’s ,Dakar hd’s, Jba uca, lce header, 4.88’s, Arb locker , j shift tcase-T4R, arb bumper, leer topper, 3500w inverter, mad wife, scratched paint, skid plates, snorkelerer, led flush mount reverse lights, etc..
    Same stuff happened with mine, I think I hit it coming out of a rut. Same lights came on I bought a $15 wheel sensor off Amazon and it fixed it, it's been about 7 months with no issues

  14. Jul 7, 2017 at 9:07 AM
    #74
    bijick

    bijick such mods much want

    Joined:
    Jan 9, 2016
    Member:
    #174469
    Messages:
    1,576
    Gender:
    Male
    First Name:
    E
    Stl
    Vehicle:
    2013 MGM Singular Cabular Selectable
    OME 884’s ,Dakar hd’s, Jba uca, lce header, 4.88’s, Arb locker , j shift tcase-T4R, arb bumper, leer topper, 3500w inverter, mad wife, scratched paint, skid plates, snorkelerer, led flush mount reverse lights, etc..
  15. Jul 7, 2017 at 9:25 AM
    #75
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    This was the first step I took by simply replacing the wheel speed sensor but I could not get the fault code to clear via Tech Stream. So further diagnosis indicated that I am not getting enough voltage to the sensor itself so the problem lies in the harness. Before ordering a new harness I made sure (thanks to help from members here) that my issue wasn't in the wiring from the ECU at the front of the truck. After verify voltage is getting to the harness plug I determined the skid wire control harness needs to be replaced.

    I don't expect you to read through the whole thread but I've documented my diagnosis up to this point which helped me order the correct part(s) instead of just throwing money and parts are it.:thumbsup:

    bijick likes this.
  16. Jul 9, 2017 at 9:18 AM
    #76
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    SUCCESS!!

    As suspected, the problem was indeed the harness. Upon removal of the entire old harness and inspection of it, I found both wires on the RL at the connector to the wheel speed sensor had a ton of play in them. After shinning an LED flashlight into the connector you could see exposed copper so from what I gather something got snagged right before the connector enough to break the connection inside. I don't know how it didn't break the original wheel speed sensor itself being that it is plastic but none the less, that was the problem.

    It was a great feeling finding that so I quickly installed the new harness, connected everything back up, scanned with tech stream and cleared all the codes. All the lights on the dash previously discussed in Post #1 are now off and truck is back to normal.

    A HUGE HUGE THANK YOU :bowdown::cheers::thumbsup:to @Sandman614 , @10MGM, @Bebop and the rest of you for contributing to this thread. For future readers I will update my original post with troubleshooting steps and the final solution including part numbers.

    Kolter45, llamasmurf, la0d0g and 2 others like this.
  17. Jul 9, 2017 at 9:19 AM
    #77
    Bebop

    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    Congrats on fixing the truck!!!!

    WebberLander [OP] likes this.
  18. Jul 9, 2017 at 1:10 PM
    #78
    WebberLander

    WebberLander [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Mark
    Webberville, TX
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    Updated Post #1 to include solution, part numbers and tools used. :welder:

    Drainbung, la0d0g and Sandman614 like this.
  19. Jul 9, 2017 at 5:13 PM
    #79
    Steevoreeno

    Steevoreeno Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216523
    Messages:
    301
    Gender:
    Male
    First Name:
    Steve
    Merrimack Valley, MA
    Vehicle:
    2015 Access Cab TRD Off-road
    I had these two lights on my 2015 TRD OR last Friday when I started my drive home from VT with camper in tow. I stopped for gas in NH halfway home and the were out when I started it up again.

    Guess I'll keep my eyes on it...

  20. Jul 9, 2017 at 6:05 PM
    #80
    Tex-Tac

    Tex-Tac Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16844
    Messages:
    805
    Gender:
    Male
    TEXAS
    Vehicle:
    2008 Tacoma V6 PreRunner SR5 Extended Double Cab Desert Sand Mica
    Installed Overhead Compass and Temperature Display along with outside temperature sensor and wiring; LED lights reverse backup; LED license plate lights; Added GTA Bluetooth Audio kit to stock radio for iphone audio; Spare tire steel braided air hose extension connection to rear bumper; Installed new headlights along with new bulbs PIAA H4 XTreme and for fog lights PIAA H10 XTreme bulbs. Installed new hood with "hood-scoop". Installed Predator Side Steps. Replaced front chrome grill with customized color matched (Desert Sand Mica) grill with added TOYOTA lettering (also in matched color), installed and secured tailgate anti-theft devices. Also installed a new external TPMS monitor for all 4 tires.
    Good you got that annoying problem resolved!

    Excellent troubleshooting work!:thumbsup:

    WebberLander [OP] likes this.
