Access cab power rear window installation

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Leggo, Apr 29, 2012.

  1. Apr 29, 2012 at 9:17 PM
    #1
    Leggo

    Leggo [OP] slow is smooth, and smooth is fast.

    Joined:
    Dec 16, 2010
    Member:
    #47805
    Messages:
    2,420
    Gender:
    Male
    First Name:
    Steve
    Newton,Ma.
    Vehicle:
    10 TRD Sport AC 4x4 MGM
    Kenwood HU,Infinity Kappa speakers (x4), Infinity reference tweeters(x2),10" Kicker sub, Box by Subthump, Infinty Five channel amp,DVD anytime bypass, DTRL Mod, Xtang trifecta, Fogs anytime Mod, Bed Mat,Westin running boards, Console vault, Maglite mod, Weathertechs,Autopage remote starter, Power tailgate lock, HID Bi Zenon, Hella Supertones,Rain guards,Rear leaf TSB,Steering shaft TSB, Fisher Homesteader plow, 886 reverse lights mod, Redline Hood struts, Hankook Dynapro ATM LT265/70R17, power sliding rear window, Auto dimming/on anytime Bed lights, Blue Sea fuse panel & 100amp Breaker, de- badged,Rear headrest's removed, imMrYo mirror relocation,Homeroshi grill
    Just a few quick photo's to show what I did with BenWa's mod. A quick how to for those who may be interested

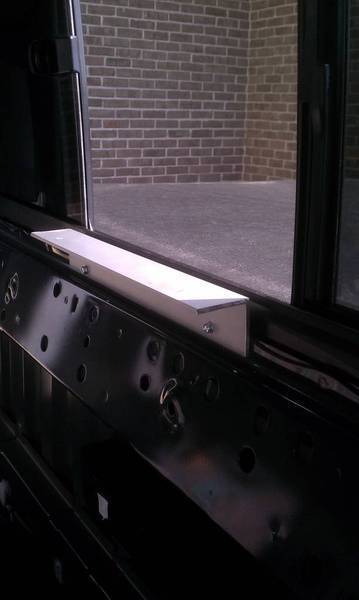

    First thing is to remove the rear panel and install this angle aluminum to the cab itself.
    [​IMG]

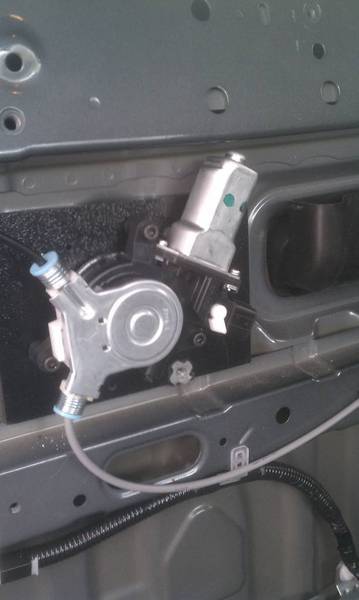

    second thing is to position the motor and mark the plastic square that I glued to the rear wall of the cab, for the mounting holes. I drilled and tapped them (1/4x20)
    [​IMG]

    On top of the angle aluminum, I mounted a piece of 1x1" aluminum square tubing.
    [​IMG]
    [​IMG]
    After locating the cable path's, I reinstalled the rear panel, head rest inserts, notched the passenger insert and reinstalled the sub.

    I forgot to talk about the wiring, I just ran the two wires up the rocker panels to the fuse panel area and installed the switch and add-a-fuse.
    [​IMG]
    [​IMG]

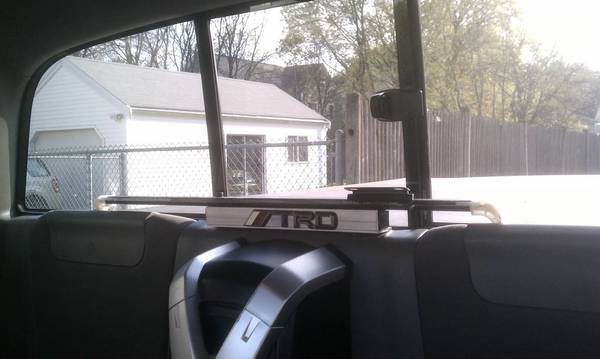

    I then cut a piece of angle aluminum and glued the bracket to the window, bolted it all together and in works perfectly.

    More detailed instructions
    1. Remove the rear panel and sub.
    2. Cut an 11” long piece of 1 ½ x 1 ½ x1/8” angle aluminum. Drill four 3/16” holes, two at each end, about an inch from each end and about a ¼” from the edge on one side, about ½ ” from the edge on the other
    3. Cut an 11” long piece of 1 x 1” x 1/8” aluminum square tubing and attach that to the angle piece (two holes predrilled 1/2” from the edge, on the angle aluminum) using two ½” #8 self tapping screws.
    4. Use two ½” #8 self tapping hex screws to attach the angle to the cab sheet metal under the rear window frame (centered, using the two holes ¼” from the edge)
    5. Position the motor assembly properly(see photo) and mark the hole positions. Drill and tap the holes ¼”x20 thread.
    6. Glue the plastic square plate to the cabin wall on the passenger side near the vent in the center. Apply the glue to the vertical “ribs” just above the bottom horizontal support. After the glue dries, mount the motor using ¼ x 20 x 1 ¼” SHCS’s
    7. Connect and feed the two wires around to the side and under the rocker panel covers, then forward to the fuse panel area.
    8. Remove the headrest assemblies and the small panels from the back panel section YOU WILL NOT BE ABLE TO REUSE THE REAR HEAD REST ASSEMBLIES! Position the trac above the aluminum and reinstall the back panel.
    9. Position the trac so that driver side cable runs down existing head rest hole in the insert (reinstall insert).
    10. Then drill two 3/16” holes equally spaced apart thru the trac into the square tubing. Then drill the holes you just made in the trac out to ¼” wide. Tap the two new holes in the tubing ¼” x 20.
    11. Attach the trac to the square tubing using two ¼ x 20 x 1” long SHCS’s.
    12. Mark the head rest insert for the passenger side to accept the cable and notch out with snips, then install insert.
    13. Remove the latch anchor (Base) from the window frame. (2 small Phillips screws). It will have some double sided tape but just pull it away. Cut a 2” x 3” x ¼” x 7 ¼” long angle aluminum (long enough to reach from the trolley plate to the holes in the window bracket supplied in the kit). Mark the 2” side to match up with the predrilled and tapped holes in the window bracket, and then drill two 1/4" holes. Place into position and mark the trolley bolt hole positions on the 3” side. (Drill and tap ¼ x 20).
    14. Bolt all pieces together and mark on the window, the bracket position, with tape over and under. (leaving where to apply the glue between). Remove the bolts from the trolley
    15. Apply glue to the window bracket and position on the window, install all bolts and let set for several hours.
    16. Knock out the blank for the switch and install the add-a-fuse and switch per instructions.
    17. Put in the fuse and try. Congratulations!

    Stock list​
    1 ½ x 1 ½ ” x 1/8” angle aluminum, 11” long.
    2 x 3” x 1/4” angle aluminum, 7 1/4” long.
    1 x 1” x 1/8” Aluminum square tubing, 11” long
    1/2 ” #8 self tapping hex screws (4)
    ¼ x 20 x 1/2 “ SHCS’s (4), SHCS = socket head cap screw
    1/4” x 20 x 1” SHCS’s (2)
    1/4”x 20 x1 1/4” SHCS’s (3)
    ¼” flat washers (9)
    1/4" lock washers (9)



    http://www.youtube.com/watch?v=w4lAdTyoyHs&feature=player_embedded
