Add a leaf long side back ?

Discussion in 'Suspension' started by C4vettrn, Sep 22, 2022.

  1. Sep 22, 2022 at 7:41 AM
    #1
    C4vettrn

    C4vettrn [OP] Well-Known Member

    Joined:
    Dec 4, 2014
    Member:
    #143630
    Messages:
    221
    Gender:
    Male
    First Name:
    Randy
    Ft. Wayne IN.
    Vehicle:
    2015 trd 4x4
    17" SR8's
    Installing icon add a leaf and noticed one end is longer. Does ling end go to rear of truck ? If so does OEM rear leaf clamp ge removed ? 2020 OR , thanks

    Last edited: Sep 22, 2022
  2. Sep 22, 2022 at 12:19 PM
    #2
    JFriday1

    JFriday1 Well-Known Member

    Joined:
    Jan 14, 2019
    Member:
    #279318
    Messages:
    262
    Gender:
    Male
    First Name:
    Jesse
    Golden, CO
    Vehicle:
    19 Taco TRD-Sport
    2" Lift Bilstein 5100's, 4runner Pro Rims, ARE MX Shell, URD Short shifter, S and B Intake, Braided Brake Lines, Kicker Tweeters, Victory Roof Rack, Wild Peak 255/80/17 10 ply. Sleeping Platform.
    Longer end goes to the rear for an Icon add a leaf.


    Grind off the Rivet on the leaf clamp on the overload leaf if keeping the overload in and if it interferes with the add a leaf lining up with it.

  3. Sep 22, 2022 at 12:25 PM
    #3
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    11,215
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    All the things!
    Another way of figuring it out, is the military double wrapped end goes to the front. This is a safety feature, in the even that the main leaf breaks

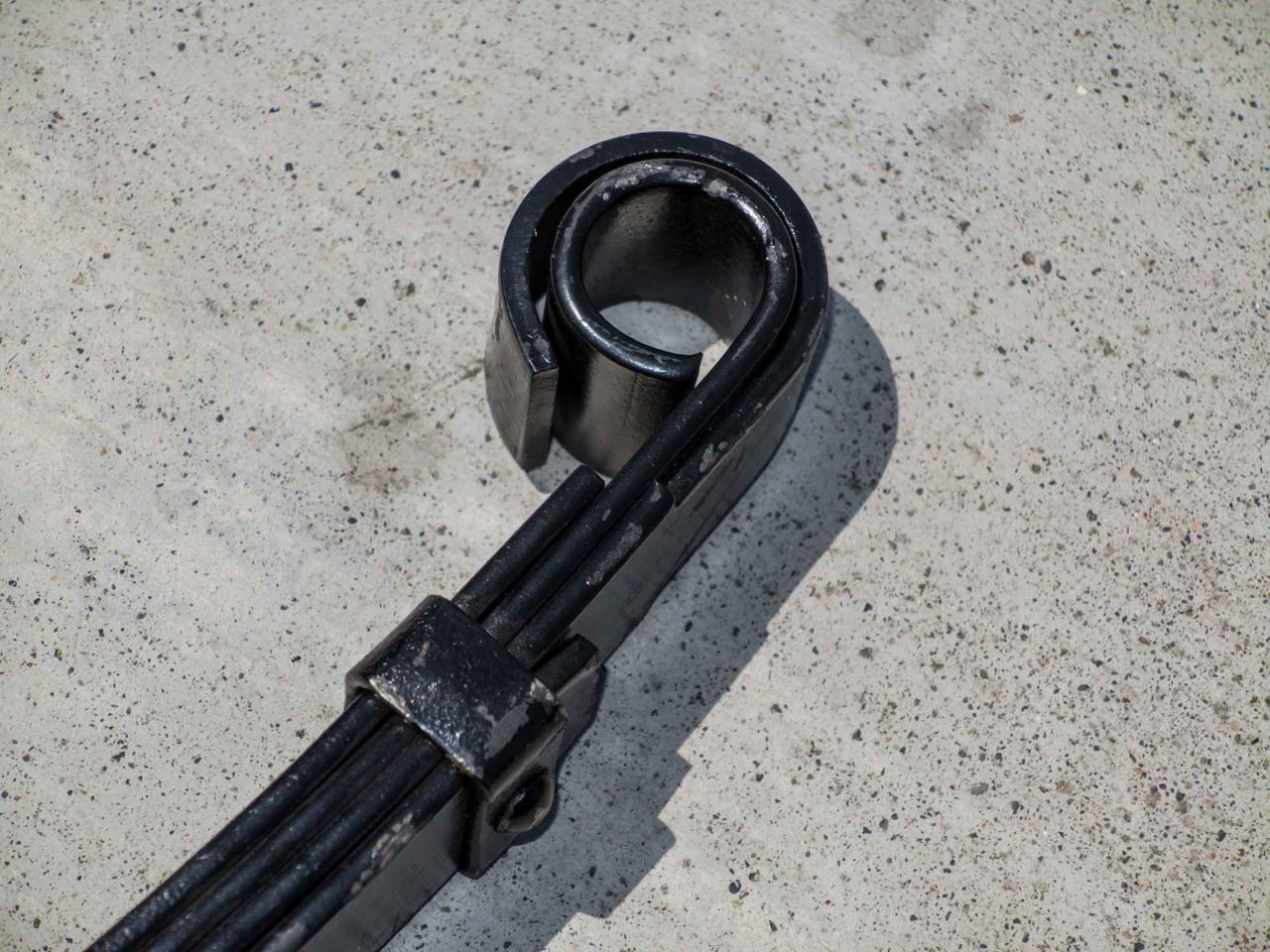

    Here is a military double wrap (front)

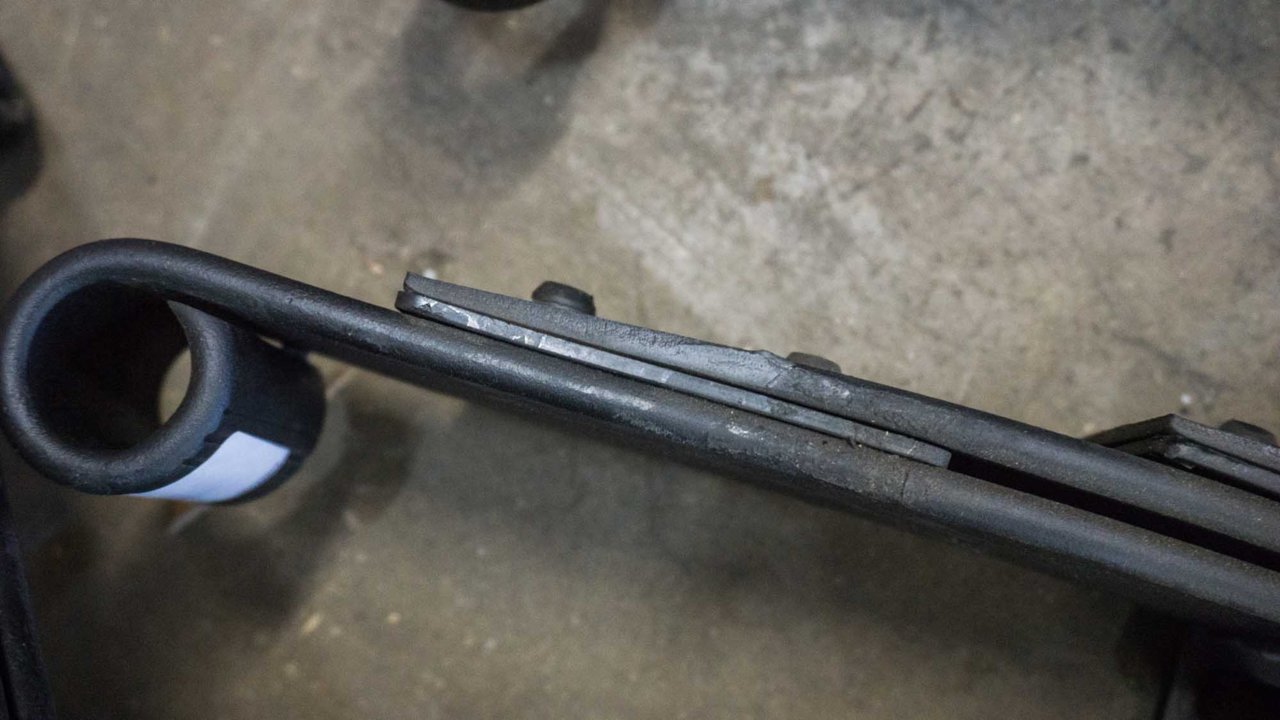

    Here is a single wrap (rear)

  4. Sep 22, 2022 at 4:48 PM
    #4
    C4vettrn

    C4vettrn [OP] Well-Known Member

    Joined:
    Dec 4, 2014
    Member:
    #143630
    Messages:
    221
    Gender:
    Male
    First Name:
    Randy
    Ft. Wayne IN.
    Vehicle:
    2015 trd 4x4
    17" SR8's
    What are y'all doing with the brake line brackets?

  5. Sep 22, 2022 at 7:18 PM
    #5
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    11,215
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    All the things!
    https://www.tacomaworld.com/threads...line-brackets-icon-deaver-old-man-emu.716616/

    Easily replicated with Amazon parts... confirm size of clamp needed.

    SOLARMAN 12 Pack 1-1/2 Inch Stainless Steel Cable Clamp, Rubber Cushioned Insulated Clamp, Metal Clamp, Tube Holder for Tube, Pipe or Wire Cord Installation https://www.amazon.com/dp/B085RDD25L

    Biaungdo 18x18x30mm/0.7"x0.7"x1.2" Adjustable Right Angle Brackets L-shape Corner Brace Support Black- (15 Pcs) https://www.amazon.com/dp/B07S25BH38

  6. Sep 27, 2022 at 5:36 PM
    #6
    C4vettrn

    C4vettrn [OP] Well-Known Member

    Joined:
    Dec 4, 2014
    Member:
    #143630
    Messages:
    221
    Gender:
    Male
    First Name:
    Randy
    Ft. Wayne IN.
    Vehicle:
    2015 trd 4x4
    17" SR8's
    Ok guys everything went well and ended up with 1 3/4" front and 1 1/4" in the rear. I am keeping the stock UPCA's for now. I am taking it to the shop for alignment tomorrow and was wondering if using factory specs will be ok or do I want to ask for max caster ? I have no tire rubbing issues whatsoever even when trying minimal articulation. Running 265/70/17 WildPeaks. Thanks!

  7. Sep 29, 2022 at 8:11 AM
    #7
    PasoSteve

    PasoSteve Well-Known Member

    Joined:
    Jun 27, 2018
    Member:
    #257713
    Messages:
    216
    Gender:
    Male
    First Name:
    Steve
    Denver, CO
    Vehicle:
    2020 Tacoma TRD Off-Road Silver
    SCS Ray 10's, Clazzio Leather Seats with bun warmers.
    Have them aim for 3-4 deg of caster. Slightly higher on the passenger side.
