Adding OEM White Console Lighting Elsewhere

Discussion in 'Lighting' started by TRSAndrew, Jul 31, 2019.

  1. Jul 31, 2019 at 5:19 AM
    #1
    TRSAndrew

    TRSAndrew [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,258
    Gender:
    Male
    ATL
    Vehicle:
    22 T4R Sport 6V7
    Want to add footwell or other lighting inside your Tacoma and want it to match 100% to the stock console lighting?

    Solution: Use OEM console lights!

    Toyota PN: 81080-12100 or 81080-42030. The difference is just the single tab on the connector for its wiring. I modified mine (see below), so it didn't matter. If one is on backorder, order the other. Literally no difference internally.

    These run about $13/ea at the Toyota parts counter.

    [​IMG]

    Inside of both is this little PCB:

    [​IMG]

    For my installs, I didn't need to use the factory-style mount (which is a twist-and-lock keyed hole), so I modified the plastic bodies of the lights for my use. See post 2 for that.

    Last edited: Jul 31, 2019
    tacotongue likes this.
  2. Jul 31, 2019 at 5:23 AM
    #2
    TRSAndrew

    TRSAndrew [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,258
    Gender:
    Male
    ATL
    Vehicle:
    22 T4R Sport 6V7
    For installs that are 100% hidden, such as footwell lighting, I wanted to make it a simple mount rather than exactly like factory, so I modified the plastic bodies of the lights to suit my desired install method (nut and bolt).

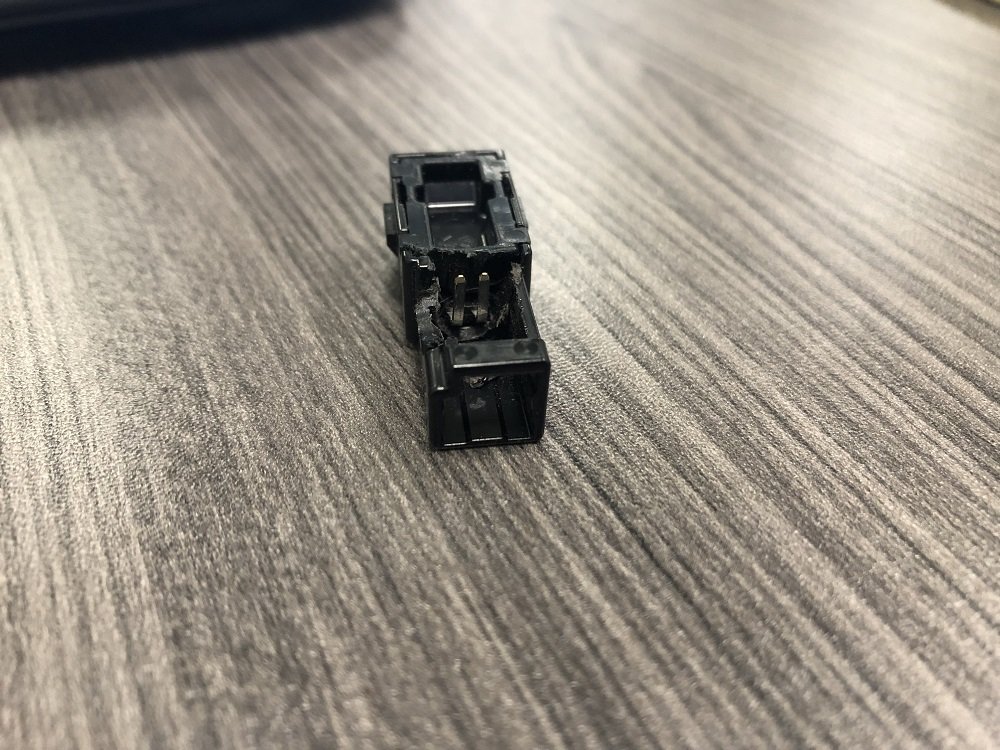

    1) I modified the unit first by removing the useless diffuser (which is how the light fits into the OEM console via that twist-to-lock tab design), then ground down the excess plastic to smooth it out.

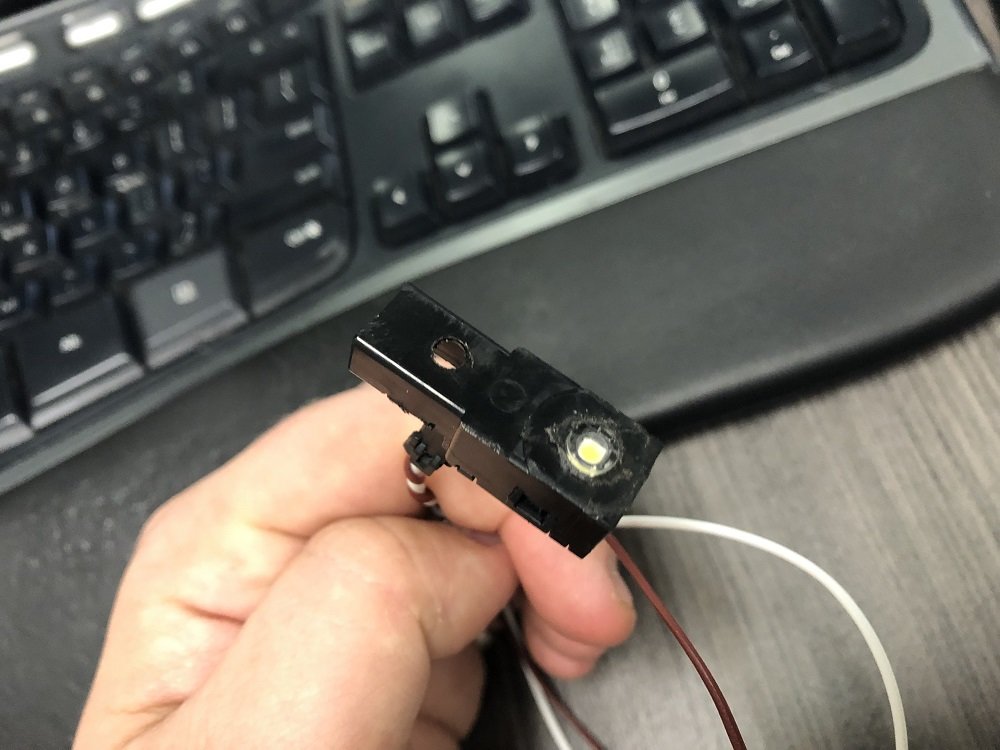

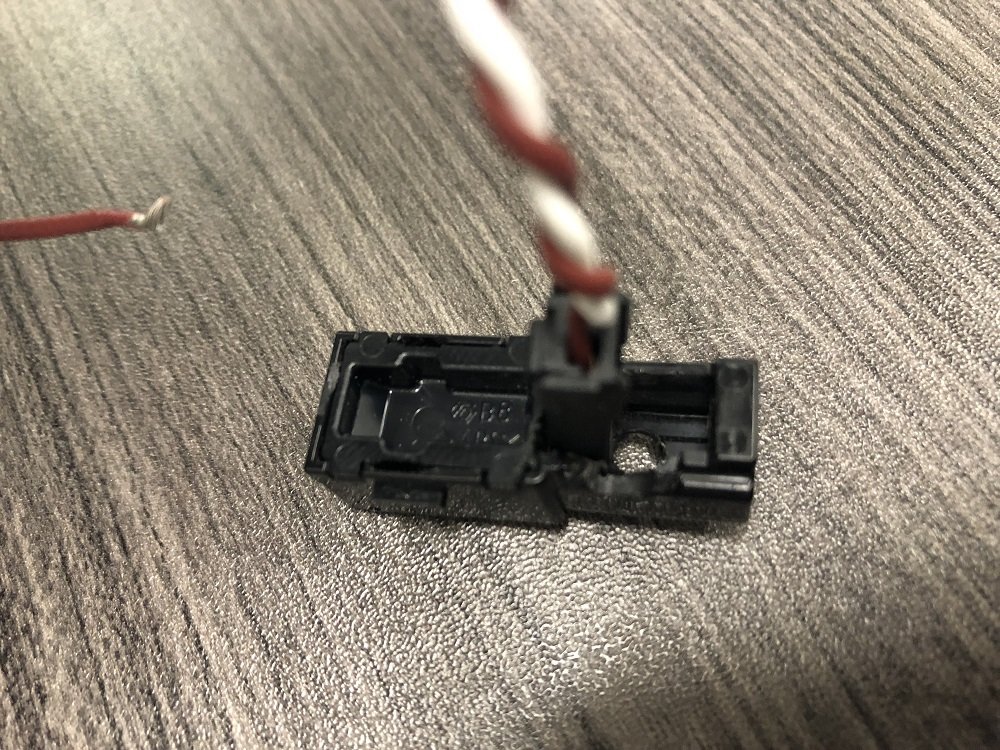

    2) I drilled a hole through the plastic body 3/4" from the center of the LED, making installation even easier. (e.g. if I want the hole... there, I need the mounting hole 3/4" away). Done and done. Because of this, and to access the screw head, I needed to bend the pins of the PCB 90-degrees up and out, and thus the case top over that area had to be snipped off.

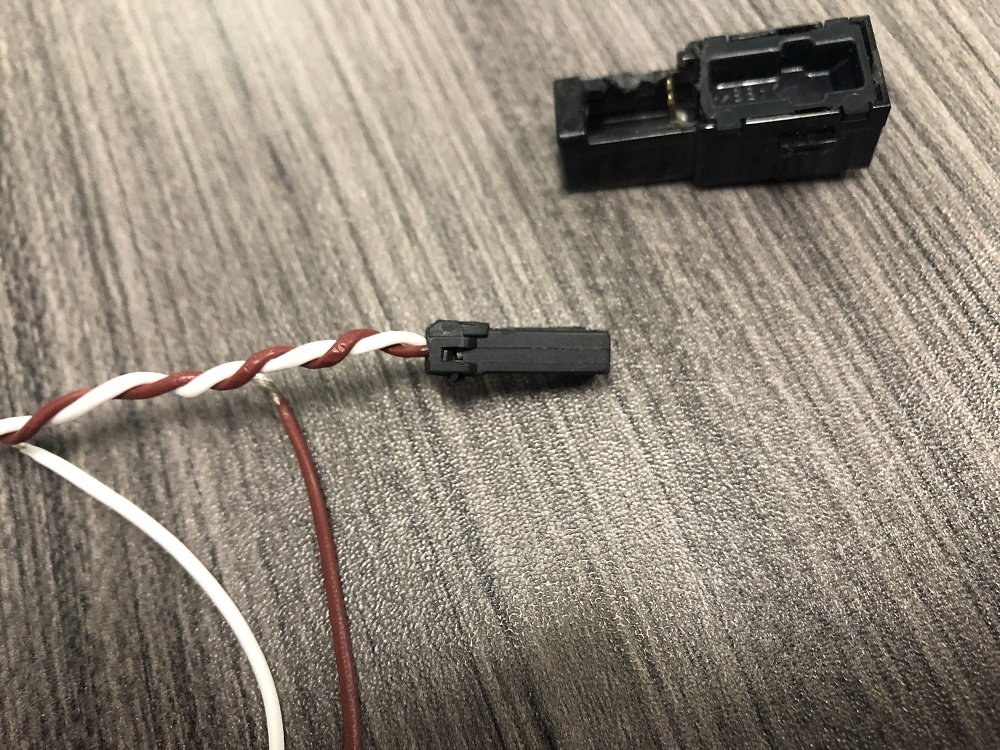

    2) For wiring, our handy Koito Solenoid Pigtails can be modified to clear the light's case with just simple snips.


    3) Then just pop the pigtail on, decide where to mount them, and wire them to the desired circuit. For door lighting, I'd find the wire for the window switch illumination. For console / footwell lighting, I'd just splice into the stock console light.


    Last edited: Jul 31, 2019
  3. Aug 1, 2019 at 9:21 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,325
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Neat, do you know the part number to the OEM power connector, instead of the Koito one?

    Flash1034 likes this.
  4. Aug 2, 2019 at 11:37 AM
    #4
    TRSAndrew

    TRSAndrew [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,258
    Gender:
    Male
    ATL
    Vehicle:
    22 T4R Sport 6V7
    I don't, sorry!

  5. Aug 2, 2019 at 2:49 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,325
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Do you know what circuit powers the console lamps?

  6. Aug 2, 2019 at 3:01 PM
    #6
    TRSAndrew

    TRSAndrew [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,258
    Gender:
    Male
    ATL
    Vehicle:
    22 T4R Sport 6V7
    Not yet but a voltmeter will tell all

  7. Aug 2, 2019 at 3:04 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,325
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  8. Aug 3, 2019 at 11:49 PM
    #8
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,228
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    If you find out please share. I’d like this with the pnp route adding 2 extra lights

  9. Aug 5, 2019 at 6:08 PM
    #9
    Flash1034

    Flash1034 Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45429
    Messages:
    1,171
    Gender:
    Male
    N/W Montana
    Vehicle:
    2023 Toyota Tacoma TRD Pro, Solar Octane, Automatic
    MESO Stage 1.5 LED Taillights Falken Wildpeak AT3W Tires in 265/75-16
    Subd. Could be a good solution for a glove box light.

  10. Sep 23, 2019 at 9:01 AM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,325
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

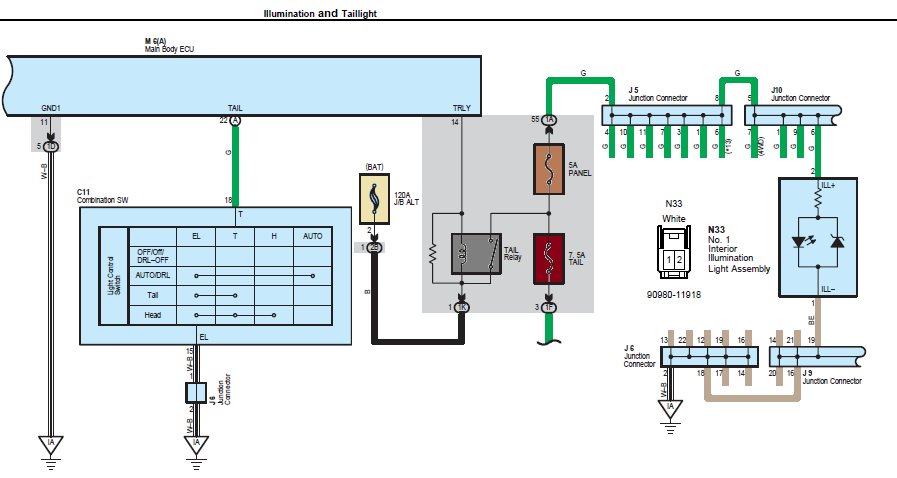

    Illumination circuit is the source for juice.

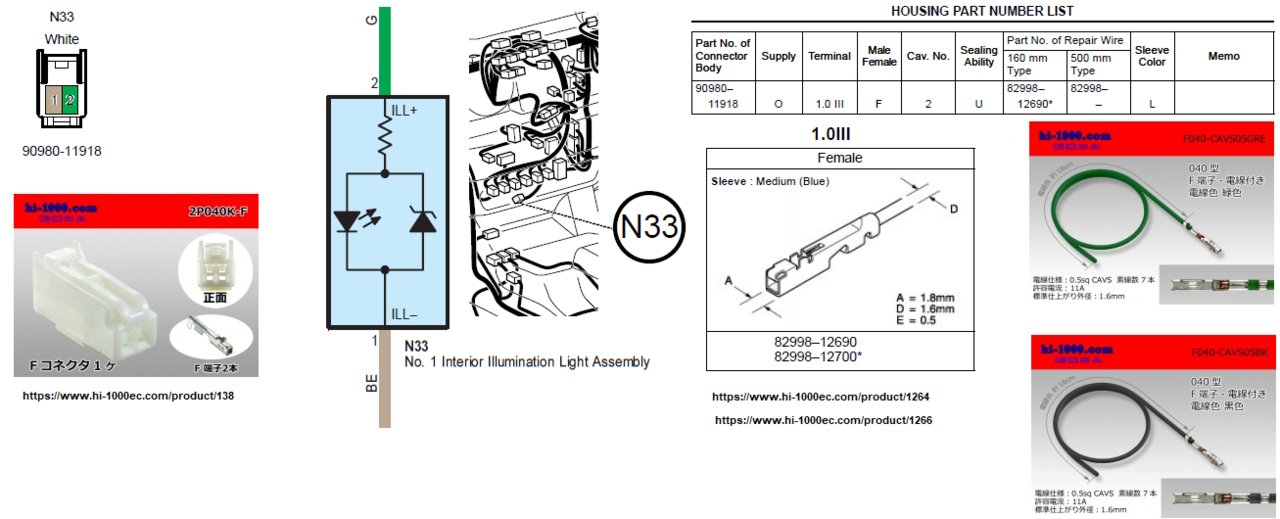

    https://www.hi-1000ec.com/product/138 90980-11918 connector (Japan)

    Last edited: Sep 30, 2019
    wahoobie likes this.
  11. Oct 8, 2019 at 6:30 PM
    #11
    jerkwithkeyboard

    jerkwithkeyboard Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178231
    Messages:
    973
    Gender:
    Male
    Western suburbs Chicago, ILL
    Vehicle:
    2016 TRD Sport DCSB Inferno 4x4, loaded /JBL/Tonneau Cover/ Roof Rack
    17" Black TRD rims Tacoma Stainless Steel Rear Tailgate Letter Inserts Brake light flasher Center LED 110v and 2-3amp USB plugs mod in back seat center 400w on all the time mod SSR-610-40 SumoSprings 32 INCH 180W CREE LIGHT BAR (5D ) AUXBEAM BedStep and Pop & Lock Power Tailgate Lock Blue LED glove box light (fix no light) Bed light Blue LED's Wired to turn on when Gate is opened Tempered Glass Center Touch Screen Protector Rear Camera anytime Navigation Bypass ( a must) Rexing V1 3rd Generation Dash Cam hard wired in OXILAM 912 921 LED Reverse Light 2000 Lumens TRD Pro Grill TRD Skid plate
    Just put a LED strip light on the top like i did. i have it on when the radio powers up.

    Sorry OP for jacking your thread... :bowdown:

    Last edited: Oct 8, 2019
  12. Oct 9, 2019 at 10:06 AM
    #12
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,228
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I think the whole point was having the lighting match. If i decide I want footwell lights (or even glove box) this is the route I’ll be going.

  13. Oct 9, 2019 at 12:45 PM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,325
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  14. Oct 9, 2019 at 1:20 PM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,325
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  15. Oct 9, 2019 at 7:09 PM
    #15
    jerkwithkeyboard

    jerkwithkeyboard Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178231
    Messages:
    973
    Gender:
    Male
    Western suburbs Chicago, ILL
    Vehicle:
    2016 TRD Sport DCSB Inferno 4x4, loaded /JBL/Tonneau Cover/ Roof Rack
    17" Black TRD rims Tacoma Stainless Steel Rear Tailgate Letter Inserts Brake light flasher Center LED 110v and 2-3amp USB plugs mod in back seat center 400w on all the time mod SSR-610-40 SumoSprings 32 INCH 180W CREE LIGHT BAR (5D ) AUXBEAM BedStep and Pop & Lock Power Tailgate Lock Blue LED glove box light (fix no light) Bed light Blue LED's Wired to turn on when Gate is opened Tempered Glass Center Touch Screen Protector Rear Camera anytime Navigation Bypass ( a must) Rexing V1 3rd Generation Dash Cam hard wired in OXILAM 912 921 LED Reverse Light 2000 Lumens TRD Pro Grill TRD Skid plate

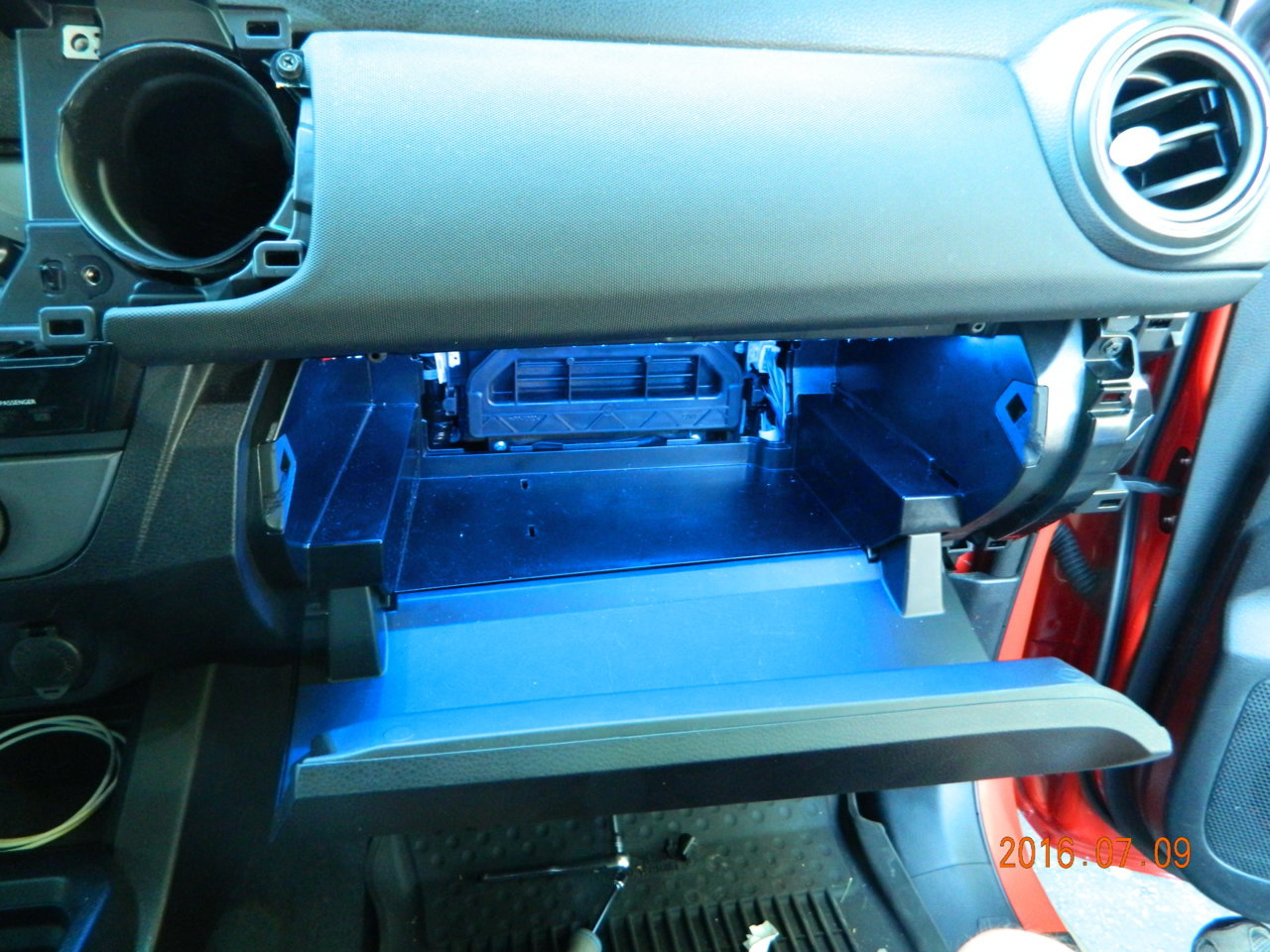

    I understand, I did have white LED in the glove box at first but it was to hard on the eyes late at night when the wife was looking for something, so i changed to blue. by the way, my bed lights i also changed to blue and will add blue LED to the bottom back seat foot area . I do like the link for the OEM blue lights, may be the simpler way to do it.

  16. May 8, 2020 at 7:35 AM
    #16
    schwartzki

    schwartzki Well-Known Member

    Joined:
    Feb 24, 2020
    Member:
    #320252
    Messages:
    71
    Gender:
    Male
    Midwest
    Vehicle:
    2020 Voodoo Tacoma TRD OR DCSB Prem/Tech/LED
    TRD Pro wheels, suspension & grill. KO2's, Front Window tint, Truxedo X15 Pro
    Anyone make any progress installing these in the cab?
