Adding the ability to turn on LEDs with Hi-Beam toggle?

Discussion in 'Lighting' started by rollin904, Sep 3, 2018.

  1. Sep 3, 2018 at 8:36 PM
    #1
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    I have my light bar and ditch lights wired to toggles in the cab of the truck but I live in a hilly area and find I'm often hitting the switches when I've already blinded an oncoming car. Can I simply add a tap to the high beam signal wire and allow them to come on then?

    This is the style switch I'm using https://caliraisedled.com/products/toyota-oem-led-light-bar-switch

    Would like to keep the ability to keep the switches active without the truck on or independently. Driving home today I ended up just using my high beams because I didnt want to react too slow to turning off my LEDs.

  2. Sep 4, 2018 at 6:42 AM
    #2
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    15,318
    Gender:
    Male
    Reno, NV
    Vehicle:
    96 Tacoma Xtra Cab 2.7L
    Toytec Bilstein 5100's, Chevy Leafs.
    Not sure on how the switch you have is wired but you can just use the positive High beam wire as the 12v trigger to the switch. That way the switch only gets power when the High is on.

  3. Sep 4, 2018 at 7:53 AM
    #3
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    Would using that as the signal wire prevent me from turning on the lights via the switches? I sometimes use them for lighting up areas when I'm out of the truck so I dont drain the batteries using headlights

  4. Sep 4, 2018 at 12:31 PM
    #4
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    15,318
    Gender:
    Male
    Reno, NV
    Vehicle:
    96 Tacoma Xtra Cab 2.7L
    Toytec Bilstein 5100's, Chevy Leafs.
    I'm not an electrical guru by any means so just thinking out loud here but maybe you could run a separate fused relay wire harness tapped into the headlight high's as one trigger and use the switch independently like you have as a second ON option.

    Edit: I think that might actually trigger your high beam though so maybe not a good idea. Unless you wired the switch to trigger off of a ground instead of positive.

    Gunshot-6A likes this.
  5. Sep 4, 2018 at 1:09 PM
    #5
    danwray

    danwray Well-Known Member

    Joined:
    Aug 21, 2018
    Member:
    #263556
    Messages:
    85
    Gender:
    Male
    First Name:
    Dan
    Kentucky
    Vehicle:
    2018 TRD OR 4x4 DCSB BBP TLDR
    I believe you could set this up with a SPDT Relay. By putting the positive input to you lights on the common pin, you could wire your current setup to the N/C pin so it would work like it already does. Then run a jumper to your highbeams to trigger one side of the coil, with the other side grounded, and the N/O pin on the relay should be hooked up to positive voltage. This would make it so when your high beams are off the system works as it already does, but when you flip on your high beams, the other lights come on as well, bypassing the switches.

    Summary - SPDT Relay pinouts:
    N/C (87a) = + voltage from current switch
    Common (30) = + input to LED lights
    N/O (87) = + power from battery
    Coil (85, or 86) = one side grounded, other side tapped to high-beam +

    Be sure to double check my suggestion, but I have done some LED lighting similar to this to wire a strobe controller to oem sockets with LED bulbs.

  6. Sep 4, 2018 at 1:22 PM
    #6
    Gunshot-6A

    Gunshot-6A In God We Trust; All Others We Monitor

    Joined:
    Dec 29, 2009
    Member:
    #28389
    Messages:
    10,061
    Gender:
    Male
    First Name:
    Conner
    Salt Lake City
    Vehicle:
    2015 TRD Offroad

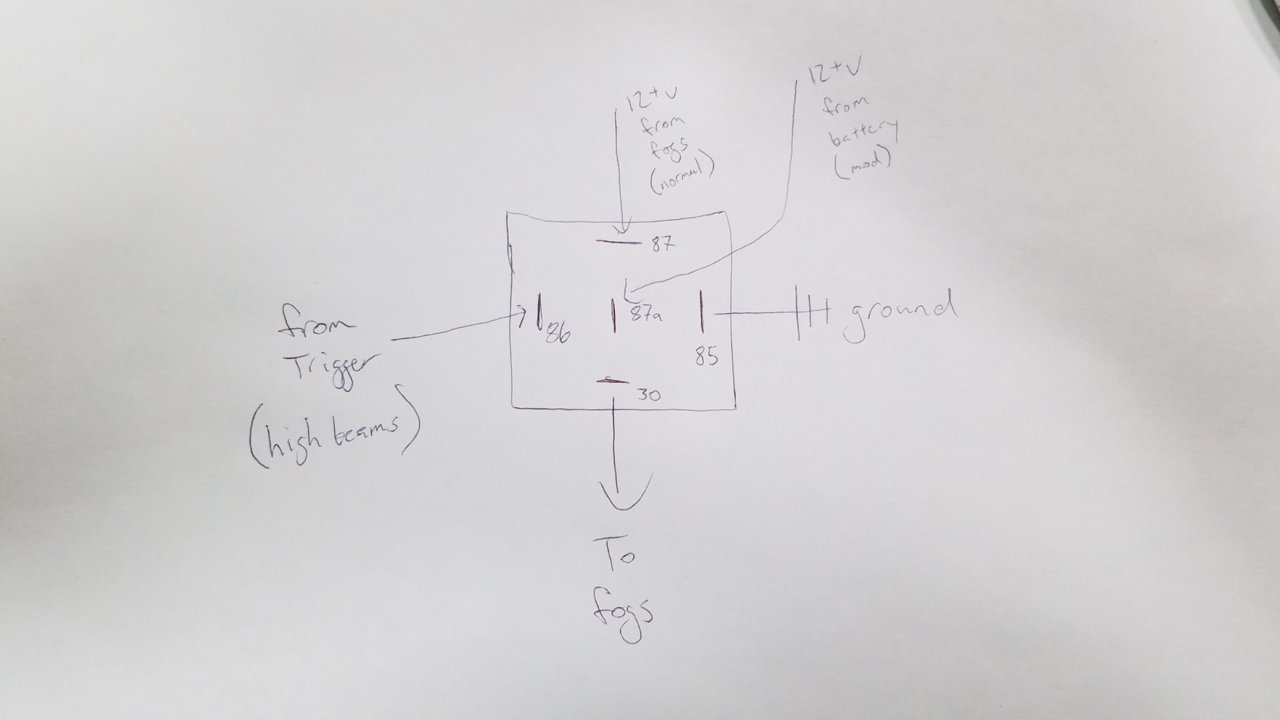

    Here is a diagram I made for someone wanting to do this with their fog lights. It is just a relay wired "backwards" to accept 2 sources to 1 output; a "poor man's diode".

    Substitute "light bars" for "fogs" off pin 30.

    Pin 87a would accept power from your existing light bar harness run by the dash switch. (essentially a nested relay since my diagram's relay would take power from the light bar harness' relay.

    Pin 87 would accept 12v+ power direct from the battery and would activate the light bars with the high beam trigger.


    Edit: the below diagram has 87 and 87a swapped. See correct instructions above.
    [​IMG]

    Last edited: Sep 4, 2018
  7. Oct 1, 2018 at 6:42 PM
    #7
    67siia

    67siia Well-Known Member

    Joined:
    May 18, 2015
    Member:
    #155493
    Messages:
    145
    Gender:
    Male
    First Name:
    J
    91381
    Vehicle:
    2009 4WD DCLB aka Chupacabra
  8. Oct 2, 2018 at 6:54 AM
    #8
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    Interesting. So take the signal wire from my existing switch and run it to the diode, then run a new wire to both the high beam toggle and the switch? So it could now be turned on via switch or toggle?

  9. Oct 2, 2018 at 7:10 AM
    #9
    67siia

    67siia Well-Known Member

    Joined:
    May 18, 2015
    Member:
    #155493
    Messages:
    145
    Gender:
    Male
    First Name:
    J
    91381
    Vehicle:
    2009 4WD DCLB aka Chupacabra

    This pic is for my backup lights + a switch to manually turn on as needed.

    Assume:

    A) The backup lights are your high beams (using a relay)
    B) The bed switch panel is your on/off light bar switch (using a relay)

    Let me know if this is clear


    rollin904 [OP] likes this.
  10. Oct 2, 2018 at 7:12 AM
    #10
    67siia

    67siia Well-Known Member

    Joined:
    May 18, 2015
    Member:
    #155493
    Messages:
    145
    Gender:
    Male
    First Name:
    J
    91381
    Vehicle:
    2009 4WD DCLB aka Chupacabra
    This is how I plan on wiring my light bar to ONLY high beam switch


  11. Oct 2, 2018 at 7:21 AM
    #11
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    Perfect, should work for what I'm doing. My lights are run through relays, I don't see a voltage maximum so I assume I'd be safe to run both my ditch lights and bar to one node on the diode?

  12. Oct 2, 2018 at 7:24 AM
    #12
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    Are you tapping directly to your high beam wire or using a fuse-tap connection?

  13. Oct 2, 2018 at 7:48 AM
    #13
    67siia

    67siia Well-Known Member

    Joined:
    May 18, 2015
    Member:
    #155493
    Messages:
    145
    Gender:
    Male
    First Name:
    J
    91381
    Vehicle:
    2009 4WD DCLB aka Chupacabra
  14. Oct 2, 2018 at 8:04 AM
    #14
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
  15. Oct 2, 2018 at 8:19 AM
    #15
    67siia

    67siia Well-Known Member

    Joined:
    May 18, 2015
    Member:
    #155493
    Messages:
    145
    Gender:
    Male
    First Name:
    J
    91381
    Vehicle:
    2009 4WD DCLB aka Chupacabra
    I’m not sure yet. I’m waiting for my manual.

  16. Oct 3, 2018 at 10:10 AM
    #16
    DirtyBrad

    DirtyBrad Well-Known Member

    Joined:
    Dec 30, 2011
    Member:
    #69687
    Messages:
    53
    Gender:
    Male
    Maryland
    Vehicle:
    Truck
    Bad mamma jamma
    I have a slightly different set up. I have fog lights, flood lights, and a light bar. Each have a switch. But the floods and light bar are also wired into a third switch. When it's off, their switches operate normally. But when the third switch is off, the floods and light bar only come on if their switch is on and the high beams are on. Complicated to write, but easy to use and configurable.

    I mostly drive with the light bar switch off, the flood switch on, and the third switch on. That has the floods come on with the high beams. That's usually plenty of light for on-road driving and I'm not killing people with the light bar if I forget to click the high beams off when someone approaches.

  17. Oct 3, 2018 at 2:01 PM
    #17
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    I'm guessing floods are configured like a ditch light? I really enjoy mine since adding them and they add enough light I really don't need my bar unless I'm on a flat stretch of highway.

  18. Oct 3, 2018 at 3:55 PM
    #18
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    1,846
    Gender:
    Male
    First Name:
    Noah
    Philadelphia, PA
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes Black Headlights and Corners 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors
    You could also use a Single Pole Double Throw (SPDT) switch. These are called ON-OFF-ON or ON-OFF-AUTO switches also. You run 12v from battery to one input, 12v trigger from high beam to another input, then have one output. This allows you to disable the lights if you want to.

    This only works if your truck triggers its high beams using 12v. 1st gen trucks have a ground triggered system.

  19. Oct 8, 2018 at 11:23 PM
    #19
    Badwin45

    Badwin45 Well-Known Member

    Joined:
    Jul 7, 2010
    Member:
    #39905
    Messages:
    246
    Gender:
    Male
    First Name:
    Chris
    OKC
    Vehicle:
    '10 DC 4x4 & '00 Pre-Runner
    Aries 4" Oval step tubes, Brute Force Fab rear bumper, Weathertech digifit floor liners.
    If you look in the fuse box in the engine bay, each headlight has a fuse for both the high and low beams. Add a mini fuse tap to one of the high beam fuses and use that for the “signal” wire to the relay coil. You can then run a single wire to the switch, and then from the switch to ground, to complete the circuit.

  20. Oct 9, 2018 at 12:01 PM
    #20
    rollin904

    rollin904 [OP] Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,335
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    So basically whatever switch wire runs to my relay, take the current wire off that runs to the in-cab switch and run a add-a-fuse from the fuse box and join those two wires together before plugging back into relay. So then it can come on via switch or via high beam toggle?
