Adjusting bright headlight height

Discussion in '2nd Gen. Tacomas' started by POWHANA, Feb 4, 2013.

  1. Feb 4, 2013 at 8:45 AM
    #1
    POWHANA

    POWHANA [OP] Well-Known Member

    Joined:
    May 17, 2012
    Member:
    #79004
    Messages:
    69
    Gender:
    Male
    Lake Tahoe
    Vehicle:
    2012 Tacoma TRD Off-Road
    My 2012 has a six inch lift, when I hit the high beams they are a bit high in the distance. Is there a way to adjust them?

    Thanks All...

  2. Feb 4, 2013 at 8:49 AM
    #2
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,614
    Gender:
    Male
    You need a skinny phillips or a small hand, there is a small wheel near the bottom of the lamp. Turn it to move the angle of the beams up or down.

    Edit: Behind the head lamp, near the bottom so you would have to open your hood obviously.

  3. Feb 4, 2013 at 9:06 AM
    #3
    POWHANA

    POWHANA [OP] Well-Known Member

    Joined:
    May 17, 2012
    Member:
    #79004
    Messages:
    69
    Gender:
    Male
    Lake Tahoe
    Vehicle:
    2012 Tacoma TRD Off-Road
    SWEET! Thanks LARGE!

  4. Feb 4, 2013 at 9:15 AM
    #4
    Warputer

    Warputer Dirt Road Inspector

    Joined:
    Jul 31, 2011
    Member:
    #60864
    Messages:
    6,287
    Gender:
    Male
    First Name:
    Chris
    Lake Murray, South Carolina
    Vehicle:
    2011 TRD Off Road
    Enough modifications to piss the wife off!!
    And the adjustment is a major pain in the ass to get to....good luck.

  5. Feb 11, 2013 at 4:36 AM
    #5
    dtopgun515

    dtopgun515 Well-Known Member

    Joined:
    Feb 21, 2012
    Member:
    #73285
    Messages:
    880
    Gender:
    Male
    First Name:
    Darrell
    Hey Yall Georgia
    Vehicle:
    13 TRD Sport
    5100's up front set to 1.75, SCS Stealth 6 wheels, Nitto Terra Grappler AT's
    Anybody possibly able to take pictures of the adjustment? I lifted my truck and drove it for the first time at night this weekend and every other car I flashed their brights at me. I even had a dude on a golf cart flashing his lights at me! Not cool really I need to get this straight.

  6. Feb 11, 2013 at 5:39 AM
    #6
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,798
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod

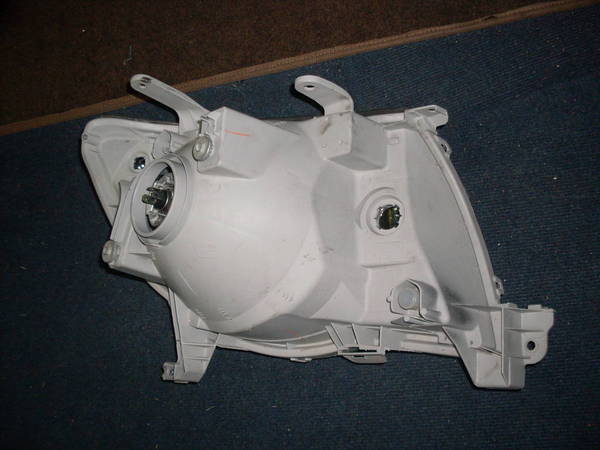

    It's the metal screw you see to the left and just below the headlight bulb. The one on the right is the one that adjusts the light side to side, the one on the left adjusts the horizontal. Use a long handled philips head screw driver and insert it from the top. You will see a channel that holds the shaft of the screw driver to make adjustment easier.
    [​IMG]

  7. Feb 11, 2013 at 2:20 PM
    #7
    dtopgun515

    dtopgun515 Well-Known Member

    Joined:
    Feb 21, 2012
    Member:
    #73285
    Messages:
    880
    Gender:
    Male
    First Name:
    Darrell
    Hey Yall Georgia
    Vehicle:
    13 TRD Sport
    5100's up front set to 1.75, SCS Stealth 6 wheels, Nitto Terra Grappler AT's
    That looks like it would be hard to get to if its on the truck!

  8. Feb 11, 2013 at 2:24 PM
    #8
    SnowmanFX

    SnowmanFX Well-Known Member

    Joined:
    Feb 8, 2012
    Member:
    #72428
    Messages:
    95
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    TX Pinstriped 08 Tacoma
    3" Lift w/small goodies
    If you use a long phillips head screwdriver on the "GEAR" it is very easy. There is a plastic channel to help keep the screwdriver centered.

  9. Feb 11, 2013 at 2:30 PM
    #9
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,798
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    VVV

    If you do it this way, it's actually very simple to make adjustments. I keep a long handled screw driver in my glove box just for this reason.

  10. Feb 11, 2013 at 2:35 PM
    #10
    dtopgun515

    dtopgun515 Well-Known Member

    Joined:
    Feb 21, 2012
    Member:
    #73285
    Messages:
    880
    Gender:
    Male
    First Name:
    Darrell
    Hey Yall Georgia
    Vehicle:
    13 TRD Sport
    5100's up front set to 1.75, SCS Stealth 6 wheels, Nitto Terra Grappler AT's
    I'll be adjusting tonight. Do you look at your brights when adjusting or your low beam?

  11. Feb 11, 2013 at 2:36 PM
    #11
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,798
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Low beams. I've attached the section from the FSM on how to adjust your lights properly.


    Attached Files:

  12. Feb 11, 2013 at 5:17 PM
    #12
    dtopgun515

    dtopgun515 Well-Known Member

    Joined:
    Feb 21, 2012
    Member:
    #73285
    Messages:
    880
    Gender:
    Male
    First Name:
    Darrell
    Hey Yall Georgia
    Vehicle:
    13 TRD Sport
    5100's up front set to 1.75, SCS Stealth 6 wheels, Nitto Terra Grappler AT's
    Thanks guys. Won't quit raining here so I guess ill be adjusting them another day. I printed that document off now I have to make since of what it says.
