Aftermarket Toyota switches

Discussion in '3rd Gen. Tacomas (2016+)' started by s.wilson, Aug 31, 2020.

  1. Aug 31, 2020 at 5:51 PM
    #1
    s.wilson

    s.wilson [OP] Less talk, more tech

    Joined:
    Jun 26, 2016
    Member:
    #190603
    Messages:
    173
    Gender:
    Male
    Morgan Hill CA
    Vehicle:
    1988 4Runner 3RZ, 2019 Tacoma TRD Off-Road
    TLCA Member #5261

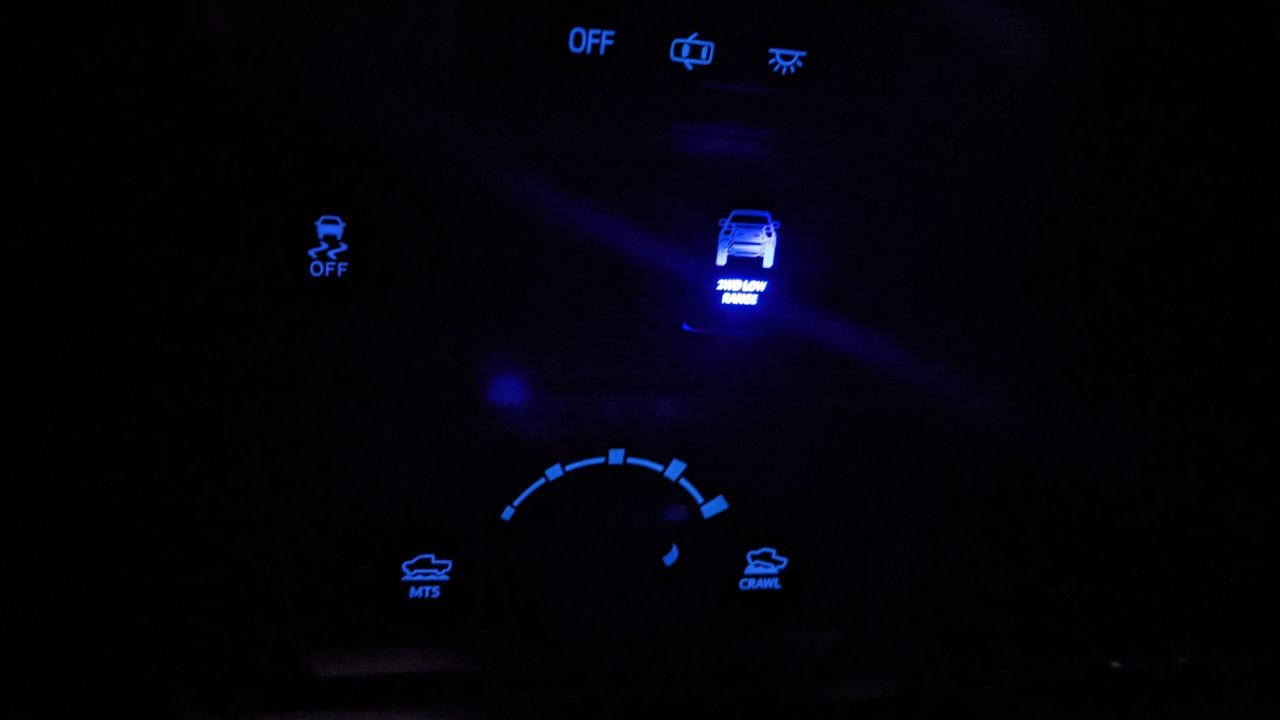

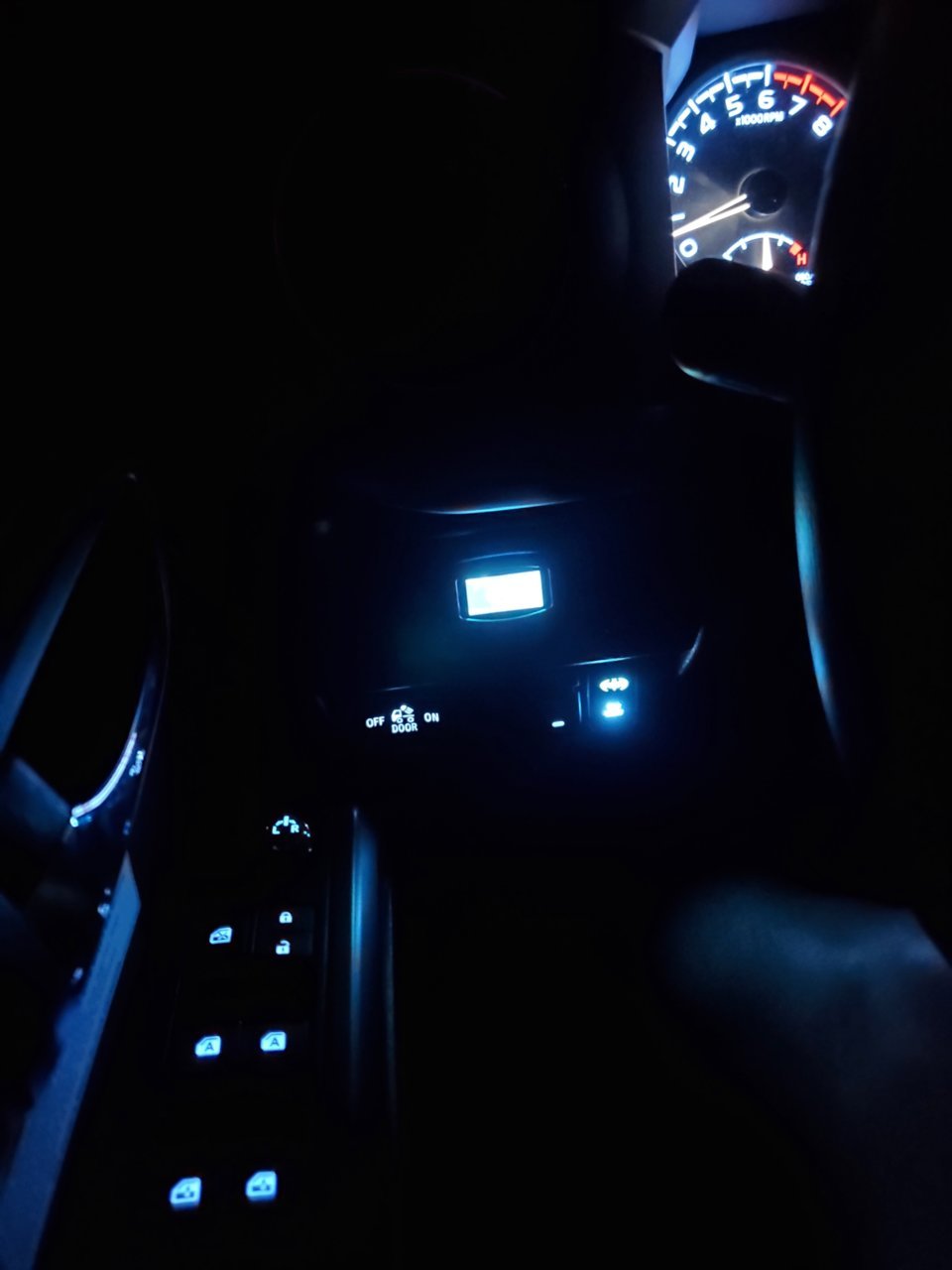

    Are there any aftermarket Toyota-sized switches that are illuminated similarly to a factory switch? I've used a couple of them with blue lighting, but they're obnoxious bright. I tolerated the one in my dash pretty well, but I need to find a better solution than the one I just added in the overhead console


  2. Aug 31, 2020 at 5:53 PM
    #2
    sbl23

    sbl23 Active Member

    Joined:
    May 11, 2018
    Member:
    #253177
    Messages:
    36
    Gender:
    Male
    First Name:
    Bryant
    Minnesota
    Vehicle:
    2020 DCLB TRD OR Black
    Captqc and s.wilson [OP] like this.
  3. Aug 31, 2020 at 10:24 PM
    #3
    mrkabc

    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,347
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?
    They only make those in "fat" size, not "tall."

    There's no real difference other than it's an "ice blue" LED rather than a "blue" LED.

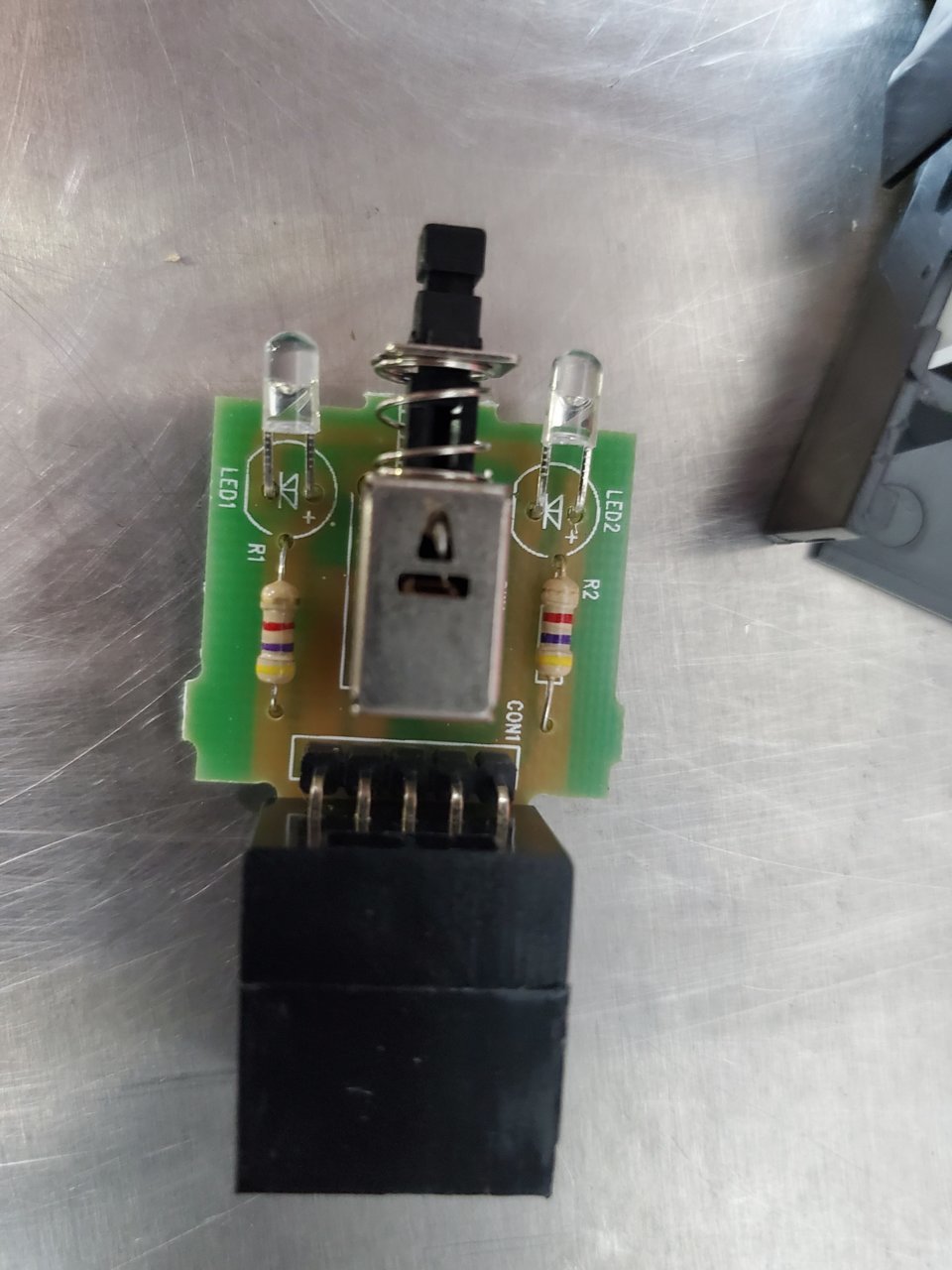

    I think the resistor needs to be replaced with a higher value than what is in these switches:

    Yellow>violet>red>gold = 4.7k ohms.

    @caribe makaira you're the electricity genius, (I'm 35 years gone from electricity training), any suggestions for the appropriate resistor value?

    Blue LED nominal voltage is 3.1vdc, about 25mA consumption for a 5mm LED.
    I have the same issue, changed out the "blue" LED to "ice blue" but want to tone it down.

  4. Aug 31, 2020 at 10:59 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,604
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Trial n error...adding/changing series resistor until you find your acceptable brightness. Sacrifice a switch to play with it, or get a breadboard with wires, resistors and juice the switch LED. :rimshot:

  5. Aug 31, 2020 at 11:12 PM
    #5
    mrkabc

    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,347
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?
    Blahhhhh... that means I need to buy a lot of resistors. Need to find a combo pack I guess. Any suggestions? :pout:

  6. Sep 1, 2020 at 12:12 AM
    #6
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,502
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    The two leds in a switch each have a resistor that sets max brightness. From there you can dim them using the dimmer circuit but they won’t be calibrated for brightness with your stock switches unless you replace the resistors with higher value ones. The exact value depends on the color led. Also, larger images and longer words laser etched to be backlit are unevenly illuminated and can involve some very fussy efforts to improve. I’ve seen resistor values from 1k to 3k ohms and have increased values up to 20k to achieve a decent match.

  7. Sep 1, 2020 at 12:28 AM
    #7
    mrkabc

    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,347
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?

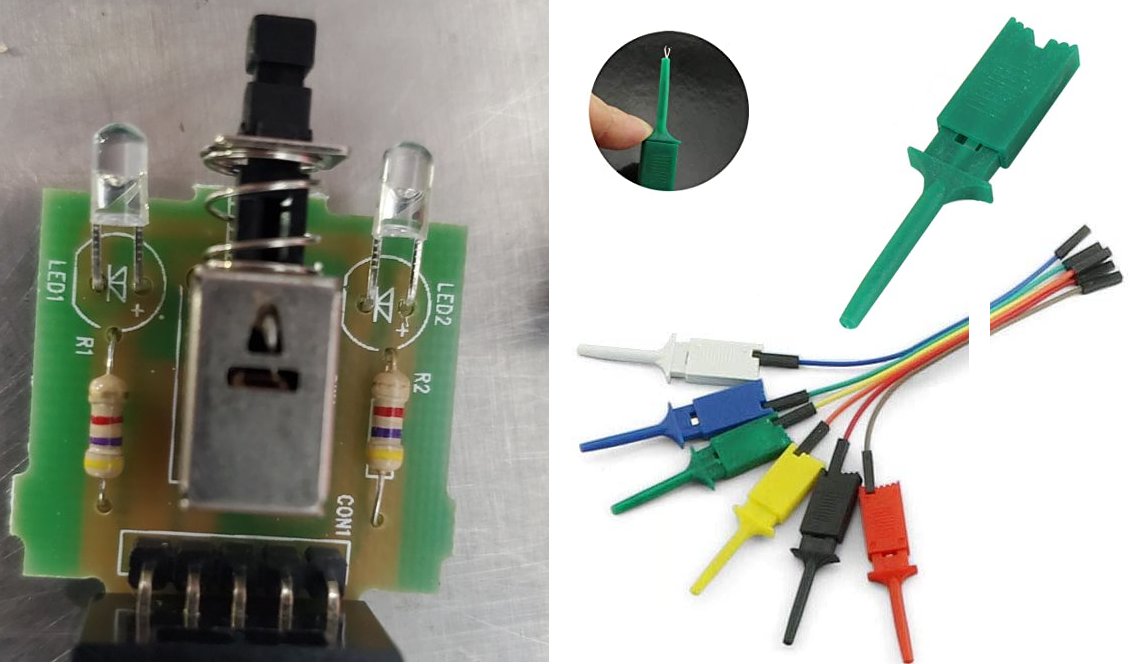

    You can see the 4.7k ohm resistor here. Maybe I can change over to 6k ohm and see what happens I guess...

  8. Sep 1, 2020 at 2:24 AM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,604
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  9. Sep 1, 2020 at 10:28 AM
    #9
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,502
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I’d try 10k. Also you can bend the leads of the led to push it back away from the image and lettering to spread out the light better.
    For switches that have a clear window for the switch”on” led I use 20k for that led.

  10. Feb 10, 2021 at 12:30 AM
    #10
    mrkabc

    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,347
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?

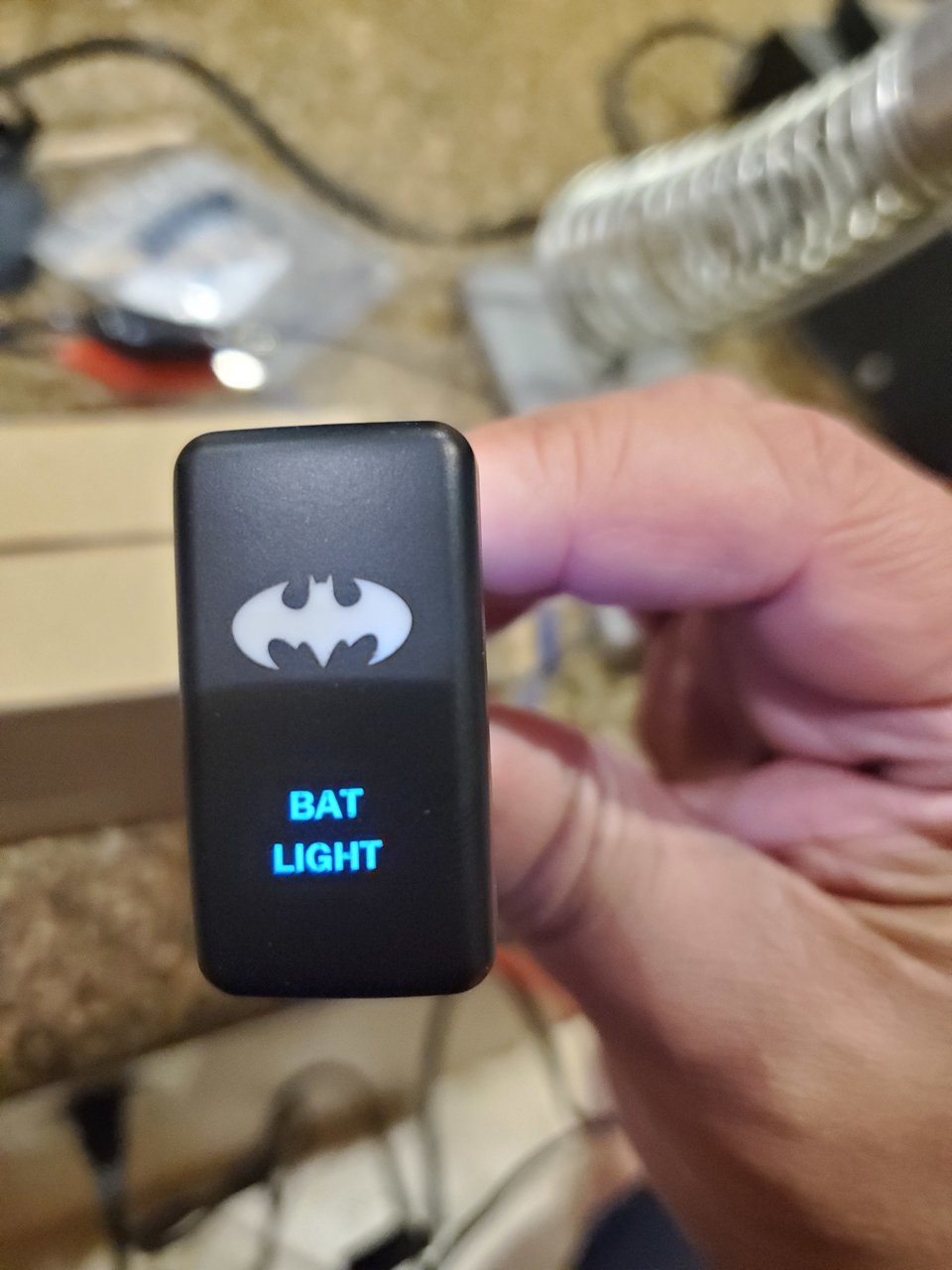

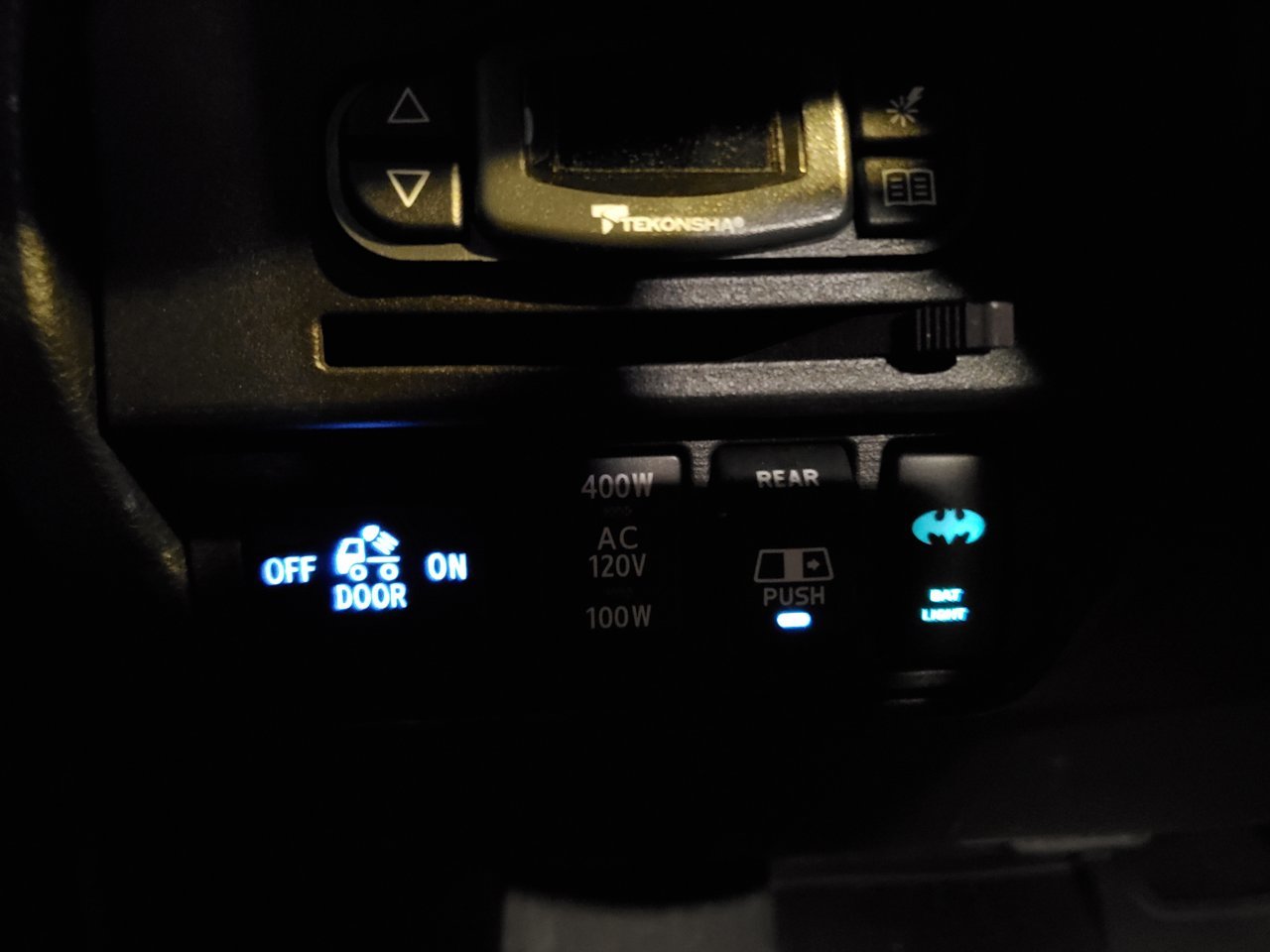

    Solved! For Cali Raised LED switch you'll need a 68k ohm 1/4 watt resistor on the LED that runs with the dome lights (blue wire):

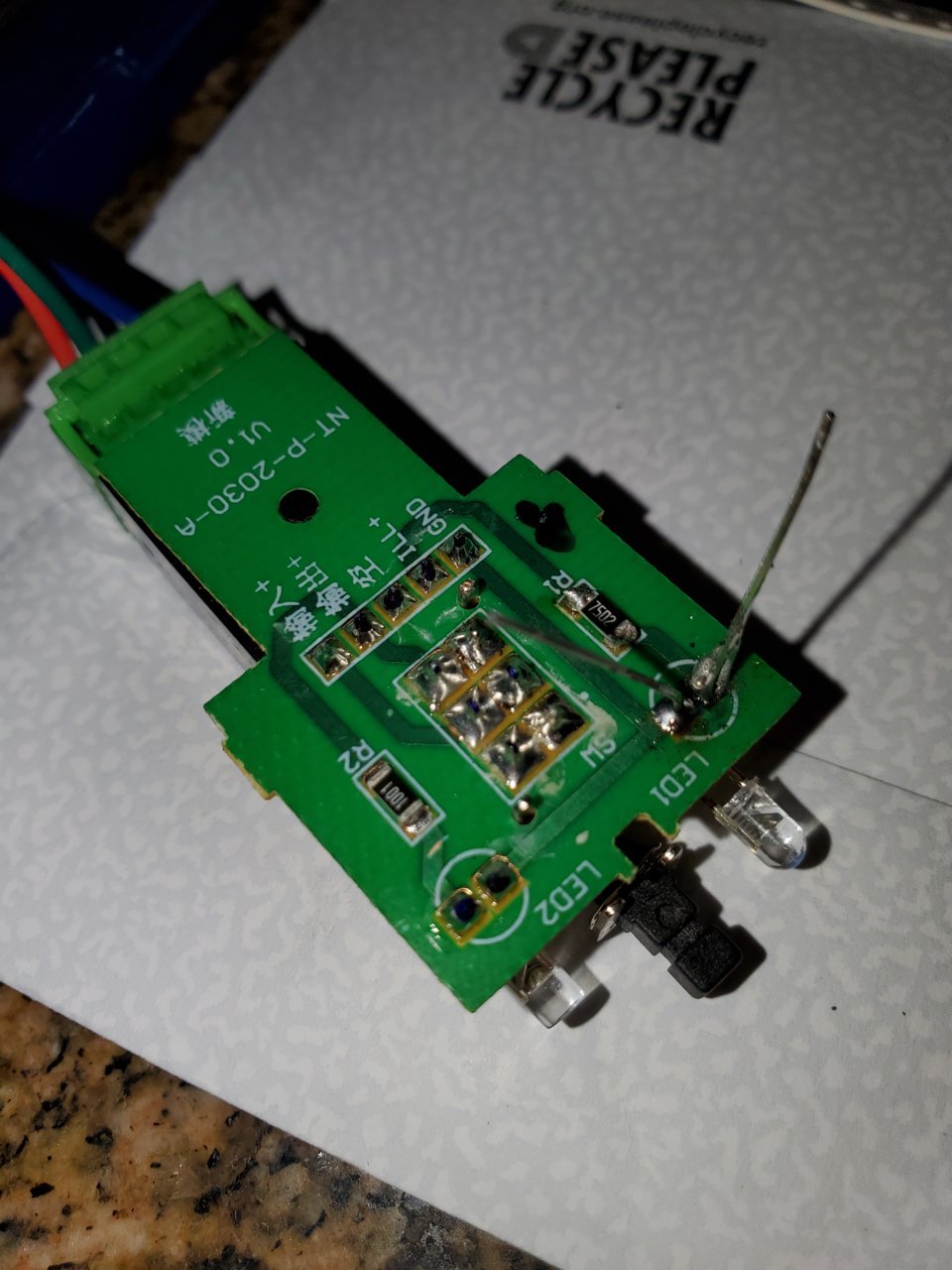

    For Air On Board switches, you'll need an SMD resistor. The pack I got from Amazon didn't include 68k ohm so I went to 75k ohm. (Note 7502 SMD resistor code) In retrospect I should have gone a bit lower (text is just a tad too dim but serviceable), my other option was 51k ohm. I recommend doing that if you go that route:

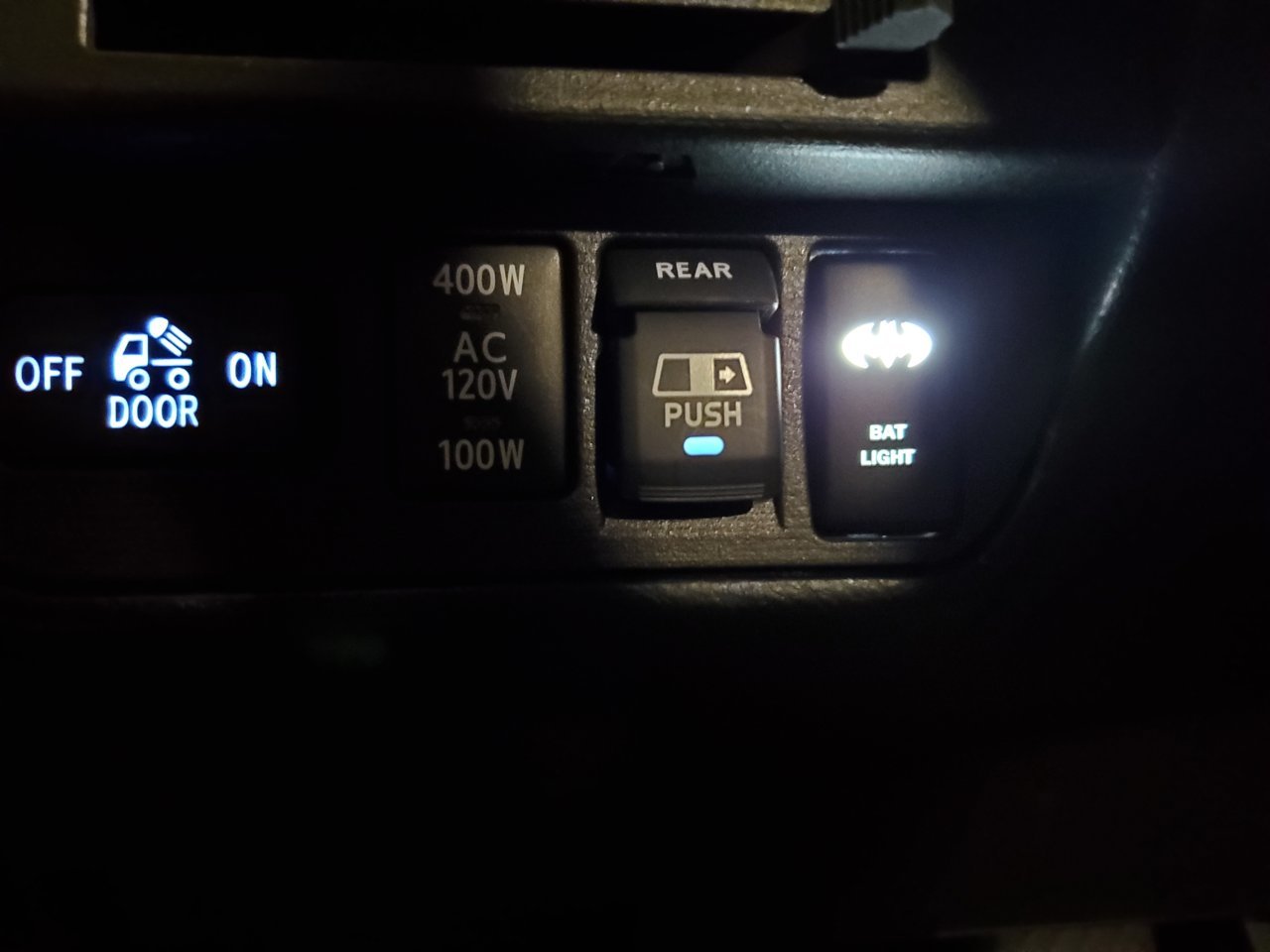

    I swapped out the stock white LED with a 3mm "ice blue" one to match the console lighting. Pushing the switch activates the upper white LED at high brightness:
    Hope this helps someone!

    Last edited: Feb 10, 2021
    ghost_ix likes this.
  11. Feb 10, 2021 at 7:26 AM
    #11
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    984
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

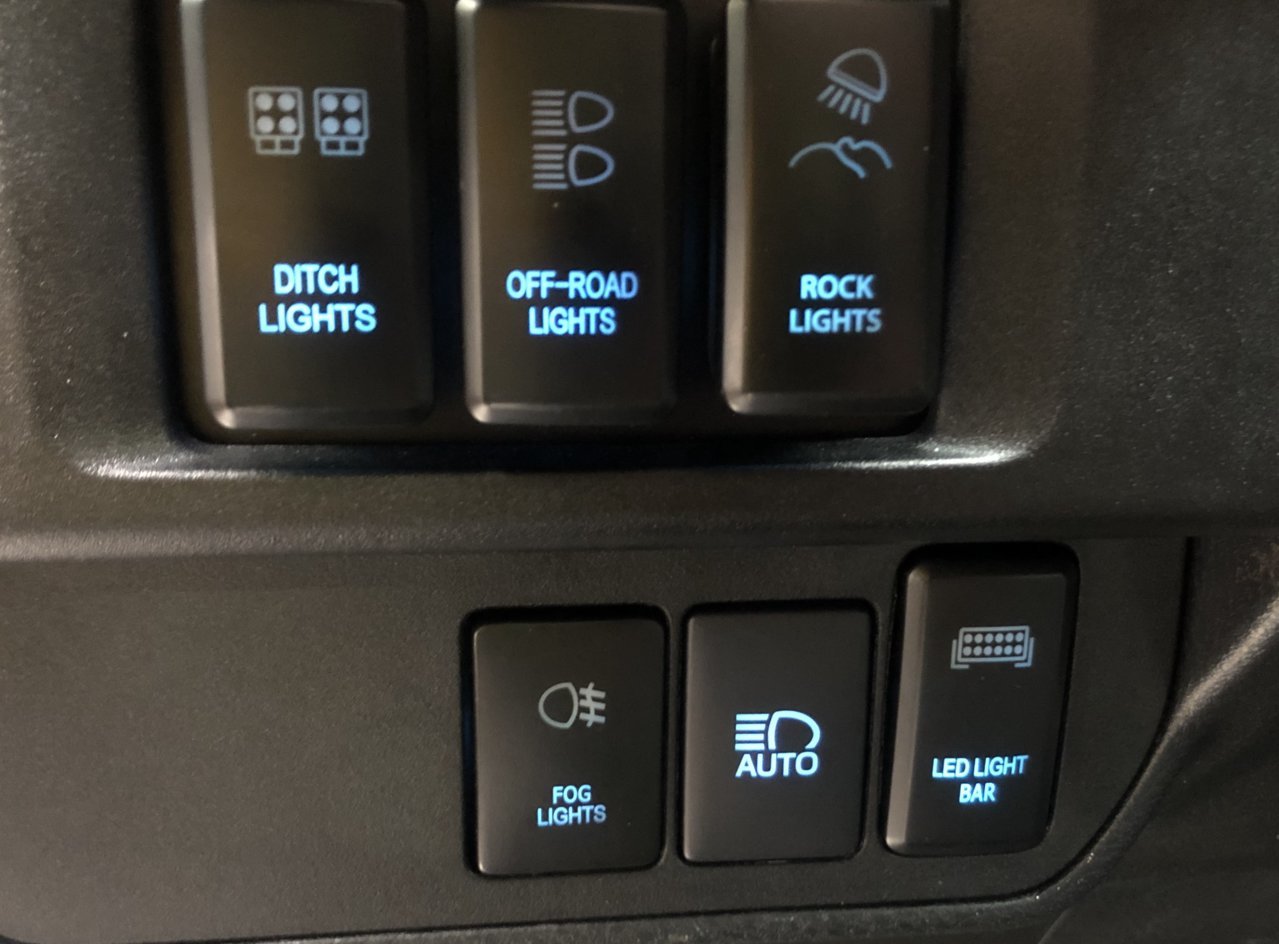

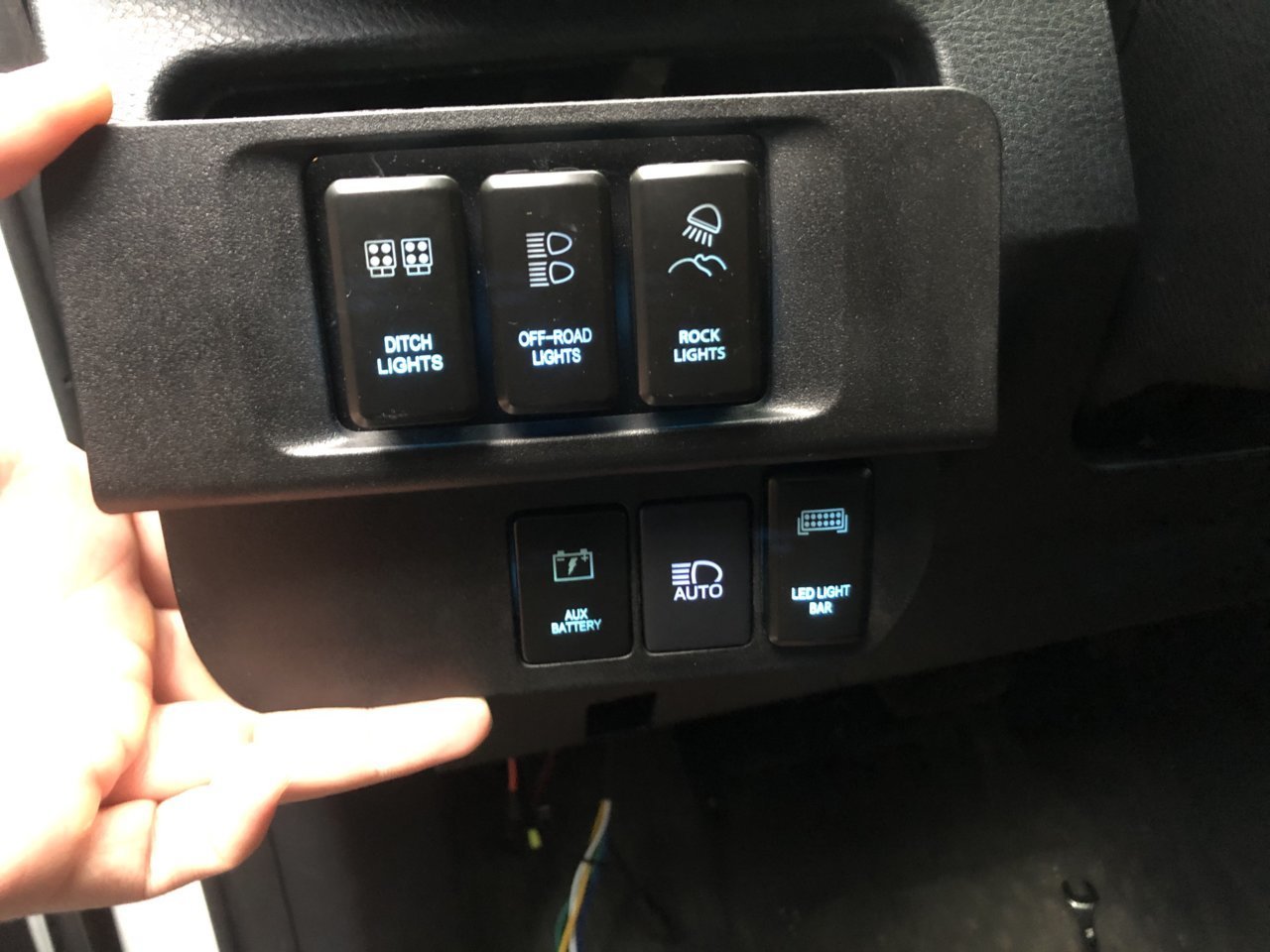

    Interesting. I came up with 20 K Ohm with the ice blue LEDs. The Ice Blue color is still slightly off from OEM (you can see the AUTO vs the rest with ice blue):


    So I took the liberty to replace the LED on the OE switches to ice blue. It’s an SMD.


    Your resistance depends on how big the window is on your switch.

    bagleboy, mrkabc and ghost_ix like this.
  12. Feb 10, 2021 at 7:58 AM
    #12
    NoVa TRD Sport

    NoVa TRD Sport Well-Known Member

    Joined:
    Nov 10, 2020
    Member:
    #346369
    Messages:
    545
    Gender:
    Male
    First Name:
    Alexander
    Northern Virginia
    Vehicle:
    2021 Army Green TRD Sport
    Leer cap
    Soldering resistors on aftermarket switches seems a bit of a reach for most of us. I have your add-on harness to tap into the OEM dash light wiring. This works well, except that the aftermarket switch is a little too bright. Couldn't the appropriate resistor be added to the "+" lead of your harness? (It could be in a new section between the two parts of the quick disconnect you have just added to your design. I bet you could sell a few of these, calibrated to the color of the aftermarket switch.)

  13. Feb 10, 2021 at 8:30 AM
    #13
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    984
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    You would need to do it for every switch — in-line for every part of the daisy chain — otherwise you won’t get the right voltage drop across the whole circuit. It also wouldn’t do anything for the indicator LED (there’s two LEDs/switch and one is tied to the 12V source pin when the switch is depressed) and you would need different values for different color LEDs. I’ve manipulated switches for a few people now but it’s always been a one-off kinda deal due to those factors. The solution is to tell Cali-Raised to use a higher resistor :)

    bagleboy and caribe makaira like this.
  14. Feb 10, 2021 at 9:04 AM
    #14
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,502
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    This also won’t work for the switch activated led since it gets powered by the output of the switch and has its resistor located after that. Installing one on the lead before the switch would drop the voltage to your relay and possibly mess with relay activation. As mentioned above the size of the symbol affects the resistance necessary and some switches have a small rectangular window that can require even more resistance to tame the led.
    If all your switches require the exact same amount of additional resistance then you could place a single resistor on the ground wire after the last switch but I have found too much variation between switch symbols and print for that to be satisfactory.

  15. Feb 11, 2021 at 9:40 AM
    #15
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,502
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Anybody know how to convert these switches to momentary? It looks like you just remove the latch wire visible in the triangular hole in the metal case but the question is how?

    edit- you just pry out that little wire and it no longer latches. Takes a small screwdriver that is still stiff enough.

    Last edited: Feb 11, 2021
