Air compressor specs samitybilt

Discussion in '1st Gen. Tacomas (1995-2004)' started by Tsean, Oct 24, 2023.

  1. Oct 24, 2023 at 9:01 AM
    #1
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
  2. Oct 24, 2023 at 9:04 AM
    #2
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    69,334
    Gender:
    Male
    Stock
    You can't 'convert' metric to SAE; why not use a gauge that measures threads/pitch?

    Being an air fitting, once you get right part, make sure to add some thread seal.

  3. Oct 24, 2023 at 10:19 AM
    #3
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    Thank you so much what parts do you think I need to buy it

  4. Oct 24, 2023 at 10:23 AM
    #4
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    69,334
    Gender:
    Male
    Stock
    Well, I'm not sure what part of the compressor you're showing as the picture is too close up (I have a Viair not a Smittybilt but I've used one).

    Any local store, or even Amazon, sell these flip out gauges that are individually marked with metric size and pitch, and same for SAE.

    They look similar to feeler gauges. You'll benefit greatly from owning a set for future stuff.

    What's wrong with the original component anyway?

  5. Oct 24, 2023 at 6:13 PM
    #5
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    It is a Metric so I’m trying to convert to u.s size it’s almost impossible I might use tap and die to convert it it it is just not talking to each other thread is so fine M 12 x by 1.25 not fitting

  6. Oct 24, 2023 at 6:49 PM
    #6
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    69,334
    Gender:
    Male
    Stock
    Must have misunderstood; you cannot just "convert" it.

    You would start larger, preferably clean slate, then cut threads into it.

    With that said, the easiest thing is to measure it. Buy some gauges.

    I have M12 in 1.5 and 1.75, there's more than one pitch as it goes down to 1.25 even.

  7. Oct 25, 2023 at 4:55 AM
    #7
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean

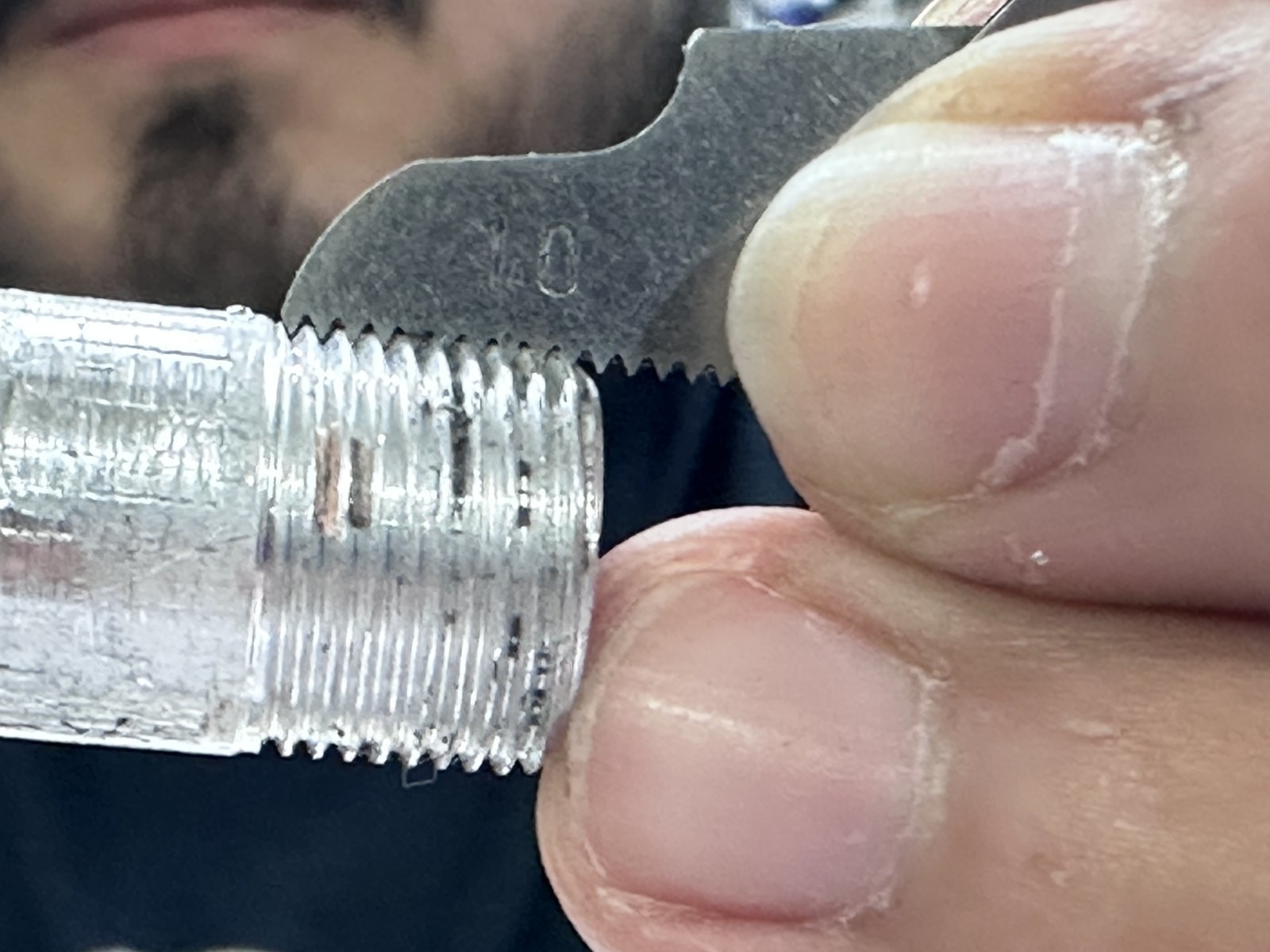

    Here’s the measurements


  8. Oct 25, 2023 at 9:01 AM
    #8
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    69,334
    Gender:
    Male
    Stock
    Now, use those measurements and get what you need.

    Tsean[OP] likes this.
  9. Oct 25, 2023 at 10:27 AM
    #9
    Andy01DblCabTacoma

    Andy01DblCabTacoma Well-Known Member

    Joined:
    Mar 12, 2021
    Member:
    #359086
    Messages:
    3,377
    Gender:
    Male
    First Name:
    Andy
    San Diego, CA
    Vehicle:
    01 Double Cab v6 4x4 TRD
    F: Kings SPC, R: 5100s+J59s. Custom armor.
    ... What?

    I hope you're aware that compressor fittings are more likely to be NPT or NPS than standard metric or SAE..

    What are you trying to do here?

    BoomerGVNG likes this.
  10. Oct 25, 2023 at 11:00 AM
    #10
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    69,334
    Gender:
    Male
    Stock
    Yeah, I asked but he didn't reply so figure someone might recognize that compressor and will offer help?

    Forgot about the whole NPT thing, at first I thought it was just bolting something up and it didn't click even though I mentioned sealant tape :violent:

    Otherwise his intentions are completely unknown :rofl:

  11. Oct 25, 2023 at 6:19 PM
    #11
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    I’m trying to convert the Japanese a compressor metric fittings into American size

  12. Oct 25, 2023 at 6:22 PM
    #12
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    what I’m trying to do it is converted metric to American size thread


  13. Oct 25, 2023 at 6:23 PM
    #13
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    69,334
    Gender:
    Male
    Stock
    NPT is a standard fitting for air.

    Whether it's an air compressor at home, for tools, etc.

    Just comes down to sizing like 1/4", 3/8", etc.

  14. Oct 25, 2023 at 6:23 PM
    #14
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    I’m gonna use the Halycoil thread rapier kit see if it works

  15. Oct 25, 2023 at 6:52 PM
    #15
    Andy01DblCabTacoma

    Andy01DblCabTacoma Well-Known Member

    Joined:
    Mar 12, 2021
    Member:
    #359086
    Messages:
    3,377
    Gender:
    Male
    First Name:
    Andy
    San Diego, CA
    Vehicle:
    01 Double Cab v6 4x4 TRD
    F: Kings SPC, R: 5100s+J59s. Custom armor.
    That's a big mistake. Take your time here, especially if those threads are on the body of the compressor itself.

    Air fitting threads not standard metric or SAE. They are usually NPT. Trying to jam or rethread a m12 in there isn't right.

    When I asked what you're doing, I mean, why do you need some non-standard output attached to the compressor?

  16. Oct 25, 2023 at 7:28 PM
    #16
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    This is the whole a compressor is a Metric. I did not realize when I’m trying to hook my American size hose. I realize I am having a hard time to find the proper fitting.

  17. Oct 25, 2023 at 9:12 PM
    #17
    Andy01DblCabTacoma

    Andy01DblCabTacoma Well-Known Member

    Joined:
    Mar 12, 2021
    Member:
    #359086
    Messages:
    3,377
    Gender:
    Male
    First Name:
    Andy
    San Diego, CA
    Vehicle:
    01 Double Cab v6 4x4 TRD
    F: Kings SPC, R: 5100s+J59s. Custom armor.

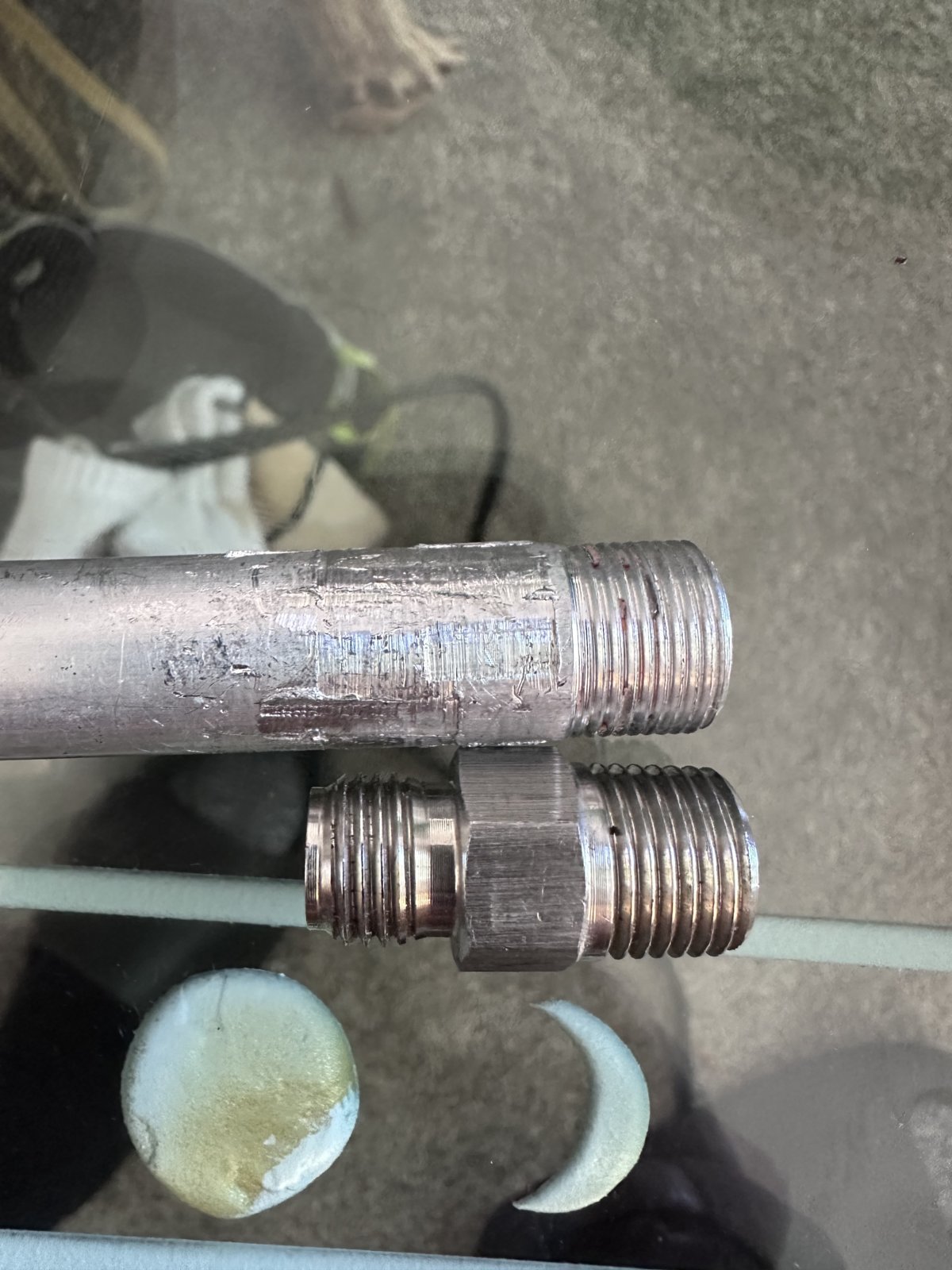

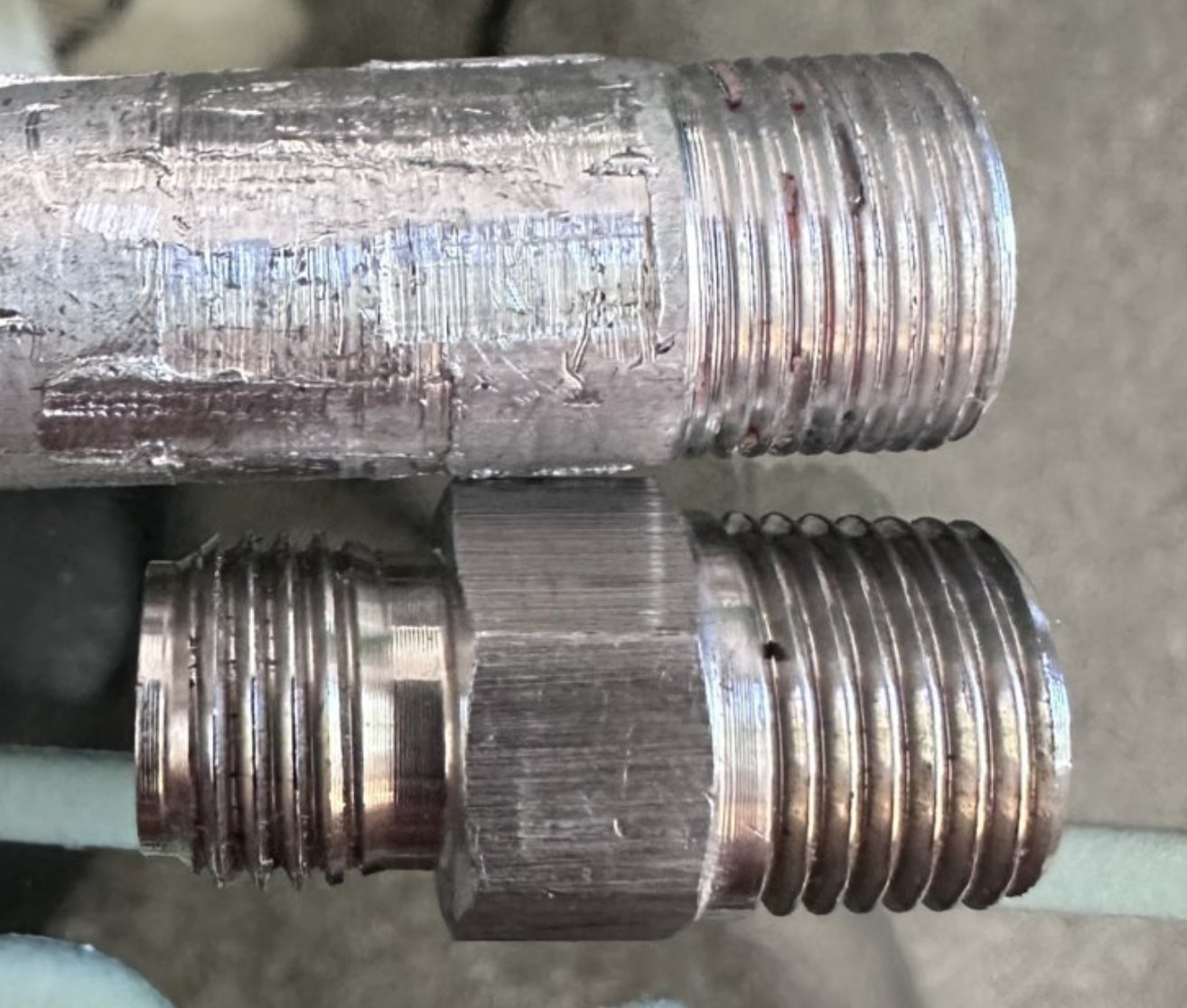

    What are these?

    Top one: Is this something custom you're trying to do?
    Bottom one: the RIGHT side of this looks like a NPT (tapered) thread.

    Do either one of these fittings thread into the compressor?


  18. Oct 25, 2023 at 9:13 PM
    #18
    Andy01DblCabTacoma

    Andy01DblCabTacoma Well-Known Member

    Joined:
    Mar 12, 2021
    Member:
    #359086
    Messages:
    3,377
    Gender:
    Male
    First Name:
    Andy
    San Diego, CA
    Vehicle:
    01 Double Cab v6 4x4 TRD
    F: Kings SPC, R: 5100s+J59s. Custom armor.

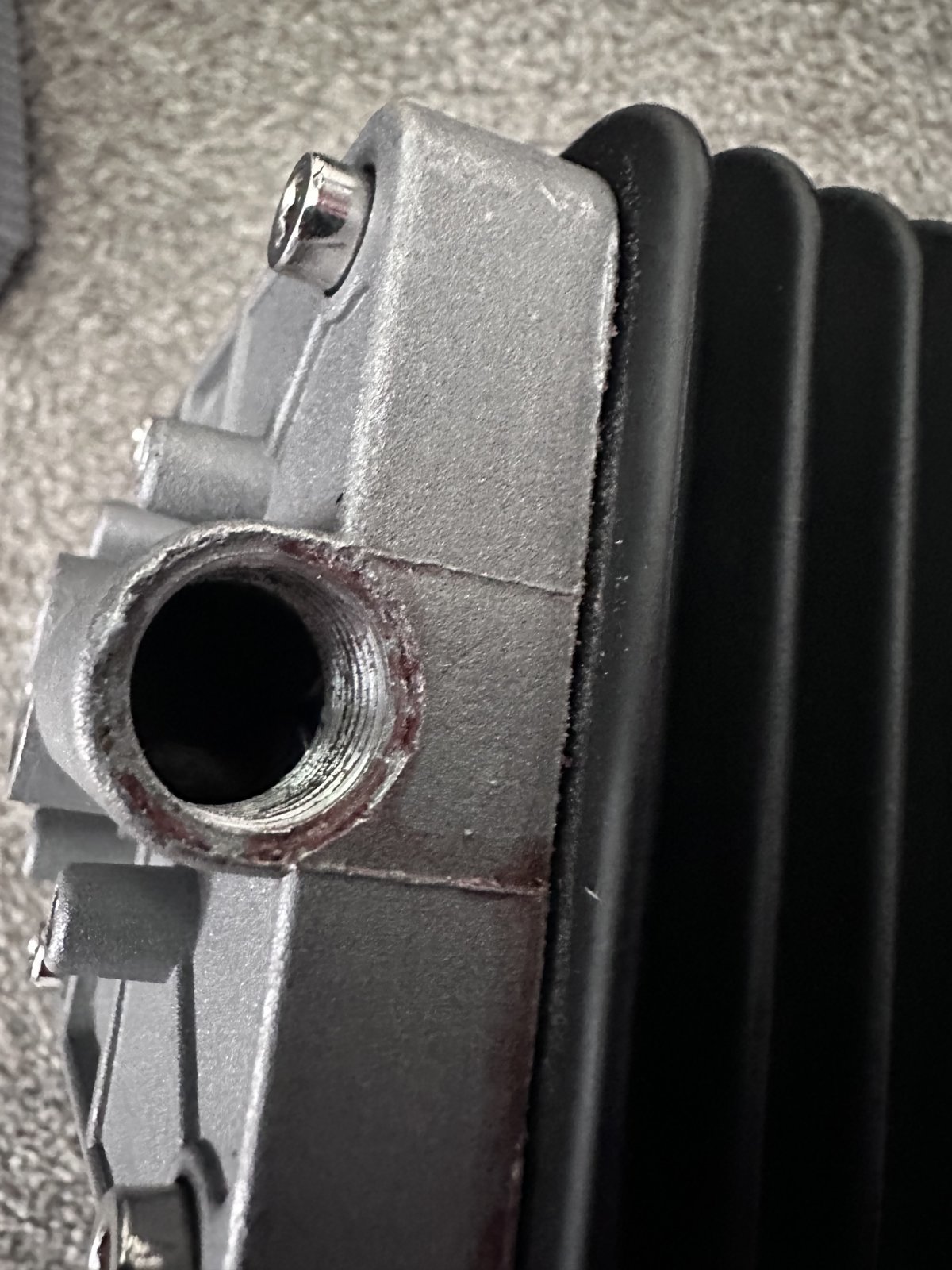

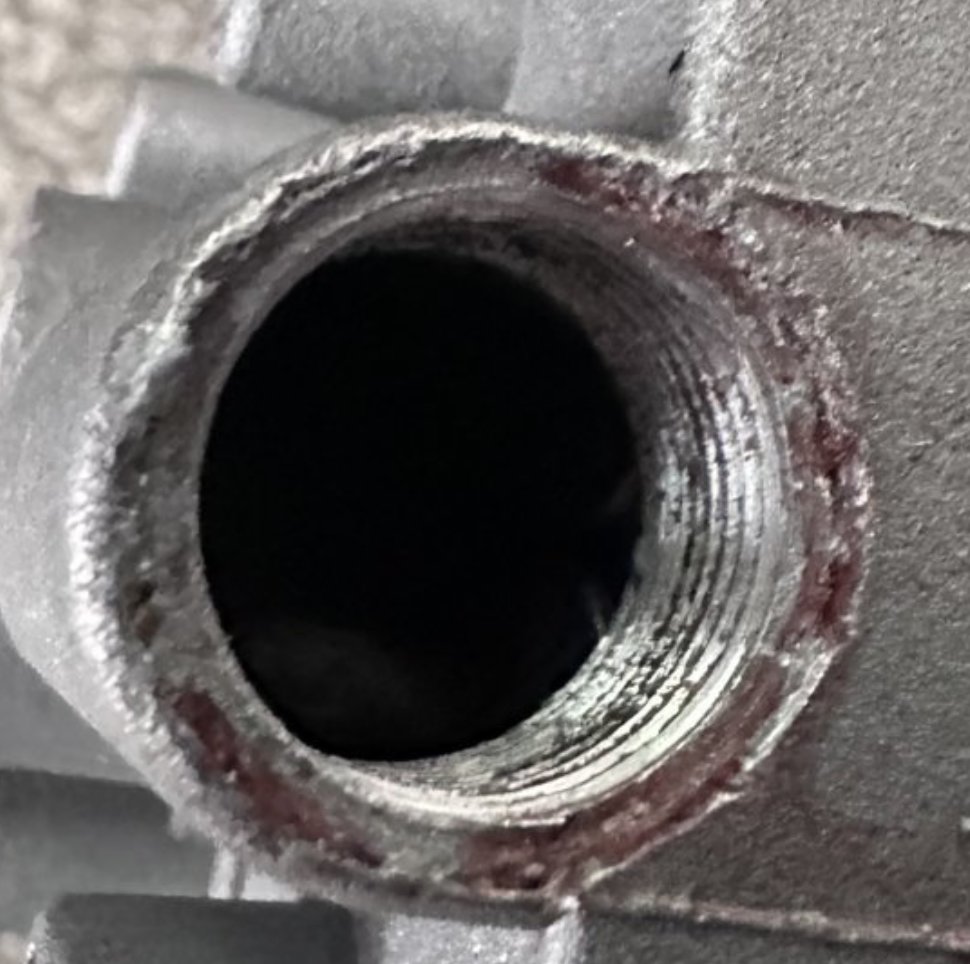

    These are the female threads in the compressor right?


  19. Oct 25, 2023 at 9:42 PM
    #19
    glwood6

    glwood6 Well-Known Member

    Joined:
    Jul 25, 2008
    Member:
    #8125
    Messages:
    2,271
    Gender:
    Male
    First Name:
    Gary
    Albuquerque, NM
    Vehicle:
    03 XCab Prerunner
    Bilstein 4600 shocks.
    Why don't you just get the right fitting to match the compressor threads? If your hose fitting is different threads, look for an adapter. Rethreading the hole is not the answer.

  20. Oct 26, 2023 at 8:02 AM
    #20
    Tsean

    Tsean [OP] Well-Known Member

    Joined:
    May 11, 2023
    Member:
    #424436
    Messages:
    215
    Gender:
    Male
    First Name:
    Tsean
    Top one is what came out from the compressor bottom one is npt wich is not fitting in
