Airbags install.

Discussion in '1st Gen. Tacomas (1995-2004)' started by MartinDWhite, Nov 4, 2020.

  1. Nov 4, 2020 at 6:50 AM
    #1
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.

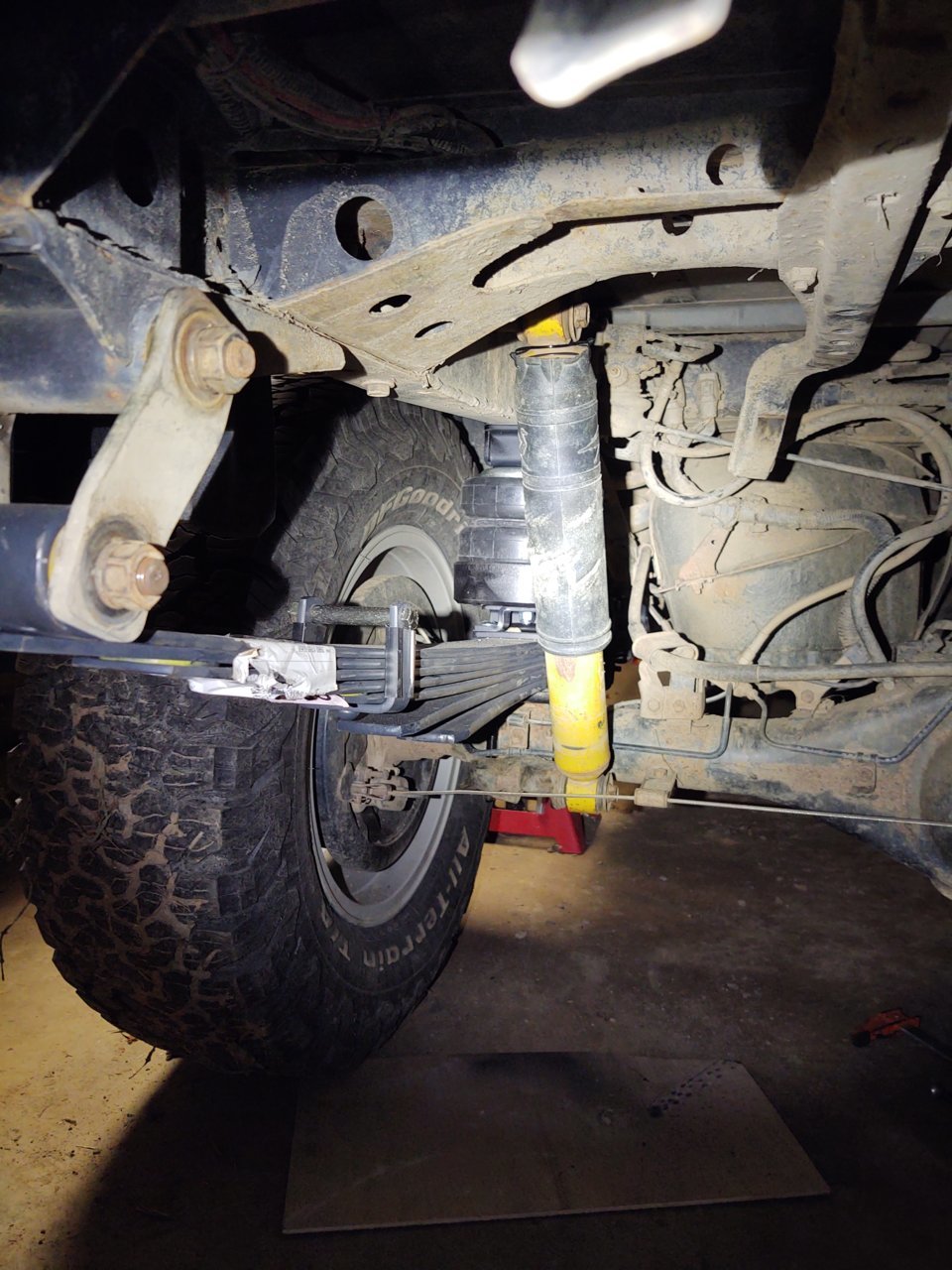

    I broke (or wore out) the rear springs on my '04. It was 4 years of hard use on OME springs (with extra leaf) so it was not unexpected. The timing was...I was at the starting line for the red clay rally when my fiancee pointed out the truck was not level. The rear passenger side was 2" lower then the driver side. The springs were W shaped.

    Took the old springs out and put in new springs (without the extra leaf). In order to adjust ride height with/without roof top tent, trailer, gear, and other stuff, I decided to put in air bags.

    Firestone bags and daystar baskets to allow for full droop.

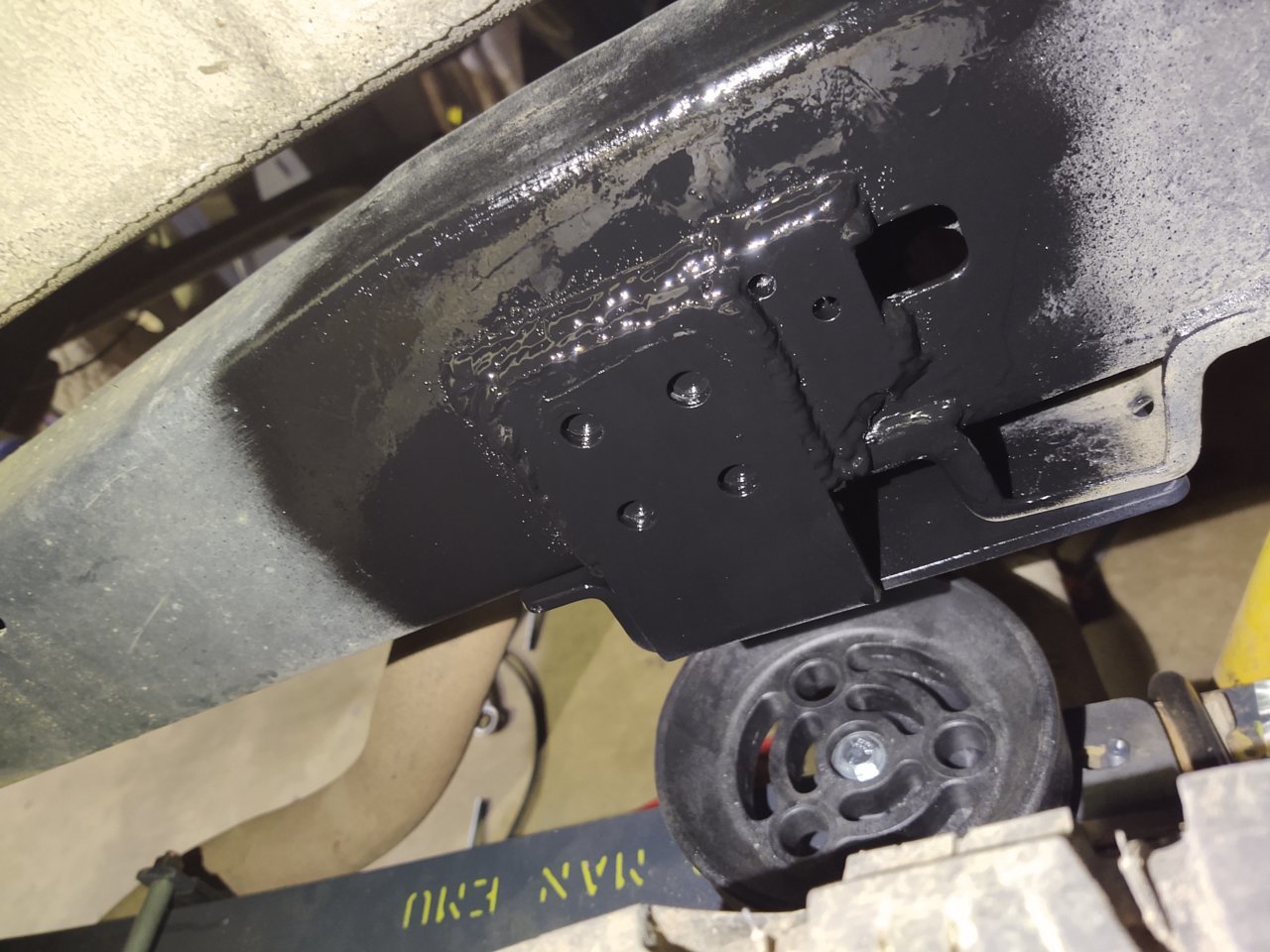

    Since I boxed in the rear frame, I could not reach the mounting for the upper brackets...so I welded them to the frame.

    While test fitting I couldn't get the basket to move far enough out board so I added a small 3/16 spacer plate. It made everything line up nice.

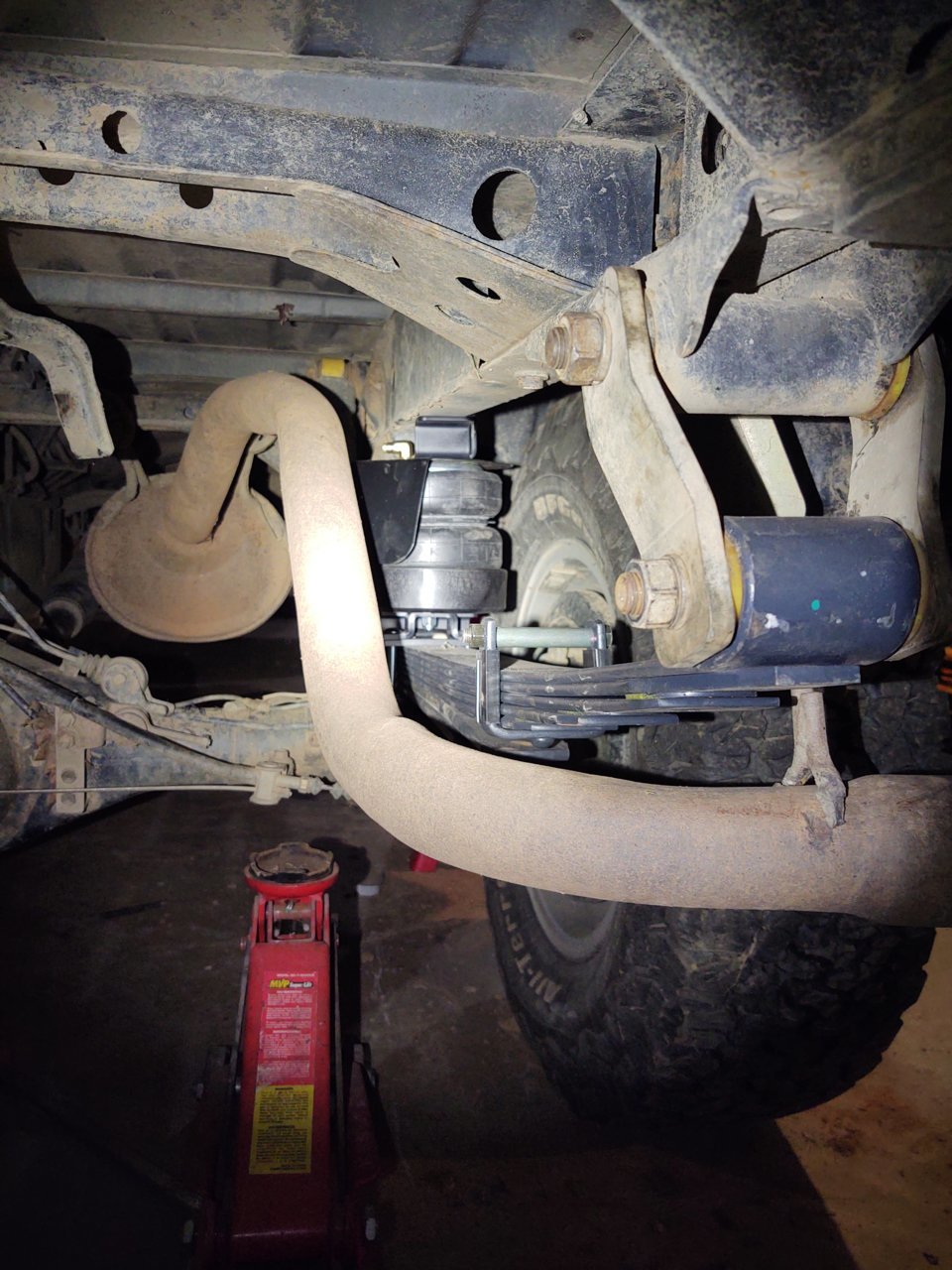

    Here is the progress so far.


    Hopefully this weekend I will get the bags in and the airlines plumbed and gauges installed.

    Last edited: Nov 4, 2020
  2. Nov 4, 2020 at 6:56 AM
    #2
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
  3. Nov 4, 2020 at 10:20 PM
    #3
    Diemaster

    Diemaster Active Member

    Joined:
    Feb 21, 2014
    Member:
    #123632
    Messages:
    26
    Gender:
    Male
    First Name:
    Josh
    San Bernardino
    Vehicle:
    2004 SR5 Tacoma 4x4 V6 Double Cab
    Lookin Good so far. I'm not sure the brand or type but my dad had airbags on his, now my, Truck. They were installed by a reputable source (a long time friend of his) I can take reference pictures if that will help you. Only thing I dont have is the gauge. There's a tire schrader valve on the bumper for to raise/lower them.

    Taco critter likes this.
  4. Nov 5, 2020 at 2:55 AM
    #4
    Taco critter

    Taco critter #mall crawler , patw and ,ttc#0247

    Joined:
    Nov 10, 2018
    Member:
    #272225
    Messages:
    66,875
    Gender:
    Male
    First Name:
    John
    Pottstown /stowe , pa
    Vehicle:
    02 tacoma 4x4 full mall crawler,
    Ome 3inch ,rims ,cold air intake ,,4 crawler body lift ,cb in ashtray mod,leds, jet maf,Satoshi grille,led roof bar,yakama roof basket ,smittybilt parts,spare tire mount in hitch ,rago fabrication parts, winch bumper ,winch ,285s on wagon wheels ,traction boards ,hi lift jack,wet oaklies,smittybilt ,bamf bedrack,loads more,TOO MUCH SHIT TO LIST
  5. Nov 5, 2020 at 2:58 AM
    #5
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    Bolted the bags in place last night (in the 10 minutes between finishing work and having to leave for the night).

    Plumbing should happen this weekend.


    Last edited: Nov 5, 2020
    djm228 and Taco critter like this.
  6. Nov 5, 2020 at 2:59 AM
    #6
    Taco critter

    Taco critter #mall crawler , patw and ,ttc#0247

    Joined:
    Nov 10, 2018
    Member:
    #272225
    Messages:
    66,875
    Gender:
    Male
    First Name:
    John
    Pottstown /stowe , pa
    Vehicle:
    02 tacoma 4x4 full mall crawler,
    Ome 3inch ,rims ,cold air intake ,,4 crawler body lift ,cb in ashtray mod,leds, jet maf,Satoshi grille,led roof bar,yakama roof basket ,smittybilt parts,spare tire mount in hitch ,rago fabrication parts, winch bumper ,winch ,285s on wagon wheels ,traction boards ,hi lift jack,wet oaklies,smittybilt ,bamf bedrack,loads more,TOO MUCH SHIT TO LIST
    Looking good

  7. Nov 5, 2020 at 9:51 AM
    #7
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,531
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 335K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    Question about T-fitting. It is cool to pump both airbags at the same time but then they are not separated, right. So what happens on the turn when trucks put more pressure on the outward airbag than the inward? In theory the extra force will push the air from outward airbag to inward increasing the lean? Is this correct or there ar some valves that not allow to flow the air between airbags while driving? At the same thinking with T-fitting it is impossible to have one airbag higher pressure than the other for compensating uneven load, right?

    otis24 likes this.
  8. Nov 5, 2020 at 12:40 PM
    #8
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.

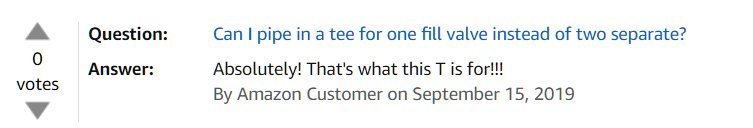

    I am using the tees to plumb in gauges so I can know the air pressure in each bag. I am not connecting the two airbags together for the reasons you list. If they are plumbed together then air will move from one to the other and will make the ride worse. The kit comes with 2 valves so the bags are filled separately, and says to connect them separately. I think a line connecting the two air bags would be a bad idea.

    RysiuM likes this.
  9. Nov 5, 2020 at 1:48 PM
    #9
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,531
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 335K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    Thanks for the explanation. I was always wondering why they sell Tees - it did not make sense to me. Like the one from Amazon about Firestone 3025 1/4" Union Tee Tubing:


    I have set of Firestone airbags to be installed in my truck as soon as I have some time for it, so I'm glad to see your thread about that.

  10. Nov 5, 2020 at 7:48 PM
    #10
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    I am happy to be able to set pressure in each bag to be able to level for the roof top tent when I park on uneven ground. Left to right leveling will be a breeze, and no moore need to carry blocks or find rocks to stack to sleep level.

    The air valves are mounted and one is plumbed. Second one is half plumbed. Had to take the tail light out to access the back side to out the valves in.

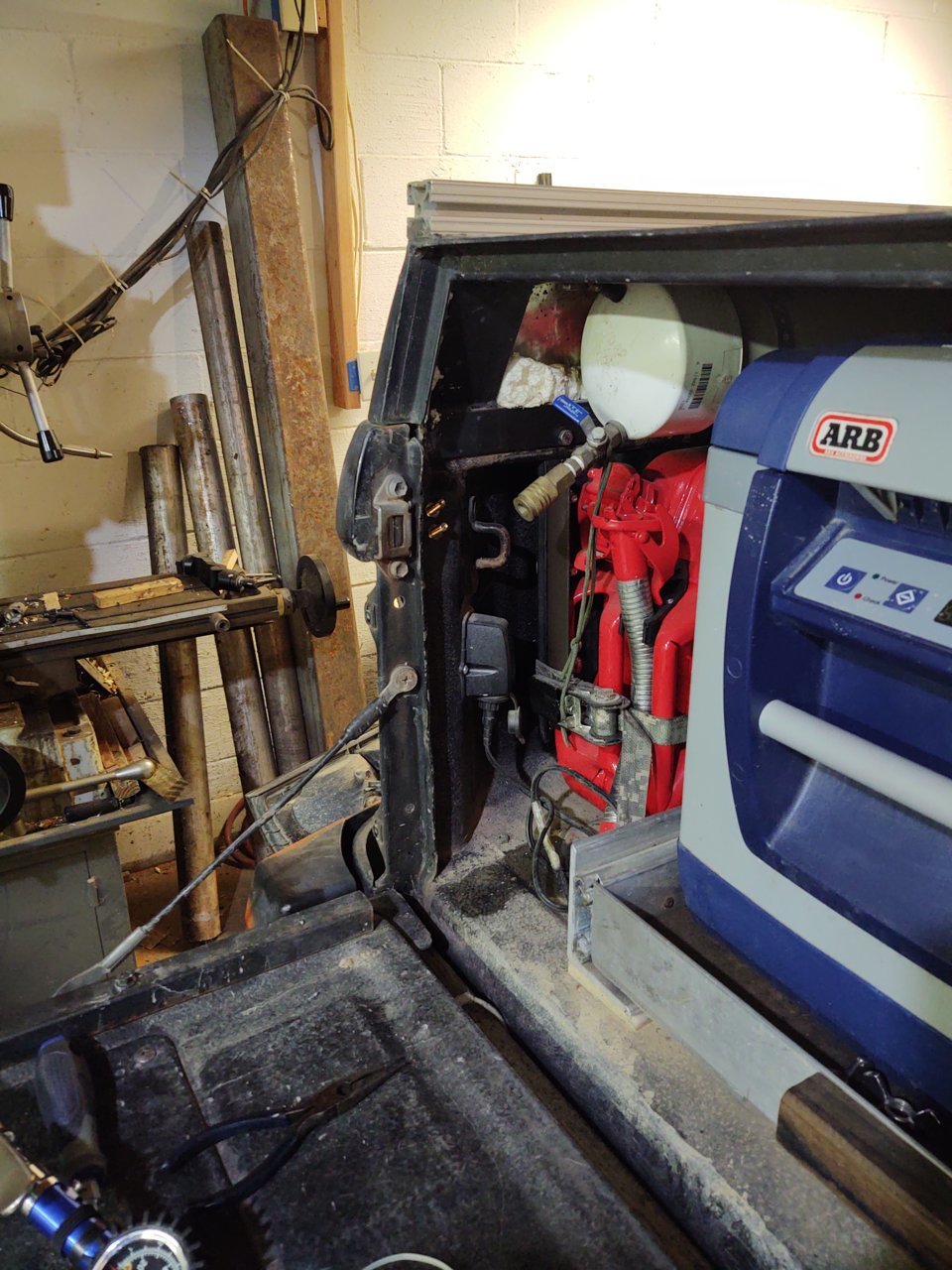

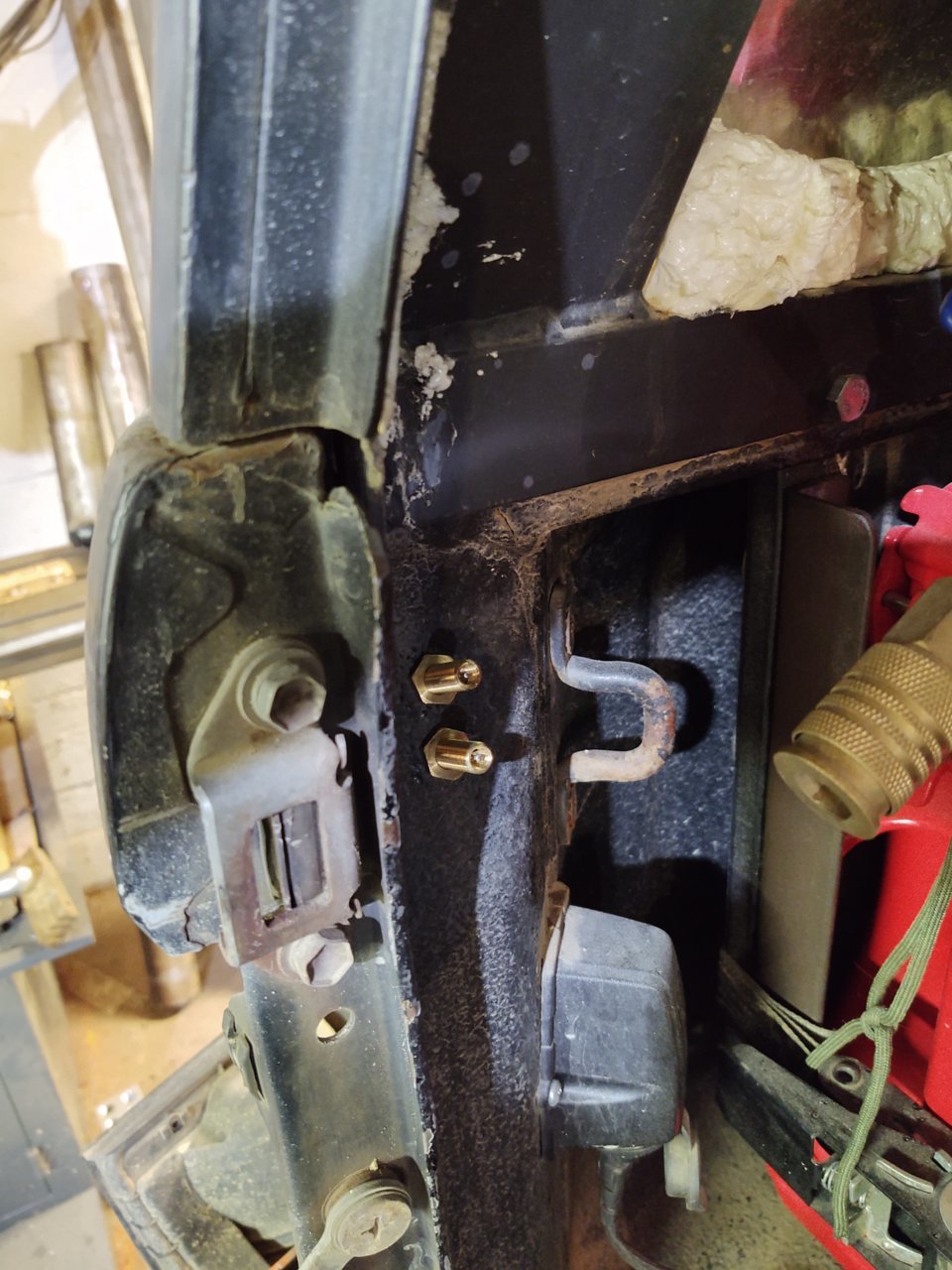

    IMG_20201105_175055561.jpg IMG_20201105_175101024.jpg

    Taco critter, RysiuM and Matic like this.
  11. Nov 8, 2020 at 7:06 AM
    #11
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.

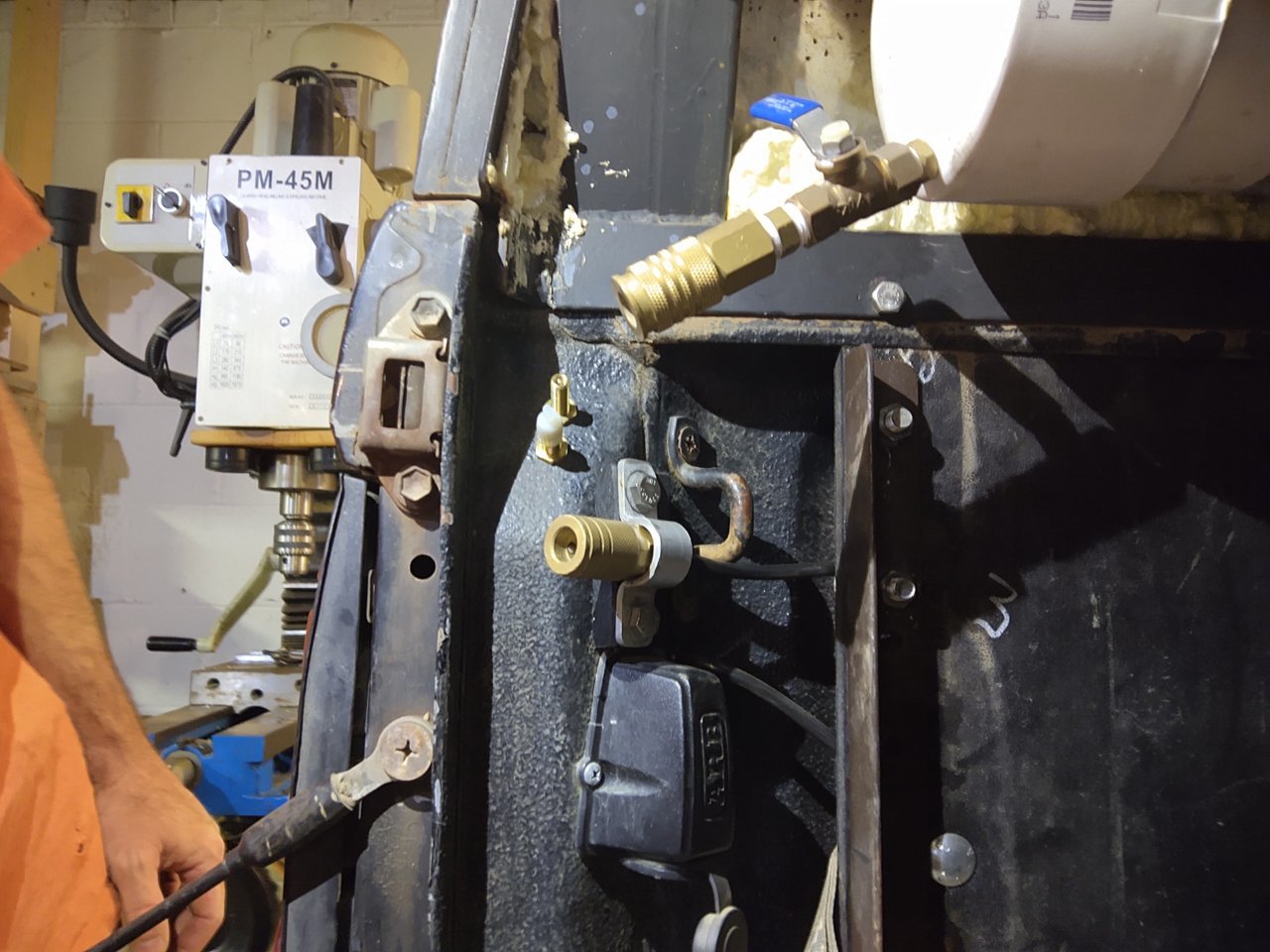

    I have a compressor mounted under the hood and an air connection on the front bumper. Since it keeps getting covered in mud and I will mostly use the air at the bed of the truck, to pressurize water tanks, fill tires, fill bike tires, inflate toys, and now to fill airbags, I mounted a rear air connection.

    Hopefully it comes in useful on the next trip.


  12. Nov 8, 2020 at 7:45 AM
    #12
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    3.5 inches of height adjustment with nothing in the bed (except fridge and bed cover).

    Hope to get the gauges mounted next week, or next weekend.

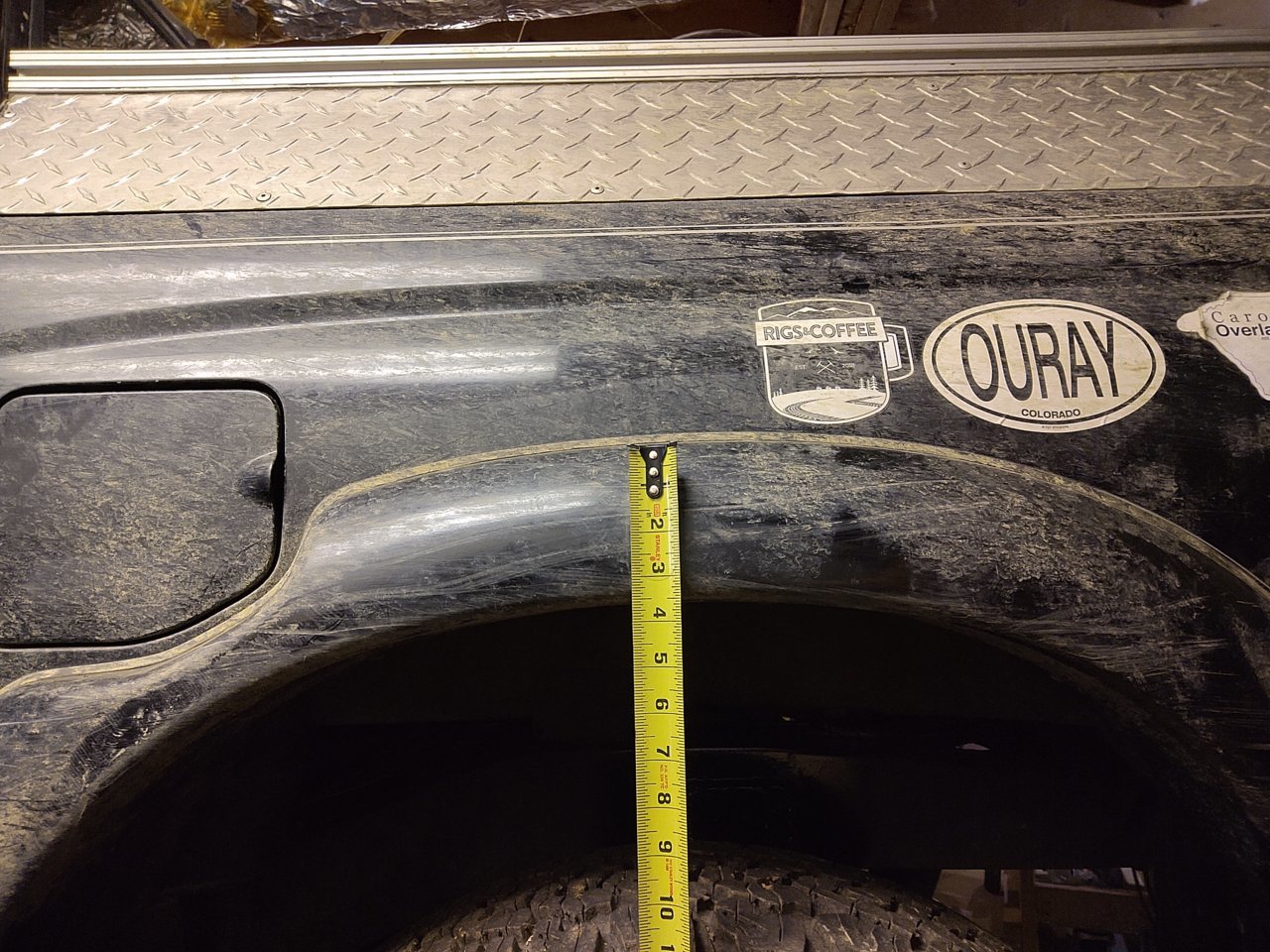

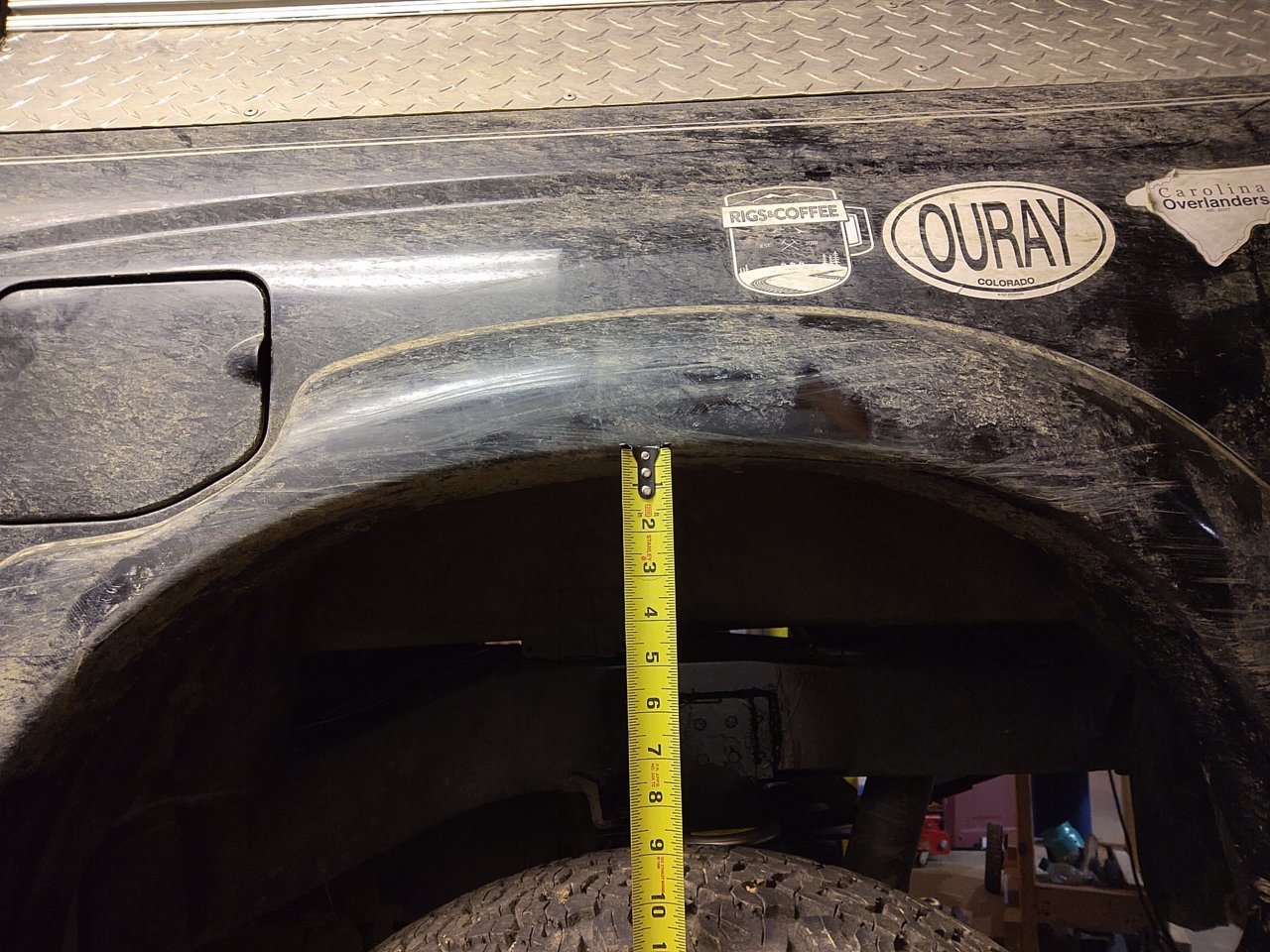

    IMG_20201108_095735801.jpg IMG_20201108_095816330.jpg

    RysiuM likes this.
  13. Nov 30, 2020 at 7:00 AM
    #13
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    We did some minor offroading last weekend and the bags did great.
    We did some camping and the bags did a GREAT job leveling up the truck to use the roof top tent.

    I love them so much I am looking to add some to the front.

  14. Nov 30, 2020 at 11:05 AM
    #14
    ffirg

    ffirg Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57975
    Messages:
    4,871
    Gender:
    Male
    First Name:
    mike
    Anchorage, Alaska
    Vehicle:
    2002 Tacoma SR5 TRD 4X4
    $$$
    Do you have a list of parts for this setup? I’ve been thinking of installing air bags too but I’m not sure what I need to do it.

  15. Dec 1, 2020 at 5:11 AM
    #15
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    I used kit 2304 from Firestone Ride-Rite bought from https://www.truckspring.com/products/firestone/ride-rite-air-spring-kit-2304.aspx

    That has everything that is needed. I did some additional stuff with the compressor I already had mounted and gauges (listed above).

  16. Dec 1, 2020 at 10:41 AM
    #16
    MyWifesTacoma

    MyWifesTacoma Active Member

    Joined:
    Aug 29, 2013
    Member:
    #111427
    Messages:
    38
    Gender:
    Male
    southern Colorado
    Note: Firestone recommends the following for TRDs: "Use spacer kit 2366 with HD or TRD package"

    https://www.firestoneip.com/kit-search/

    I run that setup on our truck for when I put our small camper on it.

  17. Dec 1, 2020 at 10:57 AM
    #17
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    I used this https://www.amazon.com/gp/product/B0084ROJBM/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1 instead of the spacer kit.

  18. Dec 1, 2020 at 11:09 AM
    #18
    otis24

    otis24 Hard Shell Taco

    Joined:
    Dec 3, 2012
    Member:
    #92402
    Messages:
    5,740
    Gender:
    Male
    First Name:
    Mark
    California
    Vehicle:
    03 Access Cab V6 4X4 TRD Off Road
    OtisBound Bodonkadonk
  19. Dec 1, 2020 at 12:00 PM
    #19
    MartinDWhite

    MartinDWhite [OP] Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186853
    Messages:
    386
    Gender:
    Male
    First Name:
    Martin
    Greenville, SC
    Vehicle:
    2004 4-dr 4x4 Tacoma TRD
    Relentless front and rear bumpers, Warn M-8000S Winch, Relentless RockSliders, bigger tires, bed cover RTT ... and more big changes in the works.
    otis24 likes this.
  20. Dec 1, 2020 at 2:09 PM
    #20
    MyWifesTacoma

    MyWifesTacoma Active Member

    Joined:
    Aug 29, 2013
    Member:
    #111427
    Messages:
    38
    Gender:
    Male
    southern Colorado
    Interesting. I might try those. The Firestone spacers make the rear suspension ride harder than stock with even 5psi of air in the bags.
