Alignment, Caster, Clearance, and Driving Report with Light Racing UCAs

Discussion in 'Suspension' started by bjmoose, May 24, 2011.

  1. Mar 22, 2014 at 10:46 AM
    #261
    BTO

    BTO Well-Known Member

    Joined:
    Nov 12, 2009
    Member:
    #25836
    Messages:
    427
    Gender:
    Male
    California
    Vehicle:
    '07 Silver PR DC AT SR5 TP LSD
    Bilstein 5100s front, Adjustable Ranchos rear.
    That's not making much sense to me. If you have a rear thrust angle like that you'd have to compensate with the fronts some how. Your front numbers are zero. That would mean the steering wheel would not be centered while driving straight ahead. Basically, your front wheels would also have to be / / to compensate for the rear.

    What does this all mean? I don't trust your alignment numbers.

  2. Jun 1, 2014 at 7:23 AM
    #262
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    This thread will be very helpful!! I received my LR uca's in the mail and am waiting on my Icons to come in. I currently have 295 Grapplers with 5100's @1.75 and 4" Maxtracs. I have no clearance issues right now at all. I'm pretty much going to try and keep the same height as what i have now so hopefully it wont be too out of whack until i get it aligned. Was wondering if anyone here has Maxtracs with these and if that affected anything (different then normal UCA settings)?
    Next Sat I will be installing all of it. I plan on setting it to the E setting and hopefully i will clear both front and back. I think I will take it to the 4wheel parts store for alignment since they should be familiar with lifted trucks with aftermarket parts. Thanks for all the info. Hopefully I wont be posting problems in a week.

    Last edited: Jun 1, 2014
  3. Jun 1, 2014 at 10:10 PM
    #263
    BBtacosurfer

    BBtacosurfer Well-Known Member

    Joined:
    Nov 23, 2012
    Member:
    #91716
    Messages:
    3,802
    Gender:
    Male
    First Name:
    Dave
    ID
    Vehicle:
    MGM 2012 4x4
    Gonna look real good Rick! post up pics when you are all done.

  4. Jun 1, 2014 at 10:11 PM
    #264
    BBtacosurfer

    BBtacosurfer Well-Known Member

    Joined:
    Nov 23, 2012
    Member:
    #91716
    Messages:
    3,802
    Gender:
    Male
    First Name:
    Dave
    ID
    Vehicle:
    MGM 2012 4x4
    ...actually i think you did. Looks like your sig pic has some badassery going on in there :D

  5. Jun 2, 2014 at 3:44 AM
    #265
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    Haha thanks. I haven't put on the UCA or the icons yet. Should have them in a couple days. Can't wait!

  6. Jun 4, 2014 at 5:10 PM
    #266
    deeppowder

    deeppowder Well-Known Member

    Joined:
    May 1, 2014
    Member:
    #128930
    Messages:
    59
    Gender:
    Male
    Northern San Juan Mountains
    Vehicle:
    2014 trd dcsb
    So I had my new lift installed today. 2 inches all around. No new UCA(was told it was not needed by the installer). They took the truck to there alignment shop(different town from where I live) and the numbers are
    Camber .2 .1
    Caster 1.4 1.5
    Toe 0 0

    Steering feels a bit loose(need more caster?) Just wondering if I should tale it to my tire guy in town to see if they can do this without new UCA's?. Besides loose steering are there other issues that the low caster number will cause?

    Thanks

  7. Jun 4, 2014 at 5:27 PM
    #267
    JonnyBb

    JonnyBb I have to return some videotapes

    Joined:
    Mar 26, 2011
    Member:
    #53778
    Messages:
    2,772
    Gender:
    Male
    Arkansas
    Vehicle:
    2021 TRD Pro (upgrade from my 2nd gen)
    Work in progress, but mods so far; OTT 7.0 tune, 255/85/16 Falken WildPeak M/Ts
    Caster is pretty low. Won't harm tires, but it'll feel sloppy (especially at higher speeds). You could try another shop, but you might prepare to invest in UCAs.

  8. Jun 4, 2014 at 5:57 PM
    #268
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    Going to install my LR UCA's and icons tomorrow. Then have an appointment Friday at 4wheelparts store for alignment. For $150 for an alignment they better get me at 0,0,2.8

  9. Jun 4, 2014 at 9:21 PM
    #269
    BBtacosurfer

    BBtacosurfer Well-Known Member

    Joined:
    Nov 23, 2012
    Member:
    #91716
    Messages:
    3,802
    Gender:
    Male
    First Name:
    Dave
    ID
    Vehicle:
    MGM 2012 4x4
    make sure you talk directly to the tech doing the alignment and tell him EXACTLY what you mentioned above^^^ I've had to walk out on a couple places because the tech wouldn't listen to what I wanted.

  10. Jun 6, 2014 at 4:45 AM
    #270
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    Got er done!! Haha. Took me like 5.5 hrs for both sides- Uca's and Icons. Now off to get alignment done. I used setting "E". So I should basically shoot for Toe=0, Camber=0, Caster=3.0 right? I see some people with lower caster and some with higher so just want to be sure. Thanks!
    [​IMG]

    Last edited: Jun 6, 2014
  11. Jun 6, 2014 at 9:08 AM
    #271
    wobble

    wobble Well-Known Member

    Joined:
    Mar 20, 2013
    Member:
    #100151
    Messages:
    490
    Gender:
    Male
    Ridgefield, WA
    Vehicle:
    2014 TRD OR
    Modified RCD Lift, 315/70R17 STT Pros
    My truck with UCAs at "D" position. Camber adjustment on UCAs maxed to positive. Factory caster adjustment maxed for max tire clearance.
    Camber .24 / .35
    Caster 3.93 / 3.95
    Toe .02 / .01

    Girlfriends truck with UCAs set at "E" position. Camber adjustment on UCAs maxed to positive. Factory caster adjustment almost maxed for max tire clearance.
    Camber .44 / .42
    Caster 3.85 / 4.01
    Toe .02 / .01

    Both trucks drive straight down the road. No pulling either direction. The higher caster gives a nice ride too. Not twitchy or light. Doesn't wander or jerk one way or the other when hitting pot holes or other bumps. Very happy with the UCAs.

  12. Jun 6, 2014 at 10:33 AM
    #272
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    Ok well i was there for almost 2 hrs and the end result wasn't perfect but it rides perfectly imo. Caster wasn't actually too far of when i brought it in. Casters were 3.5 both sides. Toe was really off though -0.19 and -0.18
    So end result is:
    ...............L Front........R Front
    Camber......0.6.............0.6
    Caster.......3.2.............2.8
    Toe..........0.08...........0.08


    Drives great on freeway, not twitchy over bumps or wandering or anything. Tracks real good. My UCA's are in the "E" position and I'm running 33's with no rubbing. Well, i haven't stuffed them yet.

    Last edited: Jun 6, 2014
  13. Jun 6, 2014 at 2:54 PM
    #273
    TheTimmyJimmy

    TheTimmyJimmy Dumbazz

    Joined:
    Mar 25, 2014
    Member:
    #126149
    Messages:
    196
    Gender:
    Male
    First Name:
    Tim
    Colorado
    Vehicle:
    04 Tacoma DBl Cab
    Lots of lil stuff
  14. Jul 2, 2014 at 10:20 PM
    #274
    RyanP.

    RyanP. Member

    Joined:
    Jul 2, 2014
    Member:
    #133170
    Messages:
    6
    Gender:
    Male
    Utah
    Vehicle:
    2014 TRD DC 4x4
    3" Lift, Light Racing UCA, 285/75/16 BFG Mud KM2
    installed my light racing UCA's with 285's on a 3"

    Used the D setting, full outwards on top camber adjustment, then went about 80% towards max caster on the lowers to pull the wheel forward away from the body mount. I have no rubbing after removing the front/rear mud flaps. No other trimming needed. The key is centering the wheel in the well with the caster adjustments. Im running 3.4 caster appx and it drives great.


  15. Jul 3, 2014 at 12:50 PM
    #275
    AWF ROWD

    AWF ROWD ...eats at the " Y " often....

    Joined:
    Feb 14, 2013
    Member:
    #97497
    Messages:
    2,890
    Gender:
    Male
    First Name:
    Doc
    40.102° N, 82.804° W
    Vehicle:
    '13 BLOWN 4X4 Sport
    TRD Supercharger, Walbro 255 FP Upgrade, aFe Stage 2 si CAI, TRD Acrylic cover by Coupe ADD 1 OIL Catch can/SS hoses, TRD cat back exhaust, URD 2.8" Stealth pulley, 3" lift, Toytec/Bilstein C/O's, Toytec Progressive AAL's, LR UCA's, 5100 Rear Billies, Bi-Xenon HID BHLM Retro's w/ Halos RED LINE Tuning Hood Rods Swaybar Relocate, Line X'd Bull Guard/Step, Hitch, Craven Speed Dual Gauge mount, AEM Boost/AFR Gauges, Windows 20% tint, Weather Tech deflectors, GrillCraft upper and lower, Tacoma Raptor letters, LED Interior/Exterior lighting, Lund 6" Color Matched Oval Side Bars, Webasto 700 II sunroof, Heated Two toned custom leather TRD logo'd, Kenwood Multimedia 6990 HD head unit ,JL Stealthbox sub, Hertz Component speakers,, Entire cab damped with hushmat, Viper Security/Remote start, Weather Tech Liners, Blackened exterior LED Lights, Undercover Top w/LED's, Carbon fiber TRD windshield decal,, TRD stitched leather shift knob, TRD steering wheel emblem,

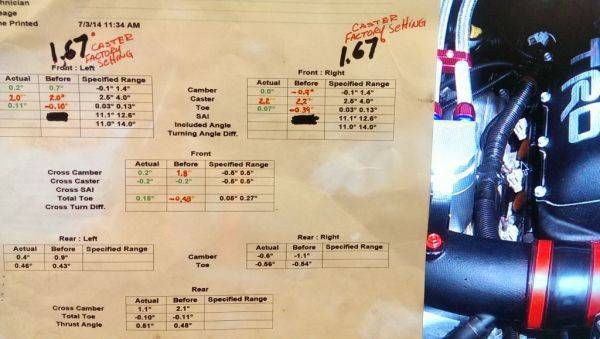

    How is the Caster specified range that different from my Alignment specs today...?
    [​IMG]



    [​IMG]
    Toe was waaaay off, and the Tech said he couldnt get any more Caster out of it.....Had no clue what a LR UCA was even after I told him how they work to add Caster......and he said the "Factory Caster setting is 1.67*....then I asked him why the Specified Range was so different.....got no answer...:notsure:

  16. Jul 3, 2014 at 2:36 PM
    #276
    TrueNorth

    TrueNorth Well-Known Member

    Joined:
    Mar 1, 2014
    Member:
    #124305
    Messages:
    177
    Gender:
    Male
    Maryland
    Vehicle:
    13' V6 4X4 DCSB
    Weather tech floormats and visors, ImMrYo rear-view mirror bracket Cooper ST Maxx 255/85/16 On stock TRD alloys. OME 887's w/NitroCharger sports, LR uca's, Toytech sway bar relocate, Dakar leaf's modified with some 1/8" UHMW liner strips. SuperBumps front and back.
    Had to go up one setting to "E" on the UCA to get to 3*caster. One lower control arm cam was already seized after only 4500 miles on the truck. Toyota won't fix the cams now because of the lift. I'm surprised it seized so soon, but the alignment tech showed me how tight they were while he was working.
    Any ideas? And how bad will this affect me putting on bigger tires down the road?
    Should I think about doing something to the LCA cam bolts now rather than later?

    Last edited: Jul 4, 2014
  17. Jul 3, 2014 at 2:43 PM
    #277
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    Yeah most dont know anything about them. My toe was waaaay off too when i brought it in. I set mine UCA's up at home setting E (turned out to be both 3.5) and told them not to mess with the UCA and to get it all from below if they needed it. They didnt touch it and I ended up with 3.2, 2.8. No complaints on the handling/driving.

  18. Jul 3, 2014 at 7:34 PM
    #278
    RyanP.

    RyanP. Member

    Joined:
    Jul 2, 2014
    Member:
    #133170
    Messages:
    6
    Gender:
    Male
    Utah
    Vehicle:
    2014 TRD DC 4x4
    3" Lift, Light Racing UCA, 285/75/16 BFG Mud KM2
    What did you set the uppers at when you installed them? You must be in the E or F setting on the upper if 2* is all you can get with the lowers maxed out. Your specified range is incorrect. Factory specs are not that high. Not sure whats going on there. Maybe he entered the wrong model or something..

    I started with mine in the D setting and about midway caster setting on the lowers, this gave me around 3* caster, I then rolled the lowers towards max caster, about 80% of the way or so pullIng the front wheel forward more for clearance and about 3.4 caster.. my upper camber adjustment is full outwards toward the wheel. I have it like this in the full out position so I can easily reset it myself if it gets knocked loose for whatever reason..and it made my clearance good all around.

    Steering is slightly heavier for turning with this much caster but it tracks real good for straight line stability and likes to center up straight real easy now. I doubt anyone would even notice, I just notice because I pay close attention to it when adjusting it. I could back off caster a bit but then I'd lose wheel well clearance. I'm happy with it. Drives 98% as good as stock with a lift and mud tires.. Can't expect much more than that.

    Last edited: Jul 3, 2014
  19. Jul 8, 2014 at 12:46 PM
    #279
    gumbeyyy

    gumbeyyy Well-Known Member

    Joined:
    Feb 2, 2014
    Member:
    #122152
    Messages:
    48
    Gender:
    Male

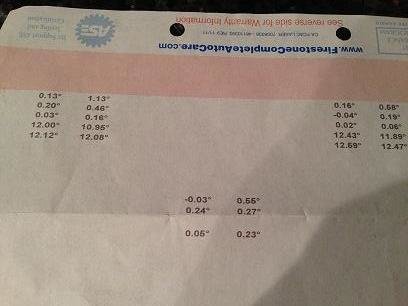

    Just got my truck back from Firestone and wanted to run it by you guys with the results.
    2012 Prerunner on 5100's/stock coils set at 2.5 and stock UCA's. and 285/75/16's
    I tried to tell the service lady to set it close to
    0
    2.5
    0
    but she insisted that they just only do to "stock"
    If the steering wheel is centered and i let it go it always wanders to the right.

    Last edited: Jul 8, 2014
  20. Jul 8, 2014 at 1:41 PM
    #280
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    If it wanders to right then take it back and tell them. Those numbers--Damn! Might be hard to get totally in range with stock UCA and set @ 2.5. Sucks they wouldn't at least try to get it close to what you said. Usually if you want it to certain specs they just inform you that its out of stock ranges and maybe make you initial something. I would take it back, especially if it wanders.

    Last edited: Jul 8, 2014
