Alignment, Caster, Clearance, and Driving Report with Light Racing UCAs

Discussion in 'Suspension' started by bjmoose, May 24, 2011.

  1. Apr 9, 2017 at 11:24 AM
    #881
    yeos

    yeos OCD Member

    Joined:
    Feb 24, 2013
    Member:
    #98297
    Messages:
    1,206
    Gender:
    Male
    Moses Lake, WA
    Vehicle:
    2011 AC TRD OR 2007 Lexus GX
    Yes you can do that. I did it for the same reason as you. I pre set my SPC upper arms to the +1.00 degree caster position before bringing it in for an alignment.

    Last edited: Apr 9, 2017
  2. Apr 9, 2017 at 12:52 PM
    #882
    ImpulsedComa

    ImpulsedComa Well-Known Member

    Joined:
    Nov 23, 2014
    Member:
    #142965
    Messages:
    494
    Gender:
    Male
    NJ
    Vehicle:
    05 Double Cab 4x4 SR5 V6
    Ok good, i just don't want to sacrifice lower caster by backing down the caster on the spc's from 2 to 1...

  3. Apr 9, 2017 at 1:01 PM
    #883
    wolfofworld

    wolfofworld New Member

    Joined:
    Nov 2, 2014
    Member:
    #141519
    Messages:
    4
    Gender:
    Male
    AZ
    Vehicle:
    08 Tacoma V-6 SR5 4X4
    I put a 3" front 2" rear lift/level kit on my 2008 Tacoma 4x4 sport and I am getting tire rub on inside rear of tire on tight turns. The minute I installed the front lift you could see the positive camber, tires were pointing up and away big time. Big O did the alignment and showed a correction of 1.1 1.0 camber 1.2 1.9 caster and .03 .02 toe. I did my own alignment check pulling up on plastic grocery bags so it turns easy, then with strings get the truck straight and put lines on the concrete so the protractor could mark 20 deg. on the floor. And my readings show 1.1 1.0 camber 3.4 3.6 caster toe was 1/16 tighter in the front of wheel while measuring the string halfway up the rim. I measure front of rim and back of rim on both sides of truck knowing the string is straight off the back wheels. Why the tire rub and how do I get better numbers? Upper control arms? thanks.

  4. Apr 9, 2017 at 1:21 PM
    #884
    yeos

    yeos OCD Member

    Joined:
    Feb 24, 2013
    Member:
    #98297
    Messages:
    1,206
    Gender:
    Male
    Moses Lake, WA
    Vehicle:
    2011 AC TRD OR 2007 Lexus GX

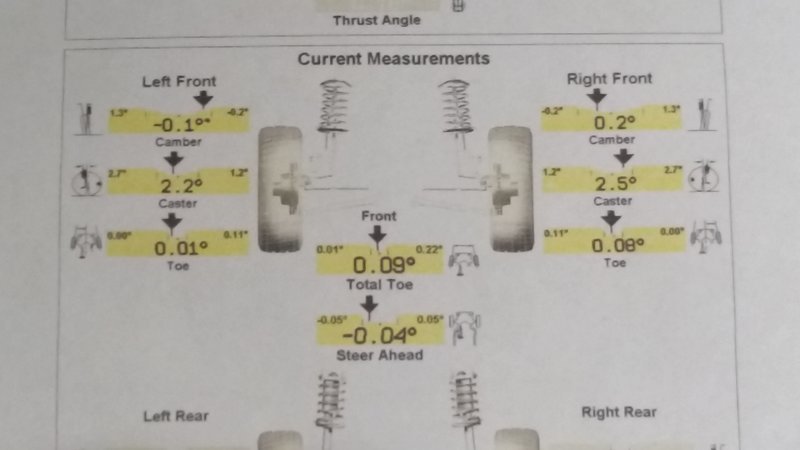

    My factory caster adjustments are just about maxed out and I get the caster numbers you are looking for, but I am running a 3" lift. Your lift is lower so it should get more caster. I had my alignment tech adjust camber using the UCA.

  5. Apr 9, 2017 at 1:38 PM
    #885
    ImpulsedComa

    ImpulsedComa Well-Known Member

    Joined:
    Nov 23, 2014
    Member:
    #142965
    Messages:
    494
    Gender:
    Male
    NJ
    Vehicle:
    05 Double Cab 4x4 SR5 V6
    Yes, but this thread says that when you adjust caster form the uca the tire goes back and when you adjust it from the lca it brings the tire forward. I

    I was good when i had the higher lift, but now its 3/4 lower and its rubbing. That's why i want to bring the uca caster setting from 2 to 1 and hopefully the tech can still get me 2.5 from the lca's...

  6. Apr 9, 2017 at 1:41 PM
    #886
    yeos

    yeos OCD Member

    Joined:
    Feb 24, 2013
    Member:
    #98297
    Messages:
    1,206
    Gender:
    Male
    Moses Lake, WA
    Vehicle:
    2011 AC TRD OR 2007 Lexus GX
    I see what you are saying. I don't think your tech is trying hard enough. Maybe take it to a different Firestone. I've had enough with them and am willing to pay $90 at a different shop each time to get the alignment how I want it to be.

  7. Apr 15, 2017 at 6:09 PM
    #887
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said.

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,666
    Gender:
    Male
    First Name:
    Brenden
    Waterbury, VT
    Vehicle:
    2012 Black DCSB TRD OR "Caroline"
    King 2.5 Ext. w/ Compression Adjusters (Front & Rear), Dakars w/ D29XL, TC UCA's & LCA's, ARE CX, 17" SEMA Pro's, 265/70/17 Falken Wildpeaks, BORA spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, TRD Pro grill, URD TCAI, 5.7L Throttle Body, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, CV Boot slide mod, Differential breather mod, U-Bolt Flip Kit w/ Timbren Bumpstops, A-pillar RAM mount w/ cell phone holder, ProFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock

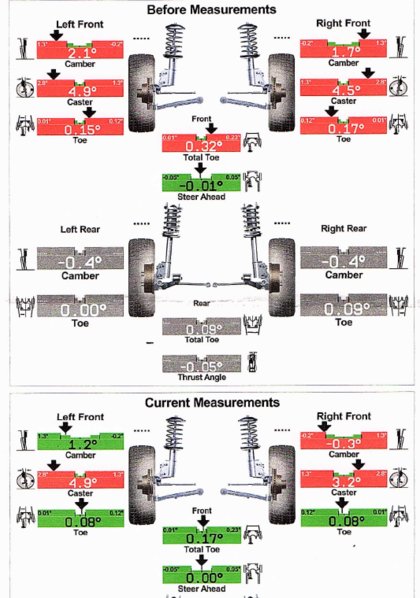

    So I read through a great deal of this thread from post #1 and it's confirmed what I thought at Town Fair Tire when receiving my alignment results. I have LR UCA's (currently set at the "C" position (+3) on both sides. Below are my pre and post numbers for camber, caster and toe. The alignment tech told me that he couldn't get the camber on the driver's side any closer to 0 because of the seized cam bolt in the LCA. And I expected it to be seized given Toyota's shitty LCA design (there should have been a recall on this in tandem with the frame issues). When I asked him if he adjusted the position of the UCAs at all, he said yes although I think he lied to my face just to get to his next job.


    My question is, couldn't the tech decrease the camber by adjusting the UCA to another position (D or E maybe) without even having to touch the LCA? Does the UCA position have to be identical on each side of the truck or can they be independently adjusted as needed? I feel like the tech's UCA knowledge and effort wasn't completely there to get my numbers at or close to 0, 0, 2.5 - 3. How should I proceed to get ideal alignment numbers without addressing the seized cam bolt in the LCA?

    Last edited: Apr 15, 2017
  8. Apr 15, 2017 at 6:38 PM
    #888
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    3,513
    I don't know how these guys have paying jobs doing this. :facepalm:

    Post a picture of the top of the control arms.

    Why did you put them at the +3 position?

    Kolunatic likes this.
  9. Apr 16, 2017 at 2:45 AM
    #889
    ImpulsedComa

    ImpulsedComa Well-Known Member

    Joined:
    Nov 23, 2014
    Member:
    #142965
    Messages:
    494
    Gender:
    Male
    NJ
    Vehicle:
    05 Double Cab 4x4 SR5 V6
    The CASTER is the only thing that will be changed by moving the dial at the top of the spc's from C to D or E.

    CAMBER can be changed at the top of the spc's by loosening the top nut and you will see that the threaded end that comes through the top is in a slot that allows it to move in towards the engine and out towards you. Just have the tech max it out there and fine tune it at the lca's.

    Kolunatic likes this.
  10. Apr 16, 2017 at 5:36 AM
    #890
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said.

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,666
    Gender:
    Male
    First Name:
    Brenden
    Waterbury, VT
    Vehicle:
    2012 Black DCSB TRD OR "Caroline"
    King 2.5 Ext. w/ Compression Adjusters (Front & Rear), Dakars w/ D29XL, TC UCA's & LCA's, ARE CX, 17" SEMA Pro's, 265/70/17 Falken Wildpeaks, BORA spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, TRD Pro grill, URD TCAI, 5.7L Throttle Body, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, CV Boot slide mod, Differential breather mod, U-Bolt Flip Kit w/ Timbren Bumpstops, A-pillar RAM mount w/ cell phone holder, ProFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock

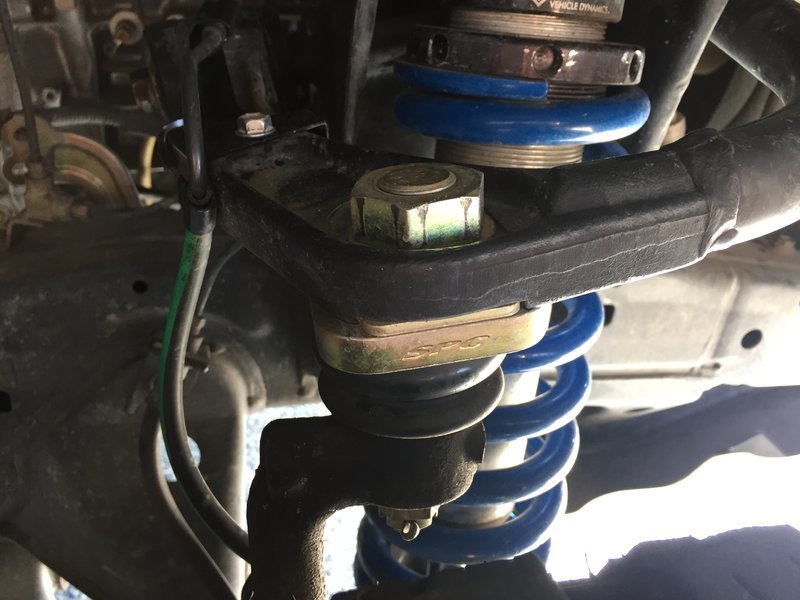

    Not the best pics but here they are. Taking a second look at this setup, the passenger side was re-positioned and camber adjusted to get close to the ideal numbers. The driver's side wasn't touched! I initially put them at the +3 position thinking that it would compensate for the LCA being in the neutral position and unable to be re-positioned. Correct me if I'm wrong but this is an easier fix than I thought...the tech just got lazy on the driver's side with re-positioning the UCA.


    The cam bolts in the LCA's are seized. How would the tech be able to fine tune it?

  11. Apr 16, 2017 at 5:54 AM
    #891
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,888
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    They won't beable to. You need to fix those cam bolts. Spray and try to break free or replace them. Usually they are rusted to the lca bushings and they also need replaced. Most likely will need to cut out the seized ones.

  12. Apr 16, 2017 at 6:06 AM
    #892
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,888
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    Issue is when you move the uca dial you must loosen the top bolt and camber is completely off so it will change.

    Also you can add/remove caster at both lower and upper control arms. If you move the spc uca forward (negative caster) you lose caster but gain firewall clearance.

    My 4runner with the spcs at the full forward position and my lcas maxed for most positive caster I got 1.7* and so much firewall clearance I could run 35s with zero trimming. Before 33s would rub.

    Doing this you lose dine caster but gain major firewall clearance. I now fine tune the uca to my liking. Eyeball camber and let alignment shop only fine tune with the lca cams.

    Caster at 1.5* or more will drive fine and within toyota spec.

  13. Apr 16, 2017 at 6:16 AM
    #893
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,888
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    Tech's are trained to get you in and out. Good luck.

  14. Apr 16, 2017 at 6:20 AM
    #894
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said.

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,666
    Gender:
    Male
    First Name:
    Brenden
    Waterbury, VT
    Vehicle:
    2012 Black DCSB TRD OR "Caroline"
    King 2.5 Ext. w/ Compression Adjusters (Front & Rear), Dakars w/ D29XL, TC UCA's & LCA's, ARE CX, 17" SEMA Pro's, 265/70/17 Falken Wildpeaks, BORA spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, TRD Pro grill, URD TCAI, 5.7L Throttle Body, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, CV Boot slide mod, Differential breather mod, U-Bolt Flip Kit w/ Timbren Bumpstops, A-pillar RAM mount w/ cell phone holder, ProFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock
    So you're saying that by re-positioning the UCA on the driver's side to the position that it is on the passenger side won't improve the numbers? The LCA positions look exactly the same.

    JayRolla[QUOTED] likes this.
  15. Apr 16, 2017 at 6:24 AM
    #895
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,888
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    Yes it will help take away caster and move tire forward if move the spc arm towards front but you will need to eyeball camber.

    If your lcas are seized they can't fine tune.

    MadRiverTaco[QUOTED] likes this.
  16. Apr 16, 2017 at 6:29 AM
    #896
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said.

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,666
    Gender:
    Male
    First Name:
    Brenden
    Waterbury, VT
    Vehicle:
    2012 Black DCSB TRD OR "Caroline"
    King 2.5 Ext. w/ Compression Adjusters (Front & Rear), Dakars w/ D29XL, TC UCA's & LCA's, ARE CX, 17" SEMA Pro's, 265/70/17 Falken Wildpeaks, BORA spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, TRD Pro grill, URD TCAI, 5.7L Throttle Body, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, CV Boot slide mod, Differential breather mod, U-Bolt Flip Kit w/ Timbren Bumpstops, A-pillar RAM mount w/ cell phone holder, ProFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock
    I see. Thanks for the info.

  17. Apr 16, 2017 at 9:12 AM
    #897
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    3,513
    I think your major issue is the balljoints were installed the wrong way. I'm not sure what setting that equates to, but it's damn sure not +3 caster. The "SPC" logo(flat side) should be facing the tire to be at the +2(neutral) position.

    JayRolla likes this.
  18. Apr 16, 2017 at 9:14 AM
    #898
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    3,513
    Mine at +2(neutral) position.


    Catfish21 and JayRolla like this.
  19. Apr 16, 2017 at 9:31 AM
    #899
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said.

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,666
    Gender:
    Male
    First Name:
    Brenden
    Waterbury, VT
    Vehicle:
    2012 Black DCSB TRD OR "Caroline"
    King 2.5 Ext. w/ Compression Adjusters (Front & Rear), Dakars w/ D29XL, TC UCA's & LCA's, ARE CX, 17" SEMA Pro's, 265/70/17 Falken Wildpeaks, BORA spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, TRD Pro grill, URD TCAI, 5.7L Throttle Body, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, CV Boot slide mod, Differential breather mod, U-Bolt Flip Kit w/ Timbren Bumpstops, A-pillar RAM mount w/ cell phone holder, ProFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock
    Yes, this is how mine is set up on the passenger side and it produced great numbers. It frustrates me why the driver side didn't get adjusted this way. I'm going to make this adjustment on the driver side then bring it back this week to get properly aligned.

    JayRolla likes this.
  20. Apr 16, 2017 at 9:32 AM
    #900
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,888
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    That should help but that camber should be near 0 also. Hopefully they can get it with seized cams.
