Alignment help...

Discussion in 'Suspension' started by Oskie_78, Apr 18, 2010.

  1. Apr 18, 2010 at 3:59 PM
    #1
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    I got my lift and wheels on now and got my alignment done just recently. I've been reading up on here a lot about alignments and I'm not sure if my alignment specs are correct. Can some of you guys chime in and help me out on this?

    I've read it's suppose to be...

    Camber 0*
    Toe 0*
    Caster 2.4*

    The manager at Firestone said they couldn't get to those specs. What can I do to get this correct? I have light race UCA's, are they suppose to adjust the UCA's?

    I have 2.5 lift up front and tire size is 285/70/17.

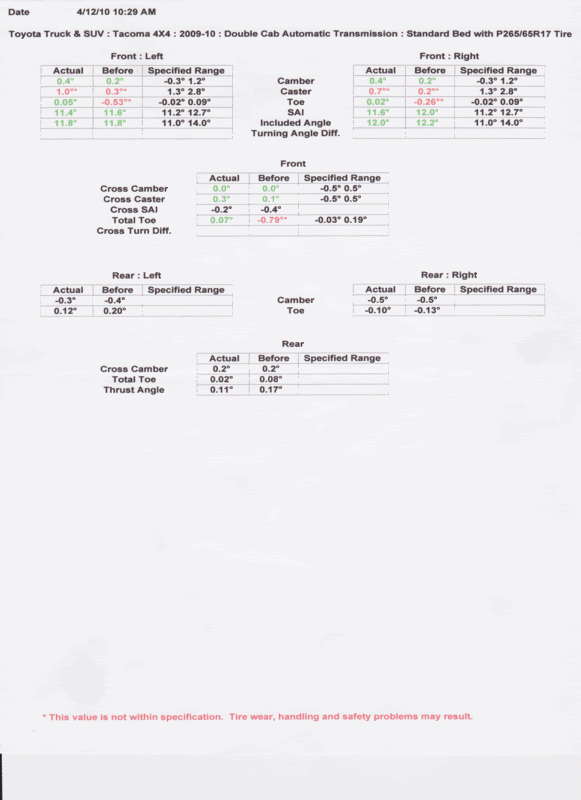

    here are the specs...

    [​IMG]

  2. Apr 18, 2010 at 4:54 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    When you installed the UCA's, did you set the ball joint to the 2* + setting?

  3. Apr 18, 2010 at 5:13 PM
    #3
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    698
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    I set my caster to 2.5...Camber to .4 and toe to whatever Factory specs are...trucks drive like a champ.

  4. Apr 18, 2010 at 5:17 PM
    #4
    ColtsTRD

    ColtsTRD .....

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    17,826
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005 TRD DCSB
    x2...i made the mistake of installing the ball joints backwards and my alignment was all sorts of messed up. Make sure the SPC Logo is facing you when your looking at it installed. You'll want the rounded edge of the ball joint plate facing the truck w/ SPC facing you (or the tire)

  5. Apr 18, 2010 at 5:19 PM
    #5
    ColtsTRD

    ColtsTRD .....

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    17,826
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005 TRD DCSB
    Toe - 0

    Camber - 0

    Caster - 2.4+ to 2.8+

  6. Apr 18, 2010 at 5:39 PM
    #6
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    I'm not to sure. How can I found out?

  7. Apr 18, 2010 at 5:51 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    :cool:

  8. Apr 18, 2010 at 6:08 PM
    #8
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    The truck does drives perfectly straight. It just feels like when I hit some bumps and crown on the road the steering feels little loose.

  9. Apr 18, 2010 at 8:18 PM
    #9
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,179
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    I wouldn't worry about it at all. It's going to steer way better with the caster where it's at, ant you won't get any rubbing on the body mounts either.

  10. Apr 19, 2010 at 10:28 AM
    #10
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    So I can leave it were the specs are at?

    would my tires still wear out evenly? that's what I really worry about.

    I just thought the alignment specs HAD to be set at...
    Camber 0*
    Toe 0*
    Caster 2.4*-2.8+


    Like I said before, the truck does drives perfectly straight. It just kinda feels wiggly on the crown on the highways and bumps, Not real bad, but it does kinda bother me. Can the caster help that?

  11. Apr 19, 2010 at 10:31 AM
    #11
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,179
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    The Camber and Toe are pretty important. If those aren't right, the tires will wear out really quick. The caster doesn't matter as much.

  12. Apr 27, 2010 at 2:45 PM
    #12
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4

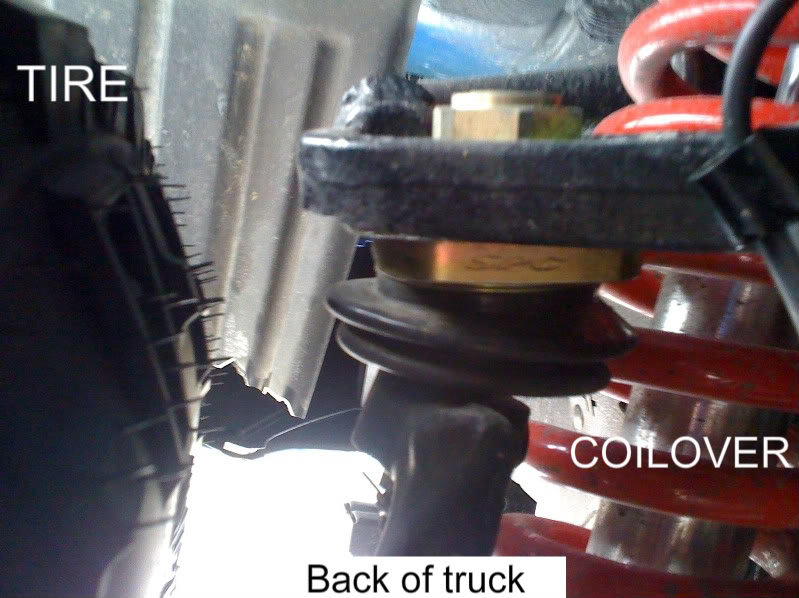

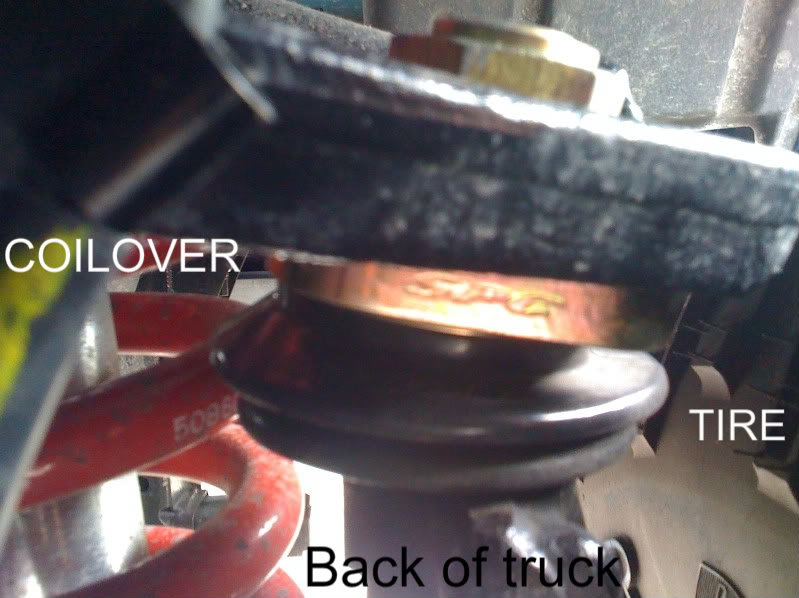

    ok, back again... I've notice the SPC is facing towards the rear of the truck on both the drivers side and passenger side.

    [​IMG]
    passenger side


    [​IMG]
    drivers side

    How do I adjust this?

  13. Apr 27, 2010 at 2:46 PM
    #13
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    Do I just loosen the bolt on top?


    Is it bad if the SPC is not facing the tire?


    :help::help::help:

  14. Apr 27, 2010 at 4:28 PM
    #14
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    so it that why I couldn't get my alignment right to specs because the ball joints are not placed properly?

  15. Apr 27, 2010 at 4:35 PM
    #15
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,179
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    Yes that is why your specs aren't "right on", but it will steer a hell of a lot better the way you have is set now.

    If you have a big enough socket, you can just loosen up the bolt on top and reposition the joint while the UCA is on the truck.

  16. Apr 27, 2010 at 4:35 PM
    #16
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,179
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    Also, you'll have less rubbing the way it is set now.

  17. Apr 29, 2010 at 10:38 AM
    #17
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    hey Drew, my ride right now feels ok, but I think it could be better. It has some slight bump seer that starting to bother me that's why I'm thinking of moving the ball joint.

    If I face the SPC at me it well set it a 2*+ correct?

  18. Apr 29, 2010 at 11:54 AM
    #18
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,179
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    What are you shooting for, factory caster?

  19. Apr 29, 2010 at 12:04 PM
    #19
    Oskie_78

    Oskie_78 [OP] Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    816
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    I want to see if I move the ball joint face me if that would help out on the bump steer and get it all things to specs....I thought have the UCA's installed would help out with all that. It drives straight, I just want the bump steer gone and I do rub the body mount right now too but only in reverse with wheel turn all the way. :confused:

  20. Apr 29, 2010 at 12:07 PM
    #20
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,179
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    If it rubs now, it will rub WAY worse, once you move the joint further back. You'll just have to decide which you want to live with: Bump Steer or Rubbing.

    Making the SPI face out towards you and positioning the joint as far out on the A arm as possible should give you factory caster.
