Alignment Numbers. Opinions!

Discussion in '3rd Gen. Tacomas (2016-2023)' started by WaikikiSneaky, Dec 21, 2018.

  1. Dec 21, 2018 at 12:15 PM
    #1
    WaikikiSneaky

    WaikikiSneaky [OP] Well-Known Member

    Joined:
    Jun 13, 2018
    Member:
    #256376
    Messages:
    145
    Gender:
    Male
    Vehicle:
    Ex Taco Owner
    King 2.5. RCI bed rack. Icon. Prinsu. Rigid Ind. SoftTopper. Tepui. OME HD Leaf Pack.
    Aloha all!

    Back again with a nonsense topic! Current build: OEM King Suspension on all 4 corners, OME Heavy Duty Leaf Pack, stock UCA's, 265/70/17 Wildpeaks.

    Front driver hub to fender - 22.25"
    Front passanger hub to fender -22.5"
    Driver rear hub to fender - 24.25"
    Passanger rear hub to fender -24.75"

    Before these measurements I raised the front to about 23 - 23.5" of lift, had slight vibes from 20 - 30mph and felt that it was too much preload so I lowered them back down to these measurements. Vibes seem a LITTLE better now after lowering front but slightly still there. Almost feel like it is coming from the rear. Too much rake?

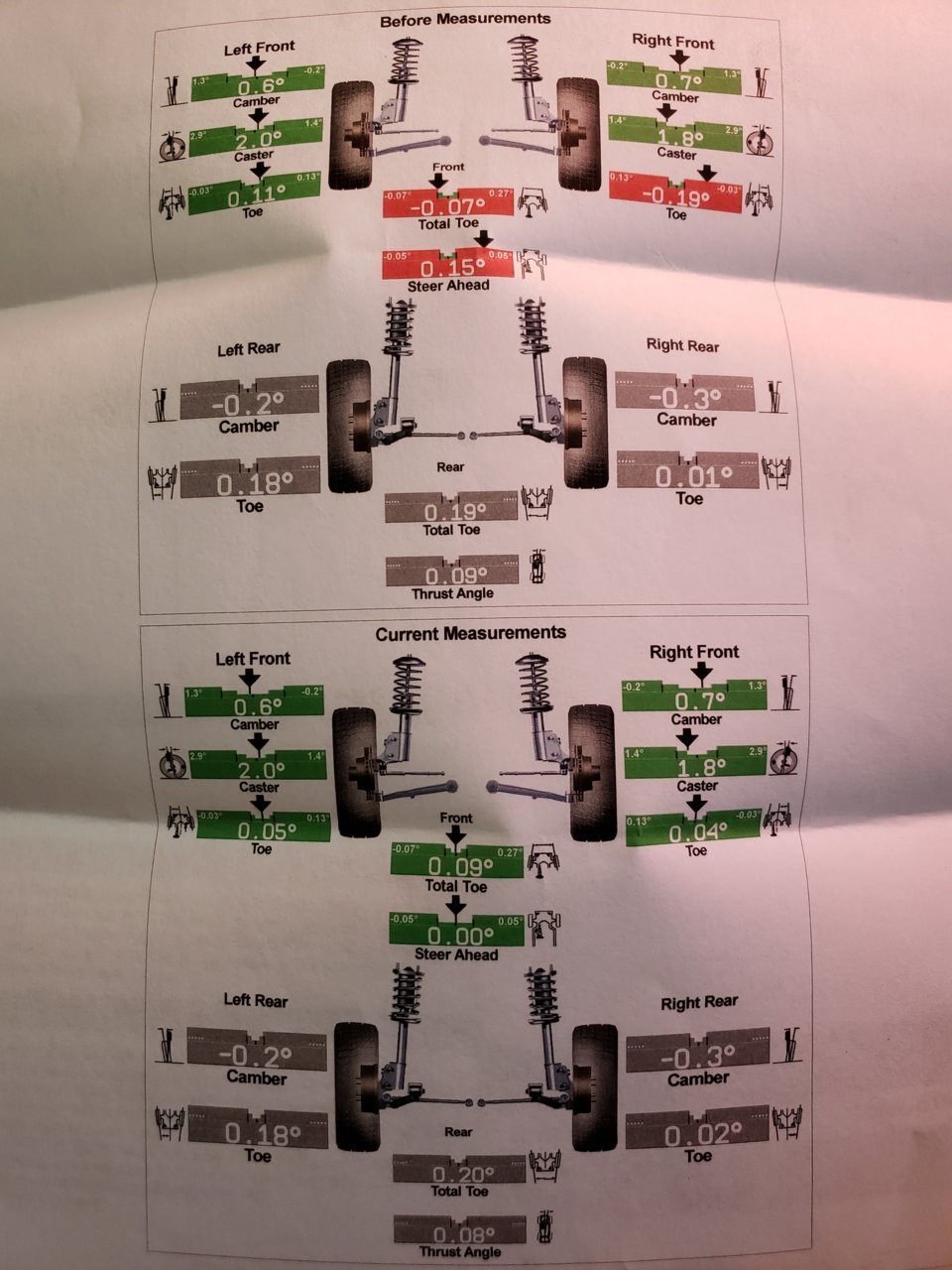

    The before alignment was with the 23" of lift up front and the current alignment is with the lowered measurements. Thoughts? Thank you all.20181221_125953.jpg

  2. Dec 21, 2018 at 12:23 PM
    #2
    TheTacomaInn

    TheTacomaInn Well-Known Member

    Joined:
    Oct 3, 2017
    Member:
    #231882
    Messages:
    227
    Gender:
    Male
    First Name:
    Rob
    Littleton, CO
    Vehicle:
    17 OR Access Cab, OME 887,HD Dakars, 285s
    Subbed to hear more about the alignment numbers.

    I doubt its too much rake. Do you have any shims or the carrier barring drop kit? I have the OME HD (EL096R) and I'm sitting at 24" in the rear. I had low speed vibs that were corrected by 3* shims on the leafs. Seems to be a pretty common problem.

  3. Dec 21, 2018 at 12:23 PM
    #3
    splitbolt

    splitbolt Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,857
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Probably the pinion angle...
    Aren't OEM Kings a little short for an OME HD leafpack?

    TheTacomaInn likes this.
  4. Dec 21, 2018 at 12:23 PM
    #4
    na8rboy

    na8rboy 18 DCLB Sport Cement

    Joined:
    Jun 3, 2012
    Member:
    #80024
    Messages:
    3,604
    WI
    Vehicle:
    18 DCLB SPORT CEMENT
    All they did is adjust your toe, and straighten your steering wheel.

  5. Dec 21, 2018 at 12:27 PM
    #5
    WaikikiSneaky

    WaikikiSneaky [OP] Well-Known Member

    Joined:
    Jun 13, 2018
    Member:
    #256376
    Messages:
    145
    Gender:
    Male
    Vehicle:
    Ex Taco Owner
    King 2.5. RCI bed rack. Icon. Prinsu. Rigid Ind. SoftTopper. Tepui. OME HD Leaf Pack.
    @TheTacomaInn yes I have seen that as well. I hear the 3* shims help but also seen some that dont? Not sure. Maybe I wl have to try that. Thank you!

    TheTacomaInn likes this.
  6. Dec 21, 2018 at 12:28 PM
    #6
    WaikikiSneaky

    WaikikiSneaky [OP] Well-Known Member

    Joined:
    Jun 13, 2018
    Member:
    #256376
    Messages:
    145
    Gender:
    Male
    Vehicle:
    Ex Taco Owner
    King 2.5. RCI bed rack. Icon. Prinsu. Rigid Ind. SoftTopper. Tepui. OME HD Leaf Pack.
    @splitbolt that's what I was thinking. And yes, they are a bit short. Waiting on the new ones. Thank you.

  7. Dec 21, 2018 at 1:38 PM
    #7
    Doggman

    Doggman Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,537
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR MT
    The vibes are probably the ECGS bearing thing. The alignment just looks like toe was out after you lowered it. This is expected anytime you change the height. They should have been able to get you a similar alignment at the higher height as well.
