Alignment Numbers

Discussion in '2nd Gen. Builds (2005-2015)' started by jeverich, Dec 2, 2011.

  1. Dec 2, 2011 at 11:08 AM
    #1
    jeverich

    jeverich [OP] Well-Known Member

    Joined:
    Mar 25, 2008
    Member:
    #5517
    Messages:
    2,235
    Gender:
    Male
    First Name:
    Jake
    PNW/Kodiak
    Vehicle:
    07 2.7 4x4
    OME 886/Old Man Doug Suspension Lift, ARB Bumper, Bruteforce High Clearance w/Swing Out, De-badge, Block Heater, Homemade IFS Skid, 7" Kragens, Blue Seas Fuse Block, BlitzPro Fogs, 12k BadLands Winch, BAMF Sliders, ARB Locker, 4.88s Yaesu FT-1900R, Larsen 150B NMO Mount Antenna

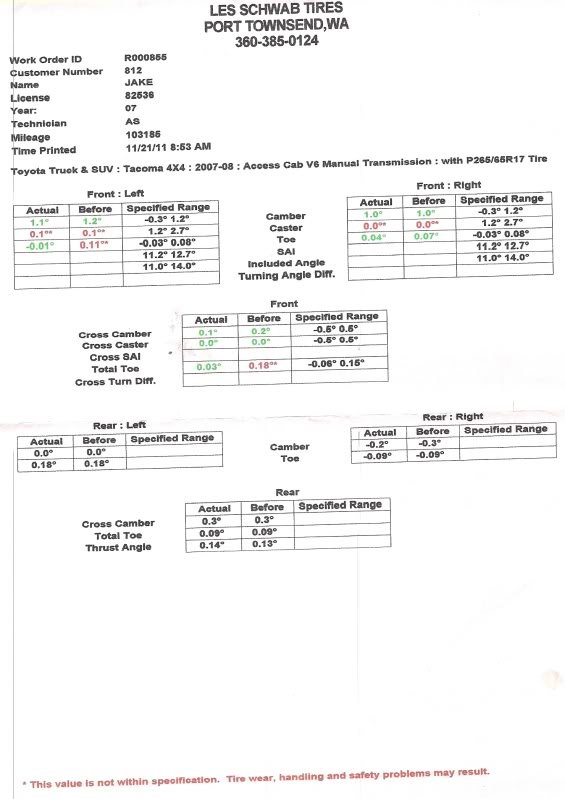

    I need help interpreting these alignment numbers. I know, it's been asked a million times before...

    Light Racing UCAs are still $379.00 from Fat Bob's.

    This is post OME Lift, with 885s up front and Nitrochargers with Top Plate spacers.

    [​IMG]

  2. Dec 2, 2011 at 11:22 AM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Your Toe is good (Not dependant on the UCA's anyway), but your Caster should be .4*, and your Caster should be 2.1* or more. SO......Your alignment looks like shit.....loosely translated for you.

  3. Dec 2, 2011 at 11:25 AM
    #3
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,605
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Got that for you Big Guy :thumbsup:

  4. Dec 2, 2011 at 4:37 PM
    #4
    jeverich

    jeverich [OP] Well-Known Member

    Joined:
    Mar 25, 2008
    Member:
    #5517
    Messages:
    2,235
    Gender:
    Male
    First Name:
    Jake
    PNW/Kodiak
    Vehicle:
    07 2.7 4x4
    OME 886/Old Man Doug Suspension Lift, ARB Bumper, Bruteforce High Clearance w/Swing Out, De-badge, Block Heater, Homemade IFS Skid, 7" Kragens, Blue Seas Fuse Block, BlitzPro Fogs, 12k BadLands Winch, BAMF Sliders, ARB Locker, 4.88s Yaesu FT-1900R, Larsen 150B NMO Mount Antenna
    Highly scientific answer, I like it!

    New UCAs on order.

  5. Dec 2, 2011 at 5:29 PM
    #5
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    I wish I knew what I was looking at :anonymous:

  6. Dec 2, 2011 at 5:41 PM
    #6
    scocar

    scocar Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,305
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Hang on a sec before you get the LR UCAS. 885s are only about a 1.75 lift?

    I had about the same issue with my 881s (1st gen 1.75 lift), and the caster was way off. Too twitchy. I went in again and told them specifically to max out the caster, and they did! They got 2.4 out of it with the stock UCAs just because I asked them too. I think some lazy techs will just do a toe-and-go unless you specify that you actually want them to do their job, unfortunately. Unless there is anything dramatically different on 2nd gens, it's worth a shot before you drop a few C-notes.

  7. Dec 2, 2011 at 5:41 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    885's give between 2.5 and 3" lift on most second gens

  8. Dec 2, 2011 at 5:42 PM
    #8
    scocar

    scocar Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,305
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
  9. Dec 2, 2011 at 5:43 PM
    #9
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
  10. Dec 2, 2011 at 5:45 PM
    #10
    scocar

    scocar Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,305
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Nice.

    So is there a magic cutoff height where you can no longer can get within spec and need to go with aftermarket UCAs?

  11. Dec 2, 2011 at 5:51 PM
    #11
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Seems to vary a bit from truck to truck. Some have issues after 2" lift, while some are fine at 2.5". 3" and you need new UCA's to get the alignment right. Also, seems some techs like to tell people "We got it 'In Spec'". This might be true, but if you look at the print out, you would see that the Camber, and Caster are at max. acceptable levels. But with a lift, generally comes larger tires, and a wider foot print. Different numbers need to be used. The alignment needs to be a little more "accurate" so as to keep the tires from wearing poorly. For example, the OP's printout shows the tires are angled in like this \--/ when viewd from the front. Alignemtn shops will add more camber in order to get a little more Caster. You have to sacrifice one for the other, and even then, its still a poor alignment.

  12. Dec 2, 2011 at 6:06 PM
    #12
    jeverich

    jeverich [OP] Well-Known Member

    Joined:
    Mar 25, 2008
    Member:
    #5517
    Messages:
    2,235
    Gender:
    Male
    First Name:
    Jake
    PNW/Kodiak
    Vehicle:
    07 2.7 4x4
    OME 886/Old Man Doug Suspension Lift, ARB Bumper, Bruteforce High Clearance w/Swing Out, De-badge, Block Heater, Homemade IFS Skid, 7" Kragens, Blue Seas Fuse Block, BlitzPro Fogs, 12k BadLands Winch, BAMF Sliders, ARB Locker, 4.88s Yaesu FT-1900R, Larsen 150B NMO Mount Antenna
    Also, it comes down to the individual Tech's willingness to adjust the alignment as well.

    Keep in mind the tech also knifed the sidewall of my tire on the alignment rack too. That was real fun. I mean, it's not like they are new or anything.

    In an attempt at self-redemption...all the research that I did prior/post the lift is pointing to new UCAs. It's ludicrous to think that you could preform such a radical change in the factory-engineered suspension system, and still use factory UCAs. Again, there is a big difference between good enough and done right.

    I learned that a while ago...That's right up there with, "Double-check, then triple-check that everything is tight"...Especially with 100GPM, 3,000 PSI Marine hydraulic systems. If a fitting isn't tight, you'll know. In about 1 microsecond.

    LR UCAs on their way.

  13. Dec 2, 2011 at 6:06 PM
    #13
    scocar

    scocar Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,305
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Yeah whenever I look at the curves in the FSM, it makes my head spin. It slowly dawned on me that 2.4 caster with a lift is more like 1.4 in reality, at least in terms of handling, for example.

  14. Dec 2, 2011 at 6:07 PM
    #14
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Yeah. I like to get close to 2.8* or so when lifted 3". I didnt mess with my first gen too much, and I cant remember the numbers that gave the best ride.

  15. Dec 2, 2011 at 6:12 PM
    #15
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    True! However, Toyota doesnt engineer much Caster into their suspensions. Where as a 3" lift virtually wipes out any Caster you can have (keeping the Camber fairly inline), many other vehicles have much more built in. For example, My Dodge. I lifted it 2" and hit the OEM specs plus some added Caster with ease. Cars can have 11* or so of Caster. As this makes the vehicle more stable, it also increases the leverage working against the steering rack, and if off roading, can lead to broken parts, if the tire is jammed between a rock, and a hard place......so to speak. Decreasing the Caster gives more protection against this, but reduces the vehicle stability in a straight line. Take the limited Caster on a Tacoma, then lift it, and reduce the Caster down to 0*, and then take a drive on a rutted road. The truck will want to go everywhere but in a straight line.
