Alternative Bump Stops

Discussion in 'Suspension' started by DaWillDaBeast, Oct 17, 2010.

  1. DaWillDaBeast

    DaWillDaBeast [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26972
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Will
    Oviedo, Fl
    Vehicle:
    05 Tacoma 4x4 with some goodies
    Light racing (aka icon) coilovers, OME Dakar Leafs, Bilstein 5125's, Trail Teams Rims, 285-75/16 KM2's, Bumper, sliders, skids and other shiz
    So when I lifted my rear I ended up getting a set of Bilstein 5125's in the 10.17" length and they were a little to long and were getting fully compressed before I was on my bump stops, so I needed some new ones but I'm a chepo and didn't want to nearly $200 for a set of bump stops. So I bought a set of Energy Suspension 4 1/2" bump stops and made them work

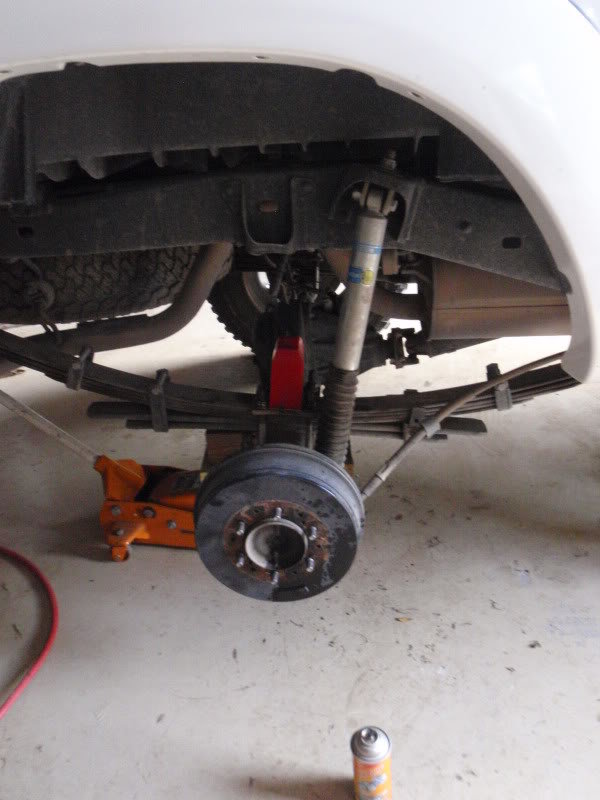

    I started with some stock bumps modded to fit with the All Pro flip kit
    [​IMG]
    [​IMG]

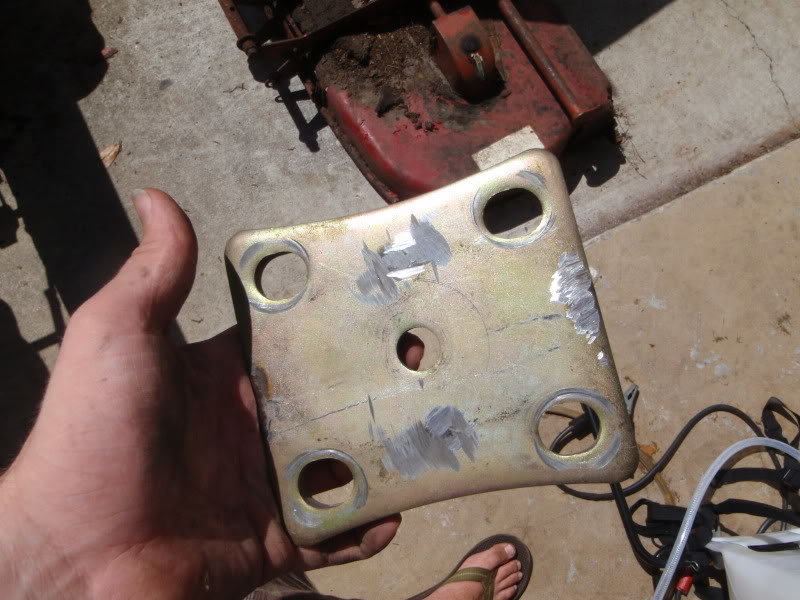

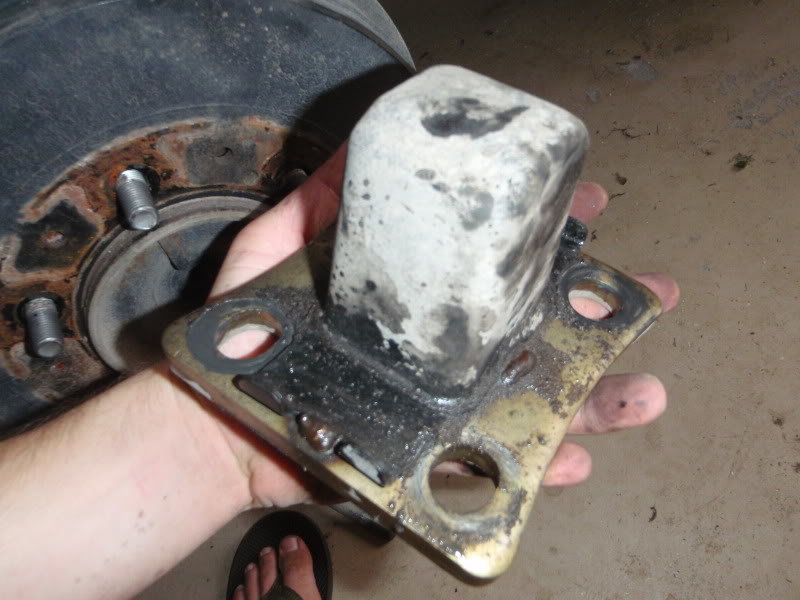

    Cut the stock bumps off
    [​IMG]

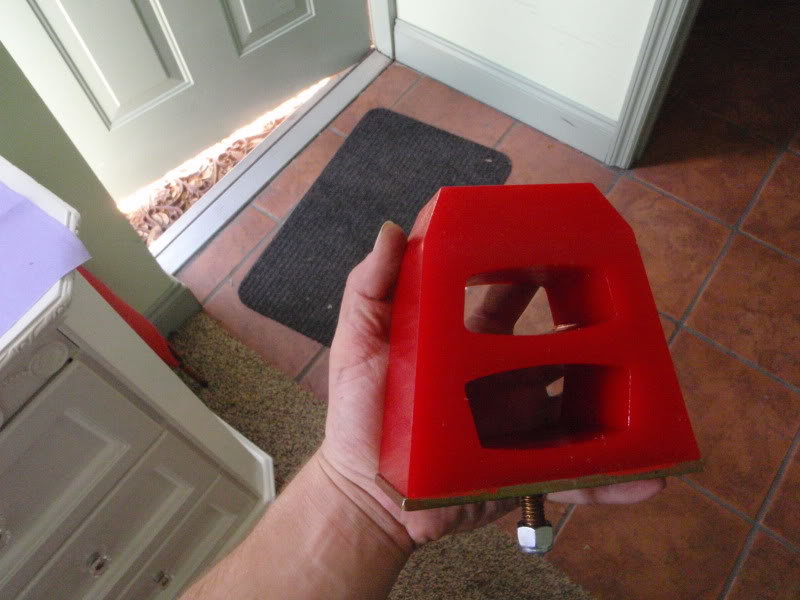

    Then took the energy suspension bumps
    [​IMG]

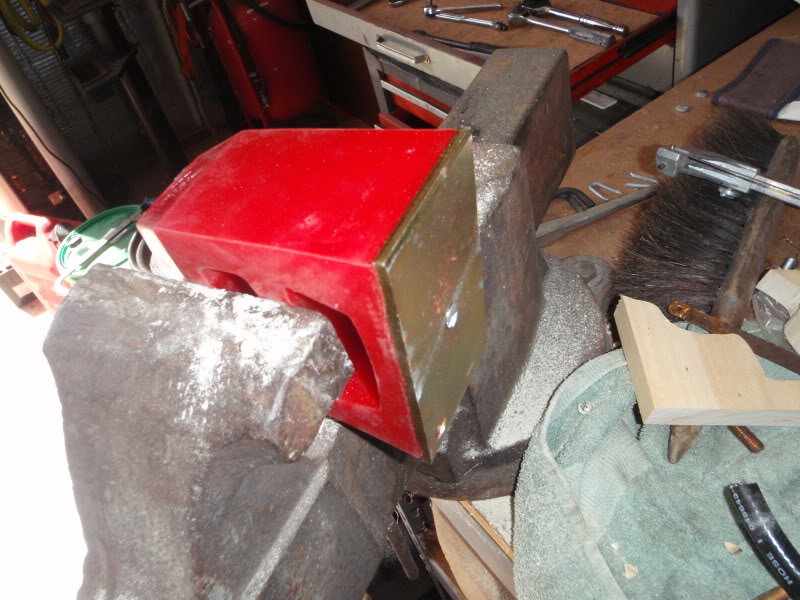

    Cut the bolt off
    [​IMG]

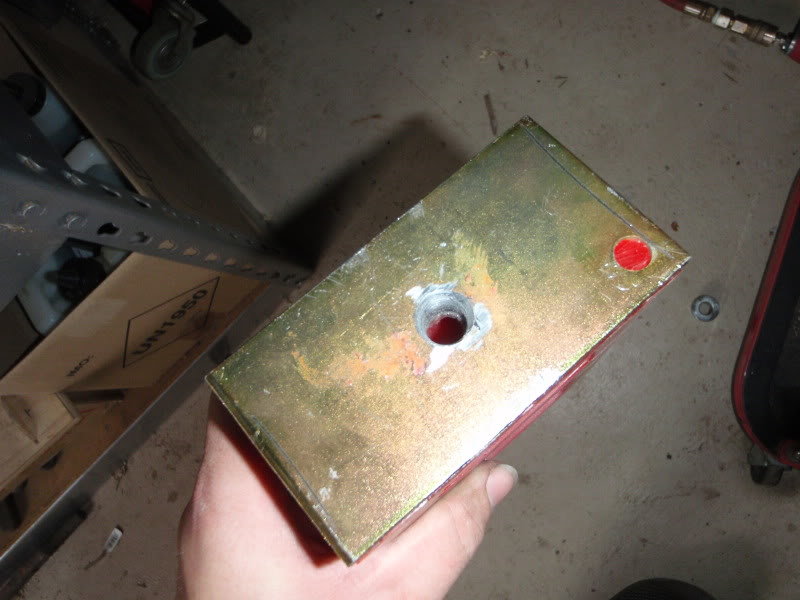

    Drilled the center out so the bolt on the leaf pack has room
    [​IMG]

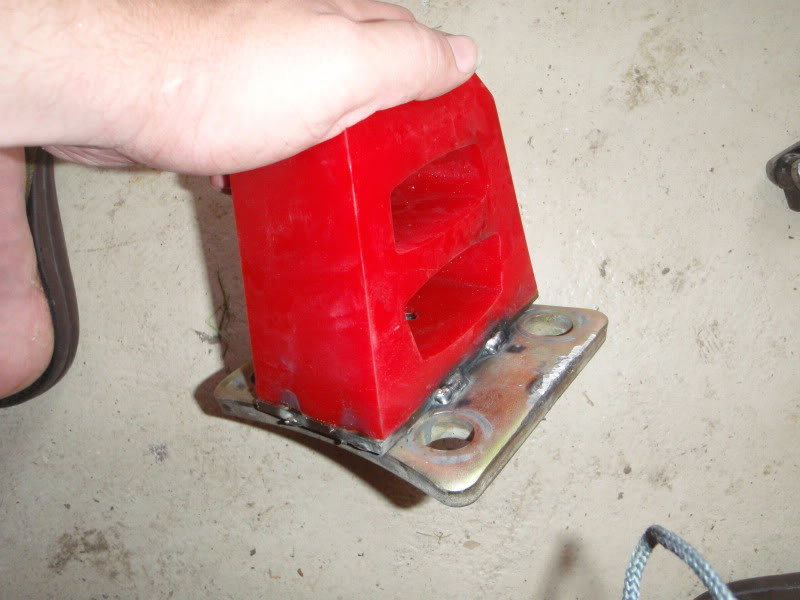

    Put a few welds on to hold it all together
    [​IMG]

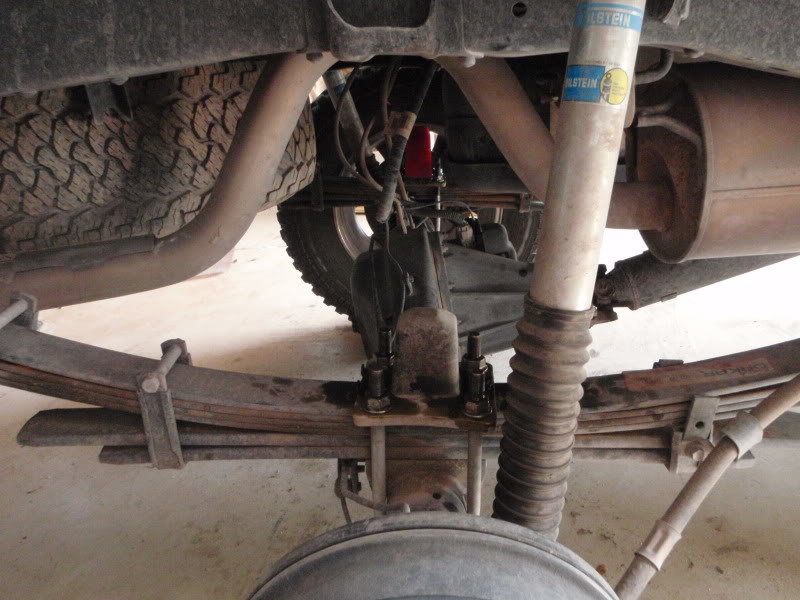

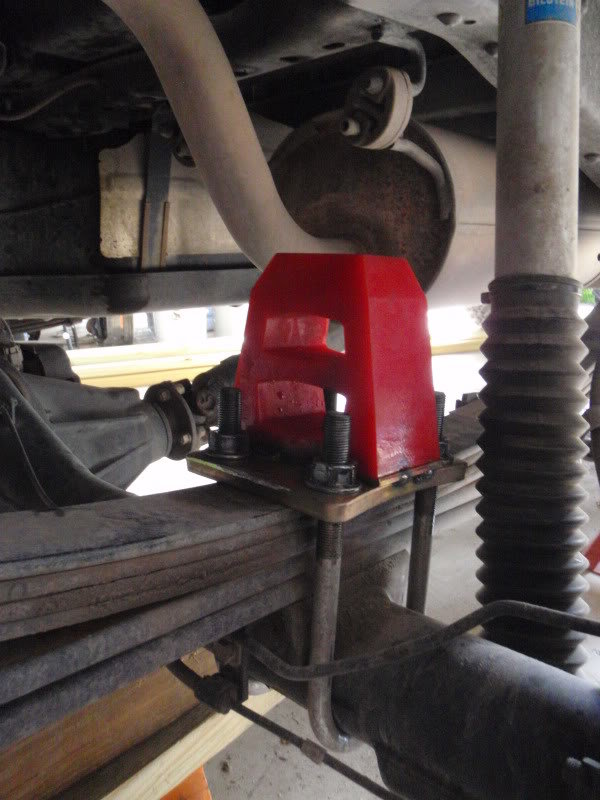

    Then mounted them up
    [​IMG]
    [​IMG]

    I'm very happy with the outcome and I think its a great alternative for those that are on a budget and don't mind a little work. On a side note I also have an extra set of the same Energy bump stops I'd like to get rid of if anyone is interested :D

  2. 1TUFFTRD

    1TUFFTRD WTF

    Joined:
    Feb 4, 2010
    Member:
    #30721
    Messages:
    2,165
    Gender:
    Male
    out and about building powerlines
    Vehicle:
    06 AC with a skewp
    06 With a Skewp.
  3. KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,400
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
    Wow those are huuuuge. Nice.

  4. DaWillDaBeast

    DaWillDaBeast [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26972
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Will
    Oviedo, Fl
    Vehicle:
    05 Tacoma 4x4 with some goodies
    Light racing (aka icon) coilovers, OME Dakar Leafs, Bilstein 5125's, Trail Teams Rims, 285-75/16 KM2's, Bumper, sliders, skids and other shiz
    Ya they are big, but no bigger than the timbren bumps (I think?)

  5. KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,400
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
    Maybe it's the bright color that's throwing me .

  6. jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,249
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Looking forward to testing those Wheeler's Superbumps I got comin...eventually...when Wheeler's ships them...right around the Winter Solstice...

  7. DaWillDaBeast

    DaWillDaBeast [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26972
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Will
    Oviedo, Fl
    Vehicle:
    05 Tacoma 4x4 with some goodies
    Light racing (aka icon) coilovers, OME Dakar Leafs, Bilstein 5125's, Trail Teams Rims, 285-75/16 KM2's, Bumper, sliders, skids and other shiz
    I had to make them big because my rear shocks were fully compressed before hitting my bumps when I was fully stuffed using the stock ones. With these the frame hits the bumps right before my shocks are fully compressed so that I dont blow my shocks, but I still get nearly 100% compression.

  8. DaWillDaBeast

    DaWillDaBeast [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26972
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Will
    Oviedo, Fl
    Vehicle:
    05 Tacoma 4x4 with some goodies
    Light racing (aka icon) coilovers, OME Dakar Leafs, Bilstein 5125's, Trail Teams Rims, 285-75/16 KM2's, Bumper, sliders, skids and other shiz
    Bili 5125's in 10.17"

  9. DaWillDaBeast

    DaWillDaBeast [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26972
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Will
    Oviedo, Fl
    Vehicle:
    05 Tacoma 4x4 with some goodies
    Light racing (aka icon) coilovers, OME Dakar Leafs, Bilstein 5125's, Trail Teams Rims, 285-75/16 KM2's, Bumper, sliders, skids and other shiz
    Ya, I knew it was going to be close when I ordered them but I could not find many people running 5125's so I went for it, and it required a bit more work than i was hoping. But at least I have some sweet droop in the rear now.

  10. Jason'sLawnCare

    Jason'sLawnCare Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    Those things make the stock bumps look so wimpy.

  11. StatutoryAPE

    StatutoryAPE Well-Known Member

    Joined:
    May 27, 2010
    Member:
    #37926
    Messages:
    573
    Gender:
    Male
    First Name:
    Joey
    Phoenix,AZ
    Vehicle:
    2000 Prerunner xtracab
    TRD Headers,CAI, dynomax super turbo, blacked out headlights, Smoked LED tails, Billy 5100 w/OME 881's and 5125's in rear, rear tube bumper, tint 35% front 3 windows & 5% in rear 3. fiberwerx 4.5's
    [​IMG]

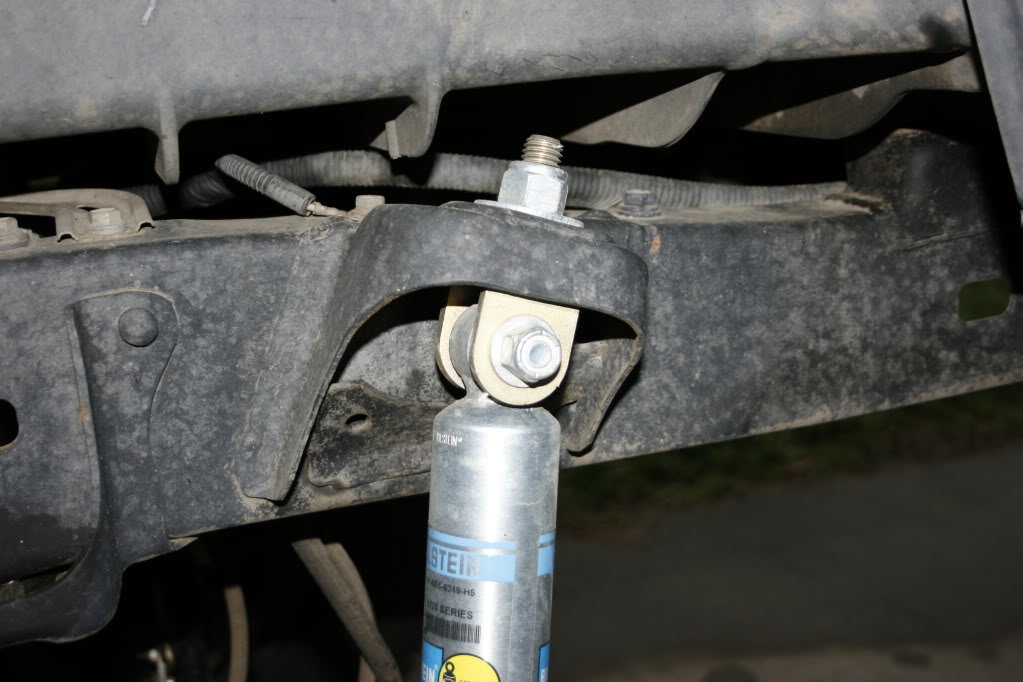

    on this pic it looks like your shock is facing outwards. shouldnt the mounting holes/bolts be facing out instead? not sure if anyone else noticed. if im wrong let me know

  12. DaWillDaBeast

    DaWillDaBeast [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26972
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Will
    Oviedo, Fl
    Vehicle:
    05 Tacoma 4x4 with some goodies
    Light racing (aka icon) coilovers, OME Dakar Leafs, Bilstein 5125's, Trail Teams Rims, 285-75/16 KM2's, Bumper, sliders, skids and other shiz
    I'm not sure I know what you mean? The shock adaptors bolts are facing outward?

  13. mjp2

    mjp2 The Lost Mod of Akalabeth Staff Member

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    17,281
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    The axle moves forward and backward as the suspension cycles. If you rotate that upper mount so the bolt is perpendicular to the frame, you'll be less likely to experience binding at that upper shock mount.

    You can see in your picture how the upper mount is already flexing quite a bit. When the suspension compresses, the bottom of the shock is going to move backward even further than it is in this picture. Something to consider.

  14. colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    17,361
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    those look sweet will!

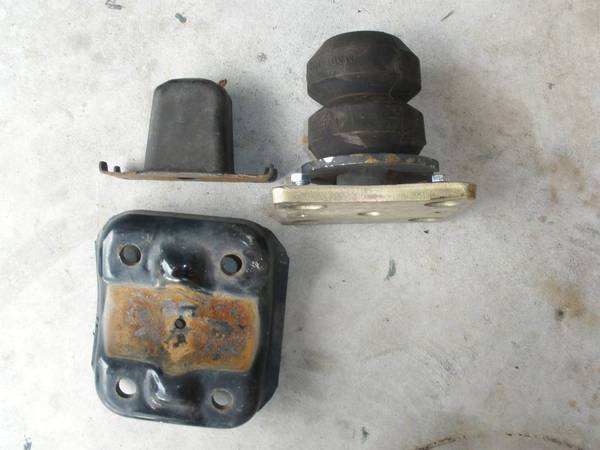

    you have a side by side shot of the new ones and the stockers? i'm curious how they compare size-wise to the timbrens. her's a picture of the stock vs timbren
