Alternator not charging battery, Possible bad wire connecting to the fuse box the culprit?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Mendo, Aug 20, 2017.

  1. Aug 20, 2017 at 10:48 AM
    #1
    Mendo

    Mendo [OP] New Member

    Joined:
    Aug 20, 2017
    Member:
    #227408
    Messages:
    3
    Gender:
    Male
    Hi guys, I have a 2008 4cyl 4x4 Tacoma and recently the battery light went on. I had the alternator checked while on the truck at Autozone and they said it had a bad voltage regulator so I replaced the alternator but it still had the battery light. I had the new alternator checked while on the truck again and it still showed a bad voltage regulator while the testing machine was attached to the battery terminal. Then they connected the machine to the bolt on top of the positive battery terminal and it got now reading at all leading to belive something was wrong with the connection of the wire going from the fuse box to the top of the battery terminal.

    I took off that top bolt and cleaned it very well and still got a battery light, then I took off the negative battery ground wire and cleaned it very well and at the same time also took off the top of the fuse box housing and noticed that the wire leading from the alternator into the fuse box looked a bit strange. There were some frayed wires and what looked like a drop of solder at the end of the wire where it connects to the metal arm. Is it normal for this to have solder on it or have the wires melted? The wire itself looks very worn and brittle, I wiggled it around a bit and got a small spark from the wire. I then started the truck and the battery light went off and has been fine for a few days but the battery light just came back on.

    Do you think this wire is the culprit? Does anyone know what the metal arm part is called so I can order a new one and cut the end off the wire, restrip it and connect it to the new arm for a good connection? I had the old alternator tested off the truck and it tested fine so the alternator is not the problem. Thanks so much!

    IMG-4952.jpg IMG-4951.jpg

  2. Aug 20, 2017 at 11:11 AM
    #2
    Tex-Tac

    Tex-Tac Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16844
    Messages:
    805
    Gender:
    Male
    TEXAS
    Vehicle:
    2008 Tacoma V6 PreRunner SR5 Extended Double Cab Desert Sand Mica
    Installed Overhead Compass and Temperature Display along with outside temperature sensor and wiring; LED lights reverse backup; LED license plate lights; Added GTA Bluetooth Audio kit to stock radio for iphone audio; Spare tire steel braided air hose extension connection to rear bumper; Installed new headlights along with new bulbs PIAA H4 XTreme and for fog lights PIAA H10 XTreme bulbs. Installed new hood with "hood-scoop". Installed Predator Side Steps. Replaced front chrome grill with customized color matched (Desert Sand Mica) grill with added TOYOTA lettering (also in matched color), installed and secured tailgate anti-theft devices. Also installed a new external TPMS monitor for all 4 tires.
    Looks like your on to something in reference to your problem?

    Not an expert here just a suggestion.


    NOTE: Care and caution should be taken when working around electrical items, don't want to short out anything during this process.

    1.) First I would disconnect the battery and either remove it from the engine bay or isolate the battery terminals from the connectors. (also clean both terminals on the battery as well as both connectors that connect to the positive and negative terminals.)

    2.) After the battery is disconnected or removed, I would disconnect that specific wire/cable that you point out in the picture you posted and fully inspect and clean the wire/cable and the whole area associated with it's connection. Making sure the wire/cable is secure and with a tight connection on both ends (to the fuse box and the alternator).

    3.) Or if possible, disconnect that specific wire also from the alternator and remove it and replace it with a new one (from Autozone, O'Reilly's, etc.)


    4.) Once all that is done, reconnect everything back, with the battery being the last and apply some sort of electrical contact grease to all connector points (both battery terminals & connectors as well as both connector sides of that specific wire/cable) and give it a shot and see what happens?

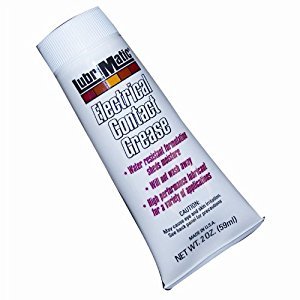

    Electrical Grease.jpg

    Hopefully that would solve your problem? If not, well the only $ lost would be what you paid for on that specific wire/cable and the electrical contact grease.

    Good Luck and hopefully everything works out for you and getting that problem solved.

    Last edited: Aug 20, 2017
    TRDSport10 likes this.
  3. Aug 20, 2017 at 11:26 AM
    #3
    cliffyk

    cliffyk Well-Known Member

    Joined:
    Oct 27, 2016
    Member:
    #200890
    Messages:
    2,039
    First Name:
    Cliff
    Saint Augustine, FL
    Vehicle:
    2009 DCSB SR5 TRD Sport 145k miles
    It looks as though someone over the years might have mucked that up, or it overheated and they tried (poorly) to solder it--here's what it should look like (my '09):

    [​IMG]

    It should be crimped, and soldered too perhaps, but that's not necessary if properly crimped with a proper tool.

    To fix it you will of course have to get a new terminal (any FLAPS should have that) and a heavy duty crimping tool like this from HF.

    Cut that thing off, strip the wire and see if you can get back to unburned, clean wire, then install the new terminal.

    Harry and Tex-Tac like this.
  4. Aug 20, 2017 at 12:57 PM
    #4
    cliffyk

    cliffyk Well-Known Member

    Joined:
    Oct 27, 2016
    Member:
    #200890
    Messages:
    2,039
    First Name:
    Cliff
    Saint Augustine, FL
    Vehicle:
    2009 DCSB SR5 TRD Sport 145k miles
    I bought the hydraulic crimper I have from HF 6 or 7 years ago, it was $20 on sale IIRC. In poking around the web just now I found that Walmart offers the same tool for $30 with free shipping:

    [​IMG]

    I found a few sellers on eBay also, as low as $24 with free shipping, however I'd rather pay a bit more and get it through Walmart's online site. It is not "sold or shipped" by Walmart but they hold the vendors they list accountable as does Amazon...

    Tex-Tac and TRDSport10 like this.
  5. Aug 20, 2017 at 5:52 PM
    #5
    OKTACO

    OKTACO Well-Known Member

    Joined:
    Apr 19, 2017
    Member:
    #216756
    Messages:
    291
    Gender:
    Male
    First Name:
    Ty
    Vehicle:
    2005 SR5 Taco
    Same symptoms my truck had but the nut was just loose in the fuse box. Would say that wire is your problem

  6. Aug 20, 2017 at 7:12 PM
    #6
    Gixerkiller

    Gixerkiller TW...bye Felicia...

    Joined:
    Aug 20, 2017
    Member:
    #227434
    Messages:
    1,834
    Gender:
    Male
    First Name:
    Dennis
    Taylor, TX
    Vehicle:
    2015 Tacoma Pre Runner DCLB White
    decals, morale patches, headlights, tail lights, toytech lift w 5100s, Falken Wildpeaks.....
    If I may,

    You are on the right track with the electrical. opposed to try to fix the wire, it would be better to replace the cable it its entirety, or at least as much as you can.

    also replace the ground cable.

    it is a 2008, there is a good probability the cables are "worn out"

    it has been my experience that generator to battery, battery to starter, and battery ground to chassis ground are 90 percent of the electrical problems found in vehicles. No one bothers to replace these cables until there is a problem and no one EVER checks them during services.

    clean all point of contact also.

    Seattleskindoc, Tex-Tac and cliffyk like this.
  7. Aug 20, 2017 at 7:18 PM
    #7
    cliffyk

    cliffyk Well-Known Member

    Joined:
    Oct 27, 2016
    Member:
    #200890
    Messages:
    2,039
    First Name:
    Cliff
    Saint Augustine, FL
    Vehicle:
    2009 DCSB SR5 TRD Sport 145k miles

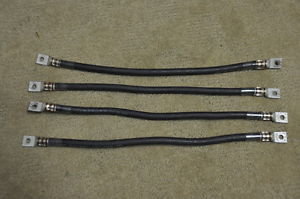

    I agree--from the photos it appears your truck has led a hard life--this would be the best repair...

    Tex-Tac likes this.
  8. Aug 20, 2017 at 7:26 PM
    #8
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    One word you said tells me the issue. Spark. If you wiggle the wire and you get a spark, you need to either repair it PROPERLY or replace it. Looking at the half assed crimp job and corrosion in the wire, Id suggest getting a new one.

    Arctic Taco and Tex-Tac like this.
  9. Aug 20, 2017 at 8:26 PM
    #9
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    2,000
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sp
    2.5 inch lift; 5100's front; OME rear; Air Lift; dual batteries; Bestop bed cover; Nfab nerf steps; EBC rotors; Threadwright Claw MT tires; hood scoop LED light install.
    Agree with @windsor . You see a spark, that is an area that needs fixing ASAP. May not be THE problem, but it is A problem. A temp fix is to crimp that wire with whatever tool you have handy until you can replace it. That should prevent further sparking, but because of the corrosion, the connection will have too much resistance that could lead to a hot spot, that could lead to burnt wire.

    Tex-Tac likes this.
  10. Aug 21, 2017 at 6:57 AM
    #10
    Mendo

    Mendo [OP] New Member

    Joined:
    Aug 20, 2017
    Member:
    #227408
    Messages:
    3
    Gender:
    Male
    Thank you everyone for the very detailed replies!! Really appreciate the help :)

    I am going to replace the metal arm and restrip the wire (after inspecting the rest of the wire) and properly crimp it with the tool mentioned here. Will post back with its success. Thanks again!

  11. Aug 21, 2017 at 7:02 AM
    #11
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yea, it might have been soldered, or I think more likely it was arcing and welded itself.

    landphil likes this.
  12. Sep 6, 2017 at 6:42 AM
    #12
    Mendo

    Mendo [OP] New Member

    Joined:
    Aug 20, 2017
    Member:
    #227408
    Messages:
    3
    Gender:
    Male
    Replaced the connector on the wire going into fuse box and everything has been good for the past week.
    So if you think your alternator is going out be sure to check this wire. Thanks for the help everyone, you rock!!

  13. Sep 6, 2017 at 7:08 AM
    #13
    Sandyman

    Sandyman Well-Known Member

    Joined:
    Aug 27, 2014
    Member:
    #137045
    Messages:
    132
    Gender:
    Male
    First Name:
    Sandy
    Los Anchorage
    Vehicle:
    '12 DC Sport Limo
    Just me
    What Tex-Tac said about grease is also spot-on. A little grease keeps the oxygen in the air from "Oxidizing"//corroding the connection in the future. While you have everything all cleaned up also use on your battery terminals for same reason. Oxygen is great for breathing but has interesting affects on everything else.

    Arctic Taco likes this.
