Aluminum extrusion bed rack

Discussion in '3rd Gen. Tacomas (2016+)' started by Cementtacotrails, Oct 8, 2019.

  1. Oct 8, 2019 at 8:34 PM
    #1
    Cementtacotrails

    Cementtacotrails [OP] Member

    Joined:
    Sep 14, 2019
    Member:
    #305265
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD Offroad
    @cementtacotrails on instagram 2/1in spacer lift Rough country bed cover 17x8.5 Procomp Rockwells 285/70r17 Nitto Ridge Grapplers
    Hello all! This is my first post! I have a 2018 DCSB and I need help with a bedrack.

    So I camp and kayak frequently and am tired of cramming things into ever nook and cranny to go on a trip. That being said I want to build a bed rack/cross bars out of aluminum extrusions. I like the Front Runner slimline 2 bedrack and the Yakima Bedrock HD with a cargo basket, but I want to build my own for more modularity in the future and to save cost (psst... not made of gold here). I've pretty much got the darn thing built in my head but cannot think of an easy way to attach it to the bed rails since it's not going to be permanent. It will only be put on in camping season for trips and my solid fold cover will be on the rest of the time.

    Two criteria it must follow:
    1. 2 kayaks must fit underneath it.
    2. My gear must stay below the roof line and out of the wind. (Not even slightly considering a roof rack)

    Has anyone ran across a page for one that was built or might have any suggestions? I've googled myself to death and am reaching out for help! See the attached images for reference.

    Copyright of images is reserved to the original post I screenshotted




  2. Oct 8, 2019 at 8:40 PM
    #2
    TacoManOne

    TacoManOne Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246923
    Messages:
    765
    Gender:
    Male
    First Name:
    Paul
    Spokane
    Vehicle:
    2018 Blazing Blue TRDOR DCLB Premium JBL
    Ionic 4" Nerf bars, Pace-Edwards Ultragroove + Thule
    I was thinking of using the same thing:T-slots aluminum t-track. To attach I was going to use the rails on my Pace Edwards Ultragrove which is compatible with Thule and Yakima racks. In order to attach to that, my idea was to basically bend some light gauge steel to match the truck bed rails and hook it to the tie town tracks on the inside. It would be thin enough to go under the tonneau rails. the t-slots track would bolt to that. I have not drawn anything up yet but can picture it in my head.

  3. Oct 8, 2019 at 8:47 PM
    #3
    Cementtacotrails

    Cementtacotrails [OP] Member

    Joined:
    Sep 14, 2019
    Member:
    #305265
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD Offroad
    @cementtacotrails on instagram 2/1in spacer lift Rough country bed cover 17x8.5 Procomp Rockwells 285/70r17 Nitto Ridge Grapplers
    @TacoManOne I like the idea! Post pictures if you nail down a thought. I have thought about bending some steel into 90deg angles for arms, but worry about weight distribution and my inability to be a blacksmith.

  4. Oct 8, 2019 at 8:51 PM
    #4
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,235
    Gender:
    Male
    First Name:
    Brent
    Southern New Mexico
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
  5. Oct 9, 2019 at 6:08 AM
    #5
    Cementtacotrails

    Cementtacotrails [OP] Member

    Joined:
    Sep 14, 2019
    Member:
    #305265
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD Offroad
    @cementtacotrails on instagram 2/1in spacer lift Rough country bed cover 17x8.5 Procomp Rockwells 285/70r17 Nitto Ridge Grapplers
    Oh I really like this idea! @PcBuilder14 what are you attaching to them? Would a normal rooftop mounted accessories work or is the unistrut too thick? How strong are they?


    PcBuilder14 likes this.
  6. Oct 9, 2019 at 6:57 AM
    #6
    TacoManOne

    TacoManOne Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246923
    Messages:
    765
    Gender:
    Male
    First Name:
    Paul
    Spokane
    Vehicle:
    2018 Blazing Blue TRDOR DCLB Premium JBL
    Ionic 4" Nerf bars, Pace-Edwards Ultragroove + Thule
    Brilliant. Simple and highly effective.

    PcBuilder14 likes this.
  7. Oct 9, 2019 at 7:08 AM
    #7
    Tacospike

    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    6,866
    Gender:
    Male
    Quarantine A-TX
    Vehicle:
    1 Owner 16 Attitude BLK TRD Spiked Sport
    Murderface Spike Edition
    I’m sold

    PcBuilder14 likes this.
  8. Oct 9, 2019 at 8:06 AM
    #8
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,235
    Gender:
    Male
    First Name:
    Brent
    Southern New Mexico
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    That I'm unsure of. I used it to mount a rooftop tent to and had to buy some longer bolts due to the 1-5/8" thickness. As far as strength goes, they did just fine. My tent weighs 195lbs by itself and was still sturdy with 2 adults and a dog sleeping in it.

  9. Oct 20, 2019 at 5:24 PM
    #9
    Cementtacotrails

    Cementtacotrails [OP] Member

    Joined:
    Sep 14, 2019
    Member:
    #305265
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD Offroad
    @cementtacotrails on instagram 2/1in spacer lift Rough country bed cover 17x8.5 Procomp Rockwells 285/70r17 Nitto Ridge Grapplers

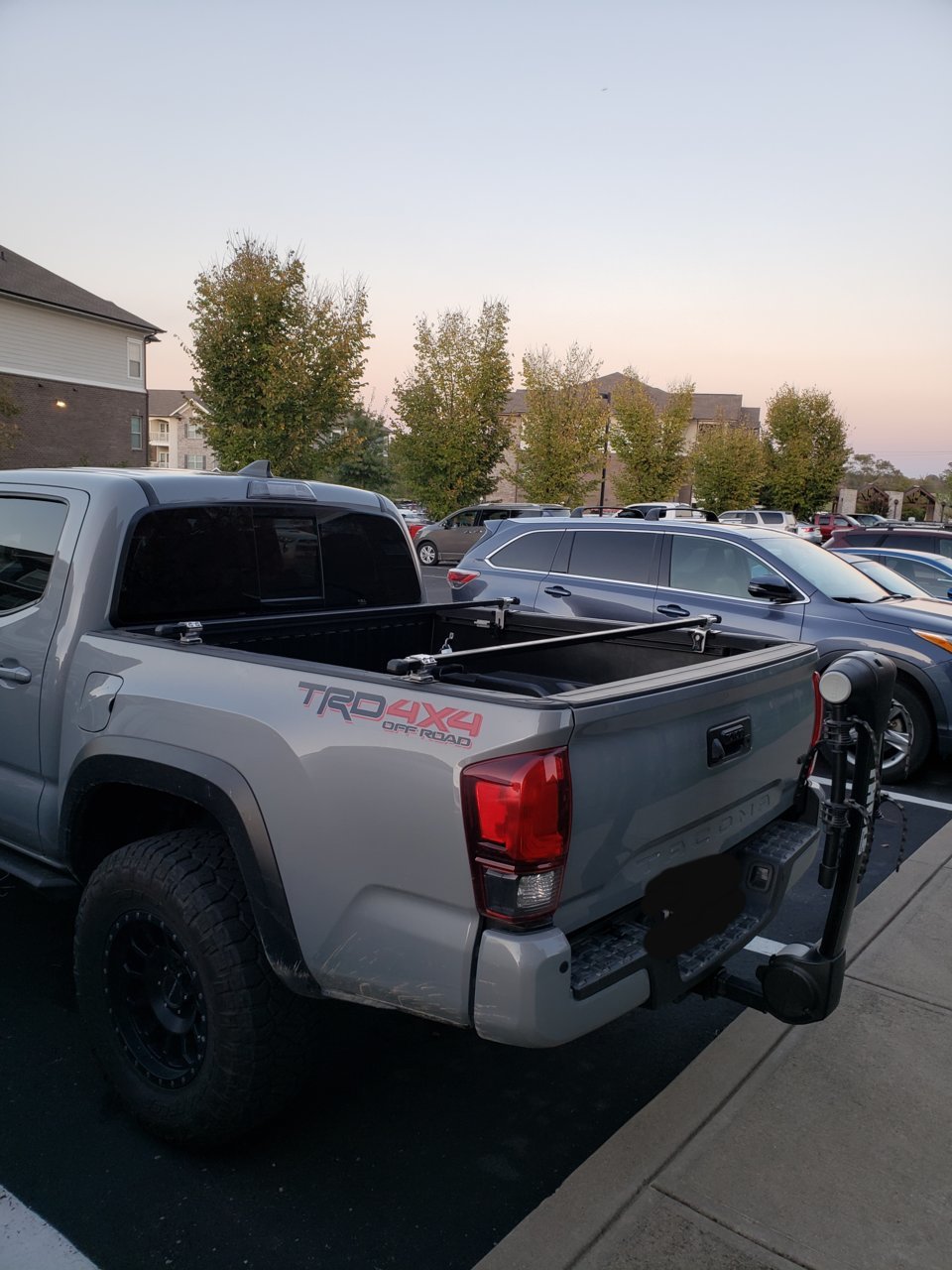

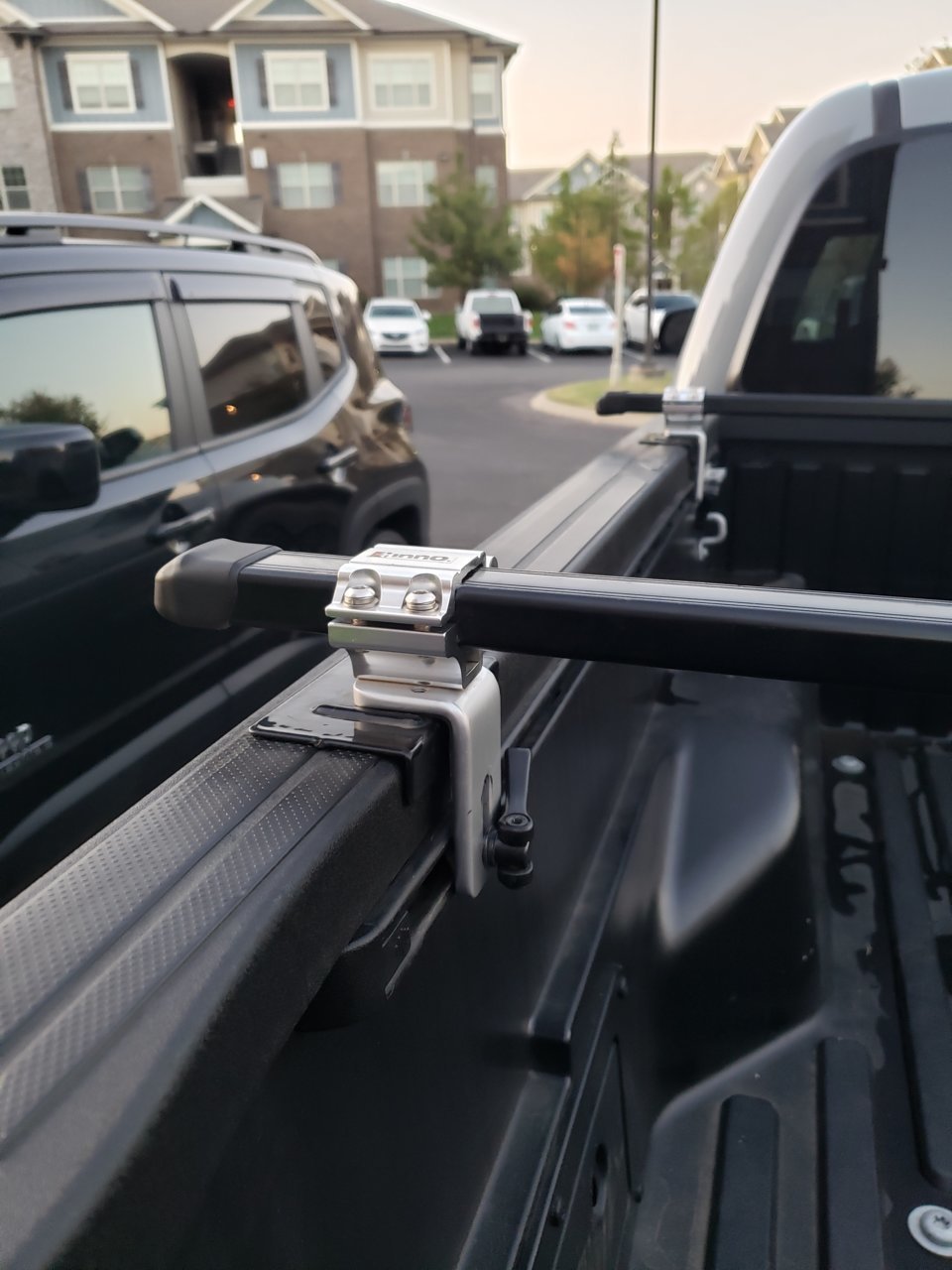

    Welp, I was about to build the bedrack until I found a guy with a Facebook Marketplace deal I couldn't pass up on these Inno bed stays with crossbars. He said he had put cargo plus kayaks on top and traveled the country with them. Stay tuned to see if I go with a cargo basket or build a platform from aluminum extrusions.



    Attached Files:

  10. Jun 10, 2020 at 8:33 PM
    #10
    pgosier92

    pgosier92 Member

    Joined:
    Mar 5, 2020
    Member:
    #321370
    Messages:
    13
    Gender:
    Male
    First Name:
    Pat
    Vehicle:
    2019 Toyota Tacoma
    How did these work out? Just ordered a set of the stays. Was thinking about using 1" aluminum extrusion as its cheaper than the bars.

  11. Jun 11, 2020 at 7:05 AM
    #11
    jcayce

    jcayce Well-Known Member

    Joined:
    Jun 15, 2009
    Member:
    #18475
    Messages:
    764
    Gender:
    Male
    Texas
    Vehicle:
    17 DCSBTRDOR4X4
    If you are in South Texas, I have a set of bars and mounts you can have. I only ever carried mountain bikes on them (and weight weenie bikes at that) and they bounced too much for me to ever trust with anything heavier.

  12. Jun 11, 2020 at 7:10 PM
    #12
    SA4runner

    SA4runner Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223620
    Messages:
    237
    Gender:
    Male
    First Name:
    Jesse
    Vehicle:
    2018 Cement DCSB OR 4x4

    What brand and how much are you selling them for?

  13. Jun 11, 2020 at 8:05 PM
    #13
    jcayce

    jcayce Well-Known Member

    Joined:
    Jun 15, 2009
    Member:
    #18475
    Messages:
    764
    Gender:
    Male
    Texas
    Vehicle:
    17 DCSBTRDOR4X4
    They are the Inno mounts and bars that the OP ended up with. They are "flexy" with mountain bikes. I kept a Yakima cargo rack on them on my 2nd Gen. Send me a PM if you are interested, I do not want to hijack the OPs thread. I do think that the person that posted the Unistrut/Superstrut is onto something. I have several of these tracks mounted in the ceiling of my garage and regularly hoist heavy loads from them.

  14. Jun 22, 2020 at 8:18 PM
    #14
    pgosier92

    pgosier92 Member

    Joined:
    Mar 5, 2020
    Member:
    #321370
    Messages:
    13
    Gender:
    Male
    First Name:
    Pat
    Vehicle:
    2019 Toyota Tacoma

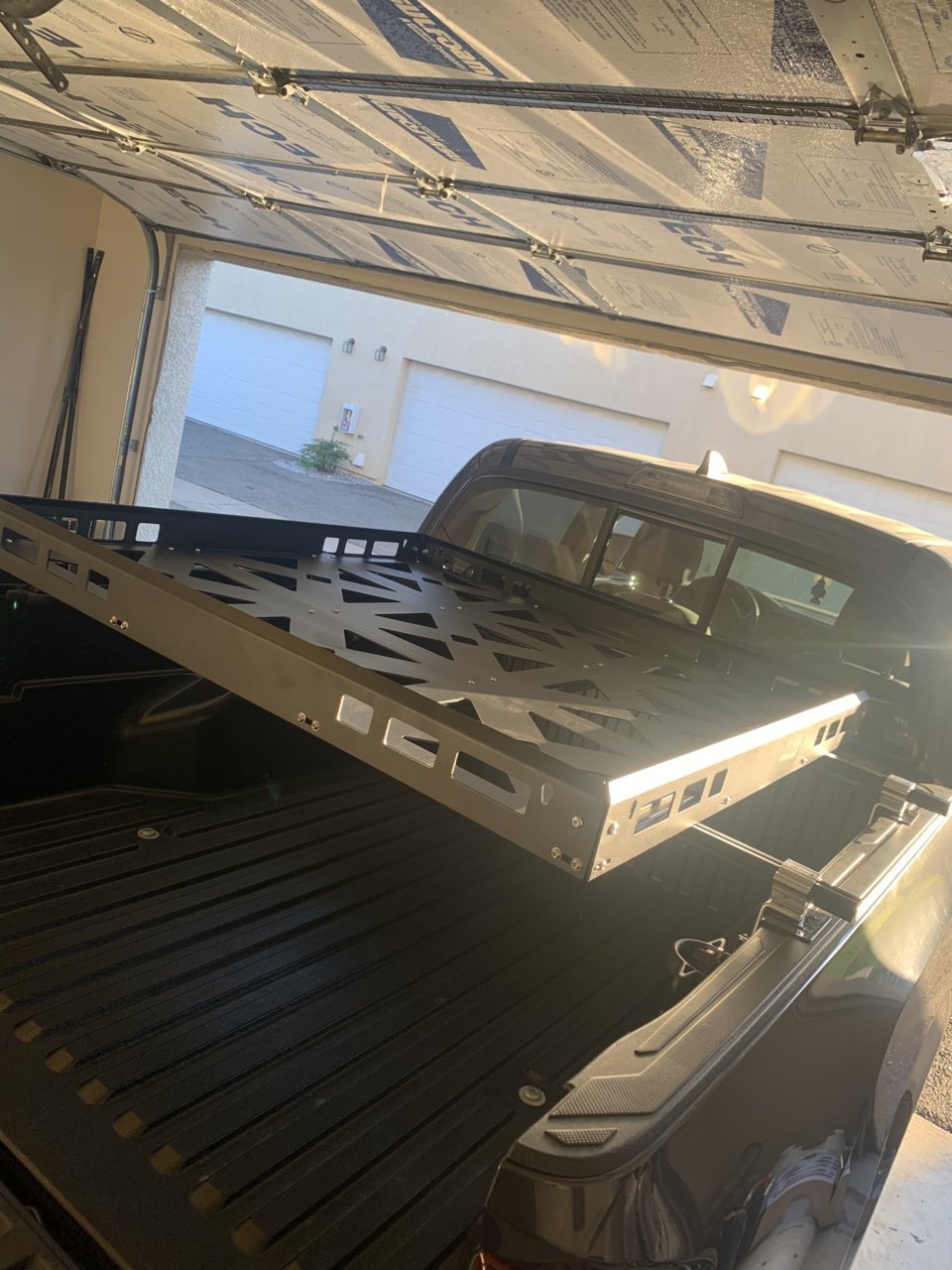

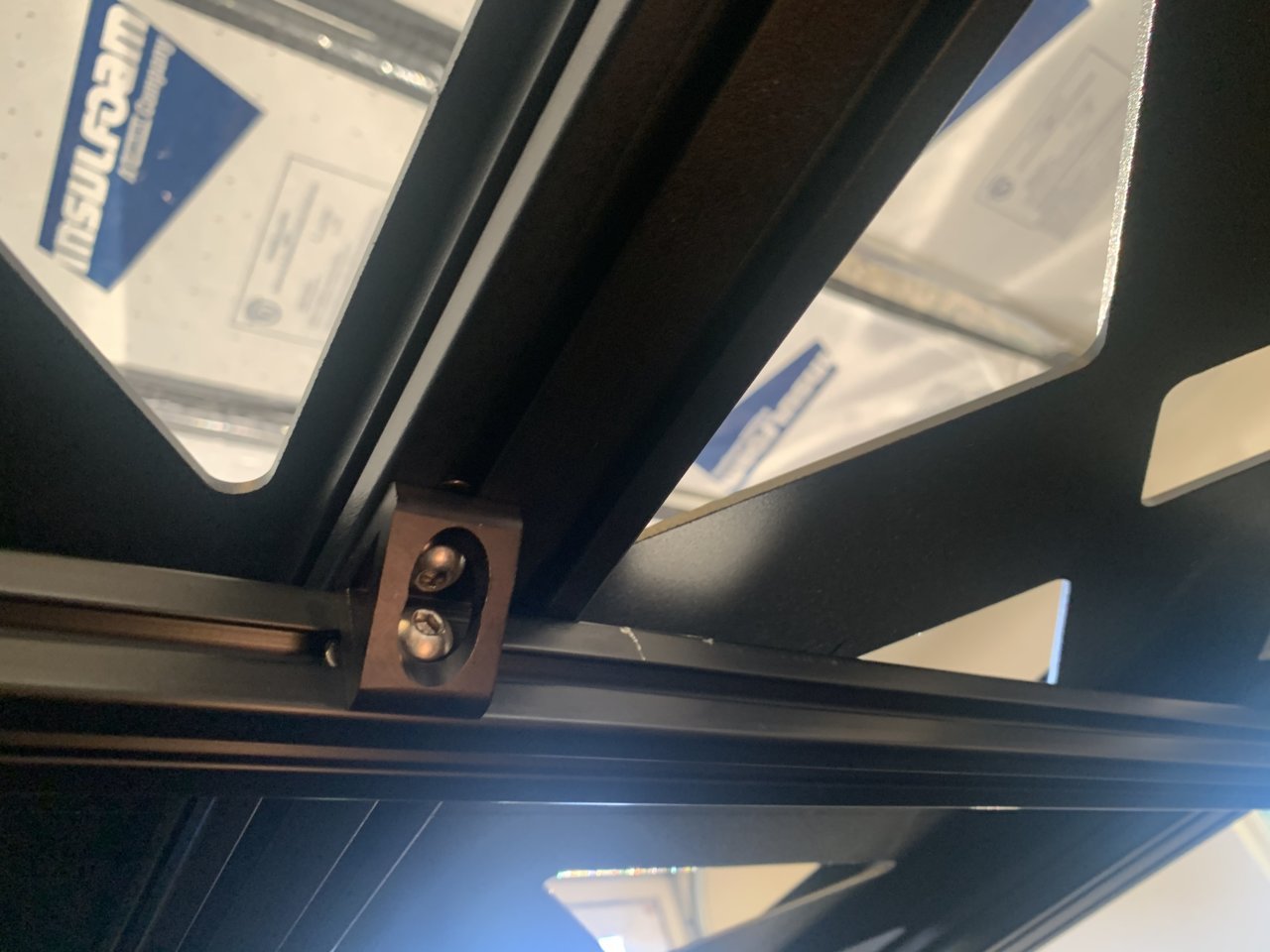

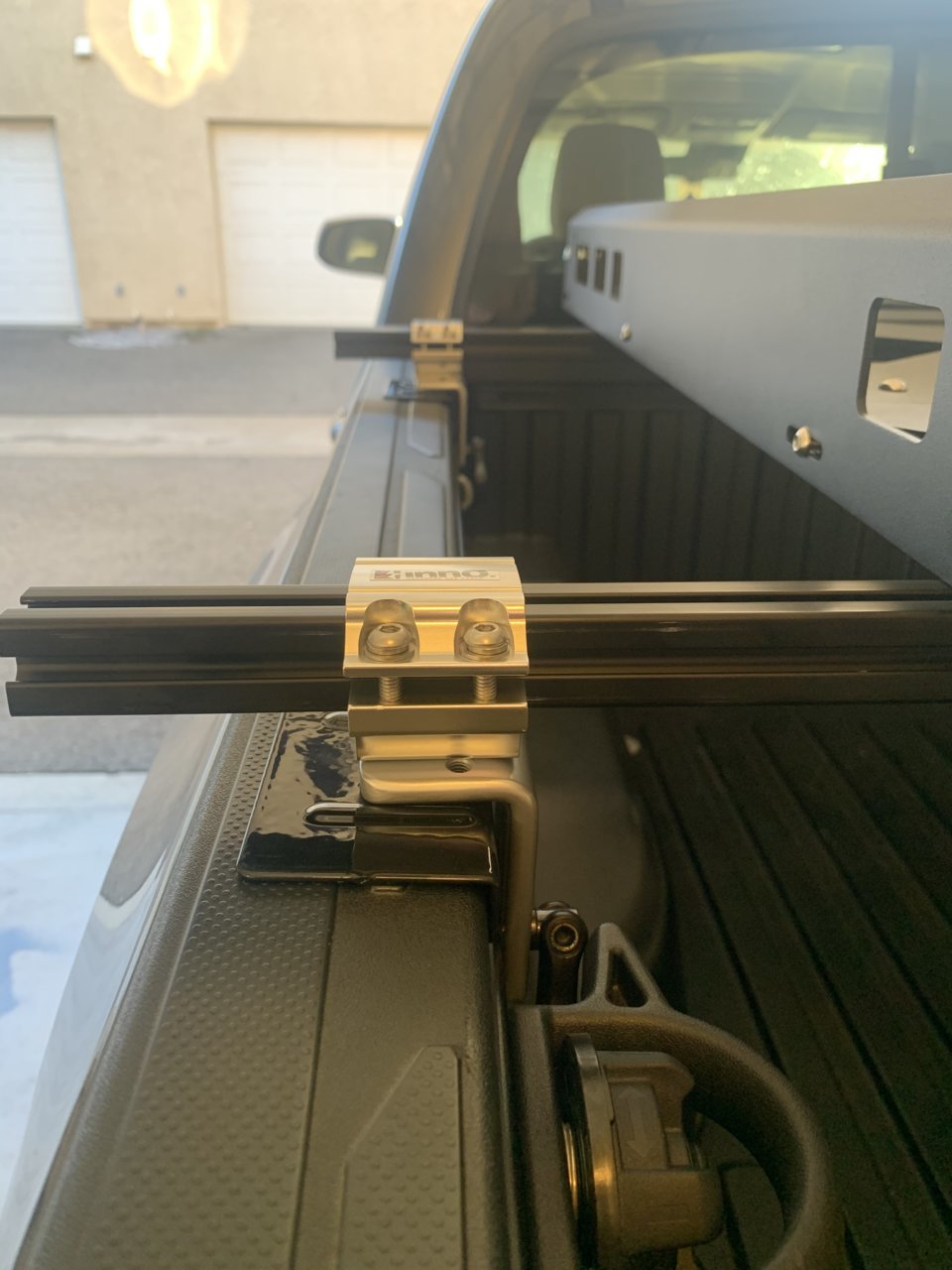

    If I was close to TX I would’ve grabbed em from you but I’m out in Cali. Got em off Amazon and just got my extrusion profiles today. Took it for a spin and didn’t rattle too much. I also sat in the center of the basket (I a good 320) and didn’t feel any flex. Any better attachment ideas?


  15. Jun 23, 2020 at 12:50 AM
    #15
    Xer0 SiN

    Xer0 SiN Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33334
    Messages:
    1,700
    Gender:
    Male
    Hilo, HI
    Vehicle:
    19 TRD SPORT TACOMA / 21 LIMITED RAV4
    this and that...
    i was always kind of fond of the cargo basket sitting on racks on the bed setup look like how the second and pic right above my post is showing.

  16. Jun 23, 2020 at 4:34 AM
    #16
    JNG

    JNG Shitposter extraordinaire

    Joined:
    Dec 19, 2018
    Member:
    #276264
    Messages:
    1,353
    Gender:
    Male
    Vehicle:
    2019 Silver TRD OR DCSB 4x4 AT P&T
    Who makes the rails under the basket in this pic?

    [​IMG]

  17. Jun 23, 2020 at 9:12 AM
    #17
    pgosier92

    pgosier92 Member

    Joined:
    Mar 5, 2020
    Member:
    #321370
    Messages:
    13
    Gender:
    Male
    First Name:
    Pat
    Vehicle:
    2019 Toyota Tacoma
    KB Voodoo

    JNG likes this.
  18. Jun 23, 2020 at 9:30 AM
    #18
    EastCountyTaco

    EastCountyTaco Well-Known Member

    Joined:
    Sep 5, 2019
    Member:
    #304450
    Messages:
    86
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2019 SW DCLB TRD OR
    KB Voodoo as stated above but they are discontinued. I would love a set as well if they ever decided to sell them again. I did contact them and asked if they had any old stock but no dice =[

  19. Jun 23, 2020 at 9:49 AM
    #19
    pgosier92

    pgosier92 Member

    Joined:
    Mar 5, 2020
    Member:
    #321370
    Messages:
    13
    Gender:
    Male
    First Name:
    Pat
    Vehicle:
    2019 Toyota Tacoma
  20. Jun 23, 2020 at 10:26 AM
    #20
    JNG

    JNG Shitposter extraordinaire

    Joined:
    Dec 19, 2018
    Member:
    #276264
    Messages:
    1,353
    Gender:
    Male
    Vehicle:
    2019 Silver TRD OR DCSB 4x4 AT P&T
    Well that explains why I can't find them on their site. Thanks.
