Aluminum Radiator

Discussion in '1st Gen. Tacomas (1995-2004)' started by Denunz411, Jul 25, 2015.

  1. Feb 7, 2018 at 4:57 PM
    #61
    ToyRyd04

    ToyRyd04 Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 Prerunner
    SAS'd PreRunner Diamond Axles Crawlbox
    Nice, and its 4" shorter length than the 4runner version! @COMAtized99 thanks for posting, just pulled the trigger on this.

    Last edited: Feb 7, 2018
    QMEDJoe likes this.
  2. Feb 7, 2018 at 5:16 PM
    #62
    Uphillshunter

    Uphillshunter El Taco Diablo

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    8,895
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 TRD Tacoma Prerunner "now it's 4x4 muthafukas" DC 5vz-fe
    Swapped 4x4, Twin sticks, Tundra Brakes, FOX Resi, AllPro leafs, Pro-Comp 17x8.5, Transgo shift kit, Dual batteries

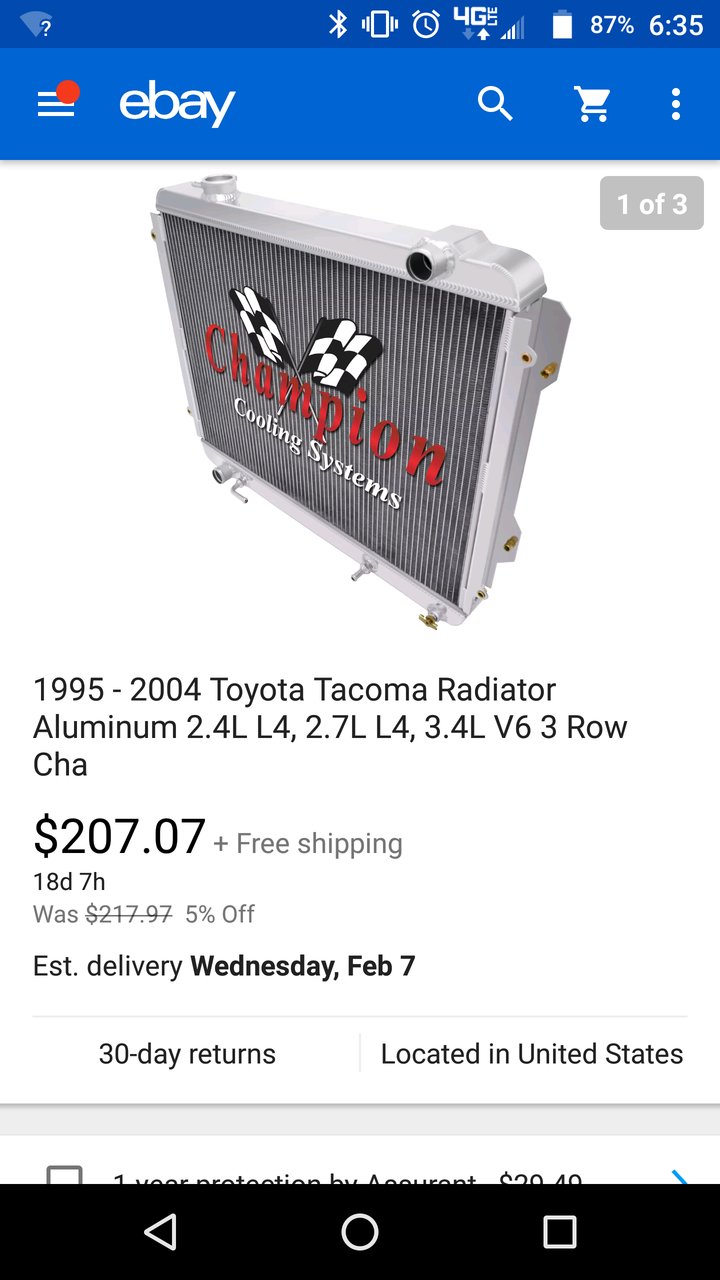

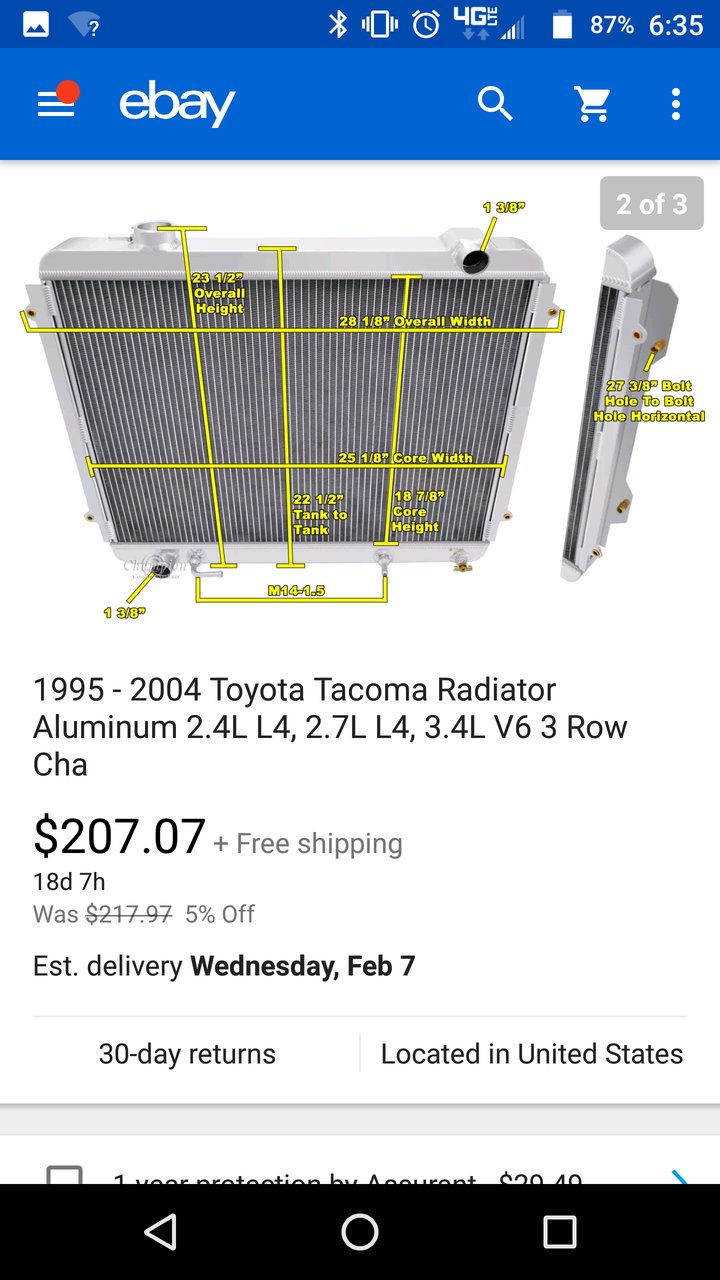

    If you go directly to Champion's web page, I believe it's a bit cheaper. I just recieved my Champion Radiator yesterday.:thumbsup:

    http://www.championradiators.com/Toyota-Tacoma-Radiator-1995-2004

    QMEDJoe and COMAtized99 like this.
  3. Feb 7, 2018 at 5:17 PM
    #63
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,846
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...
  4. Feb 7, 2018 at 5:19 PM
    #64
    Uphillshunter

    Uphillshunter El Taco Diablo

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    8,895
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 TRD Tacoma Prerunner "now it's 4x4 muthafukas" DC 5vz-fe
    Swapped 4x4, Twin sticks, Tundra Brakes, FOX Resi, AllPro leafs, Pro-Comp 17x8.5, Transgo shift kit, Dual batteries
    I get it. Just thought it was worth mentioning.

    COMAtized99 likes this.
  5. Feb 7, 2018 at 5:25 PM
    #65
    Uphillshunter

    Uphillshunter El Taco Diablo

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    8,895
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 TRD Tacoma Prerunner "now it's 4x4 muthafukas" DC 5vz-fe
    Swapped 4x4, Twin sticks, Tundra Brakes, FOX Resi, AllPro leafs, Pro-Comp 17x8.5, Transgo shift kit, Dual batteries
    The dude in the big brown truck brought me a present yesterday.

    Item is packed very nicely.

    After inspection... not one, single, fin is even bent. The radiator appears VERY nicely built. Really nice, clean, welds... everything appears to be located where it should be.
    (there is a definate difference between this (Tacoma) radiator and the one for the 4runner. The rad cap will definately sit lower and should clear.


    I'm waiting on the rest of my parts for my Timing belt replacement to install this radiator, will definatley post what I find when I get it in the truck.

  6. Feb 7, 2018 at 5:31 PM
    #66
    ToyRyd04

    ToyRyd04 Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 Prerunner
    SAS'd PreRunner Diamond Axles Crawlbox

    Very nice thanks for posting. Measured dimensions look like they'll work for SAS swaps that use a smaller 2.7l radiator.

  7. Feb 7, 2018 at 6:18 PM
    #67
    NightProwler

    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,356
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '03 cbr600rr, '09 R1, '03 cbr954rr
    Is there anything different you gotta do for maintaining an aluminum radiator? I remember reading something about making sure you completely flush it if changing to aluminum, even if it looks clean and good... And that you gotta maintain it more carefully and not neglect it or it ruins it much quicker than a typical radiator?

  8. Feb 7, 2018 at 6:32 PM
    #68
    Uphillshunter

    Uphillshunter El Taco Diablo

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    8,895
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 TRD Tacoma Prerunner "now it's 4x4 muthafukas" DC 5vz-fe
    Swapped 4x4, Twin sticks, Tundra Brakes, FOX Resi, AllPro leafs, Pro-Comp 17x8.5, Transgo shift kit, Dual batteries
    I'm going to flush the heck out of my cooling system before installing my new radiator... not because it's aluminum but because I want to get any shit in my system out before putting in a brand new radiator (and waterpump)

    There's really no difference in maintaining an all aluminum radiator because the stock radiator already has an aluminum core anyway.

    burntkat likes this.
  9. Feb 7, 2018 at 6:35 PM
    #69
    NightProwler

    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,356
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '03 cbr600rr, '09 R1, '03 cbr954rr
    Yeah 10-4. Thats what I did when I did my tbelt and pump. And will probly again just to be safe, if I get one of these. Because my trigger finger is tempted rn. Ha. At least get one to have for now if I cant find time to do it among my other list of things to do, before they start selling out. Lol.

  10. Feb 7, 2018 at 6:43 PM
    #70
    Uphillshunter

    Uphillshunter El Taco Diablo

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    8,895
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 TRD Tacoma Prerunner "now it's 4x4 muthafukas" DC 5vz-fe
    Swapped 4x4, Twin sticks, Tundra Brakes, FOX Resi, AllPro leafs, Pro-Comp 17x8.5, Transgo shift kit, Dual batteries

    I feel ya. I decided to just go ahead and pull the trigger on mine since I'm going to have to pull the radiator to do the timing belt and water pump. Now it has to sit till I get the Timing belt waterpump belts etc etc.

    I'll probably get the rest of the stuff in the next couple weeks... I'm getting too fast and loose with "projects."

    I'm getting ADHD with the shit I'm doing to my truck... just refinished a set of Weatherguard side boxes I bought for it, then bought all the steel to do a roof top tent rack, been adding to my recovery kit, all while I'm collecting parts to re-do 3/4 of the cooling system...lol

  11. Feb 7, 2018 at 7:31 PM
    #71
    NightProwler

    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,356
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '03 cbr600rr, '09 R1, '03 cbr954rr
    Actually I might go ahead with this first. Because I gotta tear the top end down and fix a slight coolant leak coming from the heater bypass hose(I think)... Yay. So I gotta source more parts for that along with other things I can do while I'm at it like valve cover gaskets and whatnot. Ugh. So I feel ya. Ha.

  12. Feb 7, 2018 at 10:16 PM
    #72
    QMEDJoe

    QMEDJoe Proverbs 3:5-6

    Joined:
    Nov 4, 2014
    Member:
    #141714
    Messages:
    2,355
    Gender:
    Male
    First Name:
    Joe
    Fleetwood NC
    Vehicle:
    2003 black DLX Tacoma,5VZ-FE,5 speed,4x4.
    Fox 2.0 Coilovers in the front and Fox 2.0’s in the rear, Total Chaos UCA’s, Al-lpro expo leafs, K&N cold air intake, TRD headers,Magnaflow catback exhaust,URD short throw shifter, switched out my 60/40 bench seat for some Tacoma Limited seats, Replaced the vinyl shift boot for a leather one, completely soundproofed the cab w/ Frost King. Replaced stock radio with a Pioneer AVH series head unit. Focal component system w/a 10" sub powered by 2 Alpine amps. Weathertech floor mats. Line-X'd the bed. SCS Ray 10’s, Installed an A.R.E. MX series camper shell. All-Pro Apex front bumper w/ All-Pro skid plates all the way back to the Trans. Low Range fuel skid plate.
  13. Feb 7, 2018 at 10:26 PM
    #73
    Empty_Lord

    Empty_Lord Wallet abuser

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    22,789
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    01 Tacoma, 05 Tundra, 06 Avalon 09 Corolla + 66 Mercedes
    Almost 300k! Doug Thorley headers magnaflow cats & cat-back airaid intake tube color matched grille and mirrors front icon coilovers rear icon absorbers with deaver leafs total chaos upper control arms fj trail team wheels with 265/75r16 cooper discoverer st maxx Soon to be built engine with supercharger soon to be built a340f
    damnit.. i have a new OEM radiator sitting waiting for my truck now this pops up... oh well. see how the oem holds up with the new engine whenever i get that all done..

  14. Feb 7, 2018 at 11:06 PM
    #74
    Tanmann

    Tanmann Well-Known Member

    Joined:
    Oct 24, 2017
    Member:
    #233968
    Messages:
    183
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 OR Access Cab
    Cardboard spoiler and skateboard wheelz
    Pretty sure when my OEM one blew I replaced it with an aluminum one, but that was 5 years ago and I'm not sure the brand/type.

  15. Feb 8, 2018 at 3:07 AM
    #75
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,846
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...
    I would get just the radiator and bolt the OE fan shroud in and use the mechanical fan.

  16. Feb 8, 2018 at 6:16 AM
    #76
    NightProwler

    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,356
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '03 cbr600rr, '09 R1, '03 cbr954rr

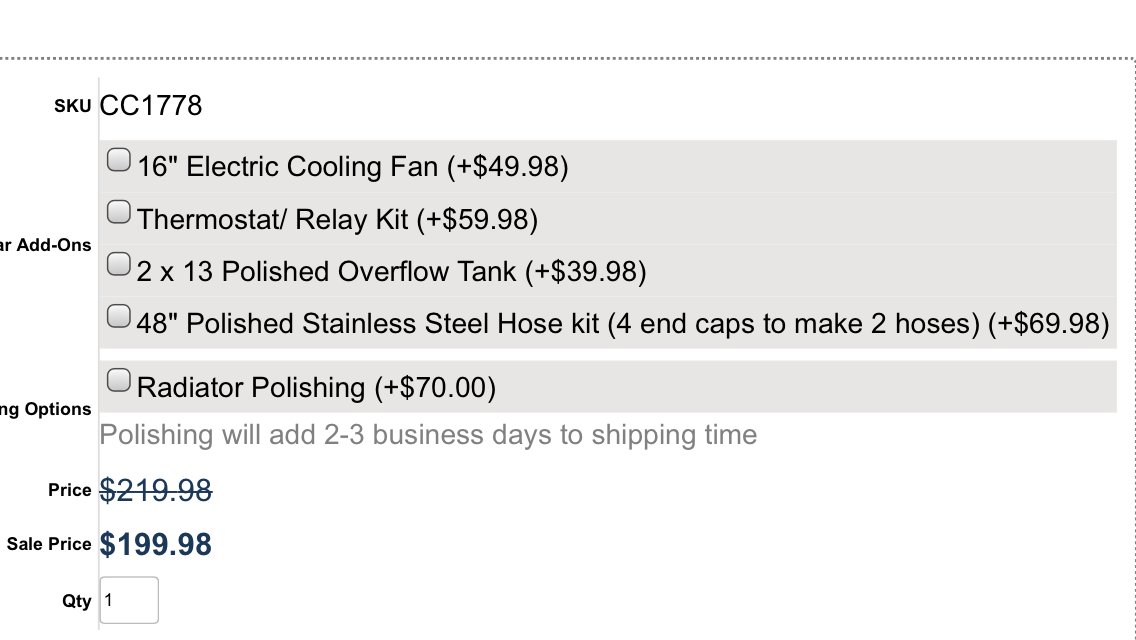

    The overflow tank sounds nice. Especially since I need to relocate mine with my relentless bumper. Curious on the quality of the hoses, for $70 they better be ss braided, and not those cheapy ones. But polishing seems pointless unless you got a show truck, or have a super clean engine bay. I think I am gonna get one. Gotta measure first and make sure it fits. I think theyre the same measurements iirc.

  17. Feb 8, 2018 at 6:36 AM
    #77
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,294
    Gender:
    Male
  18. Feb 8, 2018 at 6:43 AM
    #78
    cruisedon66

    cruisedon66 Well-Known Member

    Joined:
    May 9, 2016
    Member:
    #186469
    Messages:
    665
    Gender:
    Male
    First Name:
    Pete
    Near St. Louis
    Vehicle:
    2003 Tacoma Extra Cab 2WD A/T
    Defrost mirrors, compass/temp display rear view mirror, rear wiper on camper shell, trans.cooler.
    A mechanic friend of mine did a V-8 conversion with an aluminum radiator. Several years later the radiator cracked. Long story short. The radiator company said to use rubber cushions on the mounting points for flex.

    He had mounted the radiator solid.

  19. Feb 8, 2018 at 6:44 AM
    #79
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,294
    Gender:
    Male
    Our factory radiators didn't come with any, mounted directly to the frame. I guess it wouldn't be a hassle to find something at your local hardware store though.

  20. Feb 8, 2018 at 9:12 AM
    #80
    Dirty Pool

    Dirty Pool I WAS DRIVING THAT MODEL A

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,092
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    4wd and prerunner folks will need to trim the bottom of the OE fan shroud to use this "short core" radiator (Champion). Just how much and and where will vary depending on OE trans type and personal aesthetics.
    Toyota made 3 core heights for the 1st gen and the Champion is using the core height found in 4cyl 5 lug trucks. 4WD and prerunners came with one of the two larger cores depending on trans type. The mount holes are the same for all applications. The only difference is how far down they hang beneath the lower mount holes. The core heights were 18 5/8, 20 3/4 and 22 5/8, give or take an eighth depending on who is measuring. The latter 2 being 4WD/prerunner, manual and auto trans respectively.

    Feel around or look at the bottom of the OE shroud vs lower core seam to get an idea on the trimming needed. This is definitely not a deal breaker at all. IFS auto trans folks will also be able to use a custom skid with a better approach angle, sloping directly back from the front cross member instead of needing the "one size fits all" OE style that drops down a few inches then slopes back.

    Last edited: Feb 19, 2018
    burntkat, 1997tacomav6 and ToyRyd04 like this.
