Aluminum replacement for plastic rear coolant bypass joint

Discussion in '3rd Gen. Tacomas (2016+)' started by Jowett, Jan 5, 2021.

  1. Feb 10, 2021 at 9:07 AM
    #21
    AmericanDrug

    AmericanDrug Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209110
    Messages:
    498
    Gender:
    Male
    First Name:
    Rod
    Valdosta, GA
    Vehicle:
    2018 TRD OR 4x4 6mt
    I read somewhere on here in 2018 models they went to the aluminum one. Anyone know if that's correct. I can see shit from top or bottom on my truck.

  2. Feb 10, 2021 at 9:11 AM
    #22
    cop414

    cop414 Well-Known Member

    Joined:
    Sep 4, 2019
    Member:
    #304301
    Messages:
    754
    Gender:
    Male
    First Name:
    Tim
    Central PA
    Vehicle:
    2019 TRD Sport double cab short bed
    Good to know if this is true or not. Supposedly the updated replacement is also plastic though.

    Last edited: Feb 10, 2021
  3. Feb 10, 2021 at 9:26 AM
    #23
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    33,483
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    I don't think that is correct, pretty sure they are all plastic on the Tacoma's, l believe the aluminum one is from another Toyota or Lexus model.

    Skydvrr and BigWhiteTRD like this.
  4. Feb 10, 2021 at 4:45 PM
    #24
    Homiec

    Homiec Well-Known Member

    Joined:
    Dec 13, 2019
    Member:
    #313204
    Messages:
    179
    Vehicle:
    2020 TRD Sport Access Cab 4X4 MT
    On my 2020 it's plastic.

  5. Feb 10, 2021 at 6:59 PM
    #25
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,302
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Nice find! I know that bypass is pretty close/trucked up next to the firewall. Is there still clearance with the port facing rearward?

    whatstcp likes this.
  6. Feb 11, 2021 at 5:08 AM
    #26
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,306
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    That is the big question, and the answer will determine if we can use this with a hose, or if we need to place a tight 90 degree port back there. Next warm stretch I'll be out in the carriage barn to make that determination.

  7. Feb 11, 2021 at 11:00 AM
    #27
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,306
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA

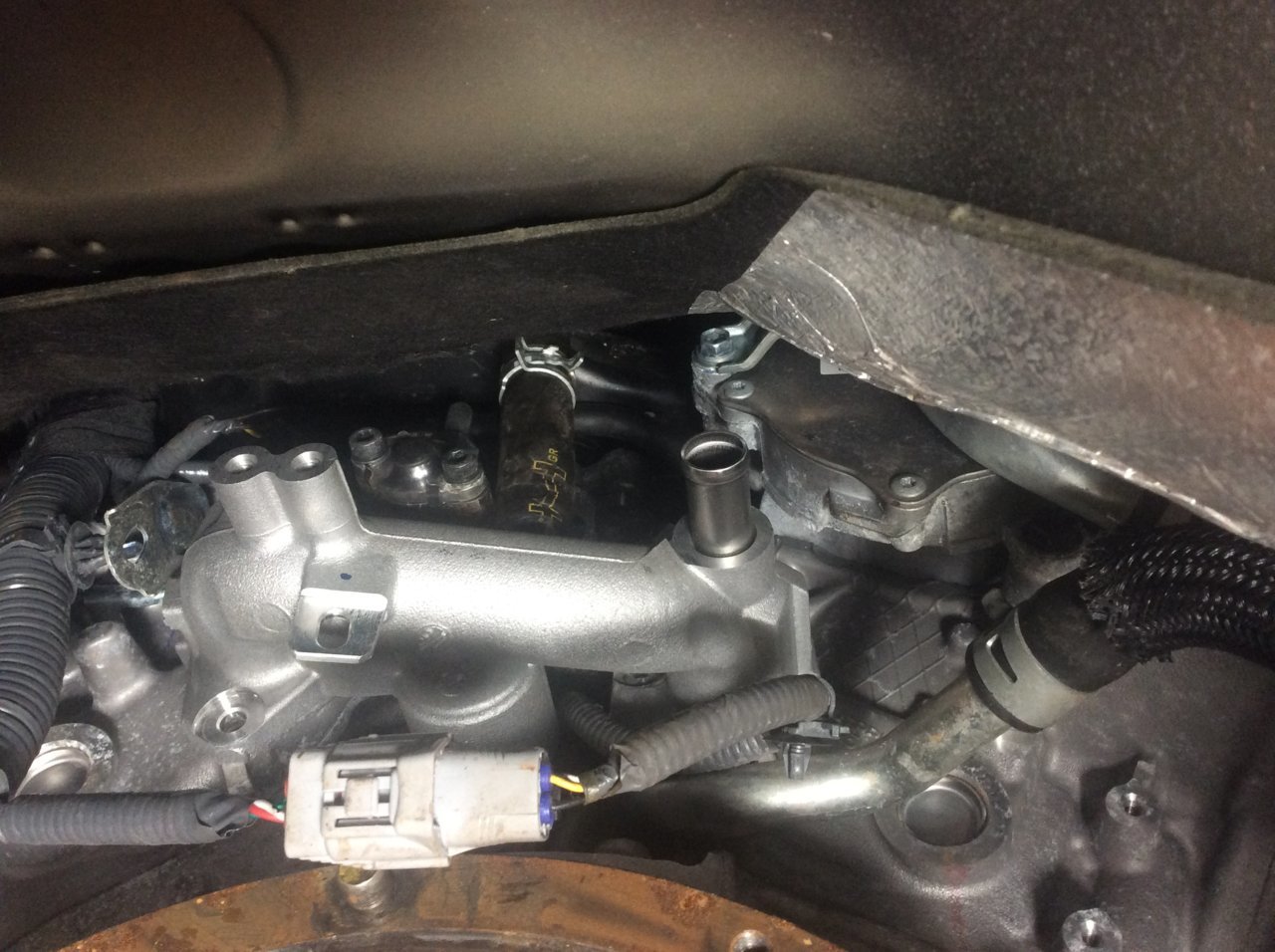

    There is roughly 1.75"/44mm between the firewall insulation and the end of the hose barb. A hose with a tight 90 bend would likely suffice, especially with a chafe guard. I'm not a trusting soul, though, things move and shake! A 90 degree fitting of some type is the proper solution here.

    If anyone is interested, I can produce a few more of these with the 90.

    Last edited: Oct 2, 2021
  8. Feb 11, 2021 at 11:15 AM
    #28
    Furball

    Furball Well-Known Member

    Joined:
    Oct 25, 2017
    Member:
    #234080
    Messages:
    188
    Gender:
    Male
    Alabama
    Vehicle:
    2017 TRD Off Road
    Nice! Following

  9. Feb 11, 2021 at 12:06 PM
    #29
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,536
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    What if we just get a 3d printed ABS elbow? :oops:


    I joke, I joke. I'm fersure interested, I'm definitely not easy on my truck and I feel my bypass is a tickin time bomb in this AZ heat.

    Last edited: Feb 11, 2021
    shakerhood likes this.
  10. Feb 11, 2021 at 1:16 PM
    #30
    AmericanDrug

    AmericanDrug Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209110
    Messages:
    498
    Gender:
    Male
    First Name:
    Rod
    Valdosta, GA
    Vehicle:
    2018 TRD OR 4x4 6mt
    Did you make your own 90? Hard to tell in the pic, I looked last night again and still can't locate any residue but just from seeing several posts its just waiting to happen. It's the easiest approach to pull top end? I haven't worked on engines in a while, prob could figure it out minus having a solution to the plastic crap. Please do upload more pics!

  11. Feb 11, 2021 at 1:20 PM
    #31
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,306
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Lol... nah, has to PP GF35.


    Skydvrr likes this.
  12. Feb 11, 2021 at 1:21 PM
    #32
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,306
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    No 90 yet. Looking for something off the shelf.

  13. Feb 11, 2021 at 1:25 PM
    #33
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,536
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    That's how the dealer does it. Combine it with your plugs and maybe a few other things and it shodnt be a bad full day.

    shakerhood likes this.
  14. Feb 12, 2021 at 1:15 PM
    #34
    jimmerheck

    jimmerheck Well-Known Member

    Joined:
    Mar 21, 2018
    Member:
    #248007
    Messages:
    663
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    2019 Tacoma Limited in white
    didnt someone say in another thread they were able to replace it by pulling the intake manifold? Cant remember for positive...

  15. Apr 3, 2021 at 8:53 PM
    #35
    TRD493

    TRD493 Well-Known Member

    Joined:
    Dec 27, 2015
    Member:
    #173269
    Messages:
    1,577
    Gender:
    Male
    First Name:
    Dave
    Texas (DFW)
    Vehicle:
    17 TRD Sport DCLB 4x4 / 01 4x4 V6 Extra Cab TRD SR5
    That's what my dealer said it would take but they ended up unbolting the engine from the motor mounts and "tipping" the engine to get it done. He said it was still a MF'r to do it that way but at least he didn't have to unbolt the top end of a 32k mile engine to get it done. Not too confident it won't happen again sometime down the road. At least they covered it under warranty.

    TAC1 likes this.
  16. Jun 10, 2021 at 9:16 AM
    #36
    o313

    o313 Well-Known Member

    Joined:
    Jul 18, 2018
    Member:
    #259750
    Messages:
    498
    Gender:
    Male
    First Name:
    N
    Vehicle:
    2018 DCLB AT SC
    Seems like removing the mal-placed fitting and maybe drill, tap, and/or braze a new fitting in?

  17. Aug 22, 2021 at 12:19 PM
    #37
    Caligula

    Caligula Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43228
    Messages:
    2,108
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    2000 Ext. Cab Prerunner 2.7L
  18. Aug 23, 2021 at 2:29 PM
    #38
    MegaHurts777

    MegaHurts777 Well-Known Member

    Joined:
    Dec 27, 2018
    Member:
    #277098
    Messages:
    82
    Gender:
    Male
    First Name:
    Jacob
    ID
    2019 Tacoma TRD Off-Road (MT)
    I may have to nab a spare one of these aluminum by-pass parts 'just in case'.
    I already have a spare oil filter housing thats aluminum instead of the original plastic one that got seized on.

    My bypass isn't leaking yet, but I also only have 23,000 miles or so on my 2GR-FKS.

    If anyone happens to know of a how-to thread for re-placing that by-pass joint, I wouldn't mind saving that :thumbsup:.

    While I'm not super worried about taking the intake all apart, the comment about tilting the engine sounds like a bit of a hassle...and not fun. :bananadead:
    I try not to take apart more then I have to, if I can help it.

    Overall though, very helpful thread.

    Last edited: Aug 23, 2021
  19. Aug 23, 2021 at 11:58 PM
    #39
    Caligula

    Caligula Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43228
    Messages:
    2,108
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    2000 Ext. Cab Prerunner 2.7L
    Mine has a small seep of "cotton candy" growth at the moment, not nearly enough to consider repairing it yet. From what I have read, there seems to be two schools of thought on how to repair this.

    Either the straightforward approach of tearing apart the entire top of the engine to access the coolant pipe. Or the more creative method of dropping the transmission, which will give you direct access to part. The later I think would be easier if you have access to a lift. The third option that you mentioned involves unbolting the transmission from the driveshaft and transfer case, unbolting the transmission and motor mounts, and pressing up on the transmission to tilt the whole engine forward. I still majan you're going to have to disassemble part of the intake to go in from the top.

    I would very much like to see some DIY pictures from people that have attempted each of these to weigh the pros and cons of each method.

    Skydvrr likes this.
  20. Aug 24, 2021 at 7:16 PM
    #40
    TRD2021SPORT

    TRD2021SPORT Well-Known Member

    Joined:
    Jul 12, 2021
    Member:
    #371124
    Messages:
    351
    Vehicle:
    2021 Tacoma TRD Sport AC
    Good to know. Someone previously posted a photo or video of a dealership raising the cab of the truck off of the frame which made me cringe on the number of future problems that truck will have from wires and/or hose being pinched, ground wires being left off, rattles and/or creaks that weren't there before, and on and on.

    TAC1 and Barsoom like this.
