AM / FM radio antennas problems.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by SPARROW66, Jul 5, 2020.

  1. Jul 5, 2020 at 7:56 PM
    #1
    SPARROW66

    SPARROW66 [OP] Active Member

    Joined:
    Sep 10, 2017
    Member:
    #229625
    Messages:
    37
    Gender:
    Male
    First Name:
    RAYMOND
    OKC
    Vehicle:
    2015 DOUBLE CAB 4X4
    LED INTERIOR LIGHTS
    I have a ‘15 base double cab with factory entune sat radio. It was a good radio but I wanted CarPlay so I changed to Sony and now I can’t get radio stations for crap. My truck had the shark fin and a fender mount antenna. My questions are. Factory radio got excellent radio signal and HD. Does the shark fin do both fm and satellite together? Was the fender ant an aftermarket? Which of the square antenna plugs is fm the white or the gray. I have used both to no avail. I haven’t tore apart the dash looking for a real coax hopefully coming from that fender antenna

  2. Jul 5, 2020 at 8:18 PM
    #2
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,659
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    AM/FM Antenna is the one on the fender. Did you plug it in?

    [​IMG]

  3. Jul 5, 2020 at 10:04 PM
    #3
    SPARROW66

    SPARROW66 [OP] Active Member

    Joined:
    Sep 10, 2017
    Member:
    #229625
    Messages:
    37
    Gender:
    Male
    First Name:
    RAYMOND
    OKC
    Vehicle:
    2015 DOUBLE CAB 4X4
    LED INTERIOR LIGHTS
    I did. I tried both gray and white plugs. One nothing. The other I get a whopping 3 stations. None of them very well.

  4. Jul 6, 2020 at 3:01 AM
    #4
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,522
    I was a professional car stereo installer for 36 years. I got out of the industry shortly after the 2nd gen Tacoma came out, way before 2015, so I can't tell you which plug it is.

    I can tell you that I've installed Sony HU's that were no good right out of the box. Of all of the major aftermarket stereo companies Sony was the worst. I'm not implying they were all total crap but I can tell you there were significantly more Sony's bad out of the box than any other major brand. That includes no reception.

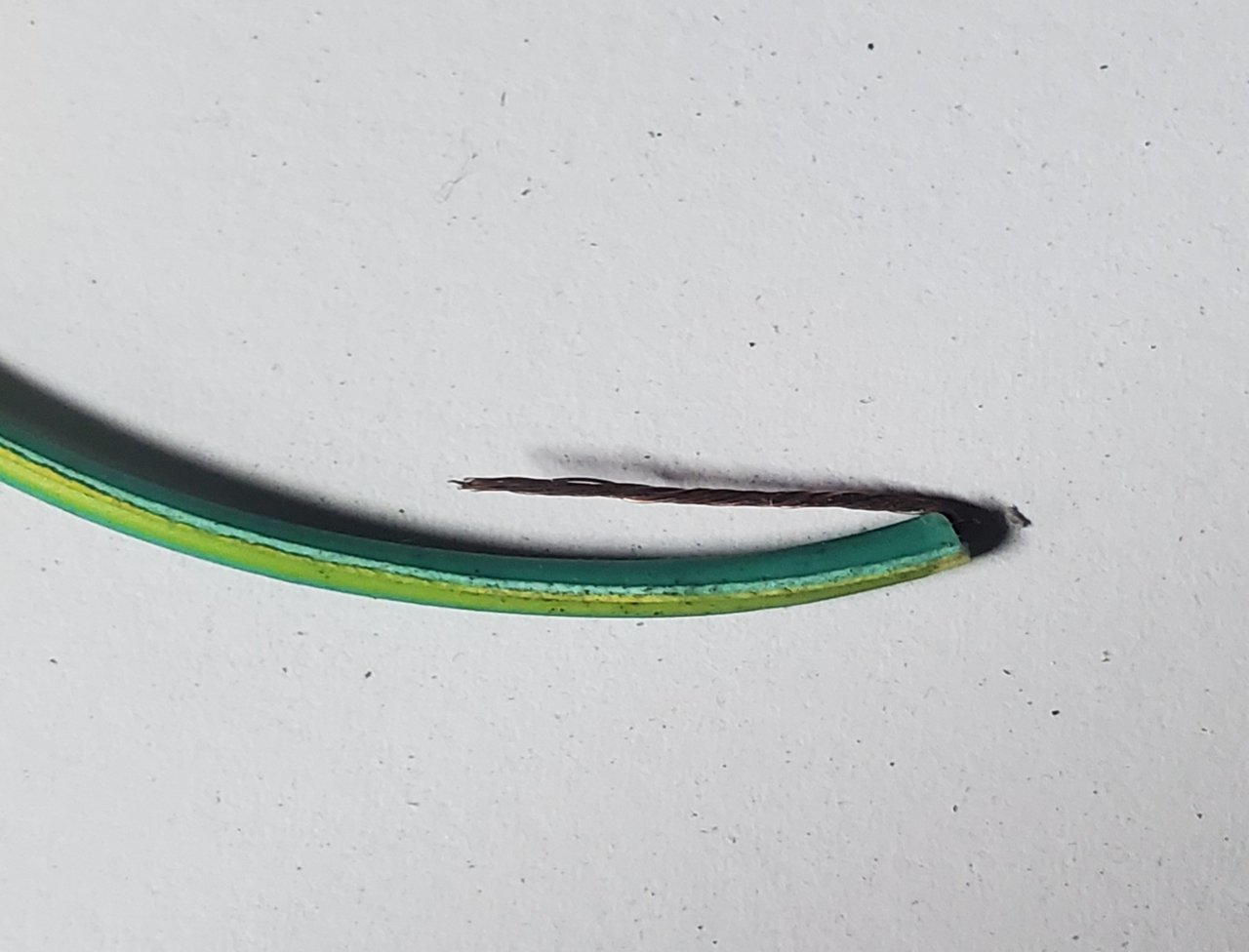

    You can make a (very) temporary antenna just for testing purposes. Get 3 feet of wire, about 16-18 gauge, strip about 1/2"-3/4" of insulation off of one end of the wire, fold the copper over the insulation, and put that wire into the HU's antenna lead's hole that's in the center. You should get reception on FM nearly equal to a "real" antenna. You won't be able to receive any AM stations.
    Good luck OP.

  5. Jul 6, 2020 at 8:36 AM
    #5
    GrundleJuice

    GrundleJuice Well-Known Member

    Joined:
    Mar 15, 2015
    Member:
    #150931
    Messages:
    1,657
    Gender:
    Male
    Michigan
    Vehicle:
    2016 TRD Bro
    [S]Un-Molested[/S] Lightly Molested
    While on the topic of antennas, can the OEM fender mounted antenna be trimmed without ruining the reception? Maybe it would degrade reception in only end if the spectrum? Mine is about 1" too tall to clear my garage opening and I'm afraid of the constant antenna flexing causing an issue with either the antenna or the mounting area at the base. When I drive in/out I can see the base mount wiggle a bit over the fender sheet metal so I know it's moving a little bit. I would probably trim about 1.5-2"

  6. Jul 6, 2020 at 7:33 PM
    #6
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,659
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    The biggest problem with this is that it will not work. The newer stereos are not using the traditional round antenna connector any longer.

    This: images_66268a000f2fb24c34294be82b8f513e9178c00c.jpg and not This: images_ecf788424ec2bb1ec4679b62ef828181e040cf46.jpg

  7. Jul 6, 2020 at 8:35 PM
    #7
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,522
    Damnit, I saw that on an Alpine recently.

  8. Jul 6, 2020 at 8:41 PM
    #8
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,659
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    They keep changing crap just to screw us over... o_O

    DG92071 likes this.
  9. Jul 7, 2020 at 6:31 AM
    #9
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,522
    It feels really good to store obsolete information (lol).

    Jimmyh likes this.
  10. Jul 7, 2020 at 7:18 PM
    #10
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,659
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    Boy, I got plenty of that. I even remember working on equipment that had vacuum tubes and no transistors... o_O

    SPARROW66 [OP] and DG92071 like this.
