Amp Install Guidance

Discussion in 'Audio & Video' started by norcalXninja, Aug 26, 2018.

  1. Aug 26, 2018 at 6:50 PM
    #1
    norcalXninja

    norcalXninja [OP] Well-Known Member

    Joined:
    Jul 22, 2018
    Member:
    #260169
    Messages:
    171
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2018 TRD Sport DCLB
    Hi all. I recently did the 250 Kicker swap which I absolutely love. Hell of a difference. I had an old amp and kicker sub lying around from my old car but had it installed for me. I was hoping someone could lend some guidance on adding this to my system in my 2018 Sport with the factory entune unit.
    I’ve got a decent ability to put stuff together but a lot of the electrical is new to me. Thank you all in advance!

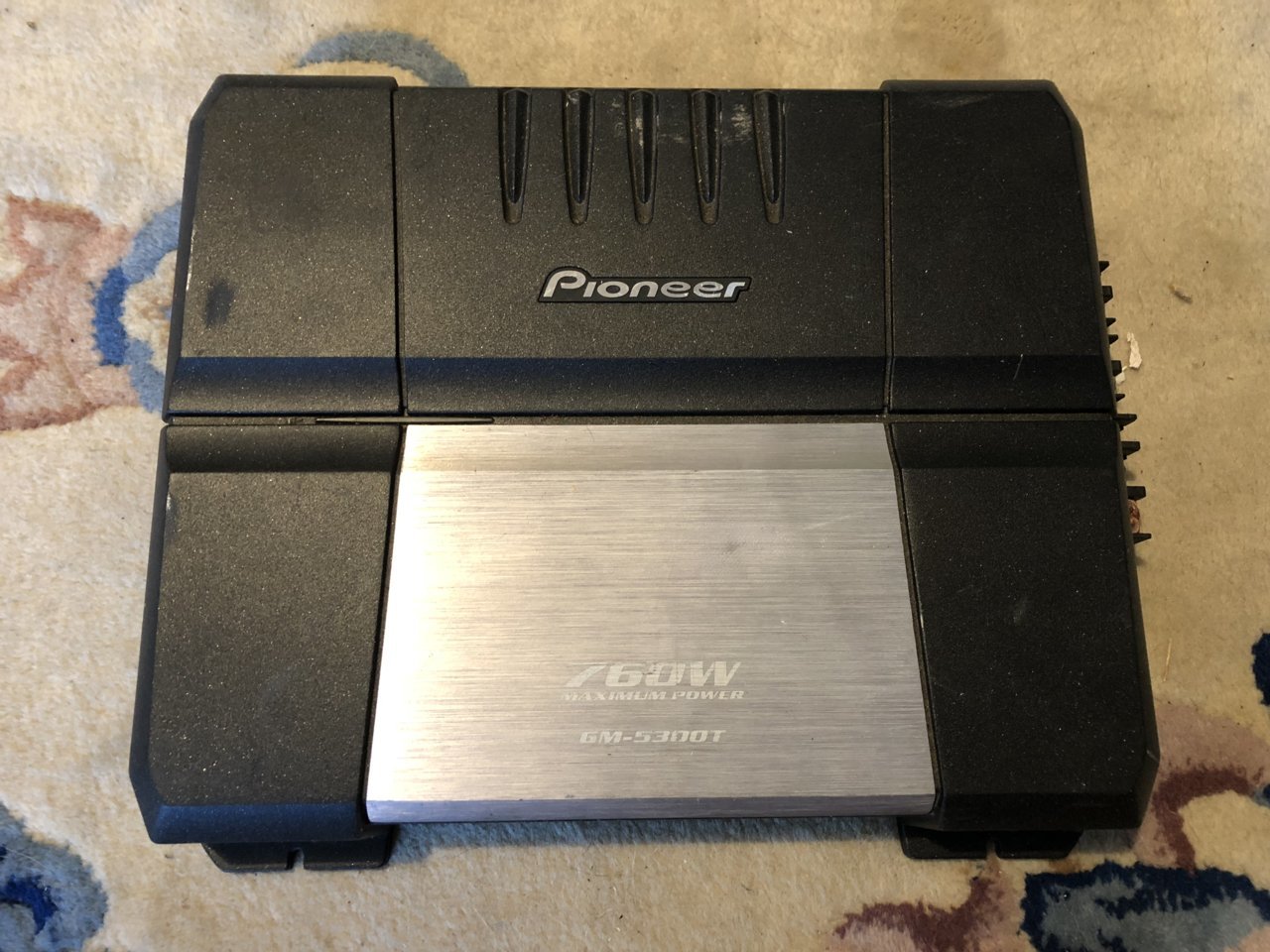

    Here’s a link to the Amp https://www.pioneerelectronics.com/PUSA/Car/Amplifiers/GM+Series/GM-5300T and the sub is a kicker comp.


  2. Aug 26, 2018 at 8:05 PM
    #2
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    598
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
  3. Aug 27, 2018 at 7:43 PM
    #3
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,858
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Yeah those steps in the video sum up the basic process. Pretty simple in our trucks. I highly recommend the AudioControl lc2i shown in that video.

    There is an empty hole in the firewall on the drivers side that easily fit 4awg wire. Your amp only needs 8 so should be fine there

    I would grab your signal from the front speakers, either behind the radio or in the front kick panel (driver or passenger side) and NOT the rear speakers as so many people do in most vehicles. Our radios put out a drastically reduced signal to the rears (verified with multimeter)

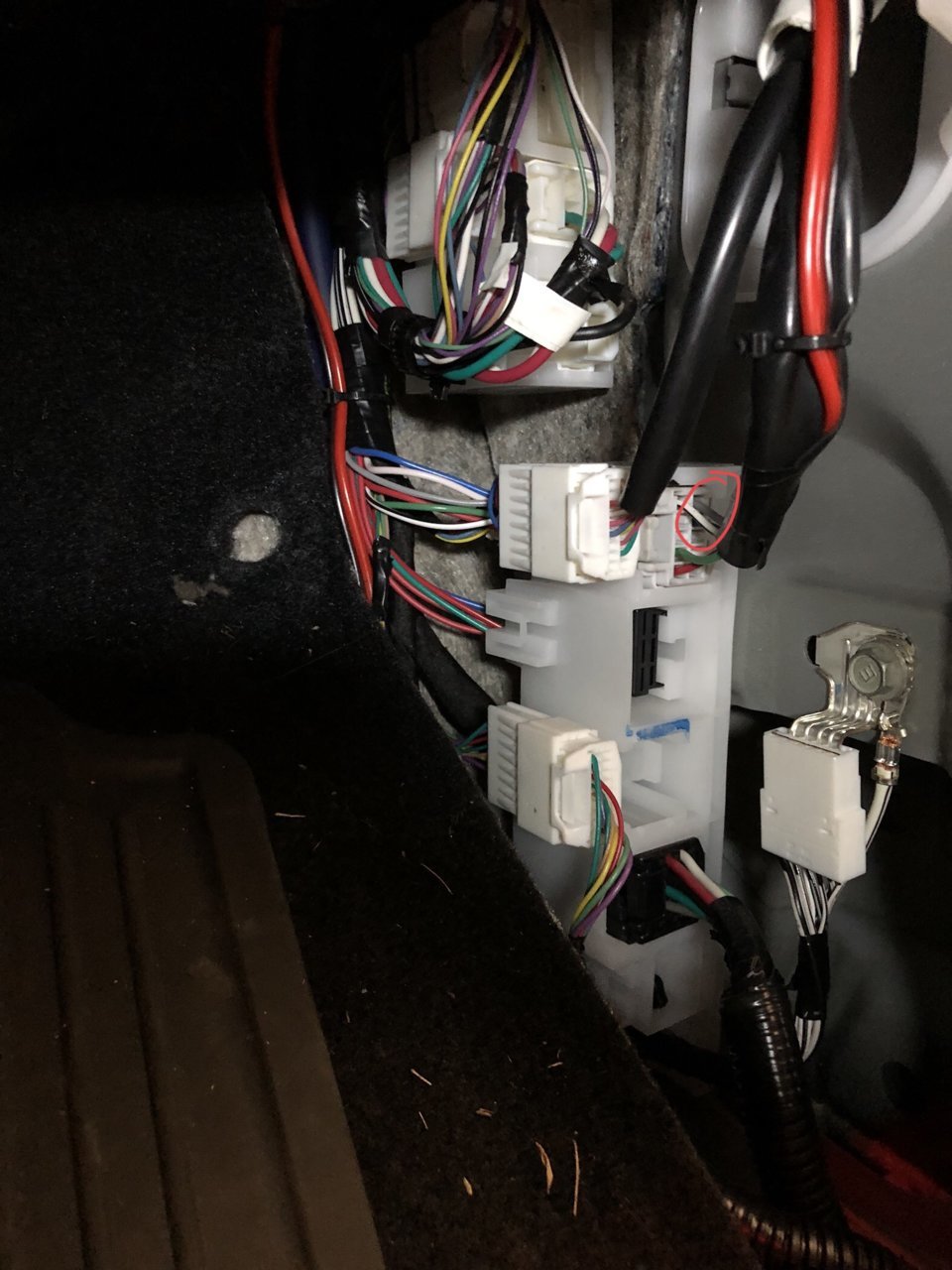

    I believe this is a pic I had of the plug that the front passenger speaker wires are in

    I want to say colors are grey + and blue - but I’d have to double check that.

    If you opt for the lc2i (or anything with a bass knob) I picked a spot under the e-brake for mine. Tons of space under this panel, very concealed while remaining easily reachable, and very easily repaired/hidden if the knob is removed.

    If you get your audio signal in the kick panel, you’ll need to get an accy 12v+ for your remote turn on. Both cig lighters are good options as they are hot with key only.

    Use good quality COPPER wire (OFC) and not cheap aluminum crap (CCA)

    Also use a good fuse holder. Ideally one that uses AFS fuses
    And save yourself the trouble and don’t use AGU fuses

    Make sure you sand down the paint where you choose to ground your amp.

    If I think of more tips, I’ll add them

    gilligoon likes this.
  4. Aug 27, 2018 at 8:05 PM
    #4
    norcalXninja

    norcalXninja [OP] Well-Known Member

    Joined:
    Jul 22, 2018
    Member:
    #260169
    Messages:
    171
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2018 TRD Sport DCLB
    Right on! Thank you both

  5. Jun 27, 2019 at 4:33 PM
    #5
    xcmfz

    xcmfz New Member

    Joined:
    Nov 22, 2014
    Member:
    #142861
    Messages:
    3
    Gender:
    Male
    Ohio
    Vehicle:
    '16 TRD Offroad
    Has anyone verified that the grey wire is (+) and the blue wire is (-)?

  6. Jun 27, 2019 at 4:41 PM
    #6
    treyus30

    treyus30 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    7,756
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Selling 1st gen RWD driveshaft! PM me
    Bro he has a Pioneer amp; don't make such a big deal about this.

    Use whatever is the cheapest per thickness. One AWG higher of CCA is =to or better than OFC, and generally cheaper.

  7. Jun 27, 2019 at 5:16 PM
    #7
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,858
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Well that's absolutely not true but ok, you keep thinking that, and I'll keep being a good MECP certified installer and recommending proper wiring to do the job correctly.

    Cheers :cheers:

    VB25, RobertOchoa3 and Kgrand1022 like this.
  8. Jun 28, 2019 at 3:15 AM
    #8
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    1,316
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    The whole idea behind using better power wire is to reduce voltage drop and heat losses through the power wire. What kind of amplifier you are using is irrelevant. You always want to try and do what you can to aid in the system running more easily and cooler.

    If we all put amps up by the battery we could use smaller lower quality wire but because of the length of the run, higher quality wire is recommended.

    Also consider that amps get replaced but power wiring is rarely upgraded. Using the bare minimum necessary is going to limit your options in the future.

  9. Jun 28, 2019 at 10:02 AM
    #9
    treyus30

    treyus30 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    7,756
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Selling 1st gen RWD driveshaft! PM me
    Alright, and I'll keep being an electrical engineer.

    Do you guys really need a physics lesson? I'm happy to give one if you're open minded

  10. Jun 28, 2019 at 10:17 AM
    #10
    Fredfifty

    Fredfifty Back in a Mini

    Joined:
    Jan 21, 2015
    Member:
    #146926
    Messages:
    824
    Gender:
    Male
    First Name:
    Dave
    Big Island - SF Bay Area
    Vehicle:
    99 5 Lug V6
    DJM 3/4 DJM UCA BJ FLIP CALMAX SHOCKS POLYURETHANE SWAY BAR BUSHINGS POLYURETHANE UCA BUMPSTOPS ROLLED FENDERS DJM 4 INCH ANGLED BLOCKS (STEEL) MINI C-NOTCH FROM ROHDE FABRICATIONS MJBTACO LOWPRO BUMPSTOPS CALMAX SHOCKS ROLLED FENDERS
    oh yeah, well, you know the hadron collider? yeah, thats all me buddy.

    i keed.

  11. Jun 28, 2019 at 12:45 PM
    #11
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,858
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    When I quit having to pull previously-installed CCA because it has corroded and oxidized so much it’s giving me a 50+ % voltage drop at the amp, I’ll quit bashing it.
    Until then, OFC is all I’m using in my shop, whether it’s some shit BOSS amp or a high dollar JL or AudioControl

    I don’t care what the physics say if it’s wasting my time and making clients pay for work they’ve already payed other shops for.

    Philrab likes this.
  12. Jun 28, 2019 at 12:52 PM
    #12
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    1,316
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    You can't just flex in lieu of articulating an opposing narrative and expect that anyone will take you seriously. You should also try to figure out if you're an electrical engineer or a physicist.

    There are applications for CCA for sure, but you have to keep in mind aluminum is more brittle so it doesn't respond well to being worked a lot, and it's recommended you use NO-OX at the connectors and heat shrink them to protect the joint.

    I just don't see the point in running oversize wire and taking strong precautions to achieve the same traits as a smaller gauge OFC wire, especially since we're talking about DC current at low voltage. CCA performs well at lower current and higher voltage, epecially in AC circuits, but there's a reason we don't wire houses in aluminum anymore (heat), and we're not talking about houses, we are talking about low voltage high current systems in vehicles.

    Last edited: Jun 28, 2019
    stealthmode likes this.
  13. Jun 28, 2019 at 1:47 PM
    #13
    treyus30

    treyus30 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    7,756
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Selling 1st gen RWD driveshaft! PM me
    At least I'm willing to back up my claim. The other dude is just flexing with hearsay.
    I'm going to try to ignore the stupidity of that second statement.

    You ever heard of a ferrule?

    ----

    OP, if you care, see my attachment for wire size/type comparison with a brief cost analysis. I tried to use low-average values from Amazon for prices.


    Attached Files:

    Last edited: Jun 28, 2019
  14. Jun 29, 2019 at 5:41 PM
    #14
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    403
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
  15. Jun 30, 2019 at 9:31 PM
    #15
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    598
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
    9 in 1 or 5 in 1 wire, its about the size of 4gauge wire.

  16. Jul 1, 2019 at 7:23 PM
    #16
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    403
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
    9IN1

  17. Jul 4, 2019 at 11:03 PM
    #17
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    598
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
  18. Jul 5, 2019 at 5:54 AM
    #18
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    403
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
  19. Jun 2, 2020 at 2:05 PM
    #19
    82nate

    82nate Member

    Joined:
    Jun 2, 2020
    Member:
    #330119
    Messages:
    8
    Gender:
    Male
    First Name:
    Nate
    Vehicle:
    2020 Tacoma
    Can someone please tell me the correct speaker wire colors, + & - for left & right front doors? Thx!

  20. Jun 2, 2020 at 3:59 PM
    #20
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,858
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    RobertOchoa3 and 82nate[QUOTED] like this.
