Another Mini D2S Retrofit from TRS

Discussion in 'Lighting' started by Dr. Sleep, Jan 14, 2012.

  1. Jan 14, 2012 at 10:14 AM
    #1
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Using the how to guides here, I just completed a Mini D2S Retrofit and black headlight mod, using hardware purchased off of TRS. The guides available here and at HIDplanet make it VERY easy for a DIYer. I thought I'd just add my $0.02 to some of the issues/problems I ran into for the next guy.

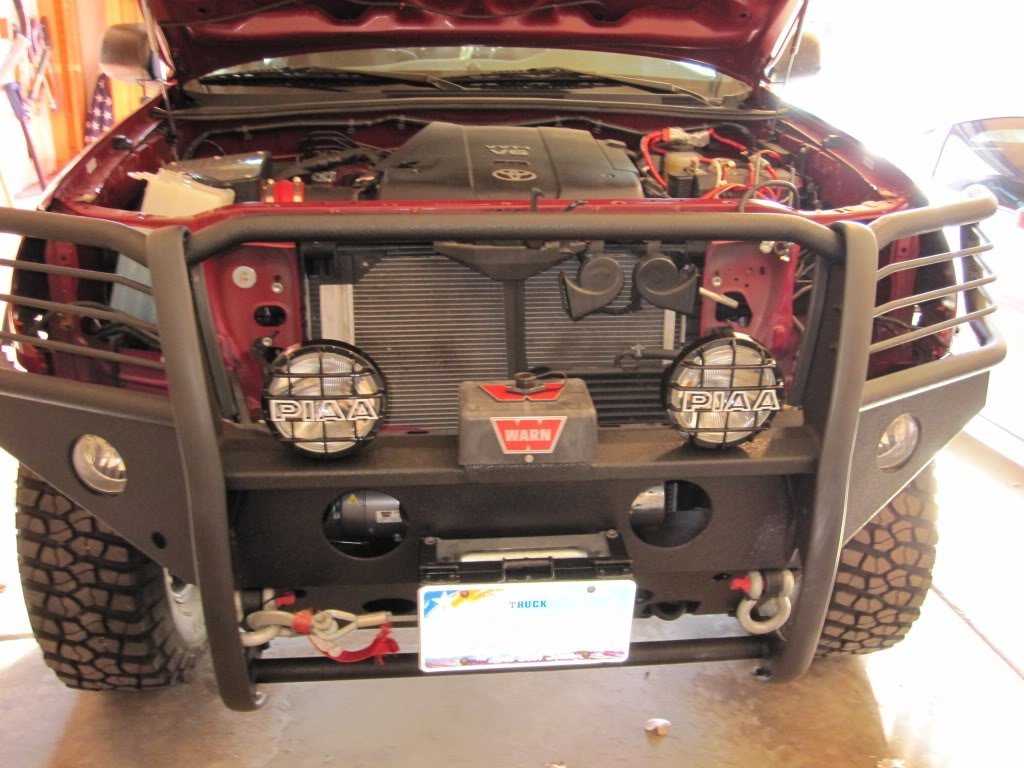

    1st step: remove headlight assemblies. The #1 biggest issue here is getting one particular bolt off -- it's lateral attached to the fender -- a real PITA. The only way I could do it was to take off my bumper. I didn't bother putting that 1 bolt back on when I re-installed the headlights. I just put some black RTV silicone gasket maker on the end.

    [​IMG]

  2. Jan 14, 2012 at 10:18 AM
    #2
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

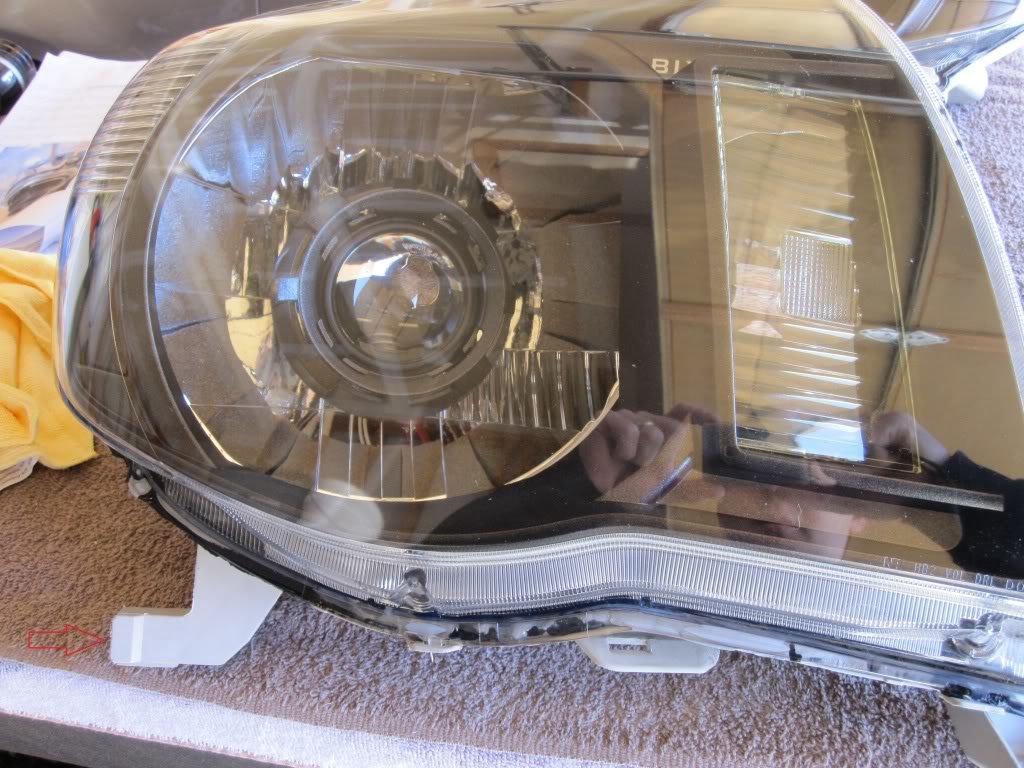

    That 1 stubborn bolt is located at the red arrow.

    [​IMG]

  3. Jan 14, 2012 at 10:23 AM
    #3
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

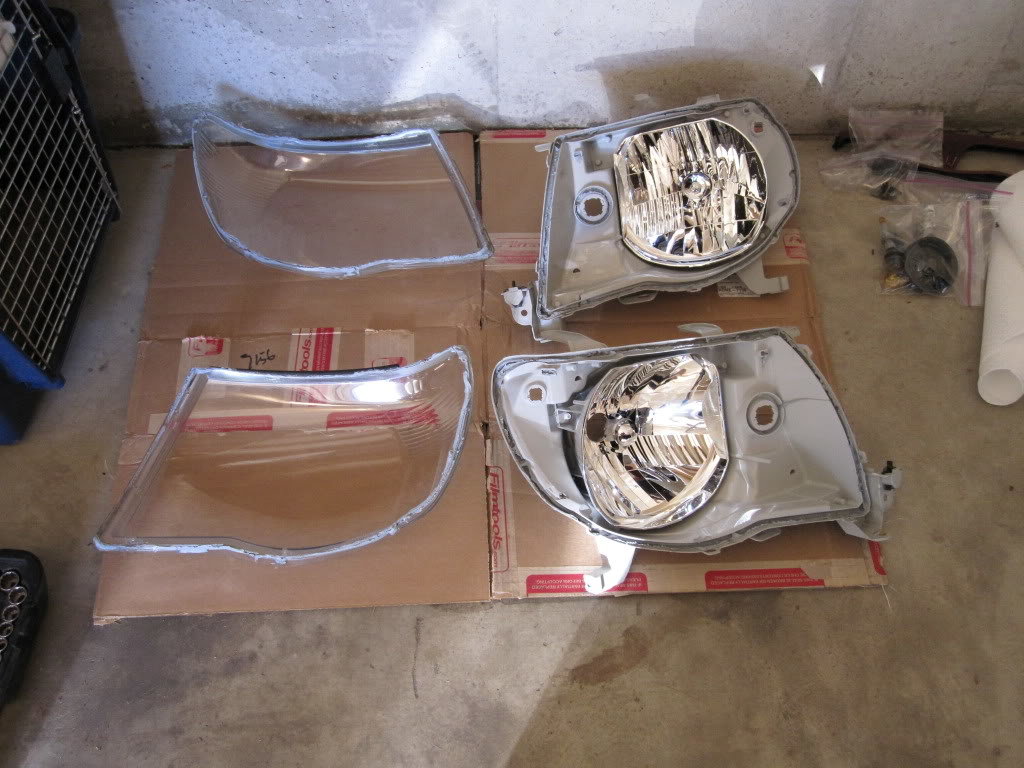

    Step 2 is to remove all the bulbs and rubber parts. That's well described else where. Once that's done . . . time to bake. Baking the headlights was the part I was most concerned about, but it turned out to be the least problematic part of the whole project. Just use some wood or cardboard to place on the oven rack . . . only one headlight at a time fit. I used 285 degrees for 10 minutes. I've heard different times and temperatures from different people, but this worked for me. It wasn't too difficult to separate the halves usine a large flat head screw driver and elbow grease. When done . . . they're separate like this.

    [​IMG]

  4. Jan 14, 2012 at 10:27 AM
    #4
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

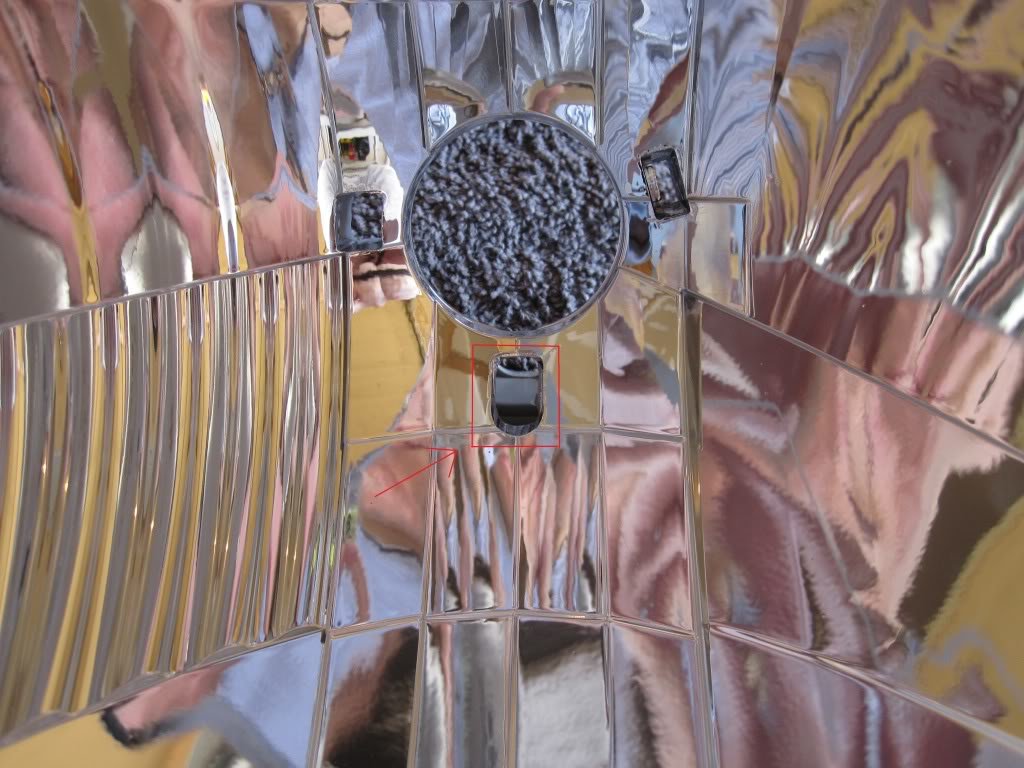

    I removed the halogen bulb shield with a dremel. Too easy. FYI. . . if you're installing CCFL angel eyes on the shrouds, I think I found the best place to run the wires for the CCFL angel eyes. Using a dremel, enlarge the area shown in red to look like the picture. Then, the white connector to the CCFL angel eyes will fit through this hole. While on the topic of CCFL angel eyes . . . TRS recommends 100mm for the Gatlin Gun shroud, but once installed they don't line up exactly with the light openings . . . I'd recommend 90mm ones.

    [​IMG]

  5. Jan 14, 2012 at 10:29 AM
    #5
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    I painted the shrouds a metallic black to look like this:

    [​IMG]

  6. Jan 14, 2012 at 10:30 AM
    #6
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    I did the black headlight mod in the same color.

    [​IMG]

  7. Jan 14, 2012 at 10:31 AM
    #7
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Here is the color:

    [​IMG]

  8. Jan 14, 2012 at 10:32 AM
    #8
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

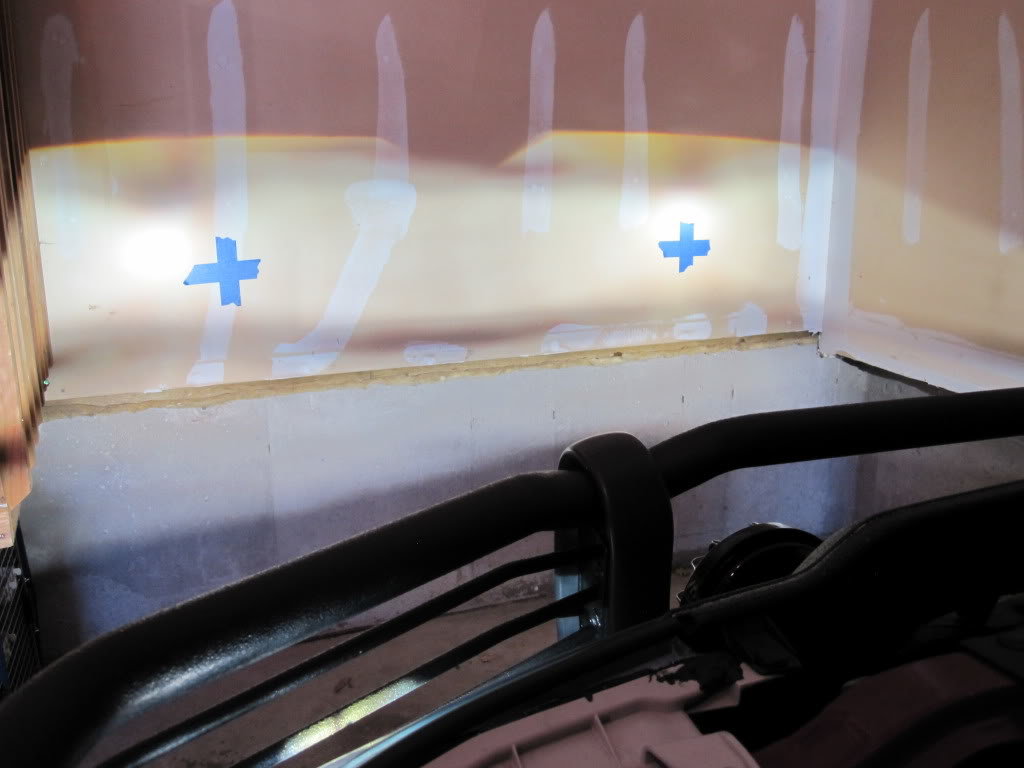

    Once aligned: Low beams:

    [​IMG]

  9. Jan 14, 2012 at 10:32 AM
    #9
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    High beams:

    [​IMG]

  10. Jan 14, 2012 at 10:34 AM
    #10
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Oh one more thing . . . . the electrical harness. TRS told me that the orange/black connector went to the ballast and the blue/black connector went to the high-beam solenoid. Nope . . . other way around for me. Blue/black went to ballast. Orange/black went to solenoid.

  11. Jan 19, 2012 at 8:21 PM
    #11
    Crime29

    Crime29 I fight authority, and authority rarely wins.

    Joined:
    Jan 9, 2011
    Member:
    #48995
    Messages:
    14
    Gender:
    Male
    First Name:
    Drew
    Right in the Armpit of South Carolina
    Vehicle:
    09 DoubleCab PreRunner SR5 LB TRD Sport
    Morimoto mini DS2 HID retrofit with HALOs, EVO Mod done with PlastiDip, 18" Alloys swapped from a 4RunnerUrban Runner, 265/65/18 Hankook DynaPro ATM tires, Andres' Devil Horns, AVS Window Visors, Cupholder LEDs, TRD Sticker Delete, Bed Pocket LED Lighting, 3000k HID Fog Lights, Parrot Bluetooth, Mud Flap Delete
    I am dangerously close to ordering this kit from TRS. Can you show some pics of the finished headlight with the halos. Do you wire the halos up separately and run a switch to the cab, or what?

    I like your idea of painting the shrouds. I've been thinking of doing this and the bhlm at the same time, but using some black chrome wheel paint i found. I think that would look absolutely sick with my Pyrite Taco.

  12. Jan 20, 2012 at 1:21 PM
    #12
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    The 2nd picture is actually the completed headlight assembly. As far as pictures of the lights on. . . I will try to post some pics. But pictures of lit headlights are difficult to make look like what they look like in person. As far as wiring the halos, you can wire them to turn on however you like. The halos have white wire running to a small inverter, then the inverter has a black and red wire that you run to ground and 12 V DC source respectively. You can wire them to turn on with the parking lights, by tapping into the parking light 12V positive and ground. Or you can run a switch to your cab if you want to.

    I will say this about the halos. B/c I left the reflector bowl unpainted, the light coming from the back of the halos, also reflects off the reflector bowl, so there is light coming out the gatlin gun shroud slits and also a "glow" around the reflector bowl. If you don't like the "glow" then I would paint the reflector bowl a solid color -- black or whatever you like.

  13. Jan 21, 2012 at 9:47 AM
    #13
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

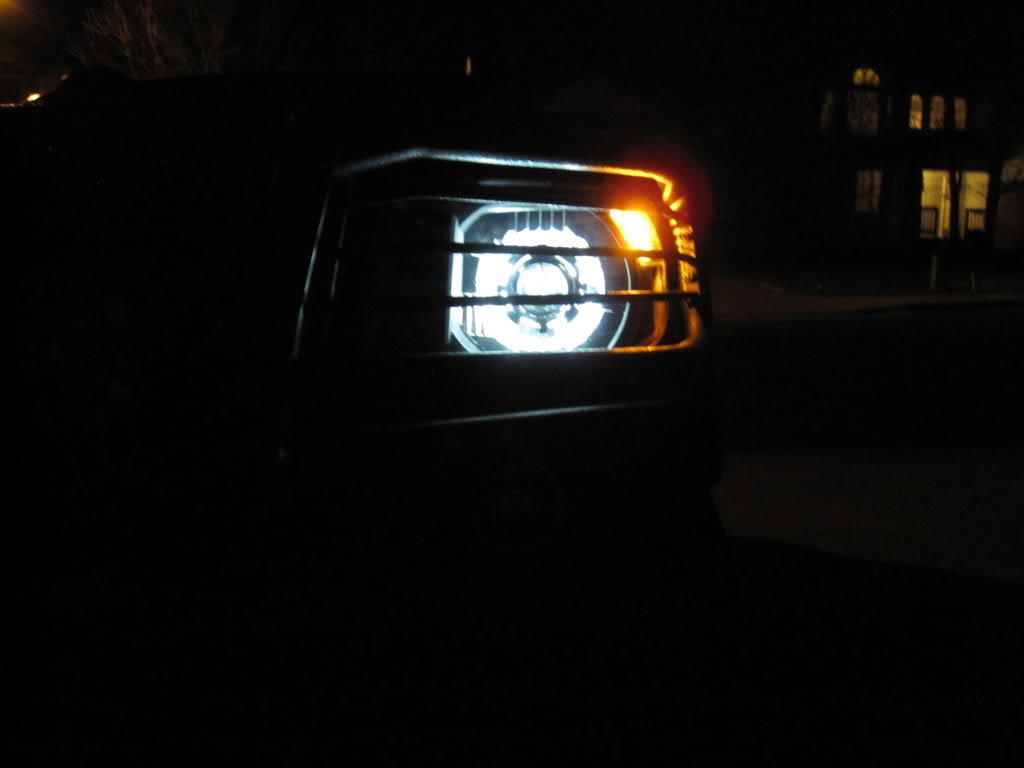

    picture of just the angel eyes lit . . . . tough to see what it really looks like in person, b/c photographs of lit headlights never look like the real thing.

    [​IMG]

  14. Jan 21, 2012 at 9:56 AM
    #14
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

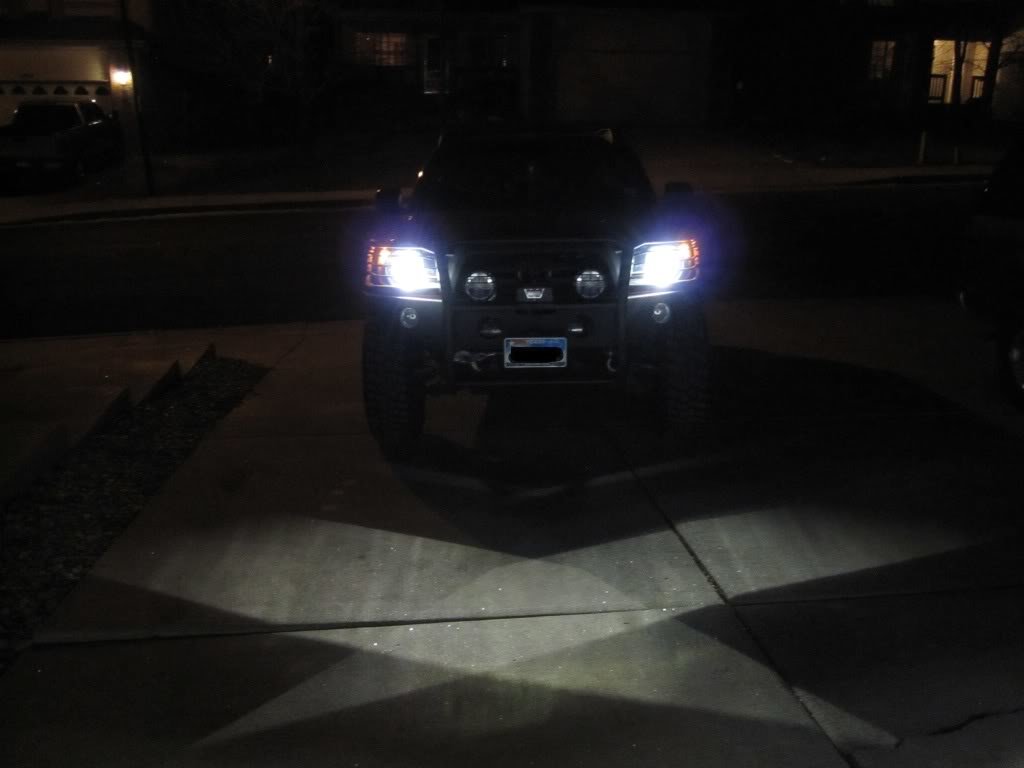

    Picture of headlights lit up:

    [​IMG]

  15. Jan 21, 2012 at 9:57 AM
    #15
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

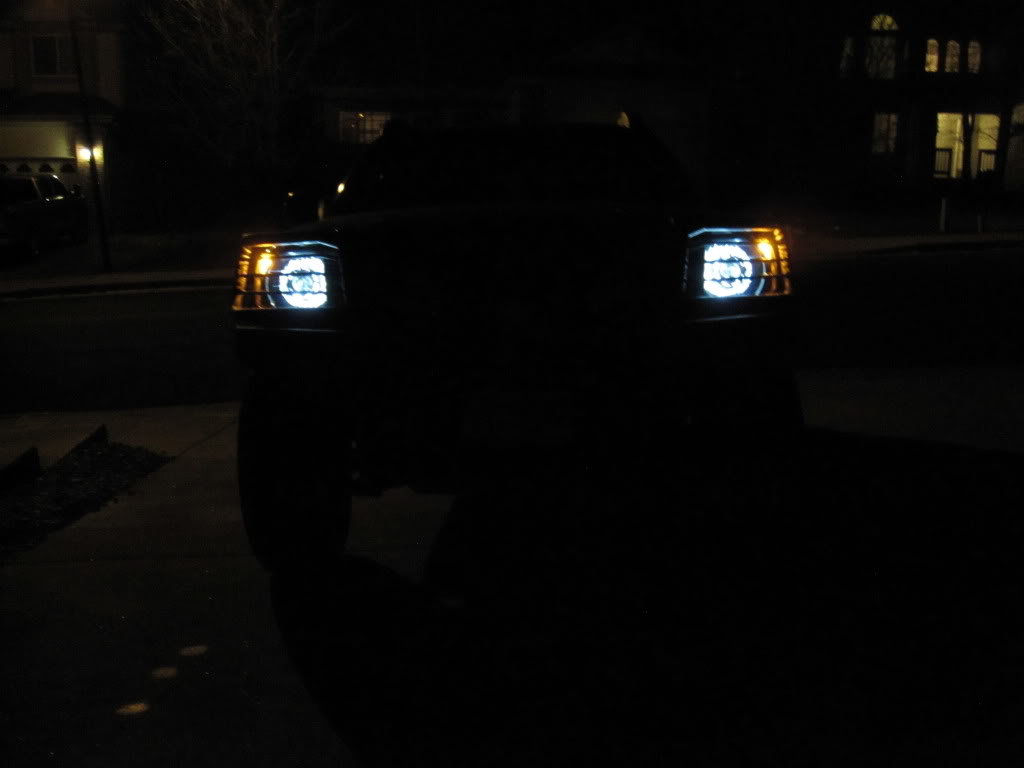

    picture of both angel eyes lit:

    [​IMG]

  16. Jan 31, 2012 at 7:07 AM
    #16
    chadcj7

    chadcj7 Active Member

    Joined:
    Oct 3, 2011
    Member:
    #64567
    Messages:
    36
    Gender:
    Male
    First Name:
    CHAD
    Bellevue
    what type of shroud did you use? Thanks

  17. Jan 31, 2012 at 7:36 AM
    #17
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Gatlin Gun

  18. Jan 31, 2012 at 7:40 AM
    #18
    REDTRD

    REDTRD Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,253
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    Looks good man. How much did the total project cost ya?

  19. Jan 31, 2012 at 2:38 PM
    #19
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    1 x Bi-xenon Morimoto Mini Stage III Kit (D2S) (MiniD2SIII) = $375.00
    Bulbs New Philips 85122+ D2S
    Ballasts 1) Morimoto 3Five 35w
    Shrouds Gatling Gun
    Wire Harness Relay: H4/9003
    Projectors LHD (North American Standard)
    Re-sealing Glue Yes please
    CCFL Angel Eyes Yes
    ------------------------------------------------------
    Sub-Total: $375.00
    USPS Priority Mail: $16.74
    Coupon TRS34: -$16.74
    Total: $375.00

    Then like, $2.00 for spray paint.

  20. Jan 31, 2012 at 6:03 PM
    #20
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    828
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    Great write up! +rep for that.

    The truck looks great too, I would love to see a daytime pic.
