Another Take on Extra D-Rings

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jyffmguy, Nov 23, 2009.

  1. Nov 23, 2009 at 2:44 PM
    #1
    jyffmguy

    jyffmguy [OP] Taco Boosh!

    Joined:
    Sep 7, 2009
    Member:
    #22394
    Messages:
    41
    Gender:
    Male
    First Name:
    Jeff
    Midlothian, IL
    Vehicle:
    '10 DC SB OR
    I set out today to add more D-rings to my bed, as I was, like most of you, unhappy with the lack of place to secure things at the front of the bed. I originally started with this excellent write-up by Neubs. While going through the process, however, I found that I didn't like a few things about the install. It's pretty much all me being picky. The bed bolts did not sit flush on top of the OEM D-Rings I bought, and also prevent the D-rings from being able to swivel. These two facts led me to install the D-Rings per Toyota's instructions that came in the package. For those who like to see pictures before pulling the trigger on a mod, here you go. This install is easier than zipping your pants (less risky too).

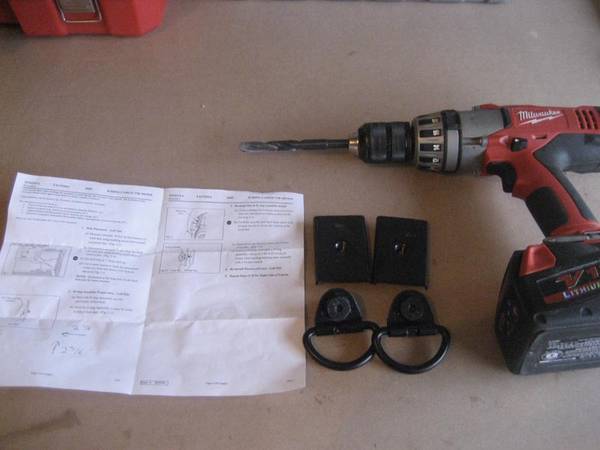

    Materials:
    - Toyota Part:pT785-35054 (this is the old part number. If you call toyota and ask for these, they reference a new number. I am not sure if they are the EXACT same part)
    - T40 3/8" Drive Socket
    - 19mm wrench or socket
    - 7/16" drill bit
    - pencil
    - tape measure
    [​IMG]

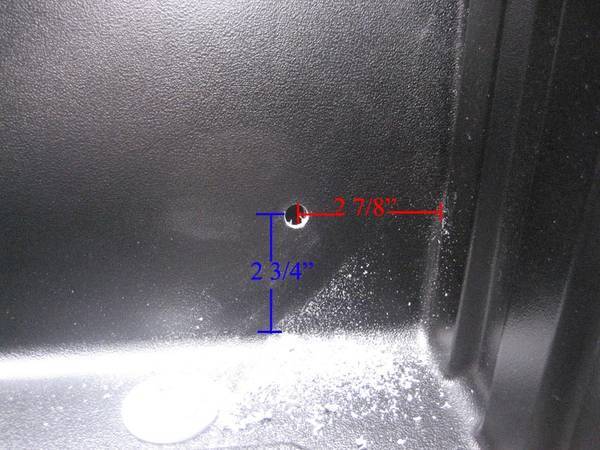

    1. The instructions say to measure 70mm up from the bottom and 72 mm from the front of the bed to mark your hole. Converted and round to the nearest measureable length, this is 2 3/4" up and 2 7/8" over.Drill the hole using a 7/16" bit, being careful not to penetrate your fuel fill pipe (you have to REALLY F UP to even come near it, but c.y.a., right?)
    [​IMG]

    2.Take the white plastic washer off the D-Ring bolt, and place the bolt through the hole. Use some duct tape if you'd like to hold it in place for the next step.

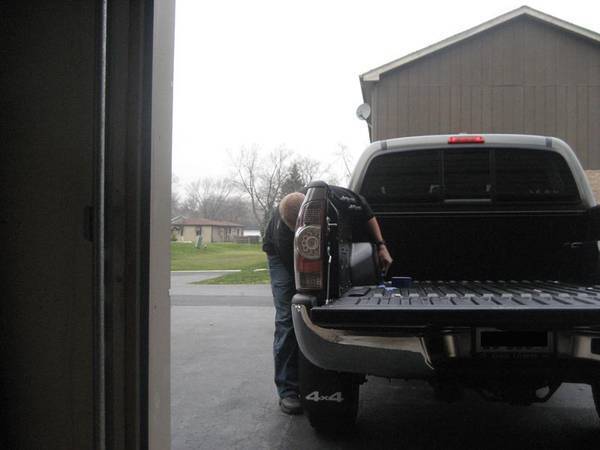

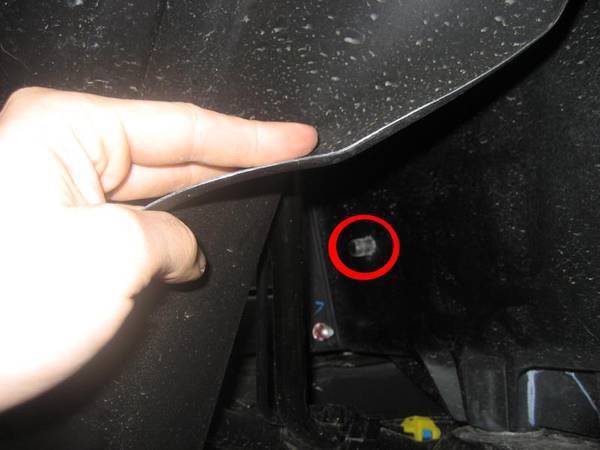

    3. Get out of the bed and head to the wheel well. In the instructions, which were written for an '05, it mentions removing screws from the wheel well shroud. Do so if necessary, but I found with my '10 that I could just bend the shroud back a little bit to find the bolt:
    [​IMG]

    4. Attach the backing to the bolt using a T40 bit and a 19mm wrench. This can be done alone if you are particularly flexible or blessed by genetics with gorilla arms. Otherwise, get your wife/husband/hetero life mate to hold the backplate vertical per the instructions while you torque the bolt to 23.5 lb-ft.
    [​IMG]

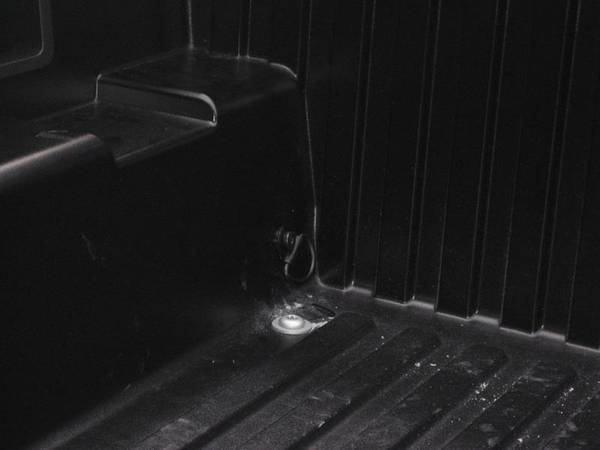

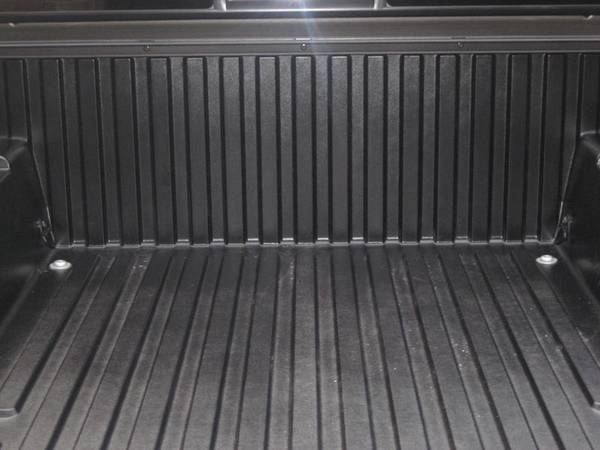

    A few pics of the finished product:
    [​IMG]
    [​IMG]

    Enjoy your newly acquired tie-down capabilities.
