Any Electricians in the house?

Discussion in 'Off-Topic Discussion' started by SiRMarlon, Apr 24, 2011.

  1. Apr 24, 2011 at 2:12 PM
    #1
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    I want to get some input from anyone who's an electrician...my garage does not have an overhead light or any power plugs so I wanted to add some. There is already a hot conduit run into the garage pictured below...

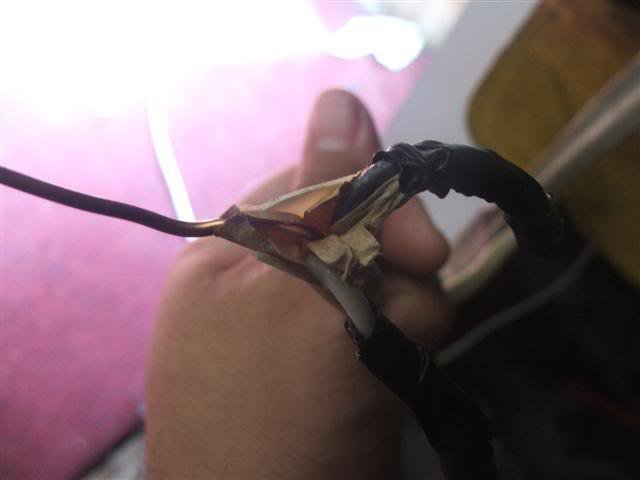

    The markings in the wire say "TypeNM-B 12/2 with Ground Plastic 600volts Cirtex-U (UL) J.S./D.W"

    Black, White, and exposed

    [​IMG]

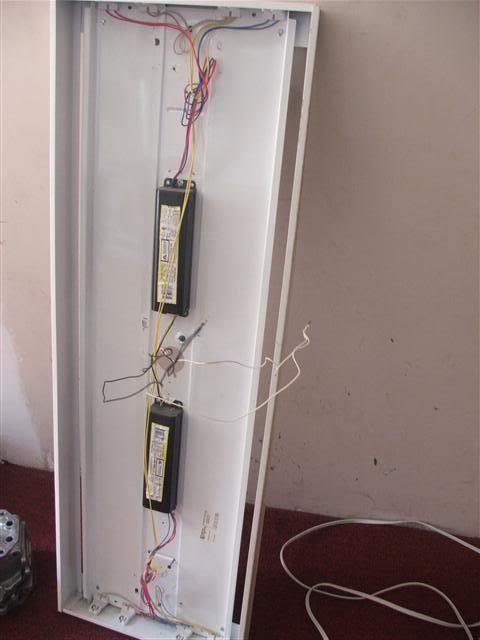

    And this is the light fixture I want to install...

    [​IMG]

    These are the wires on the fixture

    [​IMG]

    I want to install a power outlet and a light switch for the over head lights. Now I am a do it yourselfer so I was just wondering if someone can give me some guidance as to what to get and how to make the connections. I don't have the money to pay an electrician to come and do this so I figured I come and ask some of you guys here! :D

  2. Apr 24, 2011 at 2:18 PM
    #2
    cc350

    cc350 Buckeye Member

    Joined:
    Oct 11, 2010
    Member:
    #44527
    Messages:
    946
    Gender:
    Male
    First Name:
    Chas
    Liberty,Twp Ohio
    Vehicle:
    06 PreRunner TRD DC
    TRex3 eyelids,Undercover hardshell cover,Timbrens
    White / Neutral
    Black / Hot
    Bare copper / Ground

  3. Apr 24, 2011 at 2:20 PM
    #3
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Is your feeder wire from the panel or on the end of a loaded circuit ?

  4. Apr 24, 2011 at 2:21 PM
    #4
    cc350

    cc350 Buckeye Member

    Joined:
    Oct 11, 2010
    Member:
    #44527
    Messages:
    946
    Gender:
    Male
    First Name:
    Chas
    Liberty,Twp Ohio
    Vehicle:
    06 PreRunner TRD DC
    TRex3 eyelids,Undercover hardshell cover,Timbrens
  5. Apr 24, 2011 at 2:24 PM
    #5
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    Well I am pretty sure it's from a loaded circuit as there is only a one wire run into the garage the other side of the garage already has power, lights, and outlets. I think I got a pretty good idea of how this works...but since the overhead light does not have a ground wire I don't know where to hook up the ground from the cable to. Does that make sense?

  6. Apr 24, 2011 at 2:25 PM
    #6
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You can only have 12 devices on a circuit , if you are adding lights to the end of an already loaded circuit , this is no bueno .

  7. Apr 24, 2011 at 2:26 PM
    #7
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Can you test what else is on the circuit you intend to add to ?

  8. Apr 24, 2011 at 2:27 PM
    #8
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII

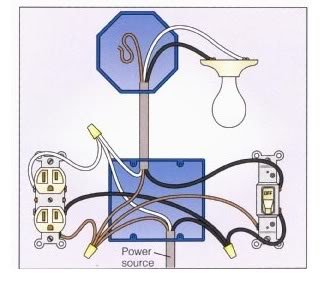

    This is what I found...

    [​IMG]

    Would I just leave the ground at the light fixture just hanging there not hooked up to anything?

  9. Apr 24, 2011 at 2:27 PM
    #9
    GotLift37

    GotLift37 Bangers Runner

    Joined:
    Apr 25, 2008
    Member:
    #6185
    Messages:
    1,774
    Gender:
    Male
    First Name:
    Matt
    down south
    Vehicle:
    07 4Runner 4WD
    2.5" front lift (leeper coilover) 1" body 16" Dick Cepek DC1 Black/polished 295/75/16 General Grabber AT2 Tinted Taillights 5% tint OEM Acura TSX HID Retrofit White LED dash light conversion
    and also remember..black on brass white on silver. as for wiring the switches up. black wire on brass screw white wire on silver screw. google is your friend. lol luckily i took a few electric classes.

  10. Apr 24, 2011 at 2:28 PM
    #10
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    Not sure how I would test...and you mean I can only have 12 things hooked up per outlet or per run?

  11. Apr 24, 2011 at 2:29 PM
    #11
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    That ground would be grounded at a lug in the electrical box

  12. Apr 24, 2011 at 2:29 PM
    #12
    GotLift37

    GotLift37 Bangers Runner

    Joined:
    Apr 25, 2008
    Member:
    #6185
    Messages:
    1,774
    Gender:
    Male
    First Name:
    Matt
    down south
    Vehicle:
    07 4Runner 4WD
    2.5" front lift (leeper coilover) 1" body 16" Dick Cepek DC1 Black/polished 295/75/16 General Grabber AT2 Tinted Taillights 5% tint OEM Acura TSX HID Retrofit White LED dash light conversion
    if anything. ground the box.

  13. Apr 24, 2011 at 2:30 PM
    #13
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    So I have to get a little receptacle box for the top of the lights?

  14. Apr 24, 2011 at 2:31 PM
    #14
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    12 devices per circuit , for example 5 lights and 7 plugs .

    Adding more devices can lead to an overloaded circuit , which is a fire hazard .

  15. Apr 24, 2011 at 2:33 PM
    #15
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    Ohh I am good then :D I only have 1 light and two outlet boxes in the other room, so this would add another light and another outlet box. That means I can add a few more outlets in my garage! :)

  16. Apr 24, 2011 at 2:33 PM
    #16
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Those flourecents usually have a wiring area with a ground screw , it is usually green .

    The diagram you showed is a porcelain sconce on a metal box

  17. Apr 24, 2011 at 2:36 PM
    #17
    lezavw90

    lezavw90 Active Member

    Joined:
    Jul 17, 2009
    Member:
    #19783
    Messages:
    37
    Gender:
    Male
    In your picture of the light you can see the ground screw just above the center hole of the light.

  18. Apr 24, 2011 at 2:36 PM
    #18
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII

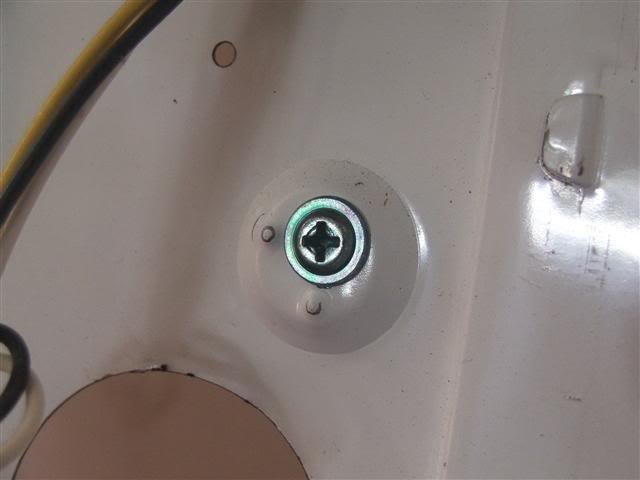

    I just noticed a green screw, would this be were the ground would go?

    [​IMG]

  19. Apr 24, 2011 at 2:38 PM
    #19
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,673
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Yes

  20. Apr 24, 2011 at 2:47 PM
    #20
    SiRMarlon

    SiRMarlon [OP] The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    Thanks a lot fellas! I got the answers I was looking for!
